Fortinet NSEI_OTS_AR-7.6 Dumps Questions Answers

According to the OT Security 7.6 Architect study guide regarding IEC 62443 Security Levels :

Security Level 4 (SL 4) Definition : This level provides " Protection against intentional violation using sophisticated means with extended resources, specific skills, and high motivation " .

Real-World Application : The study guide specifically notes: " If you are facing a syndicate of cyber extortionists with extensive resources and capabilities, then you should strive for security level 4 " .

Comparison to other levels :

SL 1 : Protection against " casual or unintentional system violation " .

SL 2 : Protection against " intentional violation using simple means with low resources " .

SL 3 : Protection against " intentional violation using sophisticated means with moderate resources " .

The correct answer is D. You can configure forward domain IDs for each network .

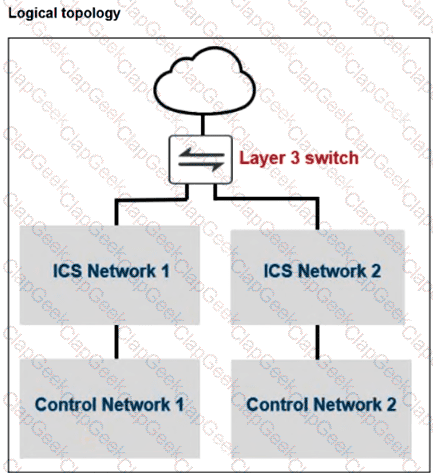

The study guide explains that in FortiGate transparent mode, all interfaces belong to the same broadcast domain, even interfaces with different VLAN IDs , and then states that you can “subdivide into multiple broadcast domains” by configuring set forward-domain < domain_ID > . It also states that “interfaces with the same domain ID belong to the same broadcast domain” and, with multiple forward domains, “traffic arriving on one interface is broadcast only to interfaces in the same forward domain ID.” That is the mechanism used to separate internal networks and confine traffic between network segments.

The other options do not fit this requirement. Universal ZTNA is for application access control, not segmentation between two OT networks. One traffic VDOM does not create segmentation by itself; multiple VDOMs would be needed for that type of isolation. An explicit software switch controls intraswitch traffic inside the same software-switch domain, not segmentation between separate networks like network 1 and network 2. Therefore, the correct way to implement the internal segmentation asked in the question is to assign different forward domain IDs to each network.

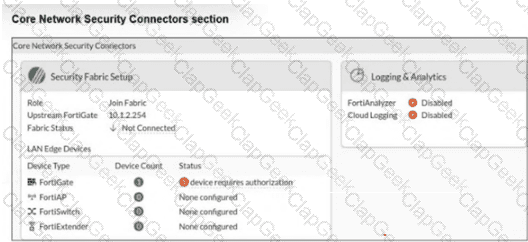

Based on the provided exhibit and the OT Security 7.6 Architect curriculum regarding the Fortinet Security Fabric :

Fabric Role : The exhibit clearly shows that FortiGate-2 has the role set to Join Fabric . This confirms it is a downstream device and not the Fabric Root (eliminating Option A).

Upstream Connection : The device is configured to point to an Upstream FortiGate at IP address 10.1.2.254 .

Fabric Status : The status is currently displayed as Not Connected . In a standard Fortinet Security Fabric deployment, once a downstream device is configured to join the fabric, it sends a request to the upstream root device. The root FortiGate must then explicitly authorize the downstream unit before the connection is established and the status changes to " Connected. "

Authorization Requirement : The " Not Connected " status, while having the upstream IP correctly configured, is the classic indicator that the authorization step is pending on the root FortiGate. Furthermore, under the LAN Edge Devices section, it shows another downstream FortiGate requiring authorization on this specific unit, highlighting that authorization is a manual security requirement for all stages of the Fabric hierarchy.

FortiAnalyzer Status : While the Logging & Analytics section shows FortiAnalyzer is Disabled , this is a configuration choice and does not prevent the Security Fabric from connecting; therefore, configuring it is not the solution to the connectivity status shown (eliminating Option C).

In summary, FortiGate-2 cannot join the fabric until an administrator logs into the Root FortiGate (10.1.2.254) and authorizes the join request from FortiGate-2.
