Fortinet NSE4_FGT_AD-7.6 Dumps Questions Answers

“When you enable reliable logging on FortiGate, the log transport delivery method changes from UDP to TCP. TCP provides reliable data transfer, guaranteeing that the transferred data remains intact and arrives in the same order in which it was sent.”

“Optionally, if using reliable logging, you can encrypt communications using SSL-encrypted OFTP traffic, so when a log message is generated, it is safely transmitted across an unsecured network.”

Technical Deep Dive:

The correct answer is C . The study guide explicitly ties reliable logging to TCP transport and optionally to SSL-encrypted OFTP . Among the choices, the padlock icon is the only one that meaningfully indicates secure, reliable log transport behavior. A green check icon usually indicates that the FortiGate–FortiAnalyzer connection is simply up , not specifically that reliable logging is enabled. Interface status being up is unrelated, and real-time logging mode describes delivery behavior, not the reliable transport indicator itself.

So, exam-wise, the best answer is C .

From the CLI perspective, reliable logging changes the transport from UDP to TCP, and with encryption enabled it uses SSL-protected OFTP. That is why the GUI indicator associated with secure transport is the most relevant visual clue here.

In FortiSASE site-based (remote internet access) deployments, FortiExtender is used to onboard branch or remote sites without a local FortiGate.

According to FortiSASE and FortiExtender architecture documentation:

FortiExtender integrates with FortiSASE using a secure VXLAN-over-IPsec tunnel

This tunnel:

Extends the site network to FortiSASE

Transparently forwards traffic for inspection

Preserves network segmentation and routing context

This design is similar to cloud-based LAN extension and is not proxy-based

Why the other options are incorrect

B: FortiClient is used for agent-based user access, not FortiExtender

C: Secure Web Gateway (SWG) is a service, not a transport mechanism

D: PAC files and explicit proxies are used in agentless / proxy-based access, not site-based FortiExtender deployments

A closely related routing principle from the guide is:

“For each session, FortiGate performs two route lookups... After completing these two lookups, FortiGate writes the routing information to its session table. Subsequent packets are routed according to the session table, not the routing table.”

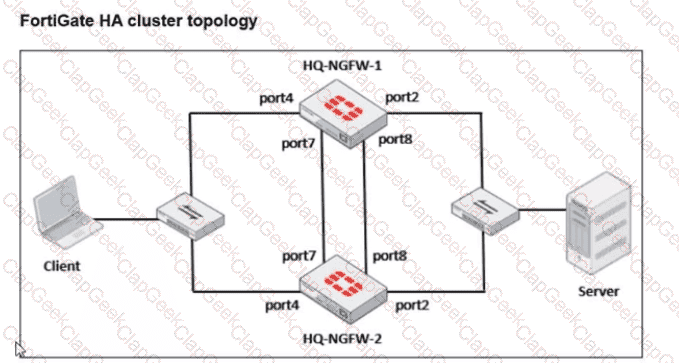

Also, the guide notes an HA limitation that helps explain the same design principle for FortiGate-terminated sessions:

“Enabling session pickup allows active sessions to be seamlessly handed picked up by the new primary in the event of an HA failover... Note that there are some limitations to this – for example, any sessions that terminate at the FortiGate itself ( e.g. SSL VPN, proxy sessions ) cannot be handed off to another FortiGate and must be restarted on the new primary.”

Technical Deep Dive:

The correct answer is D .

In multi-WAN environments, session preservation is used so that traffic for sessions that are tightly bound to the FortiGate interface they terminate on—most notably SSL VPN and other FortiGate-terminated flows—does not suddenly switch to another egress interface just because the routing table changes. Those sessions are sensitive to interface consistency. If replies start leaving through a different WAN after a route recalculation, the remote peer may see an address/interface mismatch and the session can break.

That means:

A is the opposite of session preservation. Preservation is meant to avoid moving active sessions around.

B is not the purpose of the feature.

C is unrelated.

D correctly describes why an administrator would enable it.

Operationally, this matters most for SSL VPN , management-plane flows, and other sessions that terminate on the FortiGate itself , not just ordinary transit traffic. Transit sessions are generally tracked in the session table and can often survive normal routing behavior more gracefully, but FortiGate-terminated sessions are much more sensitive to WAN/interface changes.
