In Fortinet SD-WAN architecture, underlay and overlay have distinct meanings:

Underlay links are the physical or logical transport networks that provide basic IP connectivity (for example, broadband, MPLS, LTE/5G).

Overlay links are virtual tunnels (such as IPsec VPNs) built on top of the underlay, providing abstraction, routing control, and segmentation.

Option B is correct.

Overlay links (for example, IPsec tunnels used in SD-WAN and ADVPN) decouple routing from the physical transport. This allows dynamic path selection, segmentation, and flexible routing policies independent of the underlay. Providing routing flexibility is a core purpose of overlays in SD-WAN.

Option D is correct.

Wireless connections such as LTE or 5G can be used as underlay transports, and overlay tunnels can be built over them. Fortinet SD-WAN fully supports building IPsec overlays on wireless underlays, making wireless links valid for overlay construction.

Why the other options are incorrect:

Option A is incorrect because a VLAN is a Layer 2 segmentation mechanism, not an SD-WAN overlay link.

Option C is incorrect because FortiLink is used for internal management and switch/AP connectivity, not as a WAN underlay for SD-WAN.

Option E is incorrect because underlay links can be wired or wireless; they are not limited to wired connections.

Therefore, the two correct statements are B and D.

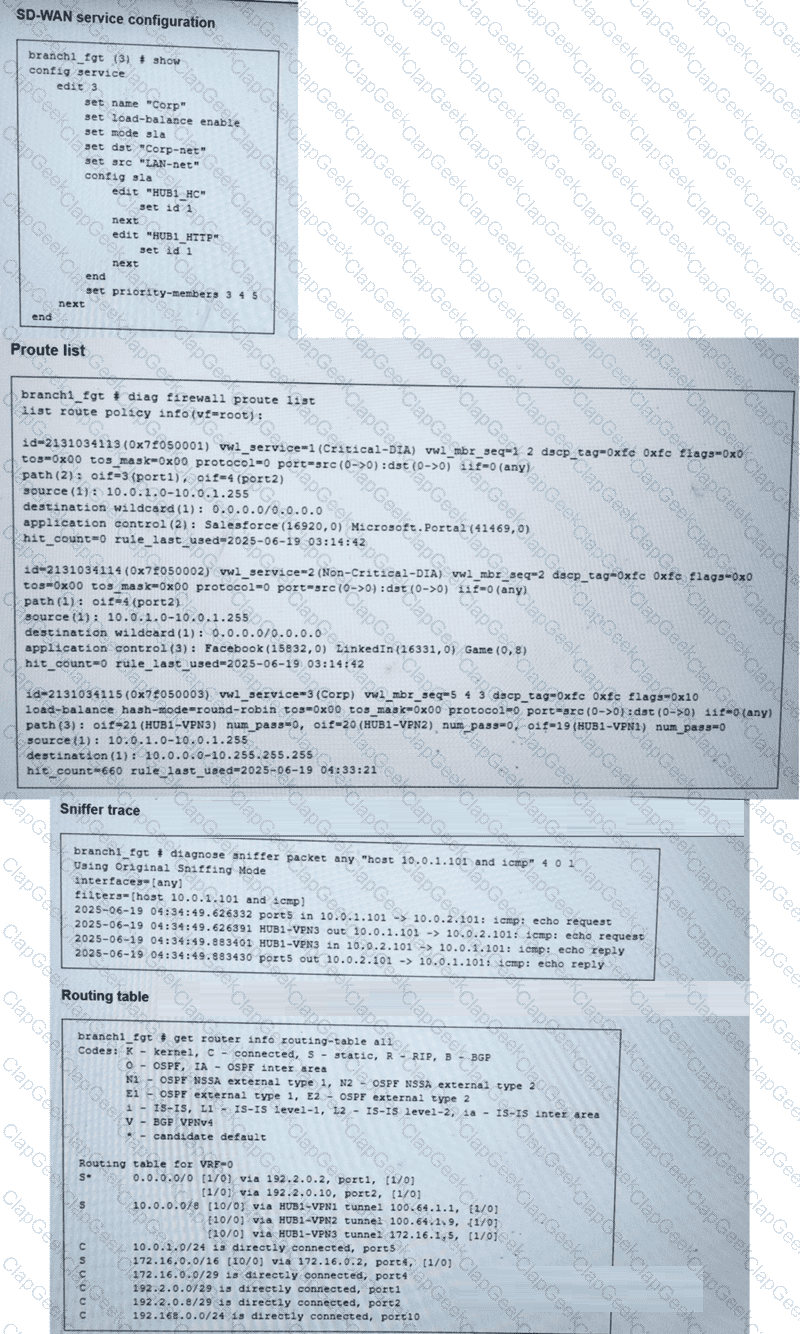

From the SD-WAN service configuration, rule edit 3 (name "Corp") is configured with:

set mode sla

set load-balance enable

set dst "Corp-net"

set src "LAN-net"

SLA checks referenced under config sla

Traffic from 10.0.1.101 to 10.0.0.126 matches this rule because the destination is within the corporate network range (shown in the policy-route/proute output as destination 10.0.0.0–10.255.255.255 for the Corp service).

In the diagnose firewall proute list output for vwl_service=3 (Corp), FortiGate shows which SD-WAN members are eligible based on SLA pass results:

oif=21 (HUB1-VPN3) num_pass=2

oif=20 (HUB1-VPN2) num_pass=0

oif=19 (HUB1-VPN1) num_pass=0

This indicates that, for the SLA-based rule, only HUB1-VPN3 is meeting the SLA requirements (it is the only member with num_pass=2). The other members have num_pass=0, so they are not eligible for forwarding under this SLA rule even though links are up.

The sniffer trace further corroborates the forwarding decision by showing the traffic egressing through HUB1-VPN3.

Therefore, FortiGate will steer the HTTP traffic through only HUB1-VPN3, which corresponds to Option A.
