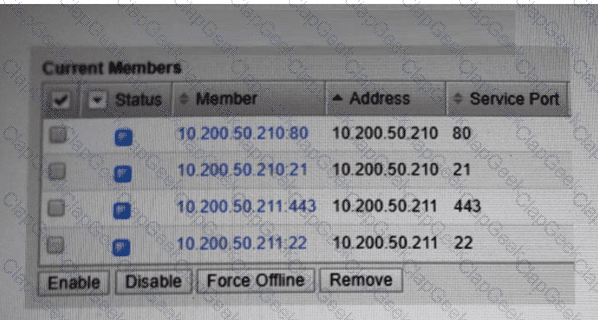

From the exhibit, the pool contains different applications on different service ports (for example, HTTP/80, FTP/21, HTTPS/443, SSH/22). To mark pool members correctly, BIG-IP must be able to verify the actual service running on each member’s port.

In BIG-IP Administration: Data Plane Configuration, monitor behavior is described as follows:

When multiple monitors are assigned to a pool, the Availability Requirement controls how monitor results are evaluated:

At least one = the pool member is marked up if any one of the assigned monitors succeeds.

All = the pool member is marked up only if every assigned monitor succeeds.

For pools containing members with different services/ports, using All can incorrectly mark members down because monitors intended for other services will fail on the wrong port.

Why C is correct:

Assigning HTTPS, HTTP, FTP, and SSH covers the actual services shown in the pool.

Setting the Availability Requirement to at least one ensures that each pool member is considered available when its appropriate service monitor succeeds, without being forced to pass unrelated service monitors.

Why the other options are incorrect:

A / D (Availability Requirement = all): would cause members to be marked down when unrelated monitors fail (e.g., SSH monitor against an HTTP member).

B (includes ICMP): ICMP can indicate the host is reachable even if the application service is down, which does not “accurately” reflect service availability.

Therefore, the best choice is HTTPS, HTTP, FTP, and SSH with Availability Requirement of at least one health monitor.

This scenario describes a classic routing issue often encountered during SSL offload deployments. The fact that an SSL connection is established indicates the Client SSL profile is working correctly. The packet trace showing the server "receives and responds" to the request is the most critical diagnostic clue.

When a BIG-IP receives traffic, it typically passes the client's original source IP address to the backend server. If the backend server's default gateway is not the BIG-IP (a common "one-arm" network topology), the server will attempt to send its response directly back to the client's IP via its own default router. The client's browser will reject this response because it expects traffic to come from the Virtual Server's IP, not the backend server's IP.

To resolve this, the administrator must enable SNAT (Source Address Translation), typically using SNAT Automap. When SNAT is enabled, the BIG-IP replaces the client's original source IP with one of its own Self IPs before forwarding the request to the server. Because the source of the packet is now the BIG-IP, the backend server is forced to send its response back to the BIG-IP. The BIG-IP then receives the response, translates it back, and delivers the content to the user. Option A is unnecessary if the servers are expecting plain-text traffic after the BIG-IP performs offload. Option D would only worsen the existing routing discrepancy.

Fallback persistence is used when the primary persistence method fails. Source Address Affinity is a Layer 4 persistence method and is fully supported as a fallback option for most virtual server types.
