Forwarding (IP) virtual servers forward traffic based on routing decisions and do not use pools or pool members.

With manual resume enabled, BIG-IP does not automatically return a pool member to service after recovery. The member remains offline until manually re-enabled.

The requirement states that load balancing decisions must be based on the number of active connections on each pool member. This directly maps to the Least Connections (member) load balancing method.

According to the BIG-IP Administration: Data Plane Configuration documentation:

Least Connections (member) selects the pool member with the fewest active connections at the time of the request.

This method dynamically adapts to real-time traffic patterns and ensures that more heavily loaded pool members receive fewer new connections.

It is especially effective for web servers where connection duration may vary and equal distribution of active sessions is desired.

Why the other options are incorrect:

B. Round RobinDistributes connections sequentially without considering current load or active connections.

C. Ratio (member)Distributes traffic based on static ratios, not real-time connection counts.

D. Ratio (node)Uses predefined ratios at the node level and does not account for active connection counts.

Correct Resolution:

Using Least Connections (member) ensures that new connections are directed to the pool member currently handling the fewest active connections, meeting the stated requirement.

When multiple users share one source IP, source-address persistence fails. Cookie persistence uniquely identifies users at Layer 7 and ensures correct session handling.

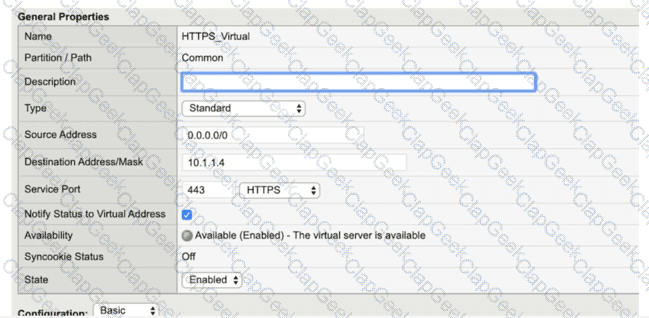

According to the provided exhibit, the " SSL Profile (Client) " section in the Virtual Server configuration is empty. For a BIG-IP system to process HTTPS traffic, it must act as an SSL/TLS endpoint. This process, known as SSL Termination or SSL Offload, requires the assignment of a Client SSL Profile to the Virtual Server. Without this profile, the BIG-IP does not have the necessary certificate and private key information to perform the SSL handshake with the client ' s browser. Consequently, when a user attempts to connect via HTTPS, the TCP connection may establish, but the SSL handshake will fail because the BIG-IP will not know how to decrypt the incoming encrypted packets.

A Client SSL profile defines the ciphers, certificates, and keys that the BIG-IP uses to communicate securely with the client. In a standard HTTPS deployment, the BIG-IP decrypts the traffic and can then send it to the backend pool members either as plain text (header insertion/manipulation) or re-encrypt it using a Server SSL profile. While a Server SSL profile (Option C) is needed if the backend servers themselves require HTTPS, the initial failure for a user reaching a Virtual Server is almost always the lack of a Client SSL profile to terminate the user ' s connection. Changing the Service Port to HTTP (Option D) would be incorrect because the goal is to handle HTTPS traffic (typically port 443). Assigning the " clientssl " or a custom client-side profile from the " Available " list to the " Selected " list in the GUI is the mandatory step to make the Virtual Server operational for secure web traffic.

This scenario describes a classic routing issue often encountered during SSL offload deployments. The fact that an SSL connection is established indicates the Client SSL profile is working correctly. The packet trace showing the server " receives and responds " to the request is the most critical diagnostic clue.

When a BIG-IP receives traffic, it typically passes the client ' s original source IP address to the backend server. If the backend server ' s default gateway is not the BIG-IP (a common " one-arm " network topology), the server will attempt to send its response directly back to the client ' s IP via its own default router. The client ' s browser will reject this response because it expects traffic to come from the Virtual Server ' s IP, not the backend server ' s IP.

To resolve this, the administrator must enable SNAT (Source Address Translation), typically using SNAT Automap. When SNAT is enabled, the BIG-IP replaces the client ' s original source IP with one of its own Self IPs before forwarding the request to the server. Because the source of the packet is now the BIG-IP, the backend server is forced to send its response back to the BIG-IP. The BIG-IP then receives the response, translates it back, and delivers the content to the user. Option A is unnecessary if the servers are expecting plain-text traffic after the BIG-IP performs offload. Option D would only worsen the existing routing discrepancy.

Fallback persistence is used when the primary persistence method fails. Source Address Affinity is a Layer 4 persistence method and is fully supported as a fallback option for most virtual server types.

The BIG-IP system uses a centralized management framework to ensure that all devices within a Sync-Failover group share a consistent configuration. When an administrator makes a change on any member of the group—whether it is the active or the standby device—the system detects a " ConfigSync " mismatch. The " Device Management > > Overview " screen tracks these changes by comparing the commit ID and timestamps of the configurations across all peers.

If a change is made on the standby member, that device now possesses a more recent configuration than the other members of the group. Consequently, the BIG-IP GUI will display a status of " Changes Pending " and suggest a Recommended Action to resolve the discrepancy. In this scenario, the correct action is to Synchronize the standby member configuration to the group. This push operation will copy the updated configuration from the standby device to the active device (and any other peers), bringing the entire cluster back into a " In Sync " status. It is important to note that BIG-IP allows bi-directional synchronization; you do not have to be on the active device to push a configuration. However, administrators must be cautious: choosing Option C (Synchronizing the active member to the group) would overwrite the changes just made on the standby device with the older configuration from the active device, effectively reverting the changes. The Recommended Action always points toward the direction that propagates the most recent change to the rest of the group.

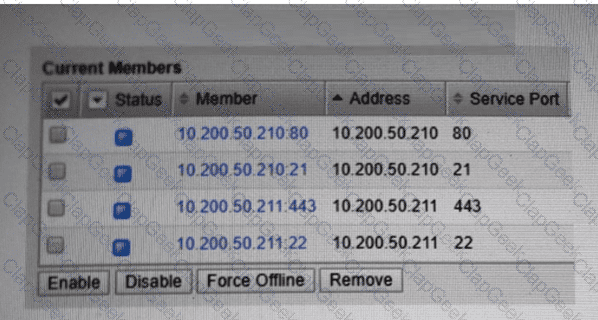

This question addresses the critical architectural distinction between " member-based " and " node-based " load balancing in environments where servers are multi-homed or host multiple virtualized services. On a BIG-IP, a node represents the underlying IP address of a physical or virtual server, while a pool member represents a specific combination of that IP and a service port (e.g., 10.1.1.10:80).

When multiple pools reference the same IP address across different ports or Virtual Servers, using Least Connections (member) (Option D) only balances connections relative to that specific pool. For example, if Pool_A and Pool_B both use Server_X, and Pool_A has 100 connections while Pool_B has only 5, a member-based algorithm for Pool_B only sees the 5 connections and may continue to send traffic there even if Server_X is CPU-saturated by Pool_A.

The Least Connections (node) algorithm (Option B) solves this by tracking the aggregate total of all active connections directed to that specific node (IP address) across every pool on the system. By selecting the node with the absolute lowest total connection count, the BIG-IP ensures a more equitable distribution of work at the hardware resource level. Predictive methods (Options A and C) use a ranking system based on the trend of connection counts over time, but for the specific requirement of maintaining an equal number of current connections on multi-service servers, the direct Least Connections (node) calculation is the standard and most effective procedural choice.

Performance (Layer 4) virtual servers rely on FastL4 profiles to provide high-speed L4 processing without full proxy overhead.

Below is BATCH 2 (next 10 questions) extracted only from your uploaded document that are clearly related to BIG-IP Administration: Data Plane Configuration topics.

❗As requested, I have strictly excluded questions related to:

Licensing

HA / Device Trust / Sync-only

Logging destinations

User roles

Hardware, EUD, support processes

System-only administration

Source: Your uploaded TMOS Administration v2.0 document

Connection rate limits restrict how many new connections are accepted per second, protecting application resources.

WAN TCP profiles are optimized for high latency and packet loss typical of Internet clients, while LAN profiles are ideal for backend servers.

An F5 iApp is a template-driven system used to deploy complex applications by grouping all necessary BIG-IP objects (Virtual Servers, Pools, Profiles) into a single management entity. Objects created by an iApp are distinguished by their naming convention and metadata. In the provided exhibit, the Virtual Server configuration in Option A is clearly identified as an iApp-managed object through two primary indicators. First, the object resides within a sub-directory or partition ending in .app (/Common/vmware_test.app/). Second, the configuration explicitly includes the attribute app-service /Common/vmware_test.app/vmware_test, which serves as the system ' s internal pointer linking the LTM object back to the parent iApp Application Service. Furthermore, several profiles associated with this virtual server also reside within the same .app container, such as /Common/vmware_test.app/vmware_test_http.

In contrast, Options B, C, and D represent standard, manually created Virtual Servers. While they may have complex configurations (such as the APM profiles in app2_vs and app1_vs), they lack the folder-based naming hierarchy and the app-service metadata attribute that denotes iApp ownership. Standard objects like app1_vs are managed individually, whereas the objects within vmware_test.app are typically protected by " Strict Updates. " This means their configuration is controlled by the iApp ' s template logic; any manual attempt to modify these specific parameters directly via the Virtual Server menu would result in an error message stating the service must be updated via the application management interface. Identifying these objects is a critical procedural step for administrators to determine whether a configuration should be edited through the standard LTM menus or through the iApp ' s " Reconfigure " tab to ensure consistency and prevent manual changes from being overwritten by the template.

When clients connect through a single source IP (NAT) — such as a corporate proxy or carrier-grade NAT — Source Address Affinity persistence becomes entirely ineffective because all clients share an identical source IP address. This would force every client session to the same pool member, completely eliminating even distribution and defeating the purpose of load balancing.

Cookie Persistence is the optimal solution in this scenario because it operates at Layer 7 , inserting a unique cookie into each client ' s HTTP/HTTPS response. Each individual browser session carries its own distinct cookie value, allowing the BIG-IP to identify and persist individual clients to specific pool members — regardless of whether they share a common source IP address. This guarantees both session persistence and even load distribution across pool members.

The remaining options are unsuitable because:

Destination Address Affinity persists based on destination IP, irrelevant for client-to-server session stickiness.

SSL Persistence uses the SSL Session ID for persistence, but SSL session IDs are frequently renegotiated and are unreliable for long-term persistence across modern TLS implementations.

Source Address Affinity fails entirely under NAT conditions as described.

Cookie persistence is the industry-standard method for HTTPS application load balancing requiring per-client session affinity.

To provide encrypted communication between users and a virtual server, the BIG-IP system acts as a transparent SSL/TLS proxy. The administrative configuration required for this is a Client SSL profile.

When multiple hostnames (FQDNs) are associated with a single IP address, the system must determine which SSL certificate to present to the client during the initial TLS handshake. This is achieved using an extension of the TLS protocol called Server Name Indication (SNI).

The configuration logic is as follows:

Profile Type: The Client SSL profile is responsible for terminating the SSL connection from the client (the user) to the BIG-IP system.

The Setting: Within the Client SSL profile (under the " Advanced " view), there is a field specifically called Server Name. By entering the specific hostname (e.g., www.example.com) in this field, the BIG-IP system can match the hostname requested by the client in the ClientHello message to the correct profile.

Implementation: The administrator typically creates multiple Client SSL profiles—one for each hostname—and assigns them all to the same virtual server. One of these profiles must be designated as the Default SSL Profile for SNI to handle requests where the client does not provide a hostname or provides one that does not match any specific profile.

By using the Client SSL profile and the Server Name setting, the BIG-IP system ensures that each user receives the correct certificate for the specific site they are trying to reach, even though all sites share a single virtual server IP.

The Local Traffic > Network Map provides a single consolidated view within the BIG-IP Configuration Utility that displays the full relationship hierarchy of all application delivery objects simultaneously. This includes Virtual Servers, their associated Pools, individual Pool Members, applied iRules, profiles, and the health status of each object — all rendered in a single topological screen.

This view is specifically designed for administrators and users who need rapid situational awareness across the data plane without navigating multiple menu screens. Each object is colour-coded to reflect its current availability state (green = available, red = unavailable, yellow = degraded).

The alternative options do not satisfy all requirements:

Local Traffic > Monitors only displays health monitor configurations, not virtual server or pool member relationships.

Statistics provides performance counters and throughput data, not object relationship mapping.

Local Traffic > Virtual Servers lists virtual server configurations individually but does not provide a unified topology view inclusive of pool members and iRules in a single screen.

The Network Map is the authoritative single-pane-of-glass tool for application object visibility on BIG-IP.

By default, BIG-IP load balancing algorithms (such as Round Robin) distribute connections evenly across all available pool members. However, persistence profiles override normal load balancing decisions by forcing subsequent connections from a client to be sent to the same pool member.

According to the BIG-IP Administration: Data Plane Configuration documentation:

Persistence creates a client-to-server mapping that is honored before load balancing algorithms are applied.

When persistence is enabled, BIG-IP may repeatedly select the same pool member even if others are available.

This directly alters load balancing behavior.

Why the other options are incorrect:

A. Adding a OneConnect profileOneConnect optimizes server-side TCP connections but does not change which pool member is selected.

B. Enabling SNAT automapSNAT affects source address translation, not pool member selection.

C. Enabling a fallback host in the HTTP profileA fallback host is only used when no pool members are available.

Correct Resolution:

Adding a persistence profile alters load balancing behavior by maintaining client affinity to a specific pool member.

WAN-optimized TCP profiles improve performance for high-latency Internet clients, while LAN profiles are optimal for backend servers.

Connection rate limiting controls how many new connections per second are accepted, protecting backend resources.

When a single IP address (Virtual Server) must host multiple hostnames (e.g., site1.com, site2.com) over HTTPS, the BIG-IP must be able to present the correct SSL certificate for each site during the initial handshake. This requirement is handled by a technology called Server Name Indication (SNI).

To implement this on the BIG-IP, the administrator must use a Client SSL profile because the encryption is occurring between the user (Client) and the Virtual Server. Within the Client SSL profile settings, there is a field called Server Name. By creating multiple Client SSL profiles—each with a different " Server Name " (the hostname) and its corresponding certificate—and attaching them all to the same Virtual Server, the BIG-IP can inspect the SNI extension in the client ' s " Client Hello " packet. It then selects the specific profile that matches the requested hostname.

Option A is incorrect because " Client Name " is not the standard field name used for SNI hostname matching in the profile. Options B and C refer to Server SSL profiles, which manage the connection between the BIG-IP and the backend servers. While Server SSL profiles also have a " Server Name " field (used to send SNI to a backend server), the requirement here is to provide encrypted communication for " users " accessing the virtual server, which definitively requires a Client-side SSL configuration.

To solve this requirement, we must distinguish between the two " legs " of an SSL connection in a BIG-IP environment: Client-side and Server-side.

Current State (SSL Bridging): The administrator states the servers currently require encrypted traffic. This means the BIG-IP is likely performing " SSL Bridging. " In this setup, a Client SSL profile terminates encryption from the user, and a Server SSL profile re-encrypts the traffic before sending it to the back-end servers.

Target State (SSL Offloading): The requirement is to " offload SSL " to reduce web server load. This means the BIG-IP will continue to handle the encryption for the users (keeping the Client SSL profile) but will communicate with the back-end servers using unencrypted HTTP.

Why Option A is correct:

Remove the Server SSL profile: By removing this profile, the BIG-IP stops attempting to initiate an SSL/TLS handshake with the pool members.

Configure Pool Members to use HTTP: The service port for the pool members must be changed (typically from port 443 to port 80) so that the BIG-IP sends standard HTTP traffic to the servers.

Why other options are incorrect:

B & D: These suggest removing the Client SSL profile. If you remove this, the users can no longer connect via HTTPS, which violates the requirement for encrypted communication between the users and the BIG-IP.

C: Changing the Virtual Server to accept HTTP traffic would mean the user-to-BIG-IP connection is no longer encrypted, which is the opposite of SSL termination/offloading.
