CompTIA 220-1201 Dumps Questions Answers

A technician is installing a wireless access point and is required to run all cabling and make patch cords if necessary.

INSTRUCTIONS

Part 1

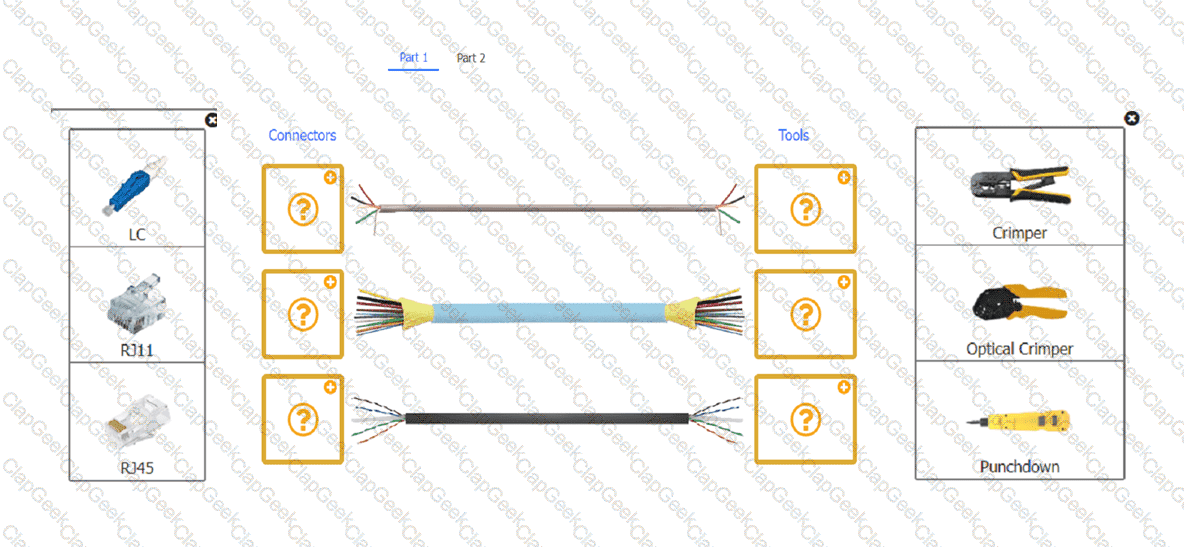

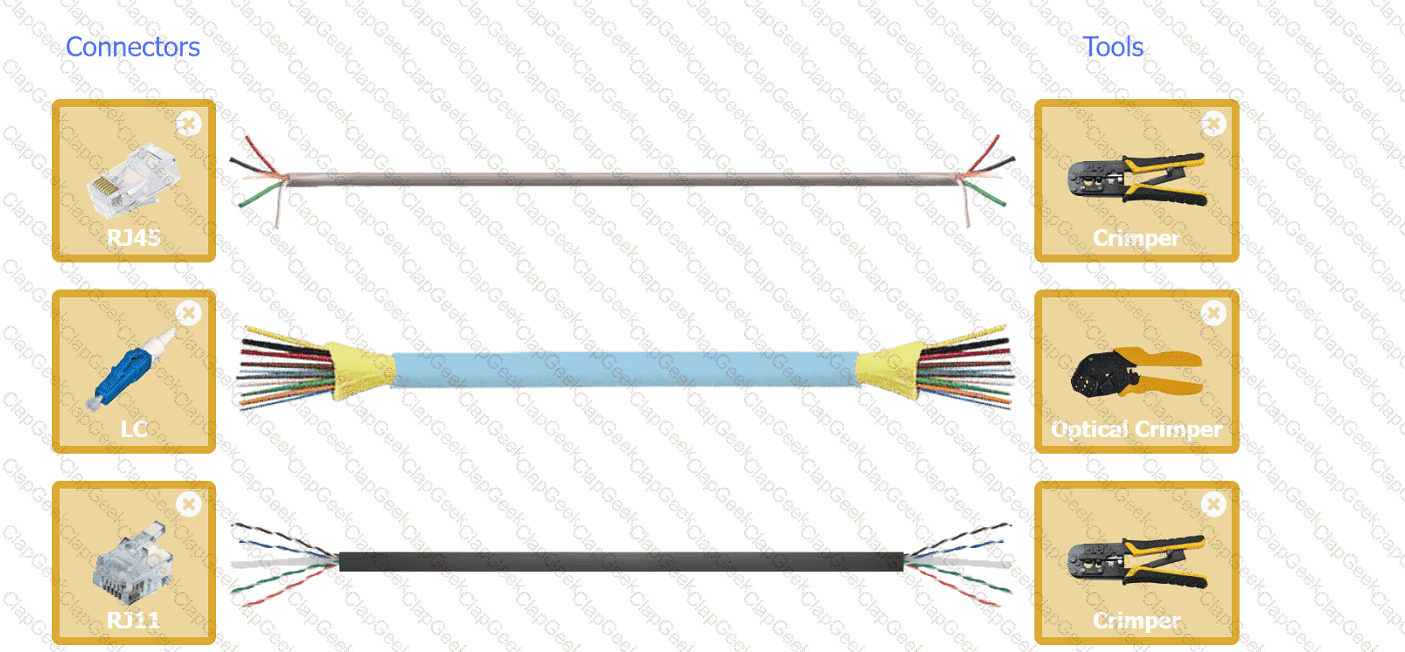

For each cable type, click the (+) to select the appropriate connector and tool.

part 2

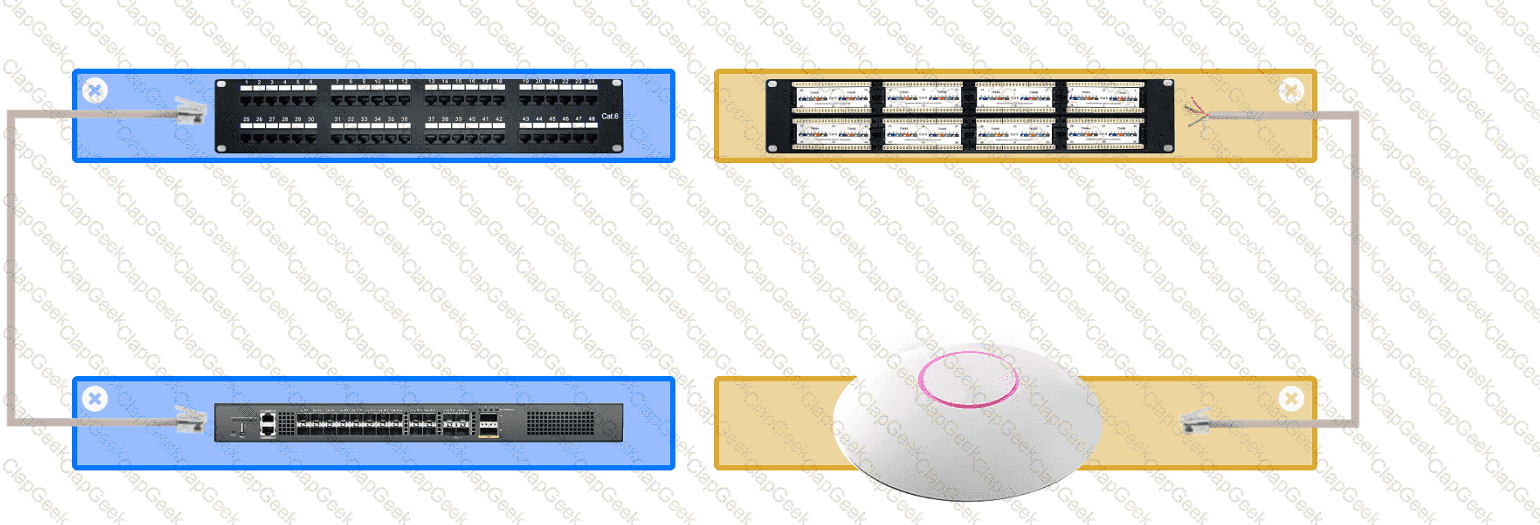

An access point was moved and no longer has connectivity. Connect the access point, patch panel, and switch by clicking the (+) to select the appropriate cable end for each corresponding location to create a link.

The link will be visible after making the second selection of each pair.

Cable ends may be used multiple times, and all placeholders will be filled.

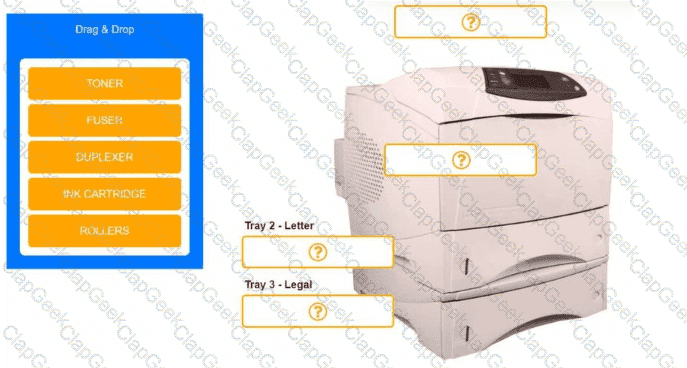

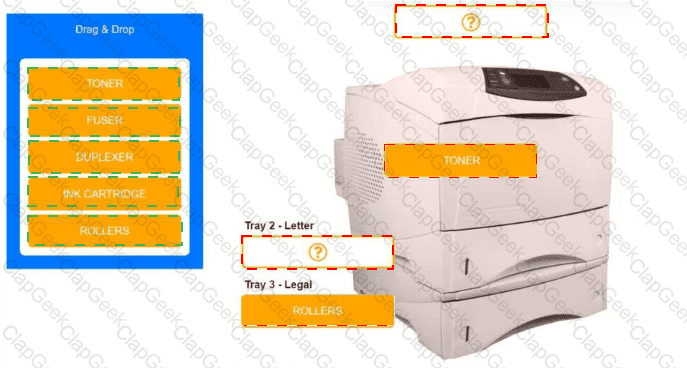

An office manager reports that a printer is experiencing performance issues. Printouts

are smudging when they are handled, and, recently whenever they need to print legal

sized documents, the paper jams before anything is printed on it.

The following paper sizes are used:

Letter (8.5x11in/21.59x27.94cm)

Legal (8.5x14in/21.59x35.56cm)

Oversized (11x17in/27.94x43.18cm)

INSTRUCTIONS

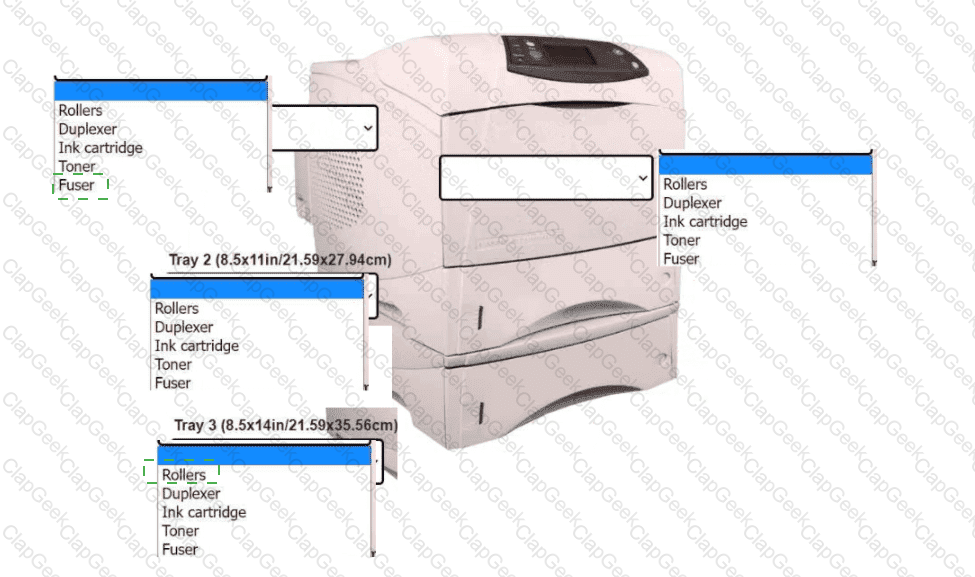

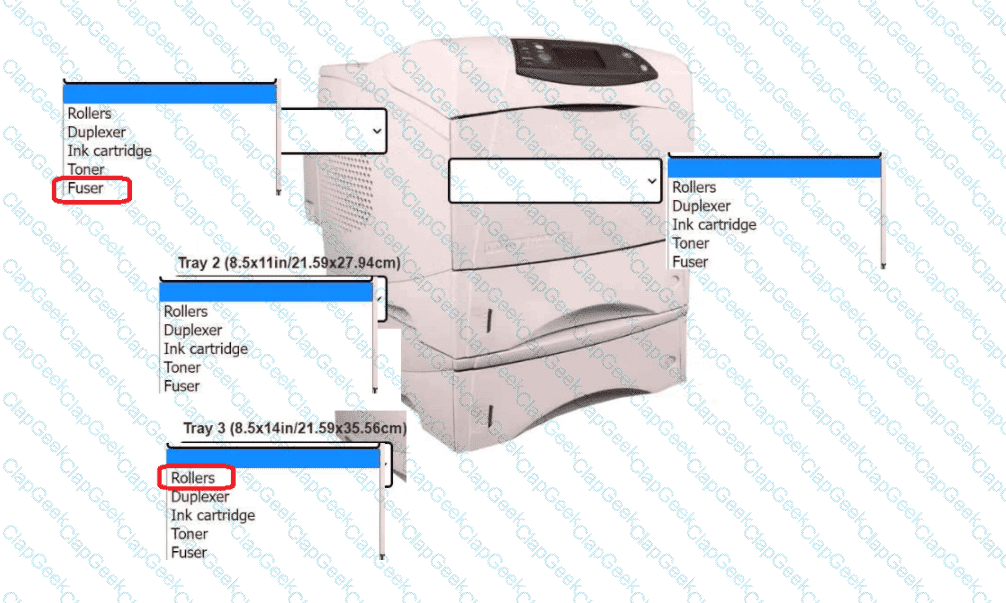

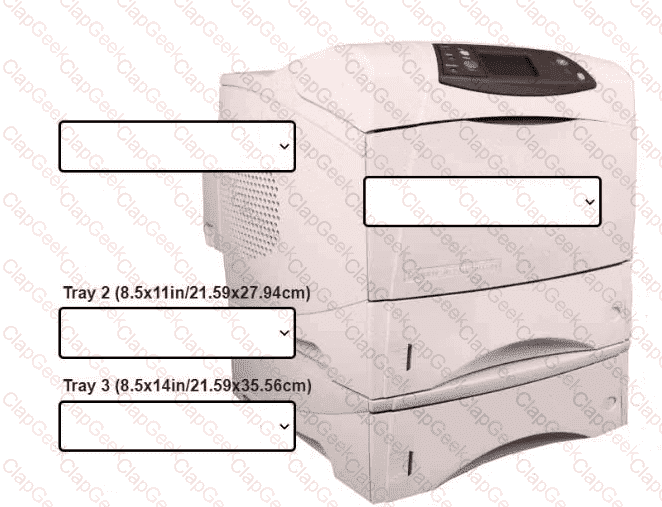

Using the dropdown menus, select from the

available printer parts to replace only the

faulty components on the office printer to

resolve the stated issues.

If at any time you would like to bring back

the initial state of the simulation, please click

the Reset All button.

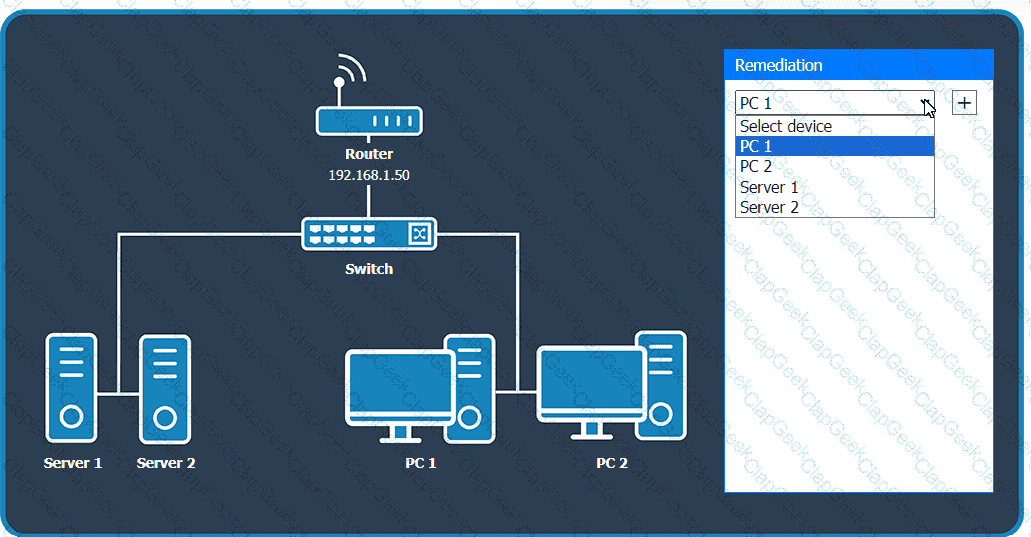

A third-party contractor recently installed a new switch, router, and cabling for a small

corporate office. After the installation, users started experiencing issues connecting to

resources over the network.

INSTRUCTIONS

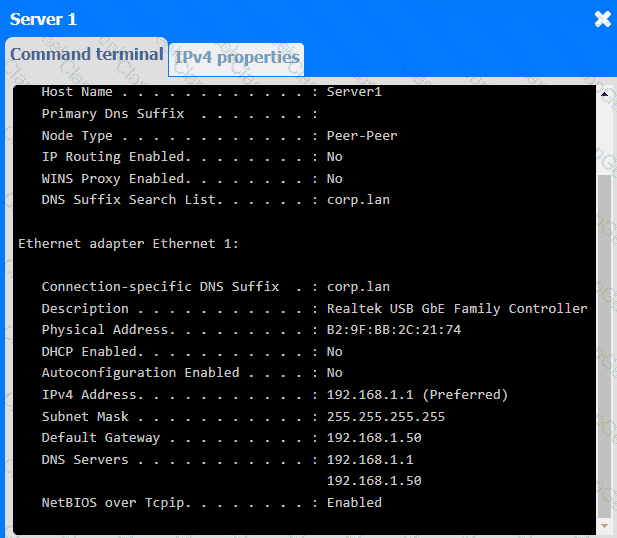

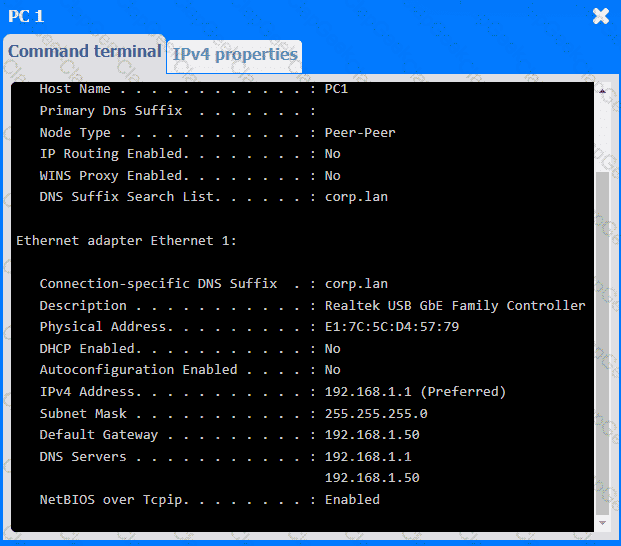

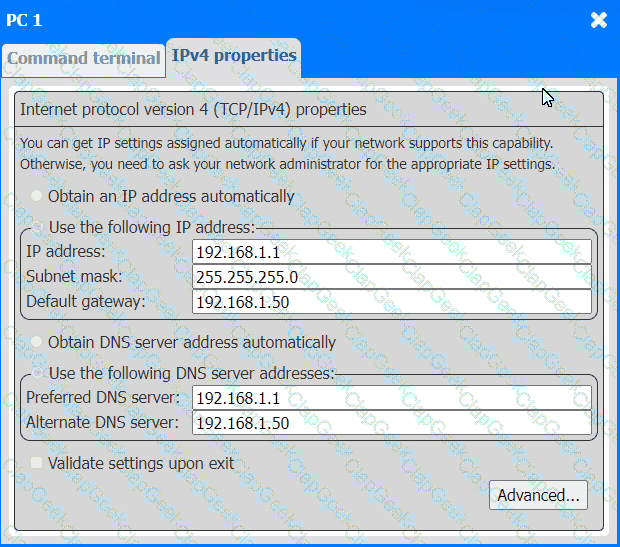

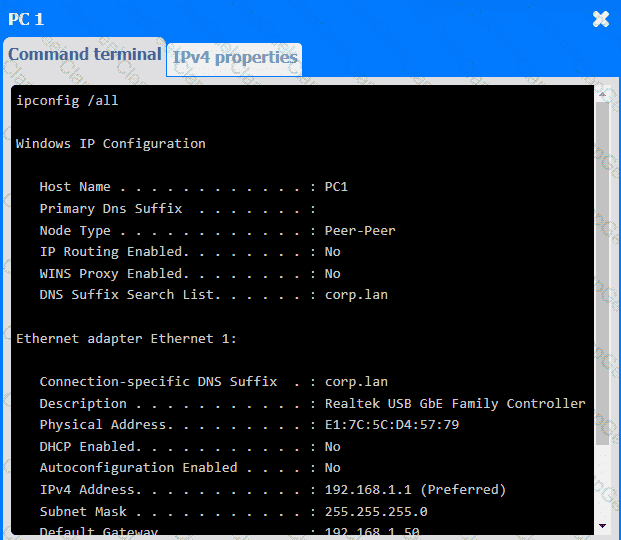

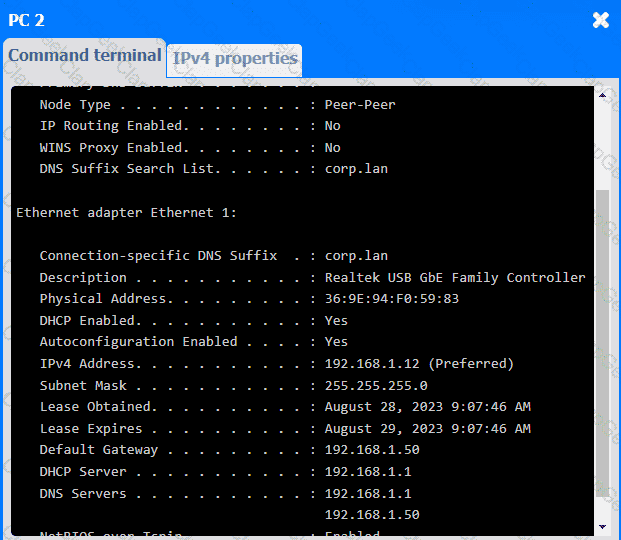

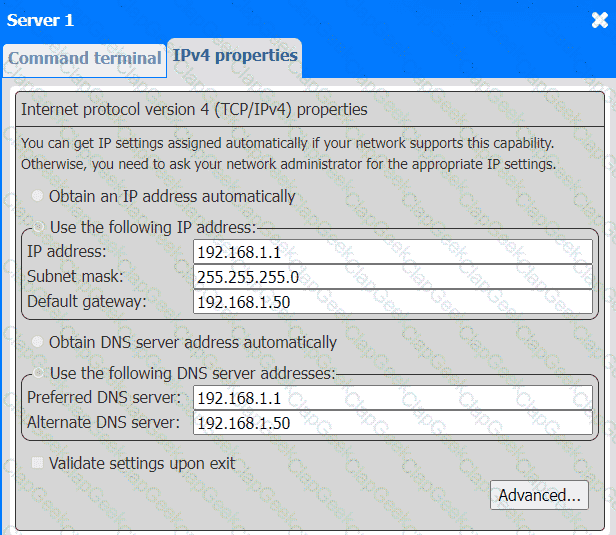

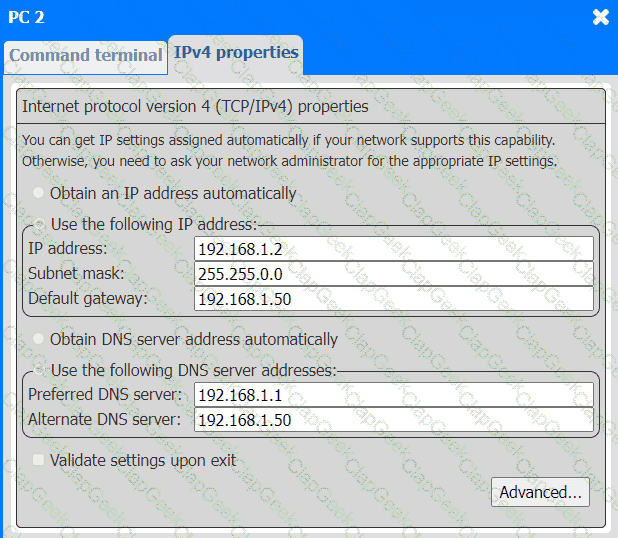

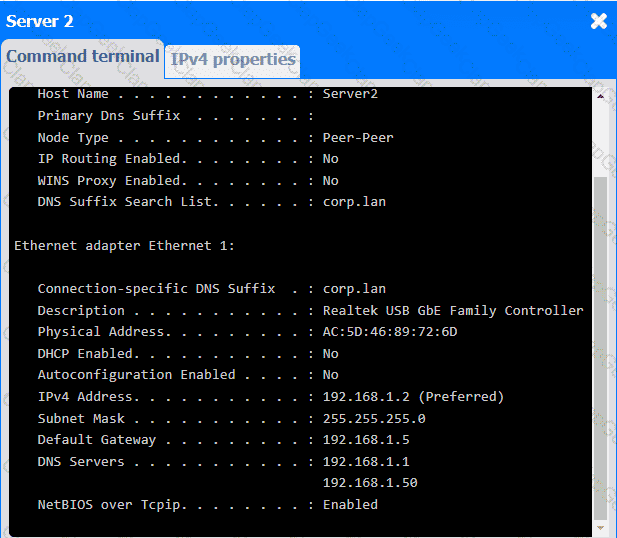

Click on each PC and server to review outputs. From the remediation section on

the right, select an issue and solution for each device.
