An identity mismatch occurs when the local and remote identities configured on the IPsec peers do not match. This can prevent the establishment of an IPsec tunnel or cause traffic to be dropped by the IPsec policy. In this case, the network engineer should verify that the local and remote identities configured on the Cisco WAN edge router and the AWS endpoint match the values expected by each peer. The identities can be an IP address, a fully qualified domain name (FQDN), or a distinguished name (DN). The identities are exchanged during the IKE phase 1 negotiation and are used to authenticate the peers. If the identities do not match, the peers will reject the IKE proposal and the IPsec tunnel will not be established or will be torn down. References :=

• Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services, Topic: Troubleshooting
• Designing and Implementing Cloud Connectivity (ENCC) v1.0, Module 3: Implementing Cloud Connectivity, Lesson 2: Implementing Cisco SD-WAN Cloud OnRamp for IaaS, Topic: Troubleshooting Cisco SD-WAN Cloud OnRamp for IaaS
• Cisco IOS Security Configuration Guide, Release 15M&T, Chapter: Configuring IPsec Network Security, Topic: Configuring IPsec Identity and Peer Addressing

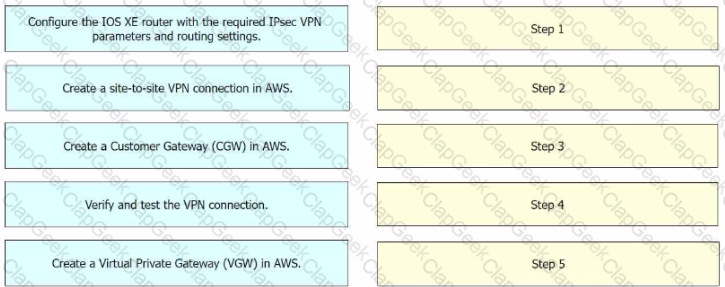

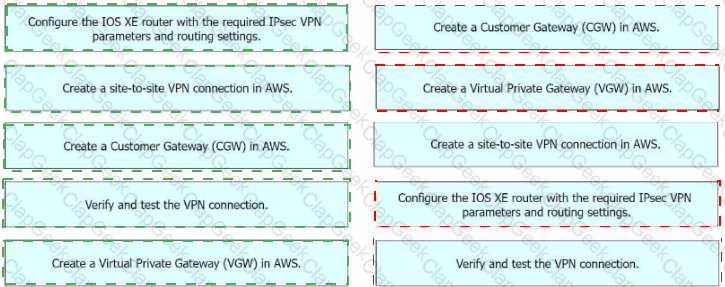

Step 1 = Create a Customer Gateway (CGW) in AWS. Step 2 = Create a Virtual Private Gateway (VGW) in AWS. Step 3 = Create a site-to-site VPN connection in AWS. Step 4 = Configure the IOS XE router with the required IPsec VPN parameters and routing settings. Step 5 = Verify and test the VPN connection.

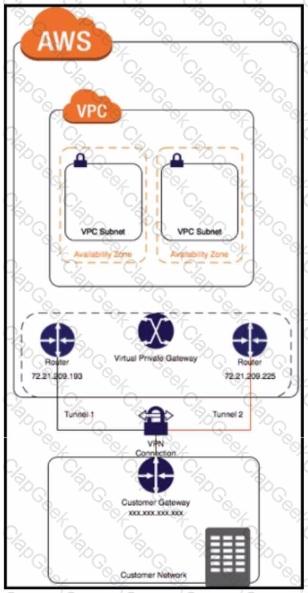

The process of configuring a site-to-site VPN connection between an on-premises Cisco IOS XE router and Amazon Web Services (AWS) involves several steps12.

• Create a Customer Gateway (CGW) in AWS: This is the first step where you define the public IP address of your on-premises Cisco IOS XE router in AWS1.
• Create a Virtual Private Gateway (VGW) in AWS: This involves creating a VGW and attaching it to the VPC in AWS1.
• Create a site-to-site VPN connection in AWS: After setting up the CGW and VGW, you then create a site-to-site VPN connection in AWS. This involves specifying the CGW, VGW, and the static IP prefixes for your on-premises network1.
• Configure the IOS XE router with the required IPsec VPN parameters and routing settings: After the AWS side is set up, you configure the on-premises Cisco IOS XE router with the required IPsec VPN parameters and routing settings2.
• Verify and test the VPN connection: Finally, you verify and test the VPN connection to ensure that it is working correctly12.

References :=

• Configure IOS-XE Site-to-Site VPN Connection to Amazon Web Services - Cisco Community
• SD-WAN Configuration Example: Site-to-site (LAN to LAN) IPSec between vEdge and Cisco IOS - Cisco Community

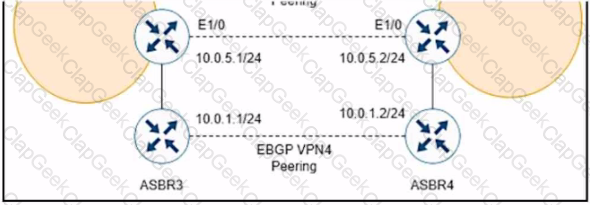

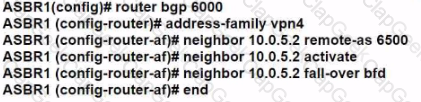

The bgp advertise-best-external command is used to enable the advertisement of the best external path to internal BGP peers. This command is useful when there are multiple exit points from the local AS to other ASes, and the local AS wants to use the closest exit point for each destination. By default, BGP only advertises the best path to its peers, and the best path is usually the one with the lowest IGP metric to the next hop. However, this may not be the optimal path for traffic leaving the local AS, as it may result in suboptimal hot-potato routing or MED oscillations. The bgp advertise-best-external command allows BGP to advertise the best external path, which is the path with the lowest MED among the paths from different neighboring ASes, in addition to the best path. This way, the internal BGP peers can choose the best exit point based on the MED value, rather than the IGP metric. In this scenario, ASBR1 is configured to receive additional paths from ASBR2, which is a route reflector. ASBR2 receivestwo paths for the same prefix from AS6500, one from ASBR3 and one from ASBR4. ASBR2 selects the best path based on the IGP metric to the next hop, and advertises it to ASBR1. However, this path may not be the best external path, as it may have a higher MED value than the other path. If the connection between ASBR1 and ASBR2 goes down, ASBR1 will not have any backup path to reach AS6500, as it does not know the other path from ASBR4. To prevent this situation, ASBR1 should be configured with the bgp advertise-best-external command, so that it can receive the best external path from ASBR2, along with the best path. This way, ASBR1 will have a backup path to reach AS6500, in case the primary path fails. References := IP Routing: BGP Configuration Guide - BGP Additional Paths … - Cisco, BGP Additional Paths
