• The diagram displays an activity labeled "Account Authentication".
• There are two main paths branching from the start of the activity:
• Both paths converge into a decision diamond labeled "Authentication Successful?".
• Depending on the outcome of the decision (Yes/No), the flow continues to either a "Grant Access" or "Deny Access" activity.

Explanation of why Option B is Correct:

This diagram accurately represents the scenario of account authentication where there are two alternative paths for validation: using a password or an OTP (One-Time Password). The decision point after these paths merges the flow for a final decision on granting or denying access based on successful authentication.

Comparison with Other Options:

• Option A, C, and D show different activity sequences that don't align with the two initial validation paths (password vs. OTP) and the subsequent decision point based on authentication success.

References

• UML 2.5.1 Specification (Superstructure): Sections on Activity Diagrams https://www.omg.org/spec/UML/2.4/Superstructure/PDF

The correct answer is E. 5. Based on the image you provided, the diagram depicts the following sequence of steps involved in creating an order:

• Create Order: This signifies the initiation of the order process.
• Fill Order Request: This step likely involves gathering information or processing details about the order.
• Create Invoice: An invoice is typically generated after an order is finalized.
• Notify Customer: The customer is informed about the order, possibly confirmation or receipt.

The key here is that the process starts with creating the order (step 1) and ends with notifying the customer (step 4). Steps 2 and 3 (filling the order request and creating an invoice) can happen concurrently and don't necessarily follow a specific order in relation to each other.

Therefore, following the logic of the sequence, there are five steps (0-based indexing), making E. 5 the most suitable answer.

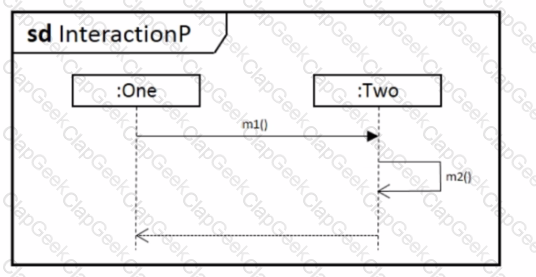

An event occurrence in a UML Sequence Diagram refers to specific points in time where messages are sent or received. Each message send and each message receipt is counted as one event occurrence.

In the provided diagram for InteractionP, we have the following event occurrences:

• The send event ofm1().
• The receive event ofm1()by:Two.
• The send event ofm2().
• The receive event ofm2()by:One.

Counting these, we see that there are a total of 4 event occurrences specified in InteractionP.

Therefore, the correct answer is:

C. 4
