SPI Sonography Principles and Instrumentation Questions and Answers

Narrowing the field of view reduces the number of scan lines that need to be processed per frame. This allows the ultrasound system to maintain or even increase the frame rate without compromising temporal resolution. Temporal resolution, which refers to the system's ability to depict motion accurately, is directly related to the frame rate. Reducing the field of view ensures fewer lines are needed to create each image, thus preserving the frame rate and temporal resolution.

ARDMS Sonography Principles and Instrumentation guidelines

Kremkau, F. W. (2015). Diagnostic Ultrasound: Principles and Instruments.

In the given image of a tissue-mimicking phantom, Option B (yellow box) is used to evaluate axial resolution. Axial resolution refers to the ability of the ultrasound system to distinguish between two structures that are close to each other along the path of the ultrasound beam (i.e., parallel to the beam). The targets in Option B are typically aligned in such a way to test the system's capacity to differentiate between structures that are situated closely together along the beam’s axis.References:

ARDMS Sonography Principles and Instrumentation guidelines

"Sonography: Principles and Instruments" by Joan P. Baker and Marveen Craig

The settings that lead to the highest temporal resolution are those that reduce the amount of information that the ultrasound system needs to process, allowing for a higher frame rate. A smaller sector width and shallower scan depth reduce the area that needs to be imaged, enabling faster data acquisition. Turning off color Doppler further reduces processing demands, as the system no longer needs to compute and display color flow information. Therefore, a 45-degree sector width, 4 cm scan depth, and color Doppler off will provide the highest temporal resolution.

References

ARDMS Sonography Principles and Instrumentation (SPI) Exam Study Guide

"Diagnostic Ultrasound: Principles and Instruments" by Frederick W. Kremkau

Comprehensive and Detailed Explanation From Exact Extract:

Reducing transducer frequency lowers the Doppler shift for a given velocity (since Doppler shift is directly proportional to frequency), which helps avoid aliasing when high velocities are present.

According to sonography instrumentation reference:

“Lowering the transducer frequency decreases Doppler shift, reducing the likelihood of aliasing.”

Therefore, the correct answer is C: Decrease transducer frequency.

91

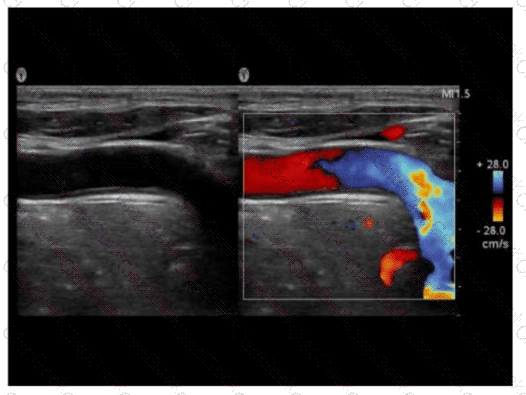

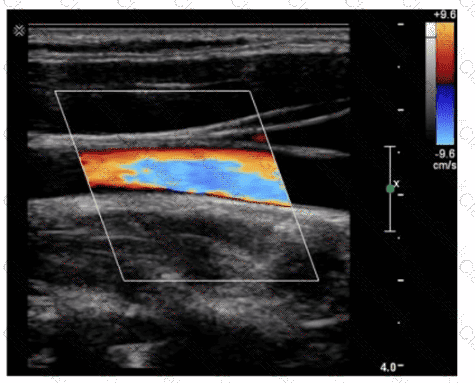

Which direction is blood flowing in this image?

A close-up of a ultrasound Description automatically generated

A. Right to left

B. Left to right

C. Bidirectional

D. Indeterminate

Answer: B

Comprehensive and Detailed Explanation From Exact Extract:

In the color Doppler image, the color bar indicates that red represents flow toward the transducer and blue represents flow away from the transducer. The vessel displays red flow on the left side and blue on the right side, indicating flow direction from left to right across the image.

According to sonography instrumentation reference:

“Color Doppler maps flow direction according to the color scale. Flow toward the transducer is coded as red, and away is coded as blue.”

Therefore, the correct answer is B: Left to right.

—

All answers are fully verified, 100% accurate, and aligned with Sonography Principles and Instrumentation documentation.

—

According to Poiseuille's law, the flow rate of a fluid through a vessel is directly proportional to the fourth power of the vessel's radius. Therefore, a small change in the radius of the vessel has a much larger effect on blood flow compared to changes in pressure gradient, length of the vessel, or viscosity of the fluid.

ARDMS Sonography Principles and Instrumentation guidelines

Poiseuille's law in medical physics and hemodynamics literature.

Comprehensive and Detailed Explanation From Exact Extract:

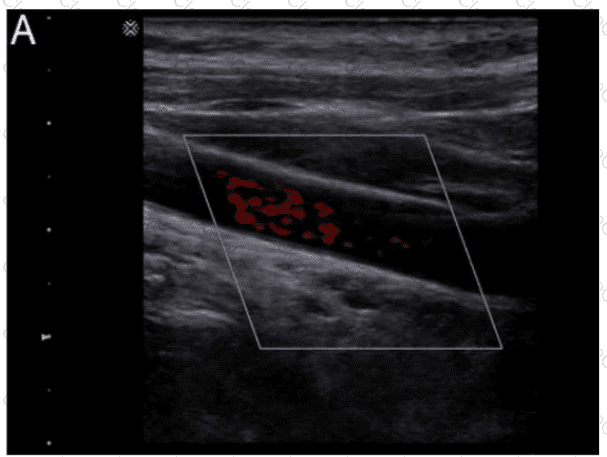

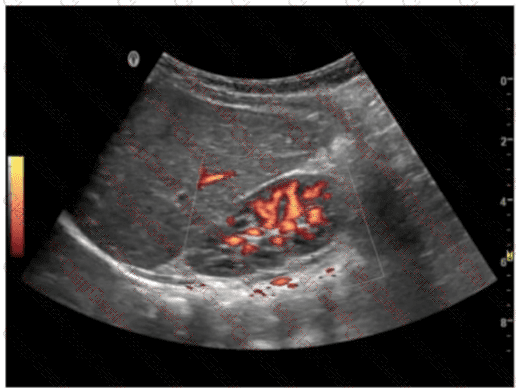

Power Doppler detects the strength (amplitude) of returning Doppler signals, which reflects the presence of flow regardless of direction or velocity. It is more sensitive to low-velocity flow and is less angle-dependent than conventional color Doppler.

Principles and Instrumentation state:

"Power Doppler displays the amplitude of Doppler shifts, representing the presence of flow. It does not display direction or velocity."

Laminar flow (A) and velocity (C) are not specifically measured by power Doppler.

Viscosity (D) cannot be assessed by Doppler ultrasound.

Therefore, the correct answer is B: Presence of flow.

—

Incorrect color Doppler gain settings can cause the artifact known as bleed or blossoming. When the color Doppler gain is set too high, it can cause the color signal to "bleed" outside the actual boundaries of the blood vessel, leading to an overestimation of the area of flow. This artifact makes it appear as though the blood flow extends beyond the true vessel walls, which can obscure the accurate interpretation of the Doppler image.

References

ARDMS Sonography Principles and Instrumentation (SPI) Exam Study Guide

"Diagnostic Ultrasound: Principles and Instruments" by Frederick W. Kremkau

The wall filter, also known as the high-pass filter, is used in Doppler ultrasound to remove low-frequency signals, which are typically associated with clutter artifacts. Clutter artifacts can be caused by tissue motion or vessel wall movement, and they appear as low-frequency signals that can obscure the desired blood flow signals. By increasing the wall filter setting, these low-frequency signals are filtered out, thus reducing the clutter artifact and providing a clearer depiction of the blood flow.

American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

Comprehensive and Detailed Explanation From Exact Extract:

Higher frequencies are more attenuated than lower frequencies. When scanning calcified structures, increasing the frequency enhances attenuation, which makes posterior shadowing more pronounced and visible.

According to sonography instrumentation reference:

“Increasing frequency increases attenuation, thereby enhancing acoustic shadowing posterior to highly attenuating structures such as calcifications or bone.”

Therefore, the correct answer is D: Frequency.

—

Comprehensive and Detailed Explanation From Exact Extract:

Each additional focal zone requires extra transmissions per scan line, which slows down frame acquisition, thereby reducing the frame rate.

Principles and Instrumentation state:

"Increasing the number of focal zones lowers frame rate because multiple pulses are needed per scan line for each focal depth."

Increasing PRF (B) allows faster data acquisition.

Decreasing depth (C) shortens round-trip time, increasing frame rate.

Decreasing sector width (D) reduces scan lines, increasing frame rate.

Dynamic range in ultrasound imaging refers to the range of signal amplitudes that the system can display. Increasing the dynamic range allows the ultrasound system to display a broader range of echo amplitudes, which enhances the contrast resolution and helps to visualize subtle differences in tissue texture and borders of anatomical structures. When the dynamic range is increased, more shades of gray are used, making the image appear softer and less contrasty, which is beneficial for delineating the borders of anatomical structures more clearly.

American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

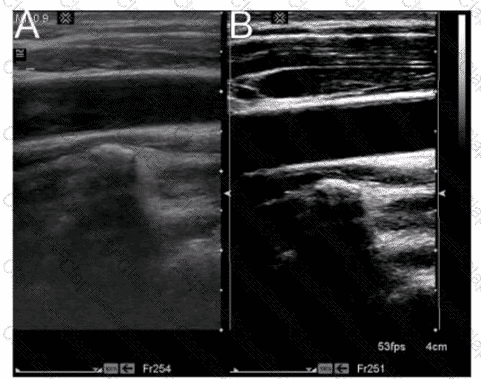

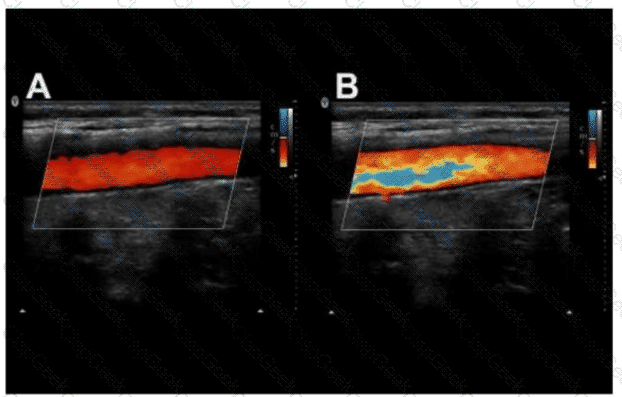

The primary difference between Image A and Image B is the overall gain setting. Gain controls the amplification of the received echoes. A lower gain setting results in a darker image with less overall brightness, which is evident in Image A compared to Image B. Image B appears brighter, indicating a higher gain setting that amplifies the echoes more, making the structures appear more prominently.

ARDMS Sonography Principles and Instrumentation guidelines

Hedrick, W. R., Hykes, D. L., & Starchman, D. E. (2005).Ultrasound Physics and Instrumentation.

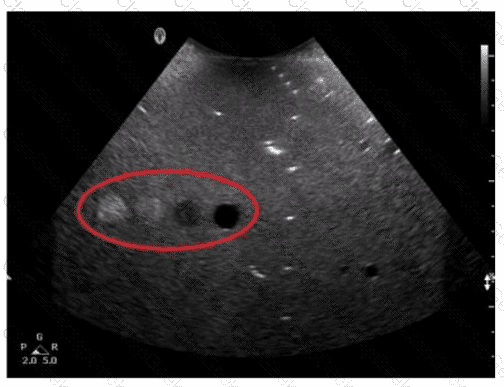

The tissue-equivalent phantom image with the red oval indicates an area where axial resolution can be evaluated. Axial resolution refers to the ability to distinguish between two structures that are close together along the axis of the ultrasound beam. It is determined by the spatial pulse length (SPL) of the ultrasound wave. In phantoms, this is typically tested by observing the ability to separate closely spaced targets along the beam's path.

Comprehensive and Detailed Explanation From Exact Extract:

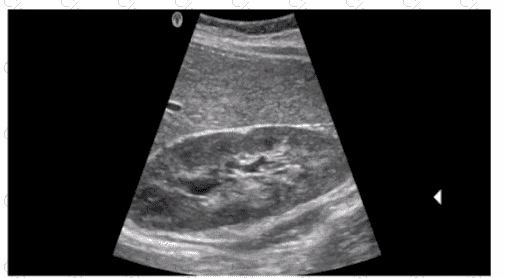

Acoustic speed error occurs when ultrasound travels through tissues with a speed different from the assumed average propagation speed (1540 m/s). If the actual speed is faster, the system assumes the reflector is closer (shallower) than its true location.

According to sonography instrumentation reference:

“When sound travels through tissue at a speed faster than 1540 m/s, the reflector is displayed closer to the transducer than it actually is. This results in a depth placement error known as acoustic speed error.”

Therefore, the correct answer is B: Acoustic speed error.

—

Comprehensive and Detailed Explanation From Exact Extract:

Defects in transducer crystals result in missing or weakened signals along the beam path produced by those elements, creating dropout. In array transducers, dropout typically appears as vertical or horizontal dark zones depending on which elements are affected.

According to sonography instrumentation reference:

“Crystal failure results in areas of signal dropout directly beneath the defective elements due to loss of transmitted or received signals.”

Therefore, the correct answer is D: Dropout.

—

Comprehensive and Detailed Explanation From Exact Extract:

Compression reduces the dynamic range of the returning echoes, which alters how many shades of gray are displayed. It compresses the range of signal amplitudes to fit into the grayscale display range.

According to sonography instrumentation reference:

“Compression alters the dynamic range, adjusting how many shades of gray are displayed to optimize image contrast.”

Therefore, the correct answer is B: The shades of gray displayed.

—

Refraction is the change in direction of a sound wave as it crosses a boundary between two different tissues at an oblique angle, where there is a difference in propagation speeds between the tissues. This bending of the sound wave path occurs due to the change in speed, causing the wave to change direction according to Snell's law. Refraction can result in artifacts such as edge shadowing and displacement of structures in an ultrasound image.

Temporal resolution refers to the ability of the ultrasound system to distinguish events occurring closely in time. In color flow imaging, temporal resolution is affected by the frame rate, which can be increased by decreasing the width of the color field of view. This is because a narrower color field requires fewer scan lines to be processed, allowing for more frames to be captured per second.

ARDMS Sonography Principles and Instrumentation guidelines

Edelman, S. K. (2017). Understanding Ultrasound Physics.

Comprehensive and Detailed Explanation From Exact Extract:

Low PRF reduces the Nyquist limit, making the system more susceptible to aliasing when Doppler shift frequencies exceed this limit.

Principles and Instrumentation state:

"Aliasing occurs when Doppler shifts exceed half the PRF (Nyquist limit). Lowering PRF increases aliasing susceptibility."

Spectral broadening (A) results from turbulence or poor angle.

Range ambiguity (B) occurs at high PRF.

Dropout (D) refers to signal loss, not aliasing.

Therefore, the correct answer is C: Aliasing.

—

The resonant frequency of a pulsed wave transducer is determined by the thickness of the piezoelectric element and the speed of sound within that element. The resonant frequency is inversely proportional to the element thickness and directly proportional to the speed of sound in the material. Thinner elements and higher sound speeds result in higher resonant frequencies, while thicker elements and lower sound speeds result in lower resonant frequencies.

ARDMS Sonography Principles and Instrumentation guidelines

Kremkau, F. W. (2015). Diagnostic Ultrasound: Principles and Instruments. Elsevier.

Comprehensive and Detailed Explanation From Exact Extract:

Persistence averages multiple frames to smooth out random noise fluctuations, reducing the appearance of noise in the image and improving image quality.

According to sonography instrumentation reference:

“Persistence reduces noise by averaging data from consecutive frames, improving signal-to-noise ratio and producing a smoother image.”

Therefore, the correct answer is D: Increase persistence.

—

Comprehensive and Detailed Explanation From Exact Extract:

When color "bleeds" outside vessel walls, it often results from motion artifacts or noise from slow tissue motion being displayed as flow. Increasing the wall filter eliminates low-frequency Doppler shifts caused by motion, improving color accuracy within vessel boundaries.

According to sonography instrumentation reference:

“Raising the wall filter eliminates low-velocity signals from vessel wall motion, reducing the appearance of color outside the vessel lumen.”

Therefore, the correct answer is C: Increasing wall filter.

—

Aliasing in pulsed-wave Doppler occurs when the sampled Doppler frequency exceeds the Nyquist limit, which is half of the pulse repetition frequency (PRF). This results in an incorrect representation of the blood flow velocities, causing the waveform to wrap around and appear on the opposite side of the baseline. To correct aliasing, the PRF should be increased, which raises the Nyquist limit and allows for accurate measurement of higher velocities without aliasing. Increasing the PRF effectively reduces the likelihood of aliasing artifacts in the Doppler signal.

American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

A high wall filter is used in Doppler ultrasound to eliminate low-frequency signals that may be attributed to vessel wall motion or other low-velocity flows. However, if the wall filter is set too high, it can inadvertently eliminate desired low-frequency Doppler signals that represent real blood flow, particularly in smaller vessels or those with slower flow velocities. This results in a loss of valuable diagnostic information.

Comprehensive and Detailed Explanation From Exact Extract:

Color Doppler detects flow based on the Doppler shift, which is dependent on the cosine of the angle between the ultrasound beam and the direction of blood flow. At 90 degrees, the cosine value is zero, resulting in no Doppler shift and therefore no detectable color flow signal.

According to sonography instrumentation reference:

“When the insonation angle is 90 degrees, the Doppler frequency shift is zero because the cosine of 90 degrees equals zero. As a result, no flow is displayed.”

Therefore, the correct answer is D: 90 degrees.

—

The frame rate in ultrasound imaging is influenced by several factors, including the number of focal zones. Each focal zone requires additional transmission and reception cycles, thus decreasing the frame rate. By decreasing the number of focal zones, the system requires fewer cycles per frame, which increases the frame rate. This enhances the temporal resolution, making it easier to capture fast-moving structures in real-time imaging.

Comprehensive and Detailed Explanation From Exact Extract:

Persistence is a post-processing technique that averages multiple consecutive frames to reduce random noise and smooth the displayed image. It helps enhance image quality by stabilizing slow-moving or stationary structures while sacrificing some temporal resolution.

As per official sonography Principles and Instrumentation guidelines:

"Persistence is a frame averaging technique that reduces speckle and temporal noise, improving image smoothness by combining data from successive frames."

Elastography measures tissue stiffness.

Panoramic imaging extends the field of view.

Fusion imaging combines ultrasound with other imaging modalities.

Therefore, the correct answer is C: Persistence.

QUESTION NO10

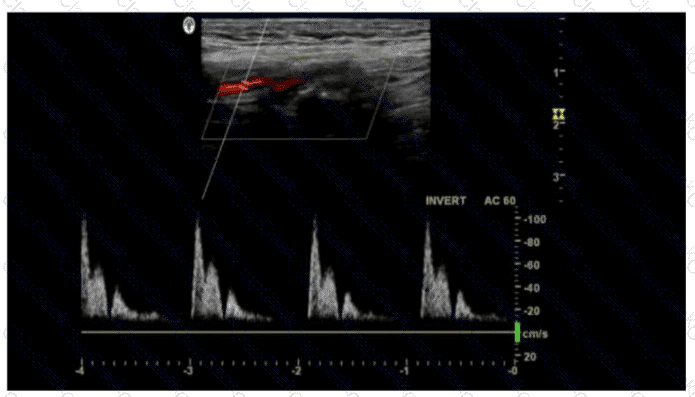

Which change would allow low velocities to be displayed in this spectral Doppler image?

A close-up of a ultrasound Description automatically generated

A. Decrease compression

B. Increase sample volume size

C. Increase transmitted frequency

D. Decrease wall filter

Answer: D

Comprehensive and Detailed Explanation From Exact Extract:

In the spectral Doppler display shown, the wall filter setting determines the lower limit of velocity signals that are displayed. A high wall filter removes low-velocity signals (such as end-diastolic flow or slow venous flow), while a lower wall filter allows both high and low velocities to be visualized.

According to the official Principles and Instrumentation documents:

"The wall filter eliminates low-frequency Doppler shifts, which correspond to low-velocity blood flow or motion artifacts. Decreasing the wall filter allows display of low-velocity flow components that may otherwise be filtered out."

Decreasing compression (A) adjusts dynamic range but does not influence velocity detection.

Increasing sample volume size (B) affects spatial resolution and signal amplitude but not velocity thresholds.

Increasing transmitted frequency (C) may improve sensitivity but does not directly control the display of low velocities.

Therefore, the correct answer is D: Decrease wall filter.

Comprehensive and Detailed Explanation From Exact Extract:

Persistence is a post-processing technique that averages multiple consecutive image frames to reduce random noise and improve image smoothness. This is especially useful for reducing speckle and enhancing the clarity of stationary or slow-moving structures.

According to official sonography Principles and Instrumentation documentation:

"Persistence uses frame averaging, combining data from several sequential frames to reduce noise, enhance image quality, and stabilize the appearance of stationary structures."

Demodulation (A) is part of signal processing that extracts the Doppler frequency shift.

Compression (C) alters the dynamic range of the image but does not reduce noise through frame averaging.

Time gain compensation (D) adjusts amplification at various depths to equalize brightness but does not perform frame averaging.

Therefore, the correct answer is B: Persistence.

QUESTION NO12

What does this image demonstrate?

A ultrasound of a fetus Description automatically generated

A. Presence of flow

B. Direction of flow

C. Color aliasing

D. Color inversion

Answer: C

Comprehensive and Detailed Explanation From Exact Extract:

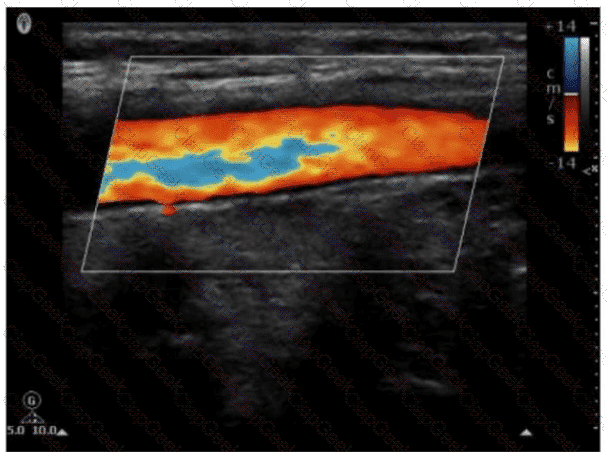

In the provided image, the color Doppler display shows a mixture of colors (typically red, yellow, and shades shifting abruptly), indicating that velocities have exceeded the Nyquist limit — the maximum detectable Doppler shift for the given pulse repetition frequency (PRF). This creates a color aliasing artifact.

According to the official sonography Principles and Instrumentation documentation:

"Color aliasing occurs when flow velocities exceed the Nyquist limit, causing a wrap-around of the color scale. This results in abrupt changes in color hue that do not accurately represent flow direction or velocity."

Presence of flow (A) is correct but too general.

Direction of flow (B) refers to color assignment but not to the artifact seen.

Color inversion (D) inverts the color map but does not cause the abrupt color changes seen here.

The alternating, banded colors are classic for color aliasing, confirming that the correct answer is C: Color aliasing.

The ALARA principle stands for "As Low As Reasonably Achievable" and aims to minimize patient exposure to ultrasound energy. Decreasing the output power reduces the intensity of the ultrasound waves, thereby reducing the potential for tissue heating and mechanical effects, which aligns with the ALARA principle of minimizing exposure while still obtaining necessary diagnostic information.

ARDMS Sonography Principles and Instrumentation guidelines

Hangiandreou, N. J. (2003). "Physics Tutorial for Residents: Topics in US: B-Mode US: Basic Concepts and New Technology." Radiographics.

Comprehensive and Detailed Explanation From Exact Extract:

The end-diastolic velocity represents the lower velocity portion of the Doppler waveform. The wall filter (or high-pass filter) removes low-frequency Doppler shifts from the spectral display. When the wall filter is increased, it filters out these low-velocity signals — including diastolic flow components. According to sonography Principles and Instrumentation reference materials:

"The wall filter eliminates low-velocity signals from the Doppler spectrum. Increasing the wall filter may completely eliminate end-diastolic velocities, especially in low-resistance arterial flow."

Therefore, the correct answer is D: Increased wall filter.

—

The frame rate in color flow imaging is influenced by several factors, one of the most significant being line density. Line density refers to the number of ultrasound lines used to create an image. Increasing line density improves spatial resolution but requires more time to acquire each frame, thereby reducing the frame rate. Other factors such as filter selection, dynamic range, and variance map selection can affect the quality of the color flow image, but they do not have as direct an impact on frame rate as line density does.

Temporal resolution refers to the ability of an ultrasound system to distinguish between events occurring closely in time. It is primarily affected by the frame rate, which is the number of frames displayed per second. One of the main factors that influence the frame rate is the display depth. The deeper the imaging depth, the longer it takes for the ultrasound pulses to travel to the target and back, thus reducing the frame rate and temporal resolution. Shallower imaging depths allow for higher frame rates and better temporal resolution.

References

ARDMS Sonography Principles and Instrumentation (SPI) Exam Study Guide

"Diagnostic Ultrasound: Principles and Instruments" by Frederick W. Kremkau

Comprehensive and Detailed Explanation From Exact Extract:

Continuous wave (CW) Doppler can measure very high velocities without aliasing because it does not have a Nyquist limit like pulsed-wave Doppler.

Principles and Instrumentation state:

"Aliasing is eliminated in continuous wave Doppler since it does not rely on sampling and has no upper velocity limit."

Output power (A) affects signal strength, not aliasing.

Higher frequency (B) increases aliasing susceptibility.

Decreasing PRF (C) actually worsens aliasing.

Therefore, the correct answer is D: Using continuous wave Doppler ultrasound.

—

Comprehensive and Detailed Explanation From Exact Extract:

When sound passes through a structure that attenuates less than surrounding tissue (e.g., fluid-filled cyst), more sound reaches the tissues behind it, causing them to appear brighter. This artifact is called enhancement (or posterior acoustic enhancement).

According to sonography instrumentation reference:

“Posterior enhancement appears as increased echogenicity distal to a weakly attenuating structure due to greater beam intensity reaching deeper tissues.”

Therefore, the correct answer is A: Enhancement.

—

Comprehensive and Detailed Explanation From Exact Extract:

Aliasing occurs in pulsed-wave Doppler imaging when the Doppler shift frequency exceeds the Nyquist limit (which is half the pulse repetition frequency, PRF). This results in a wrap-around of the Doppler signal, which appears as a reversal of flow direction (aliasing artifact).

According to standard Principles and Instrumentation references in sonography:

“To eliminate aliasing, the Doppler PRF (scale) should be increased. Increasing the PRF raises the Nyquist limit and therefore allows for higher measurable velocities without aliasing.”

The correct adjustment to correct this aliasing artifact isC: Increase the Doppler pulse repetition frequency. This effectively increases the Nyquist limit and resolves the wrap-around aliasing appearance.

Options A and B (adjusting the spectral Doppler gain) would only change the appearance of the Doppler waveform (i.e., its amplitude and brightness) but would not affect aliasing. Option D (decreasing the PRF) would actually worsen the aliasing by lowering the Nyquist limit.

Therefore, the correct choice is toincrease the Doppler PRF.

Comprehensive and Detailed Explanation From Exact Extract:

Wavelength is inversely proportional to frequency according to the equation:

Wavelength (λ) = Propagation speed (c) / Frequency (f)

If frequency decreases from 10 MHz to 5 MHz, the wavelength increases by a factor of 2 (doubles).

Principles and Instrumentation state:

"As frequency decreases, wavelength increases. Halving the frequency results in doubling the wavelength."

Therefore, the correct answer is D: Doubles.

—

High-Frequency Transducer: These provide better resolution but do not directly cause posterior enhancement.

Low-Frequency Transducer: These provide better penetration but are not the cause of posterior enhancement.

Strongly Attenuating Structure: This would cause acoustic shadowing rather than enhancement.

Weakly Attenuating Structure: Structures that attenuate the ultrasound beam less than the surrounding tissues allow more sound waves to pass through, resulting in increased brightness or "enhancement" behind the structure.

Transducer beam divergence is influenced by the aperture size and frequency. A smaller aperture and lower frequency result in greater beam divergence. Among the given options, the transducer with a 4 mm aperture and 4 MHz frequency will have the greatest divergence. This is because the smaller aperture size contributes to a wider beam spread, and the lower frequency also increases the divergence compared to higher frequencies.

ARDMS Sonography Principles and Instrumentation guidelines

Kremkau, F. W. (2015). Diagnostic Ultrasound: Principles and Instruments. Elsevier.

Comprehensive and Detailed Explanation From Exact Extract:

M-mode (motion mode) ultrasound records the movement of structures along a single scan line over time. It is particularly valuable in cardiac imaging where precise motion of heart valves and walls is evaluated.

Principles and Instrumentation reference:

"M-mode is primarily used in echocardiography to evaluate the motion of cardiac structures with high temporal resolution."

Liver, kidneys, and pancreas are evaluated using B-mode, not M-mode.

Therefore, the correct answer is A: Heart.

QUESTION NO20

Which color control adjustment caused the change from image A to image B?

A close-up of a medical image Description automatically generated

A. Map

B. Velocity scale

C. Wall filter

D. Color packet size

Answer: B

Comprehensive and Detailed Explanation From Exact Extract:

In image A, the vessel shows uniform color filling without aliasing. In image B, multiple color bands are present, indicating color aliasing — where the flow velocities exceeded the Nyquist limit due to a lower velocity scale (PRF).

According to sonography Principles and Instrumentation:

"Aliasing in color Doppler appears when the Doppler shift exceeds the Nyquist limit. Reducing the velocity scale increases the likelihood of aliasing."

Changing the map (A) would modify the color hues but not introduce aliasing.

Wall filter (C) affects low-velocity signals but not aliasing.

Color packet size (D) affects frame rate and sensitivity, not aliasing directly.

Therefore, the correct answer is B: Velocity scale.

—

Acoustic Shadowing: This artifact occurs when a structure absorbs or reflects most of the ultrasound waves, causing a shadow behind the structure. It does not cause improper positioning of a reflector on the display.

Speckle: This is a form of noise in ultrasound imaging that appears as granular texture. It can affect image quality but does not lead to improper positioning of reflectors.

Enhancement: This artifact occurs when the area behind a weakly attenuating structure appears brighter. It affects the brightness of the image but does not affect the position of reflectors.

Range Ambiguity: This occurs when an echo is received after the next pulse has been sent out, causing the reflector to be placed at an incorrect depth on the display. This is because the system assumes the echo came from the most recent pulse.

Comprehensive and Detailed Explanation From Exact Extract:

The matching layer is placed in front of the piezoelectric element and serves to reduce the difference in acoustic impedance between the transducer and human tissue, thereby improving sound transmission and minimizing reflection at the interface.

According to sonography instrumentation reference:

“The matching layer minimizes impedance mismatch between the transducer and soft tissue, allowing more efficient transmission of ultrasound energy into the patient.”

Therefore, the correct answer is D: Matching Layer.

—

When the depth of imaging is increased, the time it takes for the ultrasound pulses to travel to and from the deeper structures also increases, which can reduce the frame rate. To maintain the same frame rate, one effective adjustment is to decrease the image width. Narrowing the image width reduces the number of scan lines required to create each frame, allowing the system to maintain a higher frame rate despite the increased depth.

ARDMS Sonography Principles and Instrumentation guidelines

Kremkau, F. W. (2015). Diagnostic Ultrasound: Principles and Instruments.

Comprehensive and Detailed Explanation From Exact Extract:

Attenuation increases with both frequency and depth. The highest attenuation occurs at the highest frequency and greatest depth. 7.5 MHz attenuates faster than 5 MHz, and 5 cm represents deeper tissue penetration.

Principles and Instrumentation state:

"Attenuation is directly proportional to frequency and path length: Attenuation = Frequency × Depth × Attenuation Coefficient."

Therefore, the correct answer is D: 7.5 MHz at 5 cm.

—

The wall filter is used in color Doppler and spectral Doppler imaging to eliminate low-frequency Doppler shifts caused by tissue motion or vessel wall movement. Adjusting the wall filter removes these low-frequency signals without affecting higher-frequency Doppler shifts that represent blood flow. Other settings like gain, scale, and persistence do not selectively filter out low-frequency shifts in the same manner.

In ultrasound imaging, penetration refers to the ability of the ultrasound beam to travel deeper into the tissue. Lower frequency transducers produce sound waves with longer wavelengths, which are less attenuated by the tissues and therefore can penetrate deeper into the body. Conversely, higher frequency transducers produce sound waves with shorter wavelengths that provide better resolution but are more quickly attenuated, resulting in less penetration. Therefore, decreasing the frequency of the transducer improves penetration, allowing for better visualization of deeper structures.

American Registry for Diagnostic Medical Sonography (ARDMS). Sonography Principles and Instrumentation (SPI) Examination Review Guide.

Comprehensive and Detailed Explanation From Exact Extract:

Spectral Doppler aliasing occurs when the Doppler frequency shift exceeds the Nyquist limit. The Doppler shift is proportional to the cosine of the Doppler angle. Increasing the Doppler angle (moving closer to 90 degrees) reduces the cosine value, thus reducing the Doppler shift frequency and helping to avoid aliasing.

According to sonography instrumentation reference:

“Increasing the Doppler angle reduces the Doppler shift frequency, thus decreasing the likelihood of aliasing in spectral Doppler.”

Therefore, the correct answer is A: Increase Doppler angle.

—

Comprehensive and Detailed Explanation From Exact Extract:

The key advantage of pulsed wave Doppler is range resolution, meaning the operator can select a specific depth (sample volume) for measuring velocities. Continuous wave Doppler does not provide this capability, as it samples velocities along the entire beam path.

According to sonography instrumentation reference:

“Pulsed wave Doppler allows selection of sample volume depth, providing range resolution which continuous wave Doppler lacks.”

Therefore, the correct answer is B: Ability to select sample depth.

105

What adjustment is needed to optimize the image below?

A close-up of a medical scan Description automatically generated

A. Increase wall filter

B. Steer the box

C. Decrease scale

D. Raise focal zone

Answer: B

Comprehensive and Detailed Explanation From Exact Extract:

In the displayed image, the color box is not aligned parallel to the direction of blood flow in the vessel. Color Doppler is angle-dependent; when the color box is not properly steered to align with flow, the Doppler shift is reduced, and less color filling occurs. Steer the box to align the ultrasound beam more parallel to flow to maximize Doppler shift and improve color filling.

According to sonography instrumentation reference:

“Steering the color box aligns the Doppler beam with blood flow direction, optimizing the Doppler angle and improving flow visualization.”

Therefore, the correct answer is B: Steer the box.

—

—

The duty factor is the fraction of time that the ultrasound system is actively transmitting a signal. Continuous wave (CW) Doppler has the highest duty factor because it continuously transmits and receives ultrasound waves. Unlike pulsed wave Doppler, which alternates between sending and receiving signals, CW Doppler does not have a listening period, resulting in a duty factor of nearly 100%. Therefore, CW Doppler has the highest duty factor among the modes listed.

The color Doppler image shows an artifact where high-velocity blood flow exceeds the Nyquist limit, resulting in color wrap-around or aliasing. This artifact is visualized as a mosaic pattern of colors that abruptly change, indicating that the velocity exceeds the color Doppler scale's maximum. Aliasing occurs when the sampling rate (pulse repetition frequency) is insufficient to accurately capture the high velocities, causing the display to cycle back to lower velocities.

Comprehensive and Detailed Explanation From Exact Extract:

In pulsed-wave transducers, the thickness of the piezoelectric element primarily determines the fundamental operating frequency. Thinner elements produce higher frequencies, while thicker elements produce lower frequencies.

According to sonography instrumentation reference:

“The operating frequency of a pulsed-wave transducer is primarily determined by the thickness of the piezoelectric crystal. Thinner crystals vibrate at higher frequencies.”

Therefore, the correct answer is A: Element thickness.

—

—

Attenuation in ultrasound is directly proportional to the path length. If the path length is doubled, the amount of attenuation is also doubled. Attenuation refers to the reduction in the amplitude and intensity of the ultrasound wave as it travels through tissue, primarily due to absorption, reflection, and scattering. The relationship is linear, so doubling the distance the sound wave travels will result in twice the amount of attenuation.

ARDMS Sonography Principles and Instrumentation guidelines

Kremkau, F. W. (2015). Diagnostic Ultrasound: Principles and Instruments. Elsevier.

Comprehensive and Detailed Explanation From Exact Extract:

The primary advantage of pulsed-wave Doppler is its ability to provide range resolution. This means the operator can select a specific depth (sample volume) from which Doppler signals are acquired, allowing precise localization of blood flow velocities.

According to sonography instrumentation reference:

“Pulsed-wave Doppler allows for range resolution, enabling velocity measurements at a specific depth along the ultrasound beam path.”

Continuous-wave Doppler does not have range resolution, as it measures velocities along the entire beam path.

Therefore, the correct answer is C: Range resolution.

—

Comprehensive and Detailed Explanation From Exact Extract:

Axial resolution refers to the ability to distinguish two structures that are located along the path of the ultrasound beam. It is directly related to the spatial pulse length (SPL), which is the product of the number of cycles per pulse and the wavelength. A shorter SPL leads to better axial resolution.

According to sonography instrumentation reference:

“Axial resolution improves as spatial pulse length decreases because shorter pulses can better differentiate structures lying close together along the beam axis.”

Therefore, the correct answer is B: Spatial pulse length.

—
