NSE6_FSM_AN-7.4 Fortinet NSE 6 - FortiSIEM 7.4 Analyst Questions and Answers

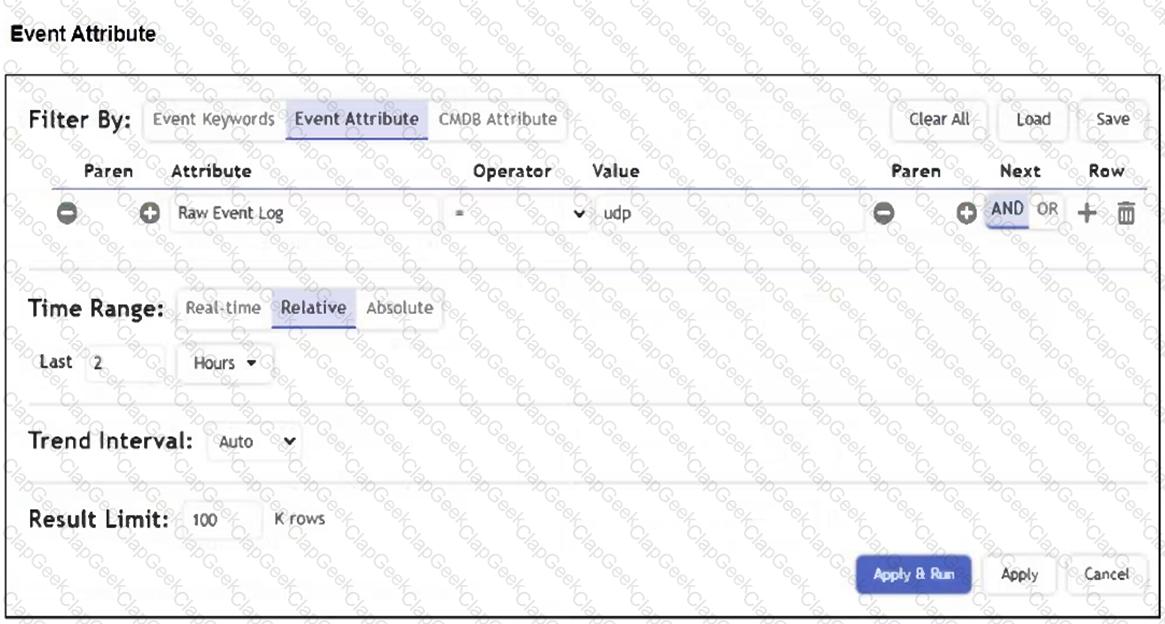

The operator is set to " = " , which performs an exact match on the entire raw event log, not a substring search. To find logs that contain the keyword " udp " , the analyst should use the CONTAIN operator instead. This will return all logs where " udp " appears anywhere in the raw log message.

The correct answer is D because the analyst is trying to search for raw logs that contain the keyword udp, but the filter uses the equality operator. The FortiSIEM Study Guide explains keyword searches in terms of Raw Event Log CONTAIN logic. In the keyword phrase search section, the guide states that without quotes, FortiSIEM searches raw event logs by using conditions such as Raw Event Log CONTAIN TCP OR Raw Event Log CONTAIN connection . Another analytics example explains that searching for TCP or UDP events uses the raw event log containing the keyword tcp or udp and that the search returns case-insensitive results for TCP and UDP. This directly eliminates option C. The time range is already set to the last two hours, which is correct for historical raw log searching. The problem is the operator. To find a keyword anywhere inside a raw log message, the analyst should use CONTAIN , not =.

The best matching analytics search is Username CONTAIN smit. The FortiSIEM Analytics lesson explains keyword and attribute matching by using the CONTAIN operator for searching values inside raw logs or attributes. The Study Guide gives a direct example of FortiSIEM translating keyword logic into a condition such as “Raw Event Log CONTAIN TCP.” That shows the operator is designed for substring-style matching rather than full-value equality. For a user such as JSmith, the string fragment smit is contained inside the username value, so the condition can match events where the username appears as JSmith, jsmith, or possibly in a longer identity string such as a domain-qualified username. Option A is wrong because smith is not the complete username and uses an equality-style comparison. Option B is wrong because it excludes usernames ending in jsmith. Option C uses the wrong operator form for this context. Therefore, the practical FortiSIEM analytics condition that can match the target failed-login event is Username CONTAIN smit.

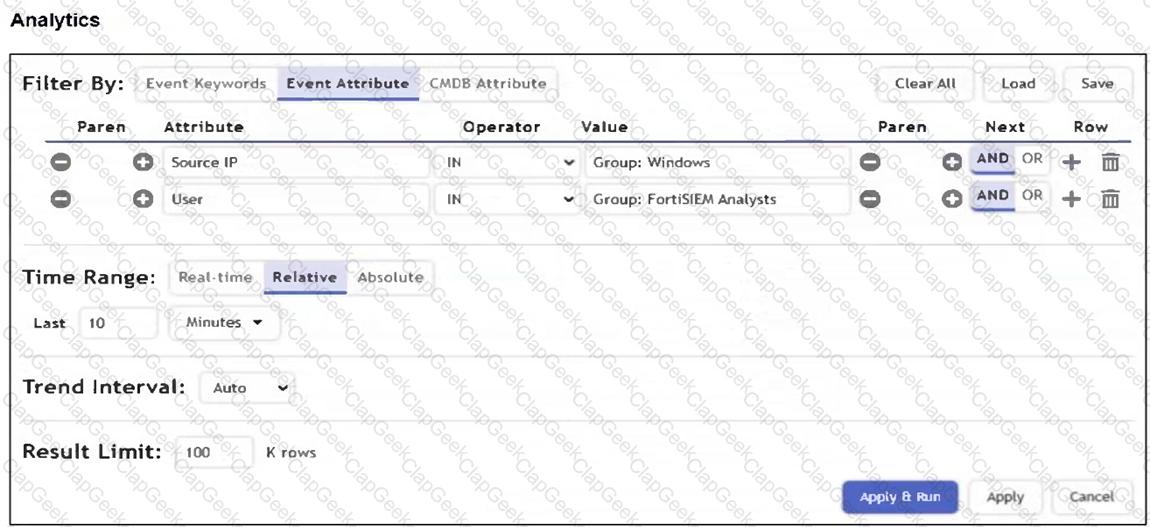

The correct answer is C. CMDB user group . In FortiSIEM, users and user groups are maintained as CMDB objects and can be referenced in analytics filters and rule logic. The FortiSIEM 7.4 User Guide table of contents explicitly includes CMDB management for users, viewing user information, adding users, editing or deleting users, performing operations on users, and working with user groups. This confirms that user groups are part of the FortiSIEM CMDB data model. The query shown in the exhibit uses the Analytics filter with the User attribute and the value Group: FortiSIEM Analysts . That syntax indicates that FortiSIEM is referencing a FortiSIEM-defined user group from CMDB, not an LDAP group directly and not an Active Directory group directly. LDAP and Active Directory can be used to discover or authenticate users, but once referenced as a FortiSIEM analytics group value, the object is a CMDB user group. FortiSIEM organization groups are tenant/organization constructs and are not the same as CMDB user groups.

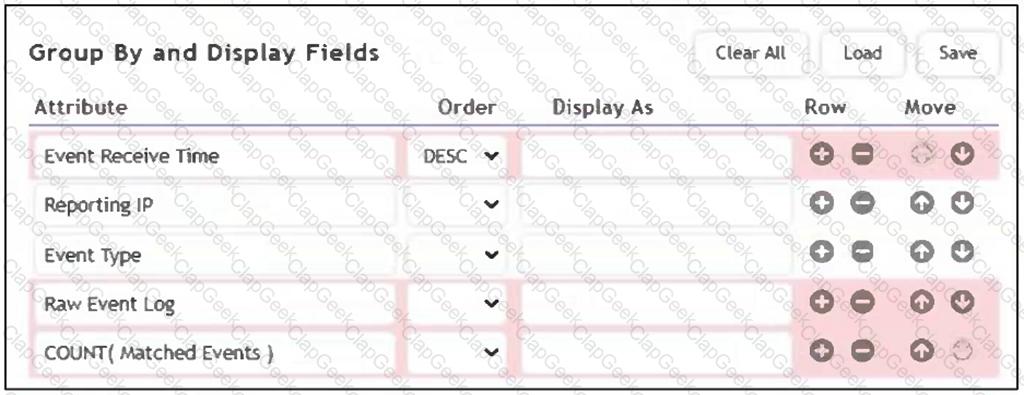

The fields are highlighted in red because unique values such as Event Receive Time and Raw Event Log cannot be used in group-by operations. Grouping requires aggregatable or consistent values across events, while these fields are unique to each event, making them incompatible for grouping.

The correct answer is A because the highlighted fields are not valid for that grouped/aggregated display configuration. The FortiSIEM 7.4 User Guide notes that some event attributes, functions, and queries are not supported in specific analytics result-filter and display contexts. It lists date fields, including examples such as Event Receive Time , and also lists Raw Event Log and Binary Raw Event Log among unsupported fields for that context. The reason is practical: grouping requires stable values that can combine multiple events into meaningful grouped rows. Attributes such as Event Receive Time and Raw Event Log are highly specific to individual events. If every event has its own receive timestamp or unique raw log content, grouping by those fields defeats aggregation and can create one row per event rather than meaningful grouped output. COUNT(Matched Events) itself is a valid aggregate expression when used correctly. Event Receive Time is available in logs, but it is not appropriate as a grouped field in the configuration shown. Therefore, the red highlighting indicates invalid grouped fields caused by unique/non-groupable values.

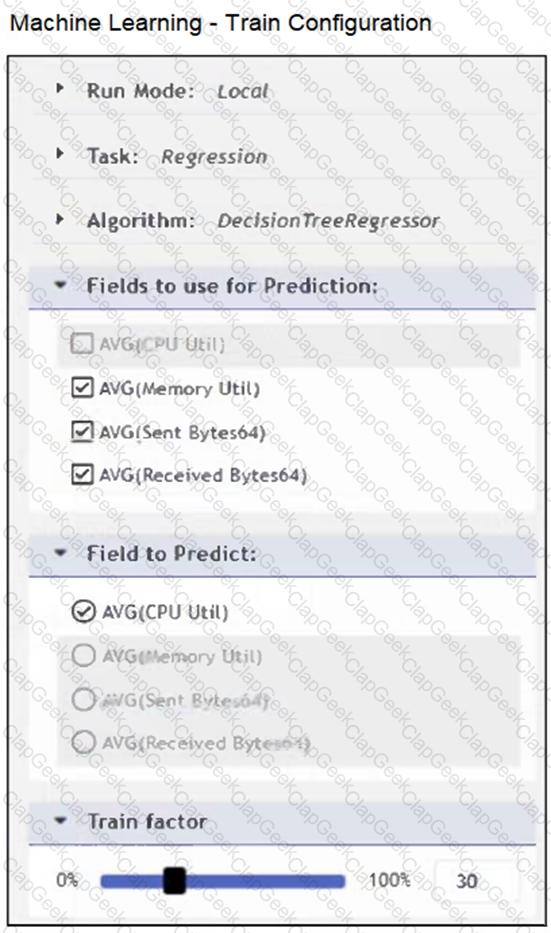

The correct answer is A . In FortiSIEM machine learning training, the Train factor controls how much of the prepared dataset is used for training and how much is reserved for testing. The FortiSIEM 7.4 User Guide states in the regression training procedure that the analyst must choose the Train factor and that it “should be greater than 70%.” It also explains the meaning of the value: 70% of the data is used for training and 30% is used for testing. This directly supports option A. Option B is incorrect because the supported running modes include Local, Local Auto, and AWS; “ML” is not the required run mode. Option C is incorrect because regression can use multiple fields for prediction; the guide instructs the user to choose the fields to use for prediction and the field to predict. Option D is incorrect because prediction input fields and target field should not be the same. Regression builds a model to predict a target field based on other fields, so the configuration must use a valid Train factor rather than matching predictor and target fields.

FortiSIEM supports both global thresholds and per-device/per-device-object thresholds for some performance events. The Study Guide states that FortiSIEM can define “per-device-object thresholds or global thresholds” for performance events, and separately explains that global thresholds are referenced by the rules engine by default. Therefore, the correct statement is that FortiSIEM uses global and per-device thresholds for performance metrics. Options A, B, and D are too restrictive or false because FortiSIEM does not use only one fixed threshold model.

A FortiSIEM rule requires detection logic and at least one subpattern structure to evaluate matching events. The FortiSIEM Study Guide explains that a single subpattern rule example consists of filter, aggregate, and group-by sections. It states: “The subpattern, ExcessVPNLoginFailure, consists of three components: Filter, Aggregate, Group By.” That confirms that a subpattern is a core rule component. The FortiSIEM 7.4 User Guide also identifies Detection Technology as part of rule definition and built-in rule metadata. Detection Technology describes the detection method used by the rule, such as correlation, profiling, machine learning, or correlation using lookup tables. Exception policy is not required; it is used to suppress or tune matches under specific conditions. Clear policy is also not required; it controls how an incident can be cleared or auto-cleared after triggering. Therefore, the required components among the listed options are Subpattern and Detection Technology. Without them, the rule lacks both the event-detection structure and the detection-method classification needed for rule evaluation.

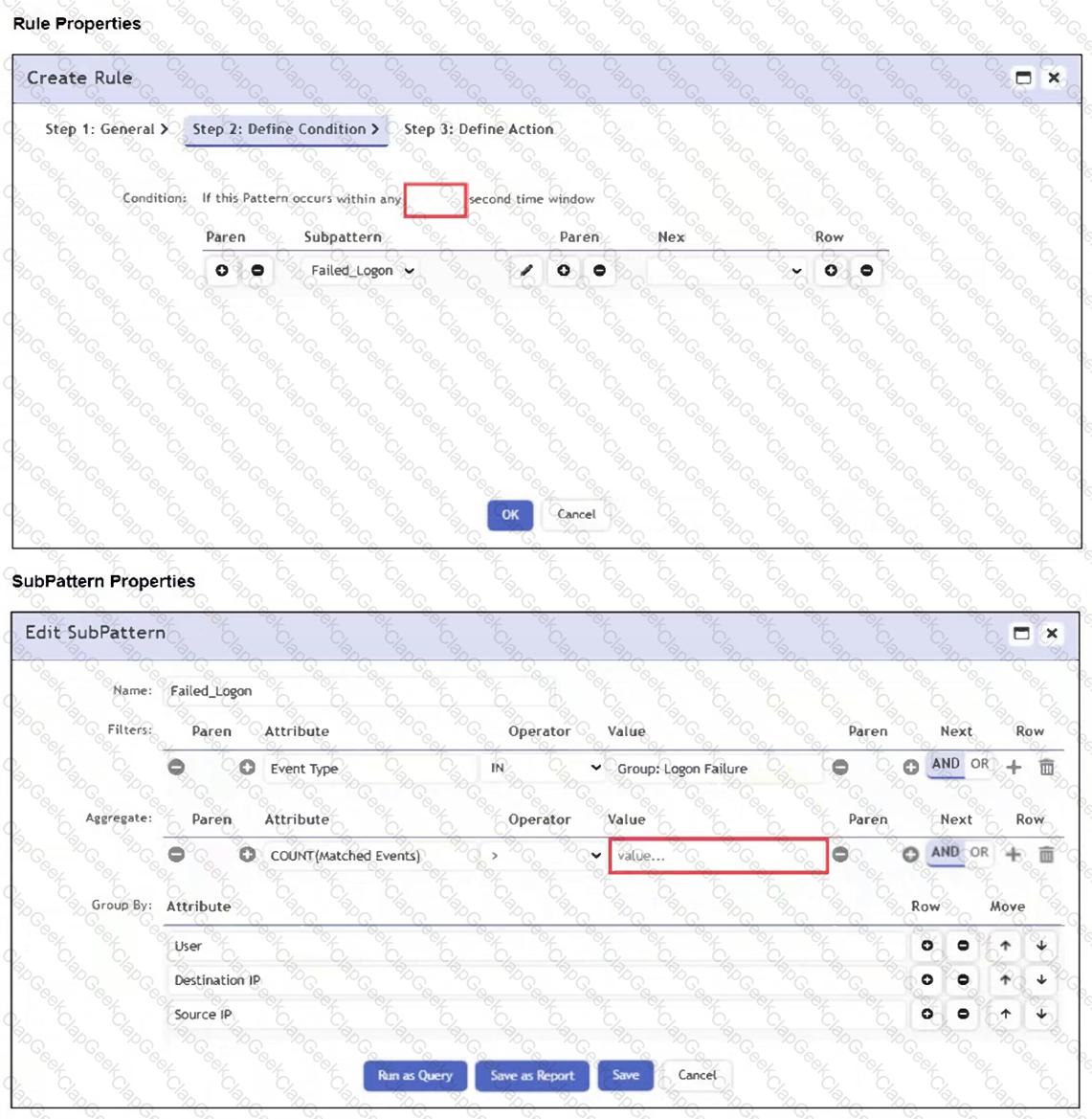

To detect three failed login attempts within three minutes, you must set the aggregate count to 3 in the subpattern and the time window to 180 seconds in the rule condition. This ensures the rule triggers only if three or more failed logins occur in that timeframe.

The correct answer is A because three minutes equals 180 seconds, and the aggregate threshold must be set to three matching events. The FortiSIEM Study Guide explains that rule conditions specify event attributes and thresholds that trigger the rule and create an incident. It further states that the time window defines the period within which the subpattern must match for the rule condition to be satisfied. The Study Guide’s single-subpattern rule example shows the same principle: the condition has a configured time window, and the Aggregate section uses a function such as COUNT(Matched Events) to require a minimum number of matching events. In this question, the analyst wants the rule to trigger when three failed login attempts happen within three minutes . Therefore, the rule condition time window must be 180 seconds , and the aggregate count must be 3 . A 90-second window would detect only events inside one and a half minutes, not the required three minutes. An aggregate count of 2 would trigger too early because the requirement is three failed attempts.

The correct answer is C. SSL . FortiSIEM receives raw logs, processes them through parsers, normalizes the extracted fields, classifies the event, and stores the structured data. The Study Guide explains the FortiSIEM process flow: data is collected, processed by the parsing engine, normalized, classified, and then stored. It further states that normalization extracts individual fields from raw events and maps those fields to a common schema. The FortiSIEM 7.4 User Guide describes a parser as a file containing instructions for the parser module to convert a raw log into event attributes. In the exhibit, the raw FortiGate log includes values such as profiletype= " applist " , appcat= " Network.Service " , and app= " SSL " . The field that directly represents the application value is app= " SSL " . Therefore, the parser would use SSL to populate the normalized Application Name field. applist describes the profile type, Network.Service is the application category, and wan1 is the interface, not the application name.

The correct answer is B because the analyst is searching for events to either of two destination IP addresses, but the filter uses the wrong Boolean relationship. The FortiSIEM Study Guide explains structured searches with multiple conditions and states that “when you use multiple conditions, you must specify the next logical operator between conditions.” It gives a direct example: when searching for events from two specific devices, the first condition is one IP address, the second condition is another IP address, and “the next logical operator between the two conditions is an OR operator, because the search is for events from condition 1 OR condition 2.” The same logic applies here. A single event cannot usually have Destination IP equal to 10.10.1.1 and Destination IP equal to 192.168.1.1 at the same time. Using AND requires both conditions to be true simultaneously, so no results are returned. The correct operator between the two Destination IP conditions is OR.

The Incident Status shows " Auto Cleared " , and the Cleared Reason states: " Rule has not been triggered for 20 minutes. " This indicates that the incident was automatically cleared by the rule logic after a defined period of inactivity.

The correct answer is C because the exhibit shows the incident status as Auto Cleared and the cleared reason indicates that the rule condition was no longer being triggered. The Study Guide explains that FortiSIEM supports clear conditions and auto-clearing behavior at the rule level. It states that if a time-based clear condition is configured, FortiSIEM can auto-clear the incident after the last occurrence if the trigger condition no longer exists. It also explains pattern-based clear behavior: FortiSIEM evaluates clear-condition subpatterns and compares attributes from the clear condition with the original incident attributes. If the configured attributes match, the incident status is set to auto cleared. In the exhibit, the cleared reason says the rule has not been triggered for a defined number of minutes. That is not a manual action by the analyst and not an endpoint-generated all-clear signal. It is FortiSIEM’s rule-based clearing logic. Option B is also wrong because the exhibit shows a specific rule inactivity period, not a generic 24-hour timeout.
