MCPA-Level-1-Maintenance MuleSoft Certified Platform Architect - Level 1 MAINTENANCE Questions and Answers

Explanation

Correct Answer: IP whitelist

*****************************************

>> OAuth 2.0 access token and Client ID enforcement policies are VERY common to apply on Experience APIs as API consumers need to register and access the APIs using one of these mechanisms

>> JSON threat protection is also VERY common policy to apply on Experience APIs to prevent bad or suspicious payloads hitting the API implementations.

>> IP whitelisting policy is usually very common in Process and System APIs to only whitelist the IP range inside the local VPC. But also applied occassionally on some experience APIs where the End User/ API Consumers are FIXED.

>> When we know the API consumers upfront who are going to access certain Experience APIs, then we can request for static IPs from such consumers and whitelist them to prevent anyone else hitting the API.

However, the experience API given in the question/ scenario is intended to work with a consumer mobile phone or tablet application. Which means, there is no way we can know all possible IPs that are to be whitelisted as mobile phones and tablets can so many in number and any device in the city/state/country/globe.

So, It is very LEAST LIKELY to apply IP Whitelisting on such Experience APIs whose consumers are typically Mobile Phones or Tablets.

Explanation

Correct Answer: SLA-based rate limiting

*****************************************

>> Client Id enforement policy is a "Compliance" related NFR and does not help in maintaining the "Quality of Service (QoS)". It CANNOT and NOT meant for protecting the backend systems from scalability challenges.

>> IP Whitelisting and OAuth 2.0 token enforcement are "Security" related NFRs and again does not help in maintaining the "Quality of Service (QoS)". They CANNOT and are NOT meant for protecting the backend systems from scalability challenges.

Rate Limiting, Rate Limiting-SLA, Throttling, Spike Control are the policies that are "Quality of Service (QOS)" related NFRs and are meant to help in protecting the backend systems from getting overloaded.

https://dzone.com/articles/how-to-secure-apis

Explanation

Correct Answer: Build several Bounded Context Data Models that align with coherent parts of the business processes and the definitions of associated business entities.

*****************************************

>> The options w.r.t building API data models using XML schema/ Agile API-centric practices are irrelevant to the scenario given in the question. So these two are INVALID.

>> Building EDM (Enterprise Data Model) is not feasible or right fit for this scenario as the teams and LOBs work in silo and they all have different initiatives, budget etc.. Building EDM needs intensive coordination among all the team which evidently seems not possible in this scenario.

So, the right fit for this scenario is to build several Bounded Context Data Models that align with coherent parts of the business processes and the definitions of associated business entities.

Explanation

Correct Answer: System Layer

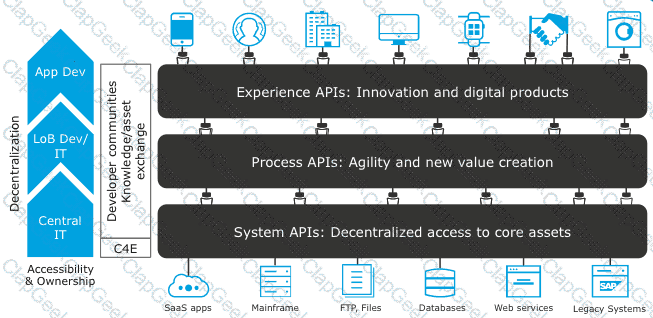

The APIs used in an API-led approach to connectivity fall into three categories:

System APIs – these usually access the core systems of record and provide a means of insulating the user from the complexity or any changes to the underlying systems. Once built, many users, can access data without any need to learn the underlying systems and can reuse these APIs in multiple projects.

Process APIs – These APIs interact with and shape data within a single system or across systems (breaking down data silos) and are created here without a dependence on the source systems from which that data originates, as well as the target channels through which that data is delivered.

Experience APIs – Experience APIs are the means by which data can be reconfigured so that it is most easily consumed by its intended audience, all from a common data source, rather than setting up separate point-to-point integrations for each channel. An Experience API is usually created with API-first design principles where the API is designed for the specific user experience in mind.

Explanation

Correct Answers:

1. Each modern API must be treated like a product and designed for a particular target audience (for instance mobile app developers)

*****************************************

Bottom of Form

Top of Form

Explanation

Correct Answer: When a new required field is added to the method called by the API client

*****************************************

>> Generally, the logic on API clients need to be updated when the API contract breaks.

>> When a new method or a child method is added to an API , the API client does not break as it can still continue to use its existing method. So these two options are out.

>> We are left for two more where "datatype of the response if changed" and "a new required field is added".

>> Changing the datatype of the response does break the API contract. However, the question is insisting on the "invocation" logic and not about the response handling logic. The API client can still invoke the API successfully and receive the response but the response will have a different datatype for some field.

>> Adding a new required field will break the API's invocation contract. When adding a new required field, the API contract breaks the RAML or API spec agreement that the API client/API consumer and API provider has between them. So this requires the API client invocation logic to also be updated.

Correct Answer: Use an SLA-based rate limiting policy and assign a client application to a matching SLA tier based on its type.

*****************************************

>> SLA tiers will come into play whenever any limits to be imposed on APIs based on client type
