JN0-106 Junos - Associate (JNCIA-Junos) Junos OS 21.2 Questions and Answers

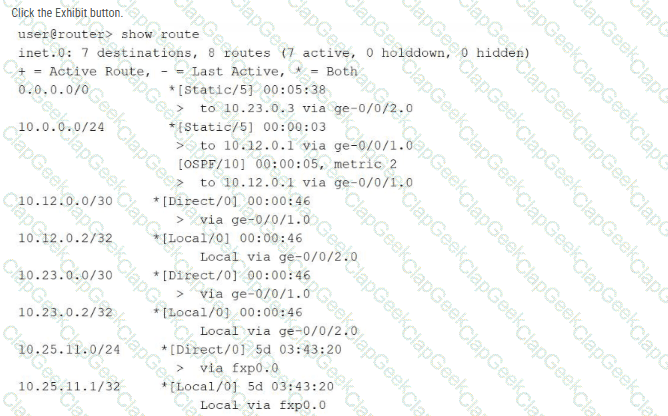

Analyzing the provided exhibit of the inet.0 routing table reveals that the destination network 10.0.0.0/24 currently has two viable paths: a static route with a preference of 5 and an OSPF route with a preference of 10. Both routes are configured to use 10.12.0.1 via the ge-0/0/1.0 interface as their primary next hop. The static route is currently marked with an asterisk (*), indicating it is the active path chosen by the Routing Engine due to its lower preference value.

In the event that the ge-0/0/1 interface transitions to a " down " state, the physical layer failure triggers the immediate invalidation of all routes associated with that link. Consequently, both the specific static and OSPF routes for the 10.0.0.0/24 prefix are purged from the active forwarding table. The Routing Engine must then perform a re-evaluation of the routing table to identify the next best match for any traffic destined for that range. Since there are no other more specific or equally specific routes available for the 10.0.0.0/24 network, the router falls back to the default route (0.0.0.0/0) . As shown in the exhibit, the default route points to the next-hop address 10.23.0.3 via interface ge-0/0/2.0 . Therefore, if the primary interface fails, traffic will be redirected through this secondary gateway.

IPv6 introduces several fundamental shifts in networking architecture compared to its predecessor, IPv4. The most prominent characteristic is the address length; IPv6 utilizes a 128-bit address space, represented in hexadecimal notation across eight groups of 16 bits. This massive expansion from IPv4 ' s 32-bit limit was designed to ensure long-term address availability for the global internet and the growing ecosystem of connected devices.

Another defining characteristic of IPv6 is the concept of address scope, particularly regarding link-local addresses . Any IPv6 address beginning with the fe80::/10 prefix is classified as link-local. These addresses are automatically configured on every IPv6-enabled interface and are strictly not routable beyond the local physical or logical link segment. They are essential for local link operations such as neighbor discovery and routing protocol adjacency formation.

Architecturally, IPv6 also improves performance by streamlining the packet header. Unlike IPv4, the IPv6 header does not include a checksum, as modern link-layer (Layer 2) and transport-layer (Layer 4) protocols perform their own error checking, making a redundant header checksum unnecessary at the network layer. Additionally, IPv6 replaces the broadcast-based Address Resolution Protocol (ARP) with the multicast-based Neighbor Discovery Protocol (NDP). Understanding these core traits—massive address length and non-routable link-local scoping—is critical for managing modern Junos-based network infrastructures.

Junos OS provides several predefined login classes to implement Role-Based Access Control (RBAC) efficiently. For an auditor who needs to verify the current state of the device without the risk of altering it, the read-only class is the ideal choice.

The read-only class allows a user to log in and execute show commands to view the running configuration and operational statistics. However, it strictly prohibits the user from entering configuration mode (using the configure command) or executing any " impactful " operational commands that could reset counters, clear log files, or affect traffic flow.

It is important to distinguish this from the operator class. While the operator class also cannot change the configuration, it does have permissions to clear interface statistics, reset routing protocol neighbors, and perform other " clear " or " reset " actions. For a pure auditing role where even resetting a counter would be considered a breach of policy, read-only provides the necessary " look but don ' t touch " environment. The super-user class, conversely, has full unrestricted access, and unauthorized is not a standard functional class. Using the read-only class ensures compliance with security best practices by granting the minimum necessary privileges required for the auditing task.

In Junos OS, the Routing Engine (RE) performs a validation check on every entry in the Routing Information Base (RIB). For a static route to be considered valid and transition to an active state in the inet.0 table, its designated next hop must be resolvable . A next-hop address is resolvable only if the router has an existing route (typically a directly connected route) to that specific IP address.

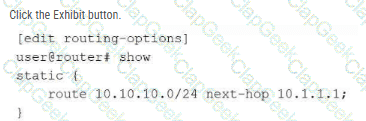

According to the exhibit, the static route for 10.10.10.0/24 has been configured with a next hop of 10.1.1.1 . However, the scenario states that the actual gateway router is located at 10.10.1.1 . If the local interface (ge-0/0/1) is configured with an IP in the 10.10.1.0/x subnet, the router will have a direct route to 10.10.1.1, but it will likely have no path to the 10.1.1.1 address provided in the exhibit.

Because the router cannot resolve the next hop 10.1.1.1 , the static route is placed in an " inactive " or " hidden " state. It will not be installed in the forwarding table pushed to the Packet Forwarding Engine (PFE), and standard show route commands will not display it unless specific flags like hidden or all are used. This logic ensures that the router does not attempt to forward packets into a " black hole " where the gateway is logically unreachable. To fix this, the administrator must modify the configuration to point to the correct, reachable next-hop address of 10.10.1.1.

The fundamental architecture of Junos OS is built upon the clean separation of the Control Plane (Routing Engine or RE) and the Forwarding Plane (Packet Forwarding Engine or PFE). While these two components perform vastly different tasks, they must maintain a high-speed, reliable communication channel to synchronize the state of the device. This connection is achieved through an internal Ethernet link .

This internal link serves several critical functions. First, it allows the Routing Engine to " push " the distilled forwarding table (FIB) to the PFE, ensuring that the hardware knows exactly how to handle incoming transit traffic at wire speed. Second, it acts as a conduit for exception traffic . If the PFE receives a packet that it cannot handle alone—such as an OSPF hello, a BGP update, or an ICMP " Time Exceeded " message—it sends that packet over the internal Ethernet link to the RE for processing. This link is carefully policed by built-in rate limiters to ensure that a flood of transit-related exception traffic cannot overwhelm the Routing Engine ' s CPU, a mechanism known as control plane protection. By using a standard Ethernet-based internal fabric, Junos ensures a scalable and modular design where the RE can focus on complex protocol calculations while the PFE focuses on the heavy lifting of packet switching.

In the Junos OS architecture, maintaining visibility into the health of the Routing Engine (RE) is paramount for ensuring control plane stability. The command show chassis routing-engine is the primary tool for a high-level hardware status overview. It provides critical telemetry regarding the RE ' s current CPU utilization (broken down by user, background, and kernel tasks), memory usage statistics, and uptime. This command is essential for identifying if the device ' s " brain " is under significant stress due to heavy protocol processing or management tasks.

For a more granular, process-specific analysis, the show system processes extensive command is utilized. Similar to the ' top ' utility in Unix-based systems, it lists all active software daemons (such as rpd for routing, dcd for interfaces, and mgd for management) and ranks them by their real-time CPU and memory consumption. This allows an architect to pinpoint exactly which process might be causing a performance bottleneck. While show chassis environment focuses on physical hardware health like temperatures and fan speeds, and resource-monitor provides summary data, the combination of show chassis routing-engine and show system processes extensive offers the most comprehensive diagnostic view of the device ' s internal computational resources. Reference: Operational Monitoring and Maintenance, System Health Monitoring.

==========

Root password recovery in Junos OS is a critical administrative procedure designed to regain access to the management plane when the root credentials are lost. This process is fundamentally tied to the physical security of the device, as it requires two specific conditions that cannot be met over a standard network connection. First, the administrator must have direct console access to the device. Because the recovery process involves interrupting the Junos boot sequence before the operating system kernel and its associated security services (such as SSH) are fully initialized, it must be performed through the serial management port.

Second, a system reboot is mandatory. The recovery mechanism is triggered by interrupting the boot loader (typically the " Loader " or " U-Boot " stage) by pressing the Space bar or a specific key sequence during power-on. This allows the administrator to enter " single-user mode " or boot into a " recovery " state. Once in this restricted environment, the device mounts its internal storage in a way that permits the modification of the root authentication parameters without requiring the existing password. This workflow intentionally bypasses the standard authentication database to restore management control while preserving the rest of the device configuration. This procedure underscores the importance of securing physical access to the chassis, as anyone with console access and the ability to cycle power can eventually gain root-level authority over the system.

In the Junos OS, the Command Line Interface (CLI) uses distinct prompt symbols to provide the administrator with immediate contextual awareness of their current operating environment. When the prompt ends with a hash symbol (#) , it indicates that the user is in configuration mode .

This mode is the " engine room " of the device, where you modify the candidate configuration. Here, you can add, delete, or modify statements across the various hierarchies like [edit system], [edit interfaces] , or [edit protocols]. It is important to remember that changes made while the # prompt is visible are not active until a commit command is successfully executed.

Contrast this with the operational mode , which is indicated by a greater-than symbol ( > ) . Operational mode is used for monitoring, troubleshooting, and viewing the system status (e.g., show commands). Moving between these modes is a fundamental part of the Junos workflow: you enter configuration mode by typing configure and return to operational mode by typing exit or quit. If you see a percent sign (%), you ' ve wandered into the FreeBSD shell mode , which is a lower-level Unix environment typically reserved for advanced system maintenance. Recognizing that # means you have the power to change the system ' s " brain " is a key safety check for any network architect.

In the IPv4 addressing scheme used within Junos OS, the /24 prefix length (representing a subnet mask of 255.255.255.0) allocates 24 bits for the network portion and 8 bits for the host portion of the 32-bit address. To determine the total number of addresses in this block, the formula $2^n$ is applied, where $n$ is the number of host bits. With 8 bits available ($2^8$), there are a total of 256 possible IP addresses.

However, the architecture of standard IP networking requires the reservation of two specific addresses within any subnet, making them unavailable for assignment to individual host interfaces. The first address (192.168.1.0) is the network address, which identifies the subnet itself. The last address (192.168.1.255) is the directed broadcast address, used to send traffic to all hosts on the segment simultaneously. Consequently, the maximum number of addresses that can be assigned to actual hosts—such as router interfaces, servers, or workstations—is calculated as $2^n - 2$. In this specific scenario, $256 - 2 = 254$. This calculation is a fundamental requirement for network architects when defining address pools and ensuring the Packet Forwarding Engine (PFE) is correctly configured with valid host-layer identifiers.

In the Junos OS architecture and general networking standards, Layer 2 switches are designed to increase network efficiency by segmenting collision domains. Unlike legacy hubs, a switch creates a separate collision domain for each of its physical ports. This micro-segmentation allows for full-duplex communication, effectively eliminating the possibility of collisions on individual links. However, while switches segment collision domains, they maintain a single broadcast domain by default.

When a switch receives a broadcast frame, such as an ARP request, it must ensure the frame reaches all possible destinations within the local segment. Consequently, the switch floods the broadcast traffic out of all ports except the one on which it was received. This flooding behavior, while necessary for protocol discovery, makes Layer 2 networks susceptible to traffic loops. If redundant physical paths exist between switches without a loop-prevention mechanism like the Spanning Tree Protocol (STP), broadcast frames can circulate endlessly, leading to a broadcast storm that consumes all available bandwidth and processor resources on the Routing Engine. Furthermore, switches are highly active learners; they populate their Media Access Control (MAC) tables by observing the source addresses of incoming frames to ensure that subsequent unicast traffic is precisely forwarded rather than flooded. Therefore, understanding the management of broadcast domains and the risks of loops is a core competency for any Junos Associate.

In Junos OS, the rescue configuration is a specifically designated file that stores a known-working configuration, intended to be used for emergency recovery when the device becomes unreachable or unstable due to recent changes. This configuration is not created automatically; an administrator must proactively save a stable state using the operational mode command request system configuration rescue save. This differs from the standard rollback archive, which automatically stores up to 50 previous configurations but can eventually rotate out the specific " last known good " state needed for recovery.

When a device loses network connectivity, console access becomes the only viable management path. To restore the rescue configuration, the administrator must enter configuration mode using the configure command. Once inside the candidate configuration buffer, the rollback rescue command is issued. This command directs the Junos OS to locate the designated rescue file and load its contents over the current candidate configuration. Upon receiving the " load complete " confirmation, the administrator must execute a commit to promote the candidate configuration to the active, running state. Sequence C correctly follows this logic. Sequence A is technically incorrect for standard rescue restoration as load override typically targets specific file paths or URLs, whereas rollback rescue is the built-in mechanism for this function. Sequences B and D are destructive or counter-productive, either deleting the rescue file or overwriting it with the current, non-functional configuration state. Reference: Operational Monitoring and Maintenance, Configuration Recovery, Rescue Configuration.

==========

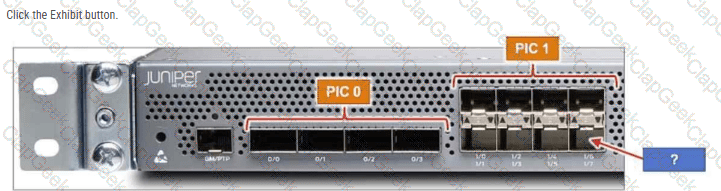

Physical layer connectivity for Junos devices involves a variety of media types, with fiber-optic cabling being the standard for high-speed, long-distance, or high-density uplink requirements. Two of the most prevalent connector types used in these environments are the LC (Lucent Connector) and the SC (Subscriber Connector) .

The LC connector is a small-form-factor (SFF) connector that uses a 1.25 mm ferrule. Due to its compact size and " push-and-latch " mechanism, it is the primary connector type found on SFP, SFP+, and XFP transceivers used in Juniper EX, MX, and QFX series hardware. Its high-density design allows for more ports in a limited space on a line card or chassis. The SC connector , often referred to as a " square connector, " utilizes a larger 2.5 mm ferrule and a " push-pull " snapping mechanism. While it was highly common in older legacy hardware and fiber patch panels, it has largely been superseded by the LC in modern data center and enterprise switching environments.

In contrast, the RJ-45 is a standard copper Ethernet connector (typically used with Category 5e/6 cables), and the BNC (Bayonet Neill–Concelman) is a miniature quick connect/disconnect RF connector used for coaxial cable. As a Senior Architect, distinguishing between these physical interfaces is critical when specifying the correct Small Form-factor Pluggable (SFP) modules and patch cables required to bring a Junos interface into an operational up/up state.

Simple Network Management Protocol version 3 (SNMPv3) represents a significant security evolution over its predecessors, SNMPv1 and SNMPv2c. While earlier versions relied on " community strings " sent in plain-text—which are easily intercepted and provide minimal security—SNMPv3 introduces a comprehensive security framework known as the User-based Security Model (USM). The primary benefit of SNMPv3 is that it protects against tampering and eavesdropping. It achieves this through two main mechanisms: message integrity (authentication), which ensures that a packet has not been altered in transit, and data confidentiality (privacy), which encrypts the payload of the SNMP packets using advanced algorithms like AES or DES.

Furthermore, SNMPv3 provides for secure communication by utilizing encrypted credentials rather than cleartext strings. Administrators define specific users and assign them security levels: noAuthNoPriv, authNoPriv, or authPriv. In the most secure mode (authPriv), the system requires both a password for authentication (validated via MD5 or SHA hashes) and a separate password for encryption. This architecture ensures that management traffic—including sensitive device telemetry and configuration data—remains confidential and authenticated as it traverses the network. While SNMPv3 is inherently more complex to configure than SNMPv2c due to these additional security parameters, it is the required standard for any production Junos environment where management plane integrity is a priority.

The statement describing commit confirmed 5 is correct. In Junos OS, configuration changes are first made to a candidate configuration . They do not become the active operational configuration merely because they have been entered in configuration mode. A commit operation is required to validate and activate those changes.

The commit confirmed mechanism provides an important administrative safety feature. When the administrator enters:

commit confirmed 5

Junos OS activates the candidate configuration but requires confirmation within 5 minutes . If the configuration is not confirmed before the timer expires, Junos OS automatically rolls back to the previously committed configuration. Juniper explicitly documents that the optional number following commit confirmed specifies the confirmation period in minutes.

Option A is incorrect because operational mode is primarily used for monitoring, troubleshooting, maintenance, and operational commands rather than making persistent configuration changes. Option B is incorrect because configuration-mode edits remain candidate changes until committed. Option D is also incorrect: rollback 0 does not restore factory defaults . It loads the most recently committed configuration and effectively removes pending uncommitted modifications.

Study Guide Reference Topics: Configuration Basics — candidate versus active configuration, commit operations, confirmed commits, configuration rollback, and Junos CLI modes.

The Junos Command Line Interface (CLI) is strictly partitioned into operational and configuration modes to maintain a clear boundary between monitoring and administrative changes. Operational mode, identified by the > prompt, is designed for executing commands that monitor device status, troubleshoot network connectivity, and manage the physical system state. One typical administrative task performed here is clearing log files (using the clear log command) to free up storage space or reset diagnostic data during troubleshooting.

Additionally, high-level system requests that do not alter the persistent configuration database, such as rebooting the hardware, are executed in operational mode. The request system reboot command allows the administrator to gracefully restart the device after a software update or as part of a maintenance cycle. In contrast, actions such as configuring routing protocols or committing changes require transitioning to configuration mode (the # prompt). Committing a configuration is the specific act of moving changes from the candidate database to the active database, which is a logic-altering event strictly reserved for configuration mode. Therefore, operational mode remains the dedicated environment for real-time observation and system-level requests that ensure the device operates correctly within its existing parameters. Reference: User Interfaces, CLI Modes, Operational Mode Commands.

==========

To determine which prefixes contain 192.168.3.29 , calculate the address range represented by each subnet mask.

A /22 prefix uses subnet mask 255.255.252.0 , producing blocks of four in the third octet. Therefore, 192.168.0.0/22 covers 192.168.0.0 through 192.168.3.255 . The address 192.168.3.29 falls within this range, making A correct .

A /28 uses mask 255.255.255.240 , creating blocks of 16 addresses. 192.168.3.0/28 covers 192.168.3.0 through 192.168.3.15 . Since 192.168.3.29 is outside this interval, B is incorrect .

A /23 uses mask 255.255.254.0 , creating blocks of two in the third octet. 192.168.2.0/23 covers 192.168.2.0 through 192.168.3.255 , so 192.168.3.29 is included , making C correct .

Finally, a /21 uses eight-value blocks in the third octet. The prefix represented by 192.168.252.0/21 belongs to the 192.168.248.0–192.168.255.255 range and therefore cannot contain 192.168.3.29.

Study Guide Reference Topics: Networking Fundamentals — IPv4 addressing, subnet masks, CIDR notation, subnet boundaries, and prefix-range calculations.

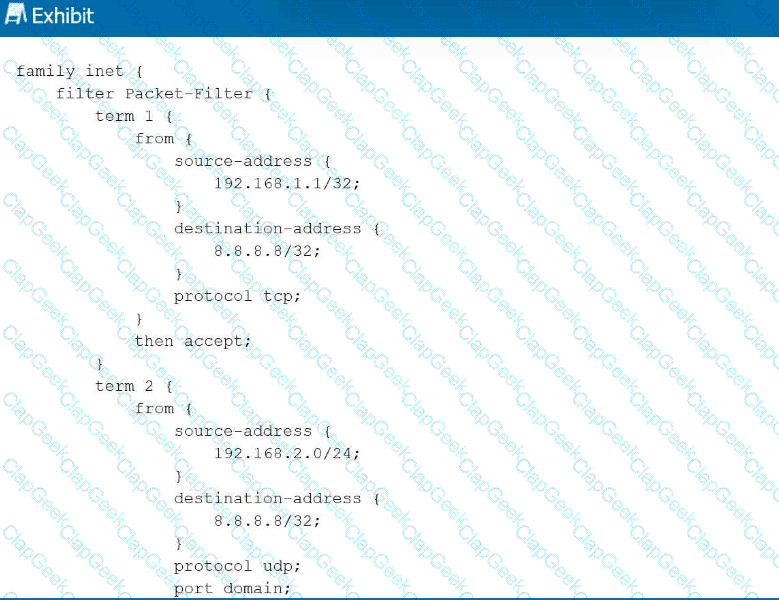

Junos OS firewall filters operate on a first-match basis, evaluating terms sequentially from top to bottom. In this scenario, a UDP DNS packet (destination port 53) is sent from 192.168.1.1 to 8.8.8.8. Evaluation begins with term 1 , which matches the correct source and destination IP addresses but specifies protocol tcp . Because the actual traffic uses UDP, term 1 is not a match. Evaluation then moves to term 2 . While term 2 correctly identifies protocol udp and port domain (port 53), it requires the source-address to reside within the 192.168.2.0/24 subnet. Since the source is 192.168.1.1 , term 2 also fails to match.

When a packet fails to match any explicitly defined terms in a Junos firewall filter, it is subject to the implicit deny action. This default " last term " is a hardcoded safety mechanism that automatically discards all traffic that has not been explicitly permitted. Consequently, because neither term provides a match for the specific combination of source IP, protocol, and destination port, the DNS query is silently dropped by the Packet Forwarding Engine. This behavior ensures that Junos devices maintain a " deny-by-default " security posture, requiring administrators to define precise permit statements for all required transit or management traffic. Reference: Routing Policy and Firewall Filters, Firewall Filter Evaluation, Implicit Discard.

==========

Comprehensive and Detailed 150 to 250 words of Explanation From: The Transmission Control Protocol (TCP) is a core transport-layer protocol within the TCP/IP suite designed to provide a highly reliable, connection-oriented service. Unlike the User Datagram Protocol (UDP), which is connectionless and best-effort, TCP ensures that data is delivered accurately and in the correct order. A defining characteristic of TCP is its use of a three-way handshake to establish a session. This process involves the exchange of SYN, SYN-ACK, and ACK segments, which synchronizes sequence numbers between the two endpoints and ensures both hosts are ready for data transfer.

Furthermore, TCP provides reliable, ordered delivery by utilizing sequence numbers and acknowledgments. Each data segment is assigned a sequence number; the receiving host uses these numbers to reassemble the data in its original order, even if segments arrive out of sequence due to network jitter or multiple paths. If a segment is lost, the lack of a timely acknowledgment triggers a retransmission, guaranteeing that the application receives all data. TCP does not provide fixed latency guarantees, as its error-recovery mechanisms can introduce delays. Additionally, TCP is a unicast-only protocol and does not support broadcasting on Ethernet. Reference: Networking Fundamentals, Transport Layer Protocols, TCP vs. UDP.

==========

In the Junos OS architecture, maintaining a reliable recovery point is a critical post-installation task. While the system automatically archives previous configurations as " rollback " files every time a commit is performed, these files are transient and can eventually be rotated out of the default 50-file history as new changes are made. To ensure a permanent and reliable recovery state, a Senior Architect should manually create a rescue configuration .

The rescue configuration is a specifically designated file used to restore a device to a known-working state if it becomes unreachable or the configuration becomes corrupted. Unlike standard rollbacks, the rescue configuration is only created or updated when an administrator explicitly issues the operational mode command request system configuration rescue save. This ensures that even if several subsequent commits flush the desired initial state from the standard rollback archive, the " safe harbor " configuration remains intact on the storage media. This state can then be re-activated via the rollback rescue command in configuration mode followed by a commit. Setting a rescue configuration after the initial setup is a foundational best practice for disaster recovery and operational stability, providing a " last resort " configuration that is immune to the automated rotation of the commit history.

The Junos Command Line Interface (CLI) is structured into two primary hierarchical modes: operational mode and configuration mode. Operational mode is the default entry point when a user logs into the device, signified by the > prompt. This mode is designed for monitoring the health of the device, troubleshooting network issues, and executing system-level maintenance tasks. Specifically, an administrator uses operational mode to verify the version of Junos OS currently active on the device using the show version command.

Additionally, system-level administrative actions that do not involve modifying the device ' s persistent configuration logic are performed within the operational mode. This includes requesting the system to reboot or halt via the request system hierarchy of commands. In contrast, tasks that involve manipulating the configuration database—such as committing proposed changes or rolling back to a previous configuration version—require the user to transition into configuration mode, indicated by the # prompt. Understanding this distinction is vital for efficient navigation of the Junos CLI; while operational mode provides the tools to observe the system and manage its physical state, configuration mode is reserved for altering the logical parameters and routing policies that govern device behavior. Reference: User Interfaces, CLI Modes, Operational Mode Commands.

==========

In the Junos OS environment, precise IP addressing and subnet calculation are foundational for interface configuration. A /29 subnet mask (255.255.255.248) provides a total of 8 IP addresses. To identify the usable host range, we must first identify the network and broadcast addresses. For the subnet 172.16.40.128/29, the network address is 172.16.40.128. The broadcast address is the last address in the block, which is 172.16.40.135.

Following standard IPv4 conventions, the first and last addresses in a block are reserved for the network identity and the directed broadcast, respectively. This leaves 6 usable host addresses: 172.16.40.129 through 172.16.40.134. Counting sequentially from the beginning of the usable range: the first usable host is .129, the second is .130, the third is .131, and the fourth usable host is 172.16.40.132. Assigning this specific address ensures that the Packet Forwarding Engine can correctly route traffic within the intended segment. As a Senior Architect, it is critical to verify these boundaries when using the set interfaces unit 0 family inet address command to prevent address overlapping or the accidental assignment of reserved network/broadcast IDs.

The relationship between the routing table (Routing Information Base or RIB) and the forwarding table (Forwarding Information Base or FIB) is the cornerstone of the Junos OS architectural separation between the control and data planes. The routing table resides in the control plane on the Routing Engine (RE). Its primary role is to aggregate all reachability information from every configured protocol and select the best route for each destination prefix based on criteria like preference and metrics.

Once the Routing Engine has identified the single " active " best path for a destination, it distills this complex routing data into a simplified, streamlined version called the forwarding table . The forwarding table contains only the essential information needed to move a packet: the destination prefix, the egress interface, and the Layer 2 next-hop MAC address. The RE then " pushes " this forwarding table to the Packet Forwarding Engine (PFE) in the data plane. By having the PFE use a table built from the routing table , Junos ensures that transit traffic can be processed at wire speed without the overhead of complex routing logic. This one-way flow—from the comprehensive RIB on the RE to the optimized FIB on the PFE—allows the device to maintain high performance even while routing protocols are recalculating or the management plane is under heavy load.

In the IPv4 addressing architecture, a /24 prefix length (standard Class C subnet mask of 255.255.255.0) signifies that the first 24 bits of the 32-bit address are reserved for the network portion, leaving 8 bits for the host portion. To calculate the total number of available IP addresses within this range, the formula $2^n$ is applied, where $n$ represents the number of host bits. For a /24 mask, $2^8$ results in 256 total addresses.

However, standard networking conventions—which Junos OS adheres to for interface configuration and routing—require the reservation of two specific addresses within any given subnet. The first address in the range is the network address (where all host bits are 0), used to identify the subnet itself in the routing table. The last address in the range is the directed broadcast address (where all host bits are 1), utilized to communicate with all hosts on that segment simultaneously. Therefore, the number of " usable " hosts that can be assigned to device interfaces, such as ge-0/0/0.0 or a workstation, is calculated as $2^n - 2$. In this instance, $256 - 2 = 254$. Understanding this calculation is fundamental for an architect when performing IP address management (IPAM) and ensuring that the Packet Forwarding Engine is configured with valid, assignable host addresses within a defined broadcast domain.

In Junos OS, configuring the time-zone (such as America/LosAngeles) within the [edit system] hierarchy establishes the offset from Coordinated Universal Time (UTC) and governs how the device displays timestamps for logs and system events. However, simply setting the timezone does not adjust the underlying system hardware clock; it only dictates how that clock ' s data is interpreted and presented. To ensure the device reflects the correct local time, the administrator must either synchronize the system with an external reference or manually input the current date and time.

Configuring a Network Time Protocol (NTP) server is the preferred professional method, as it allows the device to automatically synchronize its clock with a reliable stratum source, ensuring long-term accuracy and consistency across the network. Alternatively, the set date operational mode command can be used to manually define the current year, month, day, hour, and minute. While a DNS server is necessary for resolving the hostnames of NTP servers, it does not provide time data itself. Furthermore, rebooting the device will not correct a fundamentally unset or drifting clock. Therefore, combining the correct timezone with either NTP synchronization or a manual date setting is the standard procedure for establishing temporal accuracy on a Junos platform. Reference: Operational Monitoring and Maintenance, System Time and NTP.

==========

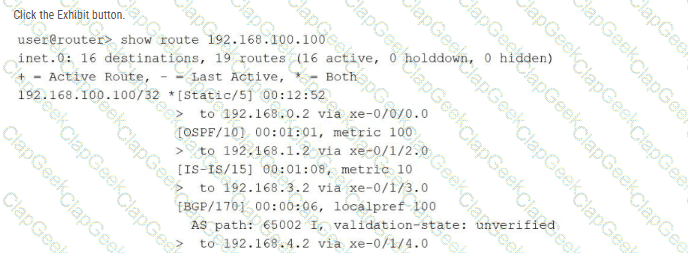

In the Junos OS architecture, the Routing Engine (RE) manages path selection by evaluating multiple potential routes to a specific destination found within the Routing Information Base (RIB). When multiple routing sources (such as static configuration, OSPF, IS-IS, and BGP) provide information for the exact same destination prefix—in this case, 192.168.100.100/32 —the device utilizes route preference as the primary tie-breaker to determine which entry becomes the " active " route.

The provided exhibit displays the default preference values for each protocol: Static is 5 , OSPF is 10 , IS-IS is 15 , and BGP is 170 . Junos OS follows a " lower is better " logic for preference; therefore, the Static route is selected as the most trustworthy path. In the command output, the active route is explicitly identified by the asterisk (*) and plus sign (+) symbols located next to the [Static/5] entry. Looking at the specific next-hop information for this active static route, the output indicates the traffic is sent to 192.168.0.2 via xe-0/0/0.0 . Consequently, the Packet Forwarding Engine (PFE) will install this specific path into the forwarding table, causing all traffic destined for 192.168.100.100 to be egressed over the xe-0/0/0.0 interface.

IPv6 link-local addresses, which are identified by the fe80::/10 prefix, are a mandatory component of the IPv6 architecture. The primary purpose of a link-local address is to enable immediate communication between devices located on the same local network segment (the same " link " ) without the requirement for a global unicast address or an external routing infrastructure. These addresses are non-routable, meaning they are never forwarded by a router to another network segment.

Every IPv6-enabled interface on a Junos device automatically generates a link-local address, typically derived from the interface ' s MAC address using the EUI-64 format or a stable privacy algorithm. These addresses are essential for several core functions: they are used by the Neighbor Discovery Protocol (NDP) to resolve MAC addresses, they serve as the source address for routing protocol adjacency formation (such as OSPFv3 or RIPng), and they are frequently used as the next-hop address in IPv6 routing tables. While they do not provide Layer 2 connectivity themselves (which is the role of the MAC address), they provide the necessary Layer 3 link-level presence required for nodes to discover one another and communicate across the physical medium before any global addressing is configured.
