F5CAB4 BIG-IP Administration Control Plane Administration (F5CAB4) exam Questions and Answers

A BIG-IP device group cannot be deleted if it still contains device members , even if one of those devices has already been decommissioned or is unreachable. Before deleting the device group, the administrator must explicitly remove the decommissioned device from the device group configuration .

Once the removed or unreachable device is deleted from the device group membership, the BIG-IP system allows the remaining administrator to successfully delete the device group.

Why the other options are incorrect:

A. Remove all members from the device group This is not required; the key requirement is removing the decommissioned device , not all members.

B. Make sure all members are in sync Synchronization status does not prevent device group deletion.

D. Disable the device group Device groups cannot be disabled; they must be modified or deleted.

Therefore, the correct prerequisite action is to remove the decommissioned device from the device group , making C the correct answer.

===========

The Statistics Dashboard is the primary graphical interface used by administrators to monitor the real-time performance and health of the BIG-IP system.

System-Wide Overview: Navigating to Statistics > Dashboard provides a centralized view of critical system-level metrics, including global CPU utilization (across all TMM instances and the Linux host) and total memory usage.

Performance Tracking: In addition to CPU and memory, the dashboard displays other vital statistics such as total active connections, throughput (bits/packets per second), SSL transactions per second (TPS), and compression efficiency.

Operational Health: Monitoring these metrics from the dashboard allows the administrator to quickly identify performance trends or resource exhaustion that could impact the Control Plane or Data Plane stability.

Comparison to Other Menus:

Local Traffic > Virtual Servers: Provides statistics specific to traffic objects rather than global system resources.

Network > Interfaces: Shows physical layer statistics like link status, errors, and drops for specific ports.

Device Management > Overview: Focuses on high availability (HA) states, synchronization status, and device trust rather than granular performance metrics.

When a failover occurs, the newly active device must inform the surrounding network that it now " owns " the shared IP addresses. Without MAC Masquerade, the new device uses its own hardware MAC, requiring upstream routers to update their ARP tables (which causes a delay). MAC Masquerading allows the HA pair to share a " floating " MAC address, ensuring the Control Plane transition is transparent to the network layer

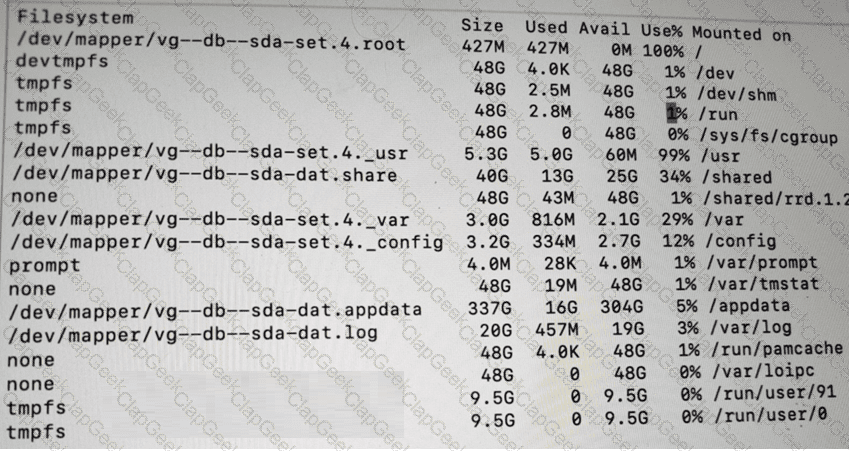

When troubleshooting a BIG-IP system where a partition is reported as full (100% utilization), identifying and removing large or unnecessary files is the immediate next step for restoration of system stability.

Symptoms of Full Partitions : If a file system (such as the root / or /var) becomes full, it can result in unpredictable system behavior, failure to save configurations, and the inability to log in to the Web UI.

The Root (/) Partition : This partition is intentionally kept small on F5 systems. It is highly sensitive to the storage of third-party software or diagnostic files that should ideally be stored in the /shared or /var directories.

Procedural Resolution : To resolve 100% disk usage, administrators should check for large files on the affected partition using CLI commands like du -ah or find / -xdev -type f -exec du {} \; | sort -rn | head -20.

Common Culprits : Large files typically causing these issues include old core files, tech support bundles, large diagnostic logs (packet diags), or temporary files created during administrative tasks.

Diagnostics vs. Remediation : While tests like the EUD (End User Diagnostics) or platform diagnostics are useful for hardware verification, they do not resolve file system exhaustion issues that have already reached a critical 100% state.

On BIG-IP systems, Local Traffic Manager (LTM) is responsible for:

Pool and pool member management

Health monitor execution

Marking pool members UP or DOWN based on monitor results

Events related to health monitor status changes , including when pool members transition between UP and DOWN , are logged in /var/log/ltm .

Why the other options are incorrect:

/var/log/audit records administrative configuration changes, not runtime health status.

/var/log/secure logs authentication and authorization events.

/var/log/monitors is not a standard BIG-IP log file.

Therefore, the correct log file for pool member health monitor status events is /var/log/ltm .

===========

The User Configuration Set (UCS) is a flexible tool designed by the Control Plane to handle various lifecycle management scenarios, including upgrades and hardware migrations.

Version Compatibility (Option B): TMOS is designed to be backward compatible. The Control Plane can ingest a UCS file created on an older version of software and automatically upgrade the configuration objects to match the current, later version during the restore process.

Platform Portability (Option C): While a UCS archive contains platform-specific information, the BIG-IP system allows for " platform-independent " restores. This is a vital procedural concept for migrating from one hardware model to another or from physical hardware to a Virtual Edition (VE).

Management of State: When restoring to a different platform or a later version, the administrator often uses specific flags (such as no-license or platform-migrate in later versions) to ensure that only the portable configuration data is applied while preserving the new platform ' s unique identifiers.

The status icon shown for bigip1.com (Self) indicates that the device is in a forced offline condition. In BIG-IP high availability management, device state is reported through the Device Management interface, and the icon in the Status column is used to quickly identify whether a device is active, standby, offline, or forced offline. A green status indication is normally associated with an available/active operational state, while the icon shown beside bigip1.com reflects that the local device is not participating normally in traffic processing or failover. Standby would indicate the device is available as a failover peer but not currently processing the active traffic group. Active would indicate the device currently owns the traffic group and is processing traffic. Because the displayed status icon for bigip1.com represents the administratively forced offline state, the correct answer is A. Force Offline .

Connectivity management requires a proper logical-to-physical mapping within the BIG-IP Control Plane.

VLAN Association : In TMOS, a Self IP address is not assigned directly to a physical interface. Instead, it is assigned to a VLAN (Virtual Local Area Network) object.

Procedural Troubleshooting : If a Self IP is unreachable, the primary failure point is often that the IP was associated with the wrong VLAN, or the VLAN itself is not correctly associated with the intended physical interface or trunk.

Layer 2 Mapping : The Control Plane requires the VLAN to be " up " and " untagged " or " tagged " on a valid interface for traffic to flow. If the administrator selects the incorrect VLAN, the Self IP will exist in the configuration but will be logically isolated from the physical network wire.

Generating a QKView is a standard procedure for identifying device health and upgrade readiness 42 . Within the Configuration Utility, this Control Plane diagnostic tool is located under System > Support 43 . This utility collects configuration and state data into a single file used by the iHealth ' Upgrade Advisor ' to report on known bugs or compatibility issues prior to a version change.

In F5 TMOS, administrative roles and user permissions are partition-specific. The User Manager role allows an account to manage other user accounts, but this authority is restricted to the administrative partitions to which the User Manager has been granted access.

Partition Awareness: If User1 (the User Manager) attempts to modify User2 and fails, while the full Administrator succeeds, it indicates that User2 resides in a partition where User1 does not have management rights.

Principle of Least Privilege: This principle dictates that a user should be given only the minimum level of access necessary to perform their job functions.

Procedural Solution: Granting " Administrator " privileges (Option B) would violate least privilege by giving User1 full control over all system settings and all partitions. Moving users between partitions (Options A and C) might disrupt the organizational security structure. The correct and most secure administrative action is to modify the partition access for User1 to include the partition where User2 is located. This enables User1 to manage User2’s properties while maintaining their restricted role as a User Manager.

The Control Plane is responsible for ARP (Address Resolution Protocol) management for Virtual Addresses. For a Virtual Server to be reachable, the BIG-IP must respond to ARP requests for that IP. If the " ARP " setting is disabled on the Virtual Address properties, upstream routers cannot resolve the MAC address of the BIG-IP, leading to connectivity failure even if the service itself is " Available. "

To maintain integrity in a High Availability environment, TMOS prevents the deletion of active Devic28e Groups. Procedurally, a device group is a container for synchronization; the Control Plane requires that you first strip the group of all associated members (devices) before the group object itself can be removed from the configuration.

The BIG-IP Control Plane monitors the " Commit ID " of the configuration on all group members. When a change is made on the Standby unit, it becomes the member with the most recent configuration. The " Recommended Action " in the HA status dashboard will be to synchronize that specific device ' s configuration to the rest of the group to ensure consistency

Comprehensive and Detailed Explanation From BIG-IP Administration Control Plane Administration do38cuments: While HA state is managed under " Device Management, " the specific failover behavior of a traffic object is linked to its configuration. A Virtual Address must be associated with a " Traffic Group " (usually traffic-group-1) to fail over. This association and the resulting floating status can be verified by viewing the Virtual Server or Virtual Address list under Local Traffic > Virtual Servers.

The best answers are /var/log/kern.log and /var/log/boot.log . Hardware-related issues often surface through kernel-level messages because the kernel interacts directly with hardware drivers, storage devices, interfaces, platform components, and low-level system resources. That makes /var/log/kern.log a valid place to investigate hardware or driver-related symptoms. /var/log/boot.log is also relevant because it records messages generated during system startup. If a hardware component, driver, module, storage device, or platform dependency has a problem during boot, boot-time logging can expose the failure sequence. /var/log/racoon.log is not hardware-focused; it is associated with IPsec/IKE daemon activity. /var/log/user.log is also not the correct hardware troubleshooting log, because it is not the primary source for platform, driver, or boot-level events. From the provided options, kernel and boot logs are the correct hardware investigation files.

=========

Comprehensive and Detailed Explanation From BIG-IP A34dministration Control Plane Administration documents: Authentication and authorization events are handled by the system ' s PAM (Pluggable Authentication Modules). For Control Plane security auditing, all login attempts—whether local or remote (LDAP/RADIUS/TACACS+)—and SSH-related security events are recorded in /var/log/secure. This is the primary log for troubleshooting administrative access issues

F5 architecture distinguishes between the Data Plane (TMM processing application traffic) and the Control Plane (Linux host processing management tasks). High Control Plane CPU utilization typically points to administrative activities such as heavy GUI usage, complex API calls (iControl), large-scale configuration synchronizations, or intensive logging/monitoring tasks rather than the actual switching or load balancing of application data.

On BIG-IP systems, all authentication attempts for administrative access—including logins to the Configuration Utility (GUI) —are logged in /var/log/secure . This log file records:

Successful and failed login attempts

The username used

The authentication method (local, LDAP, RADIUS, etc.)

Access denials and PAM authentication errors

Why the other options are incorrect:

/var/log/pam/tallylog tracks account lockouts and failed attempt counters, not detailed login attempts.

/var/log/ltm logs traffic management events, not administrative authentication.

/var/log/httpd logs web server activity but does not record authentication success or failure for BIG-IP administrative users.

Therefore, the correct log file to verify whether a user attempted to log in to the BIG-IP Configuration Utility is /var/log/secure .

===========
