The correct answer is D. show system. HPE Aruba Networking AOS-CX documentation describes the show system command as displaying general status information about the system. The official command example includes fields such as Vendor, Product Name, and Chassis Serial Nbr. These fields provide the switch make, model/product name, and serial number directly in the CLI session. Option A is not the best answer because show support-information is intended for collecting broader support and diagnostic information, not the most direct command for viewing the switch identity. Option B is not the normal user command for displaying switch make, model, and serial number. Option C is incorrect because configuration output shows switch configuration, not necessarily the hardware identity information requested. Therefore, the direct command to display make, model, and serial number is show system.

The correct answer is B. CX 6200. The feature being described is the HPE Aruba Networking AOS-CX Network Analytics Engine, or NAE. HPE Aruba Networking documentation states that NAE uses Python scripts to define which switch resources to monitor and optionally what actions to take when certain conditions are true. The NAE guide specifically applies to the CX 6200, 6300, 6400, 8xxx, 9300, and 10000 switch series, and the supported maximums page lists the CX 6200 as supporting up to 10 scripts and 10 agents. This makes the CX 6200 the correct choice from the available options. The CX 6000, CX 6100, and CX 4100i are lower access platforms and are not listed in the NAE guide’s supported product set for onboard NAE scripting. Therefore, for a customer with Python skills who wants to use self-made or Aruba-provided onboard analytics scripts, the CX 6200 is the appropriate recommendation.

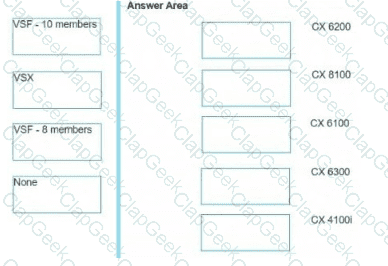

The correct matches are based on the high-availability technologies supported by each CX switch family in the answer list. HPE Aruba Networking AOS-CX VSF documentation states that VSF supports up to 8-member stacks for CX 6200F devices and up to 10-member stacks for CX 6300 devices. That makes CX 6200 match “VSF - 8 members” and CX 6300 match “VSF - 10 members.” HPE Aruba Networking documentation for VSX support lists the CX 8100 as a VSX-supported switch series, so CX 8100 matches “VSX.” The CX 6100 and CX 4100i do not match the listed VSF 8-member, VSF 10-member, or VSX choices. Although AOS-CX VSF documentation lists other VSF limits for some platforms, the choices provided only include VSF-8, VSF-10, VSX, and None; therefore, CX 6100 and CX 4100i map to “None” in this drag-and-drop question.
