300-830 Implementing Cisco Collaboration Cloud Customer Experience Questions and Answers

Language and voice are separate configuration values in a Webex Contact Center voice flow using AI Agent responses. The Global_Language variable controls the response language, while Global_VoiceName selects the voice used by text-to-speech or AI-agent speech output. Setting only Global_Language to es-ES would change the language but would not guarantee the company-approved Spanish voice. Setting only a friendly voice name without the language would not guarantee Spanish recognition and generation behavior. The string en-ES is invalid for Spanish in this context because en identifies English, while es-ES identifies Spanish for Spain. The requirement asks for consistent professional executive-sounding Spanish regardless of caller location or dialect, so both values must be explicitly set after the menu selection: Global_Language to es-ES and Global_VoiceName to the approved Spanish voice system name. This gives the flow deterministic language and voice behavior. Reference: Cisco Help, Webex AI Agent Studio Administration guide; Use AI agents for customer interactions.

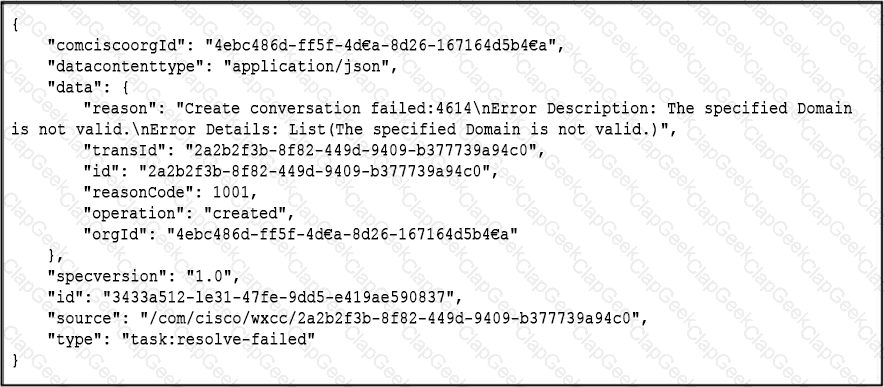

The failure occurs after the standard Live Chat workflow template is deployed and the widget can be started, so the website widget itself is not the main issue. The Resolve node response in the exhibit points to a missing or invalid Live Chat domain value used by the workflow. Cisco's Webex Connect live chat and create conversation documentation identifies Livechat Website Domain as a value stored under custom variables and used when resolving or creating live chat conversations. The standard template depends on that workflow custom variable being populated with the valid domain where the Live Chat widget is embedded. Changing media type and media channel on the Resolve node would not fix a missing domain variable in the deployed template. The option using chat Domain is close but not the named workflow custom variable indicated by the template. Setting the Workflow Custom Variable LiveChat Domain to a valid value resolves the failure. Reference: Webex Connect Help, Livechat; Create conversation - WxEngage standalone; Resolve Conversation - WXCC.

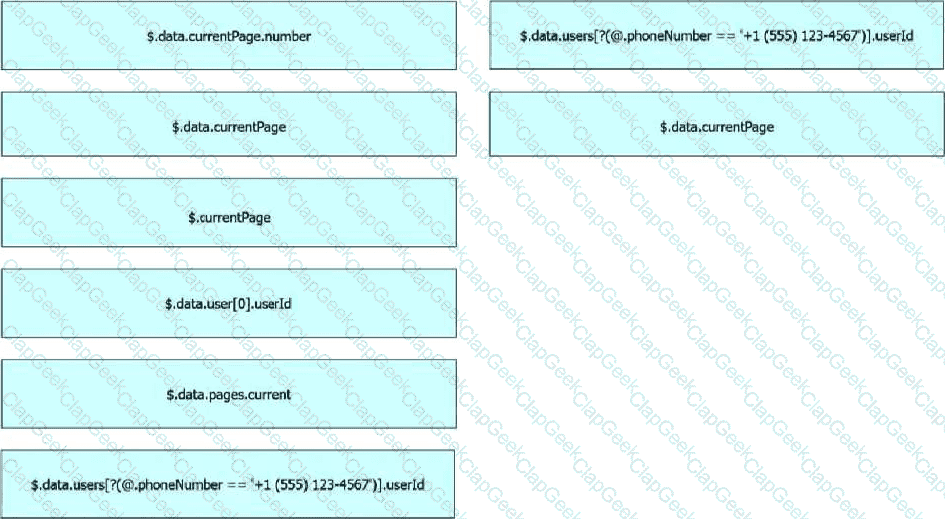

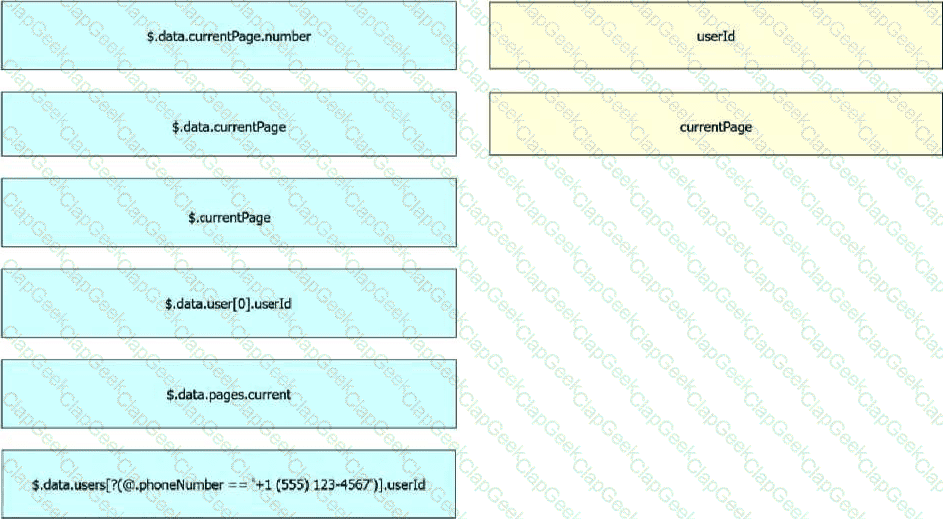

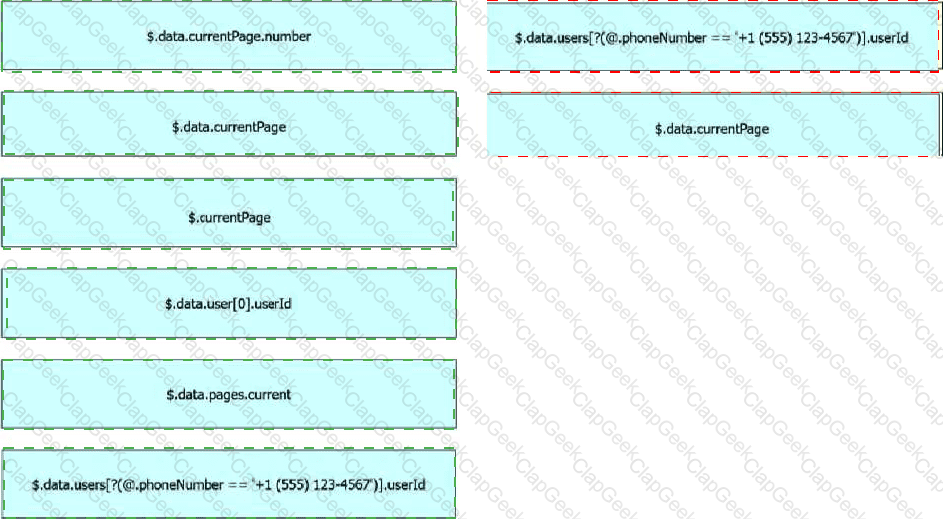

userId: $.data.users[?(@.phoneNumber == '+1 (555) 123-4567')].userId

currentPage: $.data.currentPage

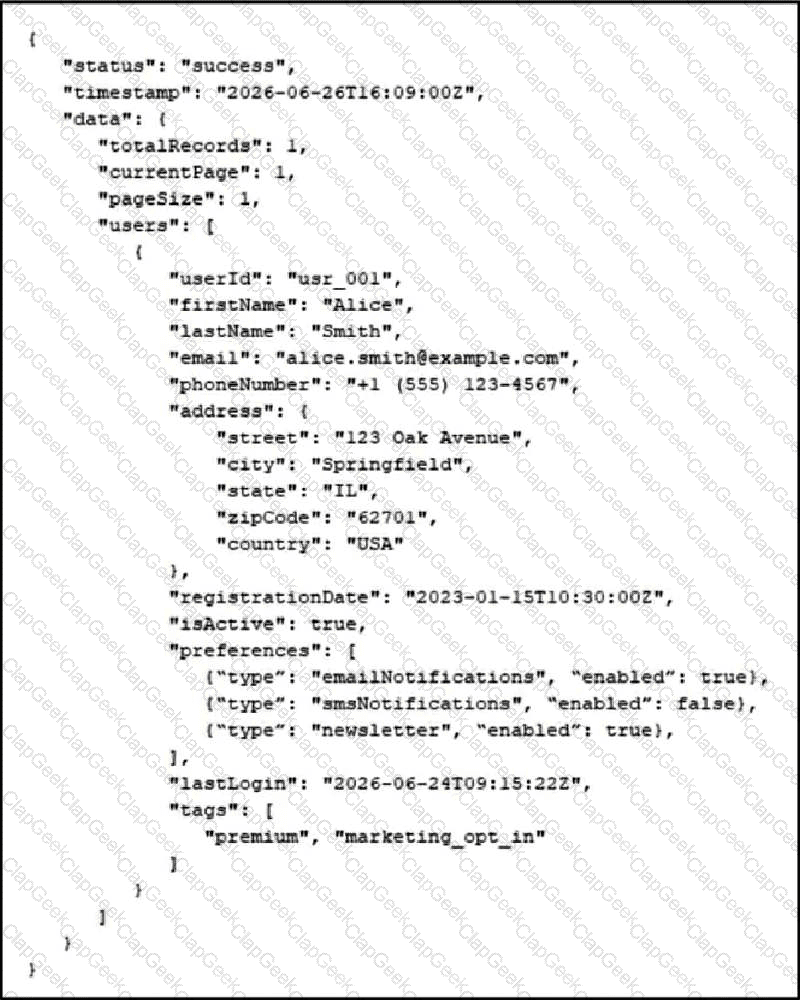

The JSONPath mapping must match the structure shown in the API response. The userId variable is not a simple top-level property; it sits inside the users array. The expression must filter the users array for the object whose phoneNumber equals +1 (555) 123-4567 and then return that object's userId. That is why the filtered JSONPath expression using $.data.users[?(@.phoneNumber == '+1 (555) 123-4567')].userId is the correct mapping. The currentPage variable is directly under data, so the correct expression is $.data.currentPage. Expressions such as $.currentPage miss the data wrapper, and $.data.currentPage.number assumes currentPage is an object with a number property, which the response does not show. $.data.user[0] .userId is also wrong because the array name in the response is users, not user, and it would take the first user rather than the matching phone number. Reference: Webex Connect Help, Custom Node Integration; Webex Connect flow data parsing guidance.

SMS-based one-time passcode authentication requires generating the passcode and sending it to the user over SMS. Webex Connect includes a Generate OTP node for creating the random passcode and an SMS node for delivering the generated value to the customer's mobile number. Those two nodes form the minimum authentication workflow. A Profile node can retrieve or update customer profile information but does not generate or deliver the passcode. A Data Parser node can parse structured responses, which is useful after API calls, but it is not required to create and transmit an OTP. An Evaluate node can compare the customer's submitted passcode to the stored/generated value later in the flow, but the question asks which two nodes are needed to implement authentication via SMS using a randomly generated passcode. The foundational nodes are Generate OTP and SMS. Reference: Webex Connect Help, Generate OTP node; SMS Node; Webex Connect flow builder documentation.

The requirement is to detect customer dissatisfaction before it escalates. Cisco's AI Assistant reporting and quality features include automatic CSAT scoring, which estimates customer satisfaction from interaction signals and gives the contact center a proactive way to identify poor experiences without waiting for a manual survey response. Topic analytics identifies common contact drivers and trending issues, which is valuable for operational improvement but does not directly score whether a specific customer is dissatisfied. AI-generated summaries reduce after-call work and improve handoff context, but they do not by themselves predict dissatisfaction. Real-time transcripts provide the text foundation for analysis and assistance, but the feature that turns interaction data into a customer-satisfaction signal is automatic CSAT scoring. For a customer-experience program focused on early dissatisfaction detection and proactive resolution, automatic CSAT provides the required risk signal. Reference: Cisco Help, AI Assistant reports in Analyzer; Cisco AI Assistant for Webex Contact Center documentation.

Outdial calling in Webex Contact Center needs both a tenant or system caller-ID source and a desktop permission path that lets the agent place outbound calls. Cisco's Control Hub voice settings document the Default Outdial ANI field, which determines the default caller ID used for outdial behavior when a dial number is not otherwise mapped. Cisco's desktop profile documentation then controls whether an agent can actually use outdial from Agent Desktop. When Outdial is enabled on the desktop profile, the administrator selects the outdial entry point and, where applicable, the Outdial ANI list. Adding an agent to an outbound team is campaign-related and not a prerequisite for ordinary outdial. ANI in Flow Designer can influence call presentation in flows, but it is not the required administrative setup for agent outdial. A wrap-up reason for an outdial queue is useful for classification after a contact, not the base telephony enablement. Reference: Cisco Help, Set up voice settings for Webex Contact Center; Manage desktop profiles.

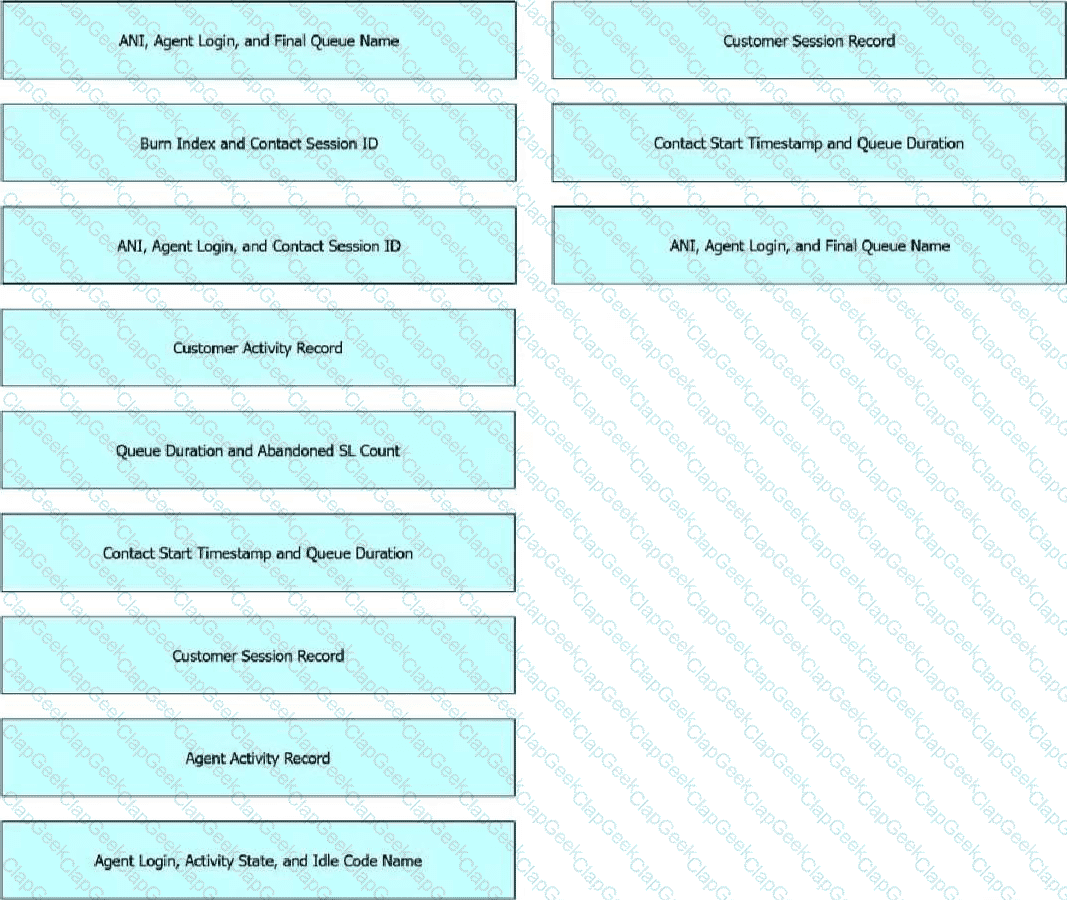

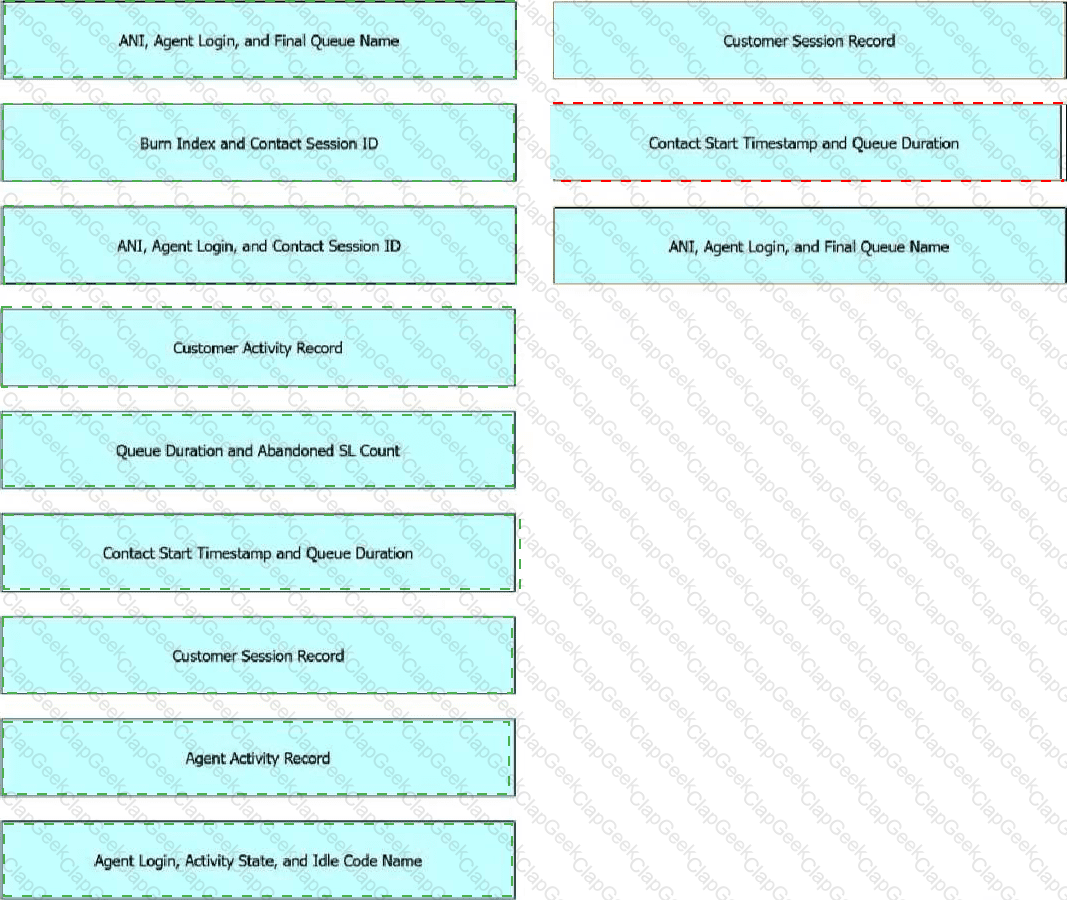

Repository: Customer Session Record.

Segment Data: Contact Start Timestamp and Queue Duration.

Profile Variable: ANI, Agent Login, and Final Queue Name.

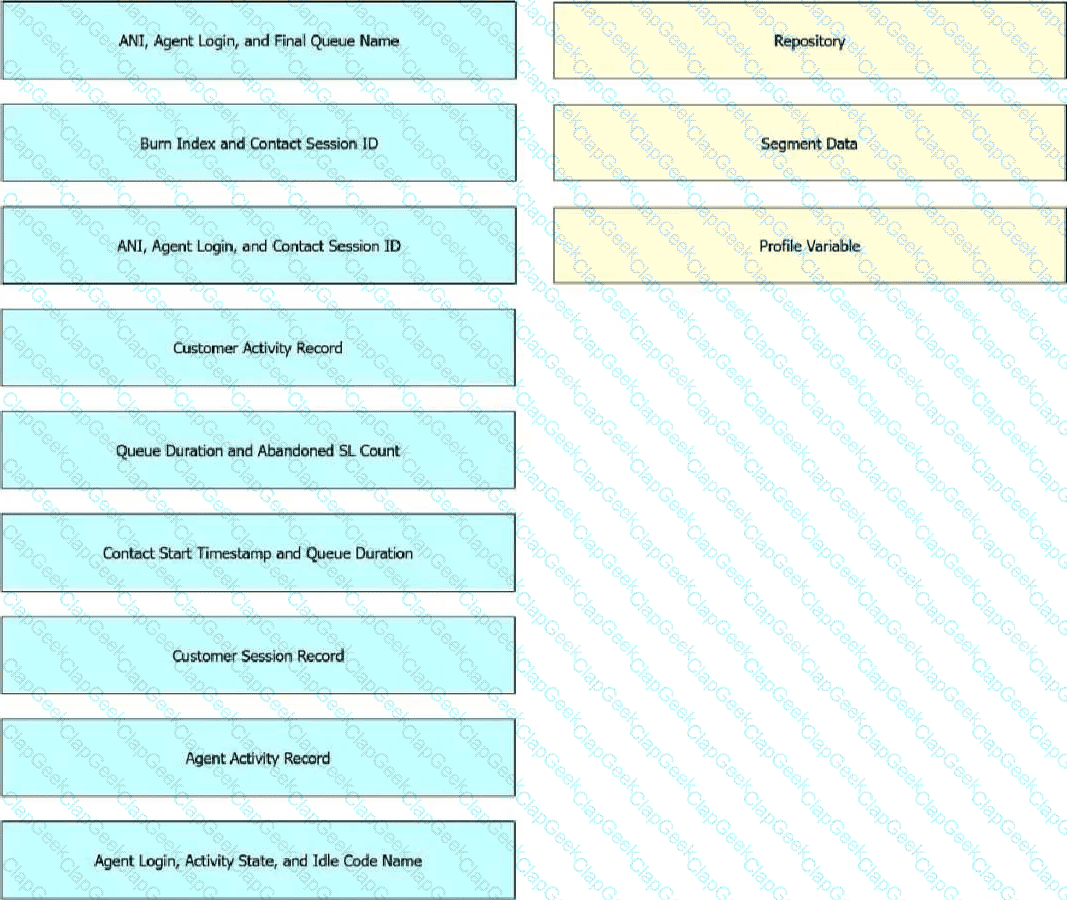

The report needs one row for each call, the caller's number, queue timing, and final agent. Cisco Analyzer separates data into repositories and data classes. Customer Session Record is the proper repository because it represents the end-to-end customer contact session and contains the contact session identifier needed for a list of calls. Contact Start Timestamp and Queue Duration are segment-level metrics that describe when the contact began and how long it waited in the queue. ANI, Agent Login, and Final Queue Name are profile or reporting variables that identify the caller's number, the final handling agent, and the queue outcome. Burn Index, abandoned service-level count, and idle code fields are not part of this requested report. Agent Activity Record would be appropriate for agent state history, but this report is customer-contact centered. Customer Activity Record is useful for detailed contact activities, but the drag-and-drop target asks for the repository and field groupings shown. Reference: Cisco Help, Cisco Webex Contact Center Analyzer User Guide; Webex Contact Center Analyzer Stock Reports.

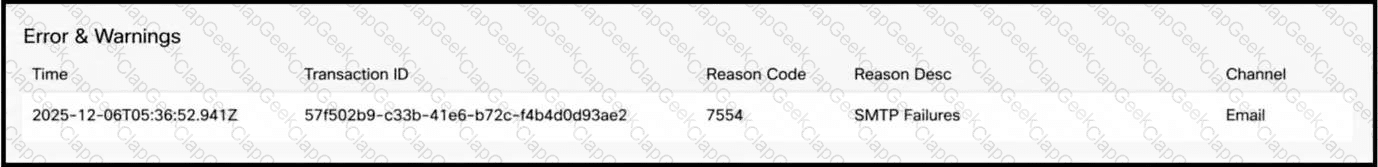

The Debug Console exhibit shows an SMTP failure for an outbound email transaction. In Webex Connect email asset configuration, the service provider settings must match the SMTP connection requirements, including the server address, port, authentication method, and security method. The failure pattern represented in this question points to connection-level SMTP mistakes: an incorrect SMTP server port and an incorrect SMTP security method. Those two errors commonly prevent the platform from establishing or negotiating the SMTP session at all. An incorrect username would usually produce an authentication failure after the connection is made, and an incorrect server address would present a DNS or host connection error rather than the specific pairing shown. The asset not being registered to Webex Engage affects channel registration and conversation use cases, but the exhibit specifically identifies SMTP failure in the email channel. Therefore the port and security method are the two configuration mistakes. Reference: Webex Connect Help, Email - WXCC; Webex Connect Help, Debug Console.

Cisco protects Webex Contact Center APIs with rate limiting per client ID so that one application cannot exhaust shared platform capacity. The current default limit represented in this question is 30 requests per second and 1800 requests per minute for a given client ID. Those two values are the same rate expressed at different time scales, and both are used by administrators and developers when sizing integration retry logic. The Webex developer guidance also stresses that clients must handle HTTP 429 responses and Retry-After behavior rather than assuming unlimited API throughput. The 300 requests per second and 1000 requests per minute options do not match the stated current Contact Center API limits. The 300 requests per minute figure appears in broader Webex REST API guidance for many APIs, but the question is asking specifically about the Webex Contact Center API limits in this context. Correct integrations should therefore throttle to 30 RPS and 1800 RPM unless Cisco grants or documents a different tenant-specific limit. Reference: Webex Developer, Webex Contact Center APIs; Webex Developer blog, Rate Limiting and the Webex API.

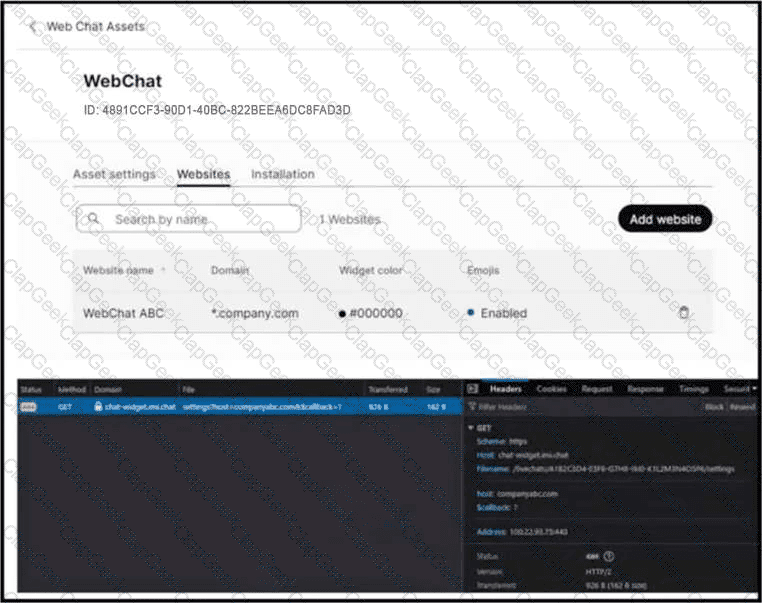

A Web Chat widget that is visible in configuration but does not load on the company website commonly points to an asset-domain mismatch. Cisco Webex Connect live chat assets require the website domain to be configured for the asset so the platform can validate where the widget is embedded. The exhibit shows the browser-side failure after widget code is implemented, which is consistent with the site domain not matching the domain configured for the Web Chat Asset. Missing Webex Connect flow configuration usually causes chat handling or routing failures after a chat is initiated, not the widget failing to load. A firewall block to a widget domain is possible in the real world, but the question says the engineer sees output in the browser while investigating Webex Contact Center, and the Cisco configuration control involved is the website domain on the asset. Content Security Policy allow-listing in Webex Contact Center is for desktop/embedded content behavior, not the primary asset-domain validation for web chat loading. Reference: Webex Connect Help, Livechat; Cisco Help, Set up digital channels in Webex Contact Center.

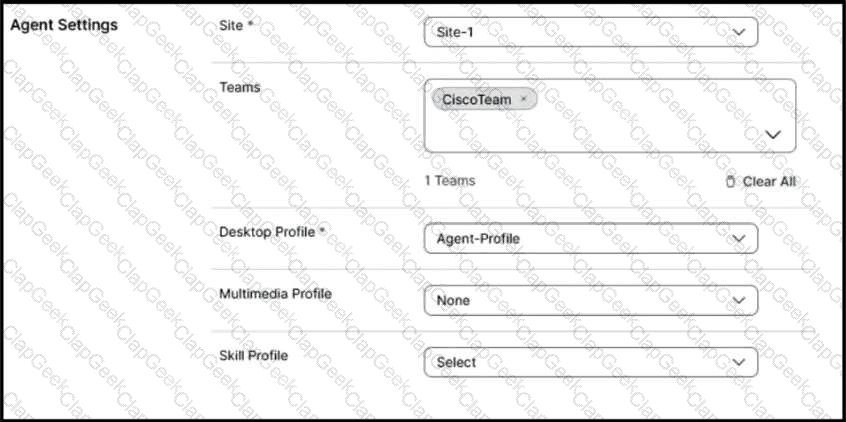

The agent inherits the multimedia profile through the Desktop Profile when no explicit multimedia profile is assigned at the agent setting. In Webex Contact Center, desktop profiles govern key agent desktop behavior, including the experience and channel-related defaults that determine what an agent can use when signing in. The exhibit shows the user has no multimedia profile assigned directly, yet the agent can still accept voice and digital interactions. That means the applicable profile is coming from the desktop configuration assigned through the agent/team path. A skill profile would only describe routing skill values and proficiencies; it does not define how many or which media interactions the desktop can handle. A desktop layout controls widgets and user interface structure, not the multimedia interaction capacity. A site is an organizational grouping and not the source of the inherited multimedia profile in this scenario. The Desktop Profile is therefore the correct configuration object. Reference: Cisco Help, Manage desktop profiles; Webex Contact Center Setup and Administration Guide.

WhatsApp and SMS are premium digital channels in the Webex Contact Center licensing model. Cisco's Webex Contact Center data sheet distinguishes Standard Agent and Premium Agent capabilities. Standard Agent includes core contact center functions and agent-assisted chat and email, while Premium Agent adds broader digital communication channels such as SMS, social channels, multichannel analytics, and supervisor monitoring capabilities. The scenario says the agent can receive Chat and Voice, so the agent is already provisioned for basic voice and chat handling. The missing capabilities are specifically WhatsApp and SMS, which are part of the higher digital-channel entitlement. An enhanced license is not the relevant license category in the Cisco Webex Contact Center agent-type model. The desktop layout can affect UI presentation, but it would not by itself entitle the agent to receive those channel types. The missing configuration is therefore the Premium license. Reference: Cisco Webex Contact Center Data Sheet; Cisco Help, Set up digital channels in Webex Contact Center.

The customer wants fast, accurate, consistent responses across multiple knowledge-driven topics: warranty details, promotions, delivery timelines, and nearest-store lookup by postal code. A traditional IVR menu can route callers through static options, but it does not answer varied natural-language questions well. A live agent can answer them, but that does not meet the automation and consistency requirement. A scripted AI agent follows defined paths and is useful when the conversation is highly controlled, but it is less suitable when the customer may ask different factual questions that need retrieval from knowledge or business systems. Cisco Webex AI Agent Studio distinguishes autonomous AI agents for more flexible customer interactions based on configured knowledge, tools, and fulfillment behavior. An autonomous AI agent can interpret the request, use the appropriate knowledge or lookup path, and respond consistently without waiting for a human. That makes it the best fit for this use case. Reference: Cisco Help, Webex AI Agent Studio Administration guide; Use AI agents for customer interactions.

Screen recording with call audio in Webex Contact Center is a quality-management capability, not a generic flow or Webex Connect capability. Cisco positions Webex Workforce Optimization as the suite for quality management, workforce management, and related supervisor quality workflows. Screen recording requires the WFO quality management components and the proper Quality Management entitlement or license. Custom connectors to conversation intelligence platforms may export or analyze conversation data, but they do not create the native supervisor screen-recording capability. Webex Connect is the CPaaS/digital-channel automation platform and is not used to capture agent desktop screens with call audio. Calabrio ONE is historically associated with workforce optimization, but the Cisco answer pattern for current Webex Contact Center setup is Webex WFO plus the Quality Management license. That combination gives supervisors the recording and evaluation layer needed to review agent application usage and process compliance. Reference: Cisco Help, Webex Contact Center Setup and Administration Guide; Webex Contact Center Data Sheet.

The Microsoft Dynamics 365 connector provides CRM integration from the Webex Contact Center agent experience and includes configuration that allows agent workflows and screen-pop behavior to be customized around Dynamics records. Cisco's Dynamics integration guide describes installing the CRM connector, configuring the channel provider, and customizing screen-pop and workflow behavior using parameters and variables. OAuth certificate-based authentication is also part of secure connector authorization patterns used in Cisco integration workflows where an application uses certificate/private-key material instead of a simple shared secret. Agent state syncing between platforms is not the defining connector characteristic in this option set; there are synchronization features involving Webex App or CRM presence, but the connector question is focused on Dynamics connector capabilities. TLS encryption is expected for HTTPS communications but is too generic to be a distinctive answer. Read-only/read-write is not the pair Cisco emphasizes for this connector question. Reference: Cisco Help, Integrate Webex Contact Center CRM Connector for Microsoft Dynamics 365; Configure custom connector for Webex Contact Center.
