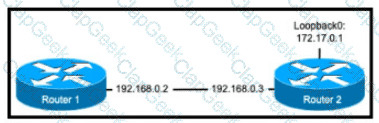

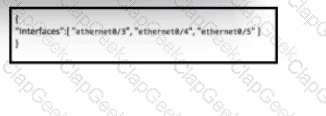

Refer to the exhibit.
The nip server 192.168.0.3 command has been configured on router 1 to make it an NTP client of router 2. Which command must be configured on router 2 so that it operates in server-only mode and relies only on its internal clock?

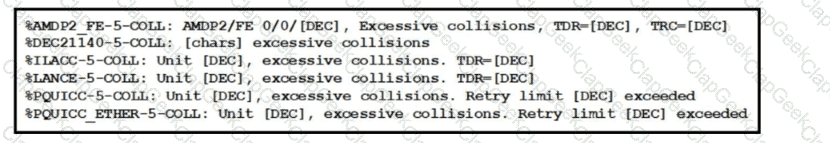

What are two reasons that cause late collisions to increment on an Ethernet interface? (Choose two)

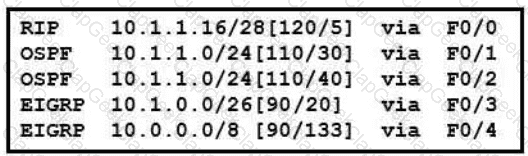

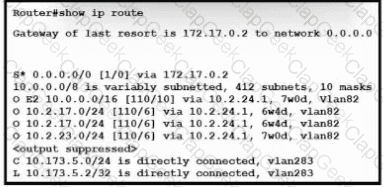

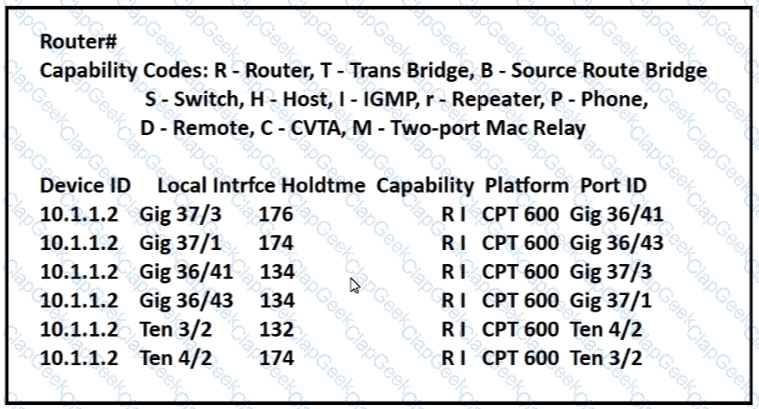

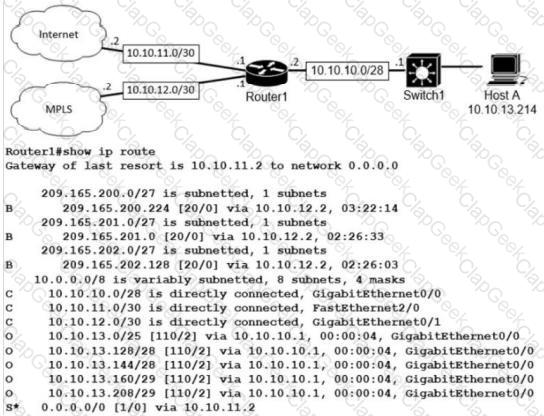

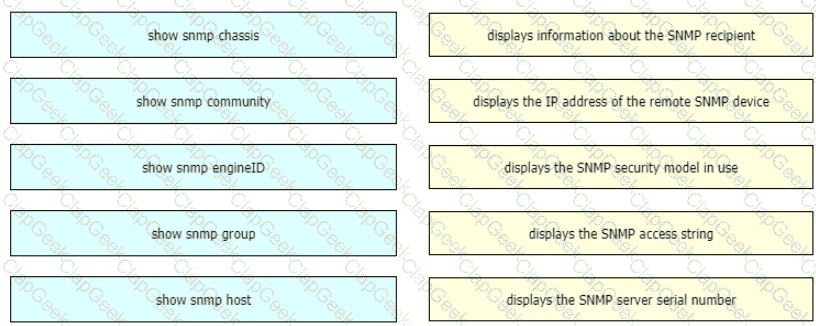

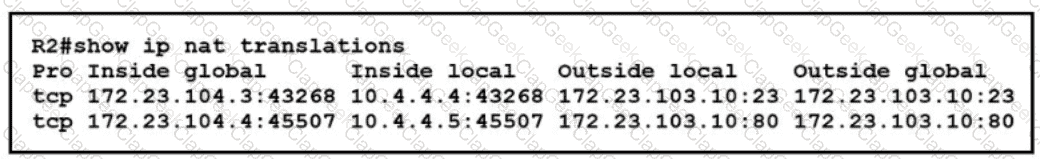

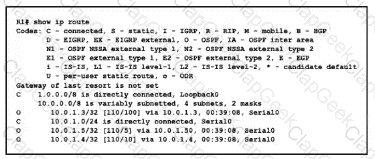

Refer to the exhibit.

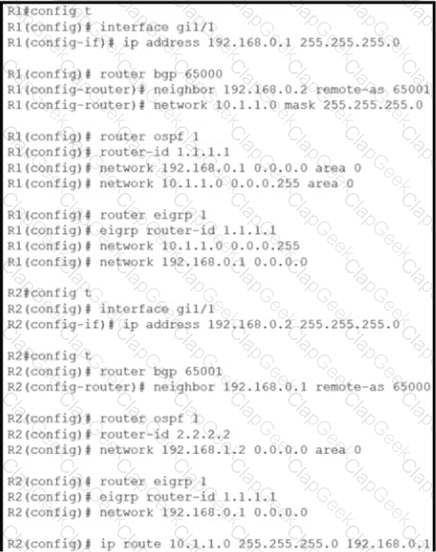

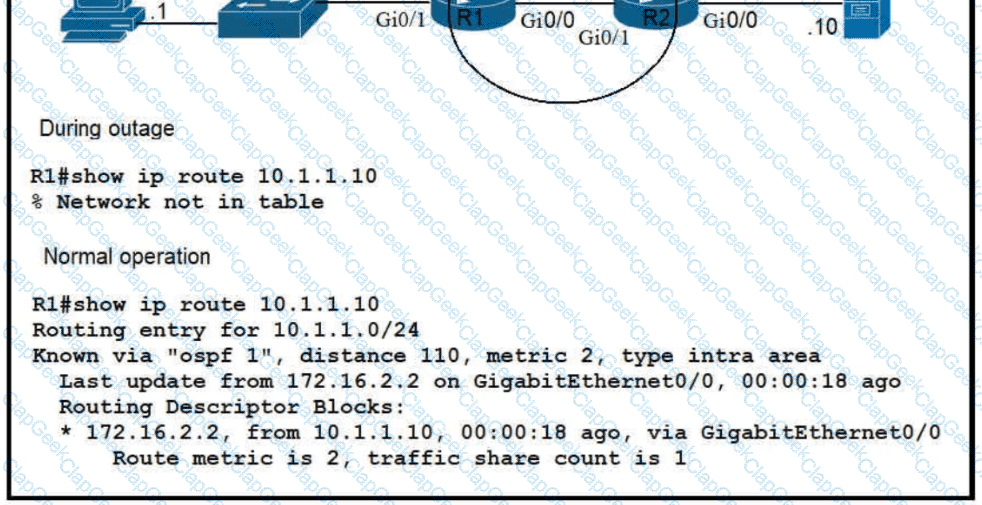

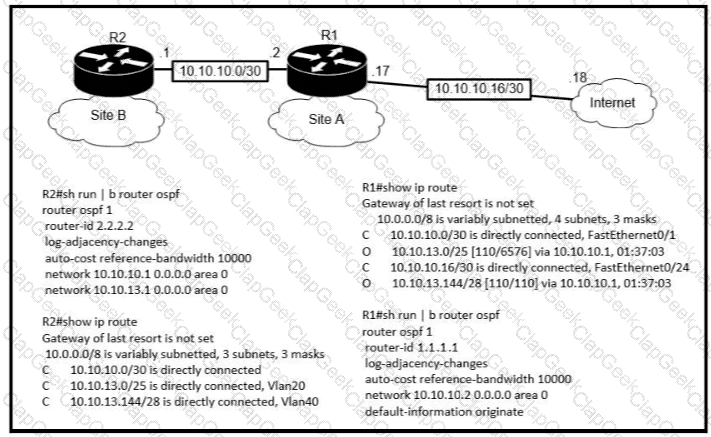

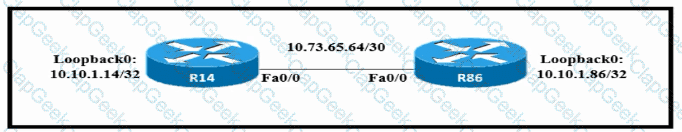

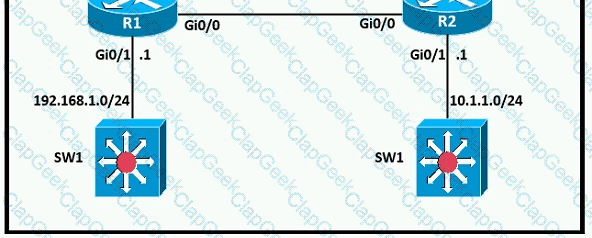

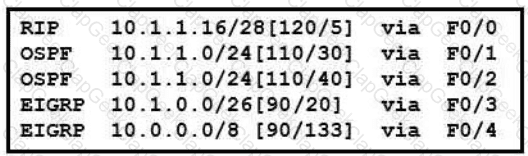

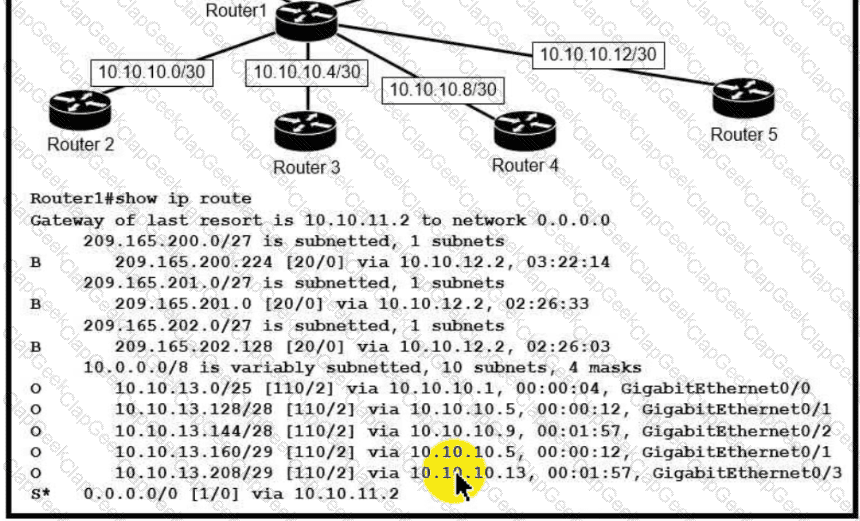

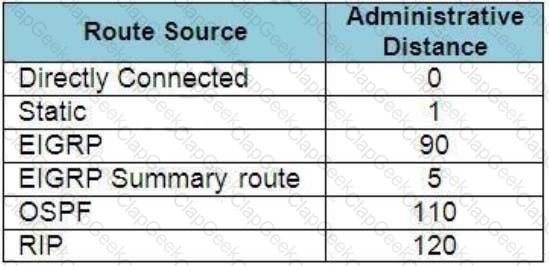

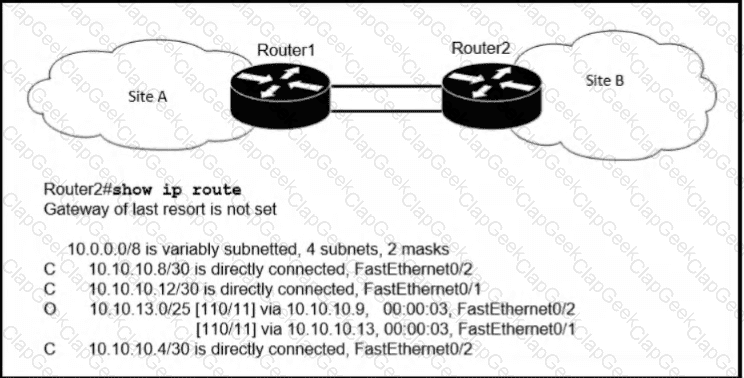

Router R2 is configured with multiple routes to reach network 10 1.1 0/24 from router R1. What protocol is chosen by router R2 to reach the destination network 10.1 1 0/24?
Which technology must be implemented to configure network device monitoring with the highest security?
Which type of IPv6 address is publicly routable in the same way as IPv4 public address?

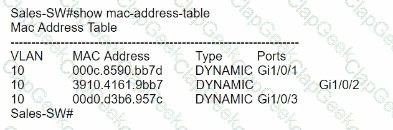

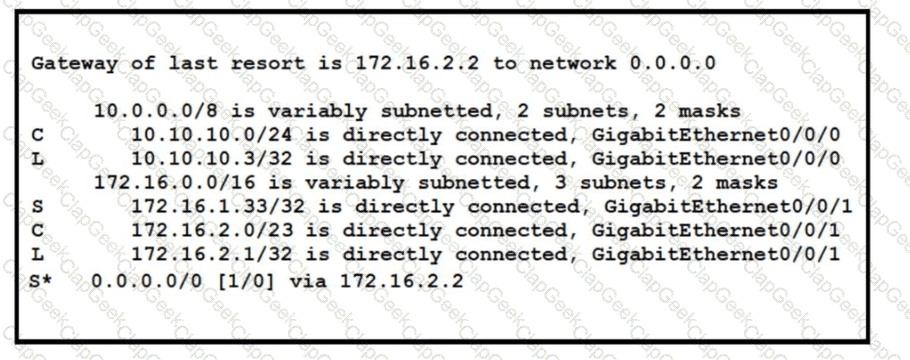

Refer to the exhibit.

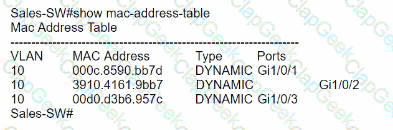

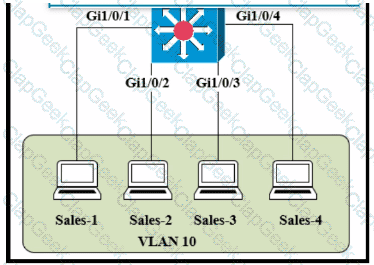

The entire contents of the MAC address table are shown. Sales-4 sends a data frame to Sales-1.
What does the switch do as it receives the frame from Sales-4?

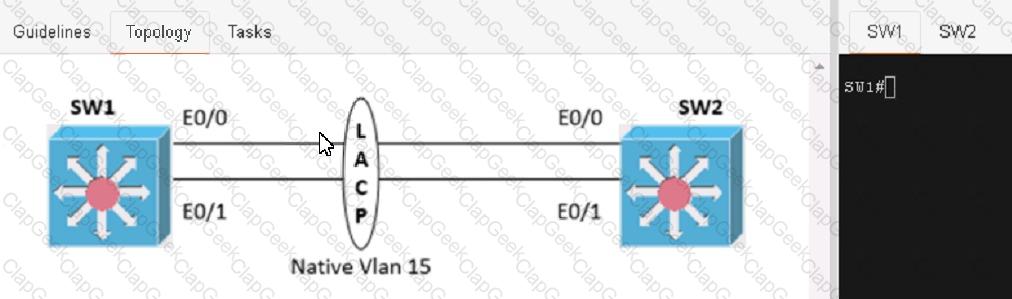

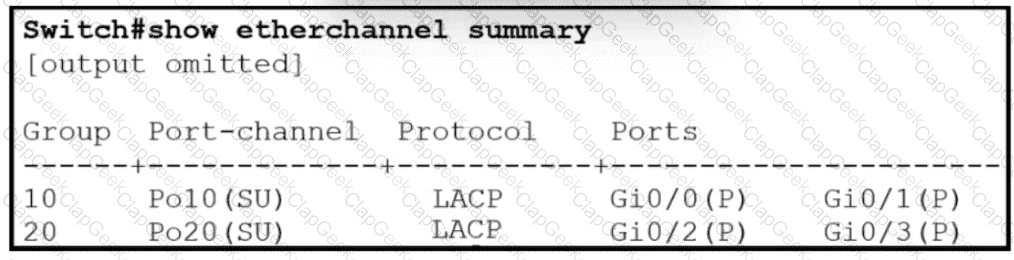

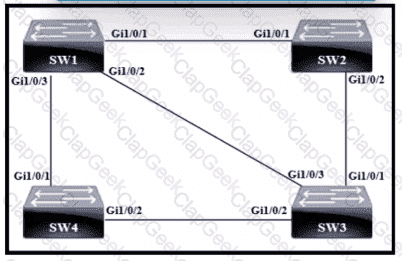

Refer to the exhibit. An engineer is building a new Layer 2 LACP EtherChannel between SW1 and SW2. and they executed the given show commands to verify the work Which additional task must be performed so that the switches successfully bundle the second member in the LACP port-channel?

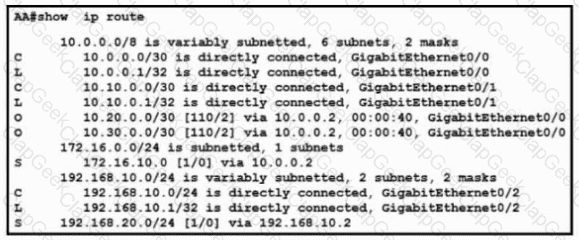

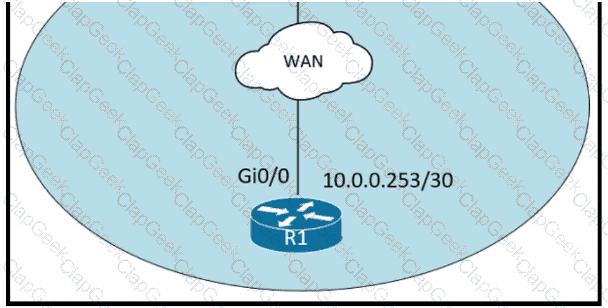

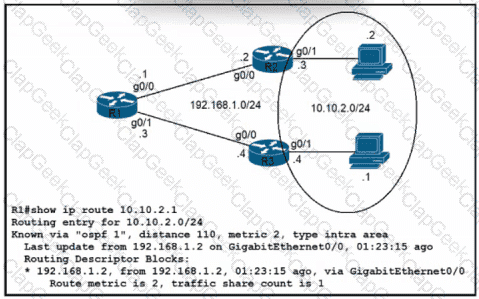

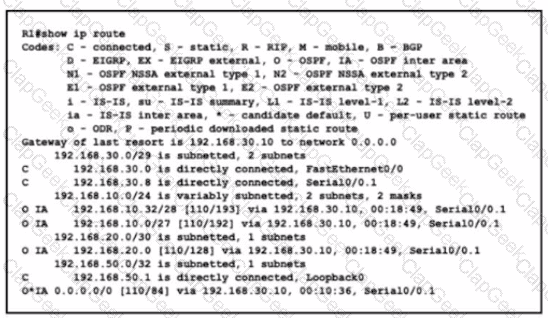

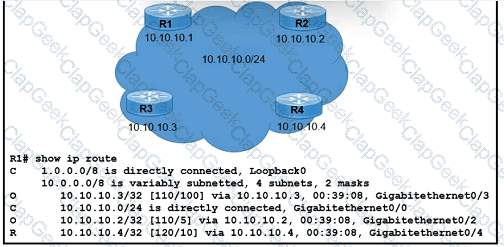

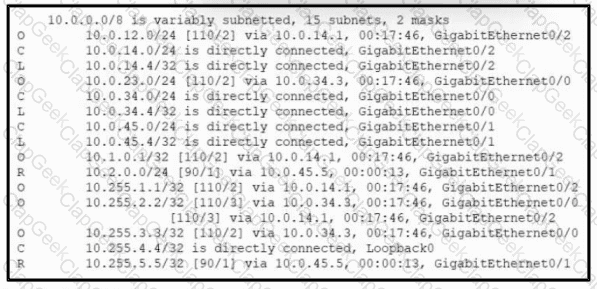

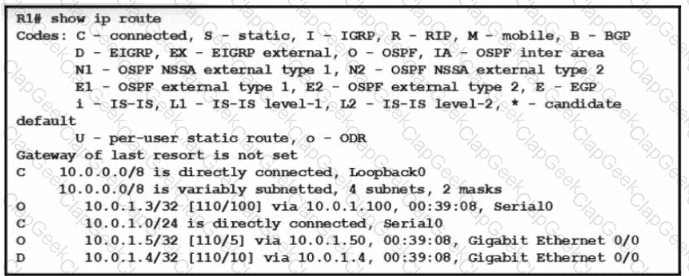

Refer to the exhibit.

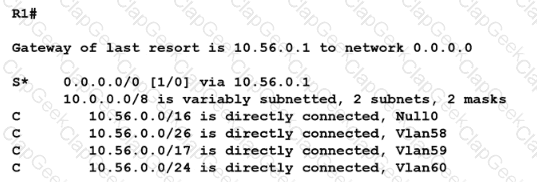

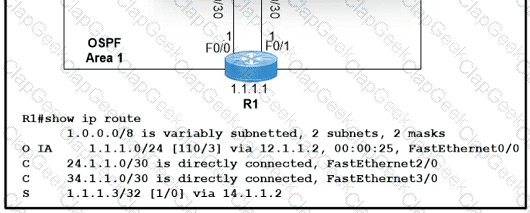

Which two values does router R1 use to determine the best path to reach destinations in network 1,0.0.0/8? (Choose two.)
Refer to the exhibit.

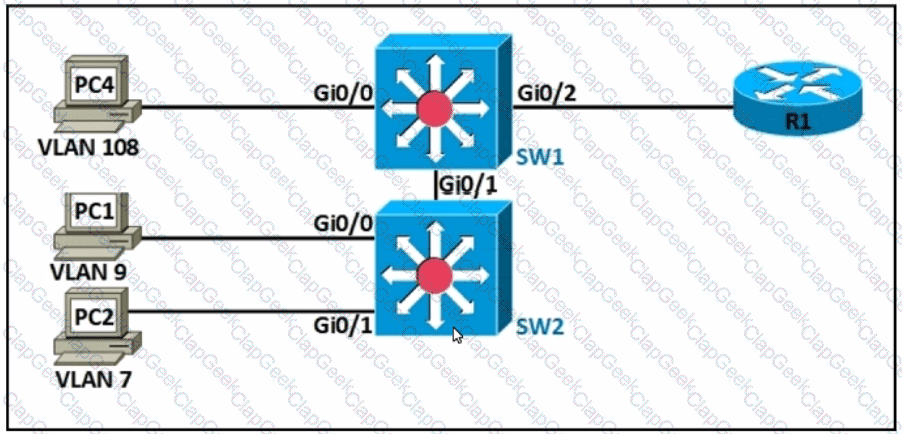

The SW1 and SW2 Gi0/0 ports have been preconfigured. An engineer is given these requirements:
• Allow all PCs to communicate with each other at Layer 3.
• Configure untagged traffic to use VLAN 5.
• Disable VLAN 1 from being used.
Which configuration set meets these requirements?

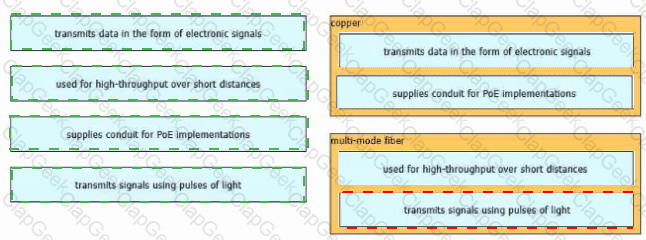

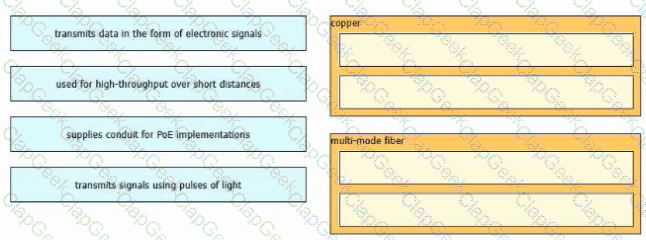

What are two differences between optical-fiber cabling and copper cabling? (Choose two)

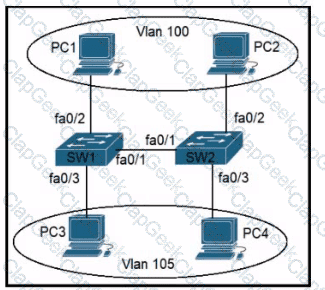

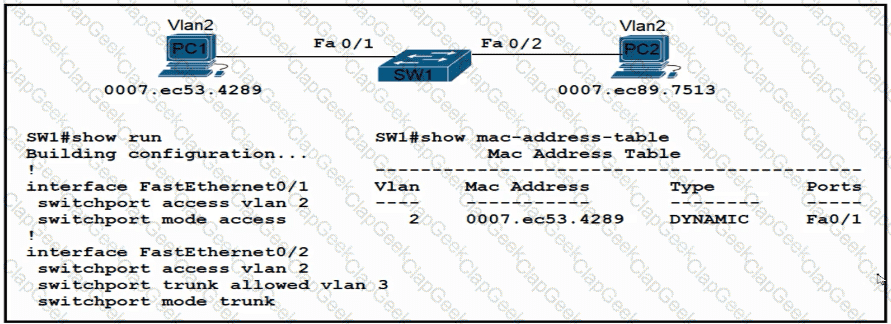

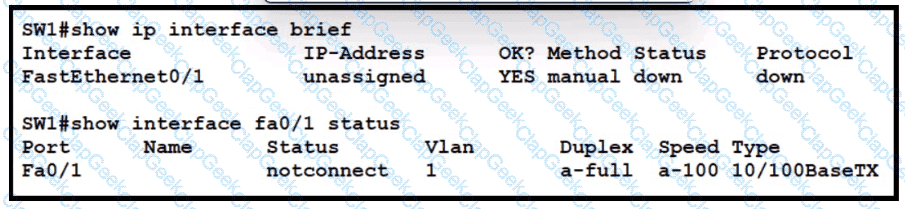

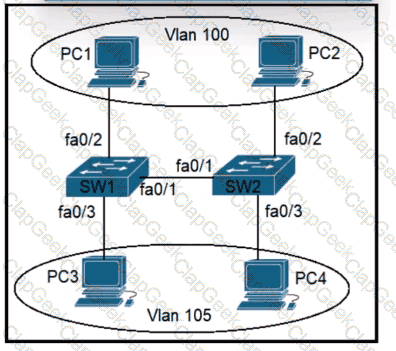

Refer to the exhibit.

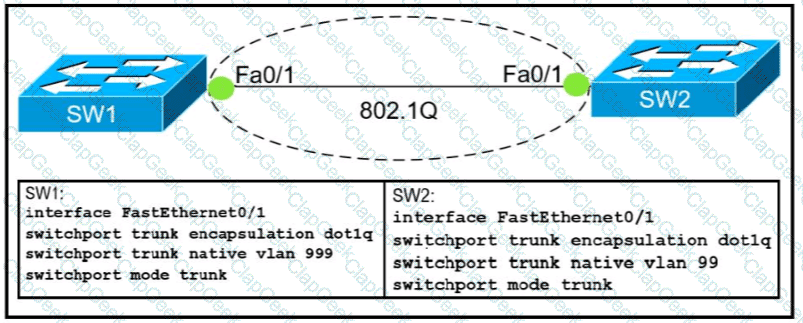

An engineer configures interface fa0/1 on SW1 and SW2 to pass traffic from two different VLANs. For security reasons, company policy requires the native VLAN to be set to a nondefault value. Which configuration meets this requirement?
A)
B)
C)
D)
Refer to Exhibit.

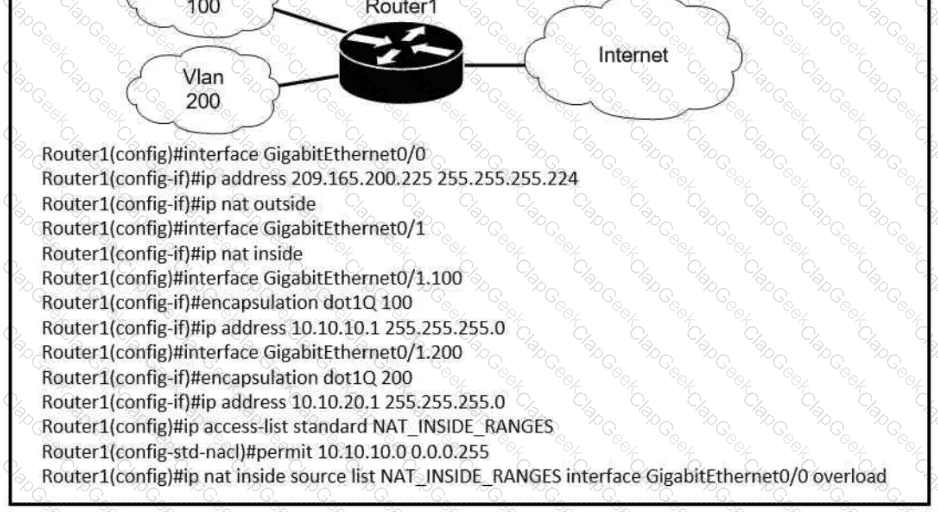

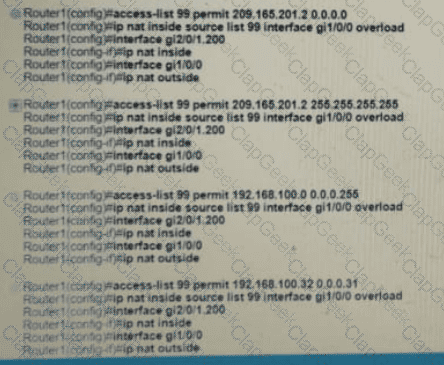

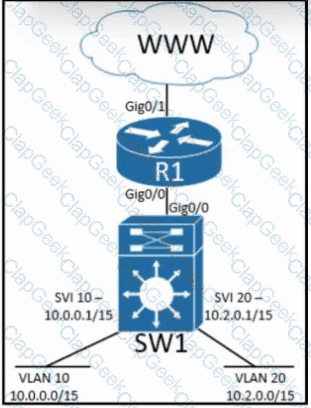

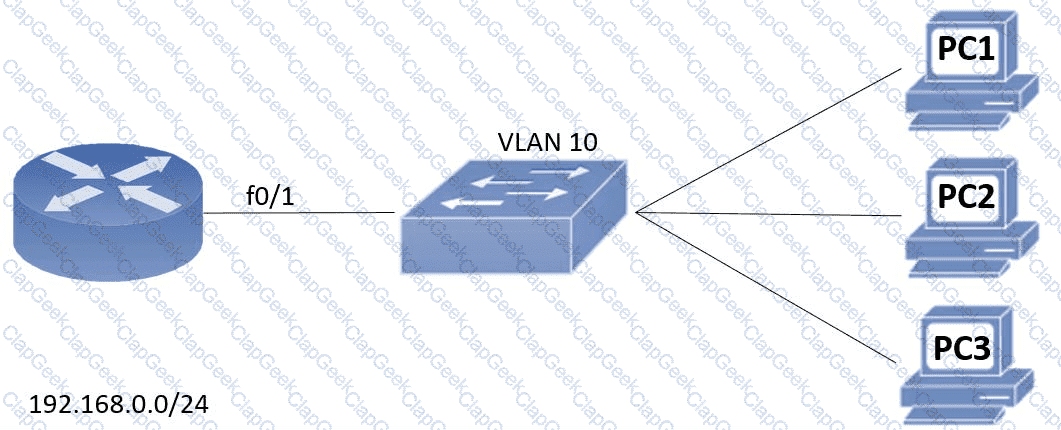

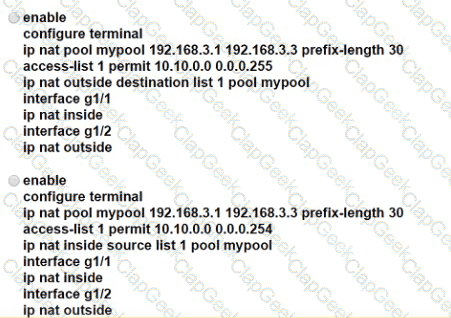

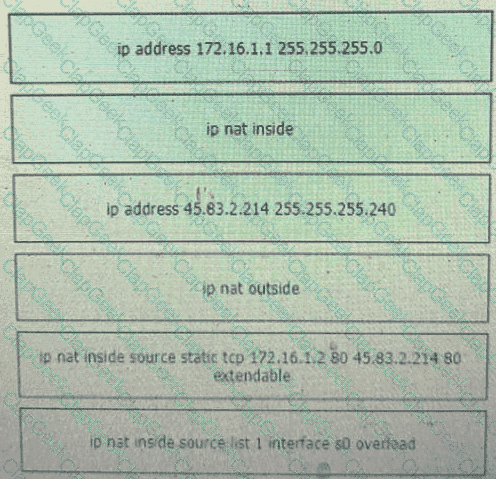

Which configuration must be applied to the router that configures PAT to translate all addresses in VLAN 200 while allowing devices on VLAN 100 to use their own IP addresses?

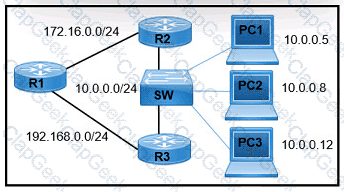

Which type of address is shared by routers in a HSRP implementation and used by hosts on the subnet as their default gateway address?

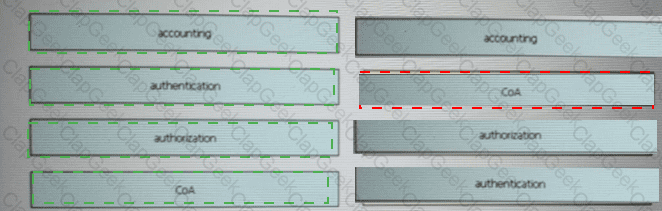

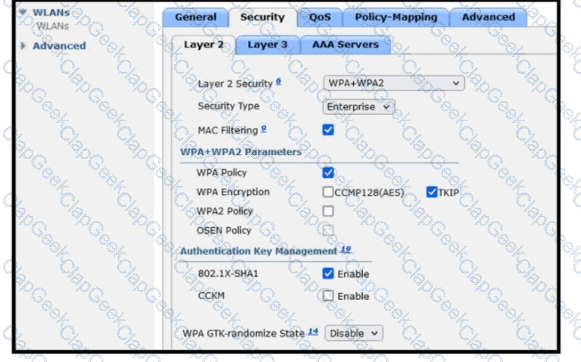

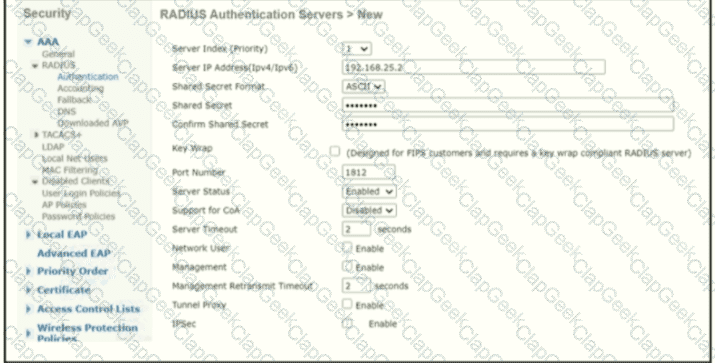

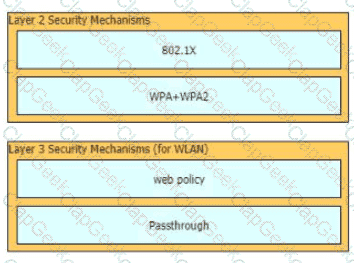

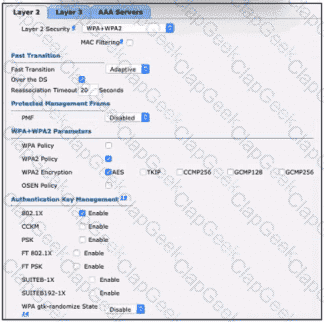

Which selections must be used on the WLC when implementing a RADIUS server for wireless authentication?
Refer to the exhibit. Four load-balancing servers are reachable through this router; however, the company is removing all static and default routes on the router.
Server 1 - 10.12.14.14
Server 2 - 192.168.4.4
Server 3 - 209.165.200.5
Server 4 - 209.165.201.26
Which server will handle all traffic after the policy changes take effect?

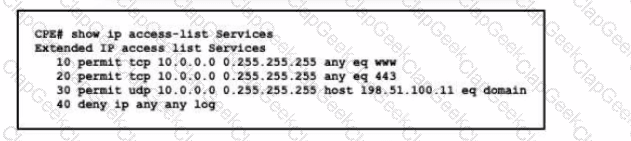

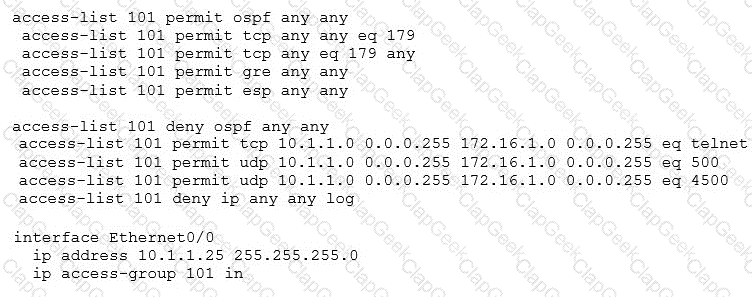

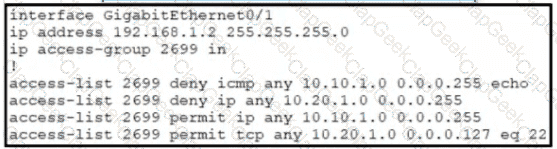

Refer to the exhibit. This ACL is configured to allow client access only to HTTP, HTTPS, and DNS services via UDP. The new administrator wants to add TCP access to the DNS service. Which configuration updates the ACL efficiently?

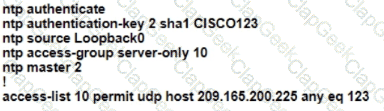

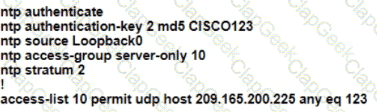

An engineer is configuring switch SW1 to act an NTP server when all upstream NTP server connectivity fails. Which configuration must be used?
A)
B)
C)
D)

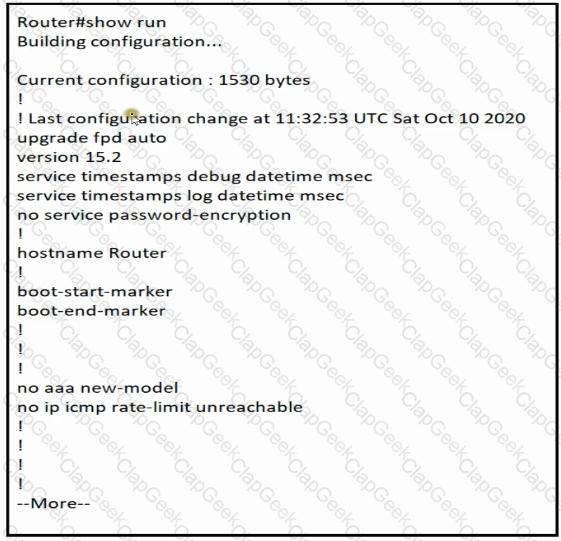

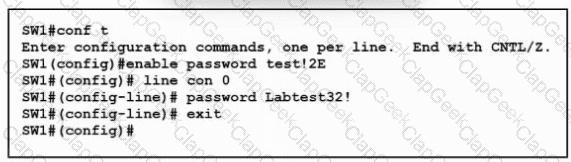

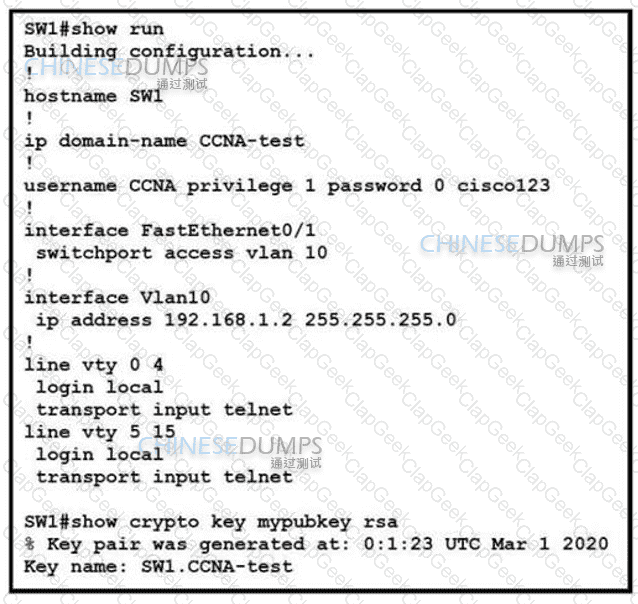

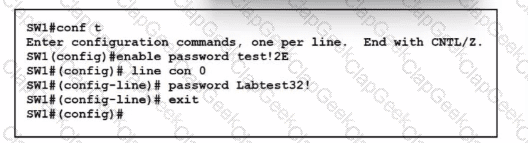

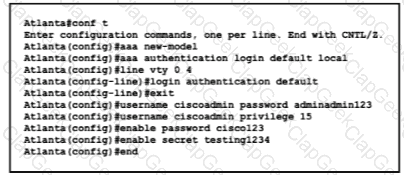

Refer to the exhibit. An engineer executed the script and added commands that were not necessary for SSH and must now remove the commands. Which two commands must be executed to correct the configuration? (Choose two.)

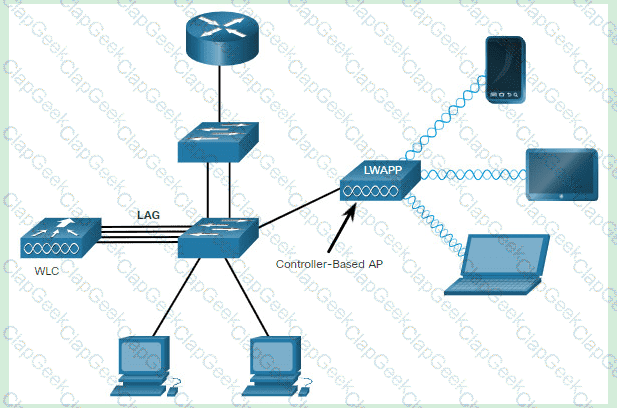

Which statement about Link Aggregation when implemented on a Cisco Wireless LAN Controller is true?

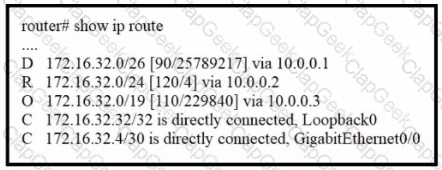

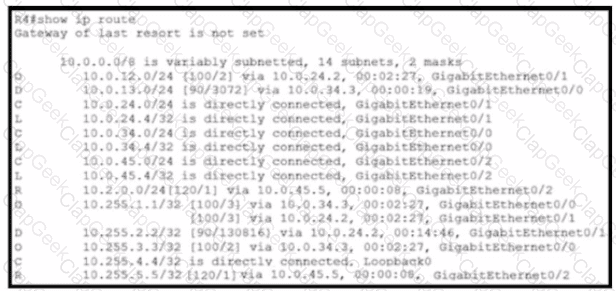

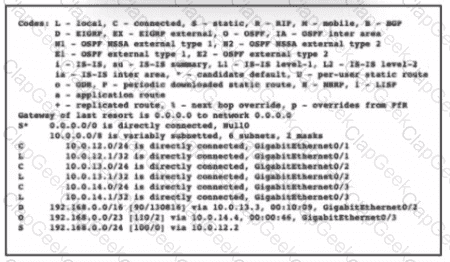

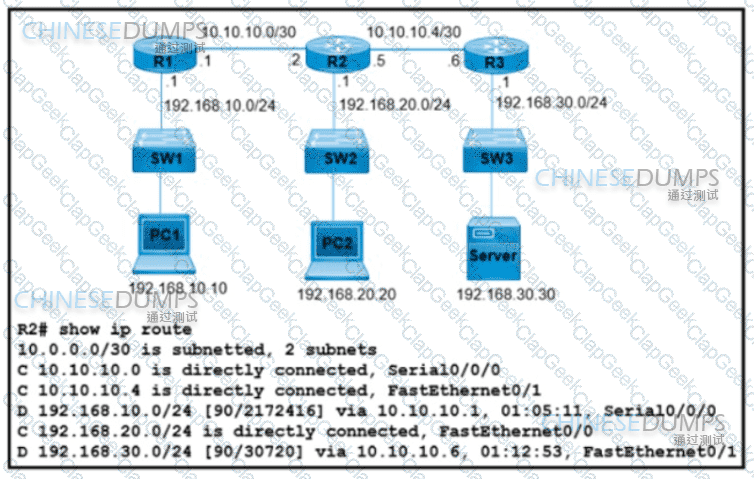

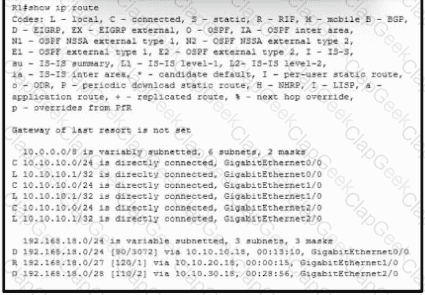

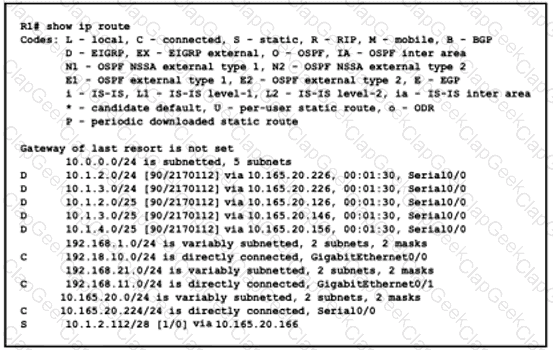

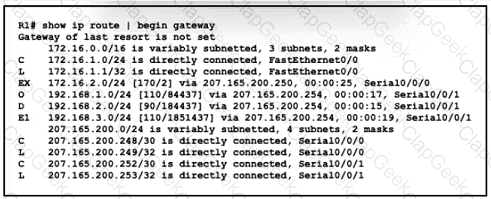

Refer to the exhibit.

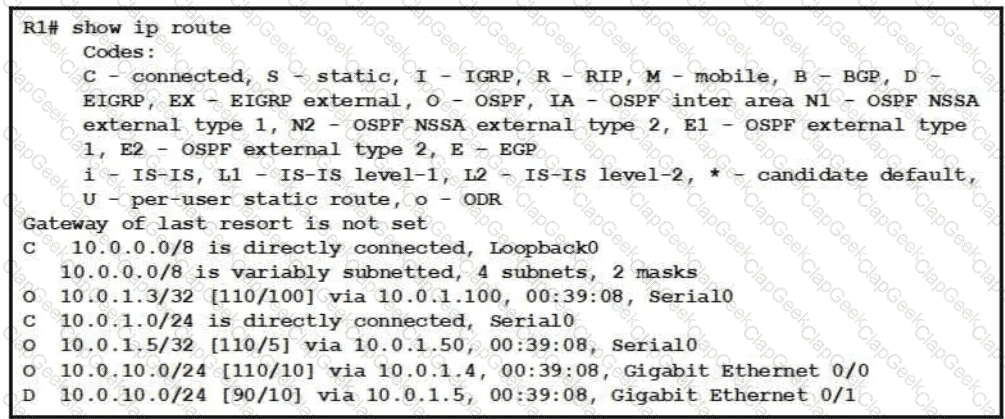

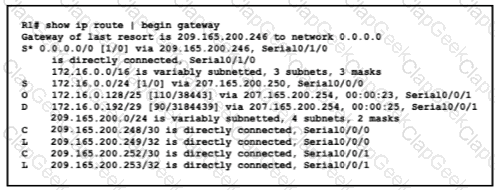

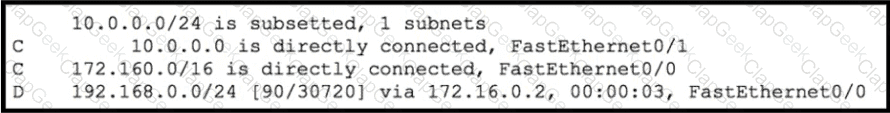

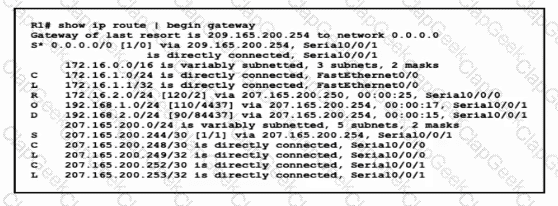

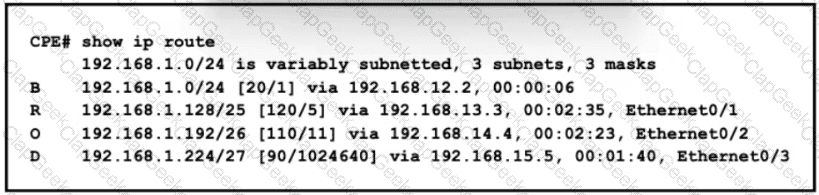

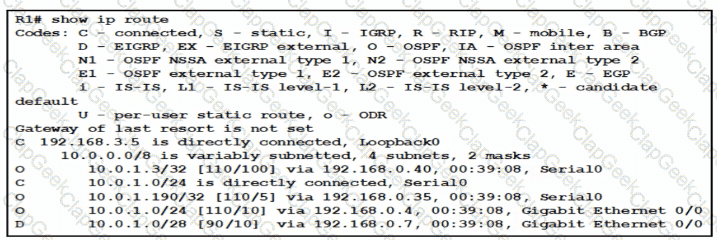

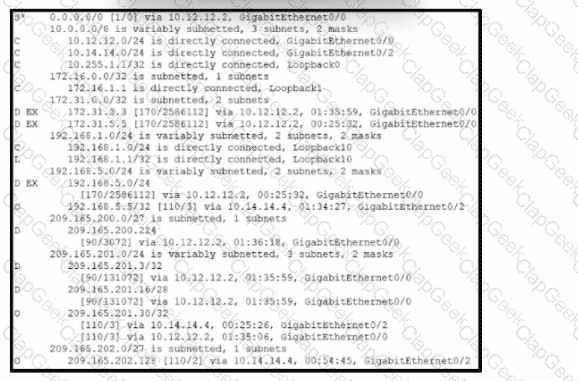

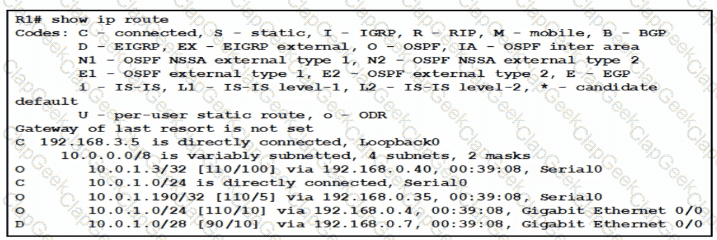

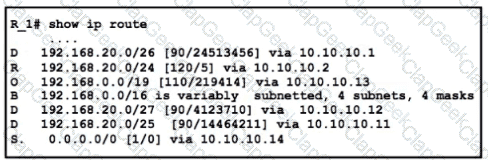

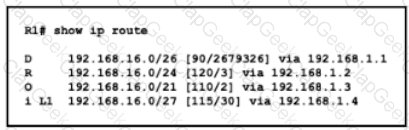

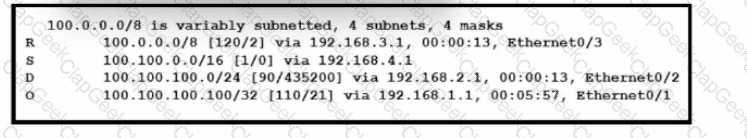

Which route type does the routing protocol Code D represent in the output?
A corporate office uses four floors in a building
• Floor 1 has 24 users
• Floor 2 has 29 users
• Floor 3 has 28 users
•Floor 4 has 22 users
Which subnet summarizes and gives the most efficient distribution of IP addresses for the router configuration?
Which action must be taken to assign a global unicast IPv6 address on an interface that is derived from the MAC address of that interface?
R1 has learned route 192.168.12.0/24 via IS-IS. OSPF, RIP. and Internal EIGRP Under normal operating conditions, which routing protocol is installed in the routing table?

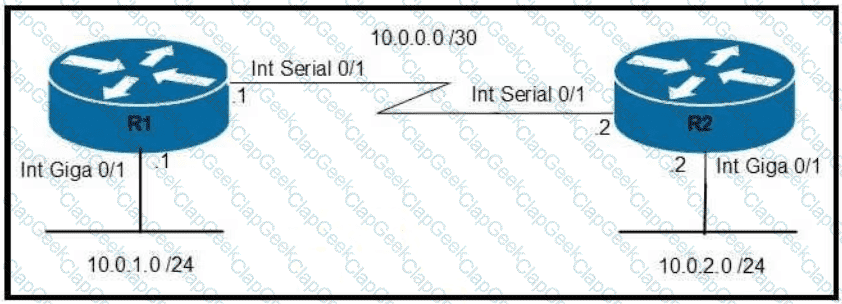

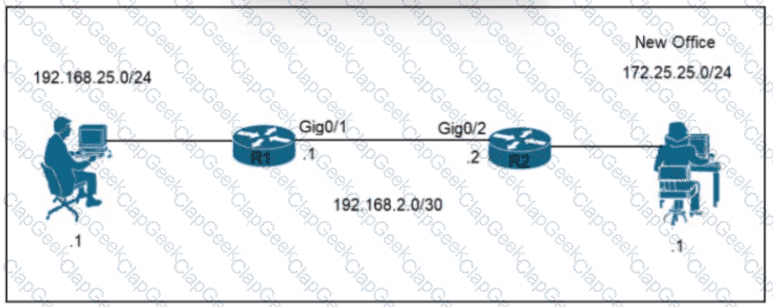

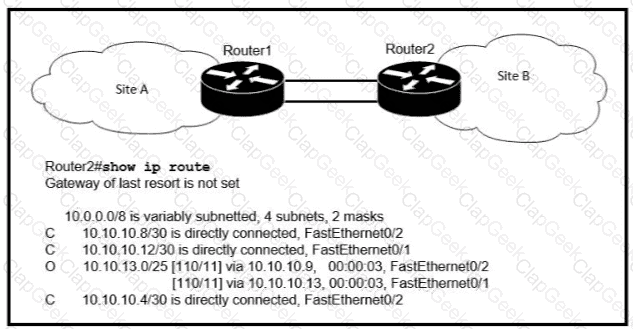

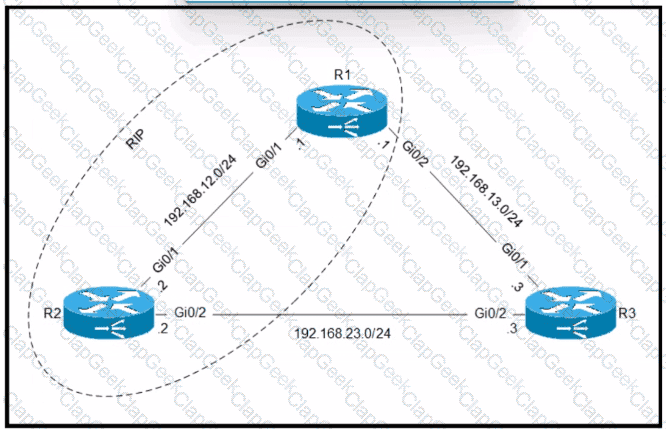

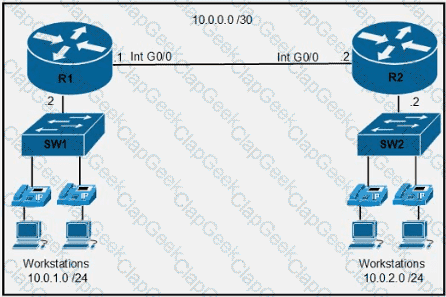

Refer to the exhibit.

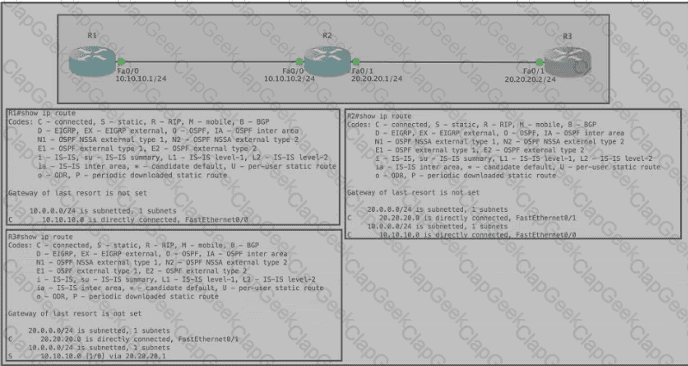

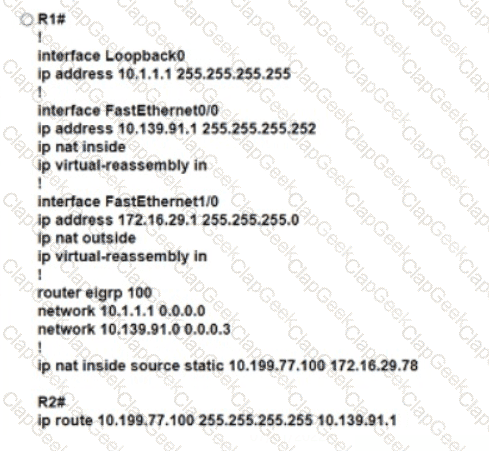

A network engineer is in the process of establishing IP connectivity between two sites. Routers R1 and R2 are partially configured with IP addressing. Both routers have the ability to access devices on their respective LANs. Which command set configures the IP connectivity between devices located on both LANs in each site?
Which IPsec encryption mode is appropriate when the destination of a packet differs from the security termination point?

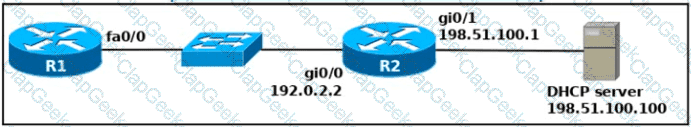

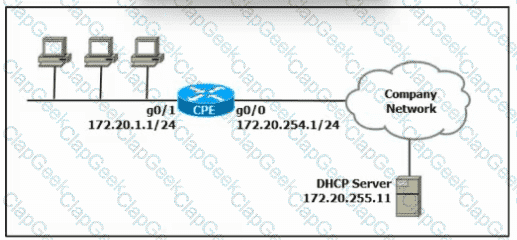

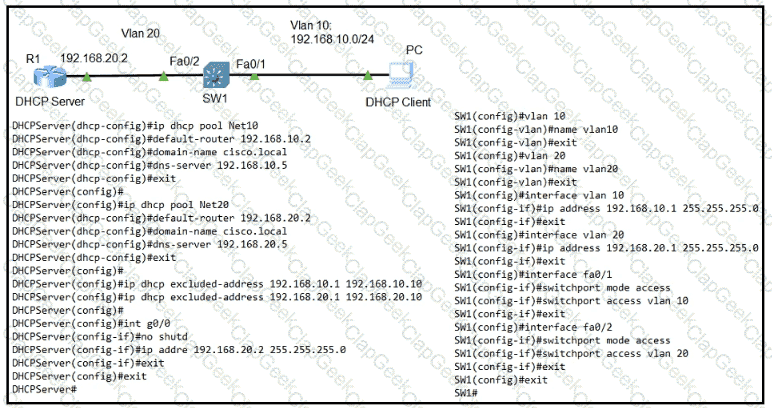

When a client and server are not on the same physical network, which device is used to forward requests and replies between client and server for DHCP?

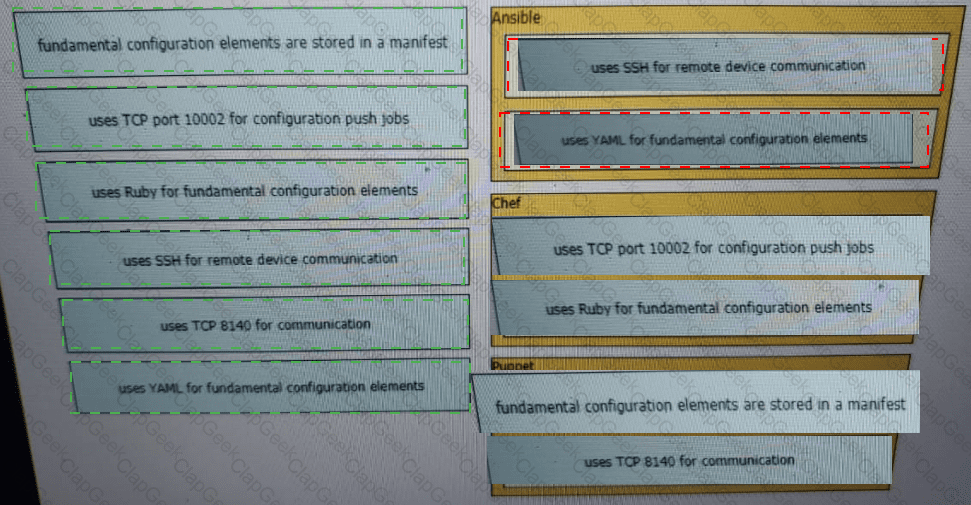

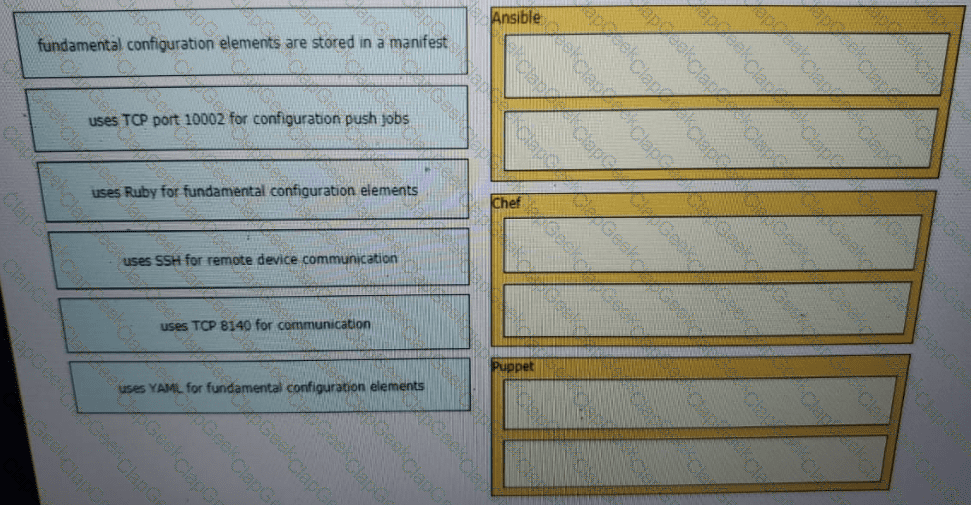

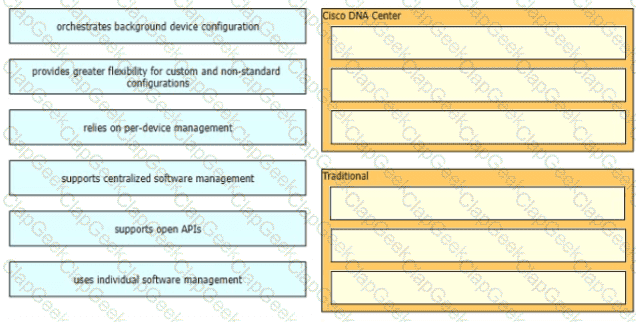

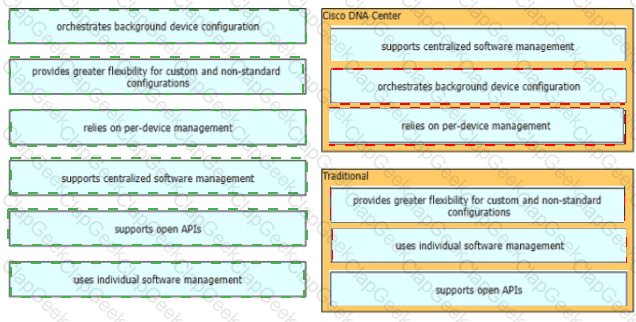

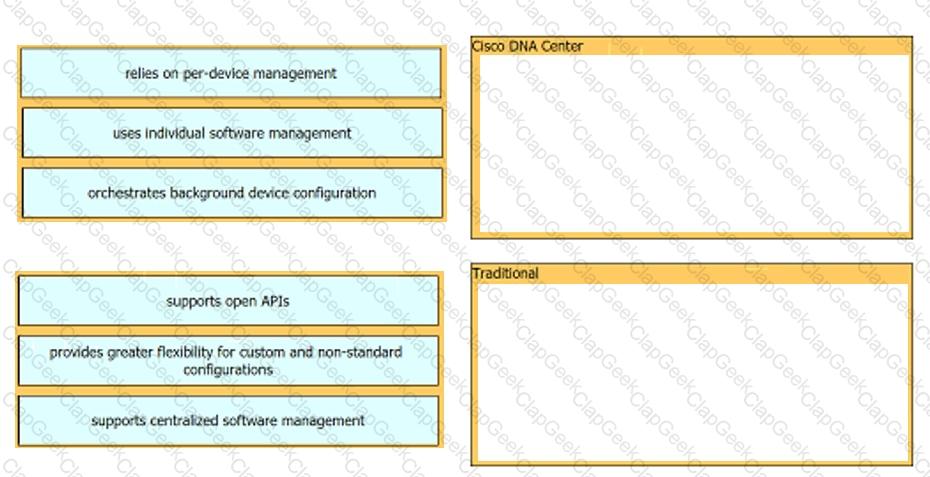

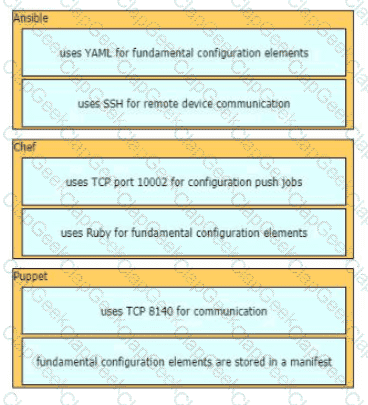

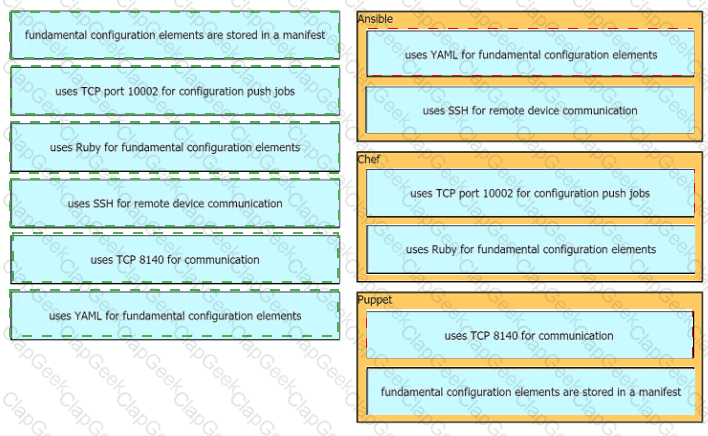

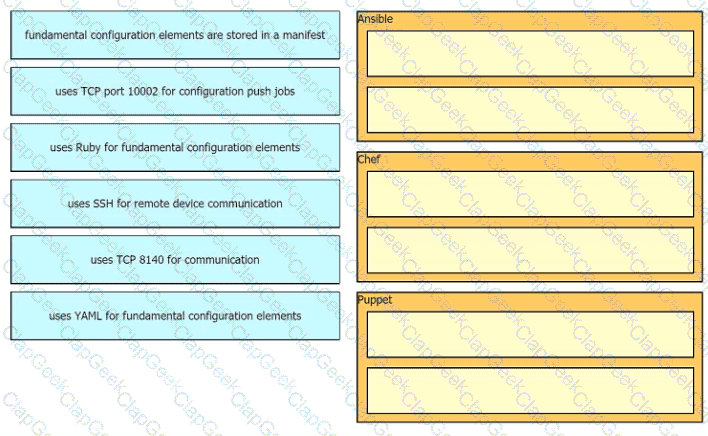

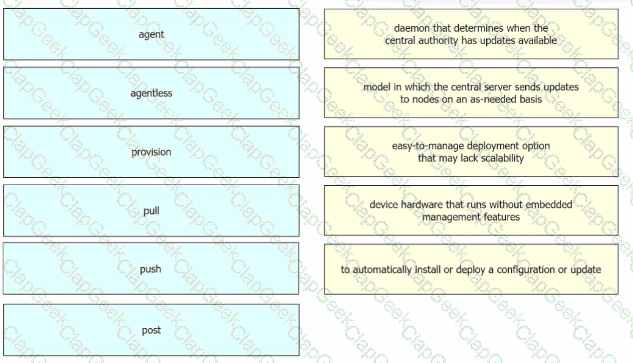

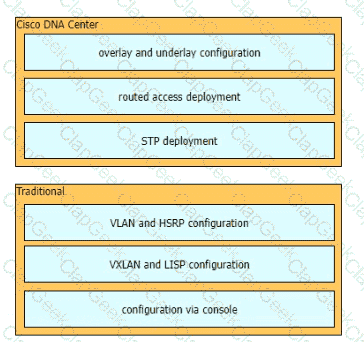

Drag and drop the descriptions from the left onto the configuration-management technologies on the right.

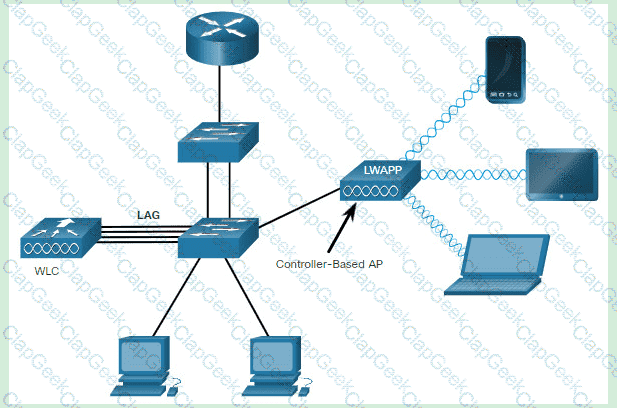

What provides connection redundancy increased bandwidth and load sharing between a wireless LAN controller and a Layer 2 switch?

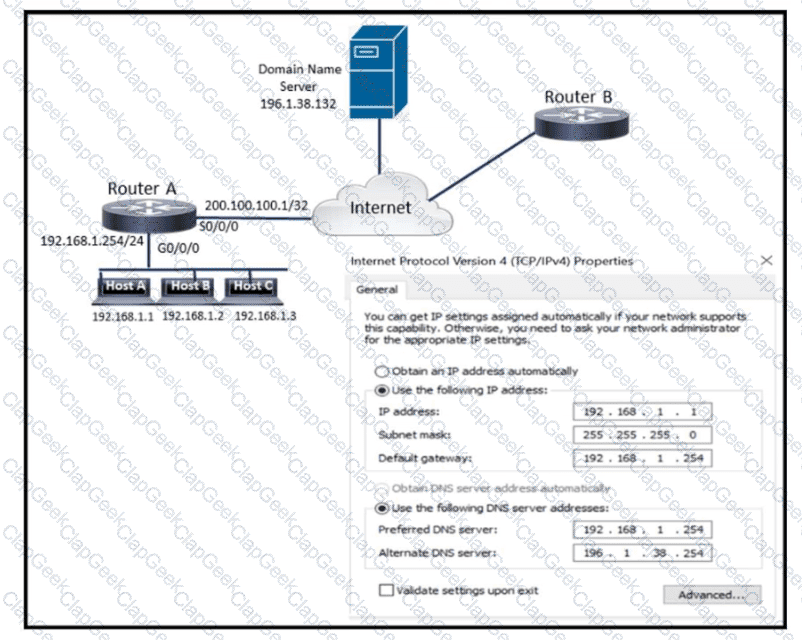

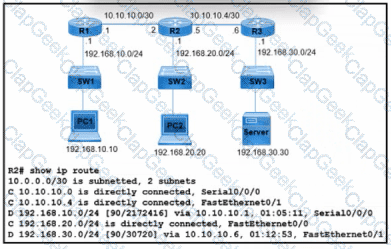

Refer to the exhibit. The user has connectivity to devices on network 192.168.3 0/24 but cannot reach users on the network 10.10.1.0724.
What is the first step to verify connectivity?
Which set of 2.4 GHz nonoverlapping wireless channels is standard in the United States?

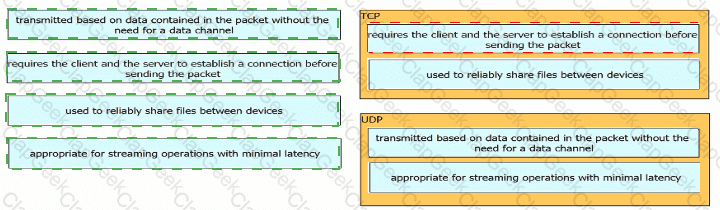

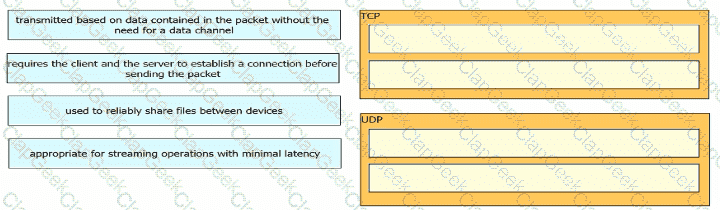

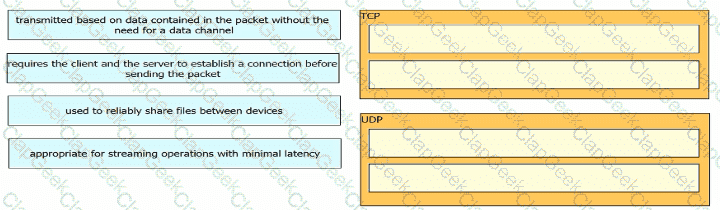

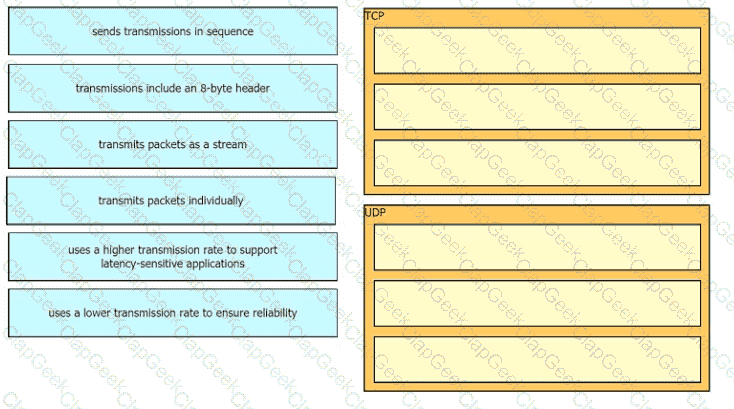

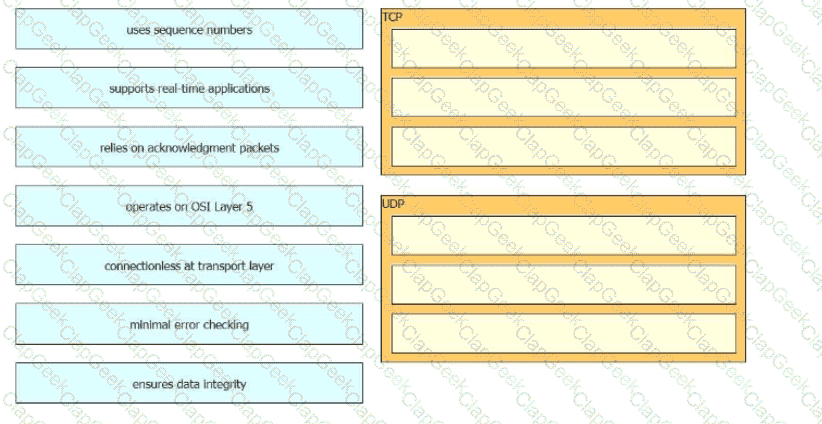

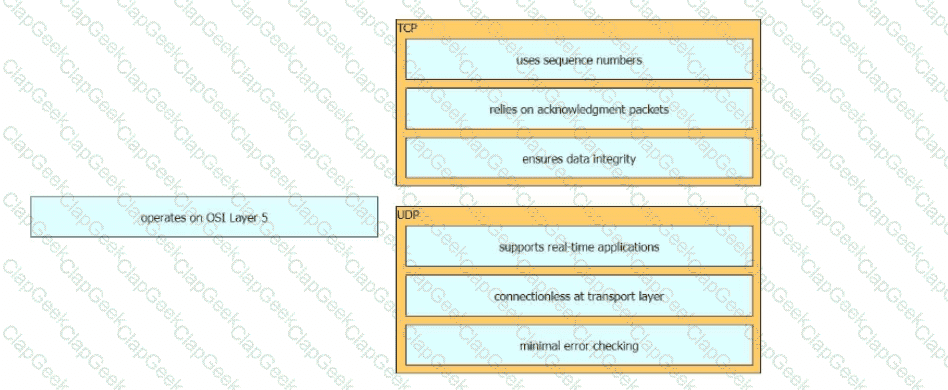

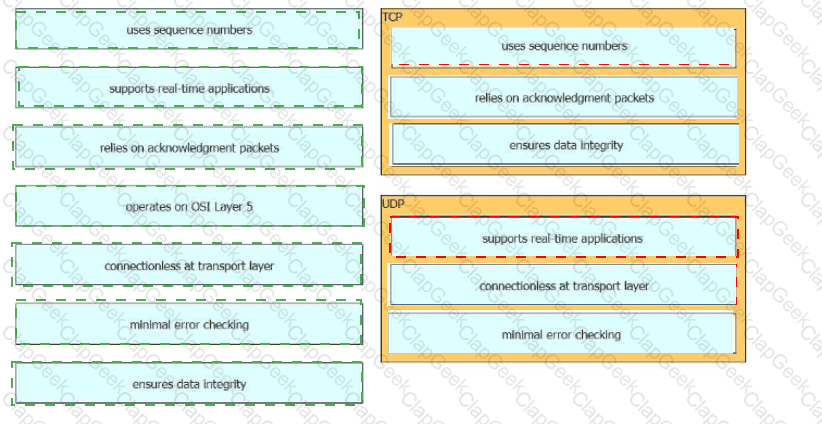

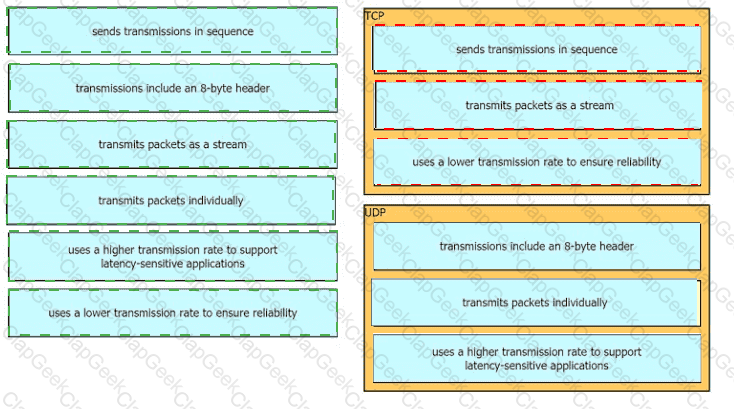

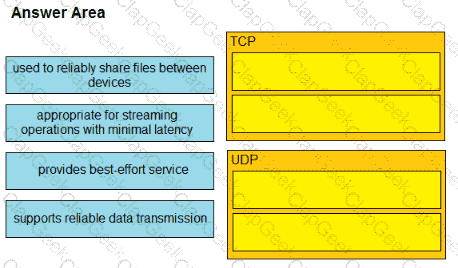

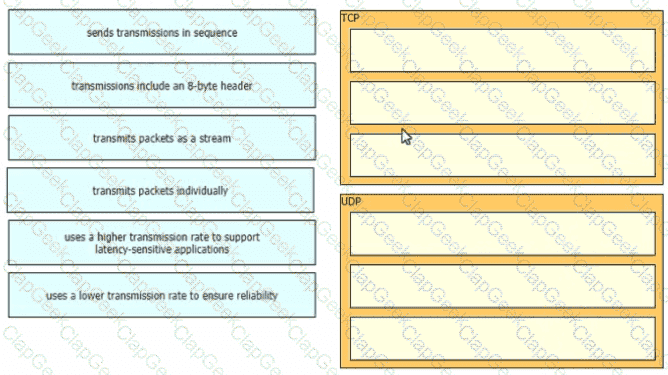

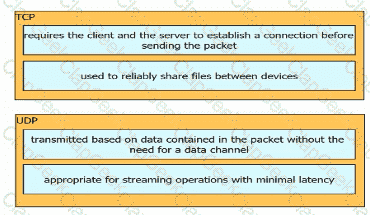

Drag and drop the TCP or UDP details from the left onto their corresponding protocols on the right.

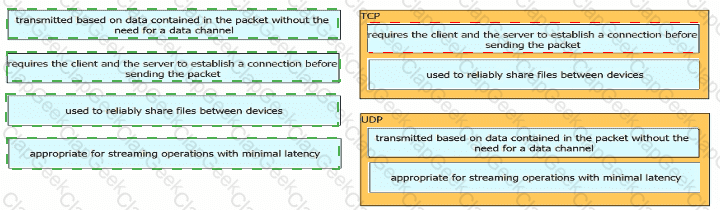

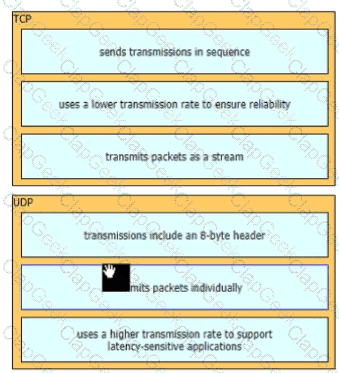

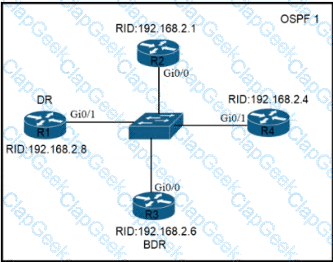

Refer to the exhibit.

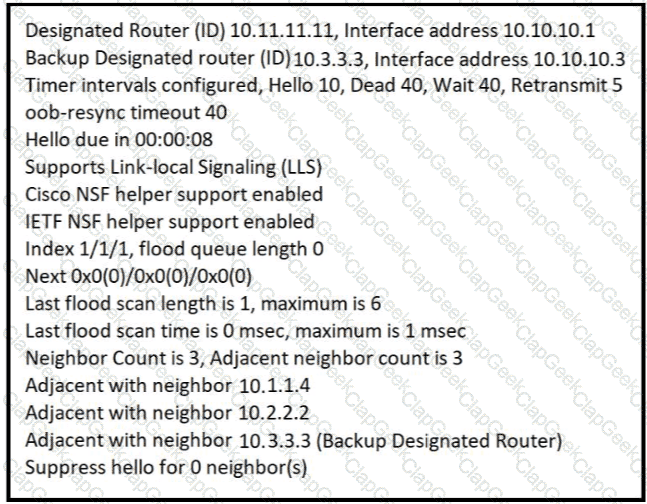

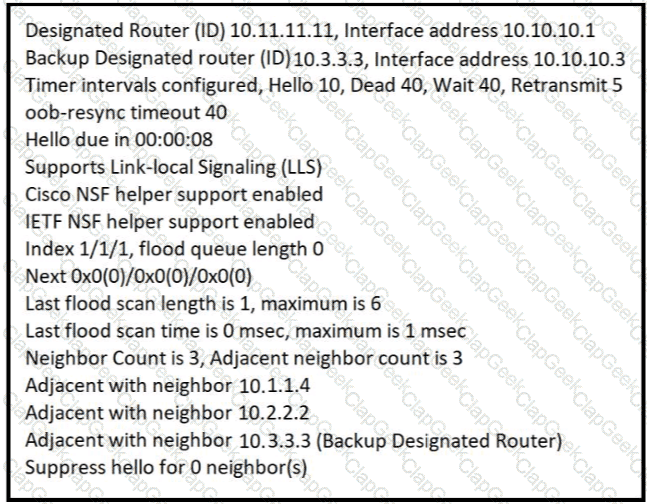

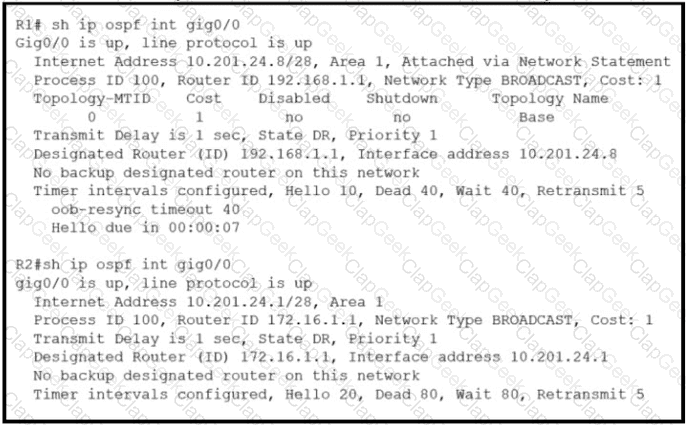

The show ip ospf interface command has been executed on R1 How is OSPF configured?
Which two protocols are used by an administrator for authentication and configuration on access points?

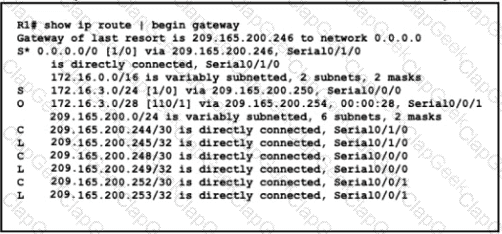

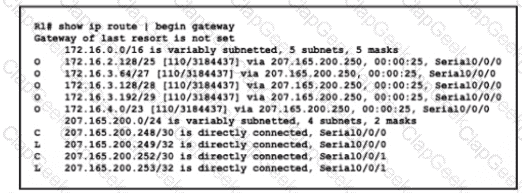

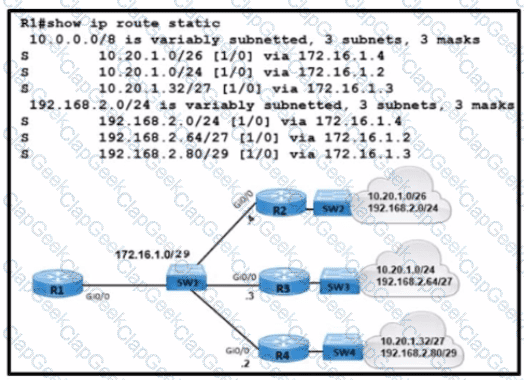

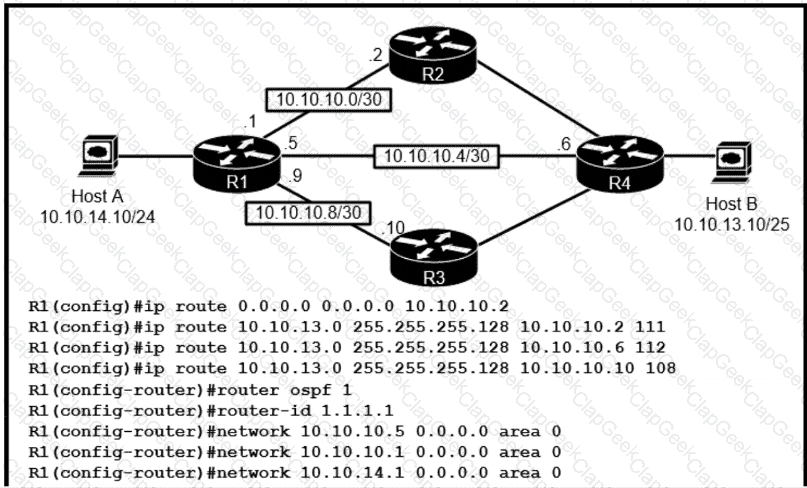

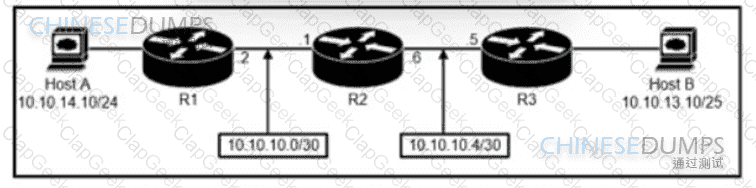

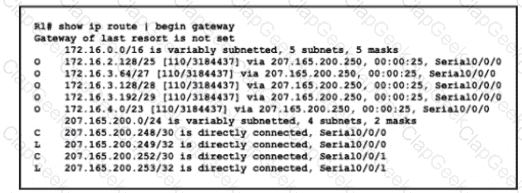

Refer to the exhibit.

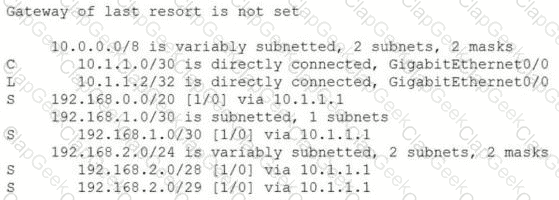

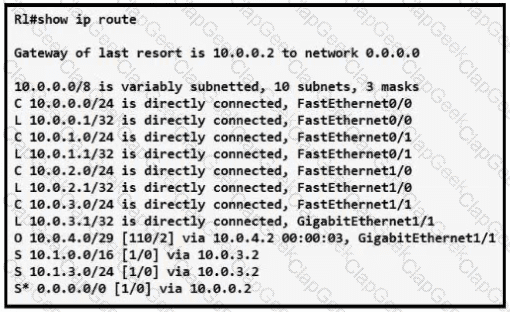

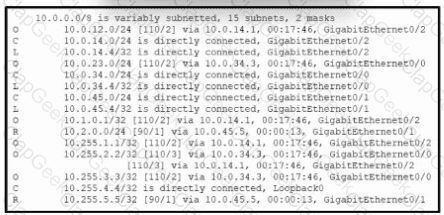

R1 has just received a packet from host A that is destined to host B. Which route in the routing table is used by R1 to reac B?
Refer to the exhibit.

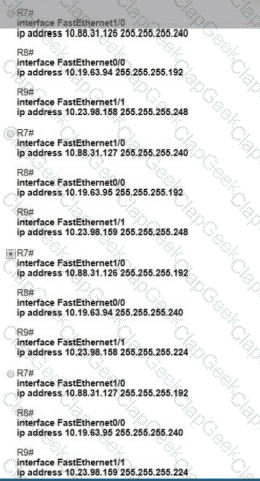

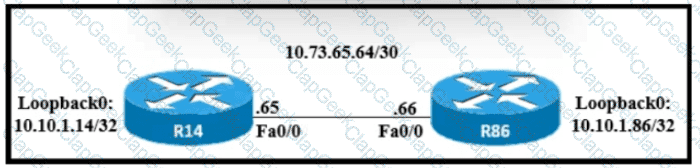

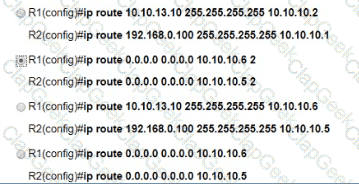

Router R14 is in the process of being configured. Which configuration must be used to establish a host route to PC 10?
What is an advantage of using auto mode versus static mode for power allocation when an access point is connected to a PoE switch port?

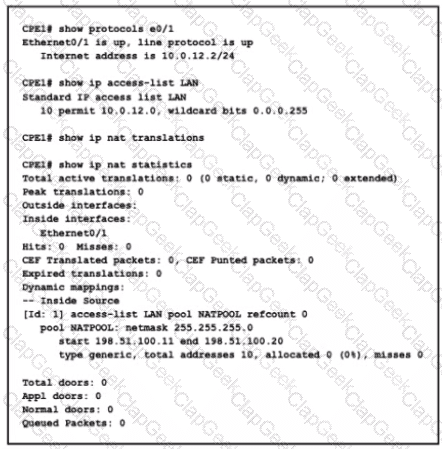

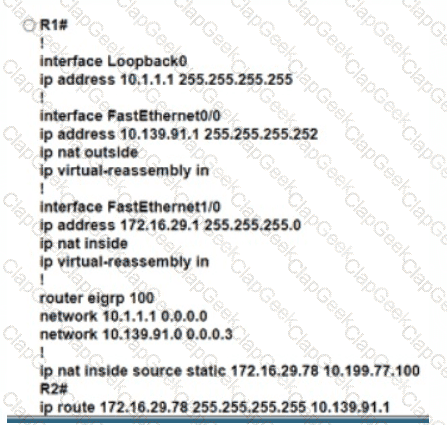

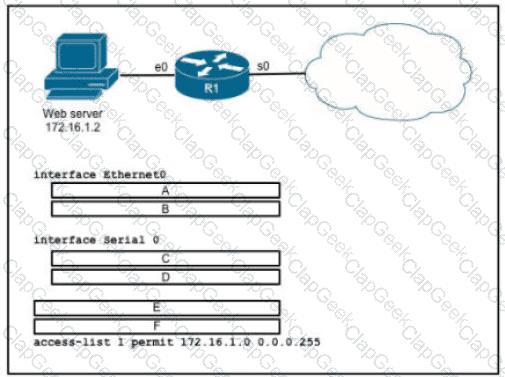

Refer to the exhibit.

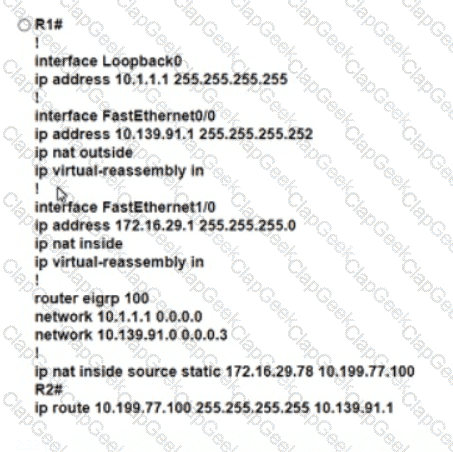

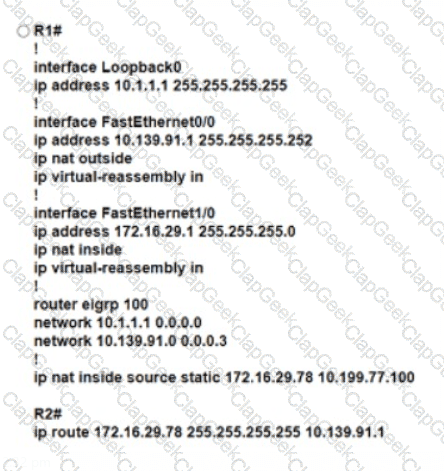

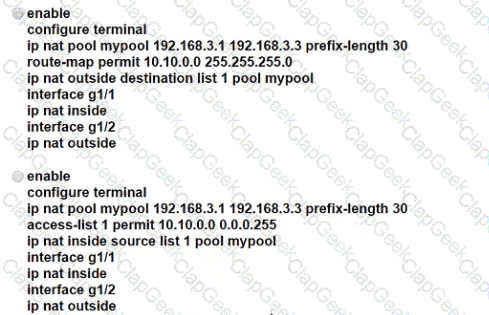

What is the next step to complete the implementation for the partial NAT configuration shown?
Company has decided to require multifactor authentication for all systems. Which set of parameters meets the requirement?

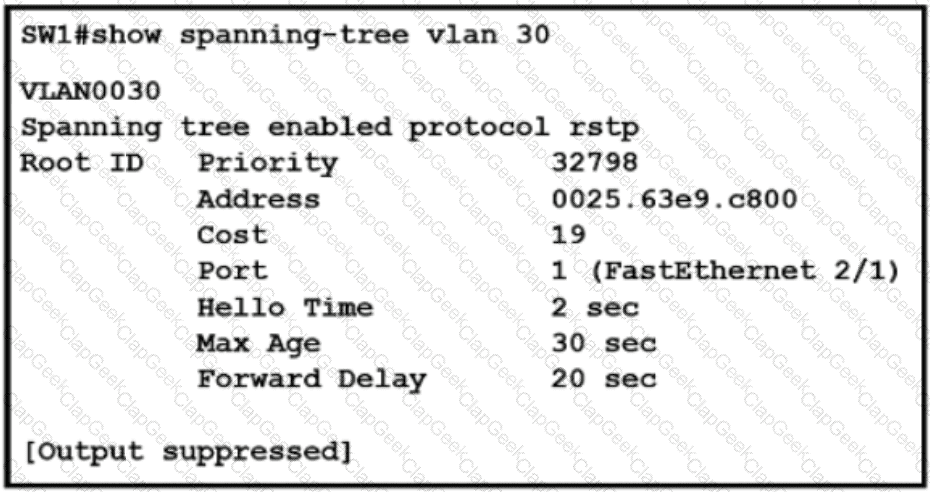

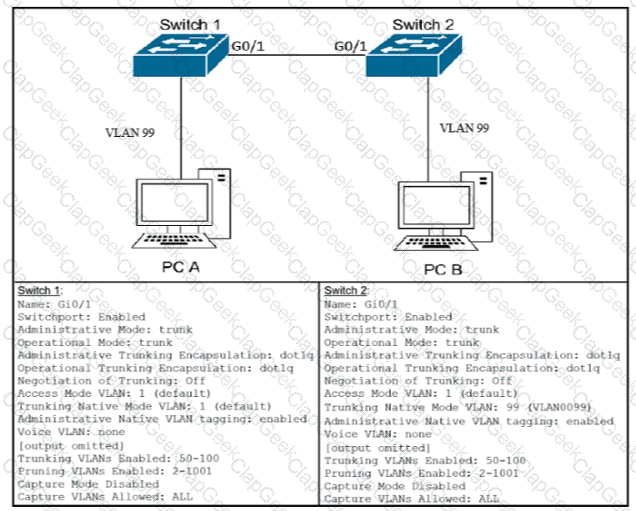

Refer to the exhibit.

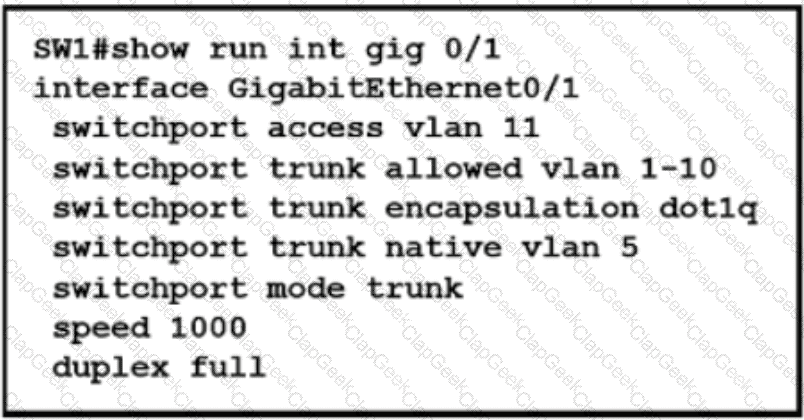

Which action is expected from SW1 when the untagged frame is received on the GigabitEthernet0/1 interface?

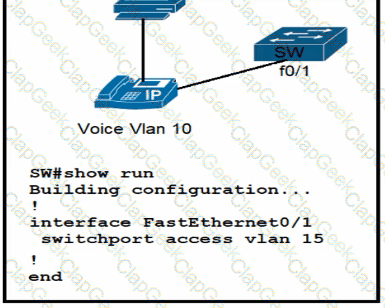

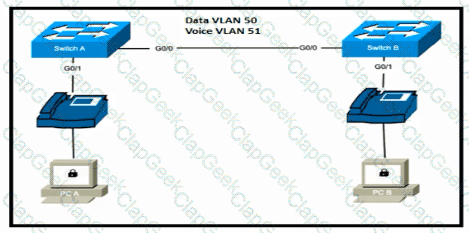

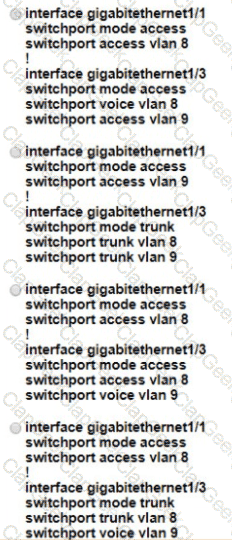

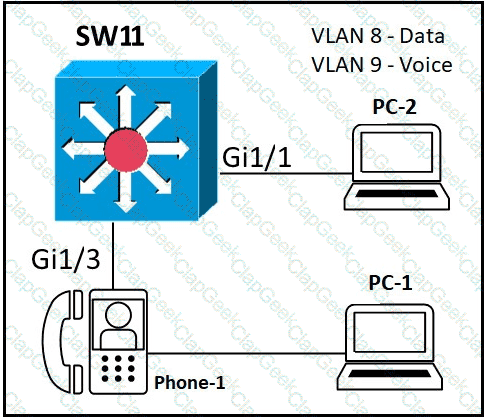

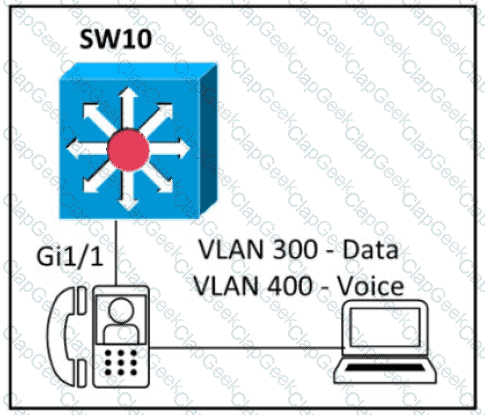

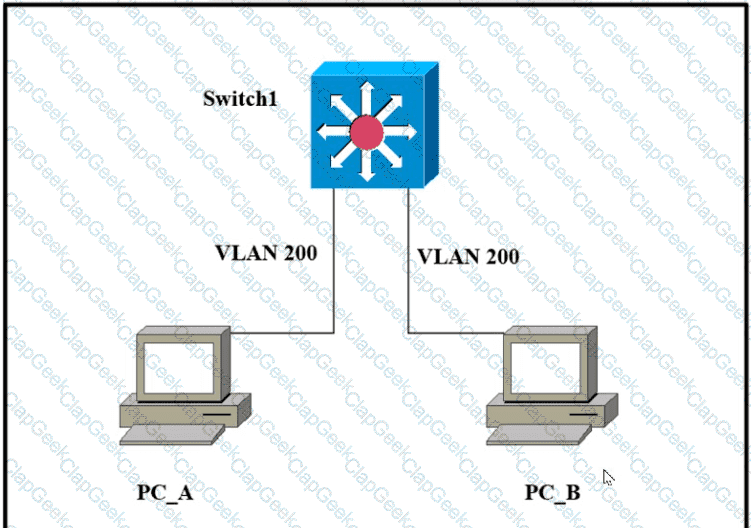

Refer to the exhibit.

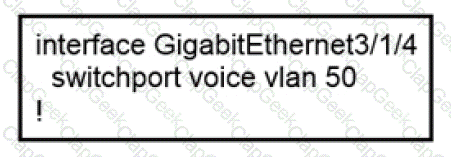

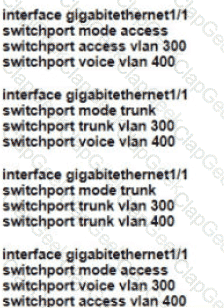

An administrator is tasked with configuring a voice VLAN. What is the expected outcome when a Cisco phone is connected to the GigabitEfriemet3/1/4 port on a switch?
Which two must be met before SSH can operate normally on a Cisco IOS switch? (Choose two)

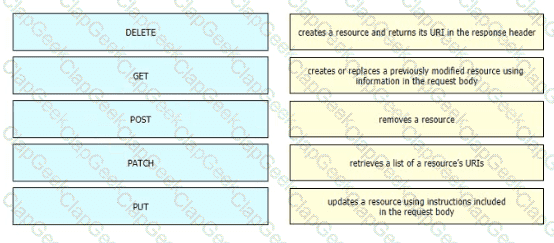

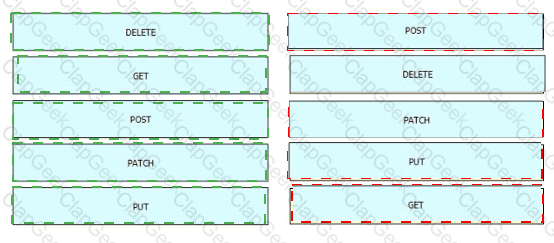

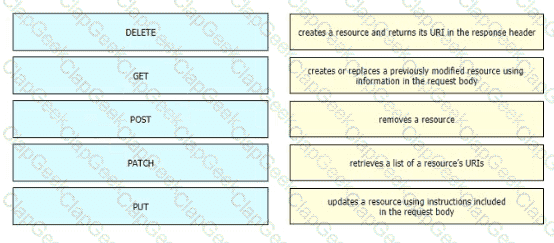

Drag and drop the HTTP methods used with REST-Based APIs from the left onto the descriptions on the right.
Refer to the exhibit.

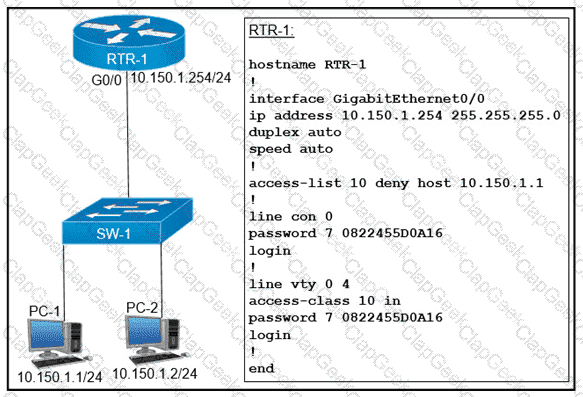

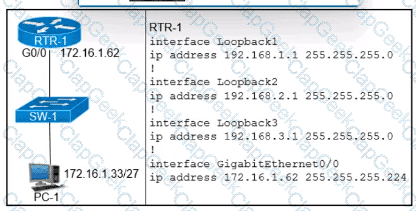

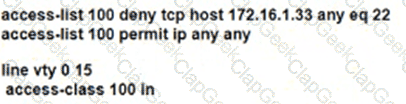

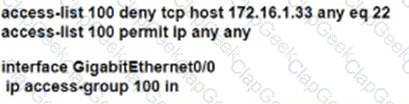

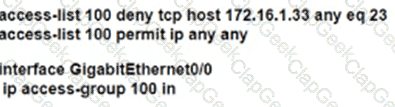

Which configuration for RTR-1 deniess SSH access from PC-1 to any RTR-1 interface and allows all other traffic?
A)
B)
C)
D)

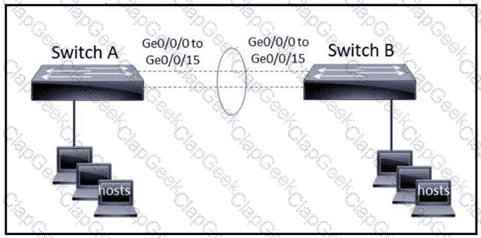

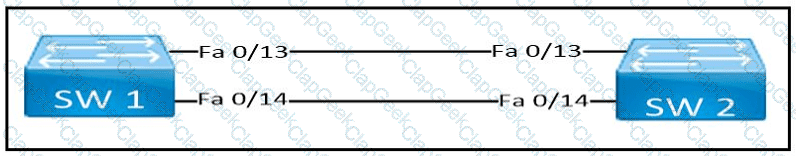

Refer to the exhibit.

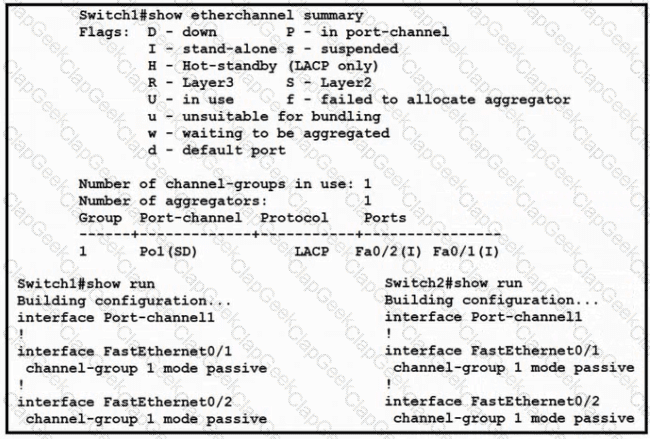

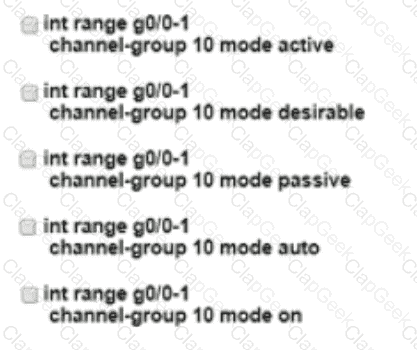

Which configuration establishes a Layer 2 LACP EtherChannel when applied to both switches?
Refer to the exhibit. A network engineer updates the existing configuration on interface fastethernet1/1 switch SW1. It must establish an EtherChannel by using the same group designation with another vendor switch. Which configuration must be performed to complete the process?

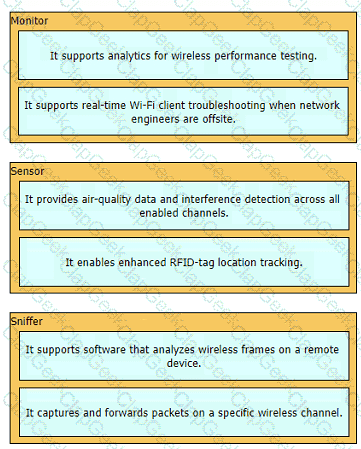

Which unified access point mode continues to serve wireless clients after losing connectivity to the Cisco Wireless LAN Controller?

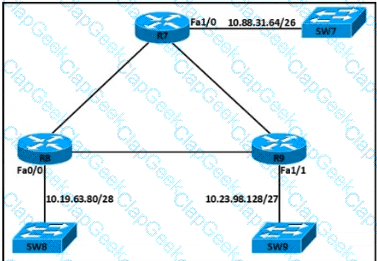

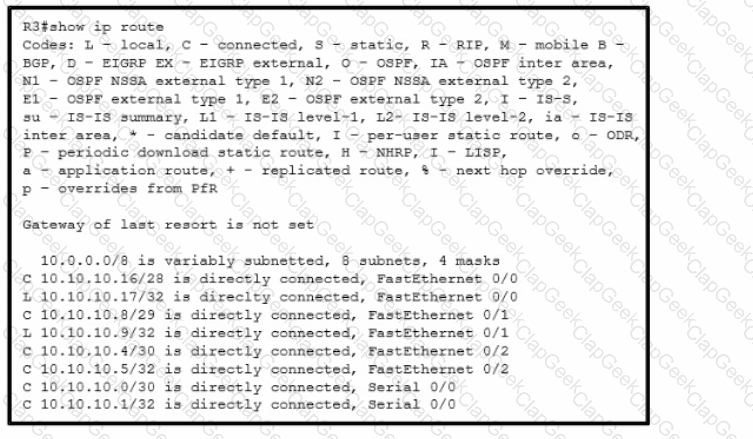

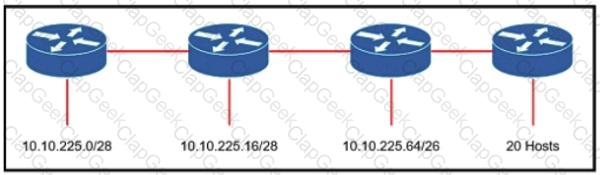

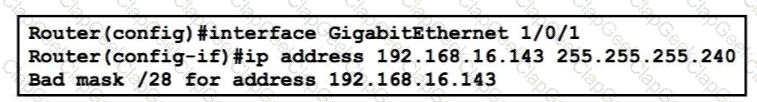

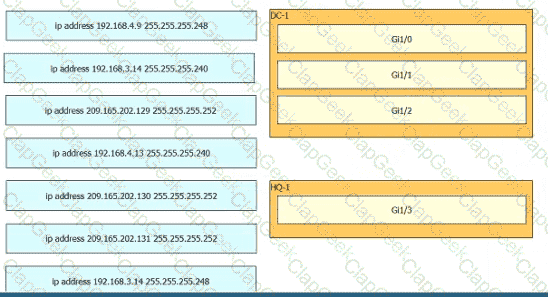

Refer to the exhibit. Each router must be configured with the last usable IP address in the subnet. Which configuration fulfills this requirement?

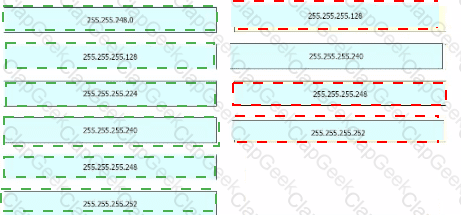

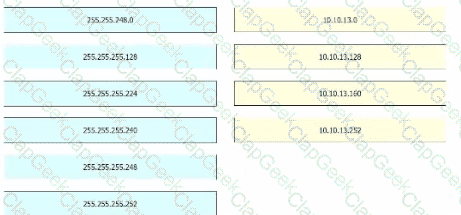

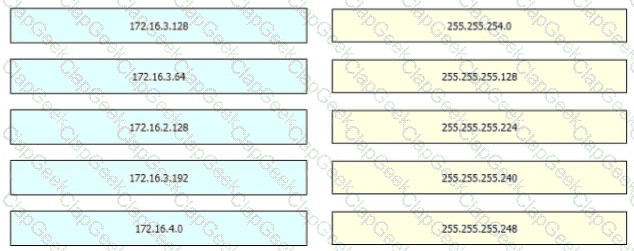

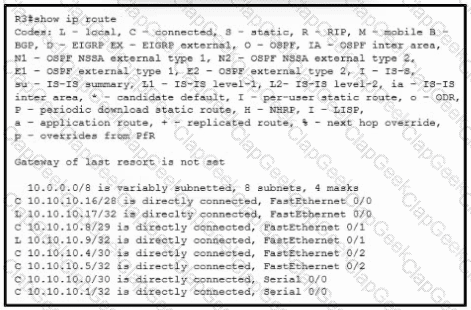

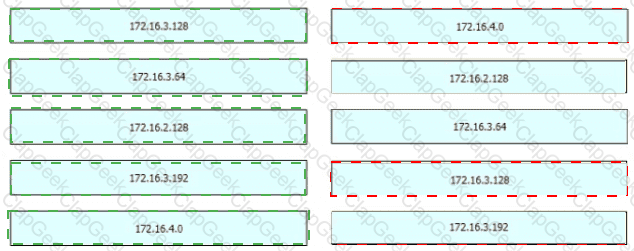

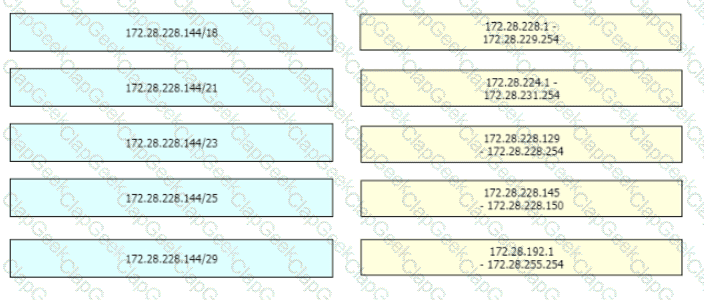

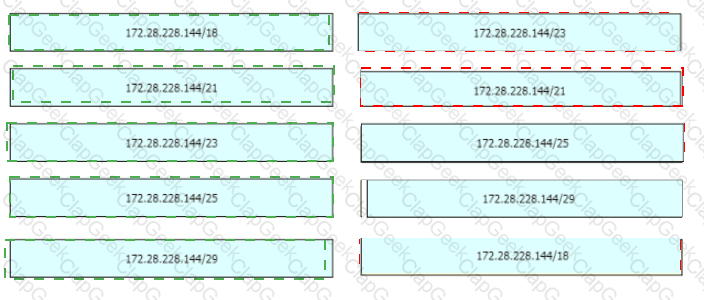

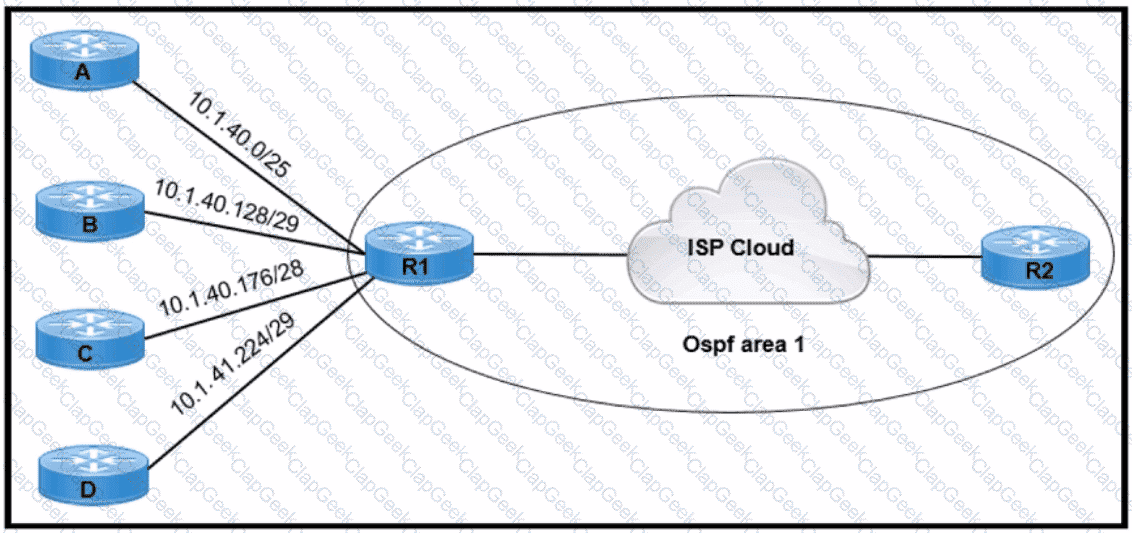

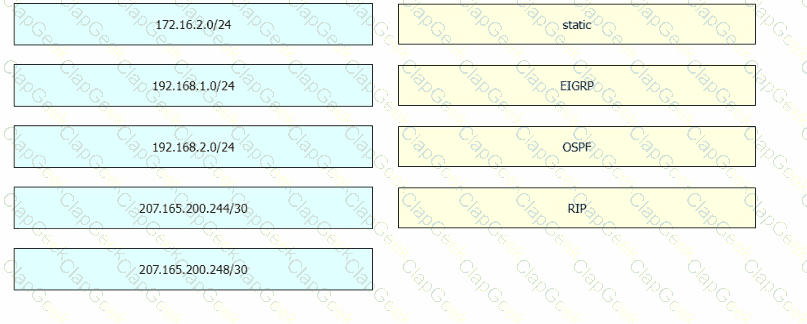

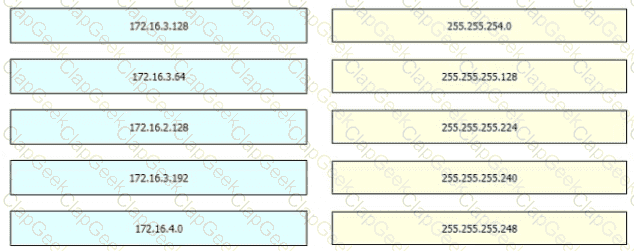

Refer to the exhibit. Drag and drop the subnet masks from the left onto the corresponding subnets on the right. Not all subnet masks used.

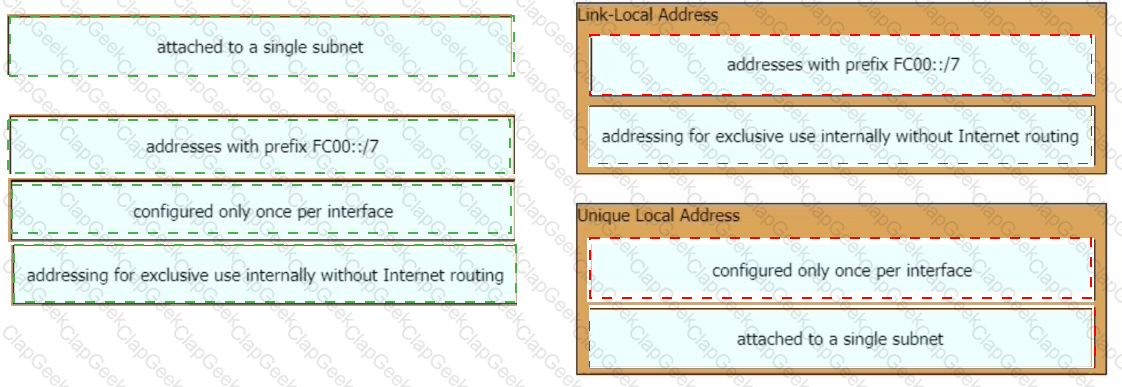

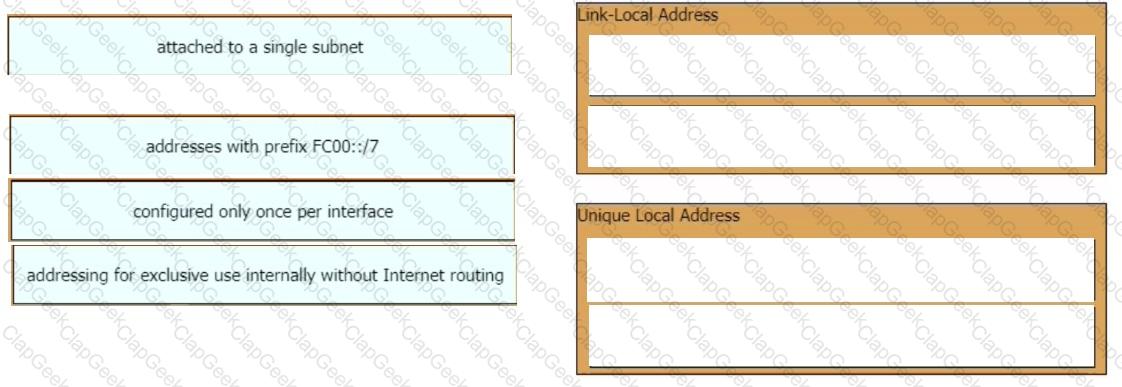

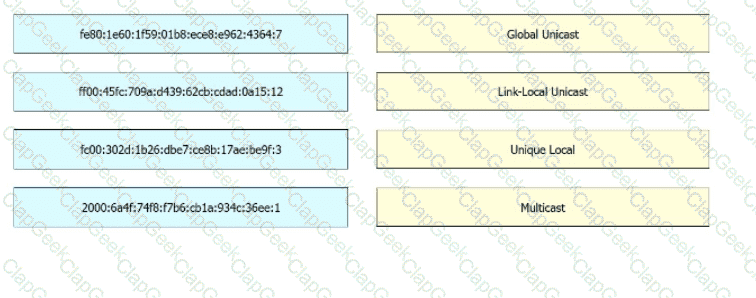

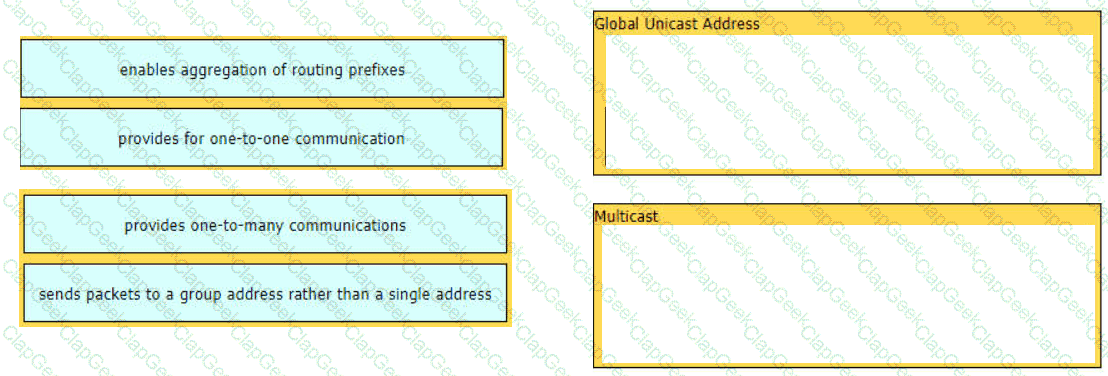

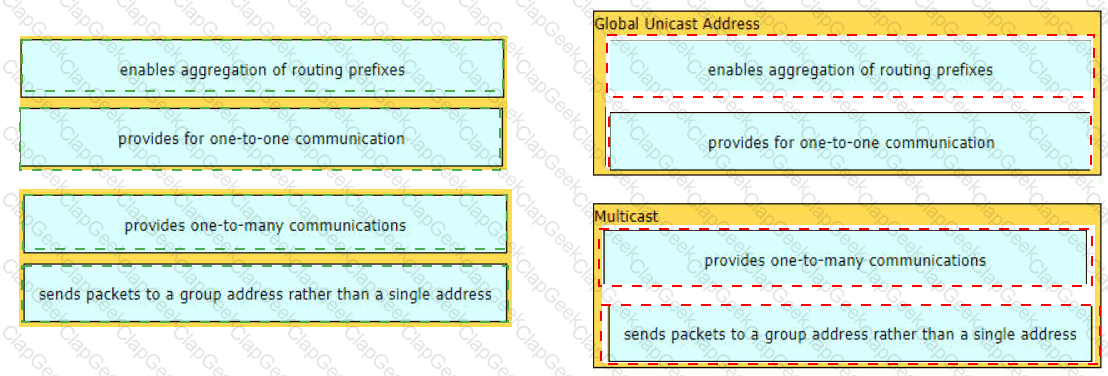

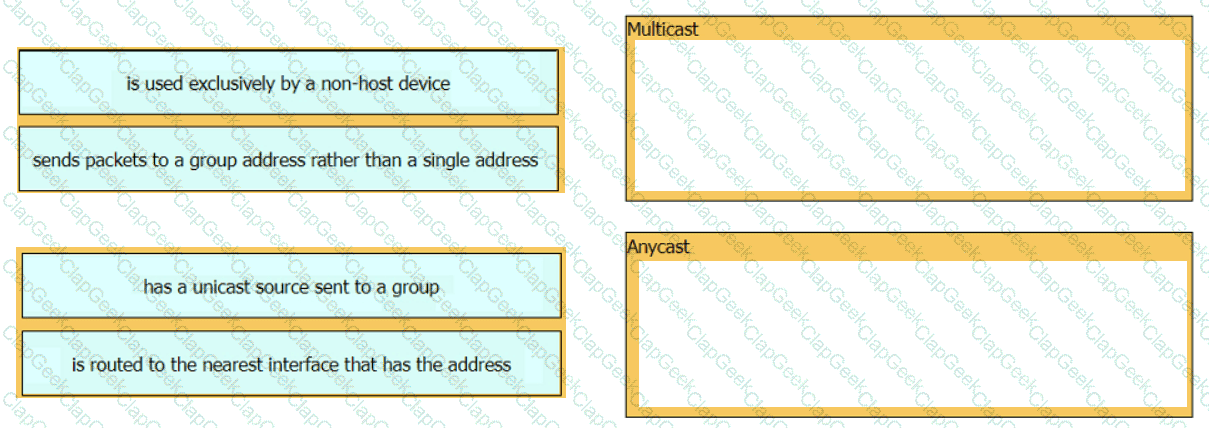

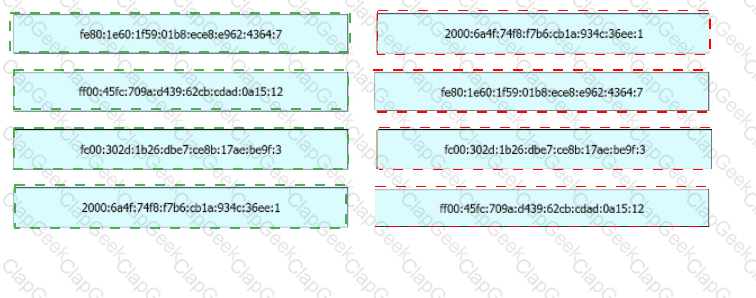

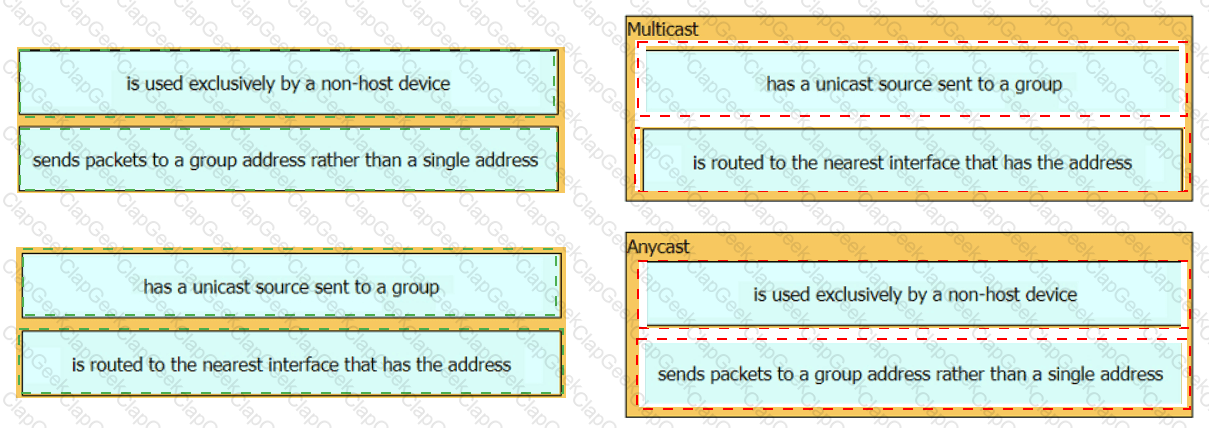

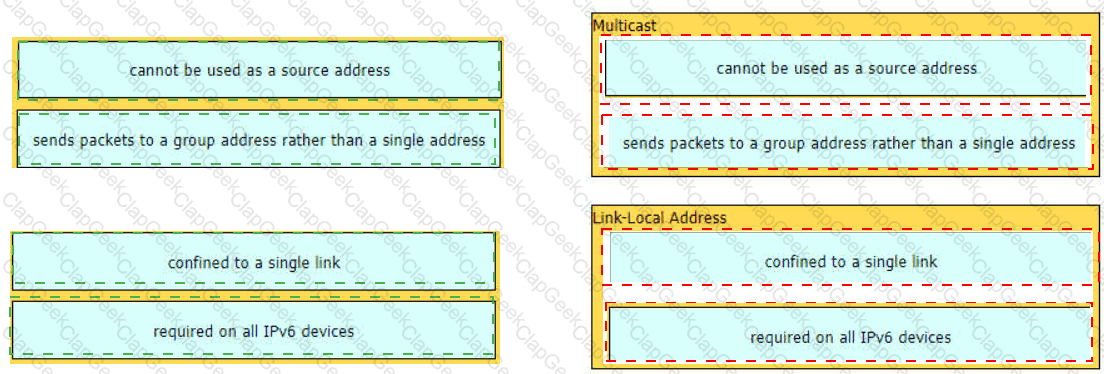

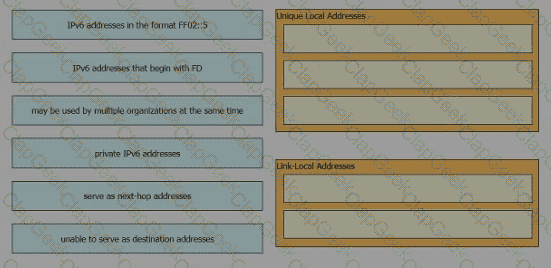

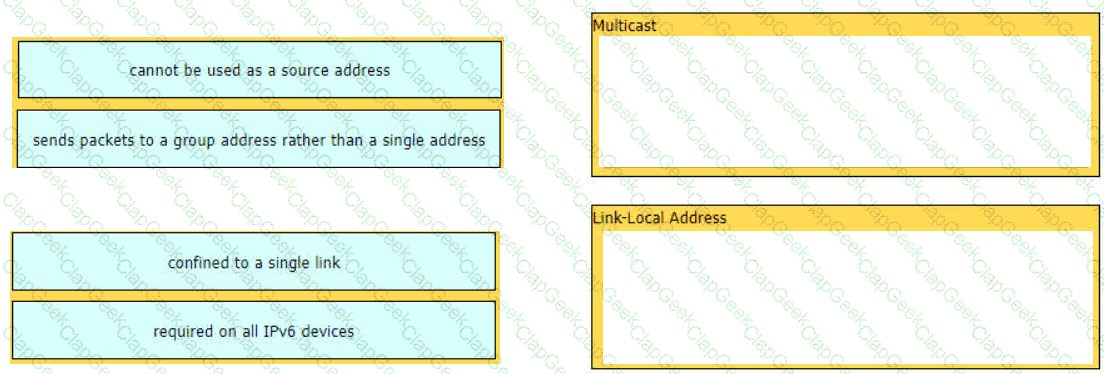

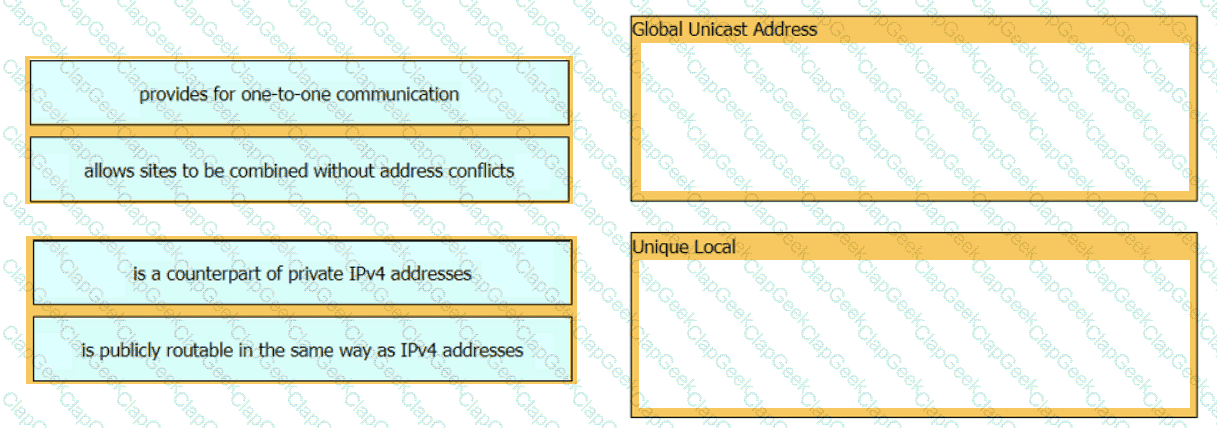

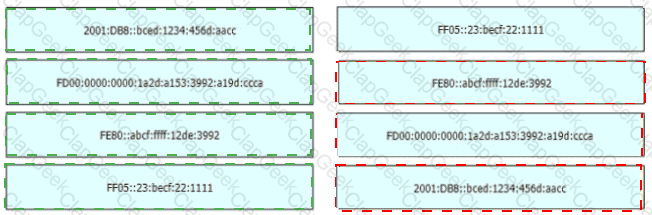

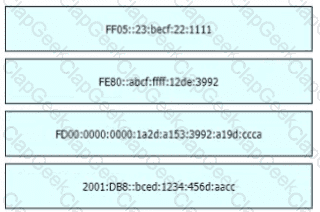

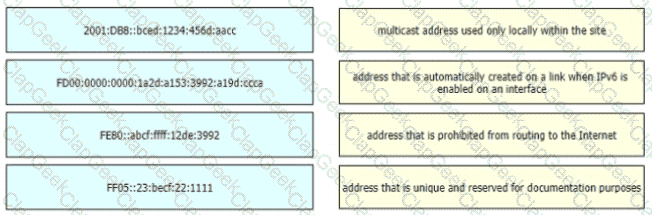

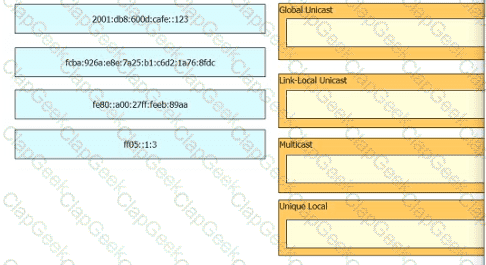

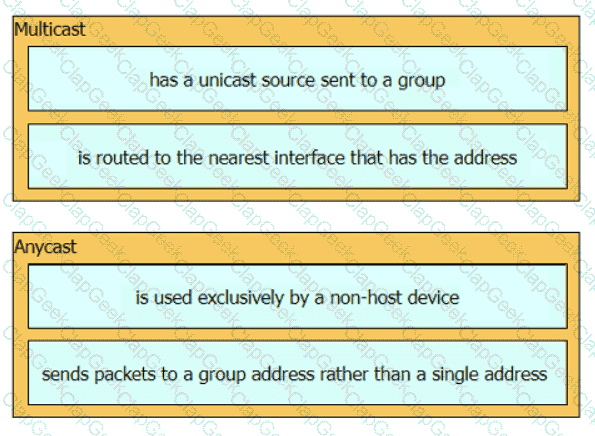

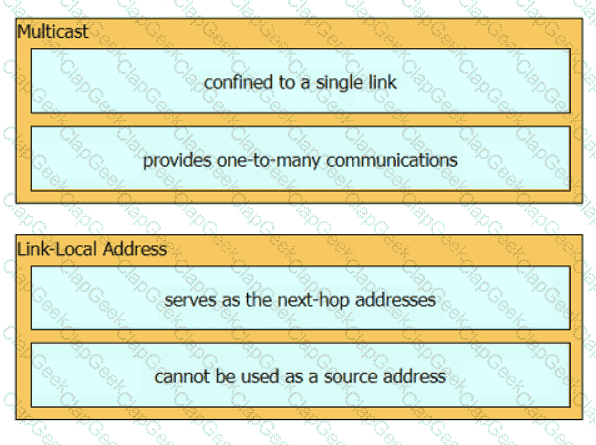

Drag and drop the characteristic from the left onto the IPv6 address type on the right.
Which IP header field is changed by a Cisco device when QoS marking is enabled?

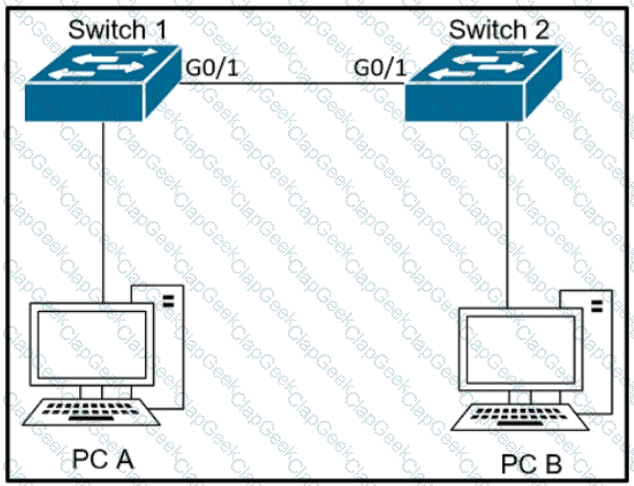

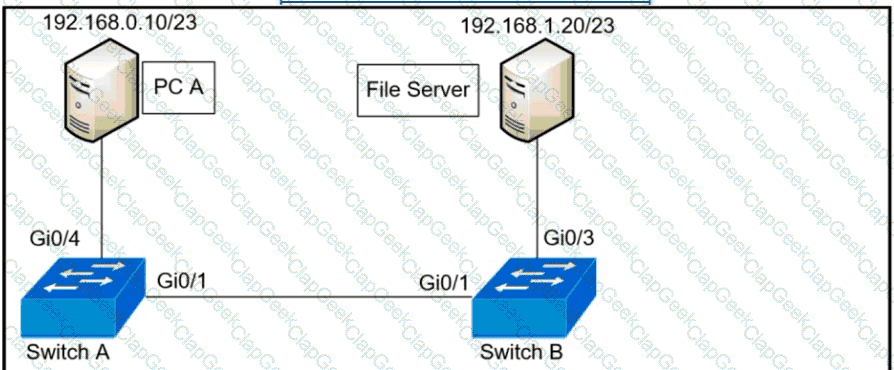

Refer to the exhibit.

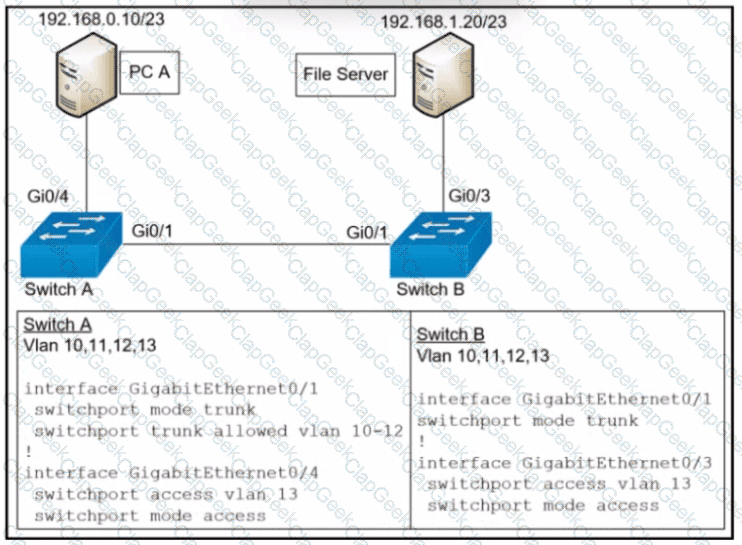

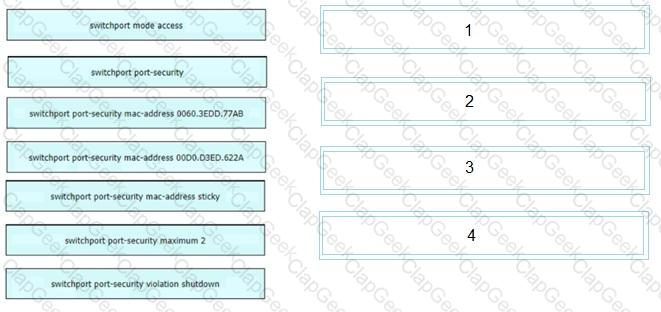

PC A and the file server. Which commend must be configured on switch A to prevent interruption of other communications?

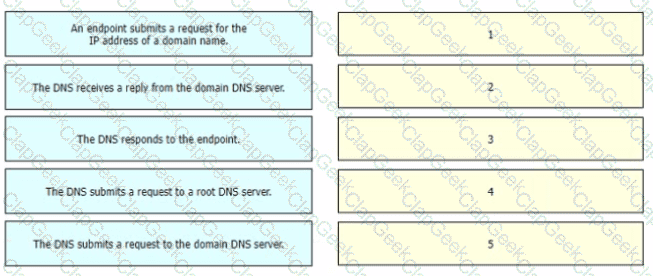

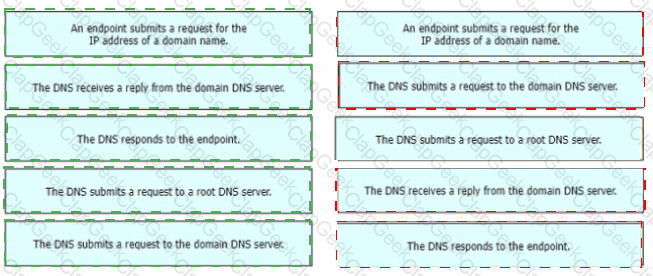

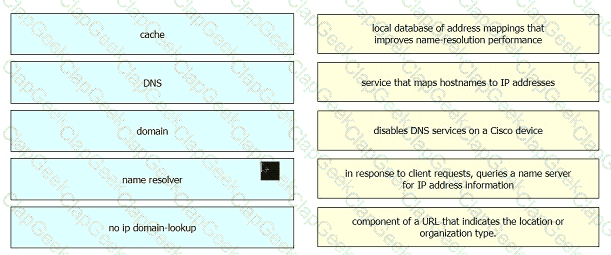

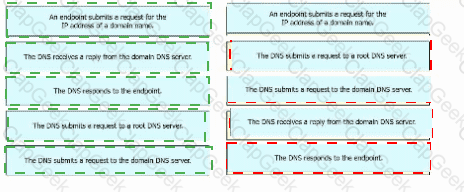

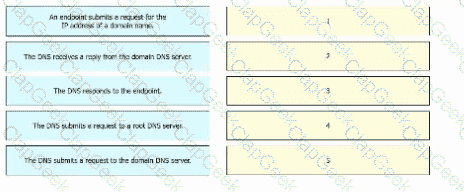

Drag and drop the steps in a standard DNS lookup operation from the left into the order on the right.

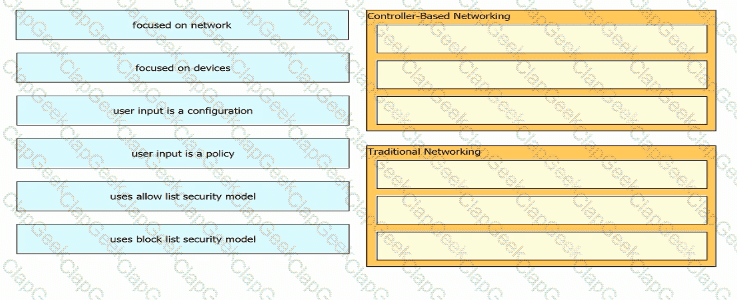

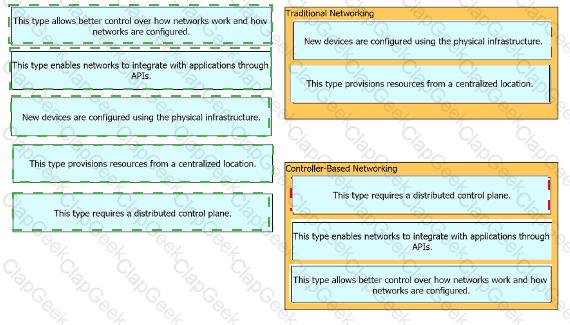

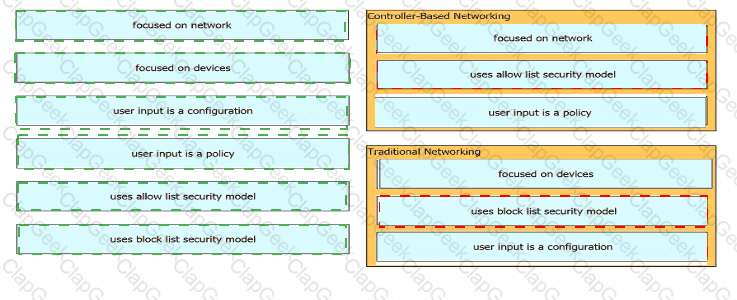

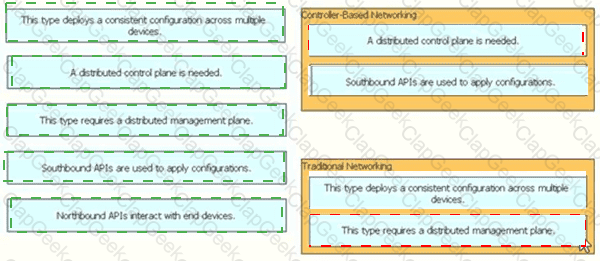

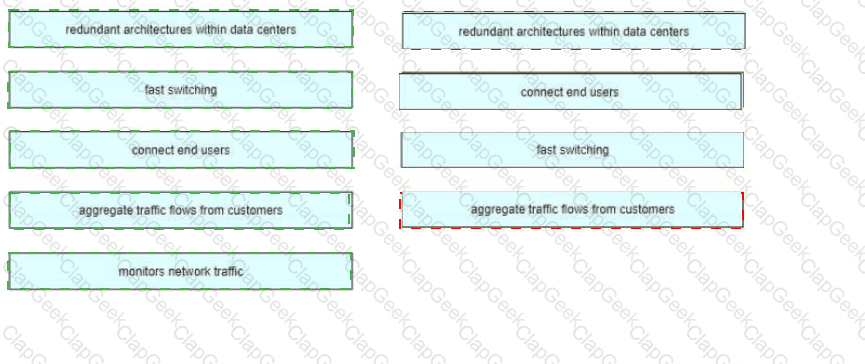

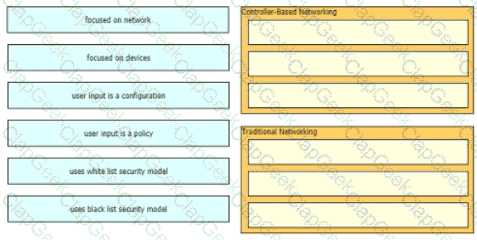

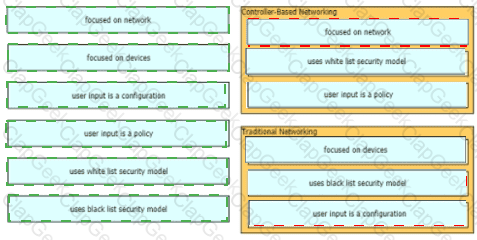

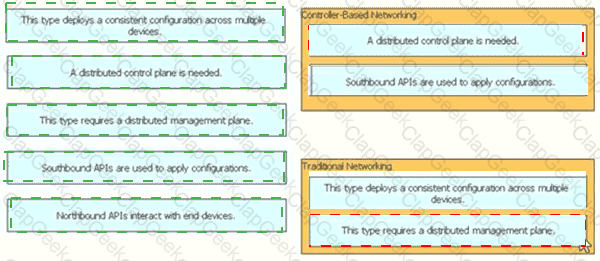

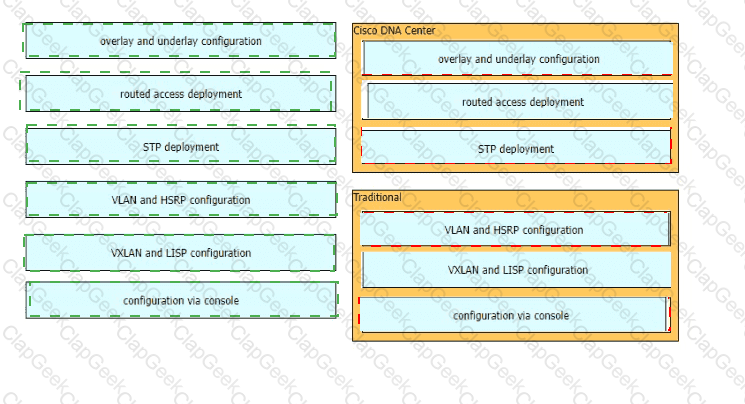

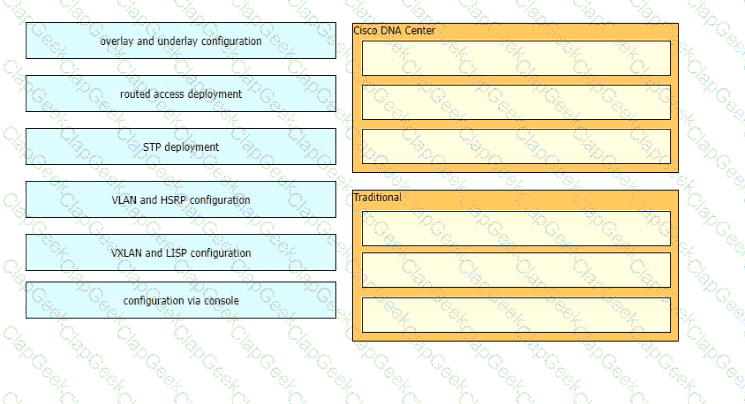

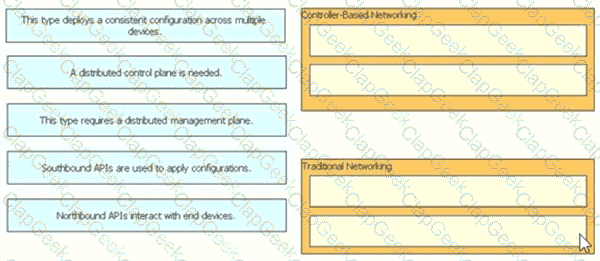

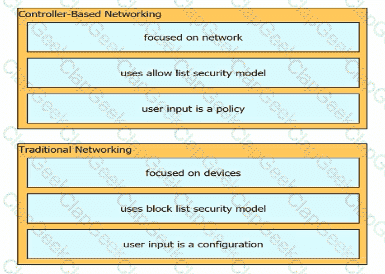

Drag and drop the statements about networking from me left onto the corresponding networking types on the right

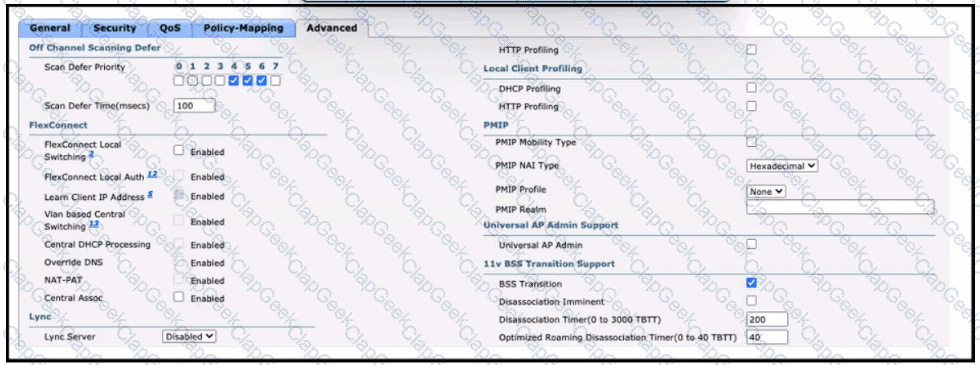

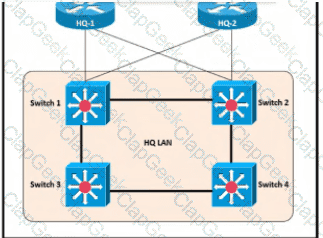

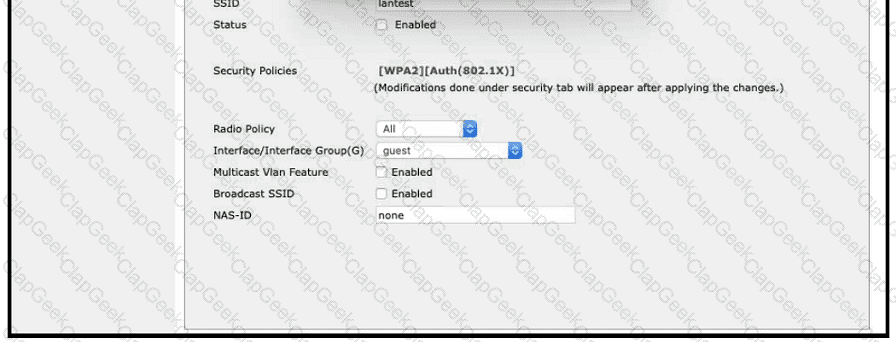

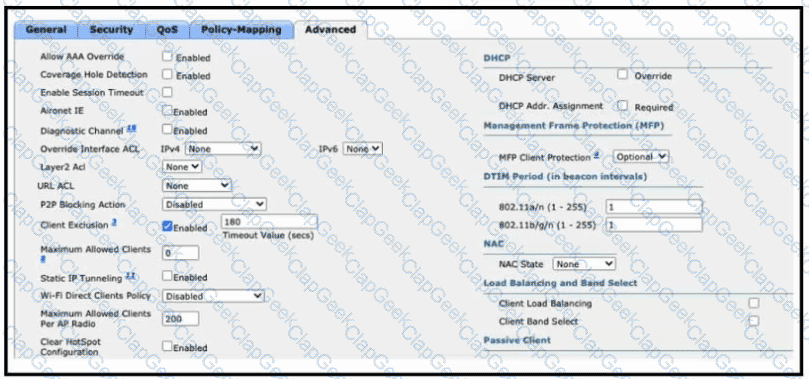

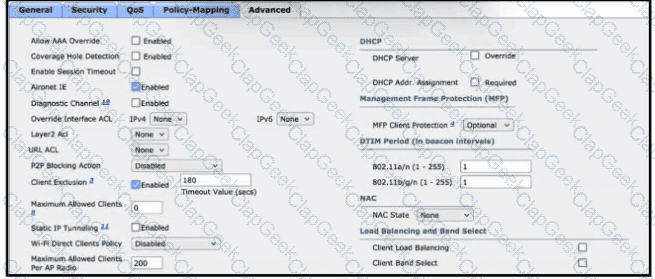

Refer to the exhibit.

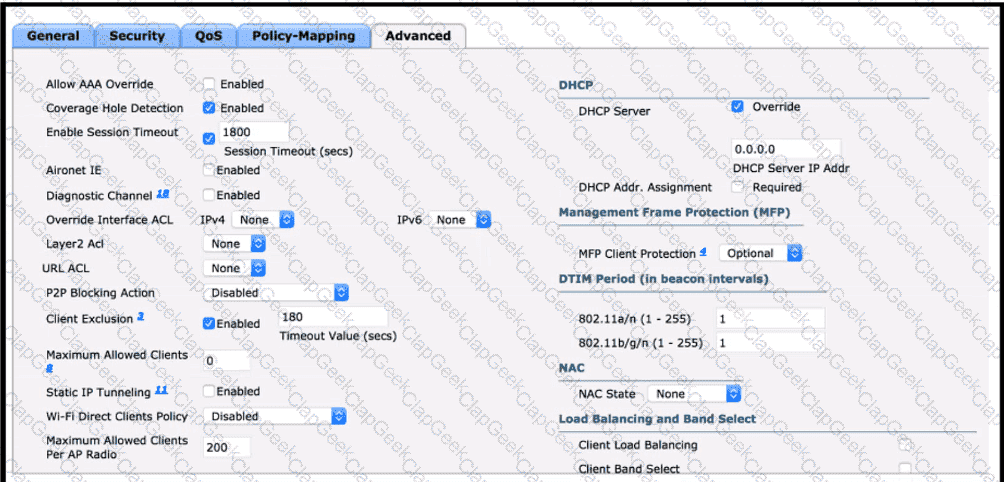

An architect is managing a wireless network with APs from several branch offices connecting to the WLC in the data center. There is a new requirement for a single WLAN to process the client data traffic without sending it to the WLC. Which action must be taken to complete the request?

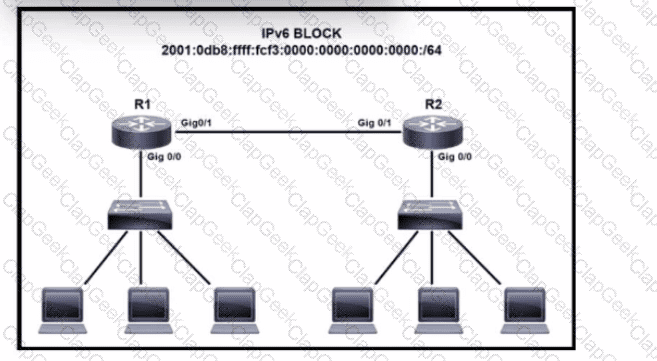

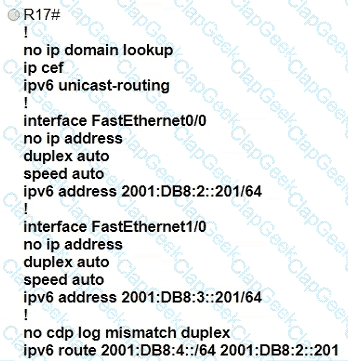

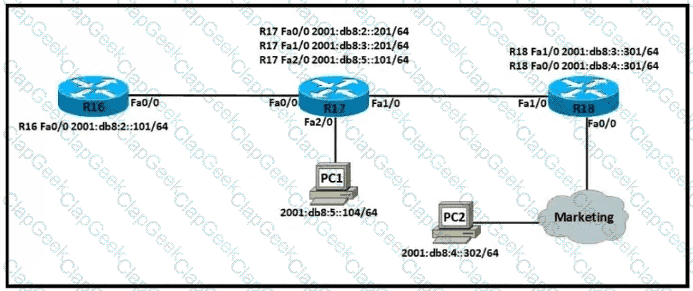

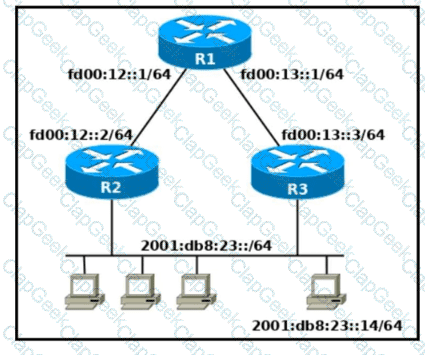

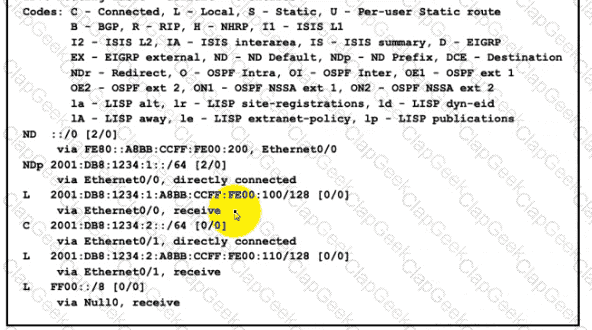

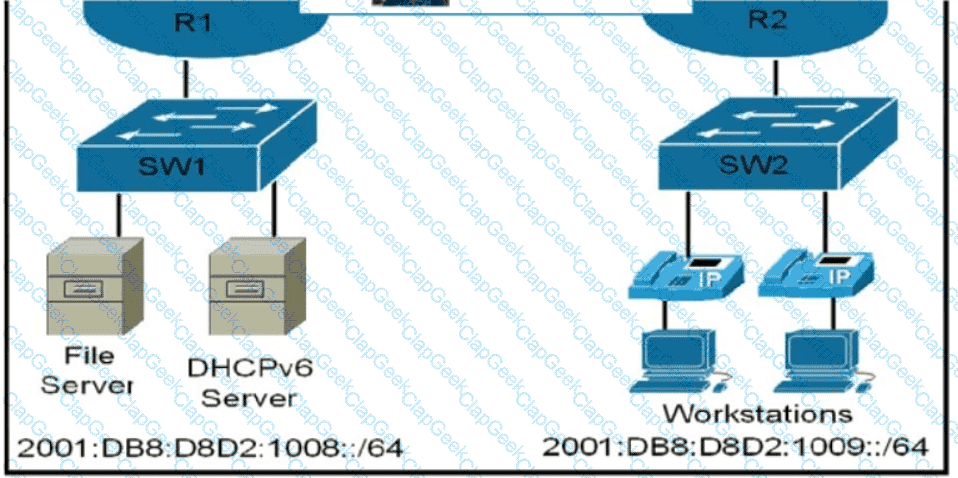

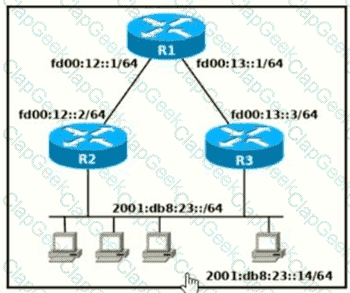

Refer to the exhibit. IPv6 is being Implemented within the enterprise. The command Ipv6 unlcast-routing is configure. Interlace GlgO/0 on R1 must be configured to provide a dynamic assignment using the assigned IPv6 block Which command accomplishes this task?
Refer to the exhibit. Users at a branch office are experiencing application performance issues, poor VoIP audio quality, and slow downloads. What is the cause of the issues?

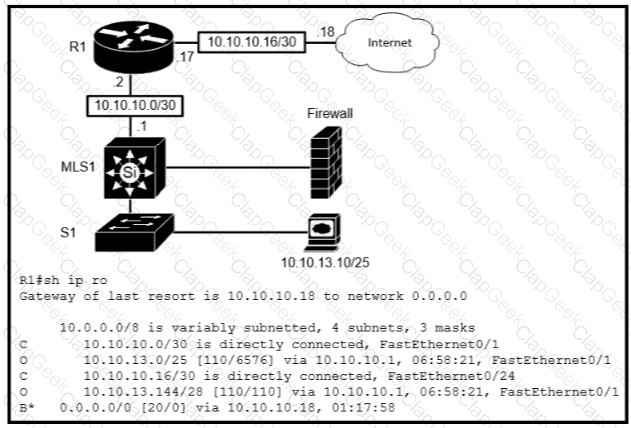

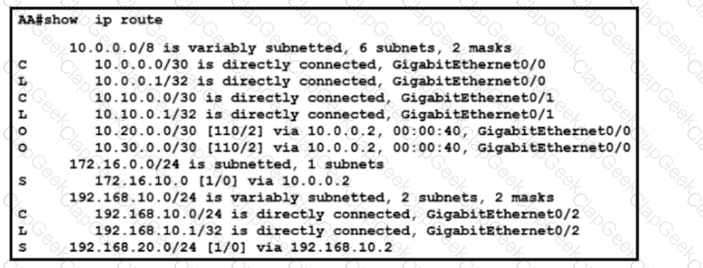

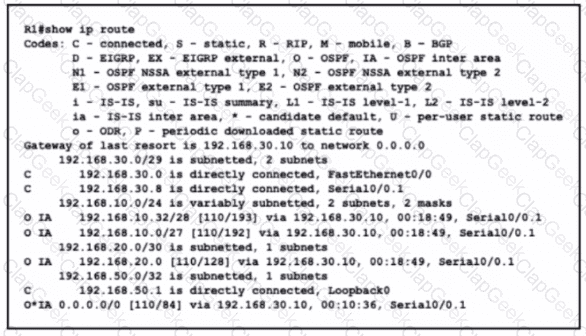

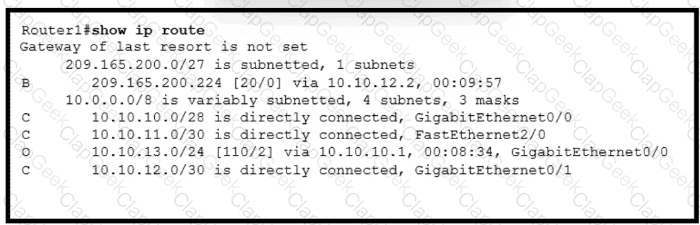

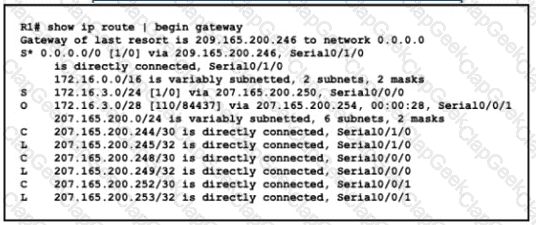

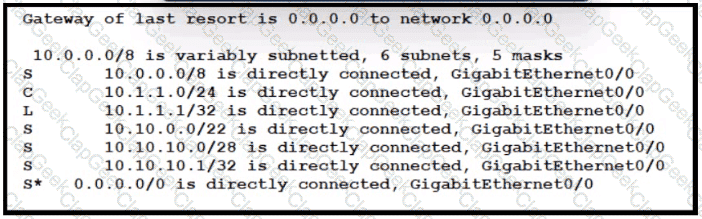

Refer to the exhibit. A packet sourced from 10.10.10.32 is destined for the Internet. What is the administrative distance for the destination route?

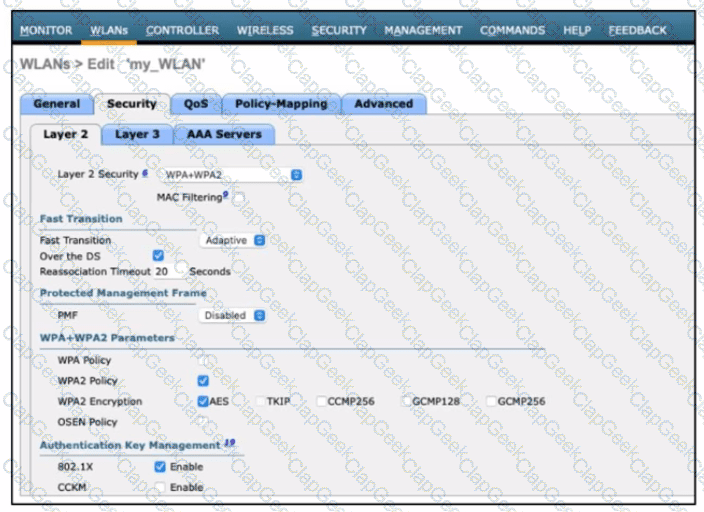

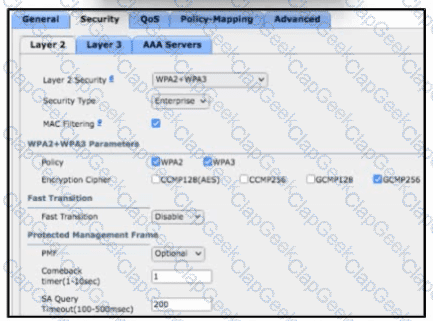

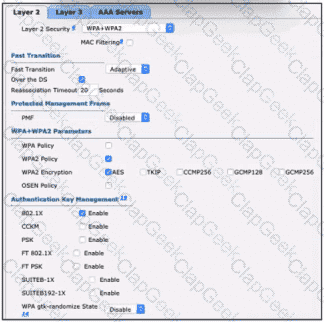

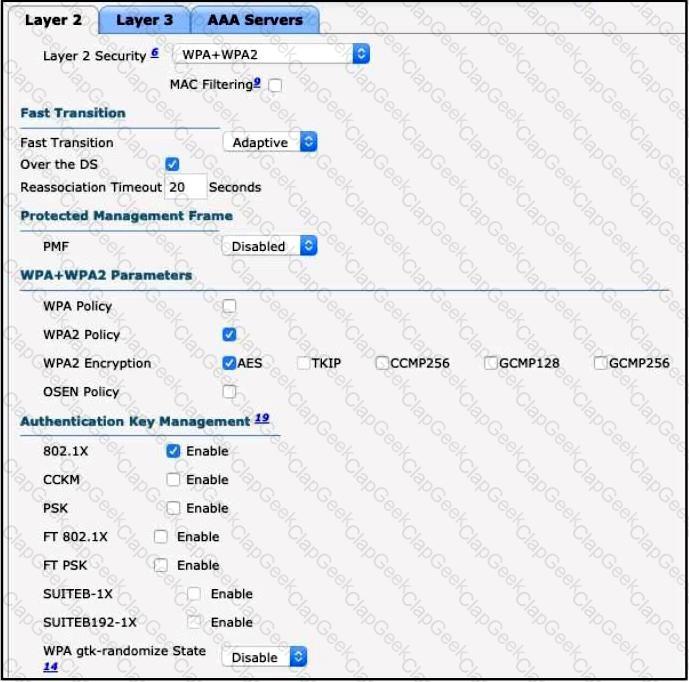

Refer to the exhibit. Company A wants to use a RADIUS server to service all user and device authentication attempts with a more secure and granular authentication approach. Not all client devices support dot1x authentication. Which two configuration changes must be made to accomplish the task? (Choose two.)
Which cable type must be used to interconnect one switch using 1000 BASE-SX GBiC modules and another switch using 1000 BASE-SX SFP modules?

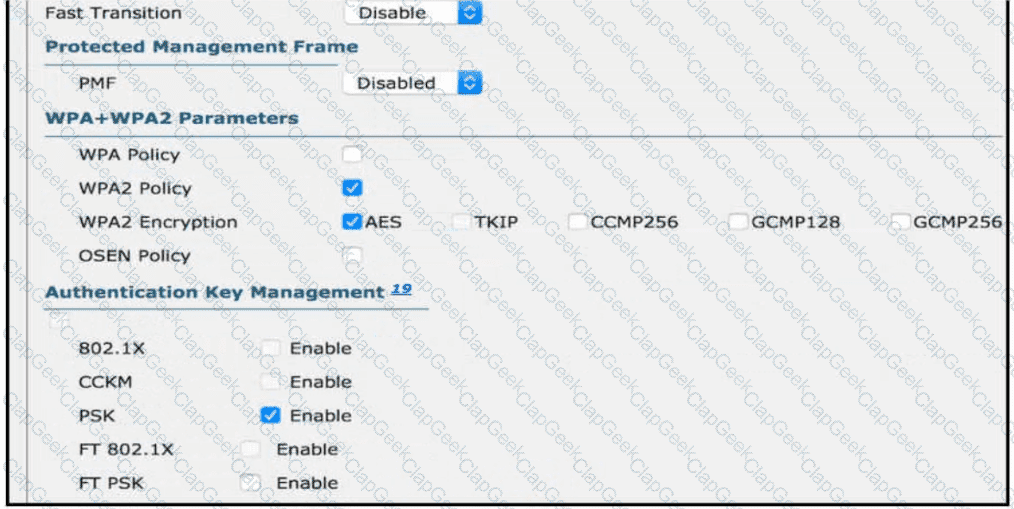

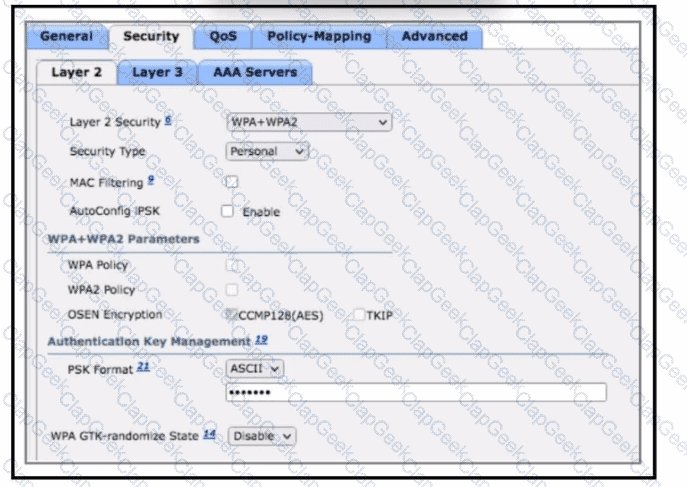

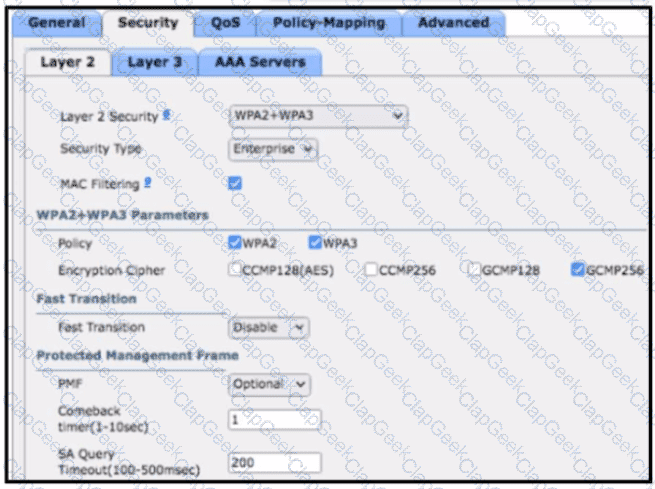

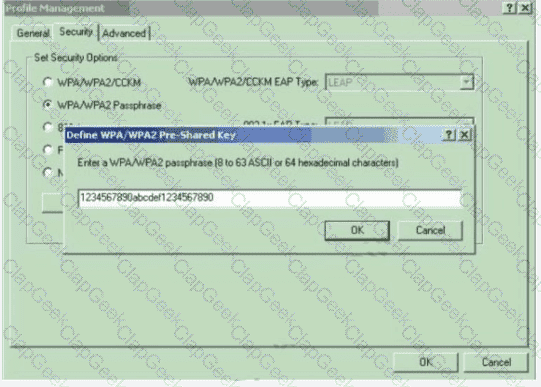

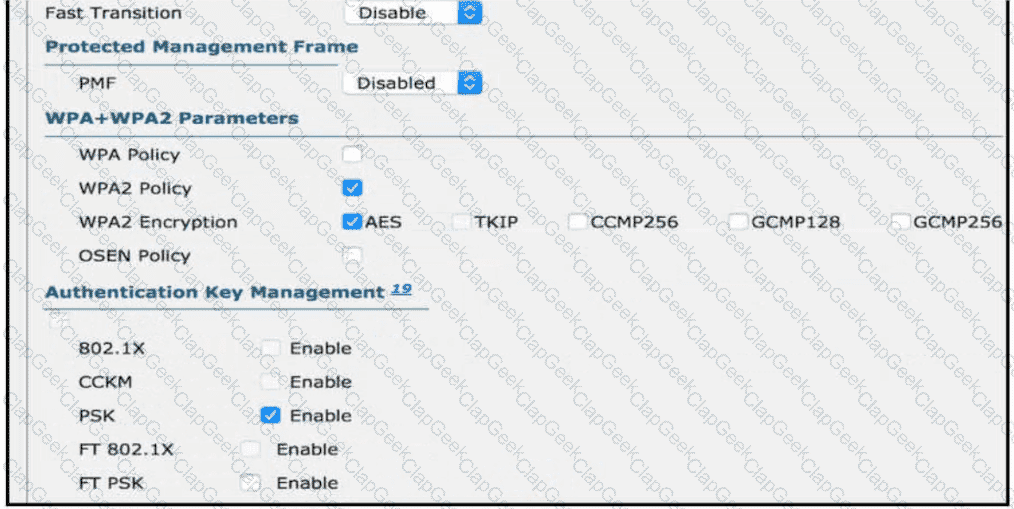

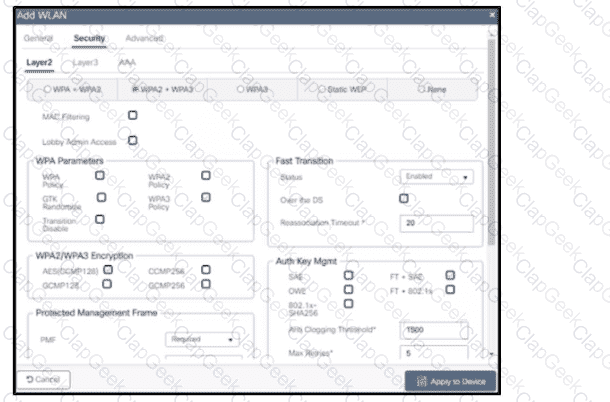

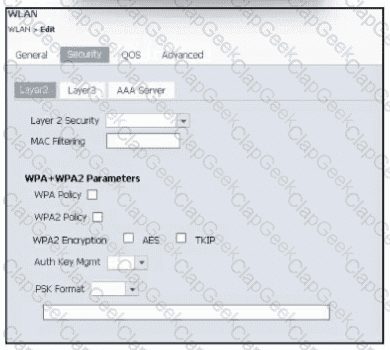

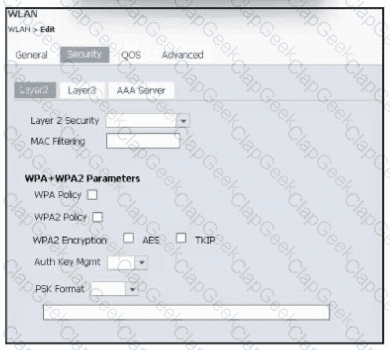

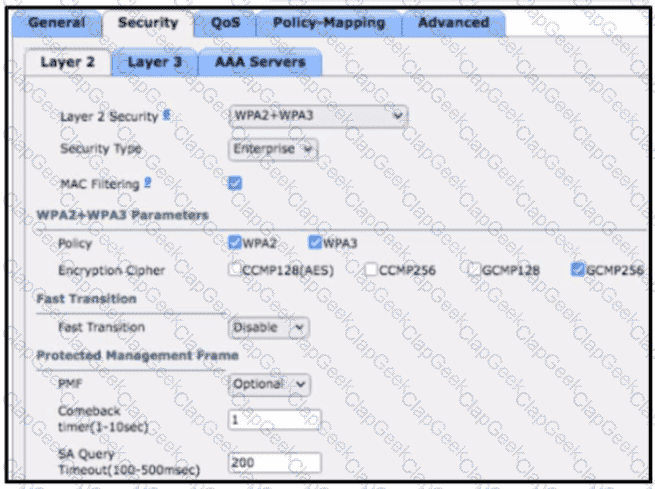

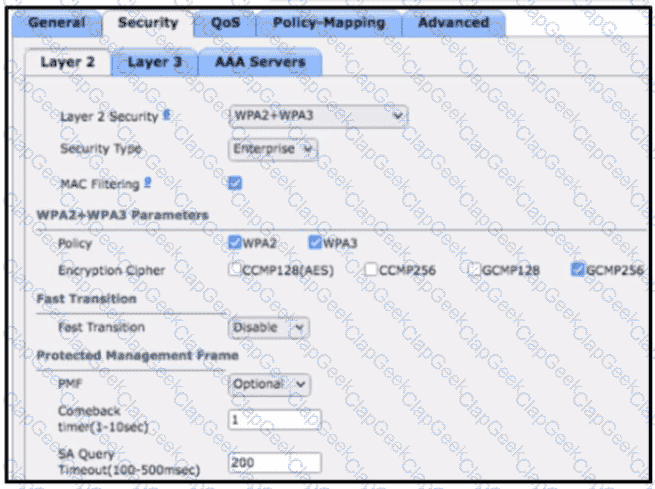

An engineer must configure a WLAN using the strongest encryption type for WPA2- PSK. Which cipher fulfills the configuration requirement?
Which mode must be set for APs to communicate to a Wireless LAN Controller using the Control and Provisioning of Wireless Access Points (CAPWAP) protocol?

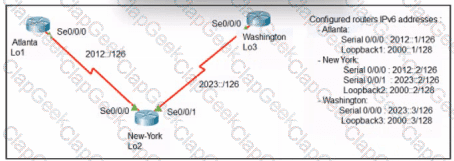

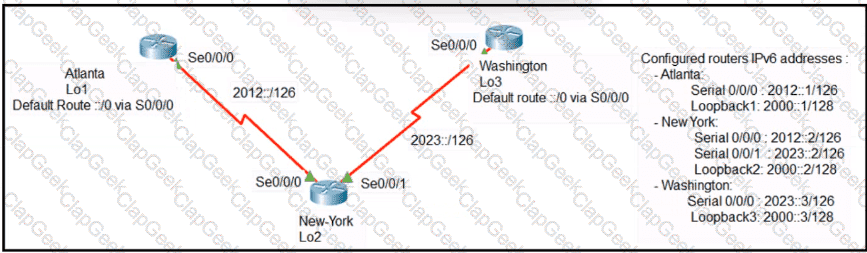

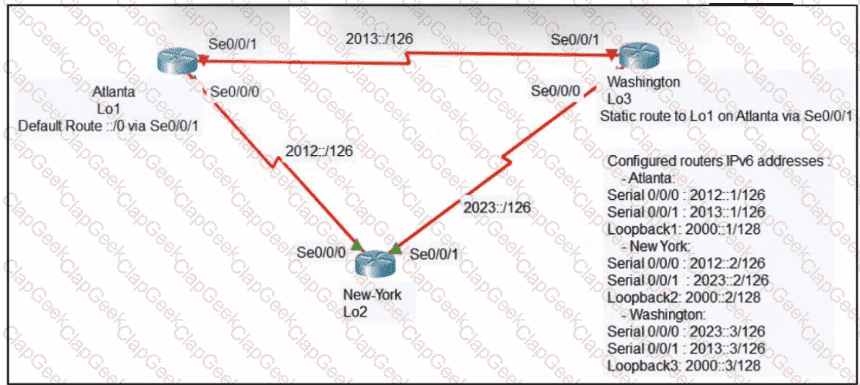

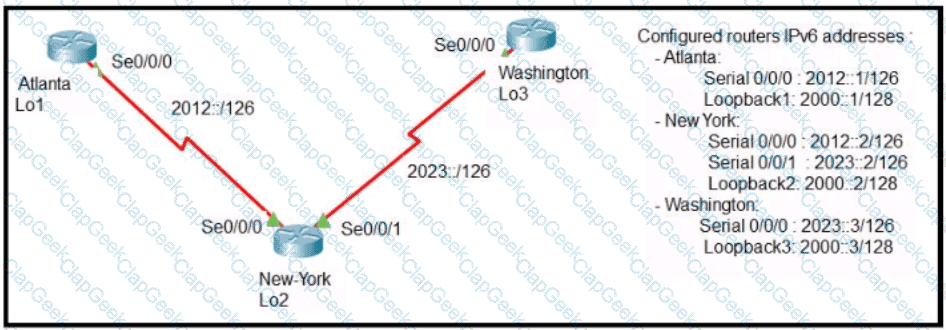

Refer to Exhibit.

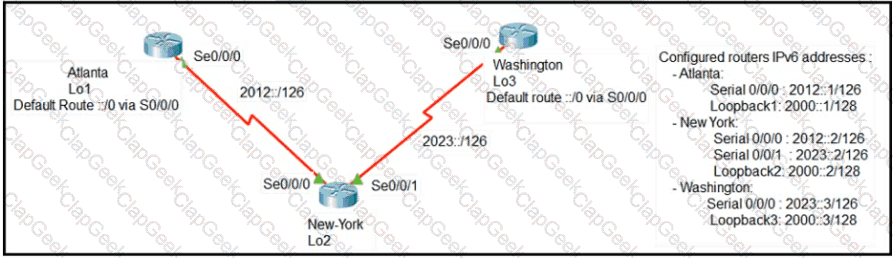

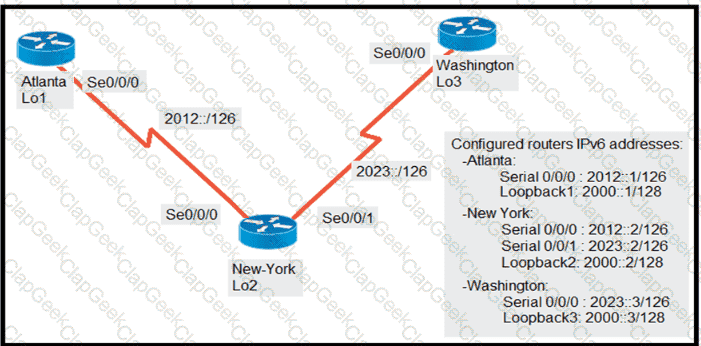

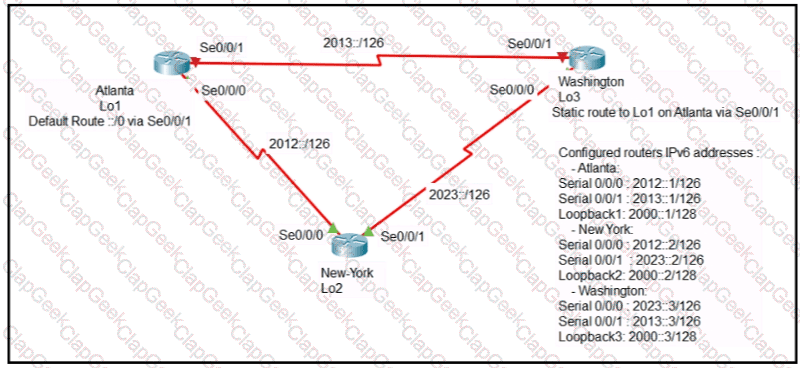

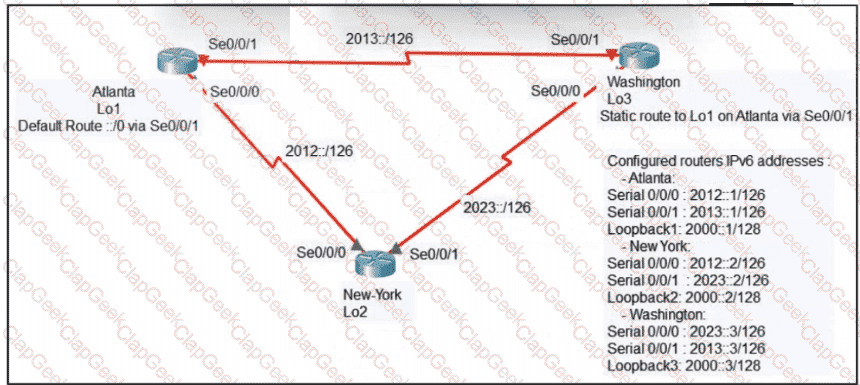

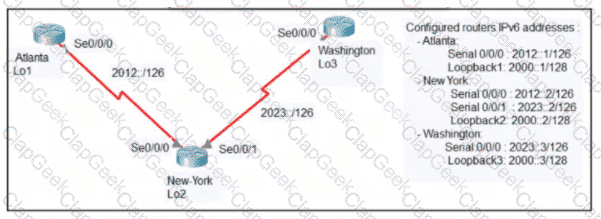

An engineer is configuring the NEW York router to reach the Lo1 interface of the Atlanta router using interface Se0/0/0 as the primary path. Which two commands must be configured on the New York router so that it can reach the Lo1 interface of the Atlanta router via Washington when the link between New York and Atlanta goes down? (Choose two)
Which protocol requires authentication to transfer a backup configuration file from a router to a remote server?

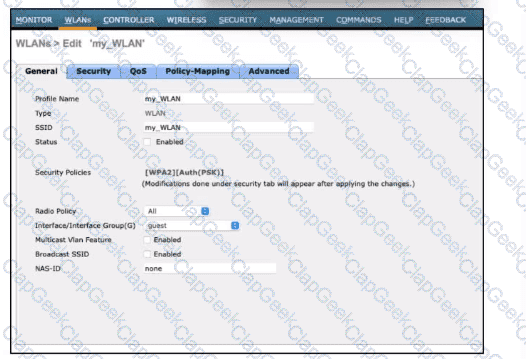

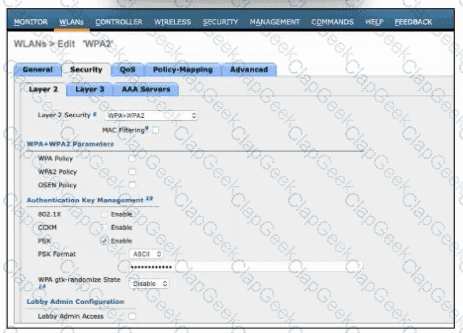

Which two values or settings must be entered when configuring a new WLAN in the Cisco Wireless LAN Controller GUI? (Choose two)

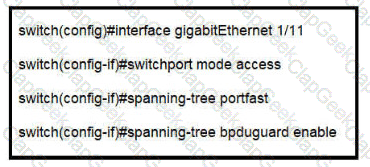

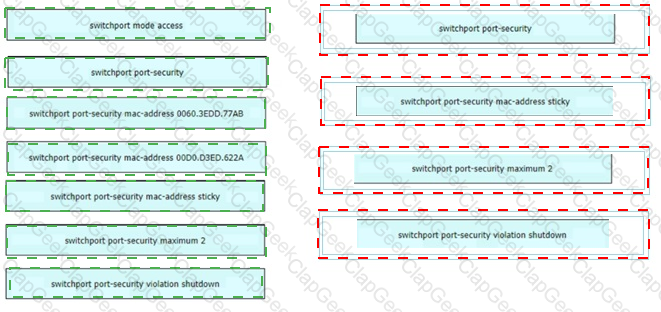

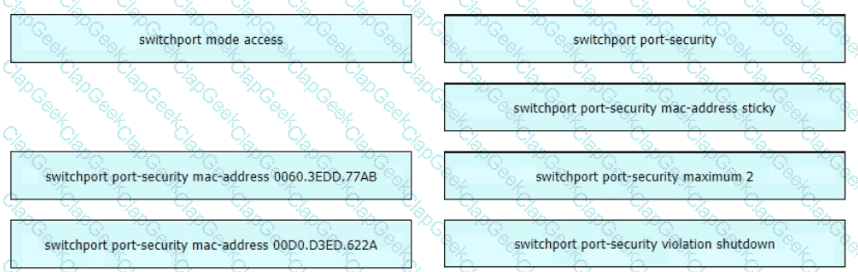

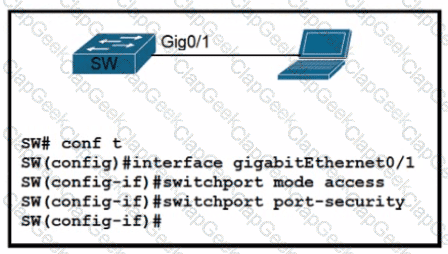

What are two recommendations for protecting network ports from being exploited when located in an office space outside of an IT closer? (Choose two.)
Refer to the exhibit.

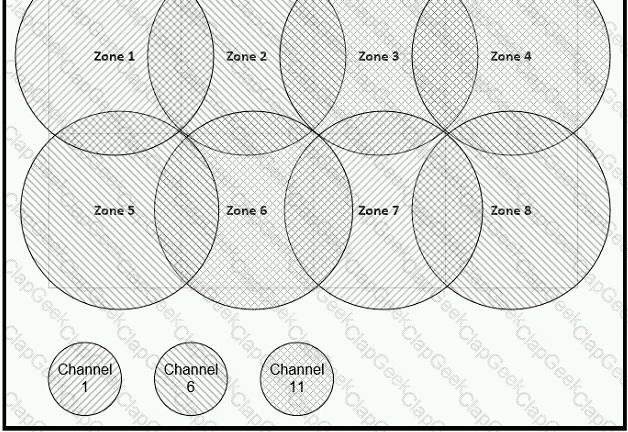

Between which zones do wireless users expect to experience intermittent connectivity?

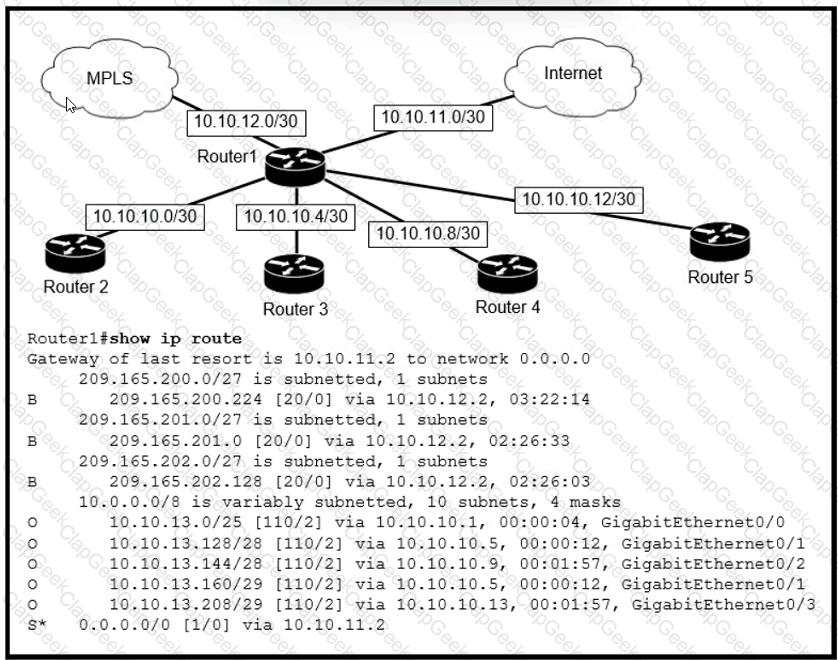

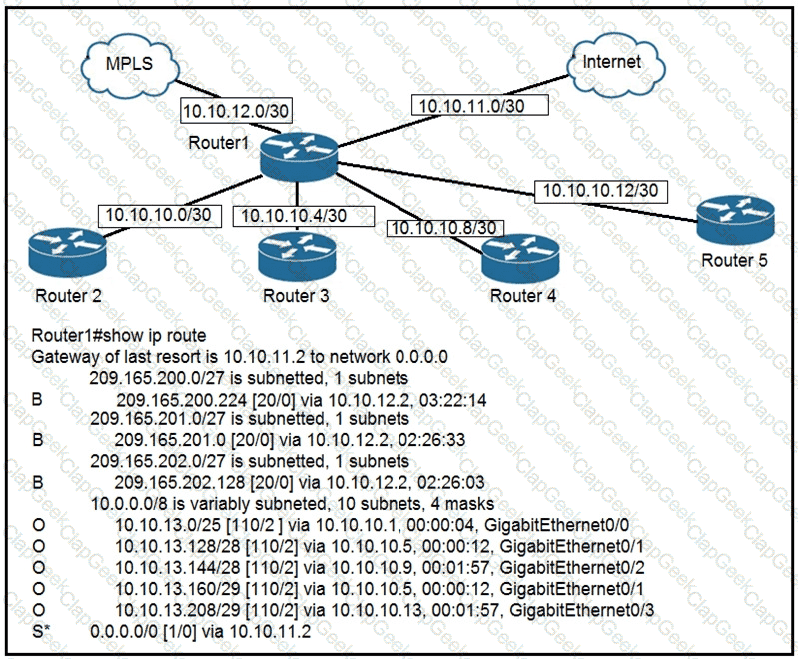

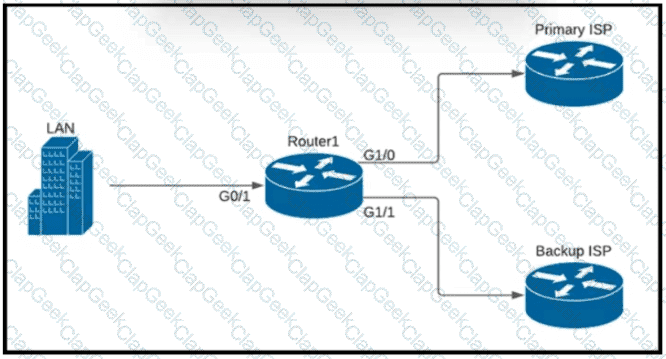

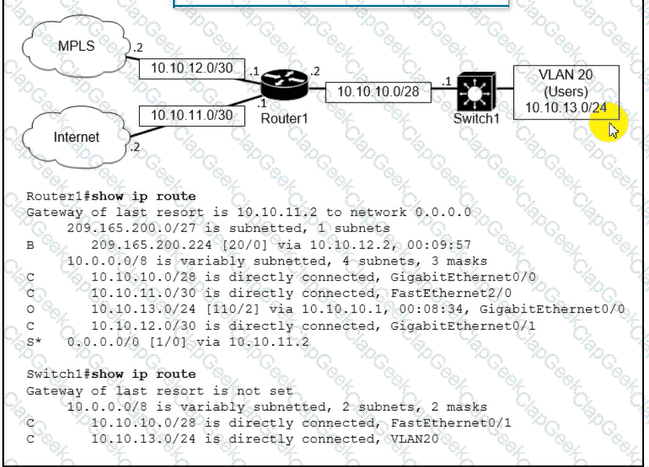

Refer to the exhibit.
An engineer is bringing up a new circuit to the MPLS provider on the Gi0/1 interface of Router1 The new circuit uses eBGP and teams the route to VLAN25 from the BGP path What s the expected behavior for the traffic flow for route 10.10.13.0/25?

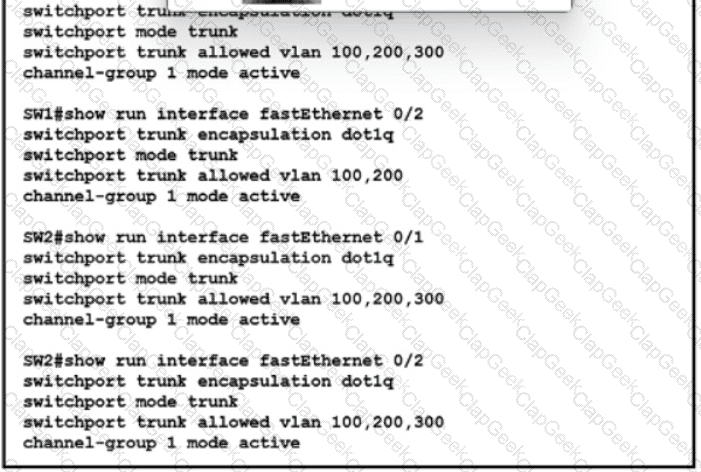

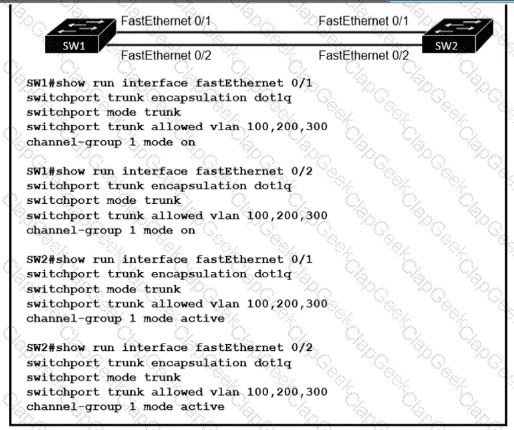

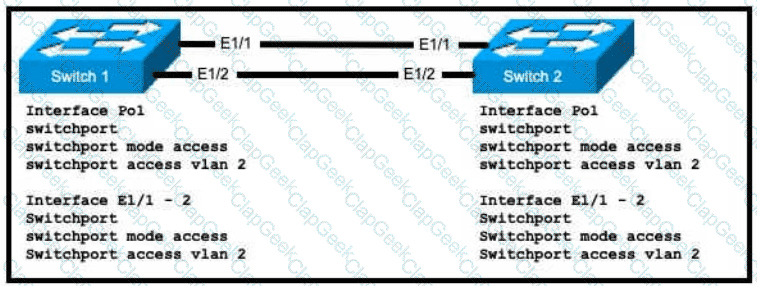

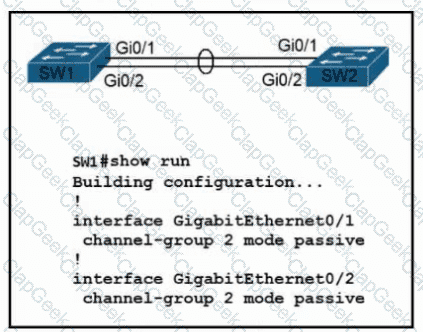

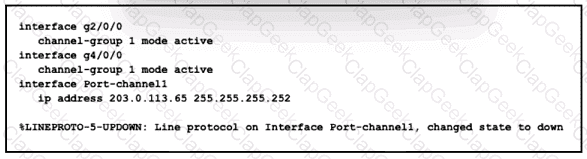

Refer to the exhibit.
Which change to the configuration on Switch?
allows the two switches to establish an GtherChannel?
The service password-encryption command is entered on a router. What is the effect of this configuration?
Which goal is achieved by the implementation of private IPv4 addressing on a network?

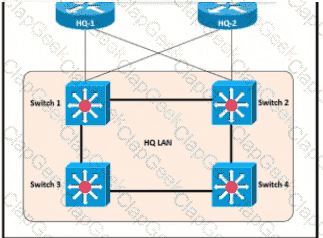

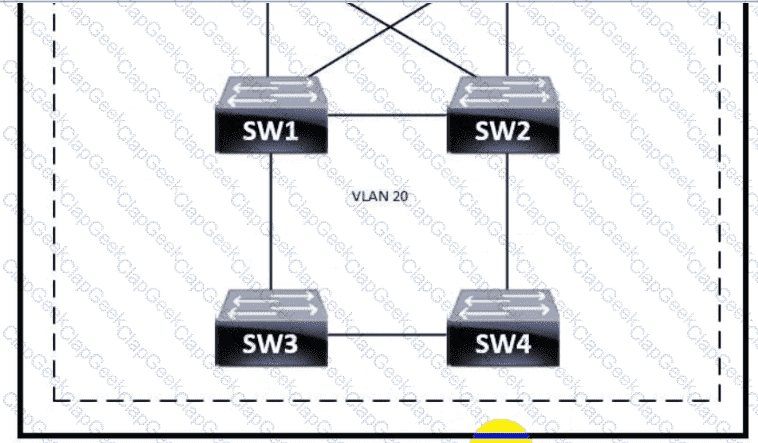

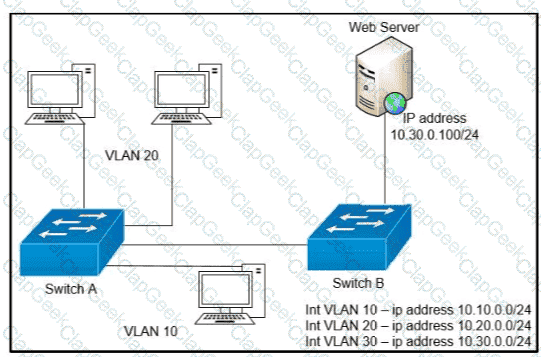

What Is the path for traffic sent from one user workstation to another workstation on a separate switch In a Ihree-lter architecture model?

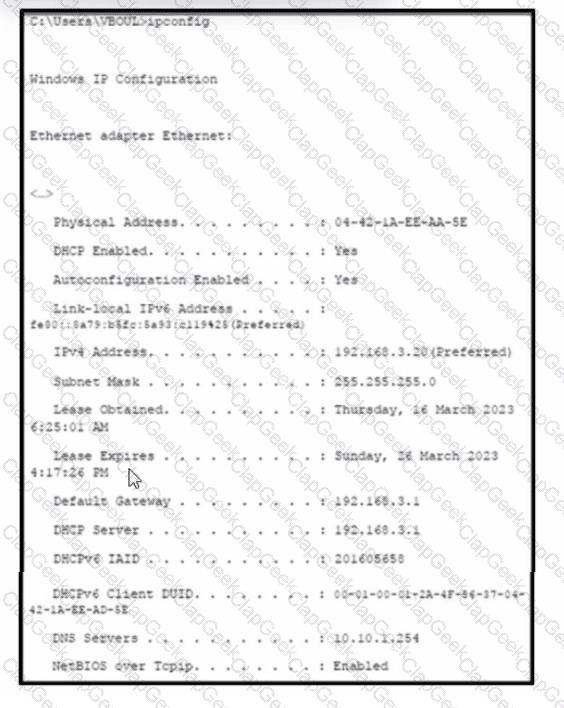

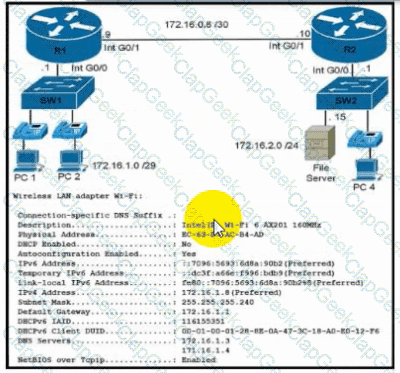

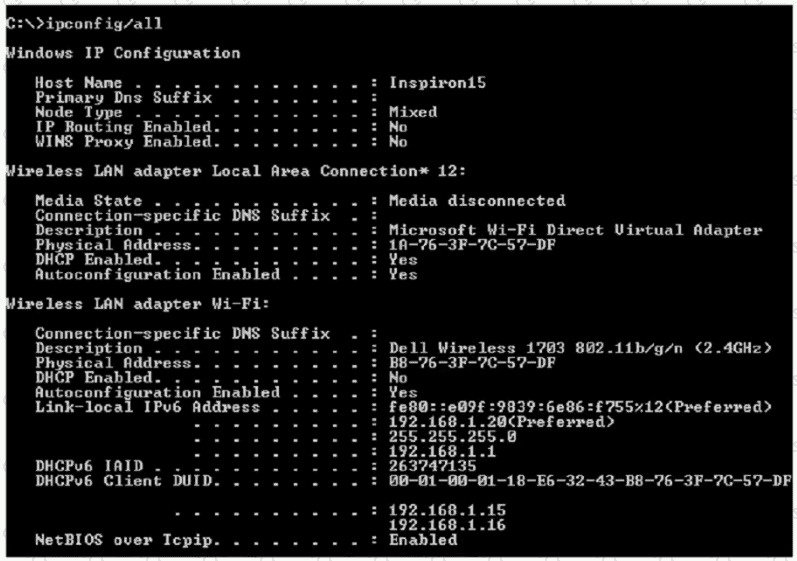

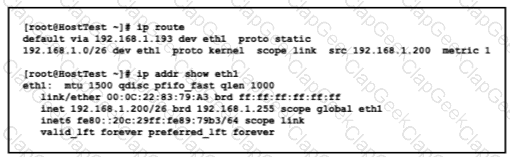

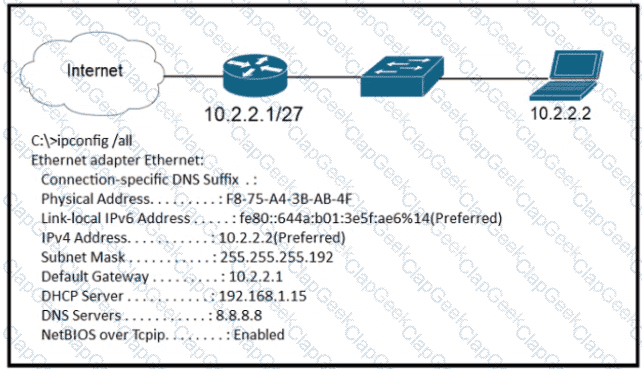

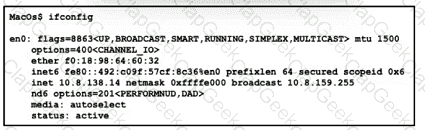

Refer to the exhibit.

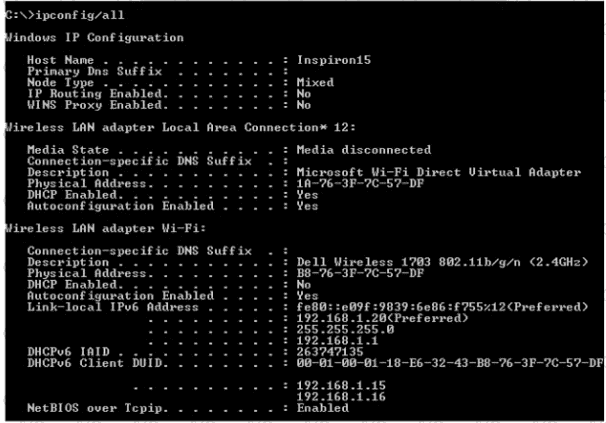

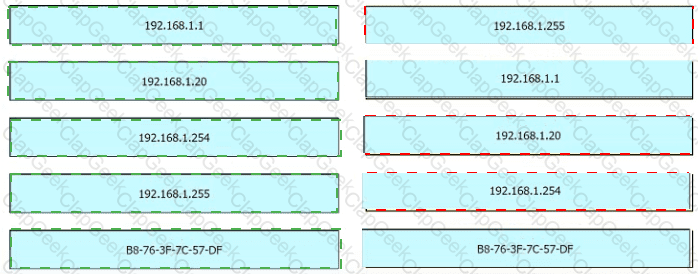

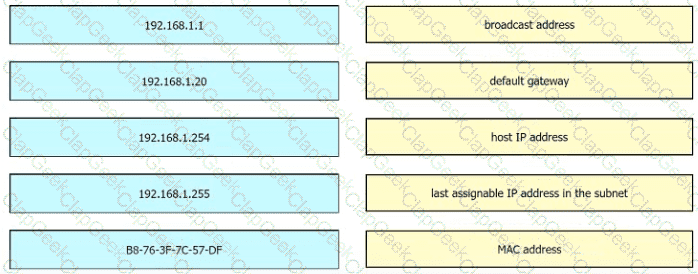

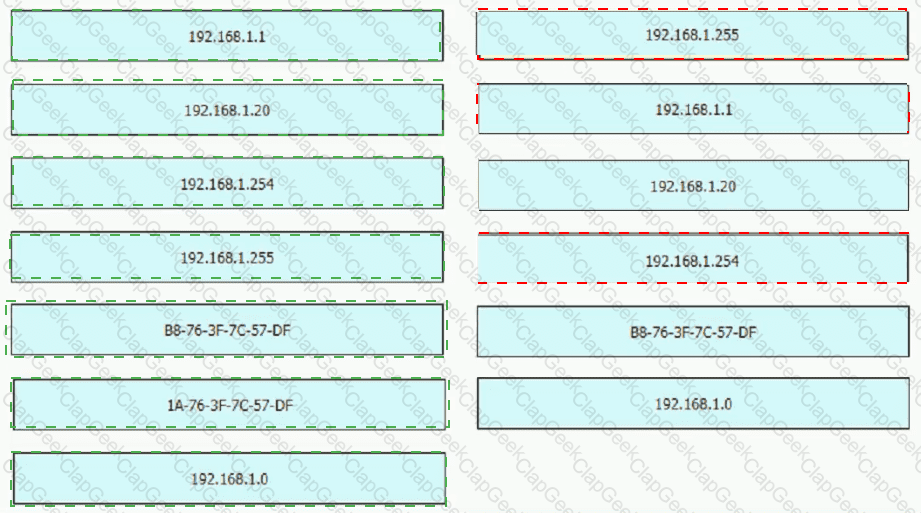

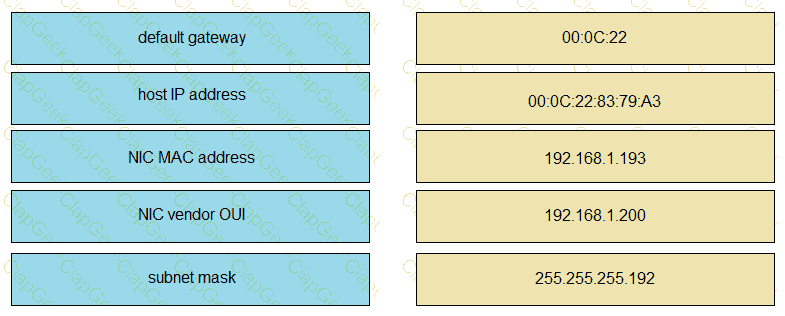

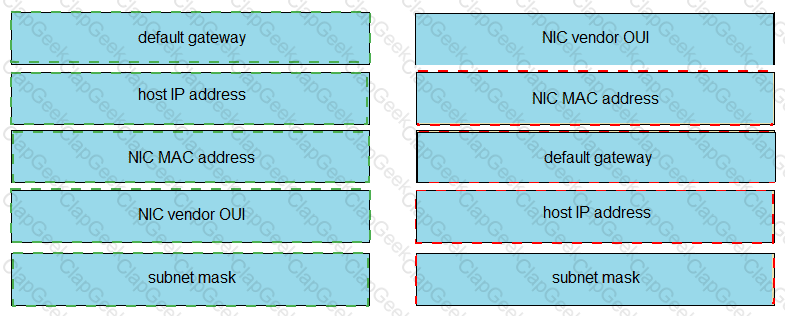

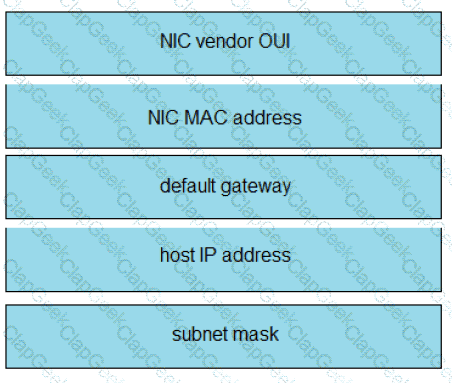

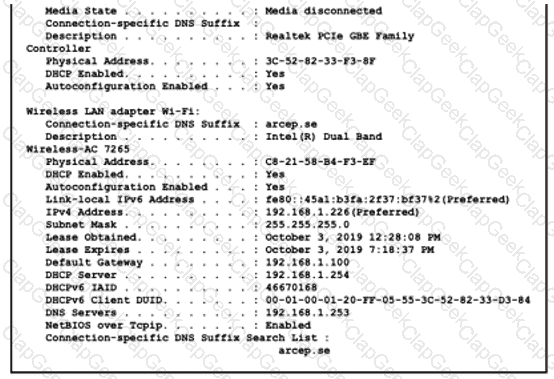

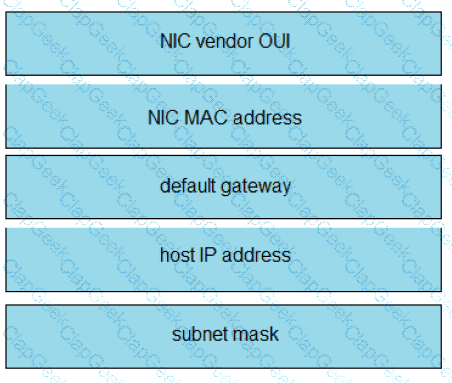

An engineer is tasked with verifying network configuration parameters on a client workstation to report back to the team lead. Drag and drop the node identifiers from the left onto the network parameters on the right.
which IPv6 address block forwards packets to a multicast address rather than a unicast address?

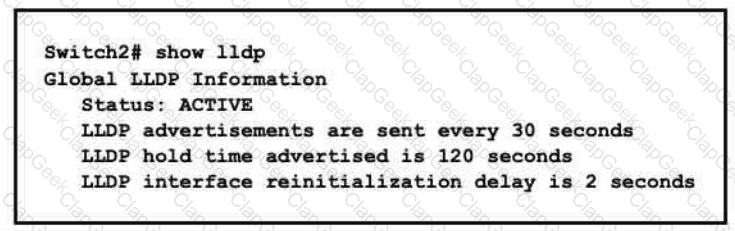

An engineer needs to configure LLDP to send the port description time length value (TLV). What command sequence must be implemented?

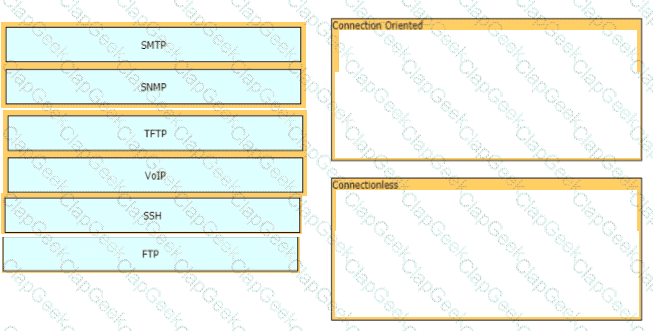

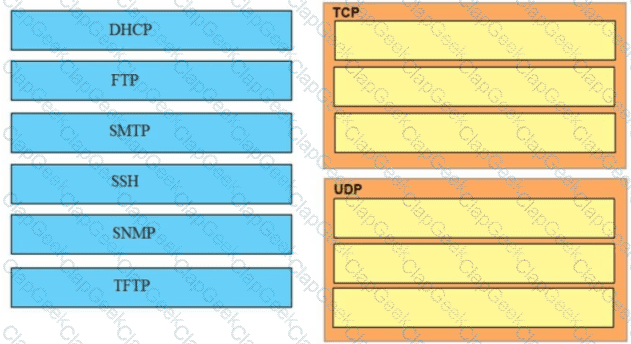

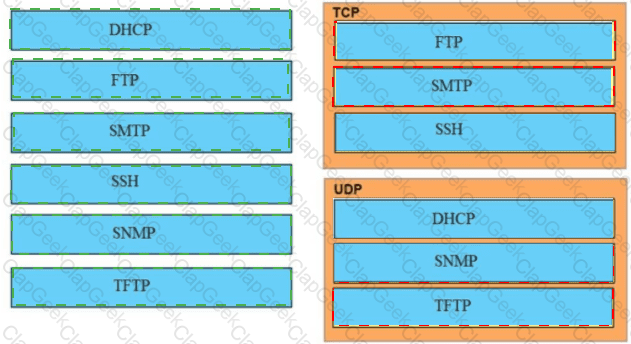

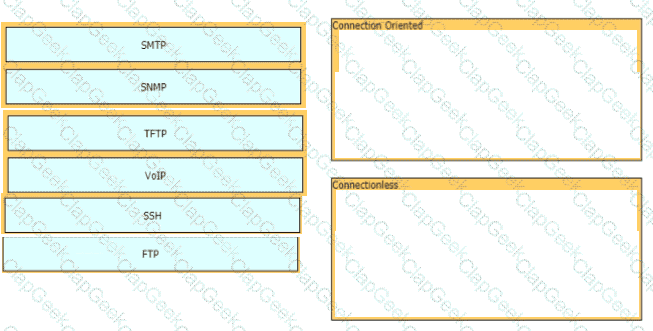

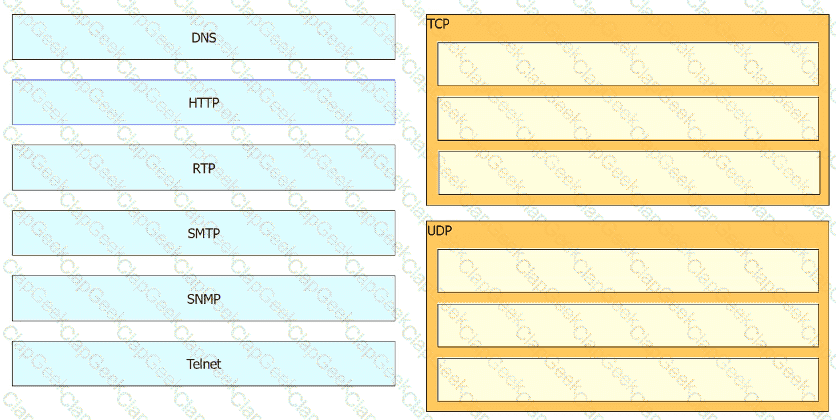

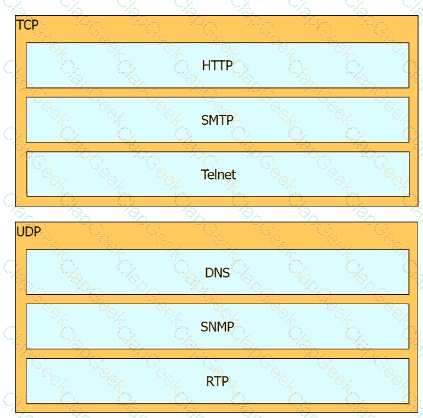

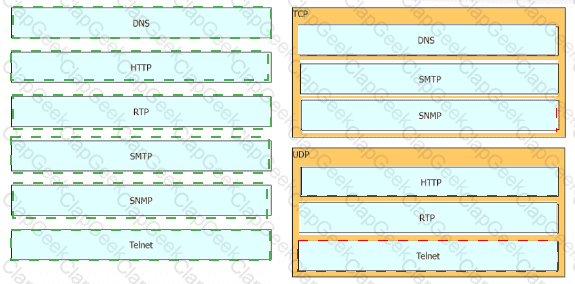

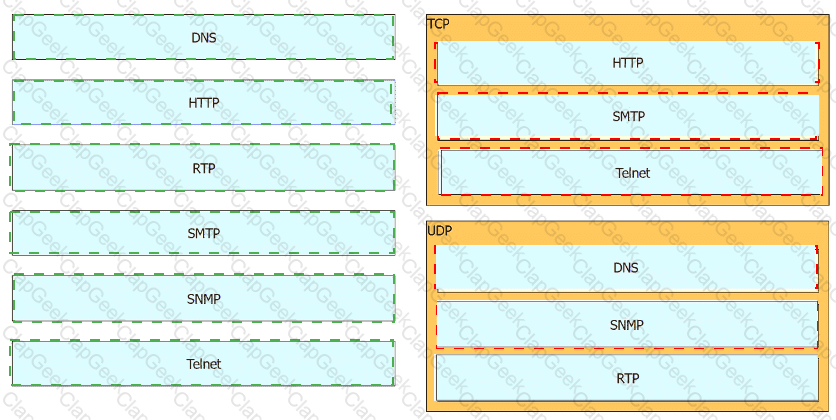

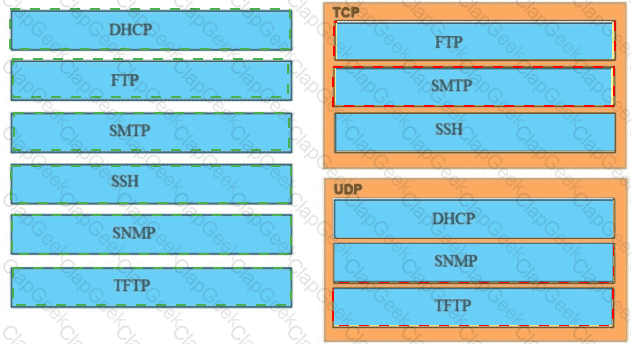

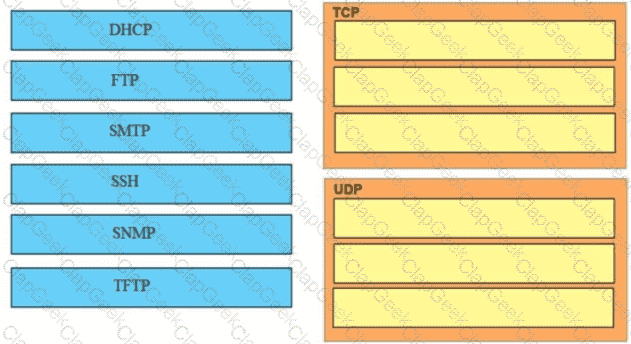

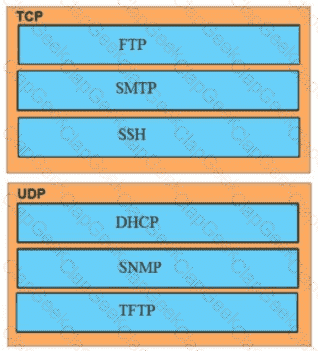

Drag and drop the application protocols from the left onto the transport protocols that it uses on the right

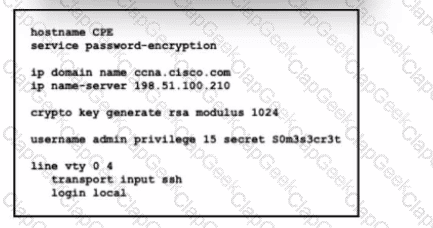

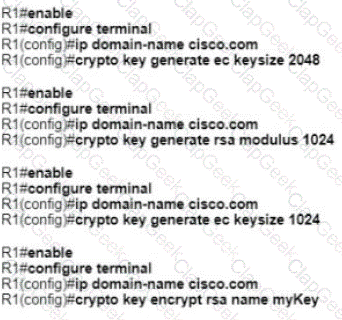

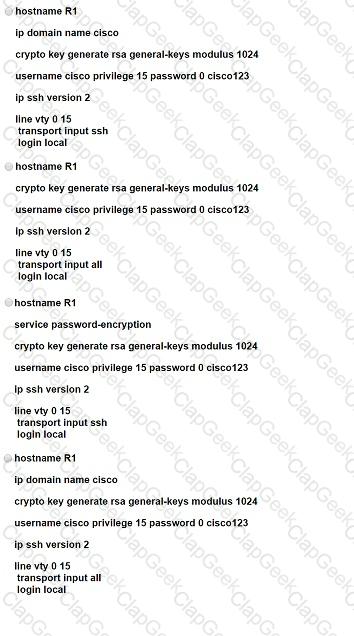

A network administrator must to configure SSH for remote access to router R1 The requirement is to use a public and private key pair to encrypt management traffic to and from the connecting client.

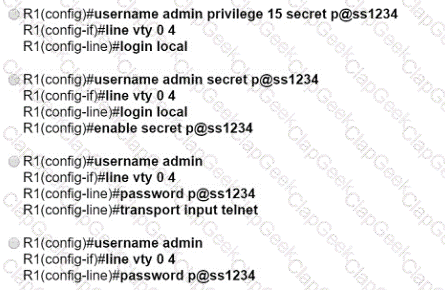

Which configuration, when applied, meets the requirements?

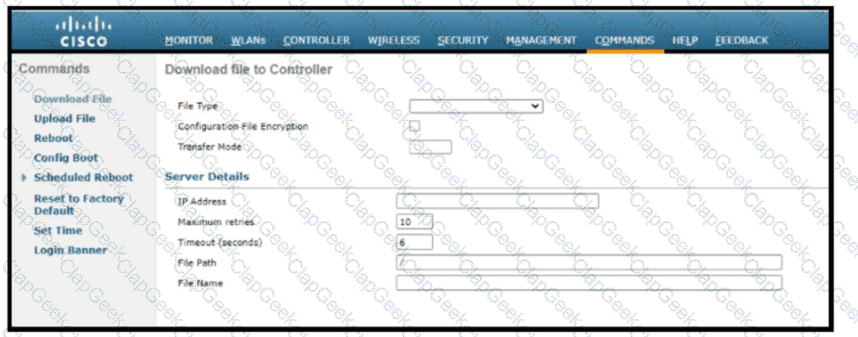

Which protocol prompts the Wireless LAN Controller to generate its own local web administration SSL certificate for GUI access?
An engineering team asks an implementer to configure syslog for warning conditions and error conditions. Which command does the implementer configure to achieve the desired result?
Which WAN topology provides a combination of simplicity quality, and availability?

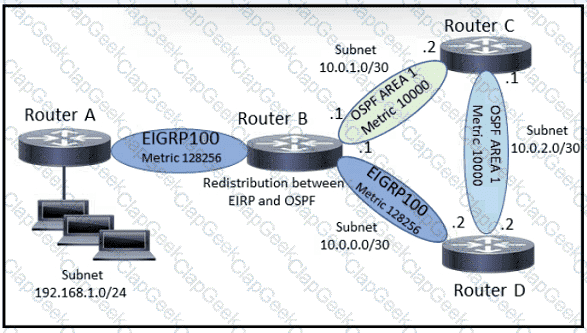

Which attribute does a router use to select the best path when two or more different routes to the same destination exist from two different routing protocols.
When implementing a router as a DHCP server, which two features must be configured'? (Choose two)

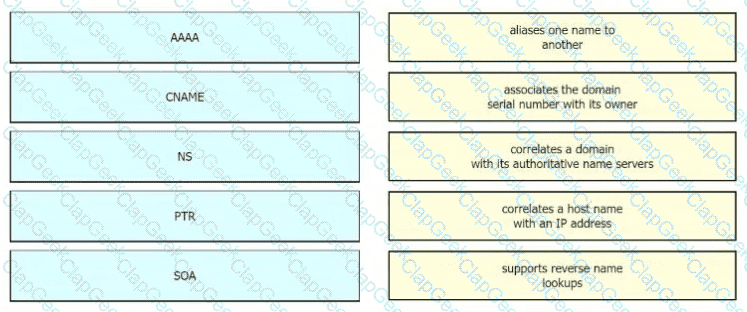

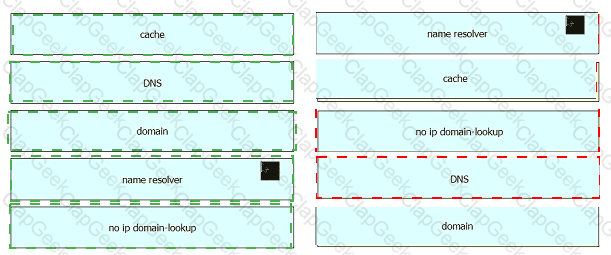

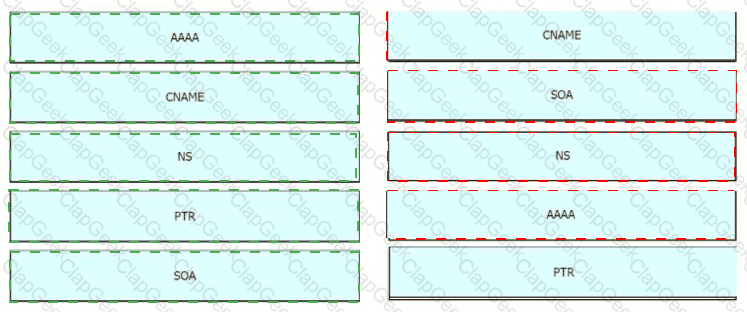

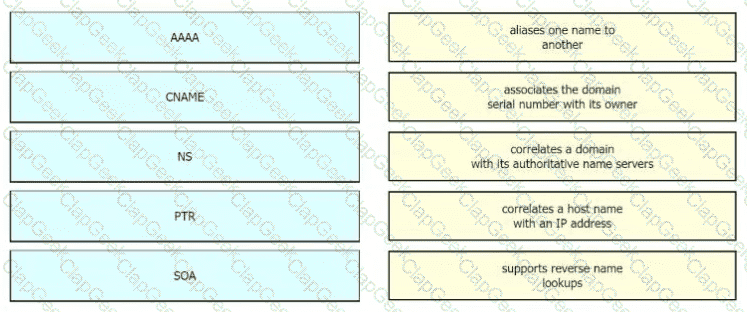

Drag the IPv6 DNS record types from the left onto the description on the right.
After installing a new Cisco ISE server, which task must the engineer perform on the Cisco WLC to connect wireless clients on a specific VLAN based on their credentials?

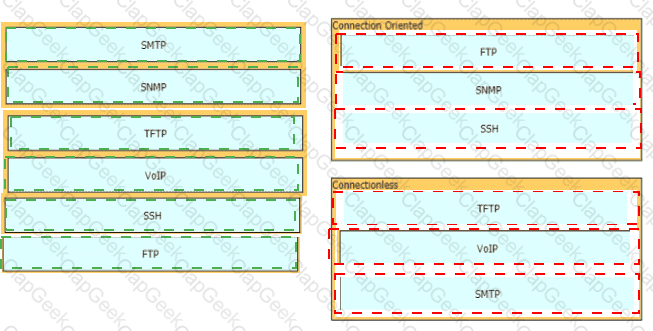

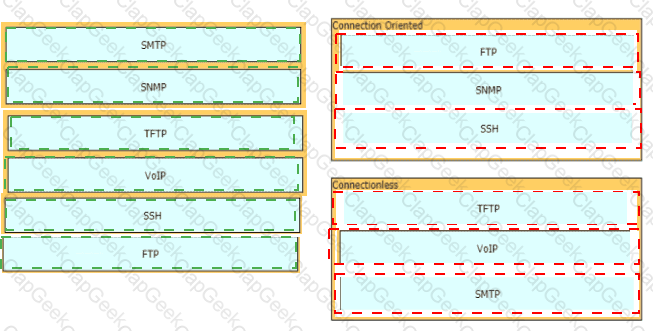

Drag and drop the network protocols from the left onto the correct transport services on the right.
A network analyst is tasked with configured the date and time on a router using EXEC mode. The date must be set to 12:00am. Which command should be used?
An engineer must configure Interswitch VLAN communication between a Cisco switch and a third-party switch. Which action should be taken?
Refer to the exhibit.

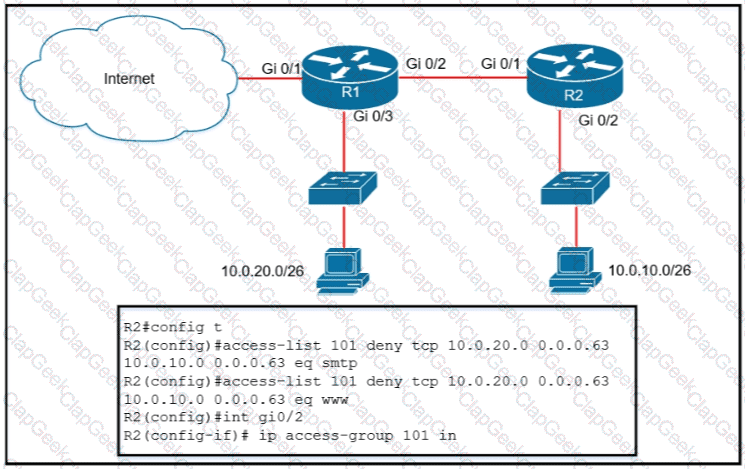

An extended ACL has been configured and applied to router R2 The configuration failed to work as intended Which two
changes stop outbound traffic on TCP ports 25 and 80 to 10.0.20 0 26 from the 10.0.10 0/26 subnet while still allowing all other traffic? (Choose
two )

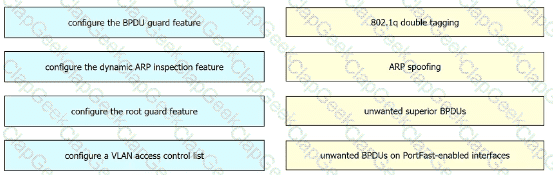

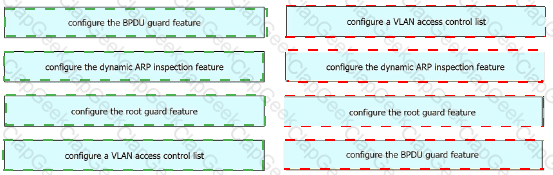

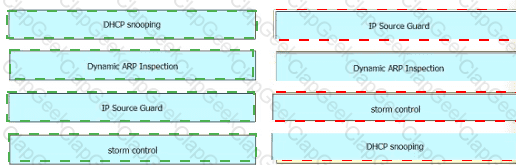

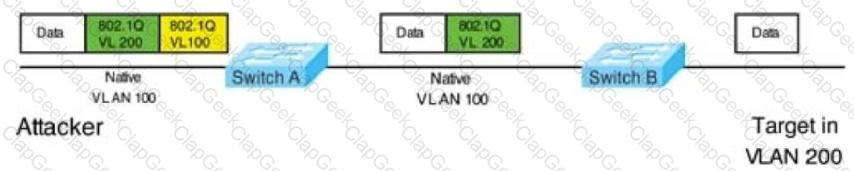

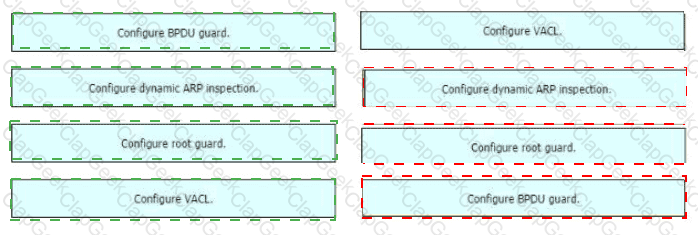

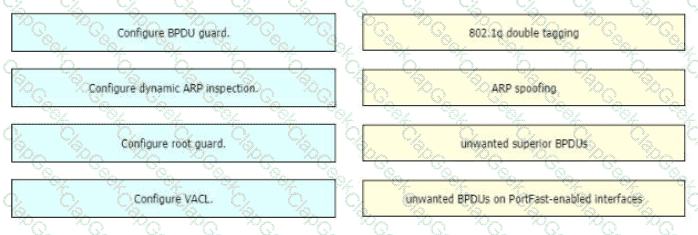

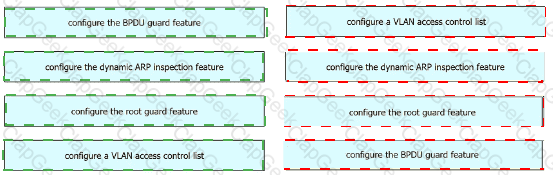

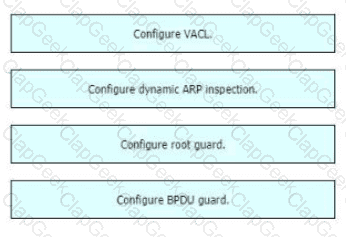

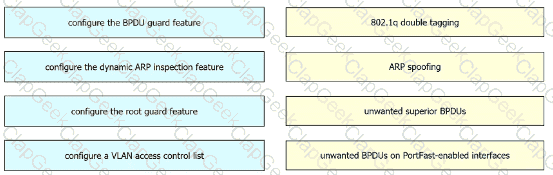

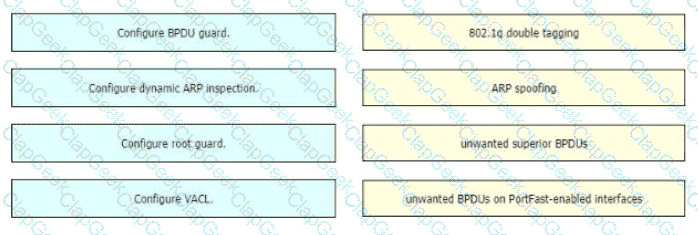

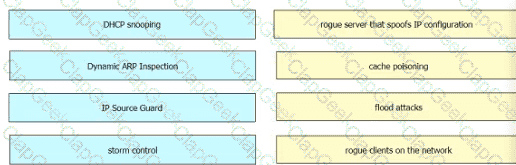

Drag and drop the attack-mitigation techniques from the left onto the Types of attack that they mitigate on the right.
An organization has decided to start using cloud-provided services. Which cloud service allows the organization to install its own operating system on a virtual machine?

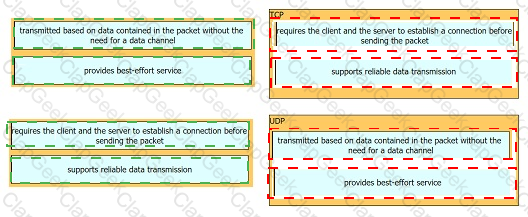

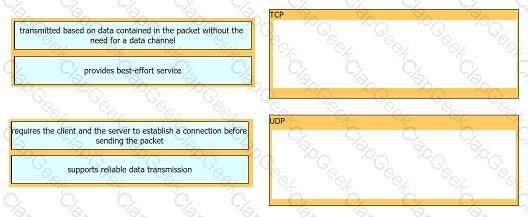

How do TCP and UDP differ in the way they provide reliability for delivery of packets?

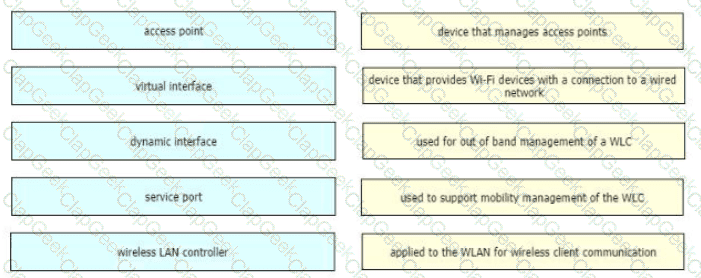

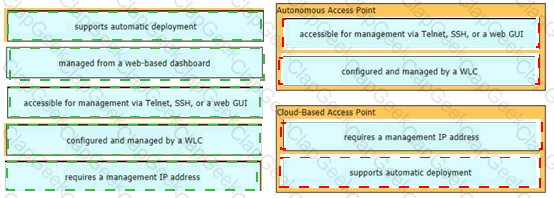

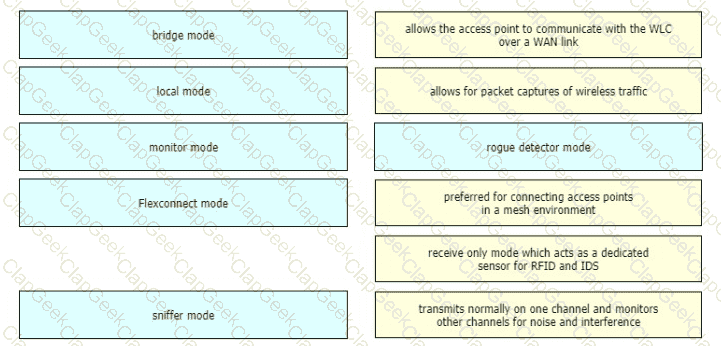

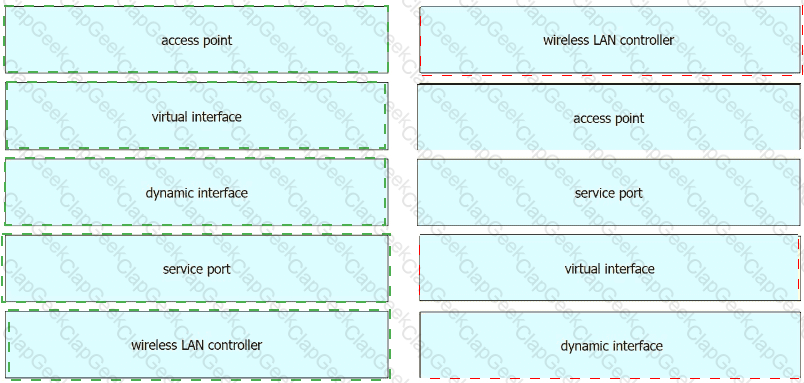

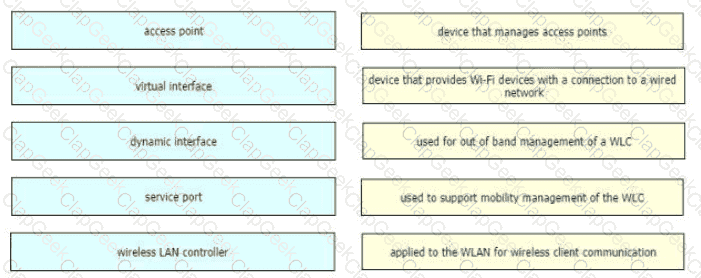

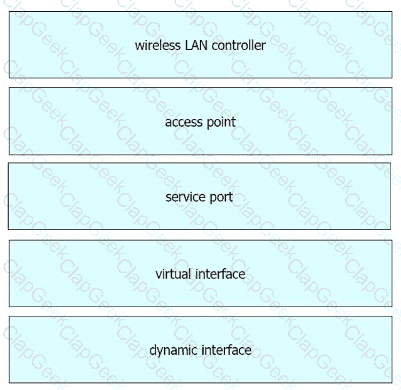

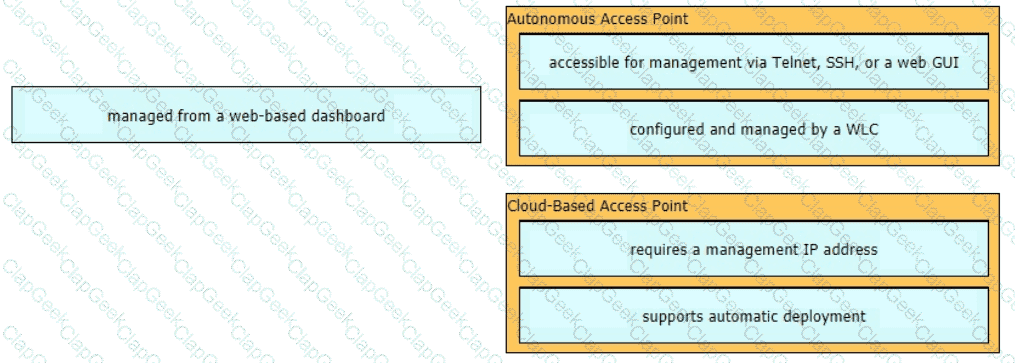

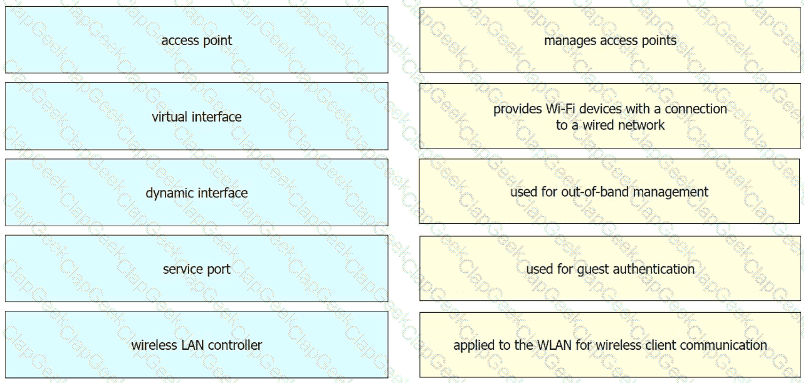

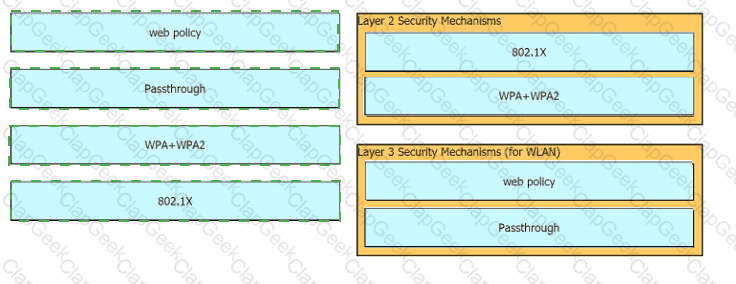

Drag and drop the WLAN components from the left onto the correct descriptions on the right.

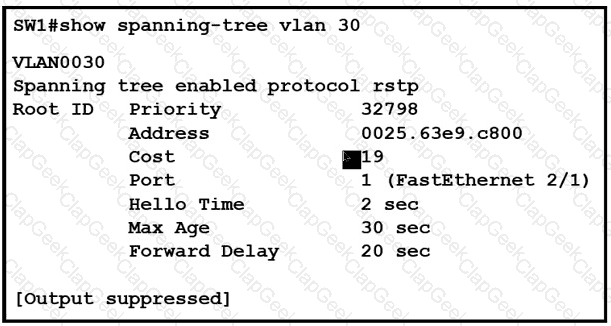

Aside from discarding, which two states does the switch port transition through while using RSTP (802.1w)? (Choose two)

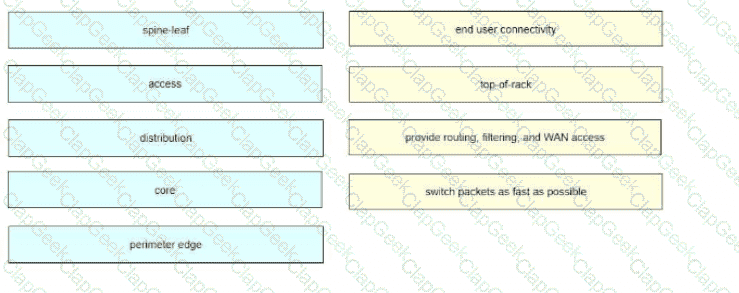

Which function is performed by the collapsed core layer in a two-tier architecture?

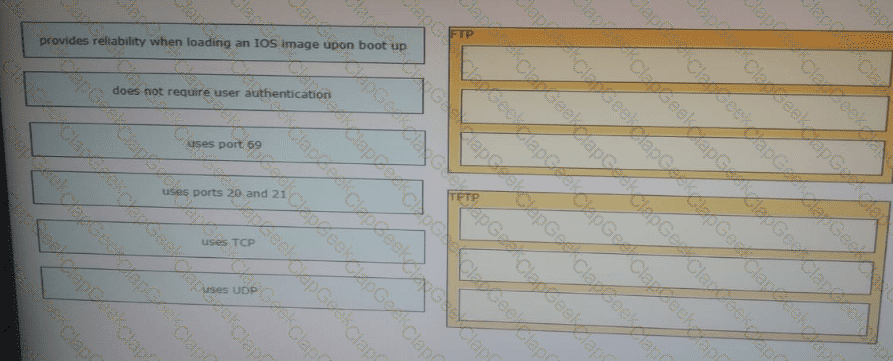

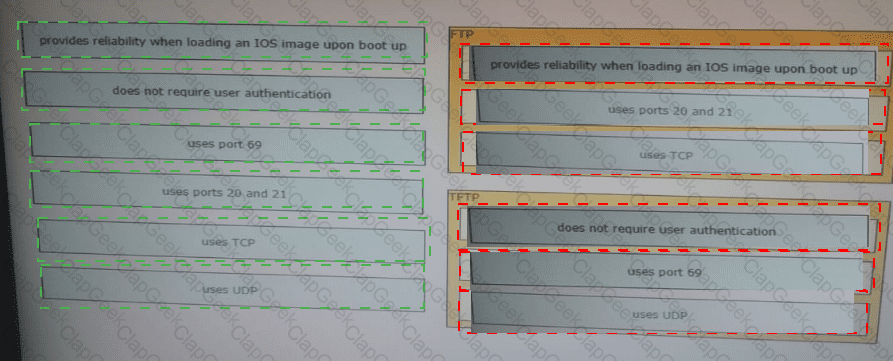

Drag and drop the descriptions of file-transfer protocols from the left onto the correct protocols on the right.
Which feature on the Cisco Wireless LAN Controller when enabled restricts management access from specific networks?

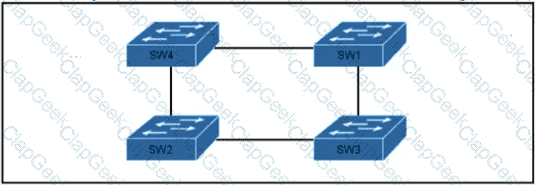

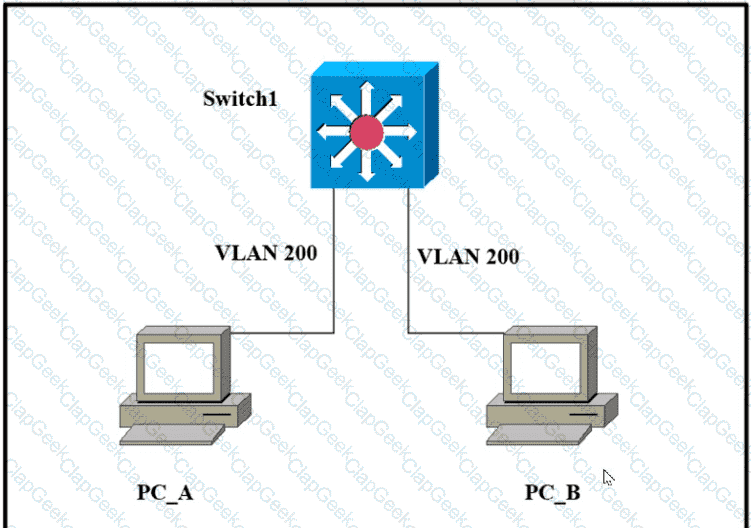

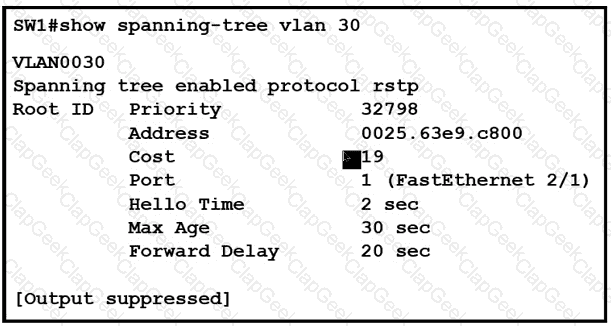

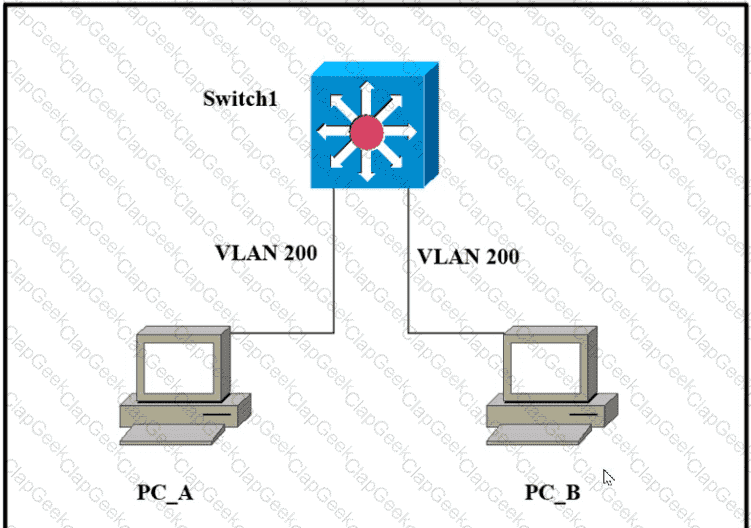

When using Rapid PVST+, which command guarantees the switch is always the root bridge for VLAN 200?

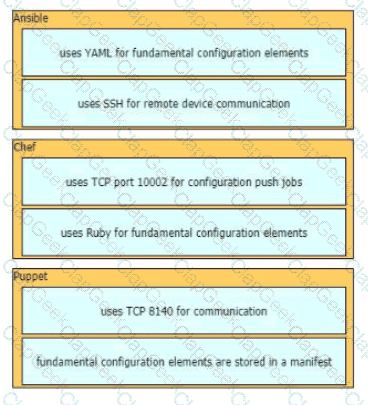

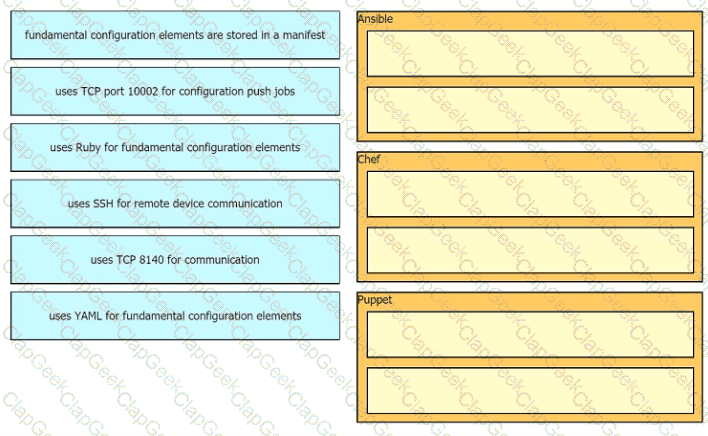

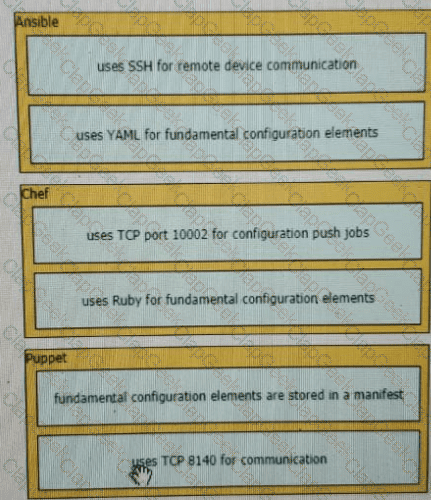

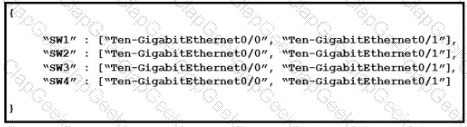

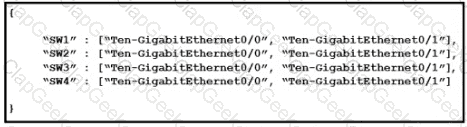

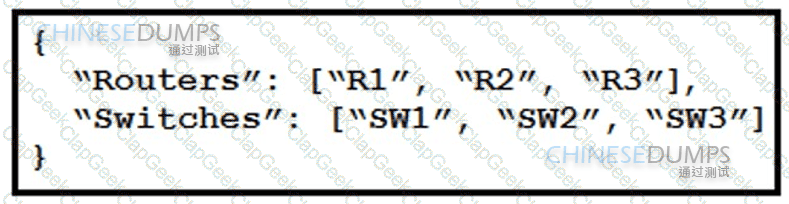

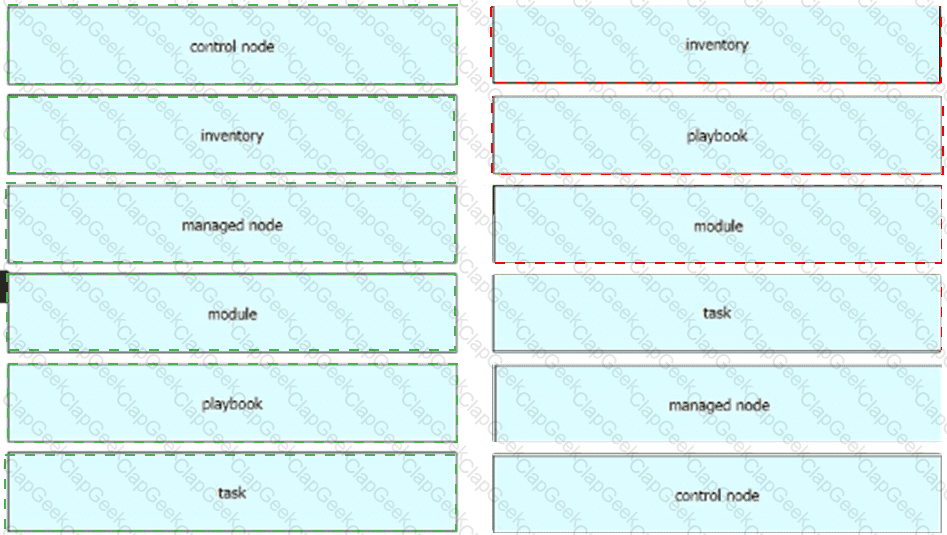

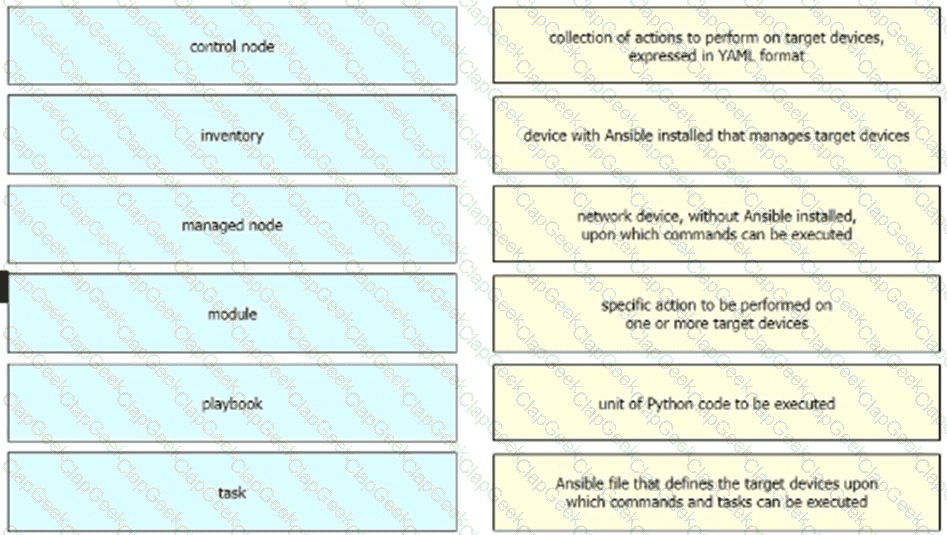

Which two components are needed to create an Ansible script that configures a VLAN on a switch? (Choose two.)
Which two functions are performed by the core layer in a three-tier architecture? (Choose two)
When configuring IPv6 on an interface, which two IPv6 multicast groups are joined? (Choose two)
Drag drop the descriptions from the left onto the correct configuration-management technologies on the right.
What is a recommended approach to avoid co-channel congestion while installing access points that use the 2.4 GHz frequency?
When a site-to-site VPN is configured, which IPsec mode provides encapsulation and encryption of the entire original P packet?
Which 802.11 management frame type is sent when a client roams between access points on the same SSID?
Several new coverage cells are required to improve the Wi-Fi network of an organization. Which two standard designs are recommended? (choose two.)

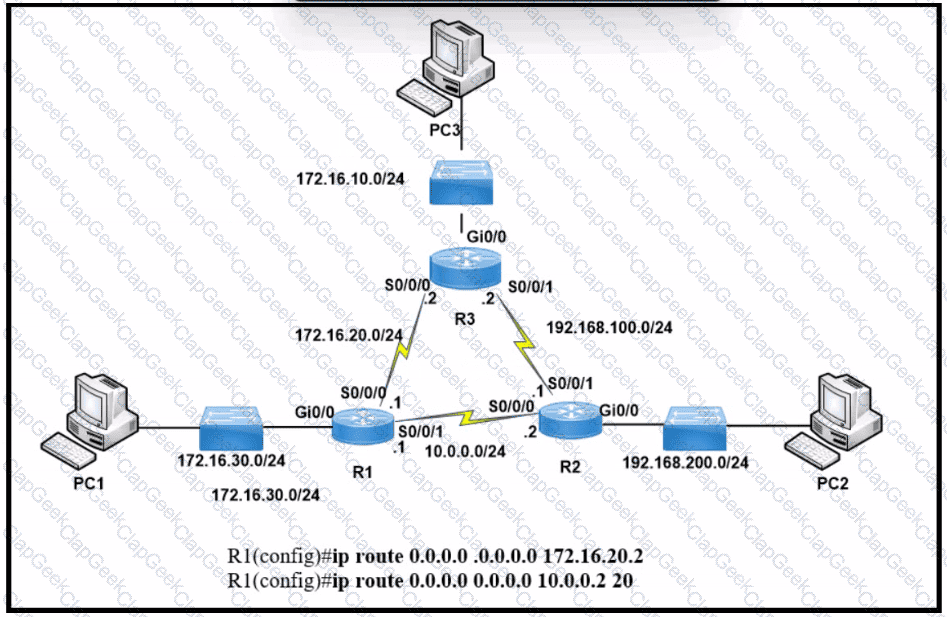

When a floating static route is configured, which action ensures that the backup route is used when the primary route fails?

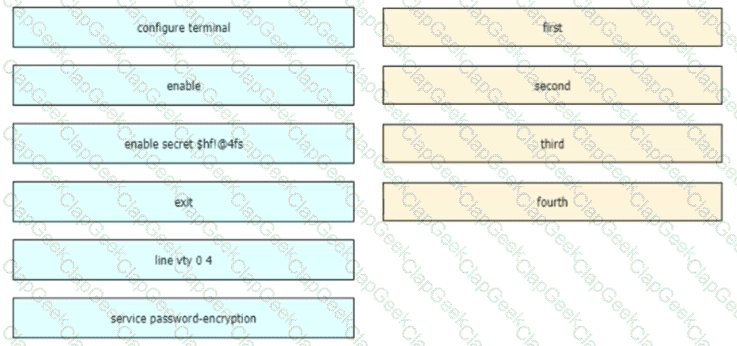

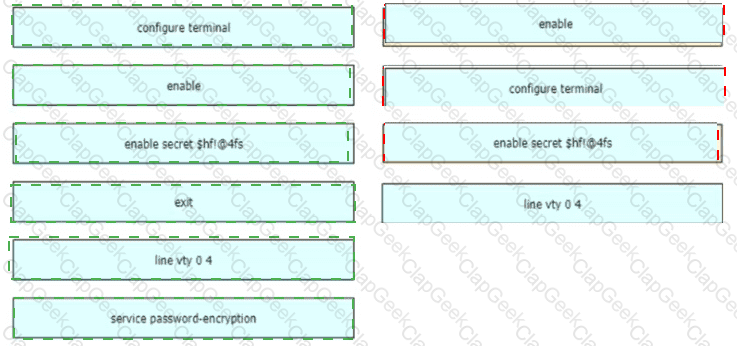

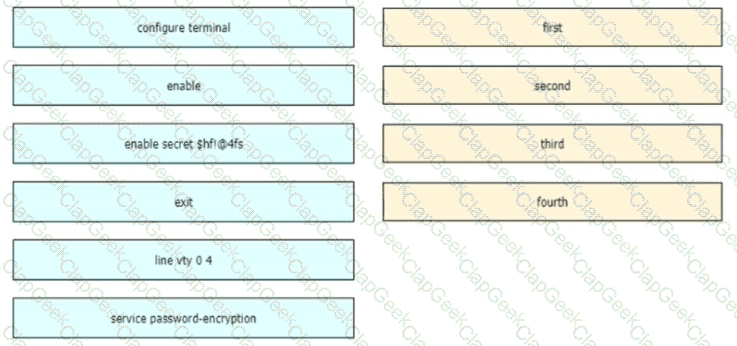

An engineer is configuring an encrypted password for the enable command on a router where the local user database has already been configured Drag and drop the configuration commands from the left into the correct sequence on the right Not all commands are used

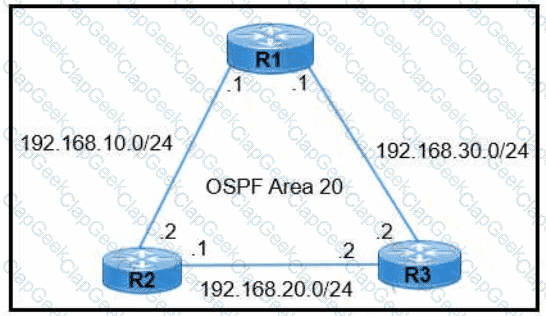

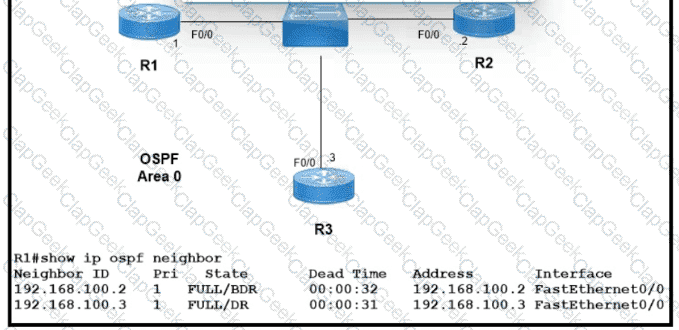

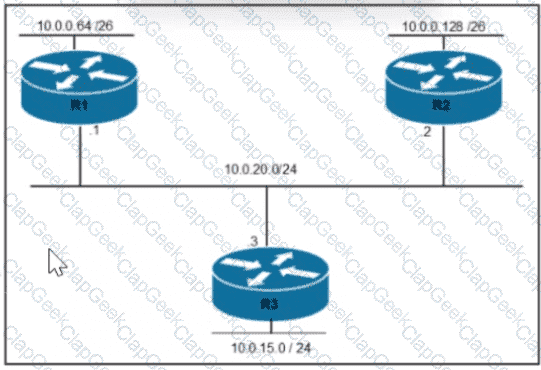

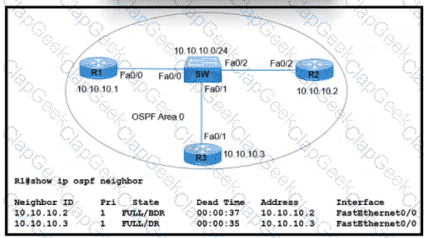

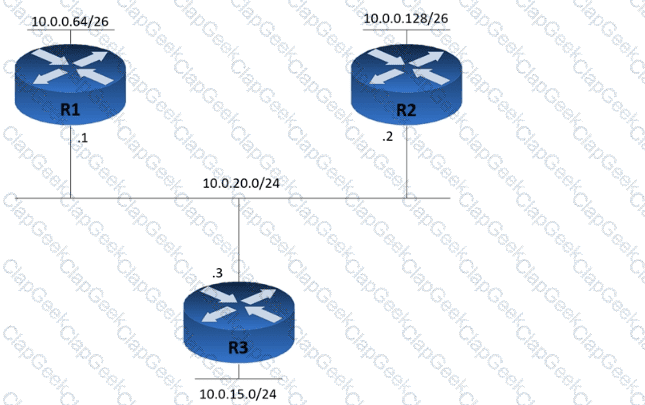

Refer to the exhibit. All routers in the network are configured R2 must be the DR. After the engineer connected the devices, R1 was elected as the DR. Which command sequence must be configure on R2 to Be elected as the DR in the network?

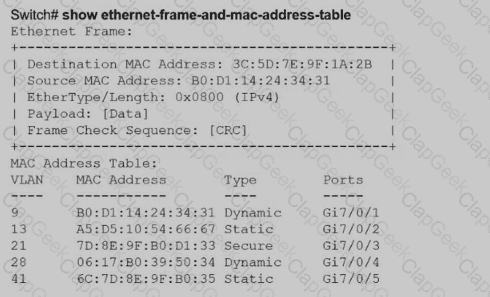

A frame that enters a switch fails the Frame Check Sequence. Which two interface counters are incremented? (Choose two)

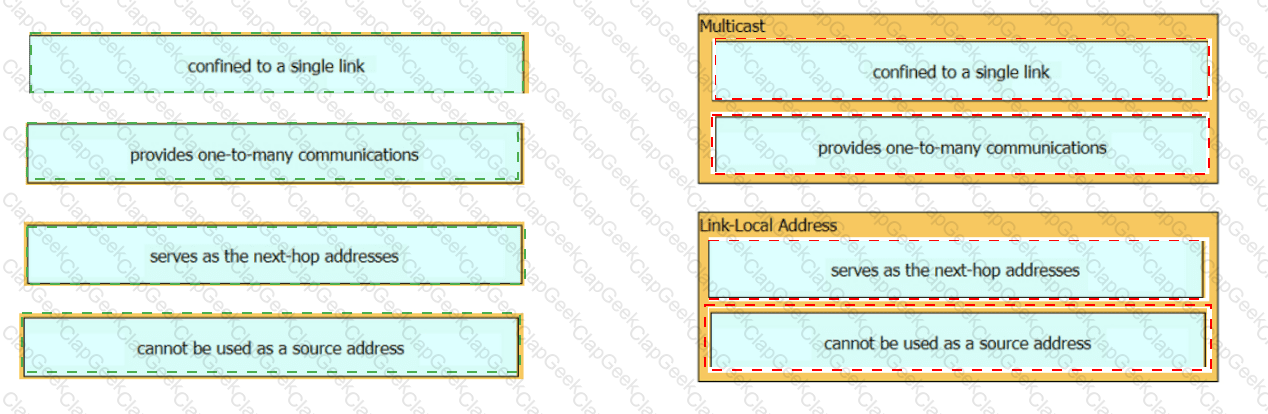

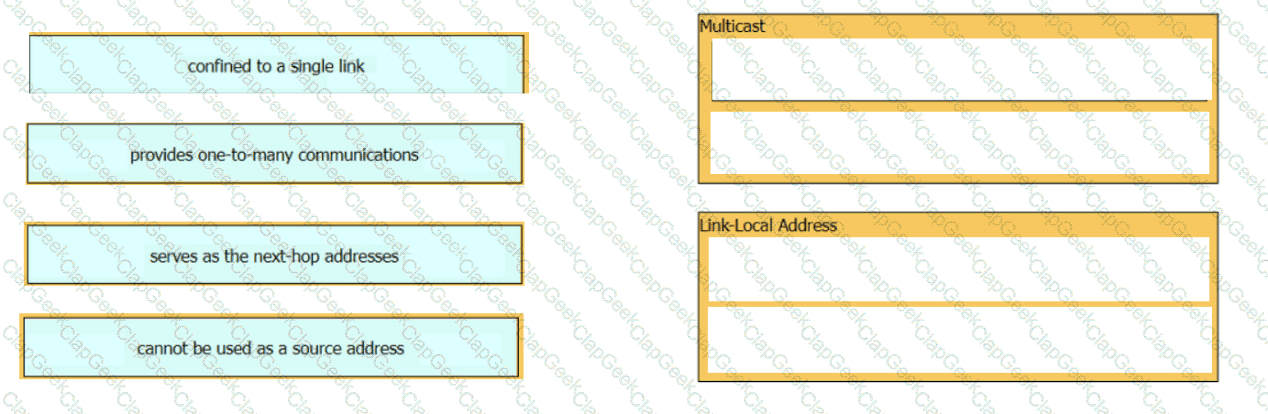

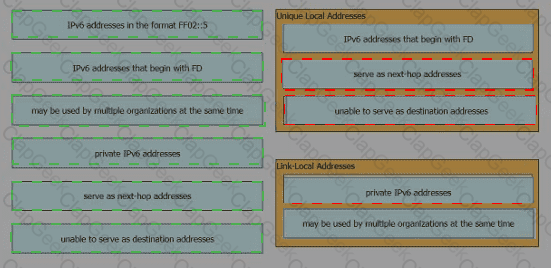

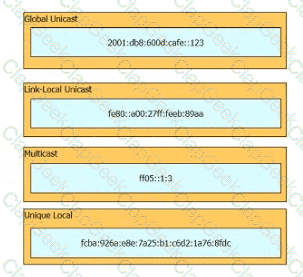

Drag and drop the IPv6 address type characteristics from the left to the right.
Which device tracks the state of active connections in order to make a decision to forward a packet through?
Refer to the exhibit.

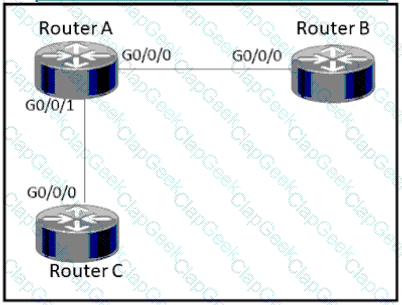

How must router A be configured so that it only sends Cisco Discovery Protocol Information to router C?

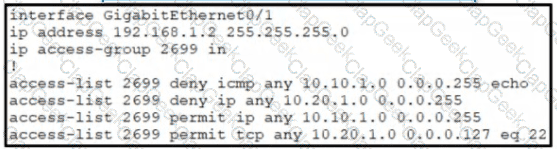

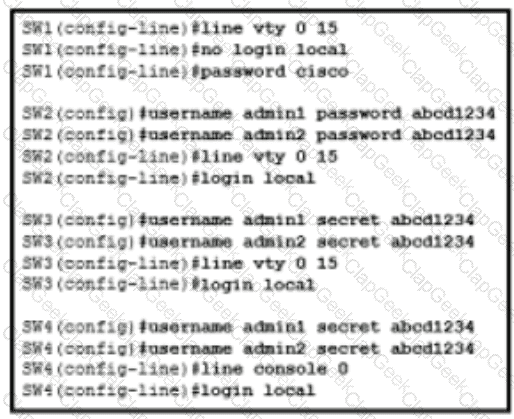

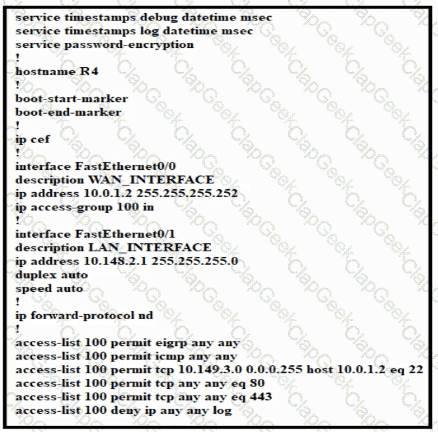

Refer to the exhibit.
A network administrator must permit SSH access to remotely manage routers in a network. The operations team resides on the 10.20.1.0/25 network. Which command will accomplish this task?

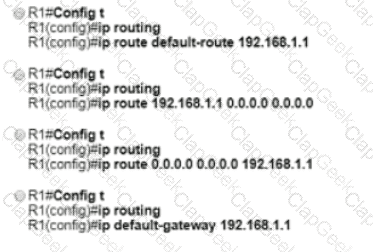

Router R1 must send all traffic without a matching routing-table entry to 192.168.1.1. Which configuration accomplishes this task?
Which mode must be used to configure EtherChannel between two switches without using a negotiation protocol?
What is recommended for the wireless infrastructure design of an organization?

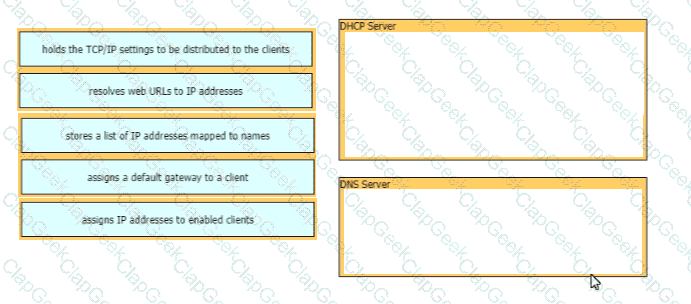

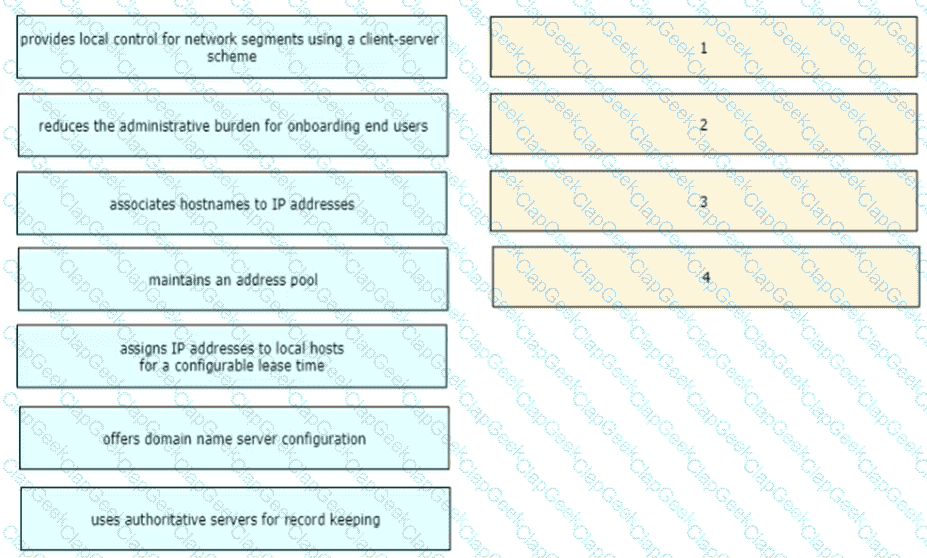

What are two roles of the Dynamic Host Configuration Protocol (DHCP)? (Choose two)
In which situation is private IPv4 addressing appropriate for a new subnet on the network of an organization?
What are two characteristics of the distribution layer in a three-tier network architecture? (Choose two.)

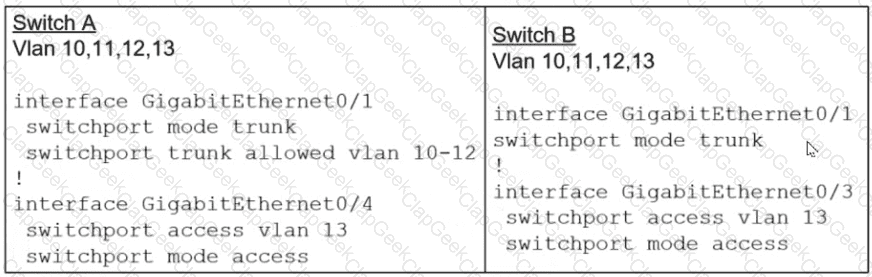

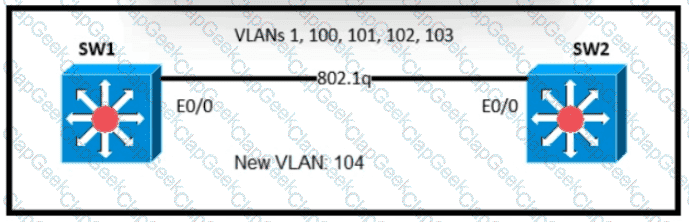

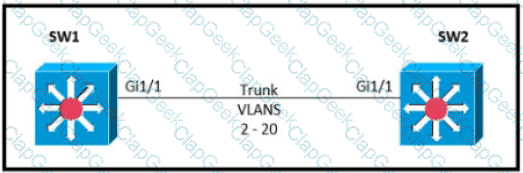

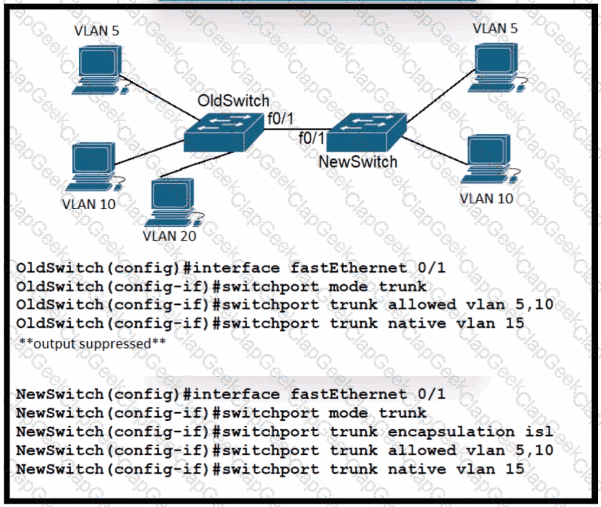

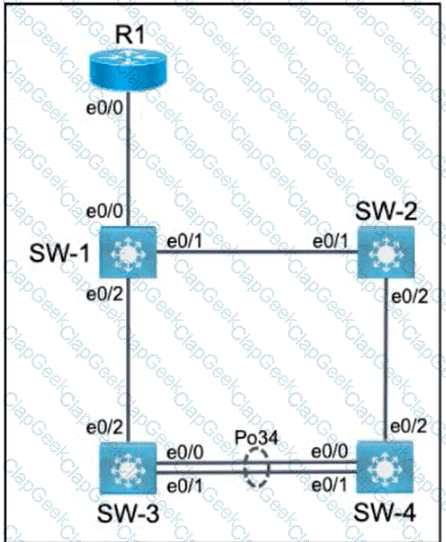

Refer to the exhibit.

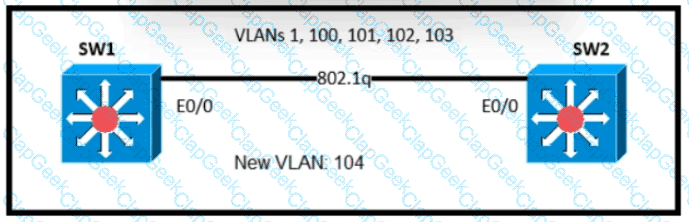

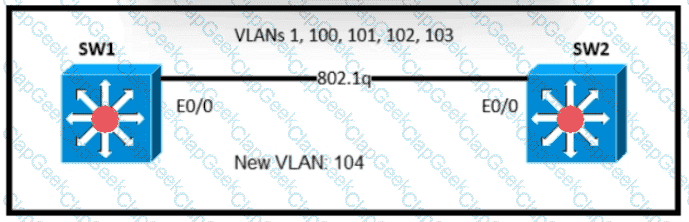

An engineer is asked to insert the new VLAN into the existing trunk without modifying anything previously configured Which command accomplishes this task?

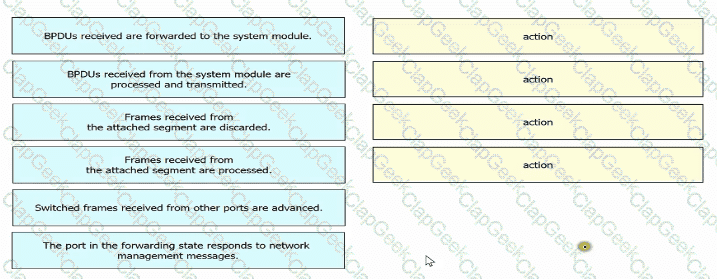

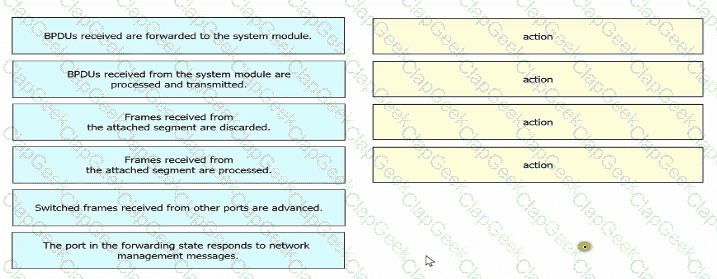

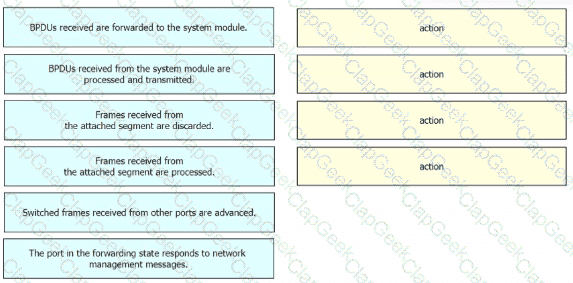

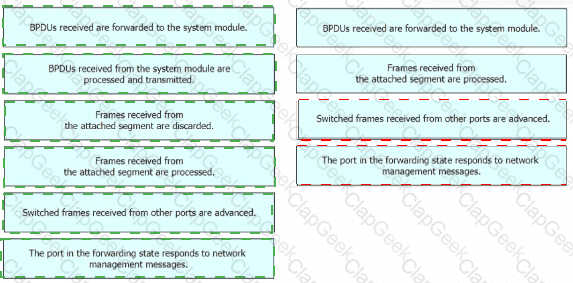

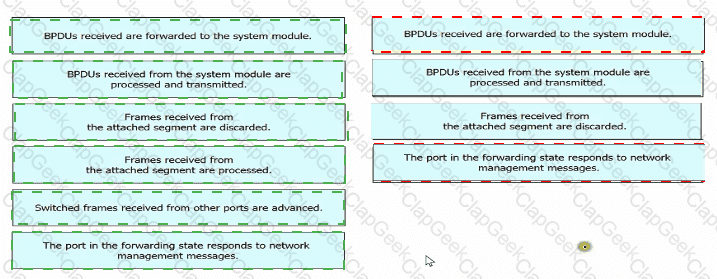

Drag and drop the Rapid PVST+ forwarding slate actions from the loft to the right. Not all actions are used.

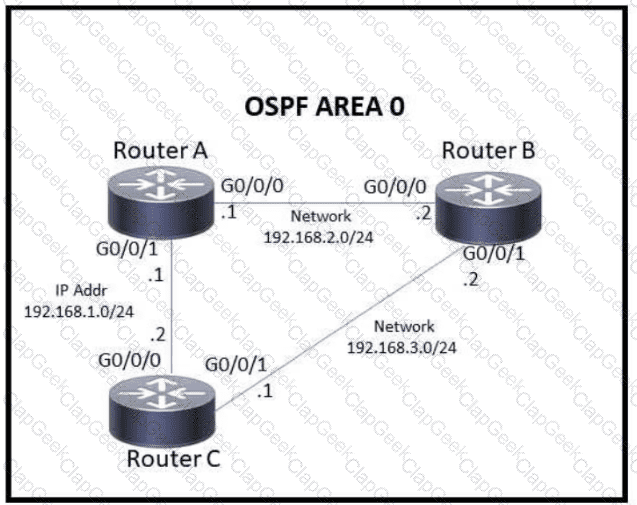

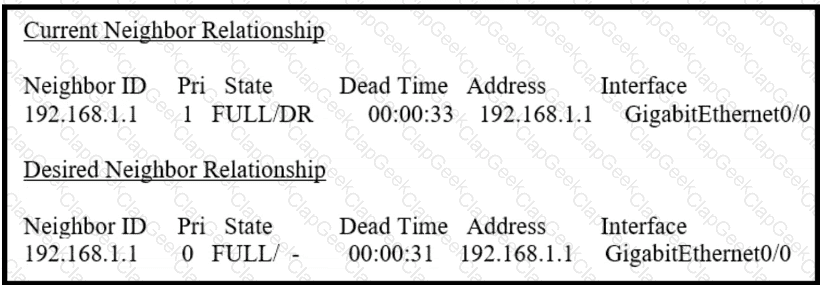

Refer to the exhibit.

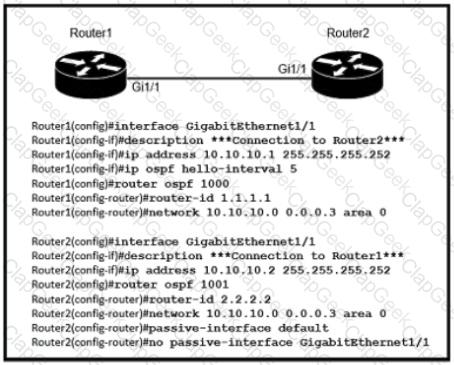

An engineer assumes a configuration task from a peer Router A must establish an OSPF neighbor relationship with neighbor 172 1 1 1 The output displays the status of the adjacency after 2 hours. What is the next step in the configuration process for the routers to establish an adjacency?

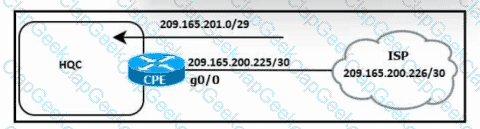

Refer to the exhibit.

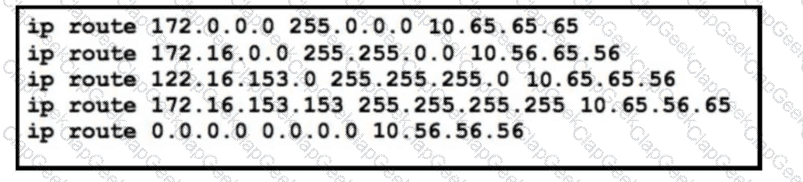

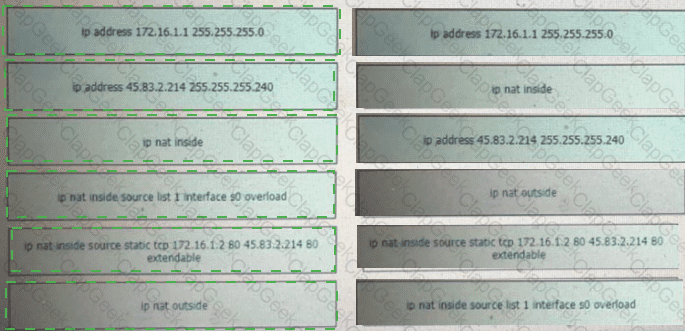

All traffic enters the CPE router from interface Serial0/3 with an IP address of 192 168 50 1 Web traffic from the WAN is destined for a LAN network where servers are load-balanced An IP packet with a destination address of the HTTP virtual IP of 192 1681 250 must be forwarded Which routing table entry does the router use?

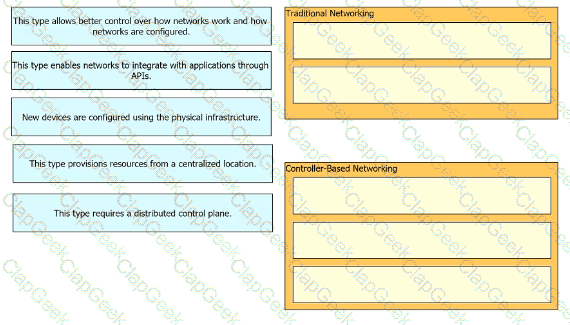

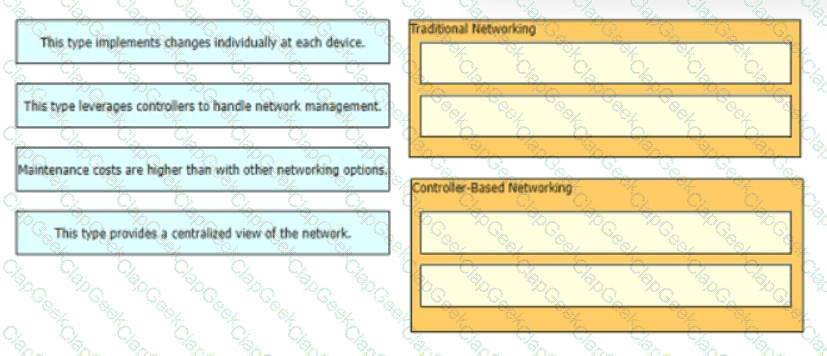

Drag and drop the statements about networking from the left onto the corresponding networking types on the right.

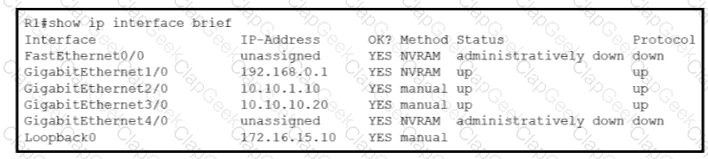

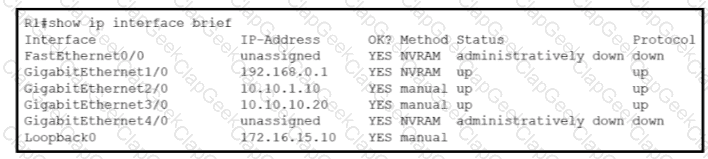

Refer to the exhibit.
Traffic sourced from the loopback0 Interface is trying to connect via ssh to the host at 10.0.1.15. What Is the next hop to the destination address?
Refer to the exhibit.

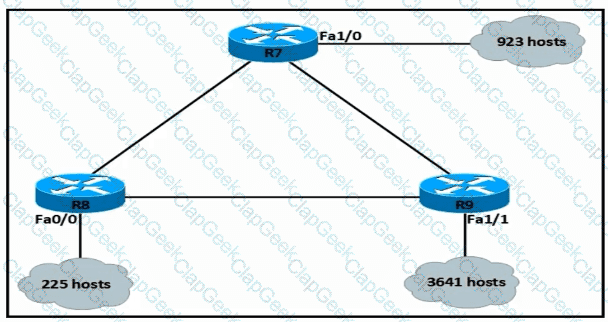

An IP subnet must be configured on each router that provides enough addresses for the number of assigned hosts and anticipates no more than 10% growth for now hosts. Which configuration script must be used?
A)
B)
C)
D)
Which type of network attack overwhelms the target server by sending multiple packets to a port until the half-open TCP resources of the target are exhausted?

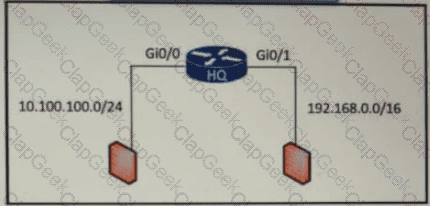

Refer to the exhibit.

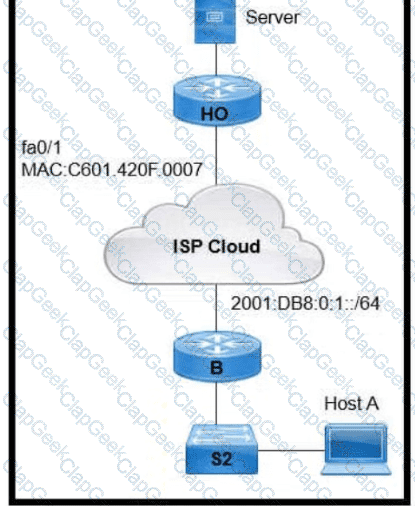

An engineer is configuring the HO router. Which IPv6 address configuration must be applied to the router fa0'1 interface for the router to assign a unique 64-brt IPv6 address to Itself?

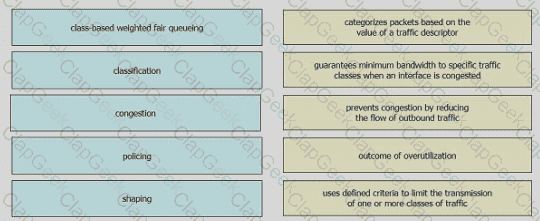

Which QoS per-hop behavior changes the value of the ToS field in the IPv4 packet header?
Which type of IPv6 address is similar to a unicast address but is assigned to multiple devices on the same network at the same time?

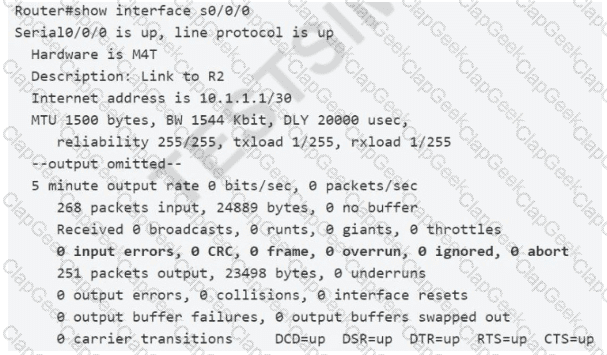

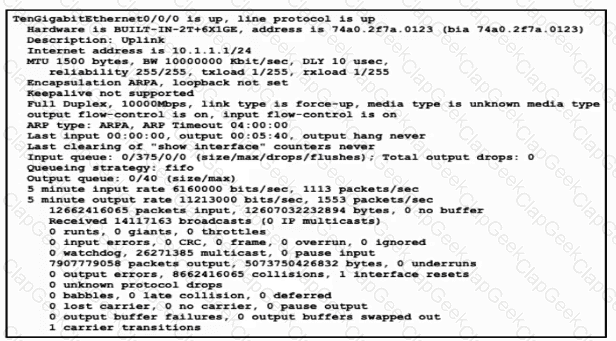

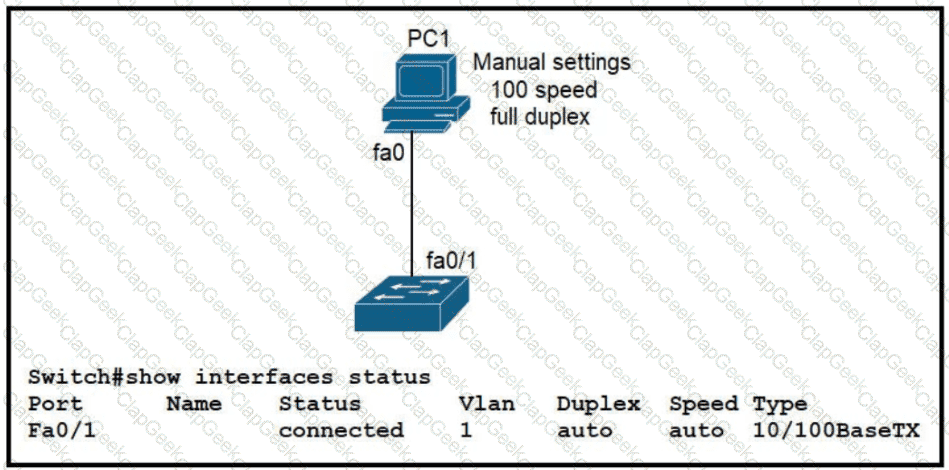

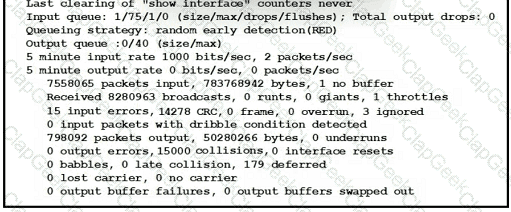

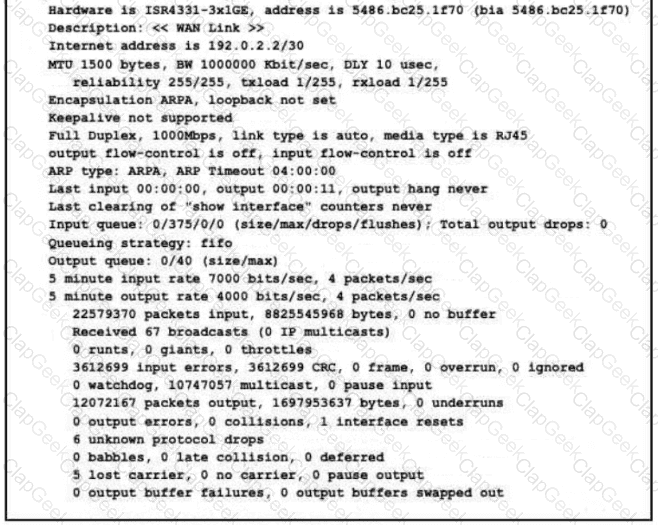

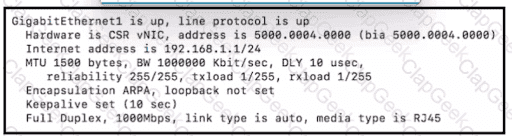

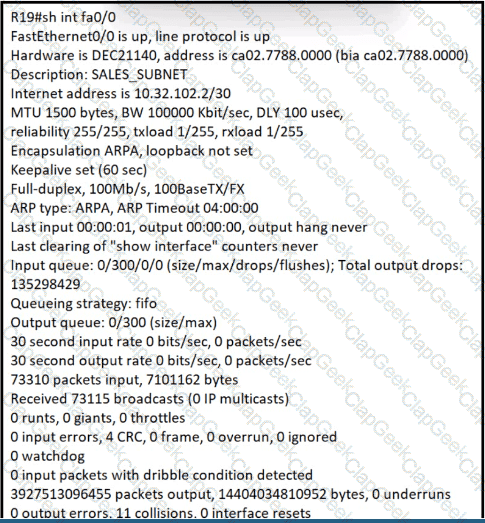

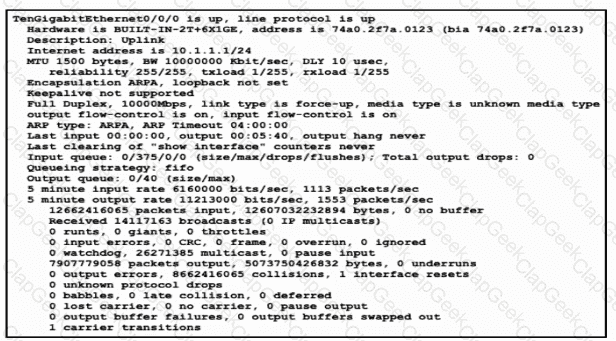

Refer to the exhibit.

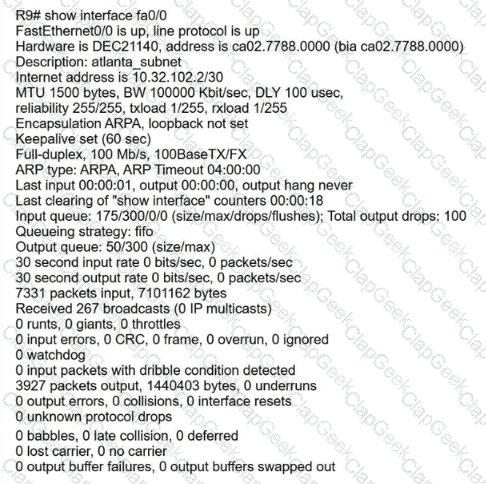

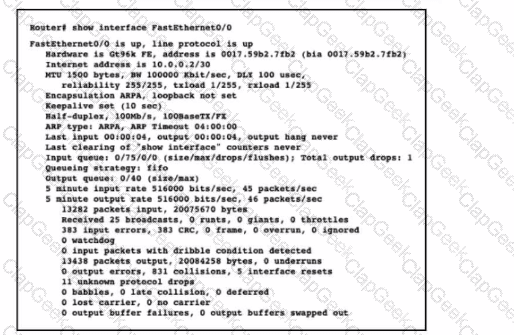

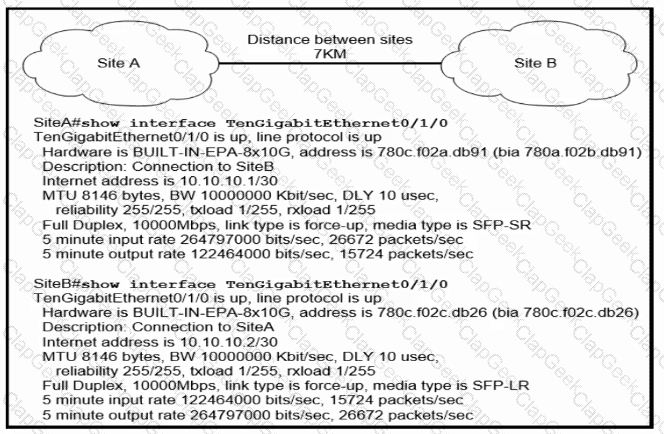

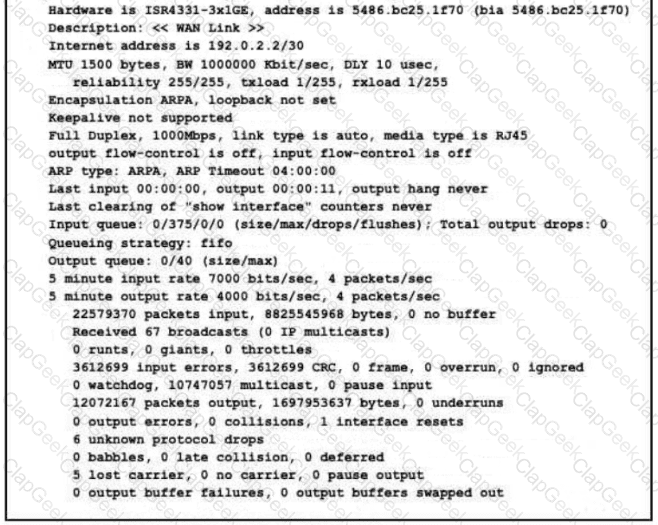

What is a reason for poor performance on the network interface?

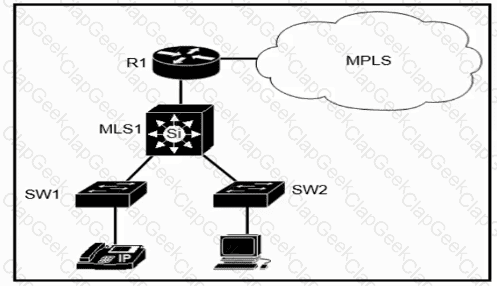

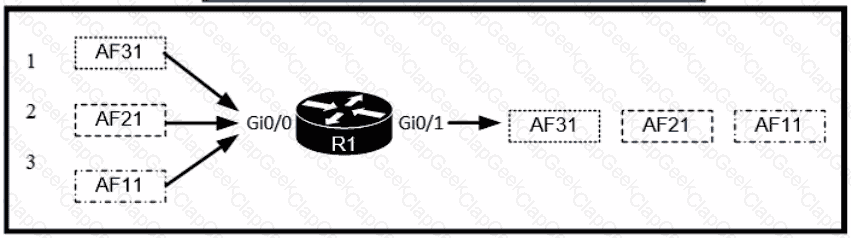

Refer to the exhibit.
Which plan must be Implemented to ensure optimal QoS marking practices on this network?
Refer to the exhibit.
Packets received by the router from BGP enter via a serial interface at 209 165 201 1 Each route is present within the routing table Which interface is used to forward traffic with a destination IP of 10.1.1.19?
Which characteristic differentiates the concept of authentication from authorization and accounting?
Which WLC management connection type is vulnerable to man-in-the-middle attacks?

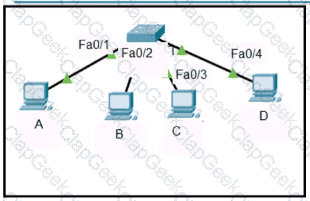

Refer to the exhibit.

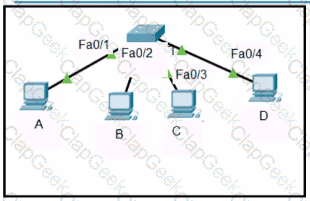

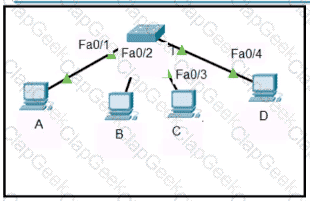

Host A sent a data frame destined for host D
What does the switch do when it receives the frame from host A?

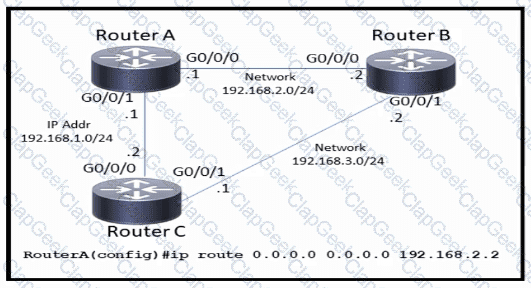

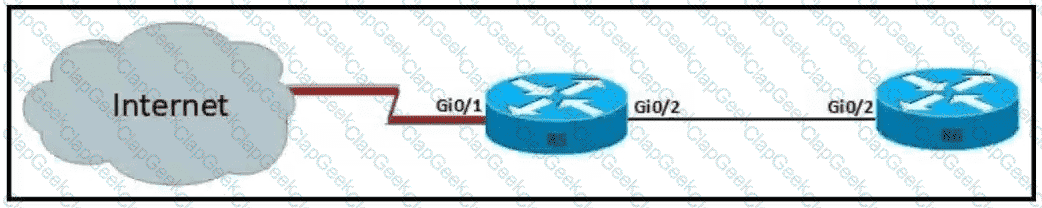

Refer to the exhibit.
Which command must be issued to enable a floating static default route on router A?

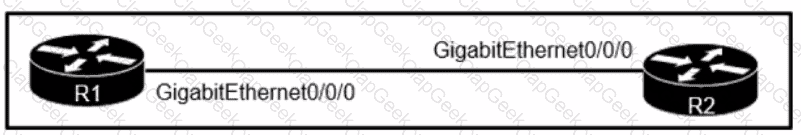

OSPF must be configured between routers R1 and R2. Which OSPF configuration must be applied to router R1 to avoid a DR/BDR election?

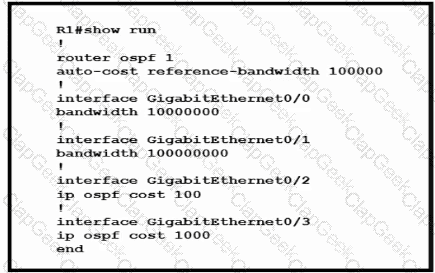

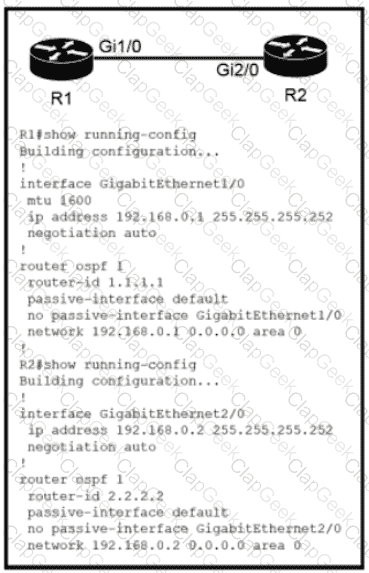

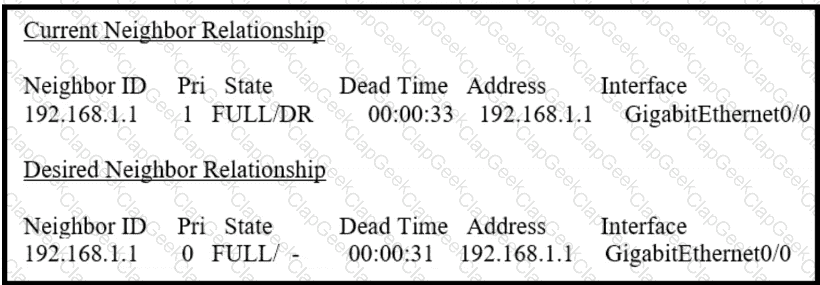

Refer to the exhibit.
Router R1 resides in OSPF Area 0. After updating the R1 configuration to influence the paths that it will use to direct traffic, an engineer verified that each of the four Gigabit interfaces has the same route to 10.10.0.0/16. Which interface will R1 choose to send traffic to reach the route?

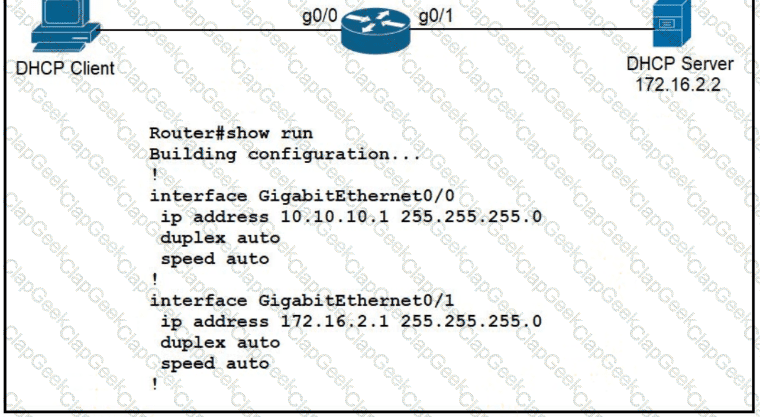

Refer to the exhibit.
An engineer is configuring a new router on the network and applied this configuration. Which additional configuration allows the PC to obtain its IP address from a DHCP server?

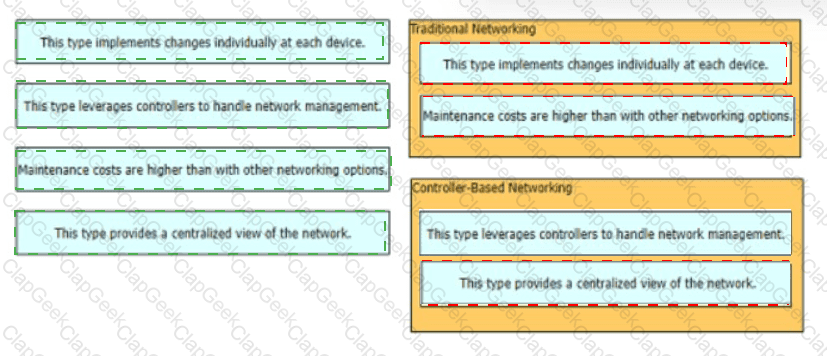

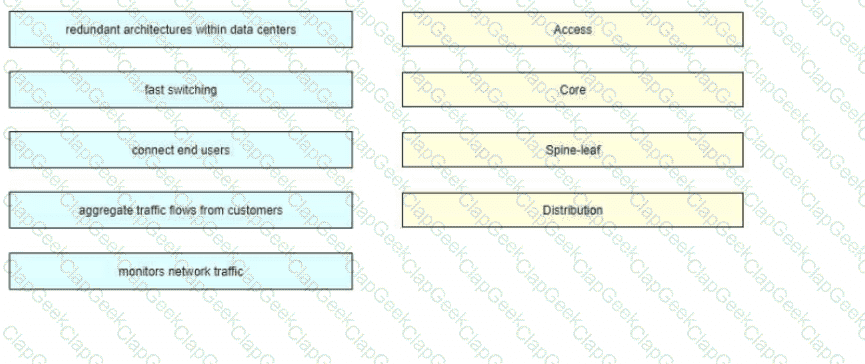

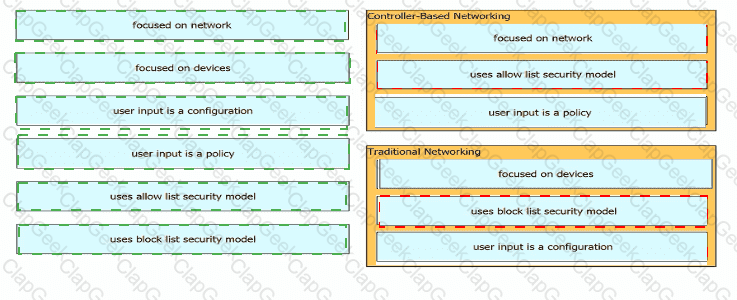

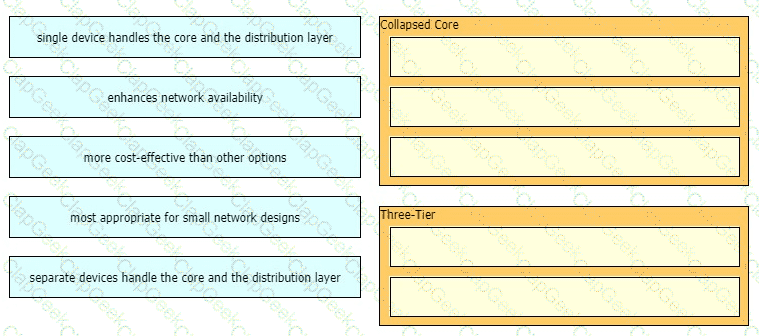

Drag and drop the characteristics of networking from the left onto the networking types on the right.
Which two spanning-tree states are bypassed on an interface running PortFast? (Choose two.)

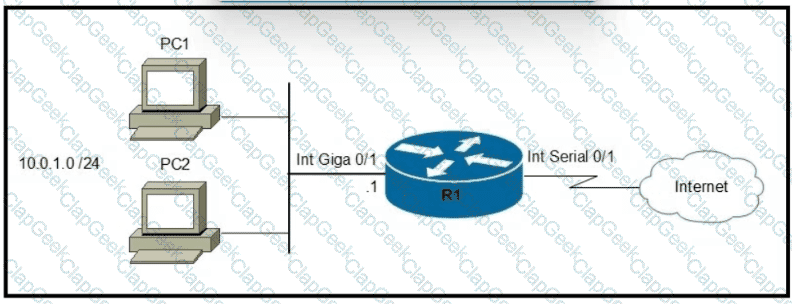

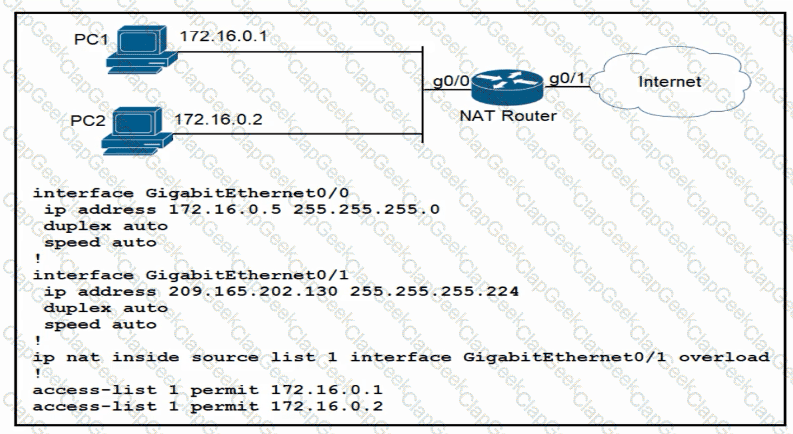

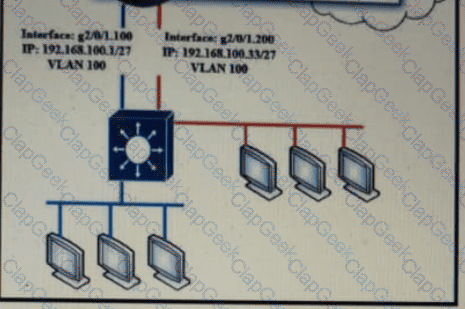

Refer to the exhibit.
How should the configuration be updated to allow PC1 and PC2 access to the Internet?
Which Layer 2 switch function encapsulates packets for different VLANs so that the packets traverse the same port and maintain traffic separation between the VLANs?
Which value is the unique identifier that an access point uses to establish and maintain wireless connectivity to wireless network devices?

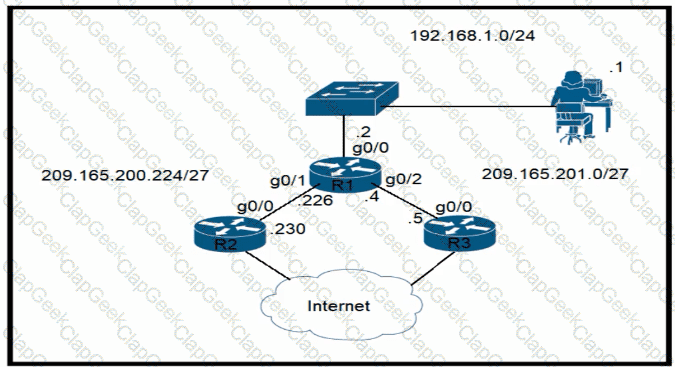

Refer to the exhibit.
Router R1 currently is configured to use R3 as the primary route to the Internet, and the route uses the default administrative distance settings. A network engineer must configure R1 so that it uses R2 as a backup, but only if R3 goes down. Which command must the engineer configure on R1 so that it correctly uses R2 as a backup route, without changing the administrative distance configuration on the link to R3?
R1 as an NTP server must have:
• NTP authentication enabled
• NTP packets sourced from Interface loopback 0
• NTP stratum 2
• NTP packets only permitted to client IP 209.165 200 225
How should R1 be configured?
A)
B)
C)
D)

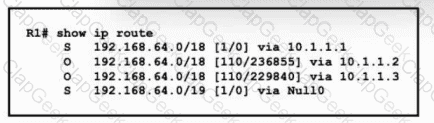

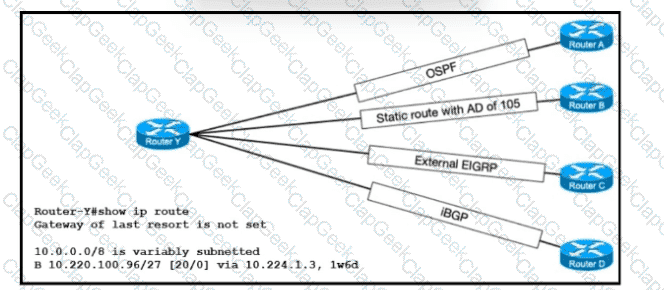

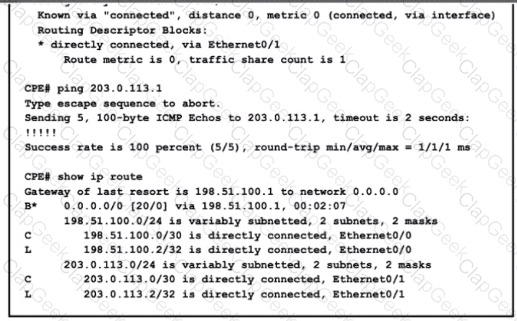

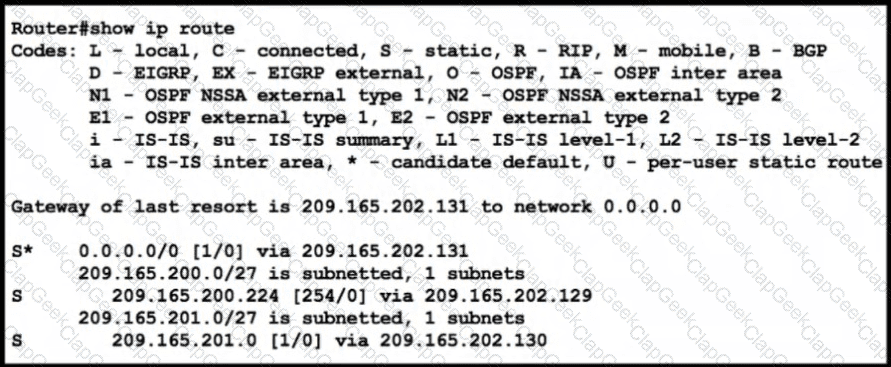

Refer to the exhibit.
Web traffic is coming in from the WAN interface. Which route takes precedence when the router is processing traffic destined for the LAN network at 10 0.10.0/24?

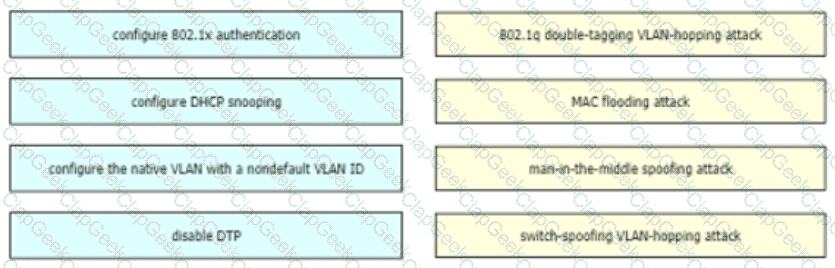

Drag and drop the threat-mitigation techniques from the left onto the types of threat or attack they mitigate on the right.

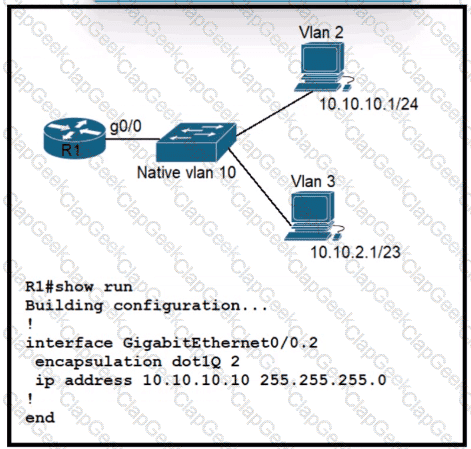

Refer to the exhibit.
All VLANs are present in the VLAN database. Which command sequence must be applied to complete the configuration?
Refer to the exhibit.

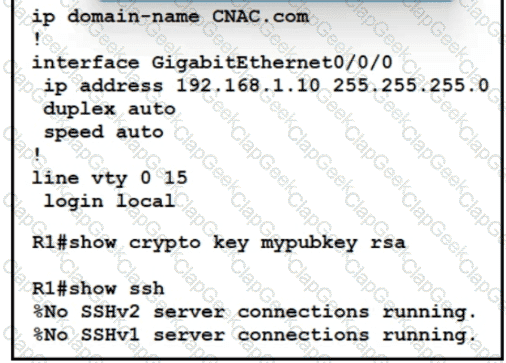

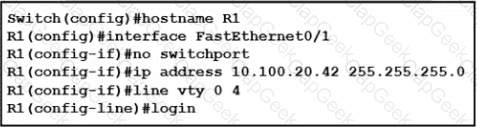

Which two commands must be configured on router R1 to enable the router to accept secure remote-access connections? (Choose two)

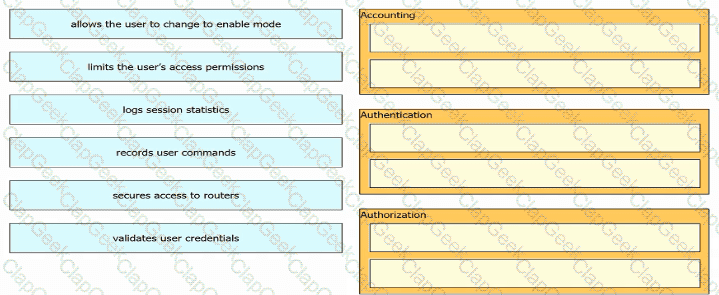

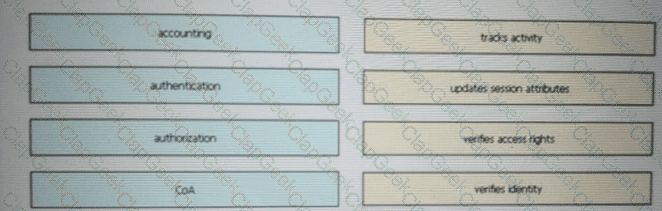

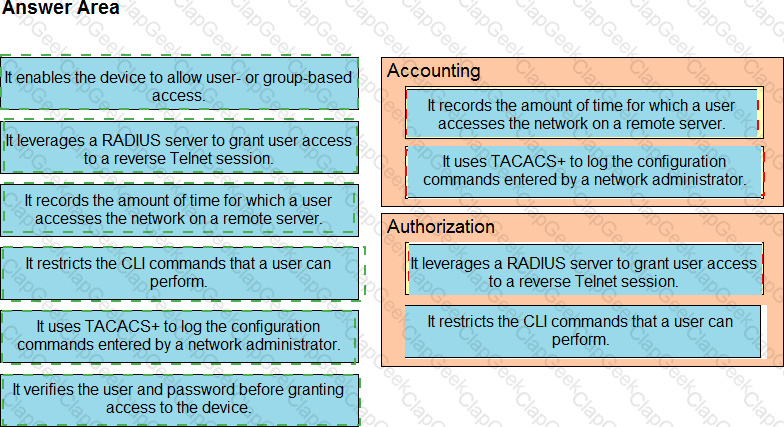

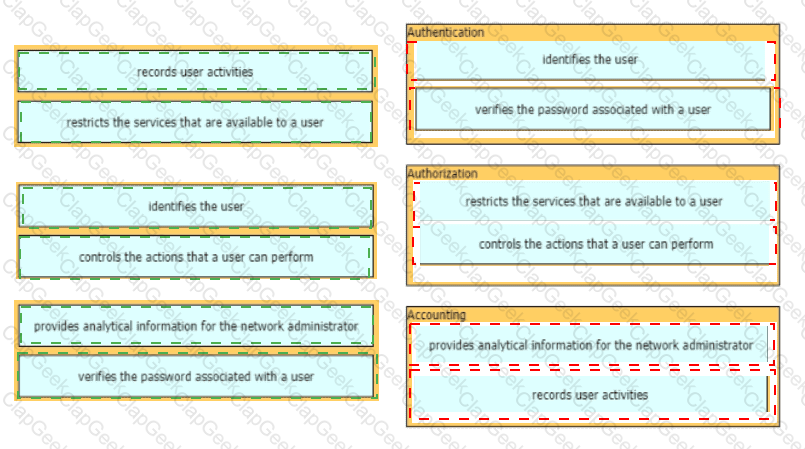

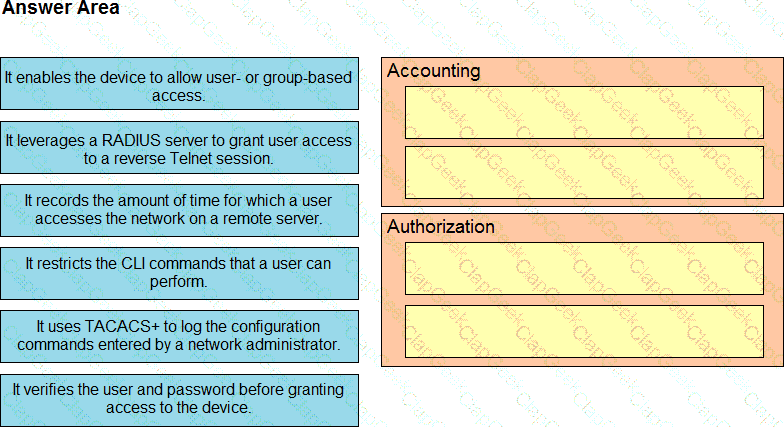

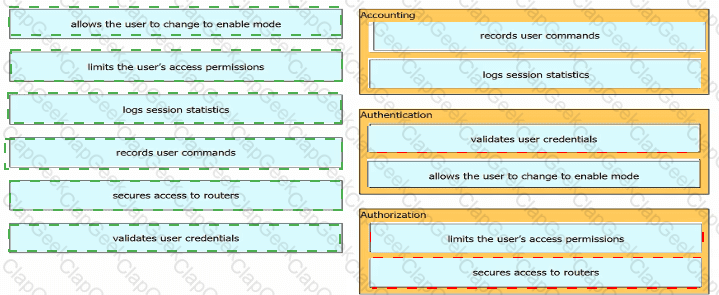

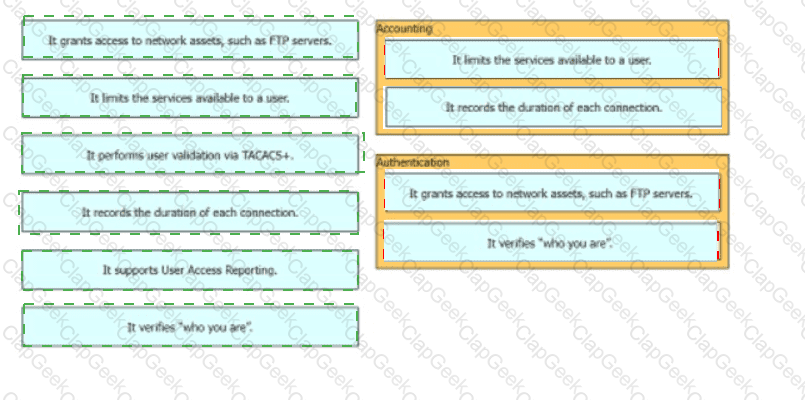

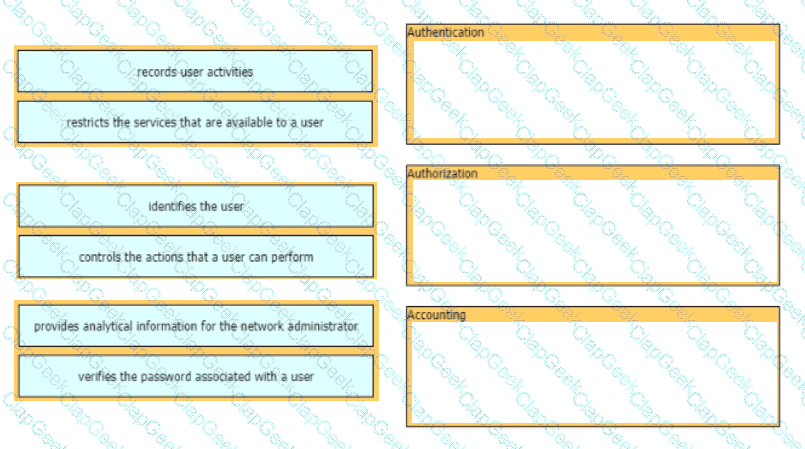

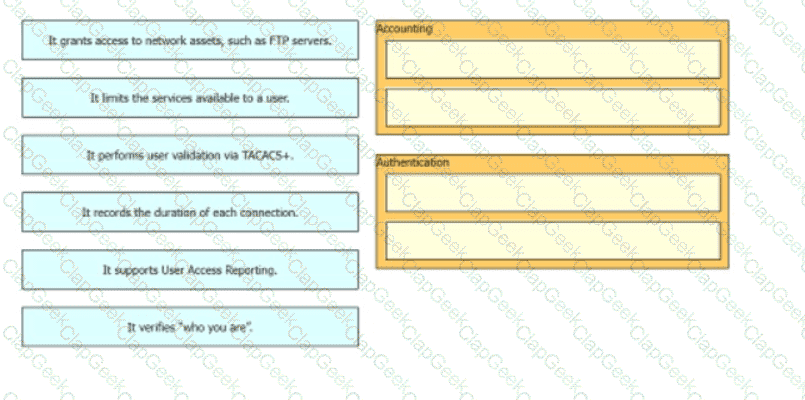

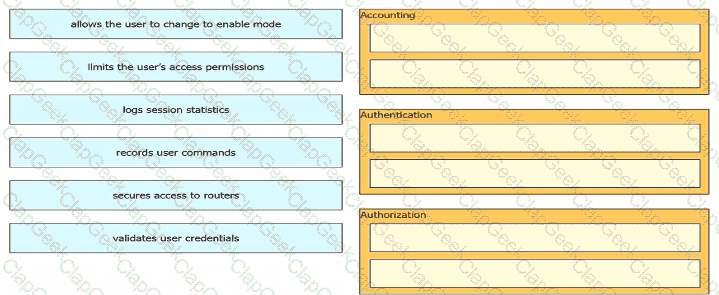

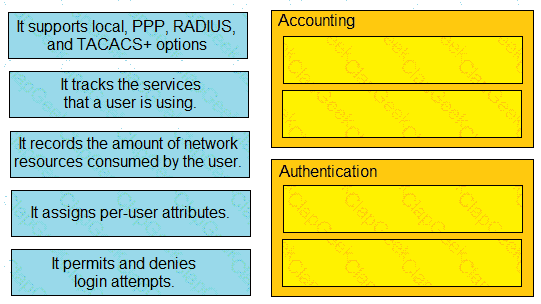

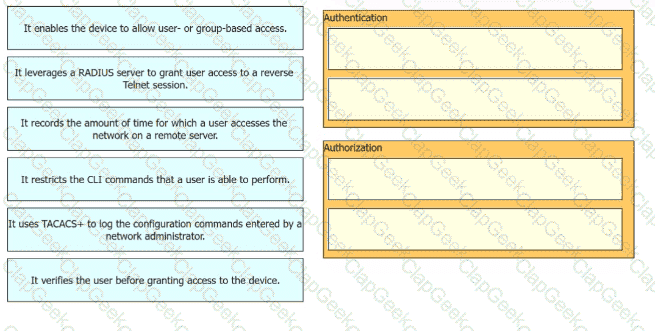

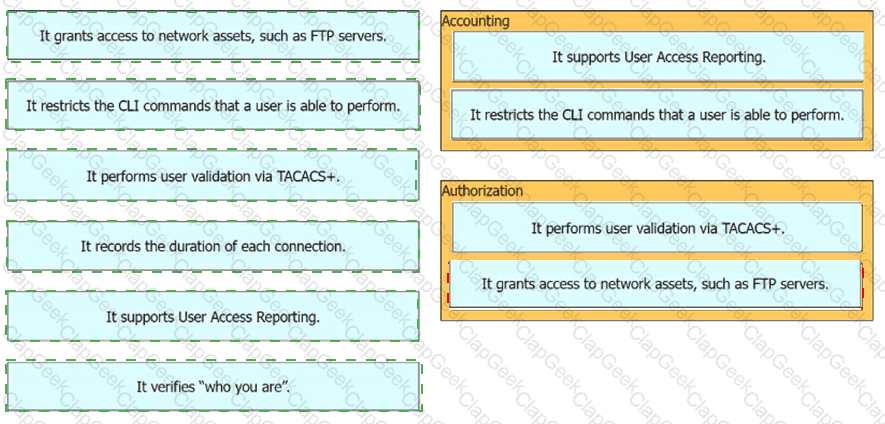

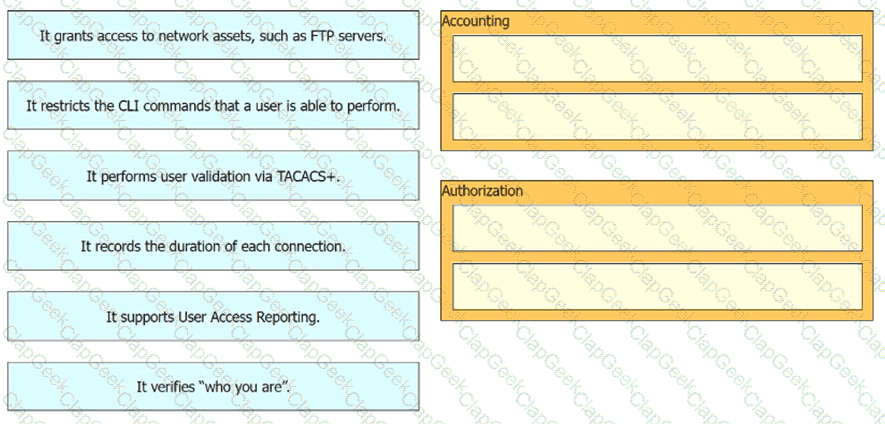

Drag and drop the descriptions of AAA services from the left onto the corresponding services on the right.

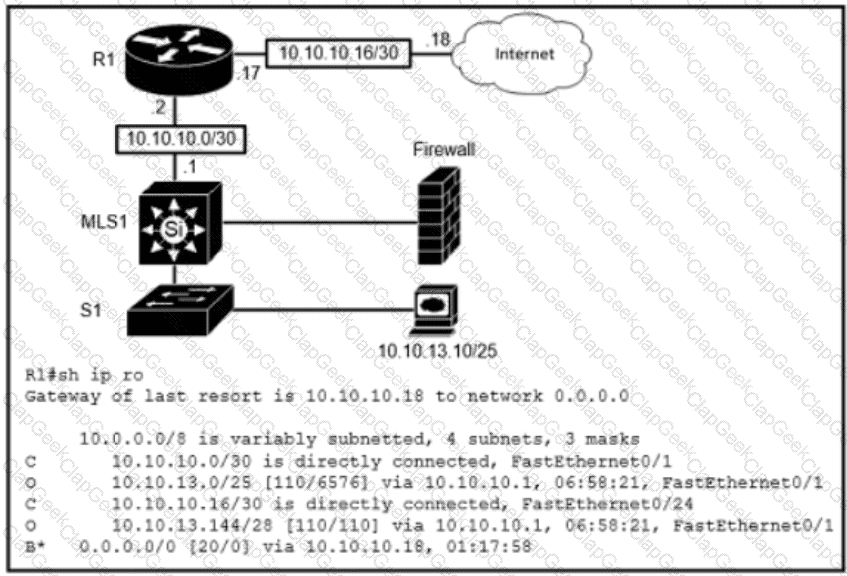

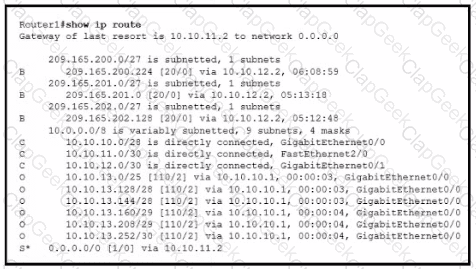

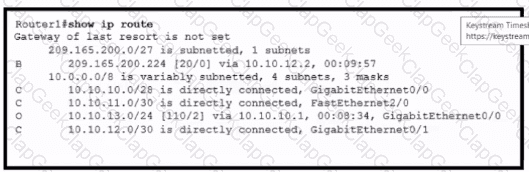

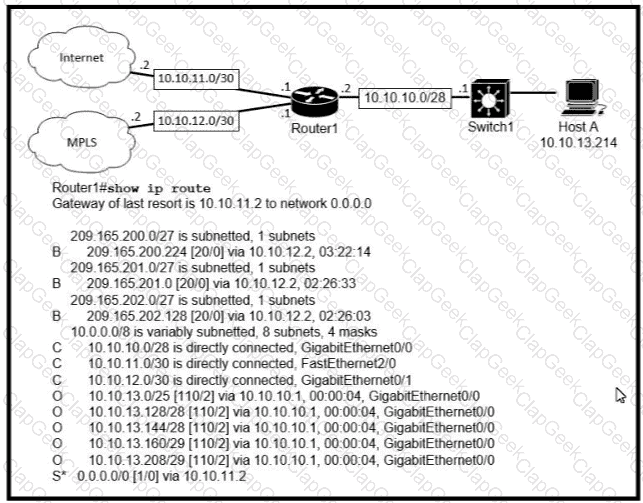

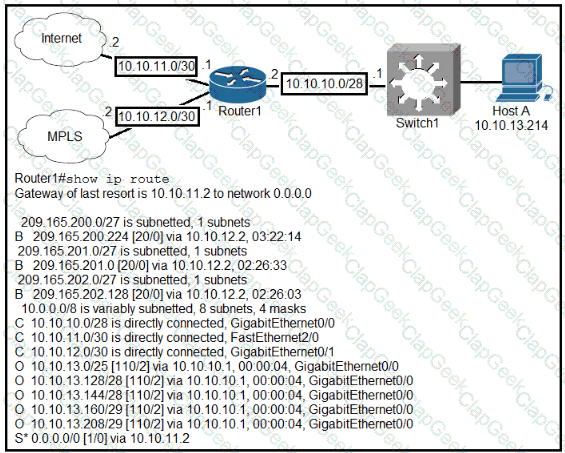

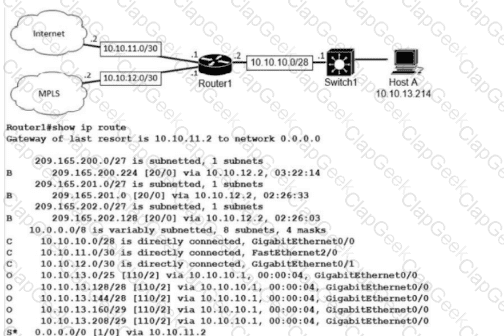

Refer to the exhibit.

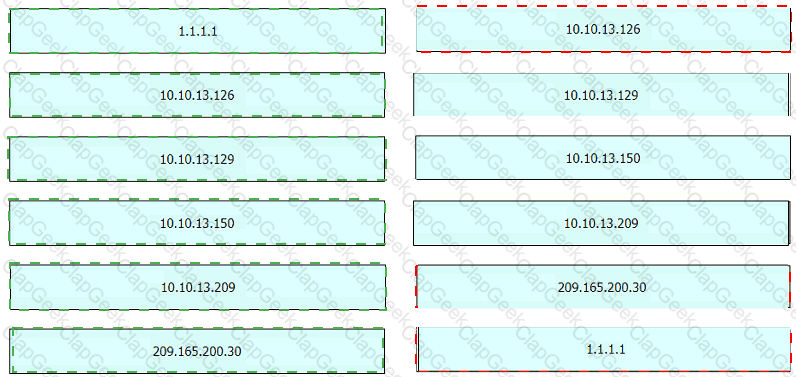

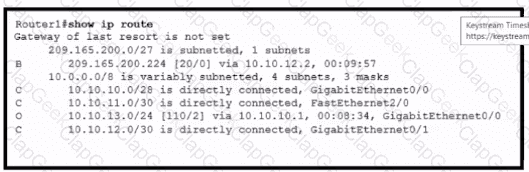

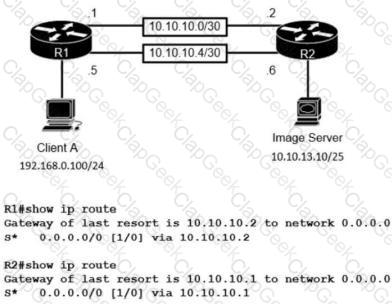

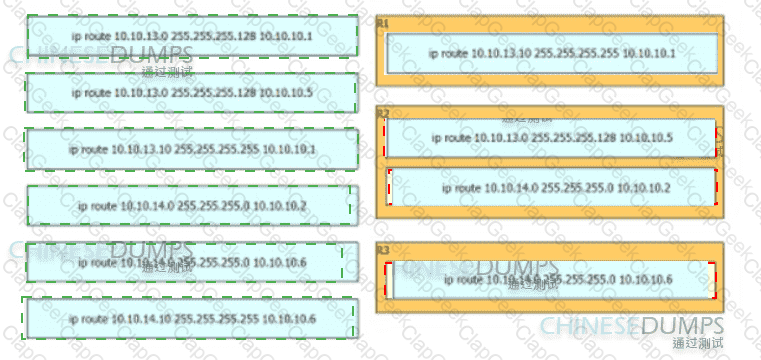

Which next-hop IP address does Routed use for packets destined to host 10 10.13.158?

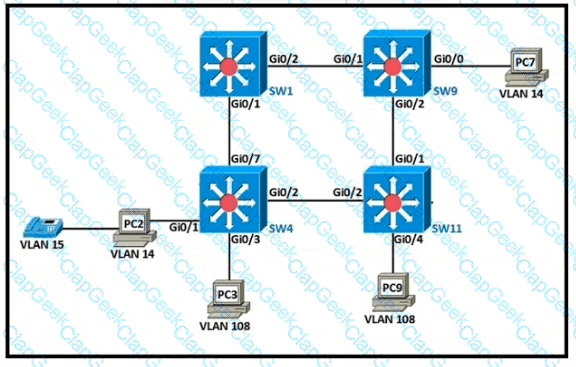

Refer to the exhibit.
The following must be considered:
• SW1 is fully configured for all traffic
• The SW4 and SW9 links to SW1 have been configured
• The SW4 interface Gi0/1 and Gi0/0 on SW9 have been configured
• The remaining switches have had all VLANs adde d to their VLAN database
Which configuration establishes a successful ping from PC2 to PC7 without interruption to traffic flow between other PCs?
A)
B)
C)
D)
A network engineer must implement an IPv6 configuration on the vlan 2000 interface to create a routable locally-unique unicast address that is blocked from being advertised to the internet. Which configuration must the engineer apply?

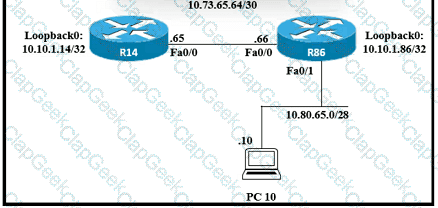

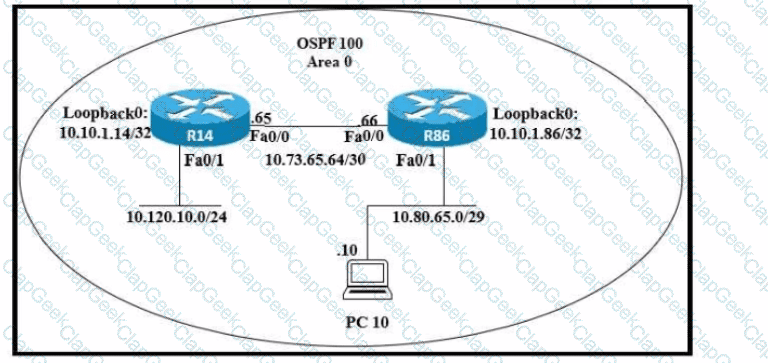

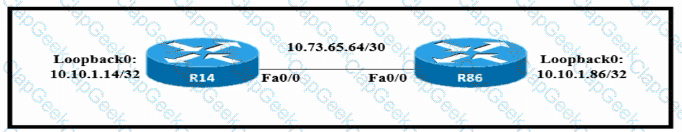

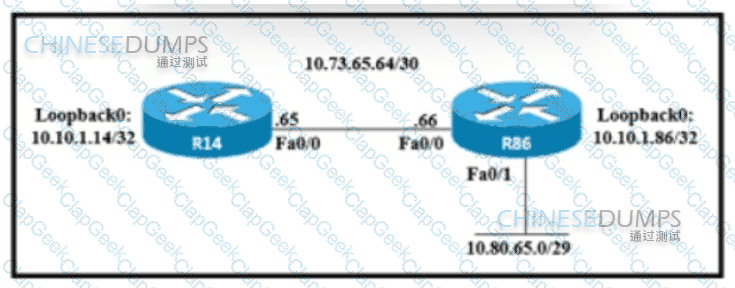

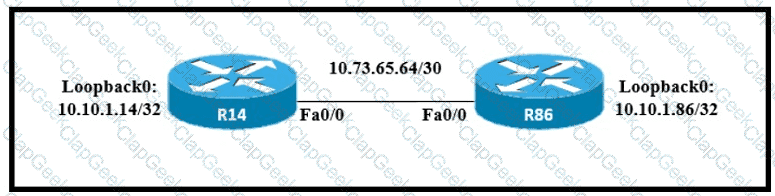

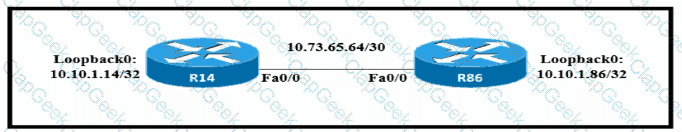

Refer to the exhibit.

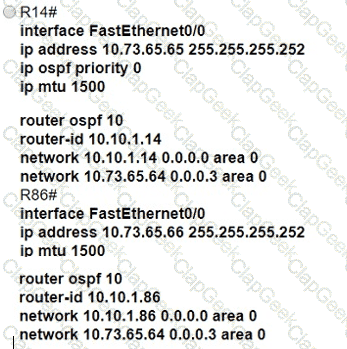

Which configuration allows routers R14 and R86 to form an OSPFv2 adjacency while acting as a central point for exchanging OSPF information between routers?

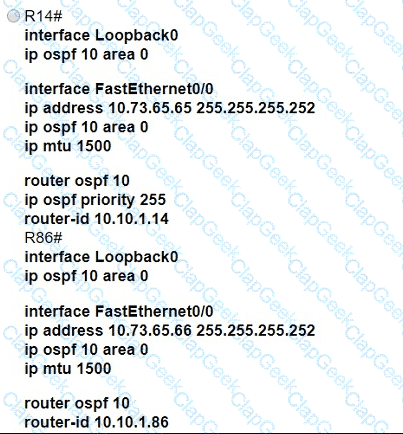

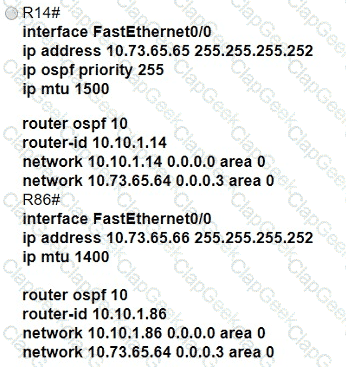

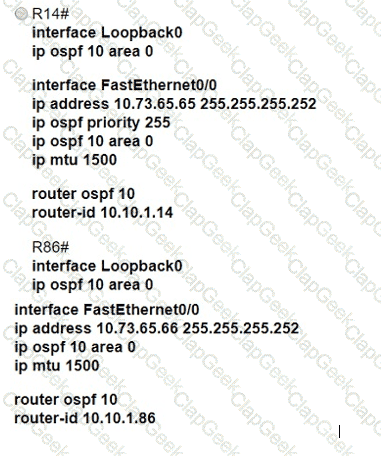

A)
B)
C)
D)

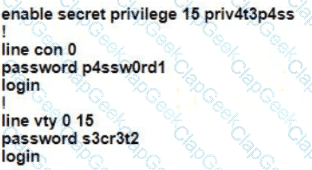

A Cisco engineer is configuring a factory-default router with these three passwords:
• The user EXEC password for console access is p4ssw0rd1
• The user EXEC password for Telnet access is s3cr3t2
• The password for privileged EXEC mode is pnv4t3p4ss Which command sequence must the engineer configured
A)
B)
C)
D)
A network engineer must configure two new subnets using the address block 10 70 128 0/19 to meet these requirements:
• The first subnet must support 24 hosts
• The second subnet must support 472 hosts
• Both subnets must use the longest subnet mask possible from the address block
Which two configurations must be used to configure the new subnets and meet a requirement to use the first available address in each subnet for the router interfaces? (Choose two )

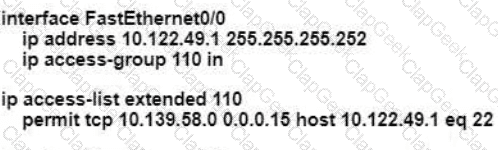

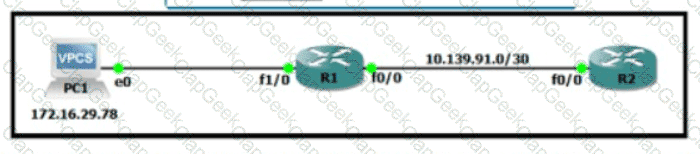

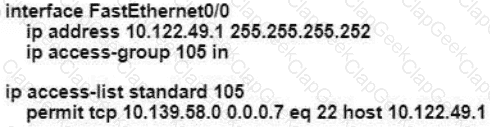

An engineer is configuring remote access to a router from IP subnet 10.139.58.0/28. The domain name, crypto keys, and SSH have been configured. Which configuration enables the traffic on the destination router?

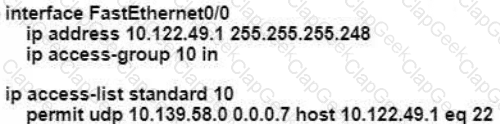

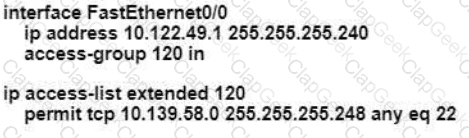

A)

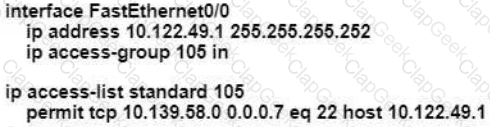

B)
C)
D)
Refer to the exhibit.
Which minimum configuration items are needed to enable Secure Shell version 2 access to R15?
A)
B)
C)
D)
A Cisco engineer must configure a single switch interface to meet these requirements
• accept untagged frames and place them in VLAN 20
• accept tagged frames in VLAN 30 when CDP detects a Cisco IP phone
Which command set must the engineer apply?
A)
B)
C)
D)

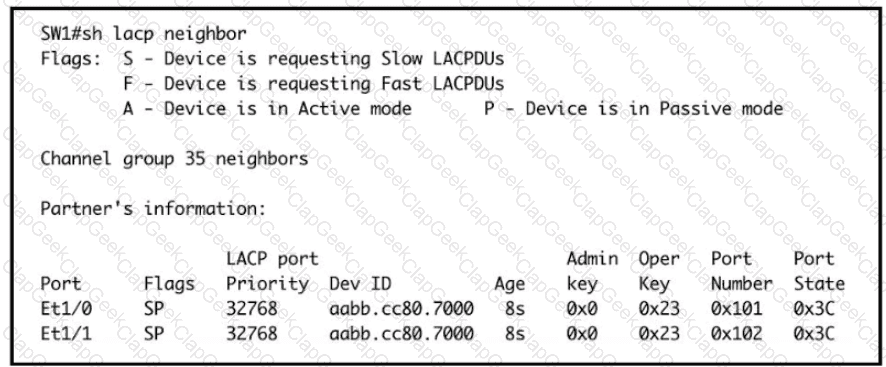

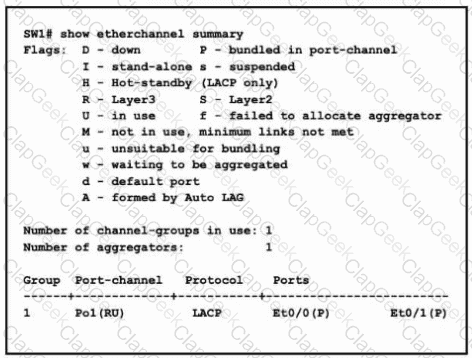

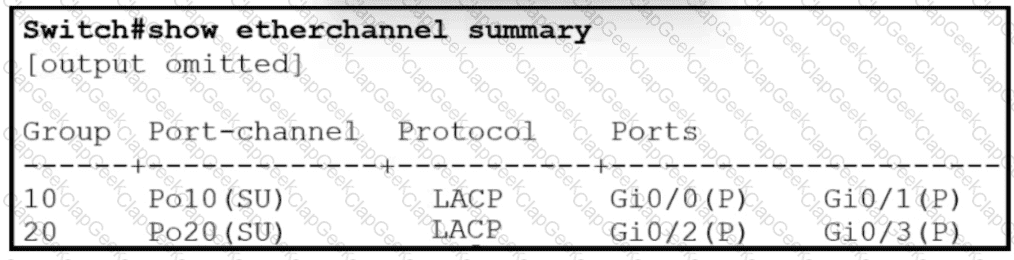

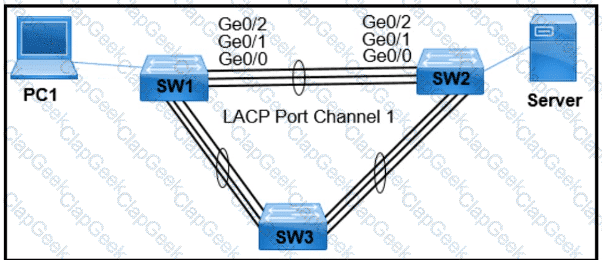

Refer to the exhibit.

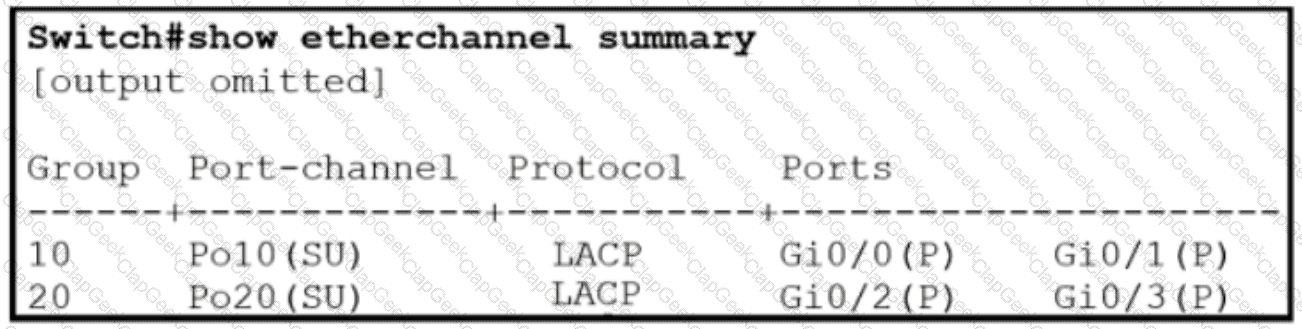

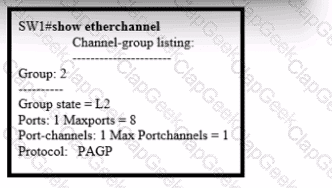

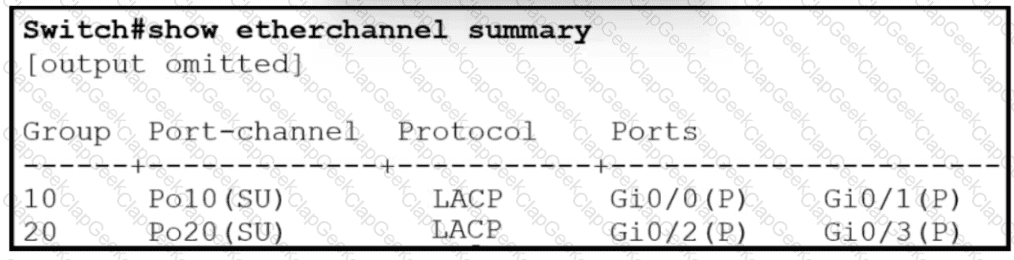

An engineer built a new L2 LACP EtherChannel between SW1 and SW2 and executed these show commands to verify the work. Which additional task allows the two switches to establish an LACP port channel?

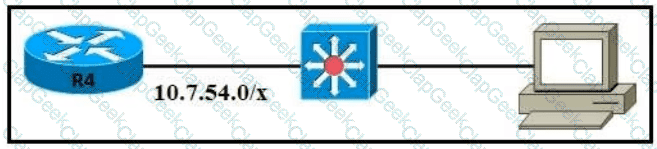

Refer to the exhibit.

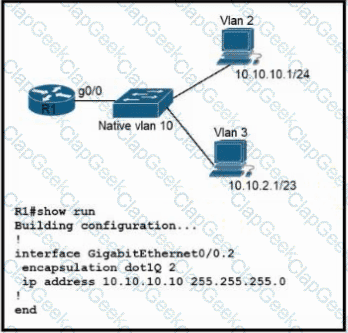

The router has been configured with a supernet to accommodate the requirement for 380 users on a subnet The requirement already considers 30% future growth. Which configuration verifies the IP subnet on router R4?
A)
B)
C)
D)
A network administrator is setting up a new IPv6 network using the 64-bit address 2001 0EB8 00C1 2200:0001 0000 0000 0331/64 To simplify the configuration the administrator has decided to compress the address Which IP address must the administrator configure?

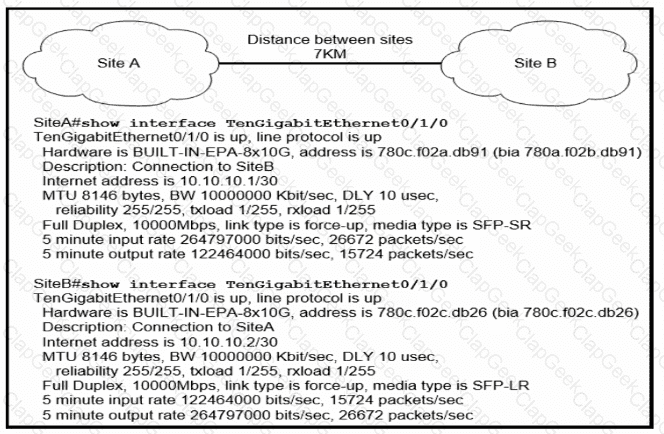

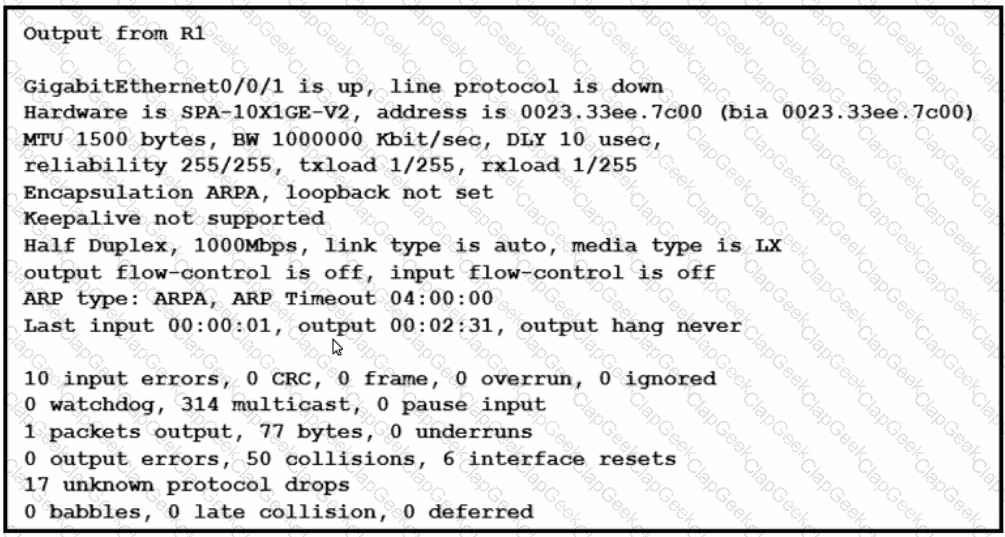

Refer to the exhibit.

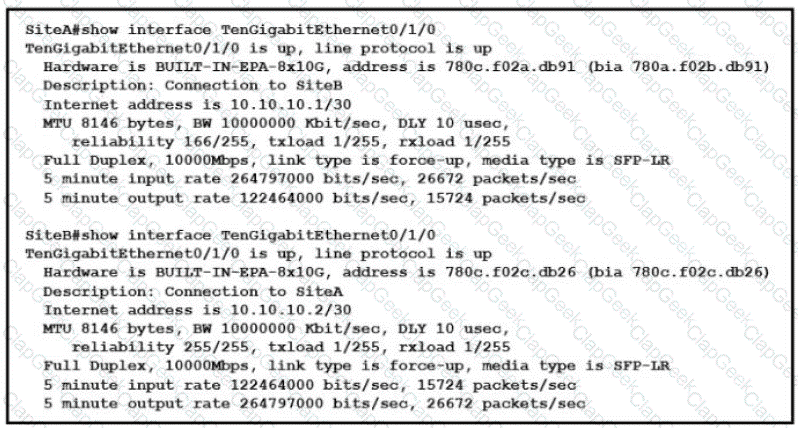

Site A was recently connected to site B over a new single-mode fiber path. Users at site A report Intermittent connectivity Issues with applications hosted at site B. What is the reason for the problem?
Which PoE mode enables powered-device detection and guarantees power when the device is detected?
Refer to the exhibit.
A static route must be configured on R14 to forward traffic for the 172 21 34 0/25 network that resides on R86 Which command must be used to fulfill the request?

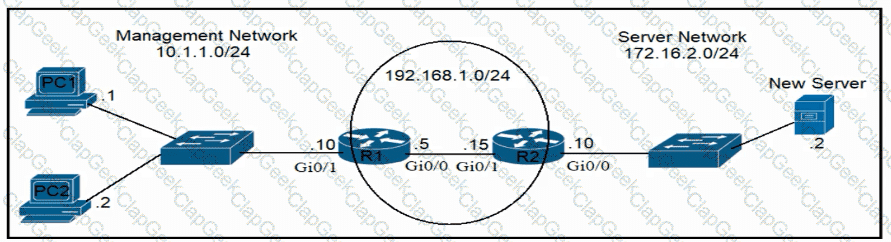

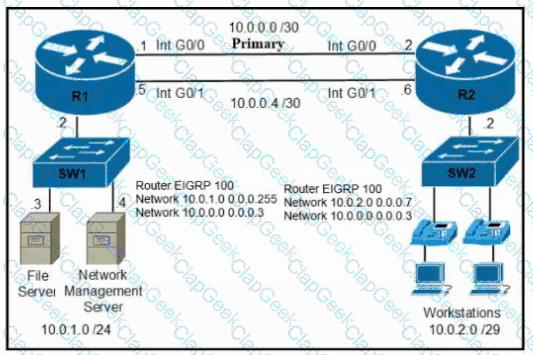

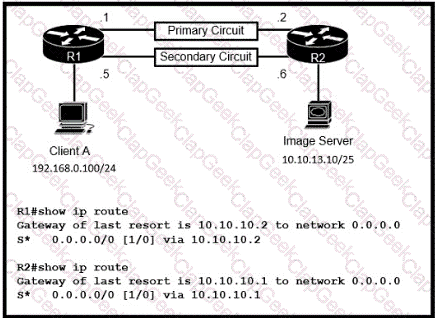

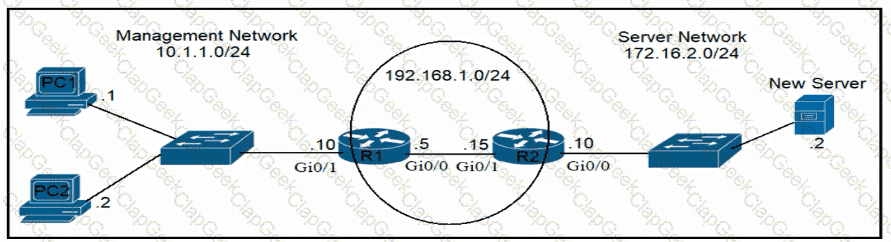

Refer to the exhibit.

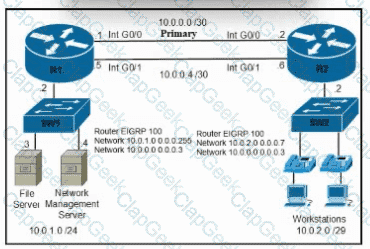

Which route must be configured on R1 so that OSPF routing is used when OSPF is up. but the server is still reachable when OSPF goes down?

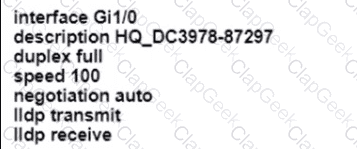

Refer to the exhibit.
A network engineer must update the configuration on Switch2 so that it sends LLDP packets every minute and the information sent via LLDP is refreshed every 3 minutes Which configuration must the engineer apply?

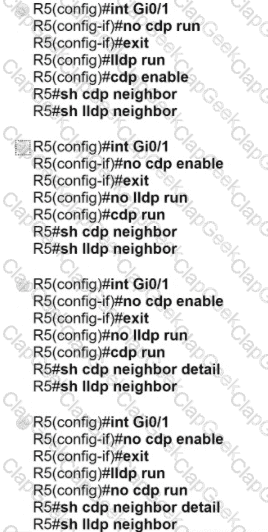

A)
B)
C)
D)

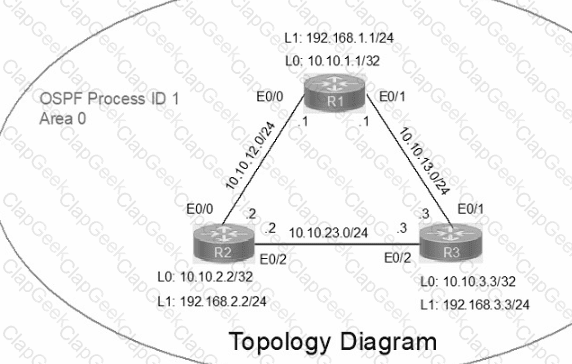

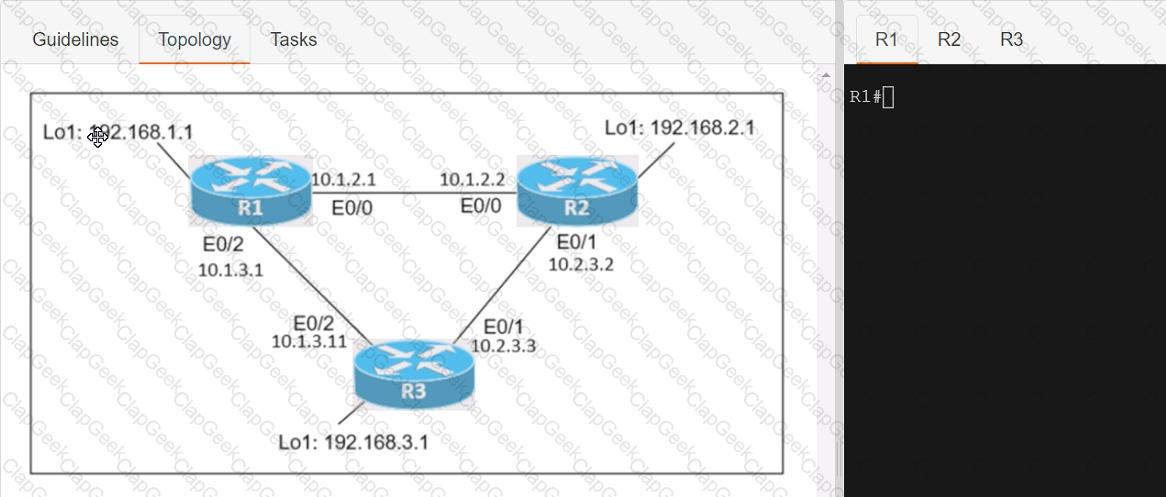

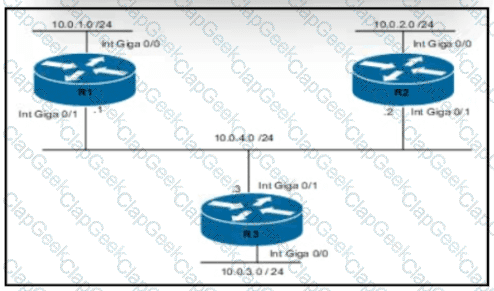

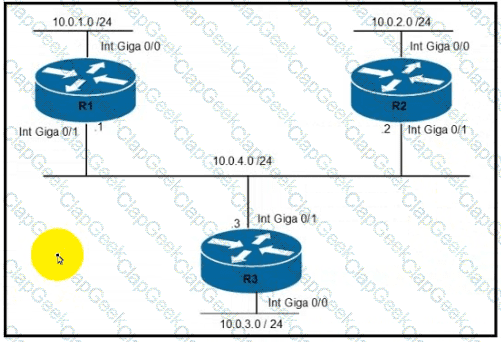

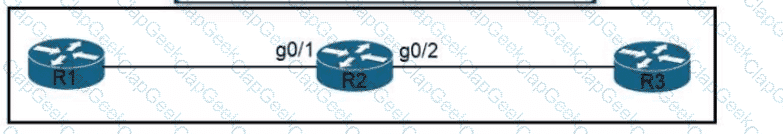

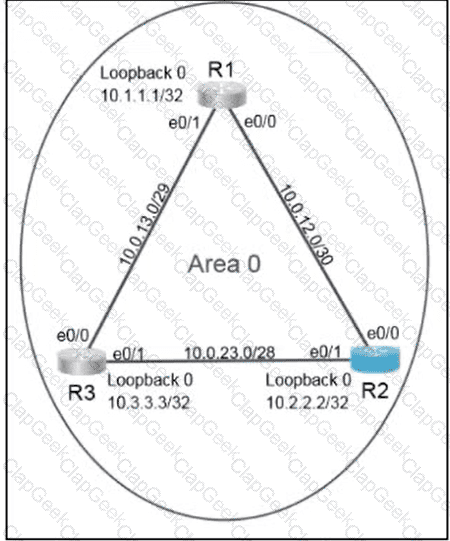

IP connectivity between the three routers is configured. OSPF adjacencies must be established.
1. Configure R1 and R2 Router IDs using the interface IP addresses from the link that is shared between them.
2. Configure the R2 links with a max value facing R1 and R3. R2 must become the DR. R1 and R3 links facing R2 must remain with the default OSPF configuration for DR election. Verify the configuration after clearing the OSPF process.
3. Using a host wildcard mask, configure all three routers to advertise their respective Loopback1 networks.
4. Configure the link between R1 and R3 to disable their ability to add other OSPF routers.

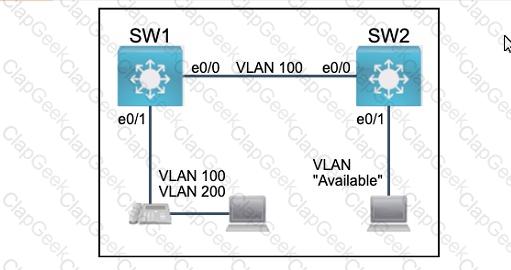

All physical cabling between the two switches is installed. Configure the network connectivity between the switches using the designated VLANs and interfaces.
1. Configure VLAN 100 named Compute and VLAN 200 named Telephony where required for each task.
2. Configure Ethernet0/1 on SW2 to use the existing VLAN named Available.
3. Configure the connection between the switches using access ports.
4. Configure Ethernet0/1 on SW1 using data and voice VLANs.
5. Configure Ethemet0/1 on SW2 so that the Cisco proprietary neighbor discovery protocol is turned off for the designated interface only.
Connectivity between four routers has been established. IP connectivity must be configured in the order presented to complete the implementation. No dynamic routing protocols are included.
1. Configure static routing using host routes to establish connectivity from router R3 to the router R1 Loopback address using the source IP of 209.165.200.230.
2. Configure an IPv4 default route on router R2 destined for router R4.
3. Configure an IPv6 default router on router R2 destined for router R4.

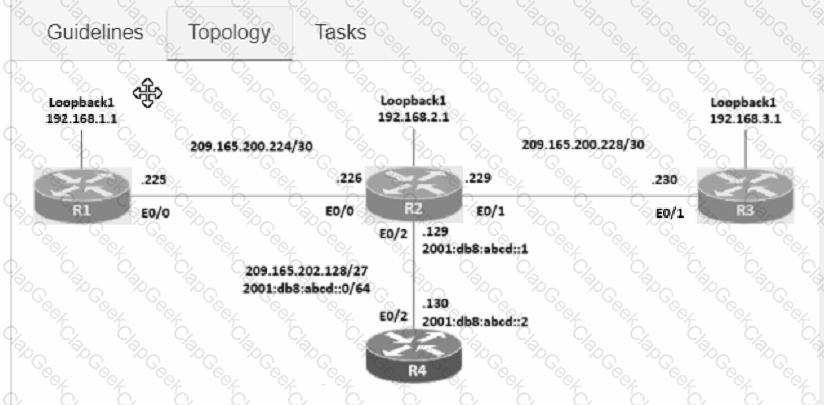

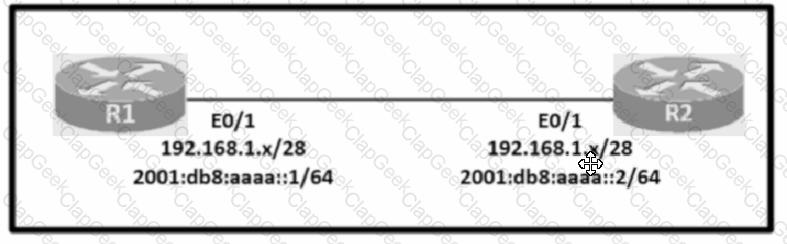

Configure IPv4 and IPv6 connectivity between two routers. For IPv4, use a /28 network from the 192.168.1.0/24 private range. For IPv6, use the first /64 subnet from the 2001:0db8:aaaa::/48 subnet.
1. Using Ethernet0/1 on routers R1 and R2, configure the next usable/28 from the 192.168.1.0/24 range. The network 192.168.1.0/28 is unavailable.
2. For the IPv4 /28 subnet, router R1 must be configured with the first usable host address.
3. For the IPv4 /28 subnet, router R2 must be configured with the last usable host address.
4. For the IPv6 /64 subnet, configure the routers with the IP addressing provided from the topology.
5. A ping must work between the routers on the IPv4 and IPv6 address ranges.

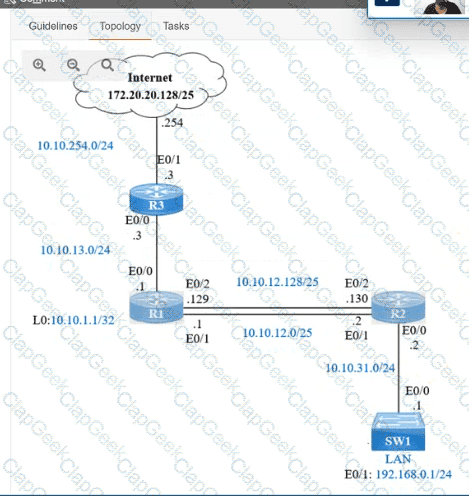

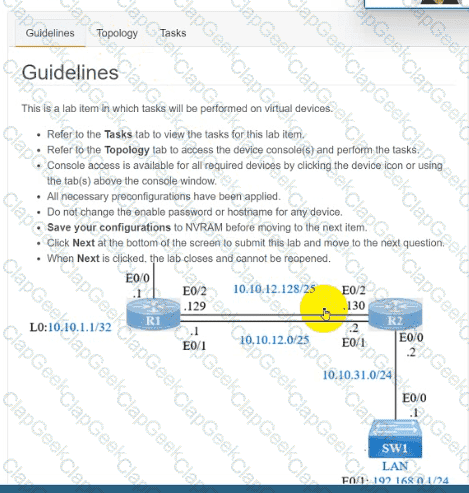

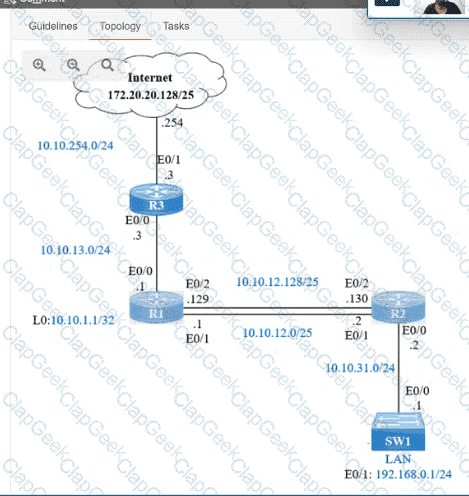

IP connectivity and OSPF are preconfigured on all devices where necessary. Do not make any changes to the IP addressing or OSPF. The company policy uses connected interfaces and next hops when configuring static routes except for load balancing or redundancy without floating static. Connectivity must be established between subnet 172.20.20.128/25 on the Internet and the LAN at 192.168.0.0/24 connected to SW1:

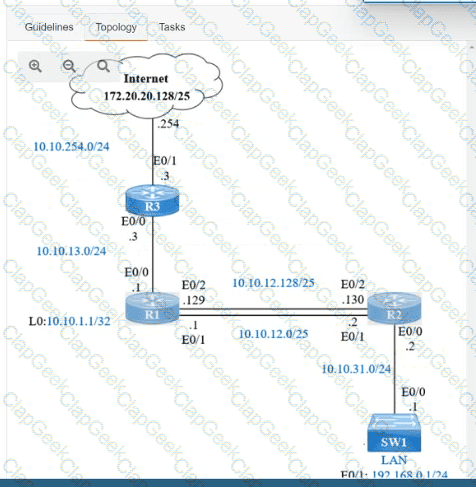

1. Configure reachability to the switch SW1 LAN subnet in router R2.
2. Configure default reachability to the Internet subnet in router R1.
3. Configure a single static route in router R2 to reach to the Internet subnet considering both redundant links between routers R1 and R2. A default route is NOT allowed in router R2.
4. Configure a static route in router R1 toward the switch SW1 LAN subnet where the primary link must be through Ethernet0/1. and the backup link must be through Ethernet0/2 using a floating route. Use the minimal administrative distance value when required.

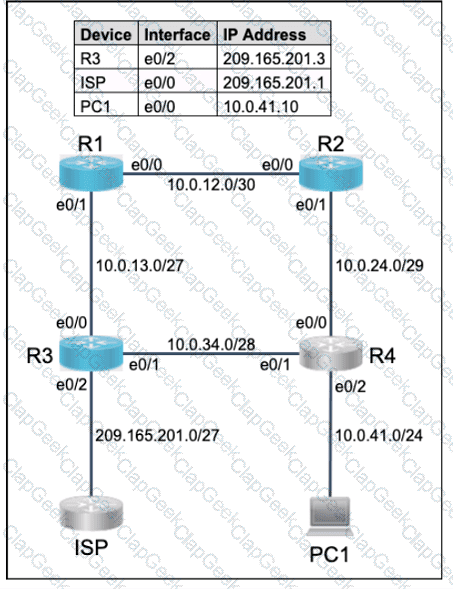

All physical cabling is in place. Router R4 and PCI are fully configured and
inaccessible. R4's WAN interfaces use .4 in the last octet for each subnet.
Configurations should ensure that connectivity is established end-to-end.
1 . Configure static routing to ensure RI prefers the path through R2 to
reach only PCI on R4's LAN
2. Configure static routing that ensures traffic sourced from RI will take
an alternate path through R3 to PCI in the event of an outage along
the primary path
3. Configure default routes on RI and R3 to the Internet using the least number of hops
Guidelines

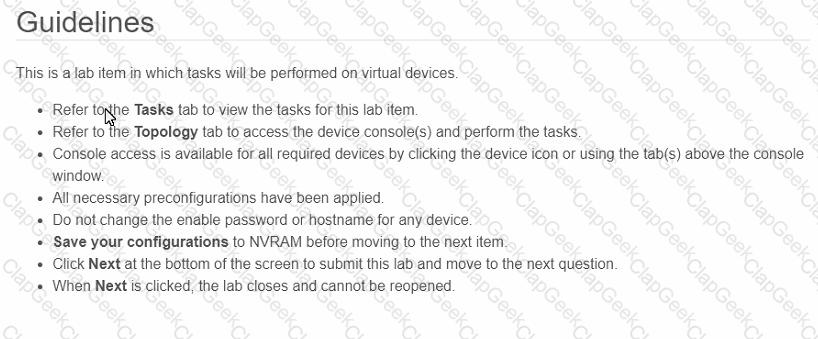

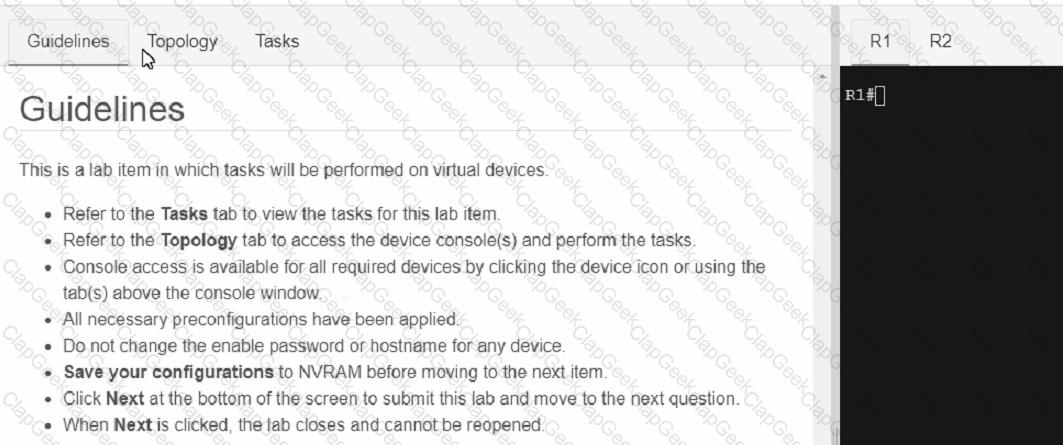

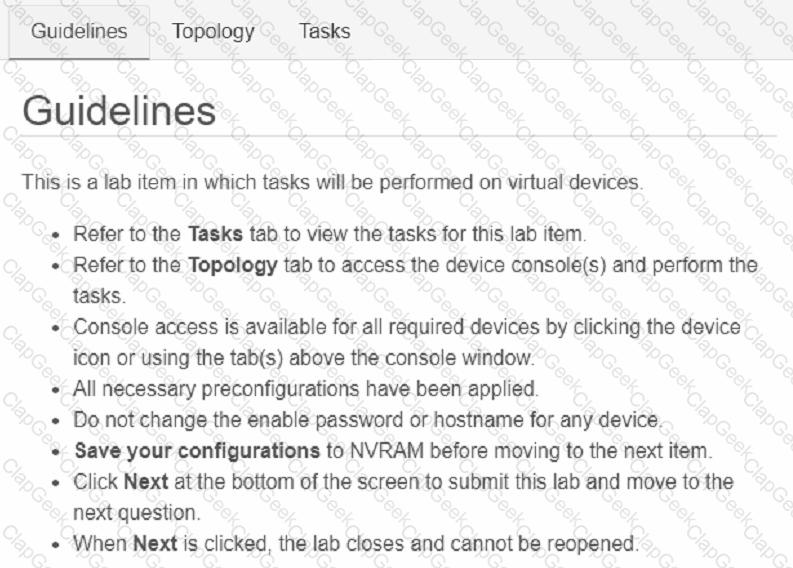

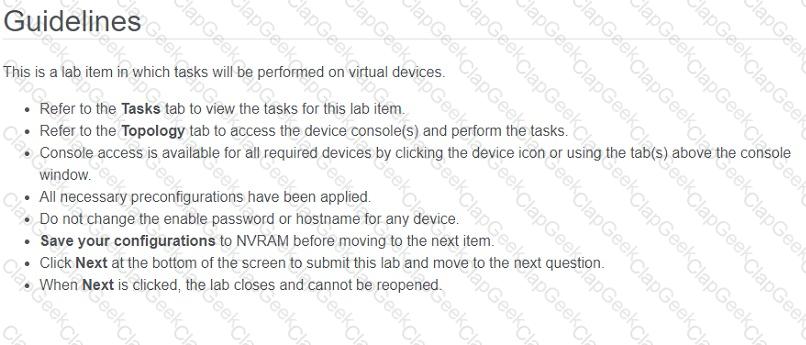

This is a lab item in which tasks will be performed on virtual devices.
• Refer to the Tasks tab to view the tasks for this lab item.
• Refer to the Topology tab to access the device console(s) and perform the tasks.
• Console access is available for all required devices by clicking the device icon or using
the tab(s) above the console window.
• All necessary preconfigurations have been applied.
• Do not change the enable password or hostname for any device.
• Save your configurations to NVRAM before moving to the next item.
• Click Next at the bottom of the screen to submit this lab and move to the next question.
• When Next is clicked, the lab closes and cannot be reopened.

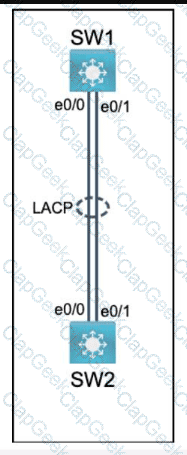

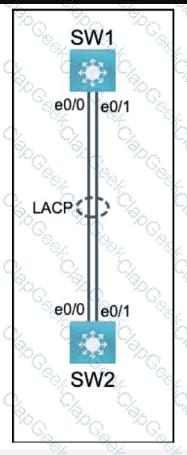

Physical connectivity is implemented between the two Layer 2 switches,
and the network connectivity between them must be configured.
I . Configure an LACP EtherChanneI and number it as 44; configure it
between switches SWI and SW2 using interfaces EthernetO/O and
Ethernet0/1 on both sides. The LACP mode must match on both ends.
2. Configure the EtherChanneI as a trunk link.
3. Configure the trunk link with 802. Iq tags.
4. Configure VLAN 'MONITORING' as the untagged VLAN of the
EtherChannel.
==================
Guidelines
This is a lab item in which tasks will be performed on virtual devices.
• Refer to the Tasks tab to view the tasks for this lab item.
• Refer to the Topology tab to access the device console(s) and perform the tasks.
• Console access is available for all required devices by clicking the device icon or using
the tab(s) above the console window.
• All necessary preconfigurations have been applied.
• Do not change the enable password or hostname for any device.
• Save your configurations to NVRAM before moving to the next item.
• Click Next at the bottom of the screen to submit this lab and move to the next question.
• When Next is clicked, the lab closes and cannot be reopened.

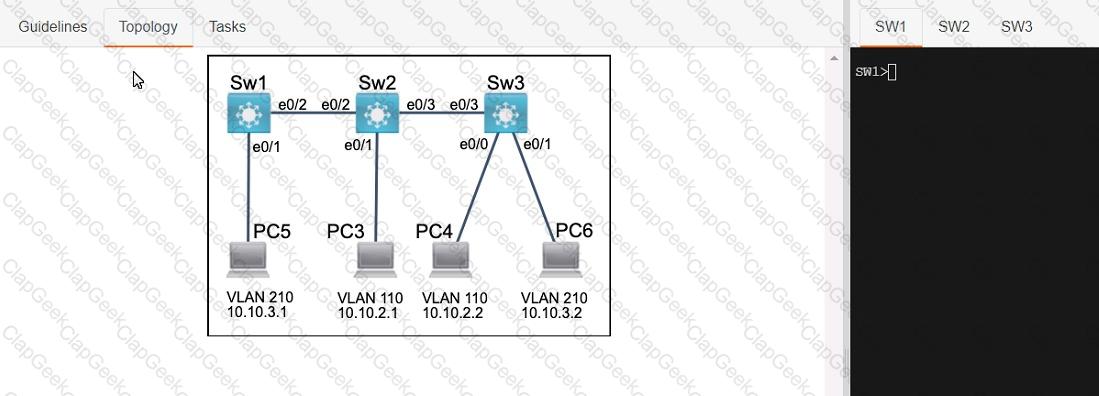

Three switches must be configured for Layer 2 connectivity. The company requires only the designated VLANs to be configured on their respective switches and permitted accross any links between switches for security purposes. Do not modify or delete VTP configurations.
The network needs two user-defined VLANs configured:
VLAN 110: MARKETING
VLAN 210: FINANCE
1. Configure the VLANs on the designated switches and assign them as access ports to the interfaces connected to the PCs.
2. Configure the e0/2 interfaces on Sw1 and Sw2 as 802.1q trunks with only the required VLANs permitted.
3. Configure the e0/3 interfaces on Sw2 and Sw3 as 802.1q trunks with only the required VLANs permitted.
Connectivity between three routers has been established, and IP services must be configured jn the order presented to complete the implementation Tasks assigned include configuration of NAT, NTP, DHCP, and SSH services.
1. All traffic sent from R3 to the R1 Loopback address must be configured for NAT on R2. All source addresses must be translated from R3 to the IP address of Ethernet0/0 on R2, while using only a standard access list named NAT To verify, a ping must be successful to the R1 Loopback address sourced from R3. Do not use NVI NAT configuration.
2. Configure R1 as an NTP server and R2 as a client, not as a peer, using the IP address of the R1 Ethernet0/2 interface. Set the clock on the NTP server for midnight on January 1, 2019.
3. Configure R1 as a DHCP server for the network 10.1.3.0/24 in a pool named TEST. Using a single command, exclude addresses 1-10 from the range. Interface Ethernet0/2 on R3 must be issued the IP address of 10.1.3.11 via DHCP.
4. Configure SSH connectivity from R1 to R3, while excluding access via other remote connection protocols. Access for user root and password Cisco must be set on router R3 using RSA and 1024 bits. Verify connectivity using an SSH session from router R1 using a destination address of 10.1.3.11. Do NOT modify console access or line numbers to accomplish this task.

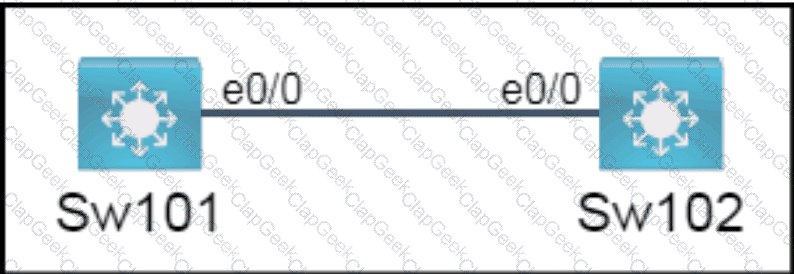

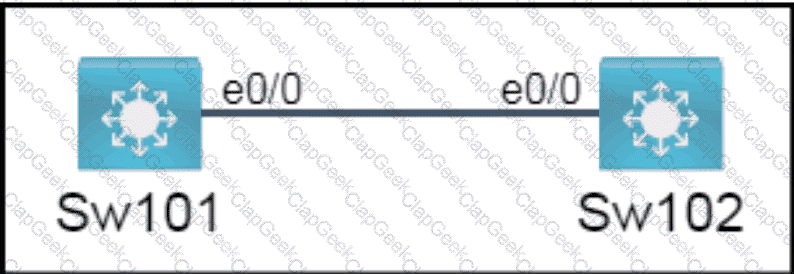

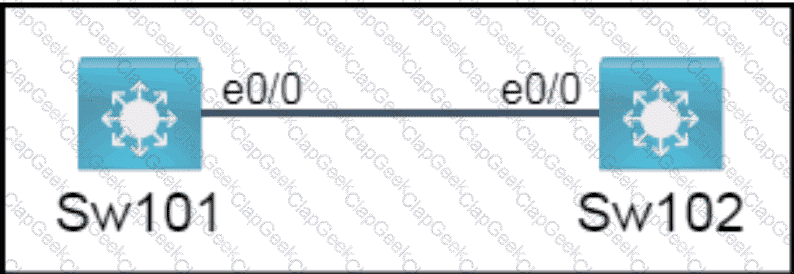

All physical cabling is in place. A company plans to deploy 32 new sites.
The sites will utilize both IPv4 and IPv6 networks.
1 . Subnet 172.25.0.0/16 to meet the subnet requirements and maximize
the number of hosts
Using the second subnet
• Assign the first usable IP address to e0/0 on Sw1O1
• Assign the last usable IP address to e0/0 on Sw102
2. Subnet to meet the subnet requirements and maximize
the number of hosts
c Using the second subnet
• Assign an IPv6 GUA using a unique 64-Bit interface identifier
on e0/0 on Sw101
• Assign an IPv6 GUA using a unique 64-Bit interface identifier
on eO/O on swi02
Guidelines

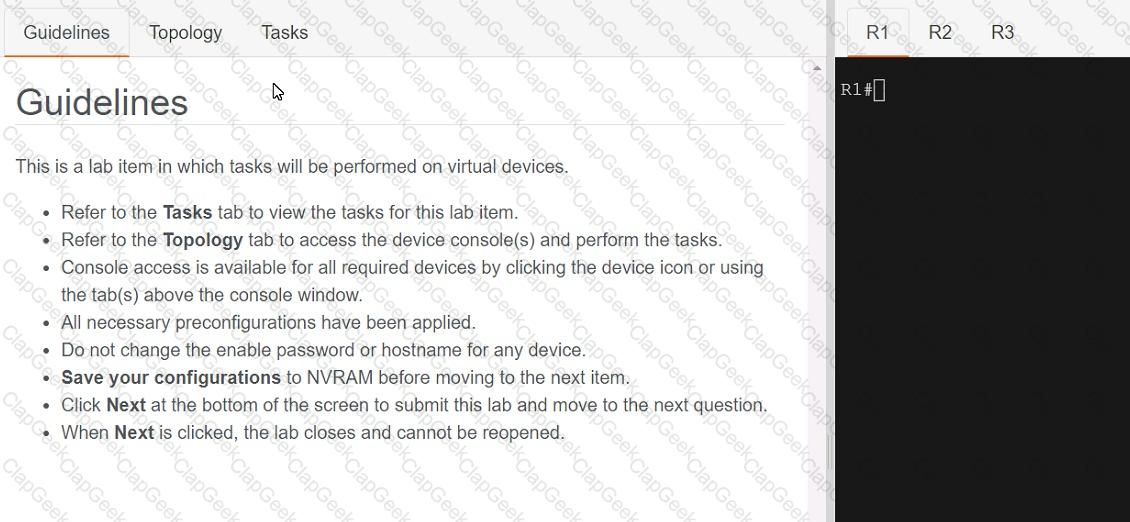

This is a lab item in which tasks will be performed on virtual devices.
• Refer to the Tasks tab to view the tasks for this lab item.
• Refer to the Topology tab to access the device console(s) and perform the tasks.
• Console access is available for all required devices by clicking the device icon or using
the tab(s) above the console window.
• All necessary preconfigurations have been applied.
• Do not change the enable password or hostname for any device.
• Save your configurations to NVRAM before moving to the next item.
• Click Next at the bottom of the screen to submit this lab and move to the next question.
• When Next is clicked, the lab closes and cannot be reopened.

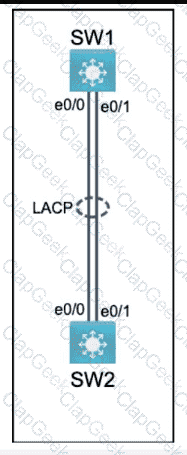

Physical connectivity is implemented between the two Layer 2 switches, and the network connectivity between them must be configured
1. Configure an LACP EtherChannel and number it as 1; configure it between switches SW1 and SVV2 using interfaces Ethernet0/0 and Ethernet0/1 on both sides. The LACP mode must match on both ends
2 Configure the EtherChannel as a trunk link.
3. Configure the trunk link with 802.1 q tags.
4. Configure the native VLAN of the EtherChannel as VLAN 15.
TESTED 16 Jun 2025
