1Y0-205 Citrix Virtual Apps and Desktops 7 Administration (CCA-V) Questions and Answers

 According to the Access Control Lists documentation, the add ns acl command is used to create an extended ACL that can filter packets based on various parameters, such as source IP address, source port, action, and protocol. An extended ACL can define the conditions that a packet must satisfy for the Citrix ADC to process the packet, bridge the packet, or drop the packet. Therefore, to bridge traffic originating from 192.168.10.200, a Citrix Administrator can use the following command:

add ns acl bridge_192.168.10.200 BRIDGE -srcIP 192.168.10.200

This command creates an extended ACL named bridge_192.168.10.200 with the action BRIDGE and the source IP address 192.168.10.200. Any packet that matches these conditions will be bridged to the destination without processing by the Citrix ADC.

 The nsconmsg tool can be used to display the policy bound hits on a Citrix ADC appliance. This tool can show the number of times a policy was evaluated and the number of times it was hit. The nsconmsg tool can also display other statistics and information about the Citrix ADC configuration and performance1

1: Citrix ADC Command Reference

Citrix Director provides a feature under the Trends section where administrators can configure and review application faults. This allows them to monitor and analyze applications that have crashed, helping to identify patterns or recurring issues.

According to the Proxy modes | Citrix Secure Web Gateway 12.1 - NetScaler document, to configure a Content Switching virtual server for implementing the Citrix Secure Web Gateway in the transparent proxy mode, the command should be:

add cs vserver < name > PROXY < ipaddress > < port >

The document also provides an example of the command:

add cs vserver swgVS PROXY 192.168.10.1 80

Therefore, the correct answer is C, which matches the format and the example given in the document. The other options are incorrect because they either use asterisks (*) instead of an IP address, or they do not specify a port number.

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration guide1, the HDX Printer properties retention policy has four possible settings:

Held in profile only if NOT saved on client: This is the default setting. The printer properties are held in the user profile only if they have not been saved on the user device.

Do NOT retain printer properties: The printer properties are not retained at all. The user must configure them for each session.

Saved on the client device only: The printer properties are saved on the user device only. The user profile does not store them.

Retained in user profile only: The printer properties are retained in the user profile only. The user device does not store them.

In this scenario, the administrator wants the users to maintain the different printer property settings for their HDX sessions. Since the users are using mandatory profiles, which are read-only and do not save any changes, the administrator should use the Retained in user profile only setting. This way, the printer properties are stored in the user profile and applied to the HDX sessions. The user device does not need to save them. This setting is suitable for environments where mandatory profiles are being used.

 According to the Citrix documentation1, HA monitoring should be enabled only on interfaces that are UP on both nodes. If HA monitoring is enabled on a disabled interface of the primary node, the secondary node will not be able to receive heartbeats from the primary node and will not initiate a failover.

Typically, Citrix Director is used for monitoring and managing user sessions, including machine sessions and application instances. The “Filters” option allows administrators to view and manage specific sessions, which aligns with the scenario described.

Citrix Cloud Connector requires the machine to be joined to a domain as part of its prerequisites for installation. If the machine is not domain-joined, it could prevent the Cloud Connector from installing properly. This is because Cloud Connector needs to communicate with Citrix Cloud services and typically relies on domain credentials for authentication and other functions within a domain environment.

In Citrix Virtual Apps and Desktops, administrators can use tag restrictions to specify which machines within a Delivery Group are affected by certain power management actions. By applying tags to a subset of machines, the administrator can ensure that only those tagged machines are restarted daily during non-peak hours, while the rest follow the weekly restart schedule.

The Citrix Diagnostic Toolkit is a rapid deployment platform that delivers a suite of tools and automation options in an easy to use structured format that closely resembles the look and feel of any standard Windows application, even though each tool is an independent standalone application. The easy to use built in menus and shortcuts allow you to quickly and effectively configure multi-vector data collection and integrate third party tools for more robust and comprehensive debugging sessions1.

1: Citrix Diagnostics Toolkit - 64bit Edition

 According to the Policies page of Citrix Virtual Apps and Desktops 7 2308 documentation, Classic policies are a collection of settings that define how sessions, bandwidth, and security are managed for a group of users, devices, or connection types. You can apply policy settings to physical and virtual machines or to users. Classic policies can be filtered by various criteria, such as HTTP, IP, and TCP. These are the only options allowed when using Classic policies. Other options, such as CLIENT, SERVER, and DNS, are not valid filters for Classic policies.

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration guide, the expression CLIENT.SSL.CLIENT_CERT.VALID_NOT_AFTER.EQ(GMT2020) checks whether the client certificate is valid until the specified date (GMT2020). The other expressions are either incorrect or irrelevant for this requirement.

 To ensure the line-of-business application is added to Favorites and users cannot remove it, the Citrix Administrator should add the phrase “KEYWORDS: Mandatory” to the application properties3.

A tag restriction limits application launches to machines carrying a specified tag within the Delivery Groups associated with an Application Group. The administrator creates a tag, applies it to the required VDAs, and enables Restrict launches to machines with the tag in the Application Group configuration. The Broker service then considers only those tagged machines when selecting a VDA for the application launch. Limit Visibility determines which users can see an application; it does not restrict the eligible machines. Session Sharing controls whether applications use an existing session. Application Lingering keeps a session active after the final application closes, while Application Prelaunch establishes a session before an application is requested. Citrix documents this machine-selection mechanism under tag restrictions .

Study Guide Reference: Published App and Desktop Presentation and Management — Application Groups, machine tags, and restricted launches. QUESTION NO: 12

Which feature allows users to add and remove applications from the Start menu on the client workstation?

A. Self-service mode

B. File-type association

C. Local App Access

D. Session Reliability

Answer: A

Self-service mode provides the Citrix Workspace app user interface through which users can subscribe to or unsubscribe from applications. When Start-menu integration is configured, subscribing adds the corresponding application shortcut, while unsubscribing removes it. Administrators can modify this behavior through mandatory and auto-provisioned application keywords; mandatory applications cannot be removed by users. File-type association connects particular file extensions with published applications but does not manage application subscriptions. Local App Access integrates locally installed applications with a hosted desktop. Session Reliability preserves an active HDX session during a temporary network interruption. Citrix distinguishes self-service mode from shortcuts-only mode, where the Workspace app interface is disabled and administrators control the available shortcuts. The user-selectable Start-menu behavior is confirmed in Citrix’s official application-delivery documentation .

Study Guide Reference: Citrix Workspace App Deployment — self-service mode, subscriptions, and application shortcuts. QUESTION NO: 13

Scenario: A Citrix Administrator maintains a Citrix Virtual Apps and Desktops Site with five published Server OS Virtual Delivery Agent (VDA) machines that host desktops for users. Each Server OS VDA maintains a single VDA-attached printer that users print to from their laptop or thin-client devices. The VDA machines have limited available resources. Recently, demand on these VDA-attached printers has increased because more users are accessing the published desktops. What should the administrator do to accommodate the increased demand on the VDA-attached printers?

A. Configure a parallel-port print device only for users who require a high volume of printing.

B. Configure a mapped Session Printers policy for a network printer within the domain.

C. Increase memory and CPU resources on each Server OS VDA to provide more resources for printing.

D. Add several more VDA-attached printer objects to each Server OS VDA machine.

Answer: B

VDA-attached printers consume VDA spooler, processor, and memory resources and are difficult to maintain consistently across multiple multi-session machines. A mapped network printer transfers queue and print-processing responsibilities to a centralized print server. The administrator can use the Session Printers policy to map the appropriate network printer into user sessions and filter the policy by user, group, subnet, or endpoint name. Adding more local printer objects would increase VDA resource usage and driver-management complexity. Increasing CPU and memory could temporarily reduce pressure but would preserve an inefficient architecture across all five VDAs. A parallel-port device is not a scalable multi-session solution. Citrix documents that network printers can be created through the Session Printers setting and that their queues normally route directly to the print server in printer provisioning .

Study Guide Reference: Managing Printing for User Sessions — VDA-attached printers, mapped printers, and Session Printers policies. QUESTION NO: 14

Scenario: A Citrix Administrator is investigating system instability that causes the Print Spooler service to stop frequently on a Virtual Delivery Agent (VDA) machine. The administrator identifies printer-driver conflicts and needs to remove the problematic drivers while maintaining printing functionality. Which policy setting can the administrator use to resolve this issue on the VDA machine?

A. Use only printer model-specific drivers

B. Use universal printing only if the requested driver is unavailable

C. Automatic installation of in-box printer drivers

D. Auto-create all client printers

Answer: B

The Universal print driver usage policy can substitute a Citrix Universal Print Driver when the requested model-specific driver is unavailable. After the conflicting native drivers are removed, selecting Use universal printing only if the requested driver is unavailable allows affected printers to remain functional through the universal driver. Using only model-specific drivers would prevent printer creation when the removed driver cannot be found. Automatic installation of in-box drivers can introduce additional native drivers and does not provide a controlled solution to third-party driver conflicts. Auto-create all client printers controls which printers appear in the session, not which driver is assigned. Reducing the number of model-specific drivers loaded by the Windows Print Spooler also lowers the potential for driver-induced instability. Citrix confirms this fallback behavior in the Universal print driver usage policy .

Study Guide Reference: Managing Printing for User Sessions — Universal Print Driver selection and printer-driver management. QUESTION NO: 15

A Citrix Administrator has created a Delivery Group containing 50 virtual machines to meet demand for a new set of applications. Because of resource constraints, the server team requires that virtual machines remain powered off unless needed and not be powered on outside normal business hours unless demand requires them. Which feature should the administrator enable?

A. Autoscale

B. Application Delivery Groups

C. Active Write Back

D. Horizontal Load Balancing

Answer: A

Autoscale provides schedule-based and load-based power management for machines in a Delivery Group. The administrator can define normal business hours as peak periods and configure different minimum capacity and buffer values for peak and off-peak periods. Autoscale powers on additional machines when session demand requires more capacity and powers machines off after demand falls and applicable sessions have drained. This satisfies both requirements: unnecessary virtual machines remain off, but machines can still start outside business hours when actual demand requires them. Application Delivery Groups do not provide automated power management. Active Write Back is a Profile Management feature that synchronizes profile changes during an active session. Horizontal Load Balancing is not the Citrix mechanism for schedule-aware machine power control. Citrix describes these capabilities in the official Autoscale documentation .

Study Guide Reference: Managing the Site — Autoscale, peak and off-peak schedules, capacity buffers, and power management. QUESTION NO: 16

Enlightened Data Transport (EDT) is enabled by default in a new Citrix Virtual Apps and Desktops Site. A Citrix Administrator changes the Adaptive Transport policy to Diagnostic mode. Which ports are used for communication between Citrix Workspace app and the Virtual Delivery Agent resource? (Choose two.)

A. TCP 80

B. TCP 2598

C. TCP 1494

D. TCP 1480

E. UDP 1494

Answer: B, E

Diagnostic mode forces Enlightened Data Transport and disables ordinary TCP transport fallback. EDT carries HDX traffic over UDP, with UDP 1494 representing the direct ICA-over-EDT path when Session Reliability is not handling the connection. TCP 2598 is the Common Gateway Protocol port associated with Session Reliability in the course architecture. TCP 1494 represents traditional ICA transport and is not the selected transport path for this diagnostic configuration. TCP 80 is used for services such as Controller communication and resource enumeration, not the HDX data connection between Workspace app and the VDA. TCP 1480 is not a standard Citrix ICA, CGP, or EDT port. Citrix explains Diagnostic mode and the UDP 1494/2598 behavior in its official Adaptive Transport documentation .

Study Guide Reference: Providing Access to App and Desktop Resources — EDT, Adaptive Transport, ICA, and Session Reliability ports. QUESTION NO: 17

Which three functions does NetScaler Gateway provide to allow external users to access internal resources? (Choose three.)

A. Aggregate resources

B. Authenticate users

C. Enumerate resources

D. Allow secure external connections from Citrix Workspace app by operating as a reverse web proxy

E. Allow secure access to internally hosted applications by operating as an HDX proxy

Answer: B, D, E

NetScaler Gateway forms the secure boundary between external endpoints and internal Citrix resources. It can authenticate users through methods such as LDAP, RADIUS, SAML, certificates, or multifactor authentication. It also accepts secure external connections from Citrix Workspace app and proxies the traffic into the internal environment. During application or desktop launches, Gateway operates as an HDX proxy, establishing the protected external connection and forwarding ICA/HDX traffic to the selected VDA without exposing internal VDA addresses. Resource enumeration and aggregation are StoreFront responsibilities. StoreFront contacts Delivery Controllers, obtains the resources assigned to the authenticated user, and presents the resulting application and desktop list. Gateway transports these requests but does not perform the underlying broker-resource enumeration. Citrix documents Gateway authentication and secure single-URL access in the official NetScaler Gateway documentation .

Study Guide Reference: Providing Access to App and Desktop Resources — Gateway authentication, reverse proxy, HDX proxy, and StoreFront functions. QUESTION NO: 18

Scenario: A Citrix Administrator is using Citrix Director to monitor CPU and memory resource utilization on machines running the Virtual Delivery Agent (VDA). What level of data granularity can be retained for these metrics for up to 90 days?

A. Data at five-minute intervals

B. Daily data

C. Hourly data

D. Data at ten-minute intervals

Answer: B

Citrix progressively consolidates CPU and memory utilization information as monitoring data ages. Under the documented retention schedule, five-minute data is retained for one day, ten-minute data for seven days, hourly data for 30 days, and daily data for 90 days. Therefore, only daily granularity remains available across the complete 90-day period. This summarization limits Monitoring database growth while preserving sufficient information for long-term capacity and utilization analysis. It also means that a brief processor or memory spike visible in recent five-minute data can be averaged into a broader value after the high-resolution records are groomed. Administrators can modify retention settings through Monitoring configuration, but retaining more detailed data for longer periods increases database-storage requirements. The official retention table appears in Citrix’s Monitoring policy settings .

Study Guide Reference: Monitoring the Site — resource monitoring, data granularity, retention, and database grooming. QUESTION NO: 19

Which option is not a key feature of a Citrix Virtual Apps and Desktops Current Release (CR)?

A. It provides quick delivery of new features.

B. It provides Cumulative Updates.

C. It provides faster delivery of enhancement requests.

D. It provides rapid release cycles and more opportunities for enhancements.

Answer: B

Cumulative Updates are associated with the Long Term Service Release servicing model. An LTSR establishes a stable baseline and receives periodic Cumulative Updates containing eligible fixes while maintaining extended compatibility and support. Current Releases follow a faster product lifecycle and are intended to deliver new features, platform support, improvements, and enhancement requests more quickly. A Current Release deployment is normally maintained by upgrading to a newer Current Release rather than waiting for an LTSR-style Cumulative Update. Options A, C, and D accurately describe the accelerated innovation and release objectives of the Current Release channel. Option B describes the maintenance mechanism used for LTSR environments and is therefore not a defining Current Release feature. Citrix distinguishes the servicing models in its official Long Term Service Release guidance .

 Featured App Groups in Citrix Virtual Apps and Desktops can be created based on Application names, Keywords, and Application categories. This allows administrators to organize and highlight applications for users based on these criteria

 The Citrix Health Assistant is a tool designed to troubleshoot and resolve common issues with Virtual Delivery Agent (VDA) registration, including event ID 1022.

According to the Citrix documentation1, when user subscriptions are disabled for a store (Mandatory Store), the following behaviors occur:

Users cannot subscribe to applications from the store. All the applications in the store are automatically subscribed to each user and appear in Citrix Workspace app.

Users cannot remove applications from Citrix Workspace app on the Favorites screen.

Users can organize their applications into folders using the Citrix Workspace app desktop.

Applications are placed in the Start menu or the Applications folder on the user’s device, depending on the Citrix Workspace app version and operating system.

Therefore, the correct answer is B and D.

1: Configure user access

According to the Citrix documentation, the command bind cs vserver MYVPN_http -lbvserver Vserver-CS-1 binds a load balancing virtual server to a content switching virtual server. This means that the content switching virtual server will forward the requests that match its policies to the load balancing virtual server. In this case, the content switching virtual server MYVPN_http has a policy that matches requests for http://server.citrix.lab, so it will forward those requests to the load balancing virtual server Vserver-CS-1. Therefore, the users trying to access http://server.citrix.lab will be connected to the Vserver MYVPN_http, which will then connect them to Vserver-CS-1.

The Citrix Workspace Control settings can be modified in the StoreFront console to enable or disable the automatic reconnection of applications and desktops as users move between devices1. This feature is not available in Citrix Studio, Group Policy, or Citrix Workspace app.

 The Secure Ticket Authority (STA) server locations must be configured on the Citrix Gateway and StoreFront to facilitate secure external access. The Citrix Gateway uses STA to validate session requests and the StoreFront communicates with the STA to manage user sessions securely.

Citrix Virtual Apps and Desktops support several high availability solutions for on-premises deployments, including Always On Availability Groups, SQL Server database mirroring, and SQL clustering. These features ensure automatic failover and continuous operation1

The Get-BrokerSite PowerShell command retrieves information about the site, including the name of the deployment, the local host cache configuration, and the license level. This command is part of the Citrix Virtual Apps and Desktops 7 Administration toolkit and is used to manage various aspects of the site configuration.

The architecture Layer is the following:

User: represent the endpoints

Access: represent the storefront and Citrix Gateway

Control: represent the delivery controller, database, studio, license, director

Resources: represent the VDAs

Host: represent the hardware, fiscal server, storage, network, etc.

Page 33, 34 and 35from the hand book: https://docs.citrix.com/en-us/xenapp-and-xendesktop/7-15-ltsr/downloads/handbook-715-ltsr.pdf

According to the Citrix documentation1, the Least Response Time method uses the response time of the monitor probes to determine the best service. However, this method requires that a monitor is bound to each service and that the monitor response times are recorded. Therefore, the virtual server uses the Round Robin method until each bound service has been probed by the monitor at least once. This mode is called startup round robin mode2.

Citrix Workspace app includes an Auto-Update feature that automatically checks for and installs new versions. However, Citrix documentation states:

Auto-update only functions correctly when the Workspace app is installed with administrative privileges.

Deployments through enterprise software distribution tools (such as SCCM) ensure the app is installed in the correct system context to enable auto-updates.

Methods where the user installs the Workspace app manually or through StoreFront may install it in user context, which disables auto-updates.

Therefore, to guarantee:

✔ Full feature support

✔ Automatic updates

✔ No GPO configuration

✔ No user interaction

The Workspace app should be deployed using System Center Configuration Manager (SCCM), which installs the application at the machine level.

Why the other options are incorrect:

A. Workspace for Web:Browser-only access does not support full-feature Workspace capabilities.

B. Download via StoreFront:This results in a user-context installation, which disables auto-updates.

D. Network file share installation:Again, this leads to user-context installation and prevents auto-updates.

Documentation References

Citrix Workspace App Administration Guide → Auto-Update Requirements

Enterprise Deployment Guide for Citrix Workspace App

SCCM Deployment Practices for Machine-Level Installation

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration course, team members who have access to their own admin partitions do NOT have Shell access by design. Shell access is only available for the default partition. Therefore, the team member cannot use aaad.debug or any other Shell commands from the CLI1

1: Manage | Citrix Virtual Apps and Desktops 7 2308

Application Lingering allows applications to stay open for a configurable amount of time after a user closes them, which can reduce application launch times in subsequent sessions.

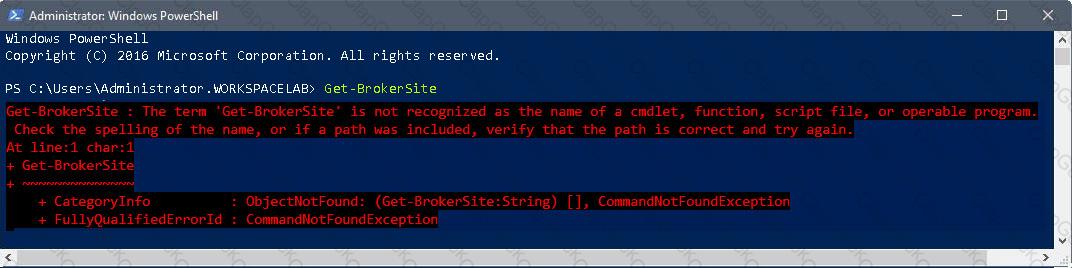

The administrator received this error because they did not run the Add-PSSnapin Citrix* command before running the Get-BrokerSite PowerShell command. This is required to load the Citrix PowerShell snap-ins.

A SSL profile is a collection of SSL settings that define the SSL behavior of a virtual server. A Citrix Administrator can use SSL profiles to apply the same SSL settings to multiple SSL virtual servers, which simplifies the configuration and management of SSL parameters1.

1: SSL Profiles

Citrix XML Service Trust is a security setting that determines whether StoreFront trusts communication from Delivery Controllers. Citrix documentation states that this trust must be enabled when authentication relies on credentials that must be securely forwarded or delegated through StoreFront and Delivery Controllers.

The authentication features that require XML Service Trust to be enabled are:

✔ A. Pass-through Authentication

This method allows the user’s Windows credentials to be automatically passed from the endpoint to StoreFront and then to Delivery Controllers.

This process requires StoreFront to trust the Delivery Controllers for credential delegation.

✔ D. Pass-through from NetScaler Gateway

When Gateway authenticates the user and passes credentials or tokens to StoreFront, StoreFront must trust the XML service on the Delivery Controllers to validate user identity securely.

✔ E. Smart Card Authentication

Smart card credentials contain certificate-based identities that StoreFront must securely trust and forward to the Delivery Controllers. This requires XML trust between components.

Why the other options are incorrect:

B. Smart AccessSmartAccess is a Citrix Gateway feature based on SmartControl policies and does not rely on XML service trust.

C. HTTP BasicThis uses direct credential submission; it does not require XML trust.

Documentation References

StoreFront Authentication and XML Trust Requirements

Citrix Delivery Controller XML Communication Security

Citrix Virtual Apps and Desktops Authentication Methods Overview

https://docs.citrix.com/en-us/tech-zone/design/reference-architectures/image-management.html#:~:text=Differencing%20Disk%3A%20A%20unique%20Difference,the%20base%20VM%20as%20required.

 Profile streaming ensures that only the files and folders that a user needs are downloaded to the VDA during logon and logoff. This reduces logon and logoff times and allows users to access their profiles in the event of network interruptions or VDA failures1

1: https://docs.citrix.com/en-us/profile-management/current-release/configure/profile-streaming.html

Citrix Profile Management includes two key filtering policies that determine which users CPM will apply to:

Processed Groups — Only users in these groups will have their profiles managed by CPM.

Excluded Groups — Users in these groups will never be processed by CPM, even if they appear in Processed Groups.

Citrix documentation states:

If Processed Groups is enabled, only the groups listed are processed.

If a user belongs to an Excluded Group, CPM is disabled for that user regardless of other group memberships.

Users not listed in either policy will not be processed by CPM when Processed Groups is enabled.

Given the policy configuration:

✔ Product Marketing Team (Processed Group)

Members are processed.

✔ Human Resources Team (Not listed anywhere)

Since Processed Groups is enabled, HR members are not processed.→ Matches Answer C

✔ IT Team (Excluded Group)

Explicitly excluded.→ Not processed.

✔ Professional Sales Team (Excluded Group)

Explicitly excluded.→ Matches Answer D

Other options incorrectly contradict Citrix Profile Management logic.

Documentation References (no URLs)

Citrix Profile Management Administrator ' s Guide → “Processed Groups”

Citrix Profile Management Policy Reference → “Excluded Groups”

Citrix Profile Management GPO-Based Configuration Overview

The Logon Performance report in Citrix Director provides insights into the various stages of the logon process and can help identify which stage is causing the delay. It includes details such as Brokering, VM Start, HDX Connection, Authentication, and Interactive Session times, allowing administrators to pinpoint the bottleneck in the logon process.

VDA registration can be configured using:

Group Policy Object (GPO): Policy-based configuration using LGPO or GPO.

Organizational Unit (OU) based Controller discovery: Legacy OU discovery method.

MCS-based PERSONALITY.INI: Using the personality.ini file for MCS-based deployments.

These methods ensure that the VDA has accurate and current Controller or Cloud Connector information as Controllers are added, moved, and removed in the site1.

Option B is the correct answer because it uses the DROP action to block access to the URLs that match the BAD_URL pattern set. The other options use the RESET action, which only resets the connection but does not prevent access. Also, option C has a typo in the bind responder global command, which would cause an error. Option D has an invalid type argument for the bind responder global command, which should be DNS_REQ_OVERRIDE instead of DNS_REQ. For more information, see the following resources:

Manage | Citrix Virtual Apps and Desktops 7 2308

Applications | Citrix Virtual Apps and Desktops 7 2308

Citrix Virtual Apps and Desktops 7 Deployment and Administration (CWS …

CWS-215: Citrix Virtual Apps and Desktops 7 Deployment and …

EDUCATION CWS-215: Citrix Virtual Apps and Desktops 7 Administration On …

Machine Creation Services (MCS) is suitable for deploying a large number of virtual desktops with low impact on network infrastructure. MCS allows for user-installed applications and persistency by using differencing disks and personal vDisks.

ttps://support.citrix.com/article/CTX239687/vda-registration-fails-when-a-vda-versions-functional-level-is-lower-than-its-machine-catalogs-minimum-functional-level

Option A is correct because if the VDA machine is not registered with the Site where the Citrix policy was configured, it will not receive the policy settings from the Site database. The VDA machine must register with a Delivery Controller in the Site to apply the Citrix policies1

Option B is correct because the Unfiltered policy is applied to all objects in the Site by default, and it has the lowest priority. If the Unfiltered policy contains settings that conflict with the Citrix policy configured by the administrator, the Unfiltered policy settings will override the administrator’s policy settings. The administrator can either disable the Unfiltered policy or change its priority to avoid this issue2

Option D is correct because if the VDA machine is not able to communicate with the Site database, it will not be able to retrieve the latest Citrix policy settings from the database. The VDA machine relies on the Delivery Controller to communicate with the Site database and apply the Citrix policies3

According to the Citrix documentation1, burst capacity allows an instance to use more bandwidth than its dedicated bandwidth when there is spare bandwidth available on the SDX appliance. The priority parameter determines which instance gets the spare bandwidth first. A higher priority value indicates a higher priority. Therefore, the administrator can configure burst capacity of 1GB with priority 10 on the instance that requires more bandwidth, to meet traffic requirements.

1: Citrix Virtual Apps and Desktops 7 Deployment and Administration - Configure burst capacity

Comprehensive and Detailed Explanation

(Paraphrased — Citrix-Accurate)

Citrix provides a feature called Browser Content Redirection (BCR), which allows web content to be offloaded from the VDA to the endpoint device. This includes HTML5 content, videos, and general web rendering tasks.

Key points about BCR from Citrix documentation:

Web pages render directly on the client, not inside the VDA session

This reduces CPU and GPU load on the VDA

Improves performance for video-heavy or media-rich websites

Enhances scalability for multi-user server OS environments

Works with supported browsers (e.g., Chrome, Edge) with Citrix policies enabled

Therefore, BCR is the correct feature when the administrator wants rendering to occur locally on the client machine rather than on the server.

Why the other options are incorrect:

A. Microsoft Teams OptimizationOnly optimizes Teams audio/video meetings — not general web or video content.

B. Enlightened Data Transport (EDT)Optimizes ICA transport protocol, not browser rendering.

D. Citrix OptimizerA tool for tuning OS images; does not handle content redirection.

Documentation References

Citrix Virtual Apps and Desktops Policy Settings → Browser Content Redirection

Citrix Workspace App Documentation → Client-Side Rendering Features

HDX Optimization Features Guide → BCR Overview

 According to the Citrix documentation1, nslog is a log that records detailed information such as statistics, metrics and debug information on the Citrix ADC in a proprietary binary format. Nstrace is a log that captures network traffic on the Citrix ADC in a standard pcap format. Syslog is a log that records system events and messages on the Citrix ADC in a standard text format. Nsconfig is a file that contains the configuration settings of the Citrix ADC.

According to the Citrix Virtual Apps and Desktops 7 Deployment and Administration course description12, one of the objectives is to “Configure Citrix ADC to monitor and report on the health of your environment”. The course also covers how to use Citrix Application Delivery Management to monitor and manage multiple Citrix ADC instances. According to the Citrix documentation3, Network Reporting on Citrix Application Delivery Management allows you to generate reports based on various metrics and events collected from the Citrix ADC instances. You can also configure thresholds and alerts for the reports, and specify the email addresses to receive the notifications. Therefore, the correct answer is D.

Citrix Studio is the management console that allows administrators to provide customized permissions, including adding applications to junior administrators1.

According to the Citrix Cloud documentation, when migrating existing VDAs to Citrix Cloud, the administrator must update the VDA software on the master image to communicate with the Cloud Connectors. This ensures that the VDAs can register with the Delivery Controllers in Citrix Cloud. If the VDA software is not updated, the VDAs will not be able to register with Citrix Cloud. Therefore, option A is the correct answer. The other options are not relevant to the registration issue.

According to the Default policy settings document for Citrix Virtual Apps and Desktops 7 2308, the default compression policies are stored in the site database and are applied to the VDAs when they register with the broker or when a user connects to them. To use the default compression policies, a Citrix administrator needs to bind them to the virtual server that handles the ICA traffic. This can be done using the Web Studio console or the Local Group Policy Editor. The other options are not related to the default compression policies.

 According to the Citrix documentation2, the SDX platform is a multi-tenant appliance that supports multiple Citrix ADC instances. Each instance is fully isolated and has its own dedicated resources. The SDX platform allows administrators to create, manage, and monitor multiple instances from a single management interface.

 The administrator should negate the expression of the Responder policy to avoid the HTTP callout recursion issue. According to the Citrix documentation, “If you configure an HTTP callout policy that is bound globally, you must ensure that the policy expression does not match the callout request. Otherwise, the callout request will trigger the policy, resulting in a callout recursion.” The expression in option B ensures that the policy does not match the callout request by adding the NOT operator at the end.

https://docs.citrix.com/en-us/citrix-adc/13/appexpert/http-callout/http-callout-policy.html

 The Dashboard view in Citrix Director provides a real-time graphical representation of the health and usage of the site, including the database services, the license server, and any hypervisor-hosting connections12

1: Director - Citrix Product Documentation 2: Director Dashboard Explained - Citrix Blogs

Microsoft Azure and Amazon Web Services provide public-cloud infrastructure supported by Citrix Machine Creation Services. The cloud provider manages the physical datacenter, compute hardware, storage platform, networking infrastructure, and hypervisor maintenance. The Citrix administrator retains administrative control of the workload layer, including master images, installed applications, VDA configuration, machine catalogs, Delivery Groups, and Citrix policies. This shared-responsibility model reduces infrastructure maintenance while preserving control of the VDA machines. Nutanix Acropolis, Microsoft Hyper-V, and XenServer are commonly deployed as customer-managed virtualization platforms, which normally require the organization to maintain hosts, storage, capacity, and hypervisor updates. Citrix officially documents the creation and power management of VDA catalogs on both Microsoft Azure and AWS EC2 .

Study Guide Reference: Architecture Overview — delivery models, hosting platforms, resource locations, and administrative responsibilities. QUESTION NO: 2

Which three core services are required for a FlexCast Management Architecture (FMA) Site to run optimally? (Choose three.)

A. Central Configuration service

B. Delegated Administration service

C. Machine Creation service

D. Telemetry service

E. Configuration Logging service

Answer: A, B, E

The Central Configuration service maintains service-registration and endpoint information, allowing independently operating FMA services to discover and communicate with one another. The Delegated Administration service enforces role-based permissions and scopes for operations performed through Studio or PowerShell. The Configuration Logging service records administrative changes, creating the audit trail required to identify who changed the Site configuration, what was changed, and when the action occurred. Citrix enables configuration logging by default. Machine Creation Services is necessary when MCS is the selected provisioning technology, but a Site can instead use manually provisioned machines or Citrix Provisioning; it is therefore not a universal core requirement. Telemetry collects diagnostic and usage information but is not an operational dependency. Official references include Delegated Administration and Configuration Logging .

Study Guide Reference: Architecture Overview — FMA services, service registration, delegated administration, and configuration auditing. QUESTION NO: 3

A Citrix Administrator is setting up a master image to be used with Machine Creation Services. The administrator wants to reduce the number of IOPS generated per virtual machine. What must be installed during VDA installation to help achieve this?

A. Citrix Workspace app

B. VDA Upgrade Agent

C. Citrix MCS I/O Driver

D. Citrix Profile Management WMI Plug-in

Answer: C

The Citrix MCS I/O Driver enables Machine Creation Services storage optimization, also called MCSIO or write-back cache. It improves VDA storage performance by caching disk operations in memory and, when configured, on a small temporary high-speed disk. This reduces write activity against the primary OS disk and shared storage infrastructure. The driver must be installed in the master image during VDA installation or upgrade so that every provisioned machine inherits the required guest component. Citrix Workspace app is an endpoint client and does not optimize VDA storage. The VDA Upgrade Agent manages VDA upgrade workflows, while the Profile Management WMI Plug-in exposes profile-related information and does not provide disk caching. Citrix explicitly states that the MCSIO driver must be selected during VDA preparation and is not installed by default in the documented MCSIO catalog workflow .

Study Guide Reference: The Apps and Desktops Images — master-image preparation and MCS storage optimization. QUESTION NO: 4

A Virtual Delivery Agent (VDA) is unable to register with the Delivery Controller. Which three factors could be causing this issue? (Choose three.)

A. Incorrectly configured Citrix policy in Active Directory

B. Citrix ICA service not running

C. Time differences between VDA-enabled machines and the domain controller

D. Incorrectly configured reverse DNS lookups in a forest

E. Improperly configured firewalls

Answer: A, C, E

A Citrix policy can provide the VDA’s Controller list through the Controllers setting. Incorrect addresses or an improperly applied Group Policy can therefore prevent the VDA from discovering an eligible Delivery Controller. Registration uses Kerberos mutual authentication, making accurate time synchronization between VDAs, Controllers, and domain controllers essential. Firewalls can also prevent registration by blocking the required bidirectional communication. The Citrix ICA service is not the component responsible for Controller registration; registration is performed by the Citrix Desktop Service, also called the Broker Agent. Reverse DNS lookup zones are not an inherent VDA-registration requirement when forward DNS resolution and Controller discovery are operating correctly. Citrix’s official VDA registration documentation confirms the importance of ListOfDDCs configuration, Kerberos, domain membership, time synchronization, and Controller connectivity.

Study Guide Reference: Supporting and Troubleshooting Citrix Virtual Apps and Desktops — VDA registration, Controller discovery, Kerberos, and network communication. QUESTION NO: 5

A Citrix Administrator needs to update a master image for random, non-persistent desktops based on Machine Creation Services (MCS). Which consequence must the administrator consider when updating the master image?

A. A full new vDisk will be created.

B. A new, full copy from the snapshot will be created.

C. The differencing disks will be merged.

D. A new Personal vDisk will be created.

Answer: B

When an MCS catalog is updated, the administrator selects a new master-image snapshot. MCS prepares a new read-only base image from that snapshot and makes the required full image copy available to the catalog’s storage resources. Non-persistent machines are subsequently associated with the new image during the configured rollout. Existing differencing disks are not merged into the new base image; temporary machine changes are discarded when the machines are reset or updated. A Citrix Provisioning vDisk is not created because that object belongs to the Citrix Provisioning imaging workflow. Personal vDisk is also not created during an MCS image update and has been removed from current product releases. Citrix documents snapshot selection, Change Master Image, immediate or next-shutdown rollout, and image rollback in Manage machine catalogs .

Study Guide Reference: The Apps and Desktops Images — MCS snapshots, base images, differencing disks, and image rollout. QUESTION NO: 6

A Citrix Administrator wants to deploy machine catalogs using Machine Creation Services. Which two components must be configured and set up to accomplish this? (Choose two.)

A. Citrix Delivery Controller

B. Citrix policies

C. Citrix StoreFront

D. NetScaler Gateway

E. Hosting connection

Answer: A, E

Machine Creation Services operates through services installed on the Citrix Delivery Controller. These services coordinate image preparation, provisioning schemes, machine identities, Active Directory accounts, and virtual-machine creation. MCS also requires a hosting connection so the Controller can communicate with the hypervisor or cloud platform. The connection defines the management endpoint, credentials, networks, storage, compute resources, and permissions required to create and power-manage machines. Citrix policies regulate session behavior but are not prerequisites for provisioning a catalog. StoreFront provides resource enumeration and user access after the machines and Delivery Groups exist. NetScaler Gateway, now Citrix Gateway, provides secure remote access and is also outside the MCS provisioning process. Citrix’s machine-catalog documentation confirms that MCS catalogs use the host connection configured for the Site.

Study Guide Reference: Provisioning and Delivering App and Desktop Resources — MCS architecture, Controllers, hosting connections, and hosting resources. QUESTION NO: 7

Which machine-catalog provisioning method supports the deployment of image updates using Citrix Studio?

A. Machine Creation Services

B. Manual provisioning

C. Citrix Provisioning

D. Remote PC Access

Answer: A

Machine Creation Services catalogs support master-image updates directly through Citrix Studio. The administrator selects the catalog, invokes Change Master Image, chooses an updated image or snapshot, and specifies whether the rollout occurs immediately or at the next shutdown. For non-persistent machines, the selected image becomes effective when each machine is restarted through the applicable rollout process. Citrix also retains image history so an administrator can roll the catalog back to a previous master image when necessary. Manually provisioned machines require conventional operating-system management tools. Citrix Provisioning uses streamed vDisks whose versions are managed through the Citrix Provisioning console rather than the MCS master-image workflow. Remote PC Access catalogs contain existing physical computers and do not use an MCS master image. The complete Studio workflow is documented under Update a catalog .

Study Guide Reference: The Apps and Desktops Images — MCS image updates, rollout strategies, and rollback. QUESTION NO: 8

After creating a new machine catalog, a Citrix Administrator notices that the Virtual Delivery Agent (VDA) machines fail to register. What could the administrator have done to cause this condition?

A. Failed to run Citrix Health Assistant

B. Selected an incompatible VDA functional level in Citrix Studio

C. Selected an invalid VM naming scheme in Citrix Studio

D. Failed to take a VM snapshot before creating the catalog

Answer: B

A machine catalog’s minimum functional level establishes the minimum VDA capability accepted by the Broker service. If the administrator selects a catalog functional level higher than that supported by the installed VDA version, registration is rejected and the machine can report a FunctionalLevelTooLowForCatalog condition. The corrective action is to upgrade the VDA or reduce the catalog’s minimum functional level to a compatible value. Citrix Health Assistant is a diagnostic utility; not running it cannot cause the failure. An invalid naming scheme normally prevents successful machine or computer-account creation during provisioning. Similarly, an unavailable required snapshot would interrupt MCS catalog creation rather than create machines that later fail only at registration. Citrix confirms this precise registration condition and its remediation in CTX239687 .

Study Guide Reference: Supporting and Troubleshooting Citrix Virtual Apps and Desktops — VDA registration and functional-level compatibility. QUESTION NO: 9

By default, what are the settings for Browser Content Redirection and Client Drive Mapping in Citrix Virtual Apps and Desktops?

A. Browser Content Redirection: Allowed; Client Drive Mapping: Enabled

B. Browser Content Redirection: Allowed; Client Drive Mapping: Disabled

C. Browser Content Redirection: Disabled; Client Drive Mapping: Enabled

D. Browser Content Redirection: Disabled; Client Drive Mapping: Disabled

Answer: A

Browser Content Redirection is allowed by default. When its supporting requirements and URL rules are satisfied, web content can be fetched and rendered on the endpoint, reducing processing demand on the VDA. The allowed default does not mean every website is redirected; URL configuration, compatible Workspace app components, and browser integration still determine actual redirection. Client Drive Mapping is also enabled by default. It permits file redirection between supported drives on the user device and the virtual session. Administrators can prohibit the feature entirely, restrict individual drive types, or make mapped drives read-only through Citrix policies. Citrix’s official policy reference identifies Allowed as the default for Browser Content Redirection and confirms that Client Drive Redirection is enabled by default.

Study Guide Reference: Optimization — Browser Content Redirection and client-device resource mapping. QUESTION NO: 10

Scenario: A Citrix Administrator is troubleshooting a case in which policies are not being applied as expected to a Citrix Virtual Apps and Desktops session. Citrix policies are configured in both Citrix Studio and Group Policy Management Console (GPMC). Which tool can the administrator use to simulate a scenario and see the Citrix policies being applied from both Citrix Studio and GPMC?

A. Group Policy Results tool from GPMC

B. Citrix Group Policy Modeling Wizard in Citrix Studio

C. Comparison tab in Citrix Studio

D. Citrix Group Policy Modeling Wizard in GPMC

Answer: B

The Citrix Group Policy Modeling Wizard launched from Citrix Studio simulates a connection by evaluating users, computers, assignment criteria, and environmental conditions. Its report calculates the policies expected to apply from both Studio-managed Site policies and applicable Active Directory Group Policy Objects. The launch location is decisive: Citrix states that Site policies created in Studio are not included when the Modeling Wizard or Group Policy Results is launched from GPMC. The Comparison tab only compares configured settings between policies, templates, or defaults; it does not calculate the resultant policy for a simulated connection. Citrix therefore recommends launching the Modeling Wizard from Studio when policies are maintained in both locations. This combined Resultant Set of Policy behavior is documented in Simulate and evaluate policies .

Study Guide Reference: Supporting and Troubleshooting Citrix Virtual Apps and Desktops — policy modeling, filters, precedence, and Resultant Set of Policy.

 According to the IBM documentation1, the Corrupt qualifier is used to modify the HTTP header of an HTTP request. The Corrupt qualifier changes the current value to a different value for a request or response header. If a value exists for the header, then this value is changed equivalent to a regular expression search and replace.

 The Citrix Universal Print Server provides universal printing support for network printers. The Universal Print Server uses the Universal print driver, a single driver on the Multi-session OS machine that allows local or network printing from any device, including thin clients and tablets. This feature can help reduce the number of Windows drivers on the VDA machines by using a single driver for all network printers

When EDT is disabled, ICA fallback communication occurs over TCP rather than UDP.

Remote users connecting through NetScaler Gateway reach internal Citrix resources using ICA over SSL.

Citrix documentation specifies that NetScaler Gateway communicates with clients using:

TLS/SSL over port 443, regardless of whether EDT is enabled or not.

This port must be opened on the perimeter firewall to allow:

Secure ICA proxy traffic

Authentication traffic

Connection establishment

STA ticket validation via Gateway

Why the other options are incorrect:

1494 — Raw ICA (not used externally when Gateway is in front).

2598 — Session Reliability port; also not used by external clients connecting via Gateway.

80 — Unencrypted HTTP (never appropriate for secure remote access).

NetScaler Gateway always requires SSL 443 for secure ICA proxy connections.

Documentation References

Citrix Gateway Deployment Guide → Ports and Protocols

ICA/HDX Network Port Requirements

Citrix Virtual Apps and Desktops → EDT and Fallback Behavior

To secure XML traffic between StoreFront and Delivery Controllers, a Citrix Administrator must install a private server certificate on each Delivery Controller and bind the certificates to port 4431.

 According to the Reference Architecture: Image Management, Machine Creation Services (MCS) is a disk-based provisioning approach that works with major hypervisors and leading cloud platforms. The clones include a differencing disk and an identity disk linked from a base disk. MCS configures, starts, stops, and deletes virtual machines using the hypervisor APIs. When a Random/Non-Persistent desktop machine is restarted, the differencing disk will be updated from the base image, discarding any changes made by the user. This ensures that the desktop machine is always in a clean state and consistent with the master image.

The Citrix Virtual Apps and Desktops documentation specifies that the Local Host Cache feature allows connection brokering operations in a site to continue when the connection between a Delivery Controller and the site database fails1. This implies that the Delivery Controller, which is part of the FlexCast Management Architecture (FMA) services, uses the Local System account to access the Citrix Virtual Apps and Desktops SQL databases in scenarios where the primary database connection is unavailable.

 According to the Citrix documentation1, persistence time-out is the parameter that determines how long the service continues to serve requests from the client after it is disabled manually. The service accepts new requests or connections only to honor persistence. After the persistence time-out expires, no new requests or connections are directed to the service and all of the existing connections are closed. This parameter is available only when the service is disabled gracefully. The default value is 2 minutes. The other options are not related to the scenario described in the question.

The Virtual Delivery Agent (VDA) is a software component that enables machines to deliver applications and desktops to users. The VDA registers with a Delivery Controller and communicates session information to the Controller, which brokers connections between users and their resources. Users access their resources through Citrix Workspace app or a compatible web browser1

1: Virtual Delivery Agent (VDA) | Citrix Virtual Apps and Desktops 7 2308
