UiPath-ASAPv1 UiPath Automation Solution Architect Professional v1.0 Exam Questions and Answers

 UiPath Automation Hub is a collaborative tool that helps users discover and manage automation opportunities and process improvements, prioritized by impact and ROI. It also facilitates collaboration across SMEs, developers, and the CoE, and provides a central repository for process documentation and reusable components.

References:

• Automation Hub - Automation Pipeline Management | UiPath
• Automation Hub - Introduction
• UiPath Automation Hub Overview | UiPath Academy

According to the UiPath documentation1, the Jobs History widget is a component of the Automation Cloud UI that shows the executions you initiated and their status. You can use this widget to monitor the progress and outcome of your automation jobs, such as successful, failed, stopped, or pending. You can also filter the jobs by date range, status, or process name. The Jobs History widget also provides a link to the Orchestrator service where you can view more details and manage your jobs. References: 1: Jobs History Widget - UiPath Documentation Portal

This architectural approach is best for this scenario because it leverages the UiPath Platform capabilities to automate the end-to-end process of invoice processing. It uses the UiPath Email activities to connect to various mailboxes and retrieve the invoices as attachments. It then uses the UiPath Document Understanding framework to classify, extract, and validate the relevant information from the invoices, such as invoice number, date, amount, vendor, etc. It also uses the UiPath SAP activities to connect to the SAP system and input the extracted data into the appropriate fields and transactions. This approach is scalable, reliable, and efficient, as it does not require any manual intervention or third-party service. References: UiPath Automation Solution Architect Learning Plan, Module 4: High-Level Solution Design1; UiPath Automation Suite - Invoice Processing2; UiPath Academy - Roles of a Solution Architect in Automation, RPA Setting3.

Stability and standardization are important factors to consider when assessing the technical feasibility of process automation, because they affect how easy or difficult it is to develop and maintain the automation solution. A stable and standardized process has fewer exceptions, variations, and changes, which means it can be automated more reliably and efficiently. A process that is unstable or non-standardized may require more complex logic, exception handling, and frequent updates, which can increase the development time and cost, as well as the maintenance effort and risk. Therefore, stability and standardization are indicators of how suitable a process is for automation and how likely it is to deliver the expected benefits. (https://docs.uipath.com/automation-hub/docs/technical-feasibility)

References:

• UiPath Automation Hub - Technical Feasibility
• UiPath Academy - RPA Solution Architecture Fundamentals
• UiPath Certified Professional Automation Solution Architect

In UiPath's documentation regarding the Dispatcher and Performer model, it is emphasized that the Dispatcher is responsible for adding items to the queue, while the Performer processes these items. An accurate split between Dispatcher and Performer tasks is crucial for efficient process design. The given estimation table should clearly distinguish tasks that add items to the queue (Dispatcher) from those that process items from the queue (Performer). Mixing or inaccurately assigning these tasks can lead to inefficiencies and confusion in process execution. (Source: https://docs.uipath.com/orchestrator/docs/about-queues-and-transactions )

 A document validation user is a user who can see and validate the form and document validation actions assigned to them in the My Actions view of UiPath Action Center. To perform this role, the user needs the following permissions in UiPath Orchestrator:

• View and edit on Actions: This allows the user to access and complete the actions assigned to them.
• View, edit, and create on Storage files: This allows the user to upload, download, and modify the files associated with the actions, such as the document images and the extraction results.
• View on Storage Buckets: This allows the user to view the storage buckets where the files are stored.
• View and edit on Action Assignments: This allows the user to view and change the assignment status of the actions, such as claiming, releasing, or reassigning them.

References:

• Action Center - Roles and Permissions - UiPath Documentation Portal
• Create Document Validation Action - UiPath Documentation Portal
• Create Document Validation Action: You are not authorized - Action Center - UiPath Community Forum

Scalability is the ability of a system or a process to handle growing amounts of work or demand in a graceful manner. Scalability impacts the design of a UiPath automation flowchart because it determines how well the automation can cope with increased process volume, complexity, or variability. A scalable flowchart design should consider the following strategies:

• Modularization: Breaking down the process into smaller, reusable, and maintainable components that can be easily modified or replaced if needed. Modularization also facilitates testing, debugging, and error handling.
• Parameterization: Using variables, arguments, configuration files, assets, or queues to store and pass data that can change depending on the process execution. Parameterization allows for flexibility and adaptability of the automation to different scenarios or environments.
• Optimization: Reducing unnecessary or redundant steps, activities, or data in the flowchart to improve the performance, efficiency, and reliability of the automation. Optimization also involves choosing the best methods or techniques to achieve the desired outcome, such as using selectors, data scraping, or computer vision.
• Orchestration: Managing the resources, schedules, triggers, and dependencies of the automation to ensure that it runs smoothly and effectively. Orchestration also involves monitoring, logging, and reporting the status and results of the automation, as well as handling exceptions and alerts.

References: Enhancing UiPath Solutions’ Design Scalability, Roles of a Solution Architect in Automation, RPA Setting, Studio - Flowcharts.

The use case of the diagram is Invoice Processing. The diagram represents a typical workflow in a document processing scenario using UiPath RPA tools. It shows the process starting from document collection from emails and SharePoint folders, processing attachments, classifying documents, and handling exceptions until the final step of invoice type classification.

The workflow involves various components of UiPath such as queues in Orchestrator for managing work items, actions by Subject Matter Experts (SMEs) for validation, and use of the Storage Buckets for storing information. It also shows the handling of different document types and exceptions, which is typical in invoice processing scenarios where not all documents are standardized and may require human intervention.

References: UiPath Automation Solution Architect materials which include best practices for setting up workflows and queues, document processing, classification, validation, and exception handling, all of which are relevant to Invoice Processing scenarios. These are covered in the UiPath Academy's Automation Solution Architect course and in the official UiPath documentation at https://docs.uipath.com/ .

This answer is correct because the one-job-per-file approach is a recommended architecture for Document Understanding processes that allows for processing each document as a separate job, regardless of the source or the trigger. This approach has several benefits, such as:

• It simplifies the development, debugging, and deployment of the DU Process, as it does not require any looping logic or complex exception handling.
• It enables the use of Orchestrator queues to store and manage the documents to be processed, which provides better visibility, tracking, and reporting of the process status and performance.
• It reduces the license consumption and re-execution costs, as each document is processed only once and any errors or exceptions are handled at the individual document level, without affecting the rest of the documents.
• It supports both attended and unattended scenarios, as well as human-in-the-loop validation via Action Center, using the same workflows and logic.
• It allows for easy scaling and load balancing of the process, as multiple robots can process documents in parallel from the same queue, without any conflicts or dependencies12

References:

• RPA Framework for Document Understanding - UiPath Community Forum
• The Business Process for Document Understanding - UiPath Studio Template Explained

 In a long-running context, a job can be suspended when it is waiting for human validation or intervention. This means that the job is paused until a human user performs an action, such as approving or rejecting a document, providing some input, or resolving an exception. A suspended job can be resumed by the user or by the orchestrator, depending on the configuration of the process. A suspended job is different from a stopping or stopped job, which means that the job is being terminated or has been terminated by the user or by the orchestrator. A suspended job is also different from a running job, which means that the job is executing normally without any interruption or delay. References: Long-Running Workflows - UiPath Documentation Portal, Managing Jobs - UiPath Documentation Portal, Long Running Workflow - UiPath Activities

UiPath Solution Accelerators are automation frameworks that are custom-built for specific use cases. They use best practices and pre-built components that can be modified, expanded, and customized based on the needs of each specific use case and customer, enabling faster time to value for your automation projects1. Solution Accelerators are not plug-and-play solutions, but rather ready-to-use building blocks that can be easily integrated with various systems and applications2. They cover various domains and scenarios, such as document understanding, IT service management, healthcare, and finance3.

References:

• Solution Accelerators | UiPath Marketplace Automation Applications
• How Solution Accelerators fast-track AI initiatives | UiPath
• Build Automations with Solution Accelerators - UiPath Academy

UiPath Automation Cloud offers a range of services designed to support and enhance the automation lifecycle, including Data Service, Test Manager, and Orchestrator. Data Service provides a no-code data modeling and storage solution that enables easy data management and integration within automations. Test Manager supports the planning, execution, and management of automated testing, ensuring the quality and reliability of RPA solutions. Orchestrator is the central component for deploying, managing, and monitoring RPA bots and processes, providing the infrastructure for enterprise-grade automation management.

References:

• UiPath Automation Cloud Guide: Services Overview
• UiPath Data Service Guide: Introduction to Data Service
• UiPath Test Manager Guide: Introduction to Test Manager
• UiPath Orchestrator Guide: About Orchestrator

High-volume, repetitive tasks that are predictable and do not require creativity or critical thinking are well-suited for automation with RPA. These tasks often involve routine data entry, data extraction, and rule-based decision-making, which can be efficiently handled by robots. Automating such tasks can significantly improve efficiency, accuracy, and speed, while freeing up human workers to focus on more complex and value-added activities that require human judgment, creativity, and emotional intelligence.

References:

• UiPath RPA Guide: Identifying Processes for Automation
• UiPath Best Practices: Process Selection

The UiPath Document Understanding Process template is a fully functional UiPath Studio project template based on a document processing flowchart. Its aim is to offer a Document Understanding tool at hand that is easy to use and easy to execute for any developer who wants to start working either on a simple demo or on large-scale implementation. The process provides logging, exception handling, retry mechanisms, and all the methods that should be used in a Document Understanding workflow, out of the box. The process is preconfigured with a series of basic document types in a taxonomy, a classifier configured to distinguish between these classes, and extractors to showcase how to use the Data Extraction capabilities of the framework. It is meant to be used as a best practice example that can be adapted to your needs while displaying how to configure each of its components. The workflow has an architecture decoupled from other connected automations: it does not matter where the files to be processed are coming from or what triggers the execution, this is the responsibility of an upstream process; it does not matter where the extracted information should be used, this is the responsibility of a downstream process. The architecture is common for both attended robots and unattended robots running Document Understanding and having human-in-the-loop validation via Action Center. Items are not processed in bulk. Instead, there is one job for each input file. Indeed, a dispatcher is required every time but this flexible approach makes it simpler to get started, to develop, debug, and scale Document Understanding processes. The process supports Visual Basic flavored projects. The default dependencies in a Document Understanding Process are: UiPath.DocumentUnderstanding.ML.Activities, UiPath.Excel.Activities, UiPath.IntelligentOCR.Activities, UiPath.PDF.Activities, UiPath.System.Activities, and UiPath.UIAutomation.Activities. (123)

References:

• 1: Document Understanding Process: Studio Template - UiPath
• 2: Document Understanding Process: Studio Template
• 3: Activities - About Document Understanding Process: Studio Template - UiPath

In Document Classification tasks within UiPath, the primary role of the user is to review the classifications made by the automation (Robot) and make any necessary corrections or approvals. This step is crucial in ensuring the accuracy of the document processing workflow, especially in scenarios where the classification might not be entirely clear-cut or when the document falls into ambiguous categories. The user's input helps in training the model better, improving the automation's accuracy over time. This human-in-the-loop approach ensures that even as the automation handles the bulk of the work, the final say in nuanced or critical classifications comes from a human, maintaining quality and reliability.

References:

• UiPath Document Understanding Guide: Document Classification
• UiPath Academy: Document Understanding Course

In UiPath Orchestrator, calendars are used to define working and non-working days for robots. To accommodate non-working days, such as weekends or holidays, a user can create a new calendar and manually mark these days. Additionally, for ease and efficiency, a .csv file containing all non-working days can be prepared and uploaded to Orchestrator. This feature is particularly useful for planning and scheduling unattended robots, ensuring that they operate according to the organization's working calendar.

References:

• UiPath Orchestrator Guide: Managing Calendars
• UiPath Orchestrator Guide: About Calendars

UiPath Apps is a low-code platform for developing user interfaces for RPA projects built with UiPath. It allows you to create apps using a web browser, a rich library of drag-and-drop controls, and automations from the UiPath Platform. UiPath Apps supports APIs, legacy applications, and data sources that are not easily programmable. You can build custom business applications that connect to data in any underlying cloud or on-premises system using the power of automation. You can also design apps that run in multiple form factors, such as a full-page console, a sidebar, or any other size for either desktop or mobile devices. You can use UiPath Apps to create simple or complex applications with base user interaction and advanced functionality, such as conditional logic, data validation, and error handling. You can also integrate and manage UiPath RPA automations within your apps, using attended or unattended robots to interact with back-end systems. UiPath Apps is not primarily focused on data analysis and machine learning, although you can use UiPath activities and integrations to perform such tasks within your automations. References:

• Apps - Introduction - UiPath Documentation Portal
• Introducing UiPath Apps: A Robot-Powered Low-Code Platform
• UiPath Apps

According to the process automation visibility criteria, the tasks that are most suitable for automation are those that are rule-based and repetitive. Rule-based tasks are those that follow a clear and consistent logic that can be programmed without human judgment. Repetitive tasks are those that are performed frequently and in large volumes, and do not vary much in their execution. These tasks are ideal for automation because they can be easily standardized, optimized, and scaled by software robots, while reducing human errors, costs, and efforts.

References:

• Are all processes are suitable for RPA, so how to identify the right processes for Robotic Process Automation
• Determining What Business Processes To Automate
• How To Choose Which Processes To Automate With RPA

When UiPath Robots are deployed in Service Mode, they operate as a Windows service. This configuration allows the Robot to execute jobs assigned via Orchestrator independently of any user session on the machine. The Robot in Service Mode does not require a user to be logged in to the machine to start and execute processes, enabling unattended automation scenarios. This capability is particularly useful for automations that need to run at scheduled times or be triggered by specific events without human intervention.

References:

• UiPath Robot Guide: Robot Service Modes
• UiPath Orchestrator Guide: About Jobs

In the context of UiPath and RPA development, the Solution Architect plays a critical role in ensuring that the automation projects adhere to best practices, architectural standards, and organizational policies. One of the responsibilities of the Solution Architect is to review and approve Pull Requests into the Main Branch of the project repository. This step is crucial for maintaining code quality, ensuring that changes are aligned with the overall solution design, and preventing potential issues in production environments. The approval process by the Solution Architect helps in safeguarding the integrity and reliability of automation solutions.

References:

• UiPath Best Practices: Role of a Solution Architect
• UiPath Studio Guide: Version Control Systems

UiPath Data Service is a persistent data storage service that brings powerful no-code data modeling and storage capabilities to your Robotic Process Automation (RPA) projects1. UiPath Apps can connect and interact with entities from UiPath Data Service to create better, more complex apps2. Entities are data models that define the structure and relationships of the data you want to store and use in your automation projects3. You can reference an entity from Data Service in your app and bind it to various controls such as dropdown lists, tables, and custom lists2.

References:

• About Data Service
• Referencing an Entity in Your App
• Creating an Entity

A Solution Design Document (SDD) is a document that describes the technical design and implementation details of an RPA solution. It includes information such as process flow diagrams, exception handling, logging, security, testing, and deployment. An SDD contributes to the ongoing success of an RPA solution by providing a clear and comprehensive documentation of the solution, which can help with maintenance, enhancements, knowledge transfer, and future updates and bug fixes. An SDD also ensures that the solution follows the best practices and standards of RPA development, and that it meets the business requirements and expectations.

References:

• SDD Example - Help - UiPath Community Forum
• SDD Document Template - Something Else - UiPath Community Forum
• Solution Design Documents - UiPath Community Forum
• SDD Assistant - RPA Component | UiPath Marketplace | Overview

 According to the UiPath documentation1, Automation Ops is a component of the UiPath platform meant for creating, deploying, and managing Robotic Process Automation (RPA) governance policies in UiPath Studio, UiPath StudioX, and UiPath Assistant. You can use a single, simple web portal to manage and implement governance rules based on user profiles, such as defining the acceptable feeds, packages, widgets, and activities, restricting the applications and URLs that can be automated, and assigning roles and responsibilities for reviewing and approving the automation projects. Automation Ops also integrates with Git repositories and CI/CD pipelines to provide source control and automation delivery capabilities. Therefore, the correct answer is D. Configure and deploy governance policies, as this is one of the main functionalities of Automation Ops. References: 1: Automation Ops - UiPath Documentation

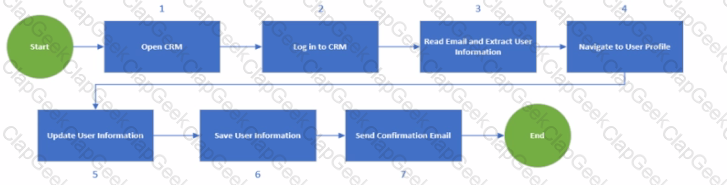

The process shown in the diagram can be optimized by reading the email as the first step and opening CRM and logging in only if there’s an email. This way, the process can avoid unnecessary steps and save time and resources. If there is no email, the process can end without opening CRM. If there is an email, the process can extract the user information from the email and use it to log in to CRM and navigate to the user profile. This can also reduce the risk of errors and exceptions due to invalid or missing user information. Reading the email as the first step can also help the process to prioritize the emails based on their importance or urgency and handle them accordingly. References:

• UiPath Process Mining: Use process monitoring and optimization to propel RPA
• Optimizing Processes with UiPath Process Mining
• Optimization maximum utilisation - UiPath Community Forum

Storage buckets provide a per-folder storage solution for RPA developers to leverage in creating automation projects1. In the diagram, the Storage Bucket is used for updating information and uploading/moving unprocessed files. This is related to the classification data that is created and validated in the Action Center by the SME (Subject Matter Expert). The classification data is used to train the machine learning model that extracts data from the documents2.

References:

• About Storage Buckets
• UiPath Apps (Storage Bucket). Introduction

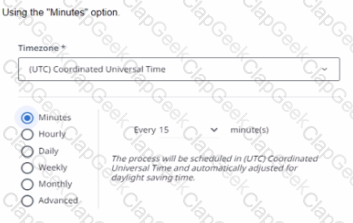

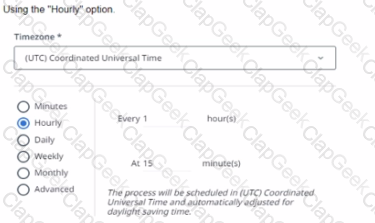

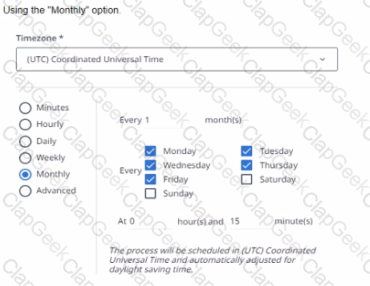

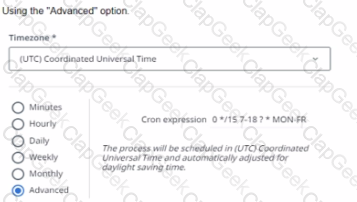

Option D is the correct answer because it shows the scheduling option using the “Advanced” option. This option allows the user to specify a cron expression that defines the exact time and frequency of the process execution. The cron expression for this scenario is 0 0/15 7-18 ? * MON-FRI *, which means the process will run every 15 minutes starting at 0 minutes past the hour, from 7 AM to 6 PM, on every weekday. The other options are incorrect because they do not match the required schedule. Option A uses the “Hourly” option, which will run the process every hour at 15 minutes past the hour, not every 15 minutes. Option B uses the “Daily” option, which will run the process once a day at 15 minutes past 7 AM, not every 15 minutes. Option C uses the “Weekly” option, which will run the process once a week on Monday at 15 minutes past 7 AM, not every 15 minutes. References: UiPath Automation Solution Architect Learning Plan, Module 5: Operationalization1; UiPath Automation Suite - Scheduling Processes2; UiPath Academy - Roles of a Solution Architect in Automation, RPA Setting3.

When deploying UiPath products using Standalone or Automation Suite deployment models, the user is responsible for maintaining and scaling the infrastructures and upgrading to newer versions. This means that the user has to provide the hardware and software resources required for the installation and operation of the UiPath products, as well as monitor and optimize their performance and availability. The user also has to ensure that the UiPath products are updated to the latest versions and patches, and that the compatibility and dependencies between them are maintained. (https://docs.uipath.com/installation-and-upgrade/docs/standalone-deployment)

References:

• UiPath Installation and Upgrade - Standalone Deployment
• UiPath Installation and Upgrade - Automation Suite Deployment
• UiPath Academy - RPA Solution Architecture Fundamentals
• UiPath Certified Professional Automation Solution Architect

A trigger is a mechanism that allows you to start a job or schedule based on a predefined event1. In this case, the architect should create a trigger that initiates the performer process when the dispatcher process finishes populating the queue with the data from the Excel file. This way, the performer does not have to wait until 7 A.M to start processing the queue items, and the automation can be completed faster and more efficiently.

References:

• About Triggers

Semi-structured documents are documents that have some degree of structure, but not enough to be easily processed by traditional data management systems. They usually have a common schema or layout, but the data fields may vary in number, position, or content. They may also contain unstructured elements such as text, images, or handwriting. Examples of semi-structured documents are invoices, receipts, purchase orders, utility bills, and contracts. These documents are often used in business processes and require data extraction and classification. UiPath Document Understanding provides out-of-the-box Machine Learning Models to handle semi-structured documents in a template-less approach12.

References:

• Introducing Document Understanding - UiPath
• Document Understanding - About ML Packages - UiPath Documentation Portal

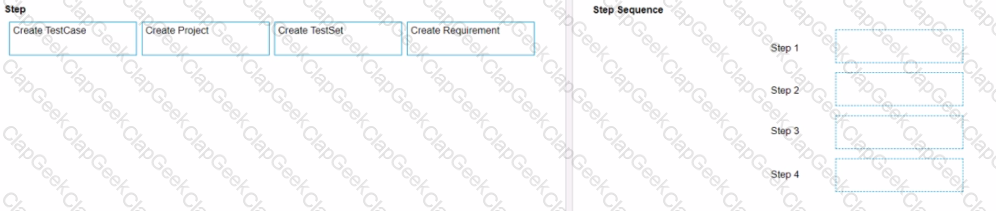

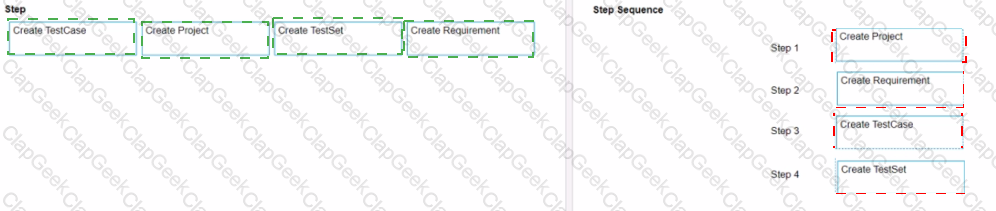

The correct flow from a high level design standpoint in UiPath Test Manager1 is:

Step 1 = Create Project Step 2 = Create Requirement Step 3 = Create TestCase Step 4 = Create TestSet

According to the UiPath documentation and the Test Manager Overview Demo1, the high level design flow in UiPath Test Manager1 involves the following steps:

• Create Project: A project is a container for all the testing artifacts related to a specific application or process. You can create a project in Test Manager by giving it a name, a description, and a type (RPA or Application). You can also import a project from another source, such as Jira or Azure DevOps 2.
• Create Requirement: A requirement is a statement of what the application or process should do or achieve. You can create a requirement in Test Manager by giving it a name, a description, and a custom attribute. You can also import a requirement from another source, such as Jira or Azure DevOps 2.
• Create TestCase: A test case is a set of steps or actions that verify a specific requirement. You can create a test case in Test Manager by giving it a name, a description, a type (manual or automated), and a custom attribute. You can also import a test case from another source, such as Studio or Task Capture 2.
• Create TestSet: A test set is a collection of test cases that are executed together as part of a testing cycle. You can create a test set in Test Manager by giving it a name, a description, a type (manual or automated), and a custom attribute. You can also import a test set from another source, such as Orchestrator 2.

References:

• 2: UiPath Test Manager - UiPath Documentation Portal
• 3: Task Capture - UiPath Test Manager - UiPath Documentation Portal
• 1: Test Manager Overview Demo - Test Automation Case | UiPath

In the context of the REFramework (Robotic Enterprise Framework), the optimal design segregates the responsibilities between Dispatcher and Performer processes. The Dispatcher is responsible for collecting transaction data and adding it to the queue, while the Performer processes each transaction item from the queue. In this scenario, "FindEmailsToProcess.xaml" should logically be part of a Dispatcher process that identifies and queues each relevant email as a transaction item. Subsequently, the Performer would process these items. This separation enhances modularity, scalability, and error handling by clearly delineating the responsibilities between collecting transaction data and processing it.

References:

• UiPath REFramework Guide: REFramework Documentation
• UiPath Academy: REFramework Training

Automated Test Sets can be executed from both Orchestrator and Test Manager, depending on the source and type of the test cases. Test Sets that have been linked from Orchestrator can be executed automatically or manually, if they have manual steps defined. Test Sets that have been created in Test Manager can also be executed automatically or manually, if they have test cases linked from Studio or manual steps12.

References:

• Test Suite - Test Sets
• Test Suite - Executing Tests

UiPath Automation Cloud is a cloud-based enterprise automation solution that provides a unified platform for managing all your automation work and resources in one place. It enables you to deploy, operate, and scale your robotic factory in just a few seconds. UiPath Automation Cloud offers various services that you can provision and use within your organization and tenants. Some of the services available within UiPath Automation Cloud are:

• Orchestrator: The core service that enables you to monitor, manage, and control your robots, processes, queues, assets, and environments. Orchestrator also provides APIs, webhooks, and integrations for connecting your automation workflows with other systems and applications.
• Testing: A service that allows you to create, execute, and analyze automated tests for your applications and processes. Testing also integrates with Test Manager, a web application that helps you manage your testing projects, test cases, test data, and test results.
• Document Understanding: A service that enables you to process and analyze documents of various formats and extract key information from them. Document Understanding also integrates with Actions, a web application that allows you to review, validate, and correct the data extracted by the robots.
• Insights: A service that provides analytics and dashboards for measuring and improving the performance and impact of your automation projects. Insights also integrates with Orchestrator and allows you to customize and share your reports and visualizations.

Other services that are available within UiPath Automation Cloud include:

• Automation Hub: A service that helps you discover, prioritize, and manage your automation ideas and projects. Automation Hub also integrates with Task Capture, a desktop application that allows you to record and document your business processes.
• Apps: A service that enables you to create and run custom business applications that connect to your data and automations. Apps also integrates with Data Service, a cloud database that allows you to store and access your data across your apps and processes.
• Process Mining: A service that helps you discover, monitor, and improve your business processes based on data from your systems and applications. Process Mining also integrates with Task Mining, a desktop application that allows you to capture and analyze user activities and behaviors.

References:

• Automation Cloud - About Automation Cloud - UiPath Documentation Portal
• Automation Cloud - Managing services - UiPath Documentation Portal
• Complete cloud-based enterprise automation solution | UiPath

 UiPath Solution Accelerators are automation frameworks that are custom-built for specific use cases. They use best practices and pre-built components that can be modified, expanded, and customized based on the needs of each specific use case and customer2. To get started with a UiPath Solution Accelerator, the recommended steps are:

• Review the Documentation & Deployment Guide: This guide provides an overview of the solution accelerator, its architecture, dependencies, and configuration. It also explains how to deploy the solution accelerator to your environment and test it1.
• Familiarize yourself with the project(s): Each solution accelerator consists of one or more UiPath projects that implement the automation logic. You can open these projects in UiPath Studio and explore their workflows, activities, variables, and arguments1.
• Set up and adjust the Orchestrator process folder, dependencies, assets & queues, libraries and projects: To run the solution accelerator, you need to set up a process folder in UiPath Orchestrator and configure its dependencies, assets, and queues. You also need to publish the libraries and projects from UiPath Studio to Orchestrator and assign them to the process folder1.
• Make adjustments as needed: Depending on your specific use case and customer requirements, you may need to customize the solution accelerator by adding, removing, or modifying its components. For example, you may need to change the input or output data formats, integrate with different applications, or enhance the exception handling logic1.

References:

• 1: Download and Deploy a Solution Accelerator - academy.uipath.com
• 2: How Solution Accelerators fast-track AI initiatives | UiPath

According to the UiPath documentation, an action is generated when a process reaches a point where human intervention is required. The action is then sent to the Action Center, where it can be viewed and managed by users. The action will have the status of Unassigned until it is assigned to a specific user, either manually or automatically1. The process will remain in a suspended state until the action is completed by the user2.

References:

• Action Center - About Actions
• Action Center - Managing Actions

According to UiPath Best Practices, the For Each activity should be used for implementing the Classification Loop in the high-level solution diagram. The For Each activity enables you to iterate through a collection of items and perform an action for each item. In this case, the collection of items would be the invoices from various clients that require processing. The action for each item would be to extract data using the ML model, process the extracted data, update the information in the storage bucket, upload or move the SharePoint files, and add the document path to the processing queue. Alternatively, if the extracted data is not processed, the action would be to create a validation in the Action Center and wait for the SME to review it. The For Each activity is suitable for this scenario because it allows you to process each invoice sequentially and handle any exceptions or validations that may occur. The For Each activity also has a Body property where you can add other activities or invoke workflows that are relevant to the Classification Loop logic. References: For Each - UiPath Activities, Design Best Practices - UiPath Documentation Portal, Automation Solution Architect - UiPath Academy

High Availability (HA) in the context of UiPath Orchestrator is a setup designed to ensure that the system remains available and operational, even in the event of hardware failures, software crashes, or other unexpected issues. HA is achieved by implementing a multi-node Orchestrator deployment, where multiple instances of Orchestrator are run in parallel. This setup provides redundancy, meaning if one node fails, the others can take over, ensuring continuous operation. The key benefit of HA is its ability to resist failures and maintain stability, which is crucial for critical enterprise operations relying on RPA.

References:

• UiPath Orchestrator Guide: High Availability
• UiPath Orchestrator Guide: Setting Up High Availability

UiPath Apps is a low-code application development platform that enables you to build and share enterprise-grade custom applications that deliver engaging user experiences. Using UiPath Apps, you can quickly build custom business applications that connect to data in any underlying cloud or on-premises system using the power of automation1. Apps built with UiPath App Studio provide rich controls for data access and update as well as conditional logic for complex business needs. The underlying UiPath RPA platform provides advanced workflow and business logic capabilities to automate your entire end to end business process2. Apps can be designed to run in multiple form factors such as a full-page console, a sidebar, or any other size for either desktop or mobile devices1.

References: 1: Apps - Introduction - UiPath Documentation Portal 2: Introducing UiPath Apps: A Robot-Powered Low-Code Platform

UiPath AI Center is a service that allows users to deploy, manage, and consume machine learning models within RPA workflows in Studio. Users can bring their own models, use the pre-built models provided by UiPath, or select third-party models from the UiPath Marketplace. The UiPath Marketplace is a platform where users can find and install ready-made components, such as activities, workflows, connectors, dashboards, and machine learning models, that are integrated with UiPath products. The Marketplace offers models from various third-party integration platforms, such as AWS, Azure, Google Cloud, IBM Watson, and more. References: RPA & AI Integration with AI Center, AI Center - About AI Center, UiPath Marketplace

Option B is the most suitable approach for the process described above, as it uses the Robotic Enterprise Framework (ReFramework) template with TransactionItem set as DataRow and TransactionData as DataTable. This template provides a robust and scalable structure for transactional processes, with built-in mechanisms for exception handling, logging, retrying, and reporting. By setting the TransactionItem as DataRow and the TransactionData as DataTable, the process can read the invoice numbers from the CSV file and process them one by one in a loop. The template also allows the use of queues to store the transaction data and status, which enables the process to resume from the last successful transaction in case of a system exception. This way, the process can ensure that each invoice number is processed only once in each application, and avoid duplicate or skipped transactions. The template also integrates with UiPath Orchestrator, which provides centralized management, monitoring, and scheduling of the process. The template also supports the use of long-running workflows, which can handle human intervention scenarios using UiPath Action Center. The template also complies with the UiPath Automation Solution Architect best practices and standards, such as naming conventions, modularity, reusability, and maintainability. References:

• UiPath Studio - Robotic Enterprise Framework Template
• UiPath Studio - Working with Queues in the ReFramework
• UiPath Studio - Long Running Workflow Template with UiPath Tasks
• [UiPath Automation Solution Architect - Course Overview]
• [UiPath Automation Solution Architect - Best Practices and Standards]

The primary purpose of UiPath Data Service is to provide a persistent data storage service that brings powerful no-code data modeling and storage capabilities to your Robotic Process Automation (RPA) projects. UiPath Data Service allows you to securely store and manage your business data within UiPath, and use it for various automation scenarios, such as aggregating data from multiple systems, supporting long-running business processes, and passing data across attended and unattended workflows. UiPath Data Service is integrated with Studio and Robot, and offers rich relational data types, integrated security, and instantaneous and adjustable provisioning and deployments. (https://docs.uipath.com/data-service/automation-cloud/latest/user-guide/introduction)

References:

• Data Service - Introduction - UiPath Documentation Portal
• Data Service - UiPath Documentation Portal
• Data Visualization in UiPath Data Service | Community Blog
• UiPath Data Service: Data management and storage simplified for your automation

WD8 is a process performer that executes the automation workflow for each transaction item from Queue 2. It uses the data extracted from the documents and the processing output to perform the required actions on the target applications. It also handles any exceptions that may occur during the execution and updates the status of the transaction items accordingly.

References:

• About Queues and Transactions
• About the REFramework
• Document Understanding - Introduction
