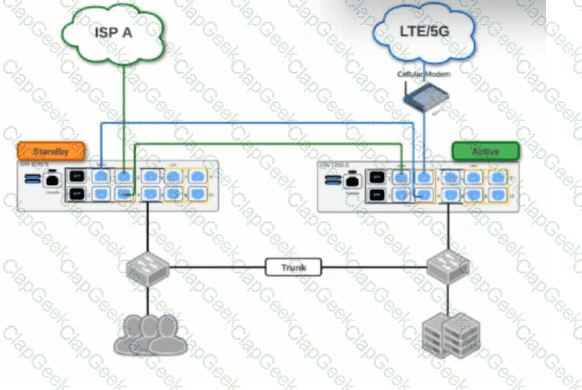

SD-WAN-Engineer Palo Alto Networks SD-WAN Engineer Questions and Answers

Comprehensive and Detailed Explanation

In Prisma SD-WAN Path Policies, theService & DC Group(Destination) field determineswherethe traffic is sent.

Direct:This is the specific keyword/object used to instruct the ION to route trafficdirectly out to the local WAN interface(Local Breakout) towards the Internet, without encapsulation in a VPN tunnel. This is the correct setting for Guest Wi-Fi, SaaS applications (like Office 365), or any public web browsing that does not need to be backhauled.

Standard VPN / Default-Cluster:These options direct traffic into an IPSec overlay tunnel destined for a Data Center or another ION. Selecting these would "backhaul" the guest traffic, which contradicts the requirement for DIA.

When "Direct" is selected, the ION uses its available "Internet" category links. The policy can further specifywhichinternet link to use (e.g., "Use Broadband, avoid LTE") via the path preference list, but theDestinationtype must be "Direct".

Comprehensive and Detailed Explanation

TheFlow BrowserandApp Response Timemetrics in Prisma SD-WAN are critical tools for isolating the fault domain—determining whether a problem lies in the "Network" or the "Application."

Network Transfer Time (NTT) / Round Trip Time (RTT):These metrics measure the time it takes for packets to traverse the network (WAN/LAN) and for acknowledgments to return. A low NTT (e.g., <50ms) confirms that the network pipes (SD-WAN overlay, Underlay circuits) are healthy and transporting packets quickly.

Server Response Time (SRT):This metric specifically measures the time between the server receiving a request and the server sending the first byte of the response. It essentially measures the "processing time" of the backend server.

In the scenario described, the network metrics (NTT/RTT) are excellent, effectively ruling out WAN congestion, packet loss, or latency (Option A and C). However, theServer Response Time (SRT)is very high (500ms). This signature is a definitive indicator that the network delivered the request instantly, but theapplication server took a long time to process it. This points the troubleshooting effort toward the server infrastructure (e.g., a slow SQL query, an overloaded web server, or lack of compute resources) rather than the SD-WAN environment.

Comprehensive and Detailed Explanation

TheAppX (Application Experience)score is a proprietary metric used by Prisma SD-WAN to provide a holistic view of user experience, rather than just network statistics. It is calculated based on three key components:

Transaction Failure Rate (A):The percentage of application transactions that failed (e.g., TCP resets, HTTP 500 errors). This indicates availability.

Network Transfer Time (B):The time taken for packets to traverse the network (WAN/LAN latency). This indicates network health.

Server Response Time (C):The time taken by the application server to respond to a request. This indicates backend performance.

Why not D or E?

Bandwidth Utilization (D)is a capacity metric, not a direct measure ofquality. A link can be 90% full but still deliver packets quickly (good AppX), or 10% full but dropping packets (bad AppX).

Jitter (E)is a network-layer metric primarily relevant for UDP Real-Time media. While important, the high-level "AppX" score for general TCP apps focuses on the "Time-to-Glass" metrics (NTT/SRT) and success rates.

Comprehensive and Detailed Explanation

The Prisma SD-WAN (CloudGenix) solution is designed with a separation of the control plane (Controller) and the data plane (ION devices).1In the event that an ION device loses connectivity to the Cloud Controller (often referred to as running in "headless mode"), the device continues to forward traffic and maintain existing VPN tunnels using the keys it currently holds.2

However, for security purposes, theVPN session keys(shared secrets) used for the Secure Fabric have a finite validity period. The system is designed such that these keys are rotated regularly.3If the controller is unreachable, the ION device can continue to rotate keys locally and maintain the VPNs for a maximum default period of72 hours(exactly3 days).4

If the connection to the controller is not restored within this 72-hour window, the keys will eventually expire, and the ION will be unable to retrieve new authorized key material from the controller.5Consequently, the VPN tunnels will go down, and the "out of shared secret key" error will be observed in the VPN status logs. This mechanism ensures that a permanently compromised or stolen device cannot maintain network access indefinitely without central authorization.

Comprehensive and Detailed Explanation

TheSITE_CONNECTIVITY_DOWNalarm is a high-severity alert indicating a total loss of overlay connectivity for a site.

It doesnottrigger if justonecircuit fails (Option B), provided that other circuits are still up and maintaining VPNs. A single link failure would typically trigger a "Link Down" or "VPN Down" alarm, but theSiteconnectivity would remain "Up" (degraded).

It does not simply mean the device rebooted (Option A), although a reboot would cause it temporarily; the alarm specifically tracks the state of the VPN fabric.

The SITE_CONNECTIVITY_DOWN alarm specifically generates when all Secure Fabric Links (VPN tunnels) on the device are in the "Down" state. This means the branch is completely isolated from the rest of the SD-WAN network (Data Centers and other branches), even if the device itself might still be powered on and reachable via the controller (management plane). It signifies a "Blackout" of the data plane for that location.

Comprehensive and Detailed Explanation

The stability of VPN tunnels in the Prisma SD-WAN + Prisma Access integration relies on standard IPSec mechanisms.

Dead Peer Detection (DPD):The CloudBlade configuration automatically enablesDPDon the IPSec tunnels it provisions.

Mechanism:DPD is a standard keepalive mechanism where the ION device sends periodic "R-U-THERE" messages to the Prisma Access gateway (and vice versa). If no acknowledgment is received after a specific count/timer, the ION marks the tunnel as down and attempts to re-key or switch to a backup path.

Synthetic Probes (B):While Synthetic Probes (part of ADEM or Path Quality monitoring)canbe configured to measure latency/loss, thefundamentalmechanism that keeps the IPSec security association (SA) active and detects link failure is DPD, not an application-layer probe.

Comprehensive and Detailed Explanation

In Prisma SD-WAN routing configuration, theScopesetting on a BGP Peer (or a Static Route) controls the redistribution logic for the prefixes learned from that source.

Local Scope:If a BGP peer is configured with "Local" scope, the ION device will install the learned routes into itslocalrouting table for its own reachability, but it willnotadvertise (redistribute) these routes to other ION devices via the Secure Fabric. They remain local to the site.

Global Scope:To advertise reachability to the rest of the network, the BGP peer must be configured with"Global"scope. This tells the ION that any prefixes learned from this specific neighbor (e.g., the DC Core Switch) should be propagated across the SD-WAN overlay to remote branches. This is the critical setting for enabling branch-to-DC communication for applications hosted behind that BGP peer. Without "Global" scope, the branches would never learn the routes to the data center subnets.

Comprehensive and Detailed Explanation

To implementUser/Group-based policies(Path, QoS, or Security) in Prisma SD-WAN, the system requires two specific components to resolve user identities and map them to IP addresses within the fabric.

Cloud Identity Engine (CIE):This is the primary requirement for identity management. The Cloud Identity Engine connects the Prisma SD-WAN controller to your directory service (e.g., Active Directory, Azure AD/Entra ID). It allows the system to retrieve and resolveUser and Group attributes(e.g., "Marketing Group," "User: john.doe") so they can be selected in policy rules. Without CIE, the controller cannot interpret the group names or user identities defined in the policies.

Data Center ION:In the standard deployment model for User-ID, aData Center (DC) IONis required to act as the bridge or collector for IP-to-User mappings. The DC ION connects to theUser-ID Agent(running on a PAN-OS firewall or Windows Server) to learn the mapping of IP addresses to usernames. It then redistributes this information to the controller or other branch IONs so they can identify which user is associated with the traffic flows originating from a specific private IP address.

Comprehensive and Detailed Explanation

The CLI command debug controller reachability (e.g., debug controller reachability 1) is the specific diagnostic tool designed to verify the entire connectivity chain required for management plane availability.

Unlike a simple ICMP ping (Option A), which only tests Layer 3 connectivity to an IP address, the debug controller reachability command performs a sequential set of tests:

DNS Resolution:It attempts to resolve the specificLocatorservice URL (locator.cgnx.net or region-specific FQDN) to verify DNS functionality.

TCP Connectivity:It tests the ability to establish a TCP connection to the controller on port 443 (HTTPS).

SSL/TLS Handshake: It validates that the device can successfully negotiate the secure tunnel required for authentication.

If this command fails at the DNS step, the issue is likely a missing DNS server in the interface config. If it fails at the TCP step, it implies an upstream firewall is blocking outbound port 443. This targeted output allows the engineer to pinpoint exactly why the device is offline in the portal.

Comprehensive and Detailed Explanation

To achieve strict regional isolation where branch sites only form VPN tunnels with Data Centers in their specific region (e.g., EU branches to EU DCs only), the correct architectural feature to utilize isVPN Clusters.

In Prisma SD-WAN (CloudGenix), aClusterdefines a logical security and topology boundary for the overlay network. By default, devices may be placed in a "Default" cluster where they attempt to form a mesh or hub-and-spoke topology with all other reachable devices in that context.

To enforce the new policy:

Logical Partitioning:The administrator should create separate VPN Clusters for each region (e.g., "Cluster-NA", "Cluster-EU", "Cluster-Asia").

Assignment:The Regional Data Center IONs and their corresponding Branch IONs must be moved into their respective clusters.

Result:The Prisma SD-WAN controller dictates that devices can only establish Secure Fabric (VPN) tunnels with other devices within thesame cluster. This effectively segments the global network, ensuring that an Asian branch never attempts to build a tunnel to a North American DC, satisfying the compliance requirement without complex access lists or manual tunnel configuration.

Option B (Manual Tunnels)is administratively unscalable and negates the benefits of SD-WAN automation.

Option C (Circuit Labels)is primarily for path selection and traffic steering, not for hard topology segmentation.

Option D (VRFs)is used for local Layer 3 segmentation (routing isolation) within a device, not for controlling WAN overlay tunnel formation scope.

Comprehensive and Detailed Explanation

In Prisma SD-WAN, security policies can be applied viaPolicy Stacks, which often have a hierarchy.

Stack Precedence:A common configuration involves aGlobal Security Stack(applied to all sites) and aLocal/Site Security Stack(specific to one site). If the administrator configured a "Global" rule that says "Deny Access to Gambling Sites" (or a specific IP list), and that rule is higher in the binding order or part of a higher-priority stack, it will enforce the blockbeforethe local "Allow Guest to Internet" rule is processed.

Specifics of "REJECT":The state REJECT specifically implies a policy enforcement action (sending a TCP RST or ICMP Unreachable) rather than a silent drop or a routing failure.

Why not A?If the "Allow" rule is at the top and matches the traffic parameters (Zone/IP), the Default Deny at the bottom would never be reached. The issue implies ahigher priorityDeny exists.

Comprehensive and Detailed Explanation

This behavior describes the"Best Available Path"logic inherent in Prisma SD-WAN's availability design.

SLA Thresholds:Path Quality Profiles act asfiltersto identify compliant paths.

Total Violation:Ifallconfigured "Active" paths violate the SLA (e.g., Path A has 2% loss, Path B has 5% loss, and the threshold is 1%), the system does not drop the traffic (Option A) because maintaining connectivity is prioritized over perfect quality.

Selection Logic:The system enters a fallback state where it compares the available active paths and selects the"Least Bad"one—the path that isclosestto meeting the SLA (in this case, Path A with 2% loss).

Backup Paths:Traffic would only move to aBackuppath (Option D) if the policy explicitly configures the backup path to engage upon SLA violation of the active set. However, strictly speaking, ifonlyactive paths are considered and all fail, it picks the best of the active group rather than blackholing the traffic.
