NSE5_FSW_AD-7.6 Fortinet NSE 5 - FortiSwitch 7.6 Administrator Questions and Answers

Location (C): FortiSwitch uses LLDP-MED (Link Layer Discovery Protocol - Media Endpoint Discovery) to advertise various attributes to IP phones, among which " Location " is crucial in emergency situations. This information helps emergency responders to determine the physical location of the calling device, which is vital for prompt response in critical situations.

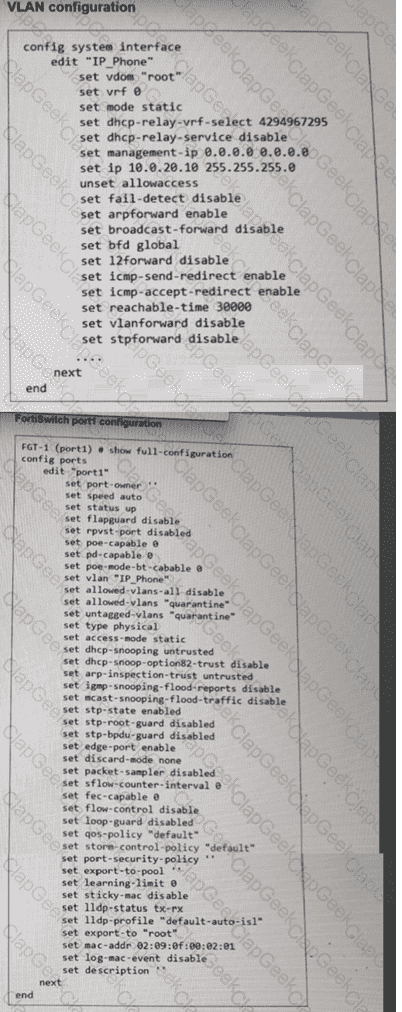

To enable access to the FortiSwitch management interface from the network, certain configuration adjustments need to be made, particularly considering the VLAN settings displayed in the exhibit:

Adding port24 native VLAN to the allowed VLANs on internal (Option A): The management VLAN (VLAN 4094 in this case, as it is set as the native VLAN on the ' internal ' interface of the FortiSwitch) must be included in the allowed VLANs on the interface that provides management connectivity. Since port24 is set with a different native VLAN (VLAN 100), VLAN 4094 (the management VLAN) should be allowed through to ensure connectivity.

Allow VLAN ID 4094 on port24 if management traffic is tagged (Option C): Management traffic is tagged on VLAN 4094. Since port24 is connected to the network and serves as an uplink, allowing VLAN 4094 ensures that management traffic can reach the management interface of the FortiSwitch through this port.

The changes align with Fortinet’s best practices for setting up management VLANs and ensuring they are permitted on the relevant switch ports for proper management traffic flow.

When FortiGate exports configuration settings to a managed FortiSwitch stack with sampling mode set to " perimeter is true, " the behavior is:

B. FortiGate configures FortiSwitch to perform ingress sampling on all switch interfaces, except ICL and ISL interfaces.This setting ensures that all incoming traffic on normal operational ports is sampled for monitoring and analysis purposes, but it excludes the inter-chassis link (ICL) and inter-switch link (ISL) interfaces from sampling. These exclusions are typically made to prevent the duplication of sampled data and to reduce unnecessary load on the monitoring system, as these links often carry traffic already monitored at other points.

Options A and D are incorrect because they either generalize the sampling across all interfaces without exceptions or incorrectly specify egress sampling on management interfaces. Option C is also incorrect as FortiGate can modify existing sampling settings to fit the perimeter-based configuration requirement.

The appearance of a serial number in the Native VLAN column for port23 suggests that the switch connected to this port is identified uniquely in the network.Given the options provided:

A standalone switch with the shown serial number is connected on port23 (Option C): This is the most plausible explanation. The FortiSwitch configuration interface is displaying the serial number of a standalone switch that is directly connected to port23. This kind of display helps in identifying and managing individual devices in a network setup, especially in environments with multiple switches.

FortiSwitchOS 7.6 provides two primary mechanisms for packet capture: thesniffer commandand thesniffer profile. While both are used for traffic analysis and troubleshooting, the FortiSwitchOS 7.6 Administrator Guide clearly identifies a key advantage of using asniffer profileover the CLI-based sniffer command.

According to the documentation (Page 438), a sniffer profile allows administrators tocapture packets from all switch ports simultaneously, without being constrained to a single interface or requiring repeated command execution. This capability makes sniffer profiles particularly effective for broad troubleshooting scenarios, such as identifying intermittent issues, unknown traffic sources, or network-wide anomalies across multiple ports and VLANs.

In contrast, the diagnose sniffer packet command is executed manually and typically focuses on a specific interface or traffic flow, requiring administrators to explicitly define capture parameters each time. This makes it less efficient when comprehensive visibility across the switch is required.

Sniffer profiles are also designed to bepersistent and reusable, meaning they can remain configured and enabled as needed without continuous CLI interaction. This is especially beneficial in production environments where consistent monitoring across all ports is necessary while minimizing administrative overhead.

The other answer choices are incorrect because sniffer profiles do not eliminate the need for ACLs or port mirroring, do not inherently filter traffic automatically, and do not provide SSL/TLS decryption, which is outside the functional scope of FortiSwitch.

Therefore, based on FortiSwitchOS 7.6 Administrator Guide (Page 438), the correct and fully verified answer isA. It allows packet capture on all switch ports without limitations.

According to theFortiSwitchOS 7.6 Administration Guide(specificallyPage 178) and theFortiSwitch 7.6 Study Guide, the Spanning Tree Protocol (STP) is the fundamental protocol used to manage redundant paths in a Layer 2 network. In the scenario described, where every FortiSwitch connects to every other FortiSwitch, afull Layer 2 meshis created. This architecture inherently produces multiple physical switching loops that, if left unmanaged, would cause catastrophic broadcast storms.

STP is responsible for detecting these loops by exchangingBridge Protocol Data Units (BPDUs). It then mathematically calculates a loop-free logical topology by placing redundant ports into ablocking (discarding)state while keeping primary paths in aforwardingstate. WhileMCLAG (Option A)provides node-level redundancy and eliminates STP delays by allowing two switches to appear as one, it is not a standalone solution for a global full-mesh topology. In fact, Fortinet MCLAG explicitly relies on STP through the mclag-stp-aware feature to detect and prevent loops caused by connections outside the Inter-Chassis Link (ICL).

Therefore, although MCLAG and LAG increase bandwidth and availability,STPremains the required underlying mechanism to maintain network stability in any highly redundant mesh environment. " Full mesh HA " (Option C) is not a defined feature in FortiSwitchOS 7.6.

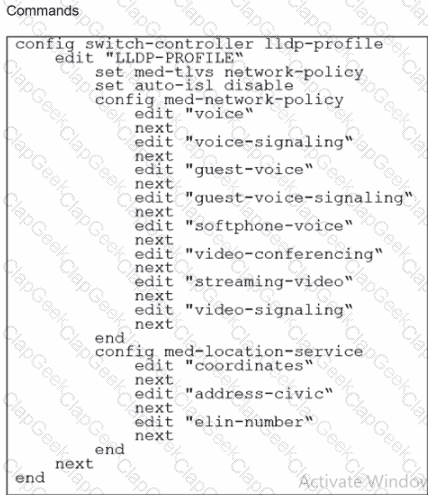

To cause endpoints to exchange PoE information and negotiate power with the managed FortiSwitch via LLDP, you should configure the LLDP profile to include power management in the advertised LLDP-MED TLVs. Here are the steps:

Access the LLDP Profile Configuration:Start by entering the LLDP profile configuration mode with the command:

config switch-controller lldp-profile

edit " LLDP-PROFILE "

Enable MED-TLVs:Ensure that MED-TLVs (Media Endpoint Discovery TLVs) are enabled. These TLVs are used for extended discovery relating to network policies, including PoE, and are essential for PoE negotiation. They include power management which is crucial for the negotiation of PoE parameters between devices. The command to ensure network policies are set might look like:

set med-tlvs network-policy

Add Power Management TLV:Specifically add or ensure the power management TLV is part of the configuration. This will advertise the PoE capabilities and requirements, enabling dynamic power allocation between the FortiSwitch and the connected devices (like VoIP phones or wireless access points). This can typically be done within the network-policy settings:

config med-network-policy

edit < policy_index >

set poe-capability

next

end

Save and Apply Changes:Exit the configuration blocks properly ensuring changes are saved:

End

Verify Configuration:It’s always good practice to verify that your configurations have been applied correctly. Use the appropriateshoworgetcommands to review the LLDP profile settings.

By adding the power management as part of LLDP-MED TLVs, the FortiSwitch will be able to communicate its power requirements and capabilities to the endpoints, thereby facilitating a dynamic power negotiation that is crucial for efficient PoE utilization.

In FortiSwitch, Access Control Lists (ACLs) are used to enforce security rules on both ingress and egress traffic:

ACL Evaluation Order (D):

Operational Function:FortiSwitch processes ACL entries from top to bottom, similar to how firewall rules are processed. The first match in the ACL determines the action taken on the packet, whether to allow or deny it, making the order of rules critical.

Configuration Advice:Careful planning of the order of ACL rules is necessary to ensure that more specific rules precede more general ones to avoid unintentional access or blocks.

" MSTP is based on RSTP " , so the same port role election and the same root bridge selection. Reference: FortiSwitch 7.6 Study Guide, page 187

According to theFortiOS 7.6 Administration Guideand theFortiSwitch 7.6 FortiLink Guide, managing FortiSwitch units in a multi-VDOM environment allows for granular control over physical switch resources. By default, when a FortiSwitch is discovered and authorized via FortiLink, its ports reside in the same VDOM as the FortiLink interface (typically the root or a dedicated management VDOM).

To allocate these ports to other VDOMs, administrators have two primary methods. The first method isdirect assignment(Option A). Using the FortiGate CLI or GUI, an administrator can export a specific physical port directly to a target VDOM. For example, the command set export-to < VDOM_name > under the config switch-controller managed-switch port settings physically isolates that port for use only by the specified VDOM. This is ideal for multi-tenant scenarios where a specific physical connection must be dedicated to a single business unit.

The second method involves using aVirtual Port Pool (VPP)(Option D). This method provides a layer of virtualization for switch ports. An administrator first creates a pool (VPP) in the management VDOM and assigns physical ports to it. Then, from the tenant VDOM, an administrator can " request " a port from that specific pool. This allows for a more flexible " shared " infrastructure where ports are not permanently tethered to a single VDOM until they are claimed from the pool. Both methods ensure that traffic remains logically and physically isolated between VDOMs, supporting the security requirements of complex enterprise deployments. Options B and C are incorrect as they relate to traffic routing and device identification rather than the foundational assignment of hardware ports to virtual domains.

The issue described pertains to the establishment of a tunnel (likely a CAPWAP tunnel for management purposes between FortiGate and FortiSwitch).Based on typical error analysis in tunnel setup scenarios:

The CAPWAP tunnel failed to come up due to a mismatch in time (Option C): This answer is plausible because time synchronization is crucial for security protocols that underpin tunnel establishments, such as DTLS (Datagram Transport Layer Security) used within CAPWAP tunnels. If the clocks on FortiGate and FortiSwitch are significantly out of sync, the security handshake (which can include timestamp validation) could fail, preventing the tunnel from coming up.

Fortinet FortiLink Protocol:The FortiLink protocol is Fortinet ' s proprietary mechanism for managing FortiSwitch units from a FortiGate firewall. It simplifies configuration and security policy enforcement across the connected network devices.

Auto-Discovery:FortiLink ' s auto-discovery feature means that by default, all ports on a FortiSwitch will actively send out discovery frames. This allows them to locate a FortiGate device that has a FortiLink interface enabled, streamlining the device management process.

No Configuration Needed:You don ' t have to manually configure individual ports for FortiLink discovery on FortiSwitch devices.

References

FortiSwitchOS FortiLink Guide (FortiSwitch Devices Managed by FortiOS 7.6):Refer to pages 13 and 14 for details on zero-touch management and FortiLink configuration. [https://fortinetweb.s3.amazonaws.com/docs.fortinet.com/v2/attachments/27f63c72-b083-11ec-9fd1-fa163e15d75b/FortiSwitchOS-7.6.0-FortiLink_Guide%E2%80%94FortiSwitch_Devices_Managed_by_FortiOS_7.6.pdf]

Switch-controller-dhcp-snooping-verify-mac verifies the destination MAC address to protect against DHCP exhaustion attacks (B): This feature of DHCP snooping helps prevent DHCP exhaustion attacks by ensuring that the destination MAC addresses in DHCP packets match the MAC addresses learned by the switch. This check helps prevent attackers from overwhelming the DHCP server with requests from spoofed MAC addresses.

Settings related to DHCP option 82 are only configurable through the CLI (D): DHCP Option 82 is used for " agent information, " and it ' s typically used in network environments where additional information between DHCP clients and servers is necessary for policy and billing purposes. Configuration of these settings in FortiSwitch is only available through the Command Line Interface (CLI), not the Graphical User Interface (GUI).

Active multicast receiver entries are aging on each IGMP query sent on the VLAN (A): When IGMP snooping querier is enabled on a VLAN, it functions to manage multicast traffic within the VLAN by keeping track of multicast group memberships. The IGMP querier sends queries to determine which ports require the multicast traffic. The multicast receiver entries, which are entries that indicate which devices have requested the multicast data, age or time out based on these IGMP queries. Each query refreshes active connections but ages out entries that no longer respond, helping to ensure that multicast traffic is only sent to ports with active receivers.

Pag 232, FortiSwitch_7.6_Study_Guide-Online " However, if you want to authenticate each device behind a port, and optionally, grant each device a different access level based on the credentials provided, then MAC-based is required. "

According to theFortiSwitchOS 7.6 Administration Guideand theFortiLink Guide (FortiOS 7.6), FortiSwitch supports two primary modes for 802.1X authentication:port-basedandMAC-based.

In802.1X port-based authentication, once a single supplicant (user or device) successfully authenticates, the physical port is transitioned to an " authorized " state, allowing all traffic from any device connected to that port (e.g., through a hub or unmanaged switch) to pass through. This is summarized by Option D, which is incorrect for MAC-based mode.

In contrast,802.1X MAC-based authentication(Option B) treats each device ' s MAC address as a distinct session. The switch maintains a table of authenticated MAC addresses for each port and applies security policies to each one individually. This granular approach allows the FortiSwitch to grantdifferent access levelsto different devices on the same physical port. For example, a laptop might be assigned to a corporate VLAN with a specific Dynamic Access Control List (DACL), while an IP phone on the same port is assigned to a Voice VLAN.

Furthermore, FortiSwitchOS 7.6 documentation specifies that MAC-based mode can support up to20 devices per port. Each device must provide its own credentials (or be validated via MAC Authentication Bypass), enabling the switch to enforce specific security attributes—such as VLAN IDs, QoS marking, and ingress ACLs—tailored to each uniquely identified device. While the switch typically communicates with aRADIUS server(Option C) for these credentials, MAC-based mode ' s primary functional advantage is this individual session management and authorization flexibility.

In a multi-tenancy setup on FortiGate, you can assign a FortiSwitch port to a VDOM in two primary ways:

Switch the FortiLink Interface to the Target VDOM (A): This method involves configuring the FortiLink interface, which is the dedicated interface used to manage FortiSwitch units from FortiGate, to operate within a specific VDOM. This effectively assigns all ports on the FortiSwitch, managed through that FortiLink interface, to the designated VDOM.

Create a Virtual Port Pool on the FortiGate CLI (C): Virtual port pools are created on FortiGate and allow ports from FortiSwitch to be grouped and assigned to a VDOM. This method is more granular and flexible, as it allows specific ports on the FortiSwitch to be dedicated to different VDOMs without requiring the entire switch or FortiLink interface to be dedicated to a single VDOM.

While FortiSwitch can collect all the listed LLDP-MED TLVs (Network Policy, Power Management, Location, and Inventory Management), the primary focus for tracking and identifying network devices is on theInventory ManagementTLV.

This TLV carries critical details such as:

Manufacturer

Model

Hardware/Firmware versions

Serial/Asset numbers

This information provides a granular understanding of the devices on your network.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, understanding how VLANs are processed on a switch port is fundamental to network segmentation. A FortiSwitch port behaves differently depending on whether traffic is entering (ingress) or leaving (egress) the interface.

First,you can assign only one native VLAN on a port (Option C). The Native VLAN (often called the PVID or Port VLAN ID) is the default internal ID assigned to any untagged frames arriving at the port. In a managed environment, this is typically set via the FortiGate ' s switch controller. By design, a single physical interface can only belong to one primary broadcast domain for untagged ingress traffic to ensure there is no ambiguity in the switch ' s internal forwarding logic.

Second, theuntagged VLAN setting applies to egress traffic only (Option B). While the " Allowed VLANs " list defines which tagged traffic can pass through the port, the " Untagged VLANs " list specifies which of those VLAN tags should beremovedby the switch before the frame is transmitted out of the physical port. This is crucial for connecting devices that do not support 802.1Q tagging, such as standard PCs or printers.

Regarding the incorrect options:Option Ais incorrect because the " Untagged " list does not define ingress rules; ingress is governed by the Native VLAN for untagged packets and the Allowed list for tagged packets.Option Dis incorrect because, in a managed FortiLink environment, all VLAN assignments should be performed through theFortiGate ' s Switch Controllerto ensure centralized management and consistency.

The correct statement about the quarantine VLAN on FortiSwitch is:

B. Users who fail 802.1X authentication can be placed on the quarantine VLAN.This feature allows network administrators to isolate devices that do not meet the network’s security criteria as determined through 802.1X authentication. Placing these devices in a quarantine VLAN restricts their network access, thereby protecting the network from potential security threats posed by unauthorized or compromised devices.

Option A is incorrect as the presence of a DHCP server in a quarantine VLAN depends on specific network configurations. Option C is incorrect without more context regarding global settings, and option D misstates the functionality of quarantine VLANs, as their primary use is to restrict, not block, devices without additional VLAN configuration changes.

The FortiLink authorization process is an integral part of setting up FortiSwitch to be managed by FortiGate. The correct statements regarding the FortiLink authorization process are:

C.A FortiLink frame is sent by FortiGate to FortiSwitch to complete the authorization.This is a part of the FortiLink protocol, where FortiGate communicates with the connected FortiSwitch to establish management and control. This frame initiates the configuration and management process, allowing FortiGate to effectively control the switch.

D.FortiLink authorization sets the FortiSwitch management mode to FortiLink.Once authorized, the management mode of FortiSwitch is set to FortiLink, indicating that it is being managed via a FortiLink connection from a FortiGate appliance. This changes the operational mode of the switch to be under the control of the FortiGate for centralized management and policy application.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Remote Switched Port Analyzer (RSPAN) is a method used to monitor traffic across a network of switches by carrying mirrored traffic over a specific RSPAN VLAN. Because RSPAN floods mirrored traffic to all ports that are members of that specific VLAN across the intermediate switches (Switch B, etc.) until it reaches the destination port, it is critical to manage how that traffic is isolated.

The documentation explicitly states that the best practice is touse a dedicated VLAN assigned only to monitoring devices (Option B). When a VLAN is designated for RSPAN, the switch disables MAC address learning on that VLAN to ensure that the mirrored traffic—which contains the source and destination MAC addresses of the original conversation—does not interfere with the switch ' s normal MAC address table entries for those devices.2

Using a VLAN that already carries regular data traffic (Option A) would result in a massive amount of duplicate traffic being flooded to normal production hosts, leading to network congestion and potential security risks. Similarly, using a dynamic VLAN that includes all ports (Option C) would cause the mirrored traffic to be broadcast to every port in the switch fabric, significantly degrading performance. Finally, using the RSPAN VLAN as a native VLAN (Option D) is not recommended because native VLANs typically handle untagged traffic, whereas RSPAN requires consistent tagging to ensure the mirrored packets stay within the isolated monitoring domain across trunk links. Therefore, creating a unique, dedicated VLAN that is used exclusively for the transport of mirrored traffic is the architectural standard for FortiSwitch RSPAN deployments.

VLAN assignments on FortiSwitch ports must follow certain rules and guidelines to ensure network integrity and proper traffic segregation:

Only Assign One Native VLAN on a Port (C):

Native VLAN Configuration:Each switch port can have only one native VLAN. The native VLAN carries untagged traffic for that port. If the port receives untagged frames, they are assumed to belong to the native VLAN.

Importance of Singular Native VLAN:This is crucial for preventing VLAN hopping attacks and ensures clear and secure VLAN demarcation on each port.

Assign Untagged VLANs Using FortiGate CLI (D):

CLI Configuration:Untagged VLANs, often equivalent to the native VLAN, can be assigned through the FortiGate CLI when managing a FortiSwitch via FortiLink. This allows for central management and configuration of VLANs across connected switches.

Operational Efficiency:Using the CLI ensures that VLAN settings are applied uniformly, reducing the likelihood of misconfigurations that might occur when managing VLANs individually on each switch.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiLink 7.6 Study Guide, DHCP snooping is a security feature that prevents rogue DHCP servers from distributing incorrect IP addresses on a network. Once enabled for a specific VLAN, the switch differentiates betweentrustedanduntrustedports to regulate DHCP traffic.

Trusted Ports and DHCP Replies (Option A):In a managed FortiSwitch environment, all ports areuntrusted by default. To allow a DHCP server (such as a FortiGate or an external server) to provide IP addresses, the administrator must explicitly set the connecting port astrusted. DHCP snooping validates incoming packets; it allowsDHCP server messages(such as DHCPOFFER and DHCPACK) only on these trusted ports. Any DHCP server reply arriving on an untrusted port is identified as coming from a potentially rogue source and is discarded by the switch.

Option 82 Data Insertion (Option C):FortiSwitch supportsDHCP Option 82(also known as the Relay Information Option), which provides additional security by appending location-specific information (such as the Circuit ID and Remote ID) toDHCP request packets. When DHCP snooping is active, the switch can be configured to insert this data into client requests as they enter untrusted ports. This allows the upstream DHCP server to identify the specific physical port or VLAN from which the request originated, even if the server is located in a different subnet.

Regarding the incorrect options:Option Bis false as DHCP snooping only inspects and filters DHCP-specific traffic, not general unicast data.Option Dis incorrect because DHCP requests (client-to-server) are generally permitted on all ports to ensure clients can find a server, though some configurations allow dropping requests from untrusted sources if they do not meet specific security criteria.

To enable SNMP v2c on a managed FortiSwitch, the essential requirement involves configuring the SNMP agent and community strings:

Configure SNMP Agent and Communities (D):

SNMP Agent:Activating the SNMP agent on FortiSwitch allows it to respond to SNMP requests.

Community Strings:SNMP v2c uses community strings for authentication. These strings function as passwords to grant read-only or read-write access to the SNMP data.

Understanding Other Options:

Create an SNMP user (A)is necessary for SNMP v3, not v2c, as it involves user-based authentication and encryption.

Specify an SNMP host (B)is typically a part of SNMP configuration but not a requirement just to enable SNMP.

Enable SNMP v3 (C)is not related to enabling SNMP v2c.

It provides benefits that can be obtained when using 802.1X authentication (C): MAC, IP, and protocol-based VLANs on FortiSwitch are beneficial in network environments where additional granularity is needed in traffic segmentation and security, similar to what can be achieved through 802.1X authentication. These VLAN types allow for dynamic assignment of ports to VLANs based on the characteristics of the incoming traffic, enhancing both security and network efficiency.

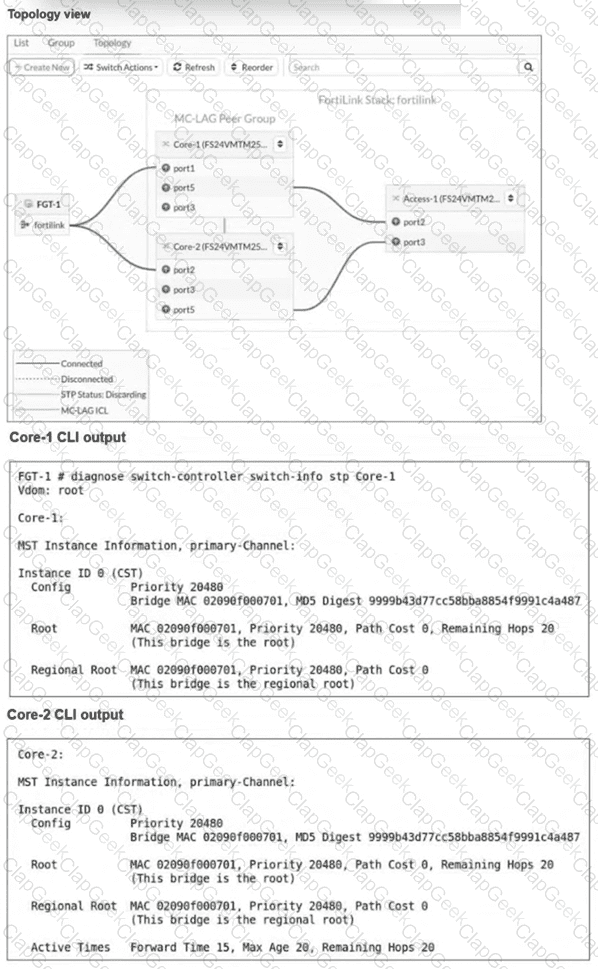

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, Multichassis Link Aggregation (MCLAG) provides node-level redundancy by grouping two physical switches together so that theyappear as a single logical switchto the rest of the network. This logical representation is critical for preventing Spanning Tree Protocol (STP) from blocking redundant uplinks from downstream client switches.

To achieve this " single switch " appearance, the MCLAG peer switches synchronize their STP state andshare the same Bridge ID, which consists of a synchronized bridge MAC address and the same bridge priority. As shown in the exhibits for Core-1 and Core-2, both switches are configured with aBridge MAC of 02090f000701and aPriority of 20480. Because they possess identical identification parameters, each physical switch in the peer group locally recognizes itself as part of the root bridge entity for the MSTP region.

This behavior is intentional and is a fundamental characteristic of MCLAG design in FortiSwitchOS. It ensures that any downstream device, such as Access-1, receives BPDUs with the same bridge ID from both Core-1 and Core-2, thereby treating them as a single high-availability neighbor rather than two separate devices. Option A is incorrect as FortiGate typically does not participate in STP calculations. Option B is incorrect because this " duplicate " root behavior is the expected sign of acorrectlyfunctioning MCLAG control plane. Option D is incorrect as STP remains active to prevent loops elsewhere in the fabric; it is merely logically simplified for the MCLAG domain.

FortiSwitch supports packet capture through various methods, but the Sniffer profile is specifically capable of capturing traffic on both trunks and management interfaces.Here ' s why:

Sniffer Profile (B):

Versatile Capture:The sniffer profile in FortiSwitch is designed to capture traffic across different types of interfaces, including trunks (where multiple VLANs are present) and management interfaces (used for controlling and monitoring the switch).

Configuration Flexibility:You can configure sniffer profiles to target specific traffic, offering flexibility in monitoring and troubleshooting network issues on both data and management planes.

Other Options:

SPAN (A)is used mainly for mirroring traffic to another port for analysis but is typically limited in its ability to capture management interface traffic.

sFlow (C)andTCP dump (D)are useful tools but do not specifically align with the capability to universally capture traffic across trunks and management interfaces in the context described.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6.1 Administration Guide—Standalone Mode, aRouted VLAN Interface (RVI)is a physical port or trunk interface that is converted to support Layer 3 routing protocols.2This transformation changes the fundamental nature of the interface from a switching component to a routing component.

When an RVI is enabled on a specific physical port or trunk, the system automatically assignsVLAN 4095to that interface at the backend.3This specific VLAN ID is reserved across the FortiSwitch platform to signal that the interface is no longer operating as a standard Layer 2 switch port.4Once configured as an RVI, the interface supports advanced Layer 3 features such asOSPF, BGP, RIP, IS-IS, and static routing, as well asVirtual Routing and Forwarding (VRF)for routing isolation.5

Importantly, the documentation states that upon enabling RVI,Layer 2 protocols(such as Spanning Tree Protocol or 802.1X port-based security) and most standard switch interface features aredisabledon that port.6This is because the port is now treated as a dedicated Layer 3 " routed " interface rather than a member of the Layer 2 switching fabric.7Additionally, if the underlying physical port or trunk interface is administratively shut down, the associated RVI will also transition to a " down " state.

QSFP+ transceiver (A): The QSFP+ (Quad Small Form-factor Pluggable Plus) transceiver is designed to handle 40G data rates and can be used to split a 40G port into multiple 10G connections. This type of transceiver supports such configurations, making it suitable for high-density applications where multiple 10G connections are derived from a single 40G port, thereby maximizing the utilization of the port and the fiber infrastructure.

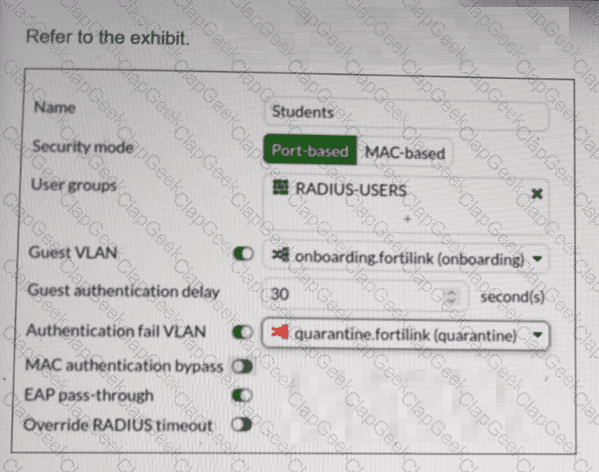

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, 802.1X port security allows administrators to define specific actions based on the outcome of an authentication attempt. The configuration exhibit shows a security policy named " Students " with two specialized VLAN assignments enabled: aGuest VLANand anAuthentication fail VLAN.

In FortiSwitchOS 7.6, these two settings serve distinct purposes based on the client ' s behavior:

Guest VLAN (Option C):This is used when a connected device doesnothave an 802.1X supplicant (software) or does not respond to EAP (Extensible Authentication Protocol) requests within the specified " Guest authentication delay " . In this scenario, the device is moved to the " onboarding " VLAN to allow for basic network access or software downloads.

Authentication fail VLAN (Option A):This is triggered specifically when a devicedoesattempt to authenticate via 802.1X but the authentication server (RADIUS) returns anAccess-Rejectmessage, typically due toincorrect credentials.

As stated in the scenario, the userattemptsto authenticate but enters thewrong credentials. According to the policy shown in the exhibit, theAuthentication fail VLANis enabled and set to " quarantine.fortilink (quarantine) " . Therefore, the FortiSwitch will logically move the port ' s traffic into the quarantine VLAN, isolating the user from the production network due to the failed login attempt. Option B is incorrect as there is no " shutdown " action configured, and Option D refers to a default state that is overridden by the explicit failure policy.
