NSE4_FGT-7.2 Fortinet NSE 4 - FortiOS 7.2 Questions and Answers

"If you suspect that there is an IP address conflict, or that an IP has been assigned to the wrong device, you may need to look at the ARP table."

https://community.fortinet.com/t5/FortiGate/Technical-Tip-rules-about-VLAN-configuration-and-VDOM-interf

https://kb.fortinet.com/kb/viewContent.do?externalId=FD30883

"If you use multiple source or destination interfaces, or the any interface in a firewall policy, you cannot separate policies into sections by interface pairs—some would be triplets or more. So instead, policies are then always displayed in a single list (By Sequence)."

References:

https://docs.fortinet.com/document/fortigate/5.6.0/cookbook/761085/results

https://docs.fortinet.com/document/fortimanager/6.2.0/new-features/736125/security-fabric-topology

An aggregate interface is a logical interface that combines two or more physical interfaces into one virtual interface1. An aggregate interface can increase network bandwidth and provide redundancy by distributing traffic across multiple physical interfaces using a load balancing algorithm1. An aggregate interface can also support link aggregation control protocol (LACP) to negotiate the link aggregation settings with the connected device1.

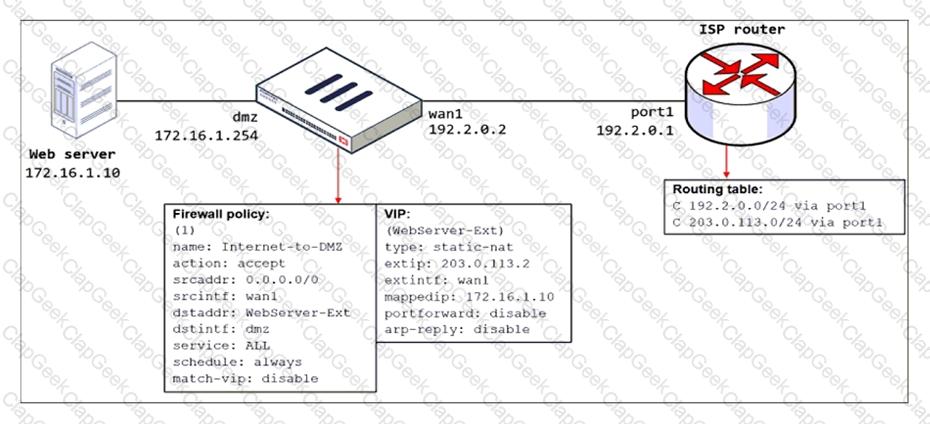

FortiGate Security 7.2 Study Guide (p.115): "Enabling ARP reply is usually not required in most networks because the routing tables on the adjacent devices contain the correct next hop information, so the networks are reachable. However, sometimes the routing configuration is not fully correct, and having ARP reply enabled can solve the issue for you. For this reason, it’s a best practice to keep ARP reply enabled."

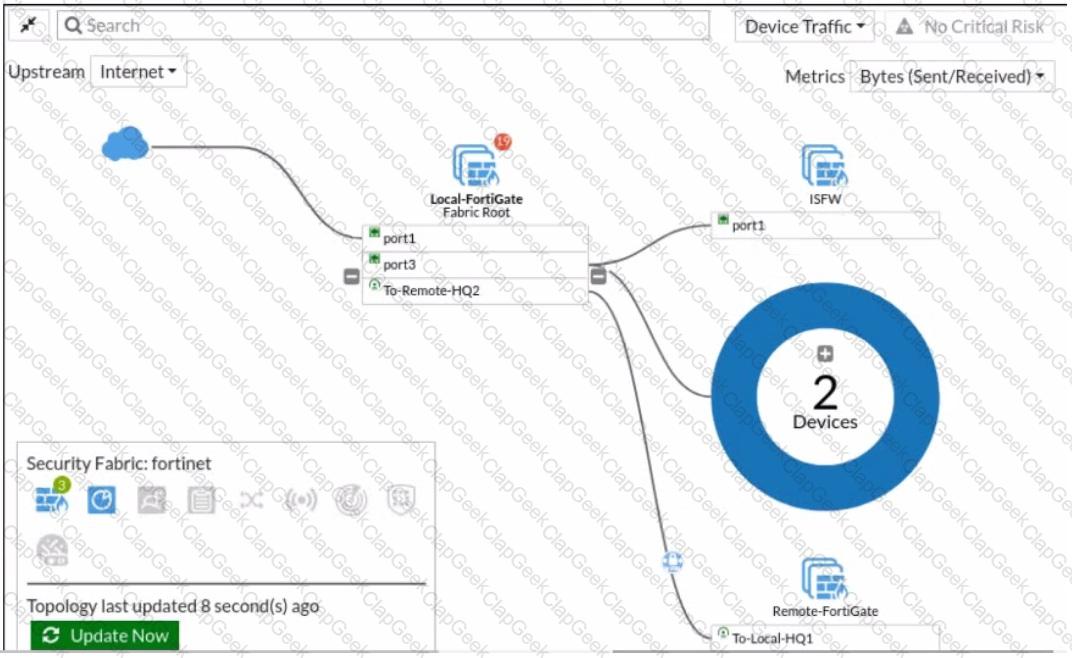

FortiGate Security 7.2 Study Guide (p.436): "When you configure FortiGate devices in multi-vdom mode and add them to the Security Fabric, each VDOM with its assigned ports is displayed when one or more devices are detected. Only the ports with discovered and connected devices appear in the Security Fabric view and, because of this, you must enable Device Detection on ports you want to have displayed in the Security Fabric. VDOMs without ports with connected devices are not displayed. All VDOMs configured must be part of a single Security Fabric."

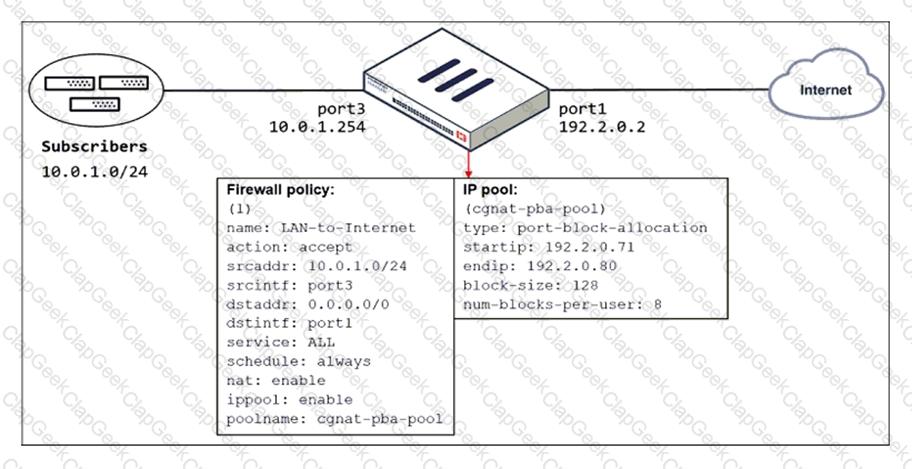

FortiGate Security 7.2 Study Guide (p.109): "FortiGate allocates port blocks on a first-come, first-served basis." "For logging purposes, when FortiGate allocates a port block to a host, it generates a system event log to inform the administrator."

FortiGate Infrastructure 7.2 Study Guide (p.222):

"When connected to SSL VPN over high latency connections, FortiGate can time out the client before the client can finish the negotiation process, such as DNS lookup and time to enter a token. Two new CLI commands under config vpn ssl settings have been added to address this. The first command allows you to set up the login timeout, replacing the previous hard timeout value. The second command allows you to set up the maximum DTLS hello timeout for SSL VPN connections."

FortiGate Infrastructure 7.2 Study Guide (p.41): "The RPF check is a mechanism that protects FortiGate and your network from IP spoofing attacks by checking for a return path to the source in the routing table." "FortiGate performs an RPF check only on the first packet of a new session. That is, after the first packet passes the RPF check and FortiGate accepts the session, FortiGate doesn’t perform any additional RPF checks on that session."

A. The RPF check is a mechanism that protects FortiGate and the network from IP spoofing attacks.

This is true because the RPF check verifies that the source IP address of an incoming packet matches the reverse route for that address, meaning that the packet came from a legitimate source and not from an attacker who is trying to impersonate another host. This prevents IP spoofing attacks, where an attacker sends packets with a forged source IP address to bypass security policies or launch denial-of-service attacks1

C. The RPF check is run on the first sent packet of any new session.

This is true because the RPF check is performed only once per session, on the first packet sent by either the client or the server, depending on the direction of the session initiation. This reduces the processing overhead and improves performance2

FortiGate Security 7.2 Study Guide (p.67): "When creating firewall objects or policies, a universally unique identifier (UUID) attribute is added so that logs can record these UUIDs and improve functionality when integrating with FortiManager or FortiAnalyzer."

When using FortiGuard category filtering to allow or block access to a website, one option is to make a web rating override and define the website in a different category. Web ratings are only for host names - no URLs or wildcard characters are allowed.

OK: google.com or www.google.com

NO OK: www.google.com/index.html or google.*

FortiGate_Security_6.4 page 384

When using FortiGuard category filtering to allow or block access to a website, one option is to make a web rating override and define the website in a different category. Web ratings are only for host names-- "no URLs or wildcard characters are allowed".

https://docs.fortinet.com/document/fortigate/6.0.0/handbook/49719/configuring-sd-wan-load-balancing

https://kb.fortinet.com/kb/documentLink.do?externalID=13900

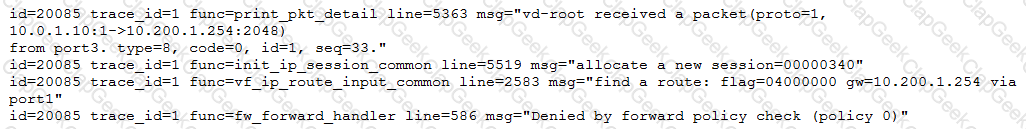

https://www.fortinetguru.com/2016/03/what-is-policy-id-0-and-why-lot-of-denied-traffic-on-this-policy/

http://docs.fortinet.com/document/fortigate/6.0.0/handbook/240599/application-control

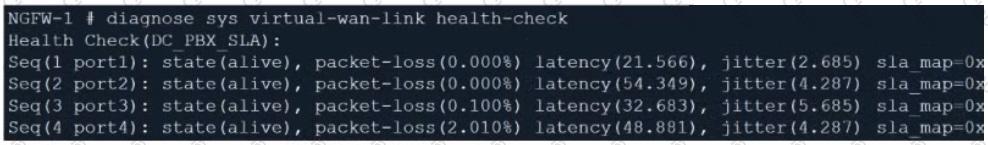

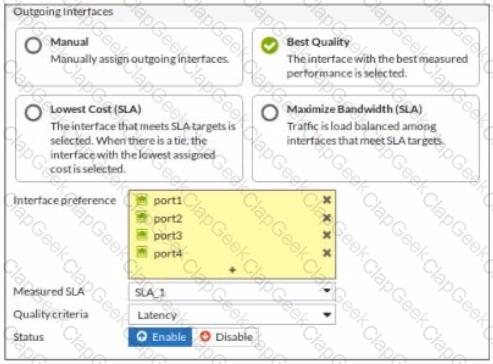

Port 1 shows the lowest latency.

Dialup user is used when the remote peer's IP address is unknown. The remote peer whose IP address is unknown acts as the dialup clien and this is often the case for branch offices and mobile VPN clients that use dynamic IP address and no dynamic DNS

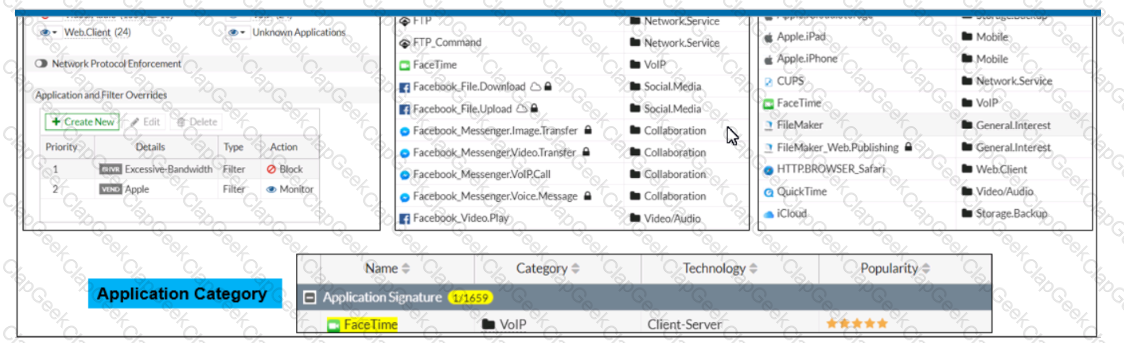

Application control is a feature that allows FortiGate to inspect and control the use of specific web applications on the network. When application control is enabled, FortiGate can identify child and parent applications, and can perform different actions on them based on the configuration.

FortiGate Security 7.2 Study Guide (p.385): "The IPS engine is responsible for most of the features shown in this lesson: IPS and protocol decoders. It’s also responsible for application control, flow-based antivirus protection, web filtering, and email filtering."

"In order for FortiGate to act in these roles, its CA certificate must have the basic constraints extension set to cA=True and the value of the keyUsage extension set to keyCertSign."

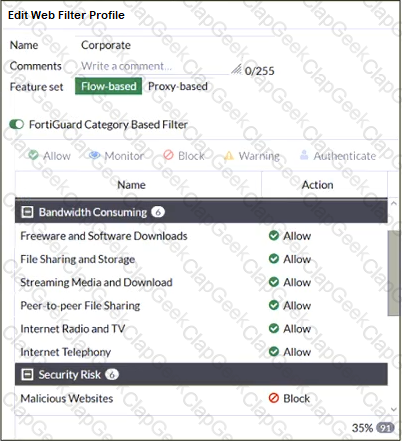

FortiGate Security 7.2 Study Guide (p.268-269): "If you want to make an exception, for example, rather than unblock access to a potentially unwanted category, change the website to an allowed category. You can also do the reverse. You can block a website that belongs to an allowed category." "Static URL filtering is another web filter feature. Configured URLs in the URL filter are checked against the visited websites. If a match is found, the configured action is taken. URL filtering has the same patterns as static domain filtering: simple, regular expressions, and wildcard."

B. Configure a web override rating for download.com and select Malicious Websites as the subcategory.

This is true because a web override rating is a feature that allows the administrator to change the FortiGuard category of a specific website or domain, and apply a different action to it based on the web filter profile. By configuring a web override rating for download.com and selecting Malicious Websites as the subcategory, the administrator can block access to download.com, which belongs to the Freeware and Software Downloads category by default, without affecting other websites in the same category. The Malicious Websites category has the action Block in the web filter profile shown in the exhibit.

D. Configure a static URL filter entry for download.com with Type and Action set to Wildcard and Block, respectively.

This is true because a static URL filter entry is a feature that allows the administrator to define custom rules for filtering specific URLs or domains, and apply an action to them based on the web filter profile. By configuring a static URL filter entry for download.com with Type and Action set to Wildcard and Block, respectively, the administrator can block access to download.com and any subdomains or paths under it, without affecting other websites in the Freeware and Software Downloads category. The static URL filter entries have higher priority than the FortiGuard category based filter entries in the web filter profile.

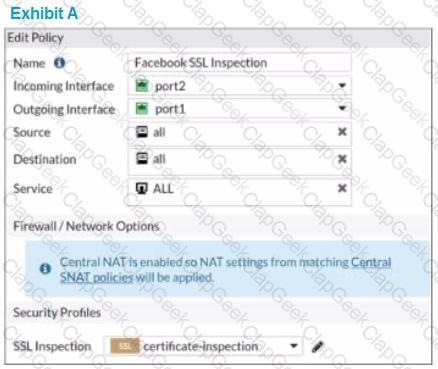

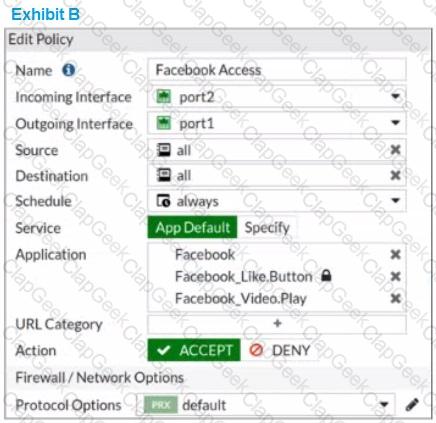

They can play video (tick) content hosted on Facebook, but they are unable to leave reactions on videos or other types of posts. This indicate that the rule are partially working as they can watch video but cant react, i.e. liking the content. So must be an issue with the SSL inspection rather then adding an app rule.

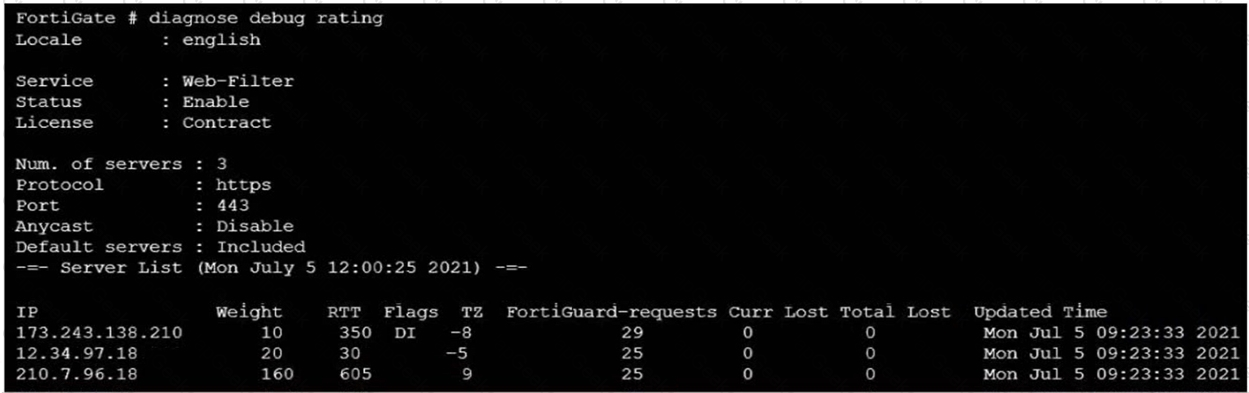

FortiGate Security 7.2 Study Guide (p.287-288): "Flags: D (IP returned from DNS), I (Contract server contacted), T (being timed), F (failed)" "By default, FortiGate is configured to enforce the use of HTTPS port 443 to perform live filtering with FortiGuard or FortiManager. Other ports and protocols are available by disabling the FortiGuard anycast setting on the CLI."

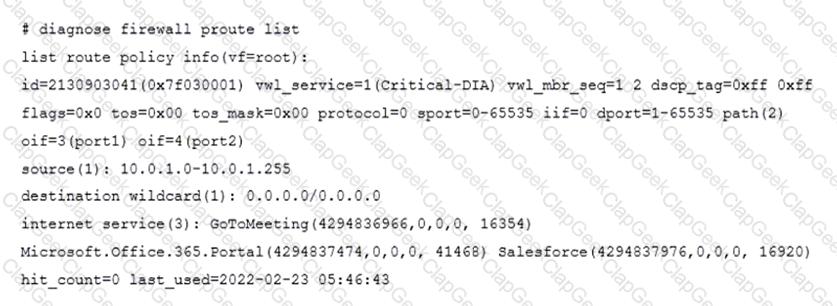

FortiGate Infrastructure 7.2 Study Guide (p.59): "ISDB routes and SD-WAN rules are assigned an ID higher than 65535. However, SD-WAN rule entries include the vwl_service field, and ISDB route entries don’t."

https://community.fortinet.com/t5/FortiGate/Technical-Note-How-to-use-emac-vlan-to-share-the-same-VLAN/ta-p/192843?externalID=FD43883

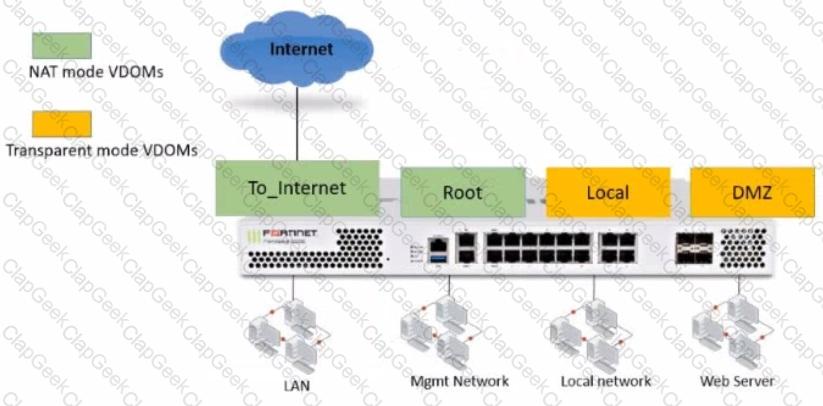

When FortiGate is operating in NAT mode, it means that it uses network address translation (NAT) to modify the source or destination IP addresses of the traffic passing through it1. NAT mode allows FortiGate to hide the IP addresses of the internal network from the external network, and to conserve IP addresses by using a single public IP address for multiple private IP addresses1.

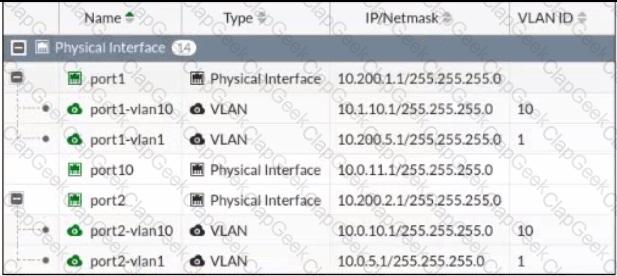

A virtual LAN (VLAN) subinterface is a logical interface that allows traffic from different VLANs to enter and exit the FortiGate unit2. A VLAN subinterface is created by adding a VLAN ID to a physical interface or an aggregate interface2. A VLAN ID is a numerical identifier that distinguishes one VLAN from another2.

In this scenario, there are two requirements for the VLAN ID of the VLAN subinterfaces added to the same physical interface:

• The two VLAN subinterfaces must have different VLAN IDs. This is because the VLAN ID is used to tag the traffic with the appropriate VLAN information, and to separate the traffic into different VLANs2. If the two VLAN subinterfaces have the same VLAN ID, they will not be able to distinguish the traffic from each other, and they will not be able to forward the traffic to the correct destination.
• The two VLAN subinterfaces can have the same VLAN ID, only if they belong to different VDOMs. This is because VDOMs are virtual instances of FortiGate that can have their own interfaces, policies, and routing tables3. Each VDOM operates independently from other VDOMs, and can have its own VLAN subinterfaces with different or identical VLAN IDs3. However, this requires inter-VDOM links to allow traffic between different VDOMs3.

FortiGate Infrastructure 7.2 Study Guide (p.165): "ZTNA access proxy allows users to securely access resources through an SSL-encrypted access proxy. This simplifies remote access by eliminating the use of VPNs."

This is true because ZTNA access proxy is a feature that allows remote users to access internal applications without requiring VPN or user credentials. ZTNA access proxy uses a secure tunnel between the user’s device and the FortiGate, and authenticates the user based on device identity and context. The user only needs to install a lightweight agent on their device, and the FortiGate will automatically assign them to the appropriate application group based on their device profile. This simplifies remote access and enhances security by reducing the attack surface12

SSL Inspection Profile, on the Inspection method there are 2 options to choose from, SSL Certificate Inspection or Full SSL Inspection. FG SEC 7.2 Studi Guide: Full SSL Inspection level is the only choice that allows antivirus to be effective.

You can deploy FSSO w/o installing an agent. FG polls the DCs directly, instead of receiving logon info indirectly from a collector agent.

Because FG collects all of the data itself, agentless polling mode requires greater system resources, and it doesn't scale as easily.

Agentless polling mode operates in a similar way to WinSecLog, but with only two event IDs: 4768 and 4769. Because there's no collector agent, FG uses the SMB protocol to read the event viewer logs from the DCs.

FG acts as a collector. It 's responsible for polling on top of its normal FSSO tasks but does not have all the extra features, such as workstation checks, that are available with the external collector agent.

FortiGate_Security_6.4 page 575 - Web mode requires only a web browser, but supports a limited number of protocols.
