M2 Commercial Mechanical Inspector Questions and Answers

The IMC appliance provisions prohibit duct connection to a vented wall furnace . That makes Option B correct. The exam tests recognition of appliance-specific distribution restrictions rather than general duct rules.

This is also an exhibit-reading question. From the equipment schedule in the image, CEF-5 is listed as a Nutone unit, so Option D is correct. This falls under reading commercial mechanical drawings and equipment schedules related to exhaust/ventilation components.

The fuel gas venting provisions state that the exit terminals of mechanical draft systems shall be not less than 7 feet above grade where located adjacent to public walkways. Therefore, A is the correct answer.

Based on the specification sheet shown in the exhibit, the hood is fabricated of Type 430 stainless steel , and the optional stainless steel listed is Type 304 . Therefore, the correct answer is C .

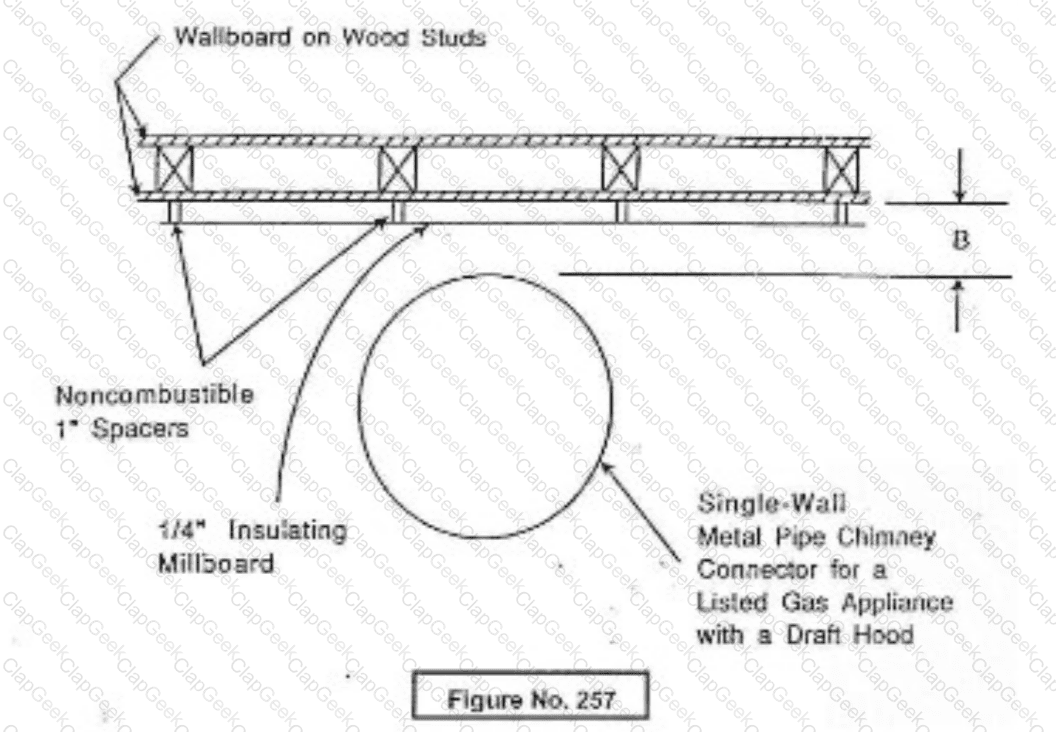

For a clearance-reduction system using 24-gauge sheet metal with a ventilated 1-inch air space , the recognized reduction method brings a 12-inch listed clearance down to 4 inches . That matches Option B . This is also consistent with the protection method shown in the exhibit.

For commercial kitchen exhaust associated with Type I hood systems, the recognized code-based minimum duct transport velocity is 1,500 feet per minute , so C is the correct answer. Option B uses the wrong unit, and the other listed velocities do not match the code minimum used for this question type.

The IMC requires clothes dryer exhaust ducts to terminate outside the building and to be equipped with a backdraft damper at the terminal. The code also prohibits screens at dryer terminations because lint can accumulate and obstruct flow. That makes Option A correct and eliminates Option C . The other two choices describe controls not required by the dryer exhaust termination rule.

Under the ICC administrative provisions used with the mechanical code, one approved set is retained by the code official, and one approved set is returned to the applicant. The returned set must be kept on the site of the building or job while the authorized work is in progress. That directly matches Option A . It does not require return to the architect, filing with the county clerk, or retention for one year after completion.

The IFGC section on test medium states that the test medium shall be air, nitrogen, carbon dioxide or an inert gas , and specifically states that oxygen shall not be used as a test medium . That makes C the correct answer.

A low-pressure steam heating boiler is defined as a boiler furnishing steam at pressures not exceeding 15 psi . That matches Option B .

For appliances listed for outdoor installation and incorporating integral venting , the IMC requires them to be installed in accordance with their listings and the manufacturer’s installation instructions . That matches Option C exactly.

The ICC mechanical code requires the lowest portion of a floor furnace to have not less than 6 inches (152 mm) clearance from grade level . Therefore, the correct choice is the option corresponding to 6 inches , which is C based on your answer set.
