JN0-352 Enterprise Routing and Switching, Specialist (JNCIS-ENT) Questions and Answers

MACsec (IEEE 802.1AE) secures a point-to-point Ethernet link independently of how the logical unit above it is configured for VLAN tagging, so neither trunk mode nor access mode has any bearing on whether the MACsec Key Agreement (MKA) protocol can establish a secure channel. What does determine success is the pre-shared key material: when static CAK security mode is used, the Connectivity Association Key (CAK) and the Connectivity Association Key Name (CKN) must be configured identically on both ends of the link. If they do not match, MKA never completes the exchange, no secure channel is created, and all traffic on that interface is dropped rather than merely left unencrypted. Equally important, and frequently overlooked, is that MACsec adds up to 32 bytes of overhead per frame for the security tag (SecTAG) and integrity check value (ICV); Juniper's official guidance is to ensure the difference between the interface's physical MTU and the protocol MTU is large enough to absorb this overhead, or frames will be silently discarded once encryption is active, producing symptoms that look identical to a failed session. Both the CAK/CKN and MTU checks are documented first-line troubleshooting steps for MACsec on EX Series switches. Reference topics: Junos Enterprise Switching – Layer 2 Security, Configuring and Troubleshooting MACsec on EX Series Switches.

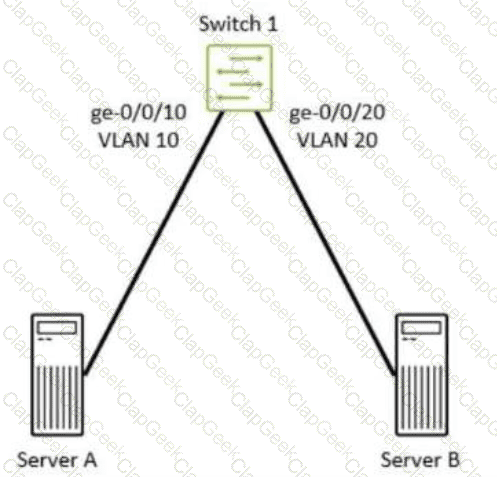

Because Server A resides in VLAN 10 and Server B resides in VLAN 20, traffic between them cannot remain a purely Layer 2 switched flow; it must be routed between the two VLANs, which on Switch 1 means the packet traverses the switch's internal routing engine (via an IRB interface) between the ingress and egress switching stages. Junos processes firewall filters along this path in a strict, layered order that mirrors the packet's actual journey through the device. First, any filter applied at the physical ingress port level (Rx-Port) is evaluated as the frame first arrives on ge-0/0/10. Next, any filter applied to the ingress VLAN (Rx-VLAN, i.e., VLAN 10) is evaluated as the frame is classified into its source broadcast domain. Because the destination subnet requires routing, the packet is then handed to the routing engine, where any input/ingress routed filter (Rx-Router) applied to the receiving IRB interface is evaluated next, followed by any output/egress routed filter (Tx-Router) applied as the now-routed packet is handed from the routing engine back out toward VLAN 20. Finally, the packet passes through any egress VLAN filter (Tx-VLAN, for VLAN 20) and then the egress physical port filter (Tx-Port) on ge-0/0/20 immediately before transmission to Server B. This complete six-stage sequence — Rx-Port, Rx-VLAN, Rx-Router, Tx-Router, Tx-VLAN, Tx-Port — reflects every filter-evaluation checkpoint a routed, inter-VLAN packet passes through on an EX Series Layer 3 switch. Reference topics: Junos Enterprise Switching – Layer 2 Switching and Firewall Filter Processing Order for Routed VLAN Traffic.

RSTP, as defined in IEEE 802.1w, introduces explicit, well-defined port roles that go beyond legacy 802.1D STP's simpler root/designated/blocking model, and the alternate port role is one of RSTP's key refinements. An alternate port is a port that receives BPDUs from a bridge other than the one through which the local switch's actual root port reaches the root bridge — in other words, it represents a second, redundant path toward the root bridge learned from a different upstream bridge than the one currently providing the best (root port) path. Because the existing root port already provides the lowest-cost, actively used path to the root, the alternate port is deliberately held in the discarding (non-forwarding) state during normal, stable operation, functioning purely as a pre-computed, ready-to-use backup; critically, RSTP's major performance advantage over legacy STP is that if the current root port fails, the switch can transition its alternate port directly and almost instantly into the forwarding root port role without needing to pass through the lengthy listening and learning timer-based states that classic STP required, since the alternate port's suitability as a backup was already continuously verified through ongoing BPDU reception. It is not simply 'not receiving BPDUs' (an alternate port receives BPDUs continuously, just inferior ones relative to the current root port), it is not itself the least-cost path (that describes the root port), and it does not forward based on designated-port overload, which is not a concept that exists in RSTP's port-role logic at all. Reference topics: Junos Enterprise Switching – Spanning Tree Protocols, RSTP Port Roles: Alternate and Backup Ports.

The factory-default storm control configuration on EX Series switches operates in a purely rate-limiting mode rather than an interface-shutdown mode. When broadcast, multicast, or unknown-unicast traffic on a port exceeds the configured bandwidth-percentage threshold, the default action is simply to police the offending traffic type and silently drop only the packets that exceed that threshold, while all traffic within the allowed rate continues to be forwarded normally and the interface itself remains administratively and operationally up throughout the event. This explains the observed symptom precisely: during the burst of unknown-unicast frames, the switch dropped the excess volume above the configured limit, producing a brief period of packet loss, but as soon as the burst subsided and traffic fell back under the threshold, storm control simply stopped dropping packets and normal forwarding resumed automatically — no administrative shutdown, recovery timer, or manual intervention was ever involved, because the interface was never taken down in the first place. This default drop-only behavior is distinct from the optional interface-shutdown action, which must be explicitly configured if an administrator wants storm control to disable a port outright on violation (as seen in a related scenario requiring the clear ethernet-switching recovery-timeout command). Storm control by default covers broadcast, multicast, and unknown-unicast traffic types together, not multicast alone, and it has no functional relationship to GRES, which governs Routing Engine redundancy rather than Layer 2 traffic policing. Reference topics: Junos Enterprise Switching – Storm Control, Default Drop Behavior Versus Interface Shutdown Action.

GRE encapsulation adds a fixed 24 bytes of overhead to every packet it carries — 4 bytes for the GRE header itself and 20 bytes for the new outer IPv4 delivery header. When a host transmits a full 1500-byte Ethernet payload into a gr- interface, the resulting encapsulated packet becomes 1524 bytes, which exceeds the physical interface's standard 1500-byte MTU and forces fragmentation or drops if the don't-fragment bit is set. The correct remediation is to reduce the effective MTU seen by end hosts so that encapsulated packets never exceed the physical link's transmission limit. Junos automatically applies this logic to gr- logical interfaces, which default to a 1476-byte protocol MTU (1500 minus 24), but when the underlying physical interface or a manually configured path is involved, administrators must explicitly size the interface MTU to 1476 bytes to prevent post-encapsulation oversize packets. Allowing fragmentation with clear-dont-fragment is a workaround that increases CPU load and can degrade performance rather than solving the root cause, BFD addresses link-failure detection rather than MTU sizing, and ToS copying affects only the type-of-service byte, not packet length. Reference topics: Junos Enterprise Routing – Tunneling, GRE Encapsulation and MTU Considerations; Junos OS Configuring GRE Tunnel Interfaces.

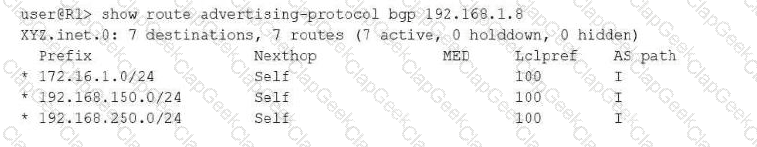

The show route advertising-protocol bgp command displays exactly what would be transmitted to a specific BGP neighbor after all configured export routing policy has already been evaluated and applied, meaning any prefixes shown in this output have successfully passed through the export policy chain — confirming the export routing policy has been processed. The command header explicitly states '7 destinations, 7 routes (7 active, ...)' and every listed prefix is preceded by an asterisk, Junos's standard marker for an active route, confirming all seven displayed routes are active in the local routing table. The routing table name shown, XYZ.inet.0, indicates these routes reside in a named routing instance called XYZ rather than the default master routing instance, whose table would instead be labeled simply inet.0; this rules out the statement claiming the routes belong to the default instance. The AS path column shows only the origin code 'I' (IGP) with no AS numbers prepended ahead of it, meaning the AS path is empty, which indicates these prefixes were originated locally within R1's own AS (through redistribution or local origination) rather than having been learned from and passed through an external AS, ruling out that statement as well. Finally, the Nexthop column explicitly shows 'Self' for every route rather than an actual peer or learned address, confirming R1 is rewriting the next-hop attribute to its own address before advertising — a deliberate next-hop-self policy action typically applied toward IBGP peers. Reference topics: Junos Enterprise Routing – BGP, Verifying Advertised Routes and Export Policy Effects.

The described symptom — excessive packet drops specifically attributed to exceeding the MTU on a GRE tunnel carrying full-size video streaming traffic across default-MTU gigabit Ethernet interfaces — is a direct consequence of the 24 bytes of GRE encapsulation overhead pushing packets that were already at or near the standard 1500-byte Ethernet MTU past the physical interface's transmission limit once the outer GRE and IP headers are added. The most durable fix is to proactively increase the physical member interfaces' MTU beyond the 1500-byte default — to 1524 bytes or higher — which provides sufficient headroom to absorb the full GRE encapsulation overhead without ever causing the fully encapsulated packet to exceed the interface's transmission capability, allowing full-size 1500-byte payloads to pass through the tunnel intact and without fragmentation or drops. As a complementary measure, configuring the clear-dont-fragment-bit option on the tunnel or member interfaces instructs Junos to clear the DF (don't fragment) bit on oversized packets rather than dropping them outright when they do exceed the available MTU, allowing the Packet Forwarding Engine to fragment and later reassemble the traffic instead of silently discarding it, which directly addresses the reported packet loss even under transient conditions. Simply raising the MTU only to 1500 bytes fails to account for the 24-byte GRE overhead and would not resolve the underlying oversize condition. Routing the tunnel over a higher-bandwidth link addresses potential congestion but does nothing to correct an MTU-based packet-size violation, which is the root cause explicitly identified in this scenario. Reference topics: Junos Enterprise Routing – Tunneling, GRE MTU Sizing and Fragmentation Handling for High-Throughput Applications.

A GRE tunnel's outer, delivery-layer packets are forwarded using the router's ordinary underlay routing table, meaning the tunnel destination address (192.168.0.1 in this case) must itself be resolvable to a physical, non-tunnel next hop for the encapsulated packets to actually leave the router. Before this configuration change, the default route (or some more specific route) presumably pointed toward a real physical next hop, allowing the router to reach 192.168.0.1 and keep the tunnel operational. When the administrator commits a static default route of 0.0.0.0/0 with a next hop of gr-0/0/0, every destination lookup that previously fell back to the default route — including the lookup for the tunnel's own destination address, 192.168.0.1, since no more specific route exists for it — now recurses through the GRE interface itself. This creates a circular dependency: the router needs to route to 192.168.0.1 to keep the tunnel up, but the only route it has to reach 192.168.0.1 now points back into the tunnel that requires 192.168.0.1 to already be reachable, so the interface's next-hop resolution fails and the tunnel drops. This is an entirely valid and common GRE design pitfall rather than any platform restriction; GRE interfaces can be legitimately used as static route next hops, do not require loopback-sourced encapsulation, and do not require a /32 host route to resolve their destination, provided that route does not recursively point back through the tunnel. Reference topics: Junos Enterprise Routing – Tunneling, Route Recursion and GRE Tunnel Destination Resolution.

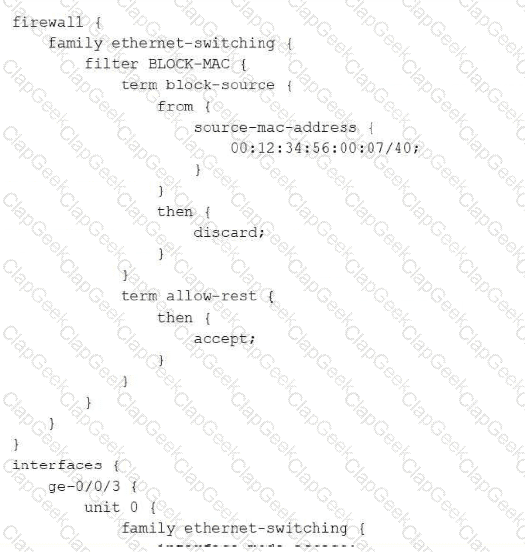

The intent of this filter is to match and discard traffic from one single, specific host MAC address, which requires the source-mac-address match condition to reference the complete, exact 48-bit address using an explicit /48 mask (or no mask at all, which Junos treats as an implicit full match) so that only that one precise address is matched. As configured, the term instead specifies a /40 mask on 00:12:34:56:00:07, meaning only the first 40 bits (the first five octets, 00:12:34:56:00) are actually significant to the match, while the sixth octet is effectively wildcarded across its full range; this produces an imprecise, overly broad match criterion rather than the single-host match the administrator intended, and is a common configuration mistake that undermines the predictability and correctness of MAC-based filtering. The lesson tested here is that source and destination MAC address match conditions in Junos firewall filters must be specified with the correct, deliberate, and explicit prefix length appropriate to the intended scope — typically /48 for a single exact host — rather than an arbitrary or miscalculated mask value. Firewall filters under family ethernet-switching are fully capable of matching on both source-mac-address and destination-mac-address, which rules out that option entirely. Layer 2 MAC-based filters function correctly on both access and trunk interface modes, so interface type is not a limiting factor here. There is no indication in the exhibit that the filter's application direction (input versus output) is reversed. Reference topics: Junos Enterprise Switching – Layer 2 Security, MAC Address Match Conditions and Prefix Length Precision.

By default, EBGP sessions are built with the expectation that peers are directly connected at Layer 3, and Junos enforces this by sending EBGP packets with a TTL of 1. When loopback addresses are used as the session endpoints instead of the directly connected physical interface addresses, the resulting IP packets must traverse at least one additional router hop between the two loopbacks, and a TTL of 1 will expire in transit before reaching the remote loopback, causing the TCP handshake — and therefore the BGP session — to fail even though a valid route to the peer's loopback exists. The multihop statement (configured as an EBGP multihop parameter with an accompanying TTL value, most commonly set to 2 for a single intermediate hop) instructs Junos to increase the TTL used for that peer's BGP packets so they survive the extra hop count between loopbacks. This is a mandatory addition any time an EBGP session is deliberately built against non-directly-connected addresses, whereas IBGP sessions, by contrast, do not have this default restriction because IBGP already assumes peers may be multiple hops apart within the same AS. Multipath affects load-balancing across equal-cost paths, damping suppresses flapping routes, and passive controls whether a router waits for the remote peer to initiate the TCP connection — none of these resolve the TTL expiration problem inherent to loopback-based EBGP peering. Reference topics: Junos Enterprise Routing – BGP, Configuring EBGP Multihop Sessions.

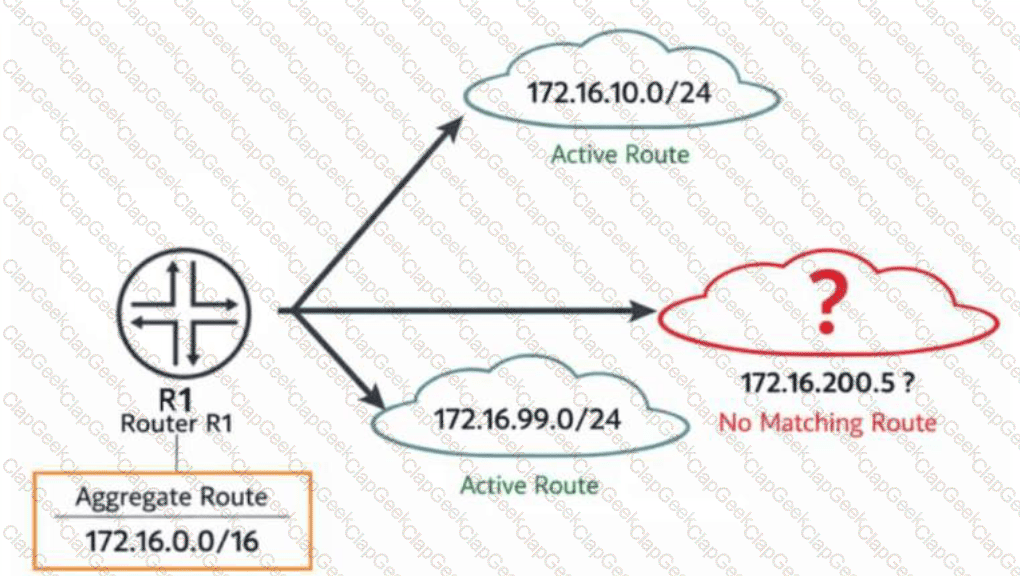

The destination address 172.16.200.5 falls within the 172.16.0.0/16 aggregate's summarized range but does not fall within either of the two active, more-specific contributing routes actually present in the table — 172.16.10.0/24 and 172.16.99.0/24 — meaning no route more specific than the /16 itself exists to cover it. Under Junos's longest-match forwarding logic, the lookup for 172.16.200.5 therefore resolves to the aggregate route itself, and since aggregate routes are installed by default with a reject next hop rather than any real forwarding path, the router drops the packet and simultaneously generates an ICMP destination-unreachable message back to the originating source, explicitly signaling that no valid path exists for that specific destination even though a covering summary is being advertised. This reject behavior is precisely why aggregate routes are valuable for reducing the number of routes advertised upstream while still providing clear, immediate feedback for traffic aimed at address space within the summary that has no genuine underlying route, rather than silently black-holing it or misdirecting it toward an unrelated contributing route's next hop. The aggregate route itself remains active and installed throughout this process — a gap in contributing coverage does not deactivate the aggregate, since the aggregate's activation depends only on at least one contributing route being active, which is satisfied here by both existing /24 blocks. There is also no default route present in this scenario to fall back upon. Reference topics: Junos Enterprise Routing – Protocol Independent Routing, Aggregate Route Reject Behavior for Uncovered Address Space.

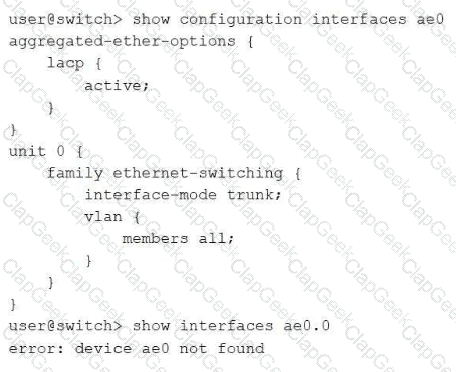

On EX Series switches, aggregated Ethernet (ae) interfaces do not exist by default; before any ae interface can be created, referenced, or brought into service, an administrator must first reserve the desired number of aggregated Ethernet device slots by configuring set chassis aggregated-devices ethernet device-count number at the [edit chassis] hierarchy. This statement allocates the internal resources needed for that many ae interfaces to exist as valid, configurable objects; until it is committed, any interface-level configuration referencing ae0 (such as the aggregated-ether-options and family ethernet-switching stanzas shown in the exhibit) is accepted syntactically by the CLI but never actually instantiates a live ae0 device, which is exactly why show interfaces ae0.0 returns 'device ae0 not found' despite the interface appearing fully configured. Increasing the device-count to at least 1 (or higher, to cover the number of LAG bundles planned) immediately resolves this and allows ae0 to appear as an operational interface once its member links are also associated with it. This is a foundational and frequently overlooked prerequisite step in LAG deployment on Juniper switches. There is no separate licensing requirement for aggregated Ethernet functionality on EX Series switches, a reboot is not needed since the chassis statement takes effect upon commit, and the LACP mode (active versus passive) is unrelated to whether the ae interface object itself exists in the first place. Reference topics: Junos Enterprise Switching – Link Aggregation, Configuring the Aggregated Ethernet Device Count.

Once the two candidate routes have equal route preference and equal local preference (both defaulting to 100 unless modified by policy), the Junos BGP algorithm proceeds to its third decision step, which compares the length of each candidate's AS path attribute and selects whichever path carries the shortest AS path, since a shorter path is interpreted as traversing fewer autonomous system hops to reach the origin. This step occurs well before the algorithm ever reaches the specific EBGP-over-IBGP preference rule, which is only evaluated later, after local preference, AS path length, origin type, and MED have all already been compared and found equal between the candidates; because an IBGP-learned copy of a route typically retains the identical AS path that was originally received from the external AS (IBGP does not prepend the local AS number the way crossing an AS boundary does), it is entirely possible, and often the deciding scenario, for AS path length to differ between competing paths well before the algorithm would ever need to fall back on the IBGP-versus-EBGP tiebreak. Selecting a route purely because it was 'learned through IBGP' is not a rule that exists anywhere in the algorithm and would in fact typically be the opposite of Junos's later EBGP-preference tiebreak. Neither next-hop IP address value nor router ID value is compared with a 'highest wins' rule at any point in the standard path selection sequence — where router ID is used at all, Junos prefers the lowest value, not the highest, making both of those distractors doubly incorrect. Reference topics: Junos Enterprise Routing – BGP, Path Selection Order: AS Path Length Precedes EBGP/IBGP Preference.

The 10.20.0.0/22 aggregate covers the four /24 blocks 10.20.0.0/24 through 10.20.3.0/24, but only the first three of those (10.20.0.0/24, 10.20.1.0/24, and 10.20.2.0/24) are configured and present as active contributing routes; 10.20.3.0/24, the block containing the destination address 10.20.3.100, has no corresponding contributing route in this configuration. Because no more-specific route exists for 10.20.3.100, the longest-match lookup falls through the missing /24 and matches only the broader /22 aggregate itself. By default, when Junos installs an aggregate route, it assigns that route a reject next hop rather than any usable forwarding next hop; this is a deliberate design choice so that traffic destined for gaps within an advertised summary block — gaps where no real, more-specific path actually exists — is not blindly forwarded toward whatever next hop happens to belong to one of the unrelated contributing routes. A reject next hop causes the router to drop the packet and generate and return an ICMP destination-unreachable message to the originating source, explicitly informing it that no path exists, which is functionally and behaviorally distinct from a silent discard next hop that would drop the packet without any such notification. Aggregate routes never adopt or forward through any single contributing route's next hop, which rules out the two forwarding-based answer choices entirely. Reference topics: Junos Enterprise Routing – Protocol Independent Routing, Default Reject Next Hop for Aggregate Routes.

The Complete Sequence Number PDU (CSNP) is the IS-IS mechanism used to summarize the entire contents of a router's link-state database, listing the LSP ID, sequence number, checksum, and remaining lifetime for every LSP the sending router currently believes should exist in the database for that level. On broadcast (LAN) circuits, the elected Designated Intermediate System periodically transmits CSNPs to all routers on the segment as a database-synchronization mechanism; any receiving router compares the summarized list against its own local database, and any discrepancy — an LSP it is missing entirely, or one for which it holds an older sequence number — triggers a targeted request for the specific, updated LSP content. On point-to-point circuits, a single CSNP is exchanged once when the adjacency first comes up, serving the identical synchronization purpose without needing periodic repetition. The Partial Sequence Number PDU (PSNP), by contrast, is used to acknowledge receipt of specific LSPs or to explicitly request specific LSPs identified as missing or outdated after a CSNP comparison, making it a partial, targeted PDU rather than a complete database listing. The LSP itself is the PDU that actually carries the detailed topology and reachability information being advertised, rather than a database summary. The IS-IS Hello PDU (IIH) is used purely for neighbor discovery and adjacency maintenance and carries no link-state database summary information whatsoever. Reference topics: Junos Enterprise Routing – IS-IS, CSNP and Link-State Database Synchronization.

RFC 2328 specifies a precise set of parameters that two OSPF routers on a broadcast network must agree upon before a valid neighbor relationship can be established, and a mismatch in any of these mandatory fields causes the routers to reject each other's Hello packets outright rather than forming even a basic 2-Way state. The network mask carried in each Hello packet must match between neighbors on a broadcast segment, since OSPF uses this field to confirm both routers agree on the subnet boundaries of the shared segment; a mismatched mask (for example, one router configured with a /24 and its neighbor with a /25 on the same physical wire) is treated as a configuration error and blocks adjacency formation. The router dead interval, which defines how long a router will wait without receiving a Hello before declaring a neighbor down, must likewise match exactly between neighbors, alongside the closely related hello interval, since these timers govern the shared expectations both sides have for how frequently Hellos should arrive and how quickly a failure should be detected; Junos explicitly checks and rejects Hello packets carrying a mismatched dead interval value. Router priority, by contrast, is intentionally allowed to differ between neighbors on the same segment — it exists precisely so that administrators can differentiate router preference for the DR/BDR election, and differing values are expected and normal rather than being blocked. The designated router field, as advertised within each Hello, is informational about the sender's current view of the segment's DR and is not a value that must be identical between the two Hello senders to permit adjacency formation. Reference topics: Junos Enterprise Routing – OSPF, Required Hello Parameter Matching on Broadcast Networks.
