HPE7-J01 Advanced HPE Storage Architect Written Exam Questions and Answers

HPE Morpheus Enterprise Software is a cloud-agnostic management and orchestration platform designed to enable a unified "cloud operating model" across hybrid and multi-cloud environments. It is specifically engineered to bridge the gap between traditional IT infrastructure and modern DevOps requirements.

The solution meets the customer's requirements as follows:

Self-Service Provisioning: Morpheus provides a central catalog and a powerful self-service engine that allows users to provision VMs, containers, and application stacks into any private or public cloud (including AWS, Azure, GCP, VMware, and Nutanix) on-demand.

Kubernetes Simplification: It offers a CNCF-certified Morpheus Kubernetes Service (MKS) and native integrations to deploy and manage Kubernetes clusters across bare metal, virtualized environments, and public clouds.

Normalized Service Management & Visibility: Morpheus normalizes the management experience across different providers, offering built-in FinOps capabilities for cross-cloud cost tracking, invoice synchronization, and rightsizing recommendations. It provides unified governance with fine-grained role-based access control (RBAC) and consistent insights into workload dependencies and monitoring.

While HPE GreenLake (Option A) is the overarching brand for HPE's as-a-service offerings, Morpheus is the specific software engine that powers the self-service and orchestration layers within the GreenLake private cloud portfolio. HPE OpsRamp (Option B) focuses primarily on full-stack observability and AI-driven monitoring rather than orchestration/provisioning. HPE OneView (Option C) is an infrastructure management tool focused on the hardware lifecycle of servers, storage, and networking (primarily on-premises) rather than multi-cloud service orchestration.

Standard SCSI write operations are inherently sensitive to distance because they require multiple round-trip handshakes before data is actually transmitted. A typical write involves: 1) the Command, 2) a Transfer Ready (XFER_RDY) response from the target, 3) the Data, and 4) the Status. In a long-distance SAN, each of these round trips adds significant "latency wait time," severely degrading performance as distance increases.

To solve this, Brocade (HPE B-series) utilizes a protocol optimization feature known as FastWrite. FastWrite works by creating a Proxy Target (PT) local to the initiator host and a Proxy Initiator (PI) local to the target storage device. When the host issues a SCSI write command, the local Brocade switch (acting as the Proxy Target) immediately sends the XFER_RDY back to the host without waiting for the signal to travel across the long-distance link. This allows the host to send the data segment immediately.

By eliminating the need for every handshake message to traverse the distance multiple times, FastWrite significantly reduces the aggregate latency felt by the application. Architecturally, this enables customers to extend their SAN fabrics over double the distance (and often much further) while maintaining performance comparable to a significantly shorter link. This is critical for asynchronous replication and remote copy applications that issue large I/O blocks. Option C (Write Acceleration) is a generic term often used by other vendors, while FastWrite is the specific, validated Brocade feature name used in HPE Master ASE documentation for this protocol optimization.

A foundational principle of the HPE CloudPhysics partner program is transparency and collaboration. When an HPE Partner invites a customer to run a CloudPhysics assessment (using the "Invite Customer" workflow in the Partner Portal), it establishes a shared view of the customer's data center environment.

According to the HPE CloudPhysics Partner and Customer User Guides, both the partner and the customer have access to the same set of analytics "cards" within the platform. This shared visibility is intentional; it allows the partner to act as a "trusted advisor" by walking the customer through the same data visualizations and insights that the partner is using to build their proposal. Whether looking at the "Storage Inventory," "VM Rightsizing," or "Global Health Check" cards, both parties see the same data points, ensuring there is no "black box" logic in the assessment process.

While partners have additional administrative tools in their specific Partner Portal (like the ability to manage multiple customer invitations or use the Card Builder for advanced custom queries), the actual environment assessment and the standard reports are based on the core cards available to both accounts. Option A is incorrect because CloudPhysics provides a robust library of pre-built "Assessment" cards specifically designed for storage and compute sizing, eliminating the need for custom coding. Option C is incorrect as the typical assessment engagement is 30 days (though data remains in the SaaS data lake), and the 90+90 day cycle is not a standard hard-coded limit. Option D is incorrect because HPE provides these assessments at no cost to both the partner and the end customer to facilitate the transition to HPE solutions.

To protect Oracle databases using HPE StoreOnce, the preferred architectural method is using HPE StoreOnce Catalyst for Oracle RMAN. This integration allows Oracle Database Administrators (DBAs) to manage backups directly from their native RMAN (Recovery Manager) tools while leveraging the deduplication and performance benefits of the StoreOnce appliance.

According to the HPE StoreOnce Catalyst for Oracle RMAN User Guide, the implementation involves two distinct stages: configuration on the StoreOnce appliance and configuration on the database server. First, the storage administrator must log into the StoreOnce UI and, under the Data Services section, navigate to Catalyst. Here, they must create a Catalyst Store. This store acts as the target repository for the backup data. During creation, the administrator sets permissions (client access) to allow the Oracle server to communicate with this specific store.

The second, and crucial, part of the implementation (as noted in Option D) is the installation of the HPE StoreOnce Catalyst Plug-in for Oracle RMAN on the actual Oracle database server. This plug-in provides the "SBT" (System Backup to Tape) interface that RMAN requires to talk to a non-disk/non-tape target. Without this plug-in installed on the host, RMAN has no way of translating its commands into the Catalyst protocol. Once the plug-in is installed and configured with the StoreOnce details, the DBA can allocate channels to the "SBT_TAPE" device and run backup jobs directly to the Catalyst Store created in the UI. Options A, B, and C are incorrect because the StoreOnce UI does not have an "Oracle RMAN option" toggle or "Database Library" creator; the intelligence resides in the combination of the Catalyst Store and the host-side plug-in.

HPE Morpheus Enterprise provides extensive native monitoring for provisioned resources, but for deep, full-stack observability into applications, databases, and third-party services via a specialized SaaS-based analytics platform, it integrates with external providers through plugins.

The Datadog Integration Plugin is a primary example of this capability. Datadog is an industry-leading SaaS data analytics platform that monitors performance across every layer of the stack—from infrastructure metrics to application traces and logs. By installing the Datadog plugin in Morpheus, the administrator bridges the gap between the orchestration engine (Morpheus) and the observability platform (Datadog). This plugin adds a contextual "Datadog" tab to instances within the Morpheus UI, pulling real-time performance telemetry directly from the SaaS backend into the Morpheus management pane. This allows the administrator to view workload health and deep-dive analytics without switching consoles.

While HPE OpsRamp (Option C) is part of the broader HPE CloudOps Software suite and provides similar observability features, it is often treated as a separate, complementary software component rather than a specific "SaaS plugin" used within the core Morpheus instance-level analytics in the same context as Datadog's marketplace integration. The Morpheus Agent (Option A) is a local software component used for guest-level automation and basic health checks, not a SaaS analytics platform. By choosing Datadog, the administrator leverages a purpose-built SaaS solution to gain the "monitoring of applications, servers, and databases" required by the prompt through a pre-validated community or enterprise plugin.

HPE GreenLake for File Storage is built upon a disaggregated, shared-everything (DASE) architecture powered by VAST Data software. The replication mechanism in this environment is fundamentally different from traditional block-based replication. Instead of replicating entire volumes or LUNs, HPE GreenLake for File Storage performs replication at the directory level.

According to the HPE GreenLake for File Storage Administrator Guide, the system utilizes a snapshot-based asynchronous replication engine. This allows for highly flexible topologies, including N:1 (fan-in) and 1:N (fan-out) configurations, which are essential for modern distributed data environments and centralized backup strategies. Because the solution is file-based, it leverages "Views" (or shares) that point to specific directory paths. Protection policies and snapshot schedules are applied directly to these paths, ensuring that only the specific datasets required for disaster recovery are replicated.

Option B is a common point of confusion; while the system is inherently "reduction-aware" and uses similarity-based data reduction (deduplication and compression) to save space on the physical media, the replication process itself focuses on the metadata and unique data blocks associated with the directory-level snapshots. Option A is incorrect because, in an asynchronous replication relationship, the destination is typically Read-Only until a failover or clone operation is initiated. Option D is incorrect as the management of protected paths follows strict pairing rules to prevent configuration conflicts. Thus, the support for flexible fan-in/fan-out topologies and granular directory-level protection (Option C) is the defining characteristic of this enterprise file solution.

Admin port: 2

Back-end and cluster connectivity (southbound): 4

Front-end connectivity (northbound): 3

iLO Ethernet port: 1

The HPE Alletra MP B10000 architecture is defined by its disaggregated nature, separating the controller nodes from the physical storage capacity. Proper cabling of these nodes is fundamental to ensuring the performance and manageability of the cluster.

The ports on the rear of a controller node are categorized by their function within the disaggregated ecosystem:

iLO Ethernet port (1): This is the dedicated management port for the Integrated Lights-Out (iLO) processor. It provides out-of-band management, allowing administrators to access the hardware's health, power status, and remote console regardless of the operating system state.

Admin port (2): This RJ45 port is used for the management plane of the storage OS. It allows the array to communicate with the HPE GreenLake Data Services Cloud Console (DSCC) or local management software for configuration and provisioning tasks.

Front-end connectivity / Northbound (3): These ports (typically located in PCIe slots 1 and 2) provide the "Northbound" path to the host fabric. They are populated with high-speed Fibre Channel or iSCSI adapters to facilitate data access for servers and applications.

Back-end and cluster connectivity / Southbound (4): In a disaggregated shared-everything (DASE) architecture, "Southbound" connectivity is critical. These ports (often 100GbE RoCEv2) connect the controllers to the storage fabric and the disaggregated NVMe JBOFs. This allows every controller to see every drive in the cluster with ultra-low latency.

Understanding the distinction between Northbound (Host) and Southbound (Storage/Cluster) cabling is vital for a Master ASE. Incorrectly cabling the Southbound ports can lead to a "cluster split" or performance bottlenecks, as the disaggregated architecture relies on high-bandwidth, redundant paths to the underlying flash media to maintain its mission-critical performance profile. Number 5 in the diagram often represents the Serial console port, which is utilized primarily for initial setup or low-level troubleshooting by HPE Support and is typically not included in primary functional matching.

Sites

The Zerto Virtual Replication Appliance (VRA) is a critical architectural component of the Zerto solution. It is a lightweight Linux-based virtual machine that must be installed on every hypervisor host (ESXi or Hyper-V) in both the production and recovery sites that will host protected virtual machines. The VRA is responsible for intercepting the I/O writes from the VMs and asynchronously replicating them to the recovery site.

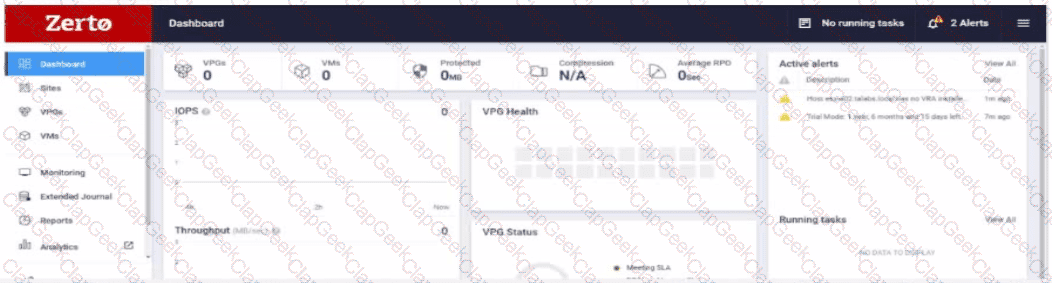

In the Zerto Virtual Manager (ZVM) web interface shown in the exhibit (image_649973.png), the management of site-level infrastructure is centralized within the "Sites" tab. By clicking on this tab, the administrator accesses the view for both local and paired remote sites. Within the Local Site details, there is a sub-tab for "VRAs" or "Hosts" where the administrator can see a list of all hosts managed by the connected vCenter or SCVMM.

To deploy a VRA, the administrator selects the host(s) currently missing the appliance and clicks the "Install" button. The ZVM then automates the deployment, configuring the VRA with the necessary network settings and registering it with the hypervisor. Notably, the "Active alerts" window in the exhibit explicitly provides a hint: it shows an alert stating that "Host esx-e02.telabs.local has no VRA installed". Clicking on the "Sites" tab is the foundational step to resolve this alert and finalize the infrastructure setup required to begin creating Virtual Protection Groups (VPGs).

The HPE Timeless Program is a strategic lifecycle management offering designed to future-proof customer investments in the HPE Alletra Storage MP platform (specifically the B10000 for Block). The program provides benefits such as a non-disruptive controller refresh at no additional cost after three or more years, all-inclusive software licensing, and a 100% data availability guarantee.

To qualify for the HPE Timeless Program, the storage configuration must meet specific minimum hardware requirements to ensure it can support future generations of controller technology without a "forklift" upgrade. According to the HPE Master ASE Advanced Storage Architect training materials and program guidelines, the entry-level qualification for the Timeless benefit on Alletra MP requires the system to be configured with at least 16-core controller nodes (CNodes) and a minimum capacity threshold of 42TB RAW storage.

While the Alletra MP architecture supports 8-core, 16-core, and 32-core nodes, the 8-core "entry" models are often excluded from certain enterprise-level refresh programs because they may not provide sufficient overhead for the performance requirements of next-generation operating systems. Option C (32 cores and 92TB) represents a higher-tier mission-critical configuration but is not the minimum required for program eligibility. Option A is incorrect as the Alletra MP supports both switchless (2-node) and switched (multi-node) configurations, with switchless systems also being eligible. Option B is incorrect as the program is built into the support contract and purchase price rather than requiring a separate refundable "reservation fee".

HPE CloudPhysics is a SaaS-based analytics platform that collects high-resolution metadata (at 20-second intervals) from a customer's virtualized infrastructure to drive data-led procurement and optimization decisions. In the context of performance analysis and sizing, it is critical to understand not just the average utilization, but how different resource demands interact over time.

The Peak Details statistic is unique within the CloudPhysics analytics framework because it provides time-correlated values across different resource dimensions (CPU, RAM, and Disk I/O). While standard "Storage Metrics" or "Hardware Performance" summaries often present aggregated averages or 95th percentile figures that lose their temporal context, Peak Details allows an architect to see exactly when a spike occurred.

This correlation is essential for determining if a storage bottleneck is being driven by a simultaneous compute peak or if a specific "noisy neighbor" VM is impacting the entire datastore during a backup or batch processing window. By aligning disk latency peaks with IOPS and throughput peaks on the same timeline, CloudPhysics enables the architect to validate if the existing third-party array is truly under-provisioned or simply misconfigured. This time-correlated insight ensures that the new HPE storage solution is sized not just for total capacity, but for the actual performance "burstiness" observed in the customer's production cycle. Other metrics, while useful for high-level summaries, do not provide the granular, synchronized timeline required to perform a deep-dive root cause analysis or precision sizing for mission-critical workloads.

LISL: Directly connects two base switches that are in separate physical chassis together and has a link cost of 510

XISL: Connects two logical switches in two different chassis via the base switch to extend the fabric and maintain the logical partitioning

DISL: ISLs that are configured between an edge fabric E_Port and an FC Router EX_Port

IFL: Used to link fabrics across geographic locations via FCR or FCIP

Brocade Virtual Fabrics (VF) allow a single physical switch to be partitioned into multiple logical switches, each with its own data and control planes. This architectural flexibility requires specialized Inter-Switch Link (ISL) types to maintain logical isolation across physical chassis.

LISL (Logical ISL): These are logical links that directly connect two Base Switches located in separate physical chassis. A defining characteristic of an LISL in Brocade Fabric OS is its default link cost of 510, which ensures it is typically used only for specific inter-fabric control traffic unless manually adjusted.

XISL (Extended ISL): An XISL is a transport link used to connect two logical switches residing in different physical chassis by tunneling through the Base Fabric. This allows the administrator to extend a single logical fabric across multiple physical devices while maintaining strict logical partitioning and reducing the number of physical cables required between chassis.

DISL (Dedicated ISL): These links are specifically configured between an edge fabric E_Port and an FC Router EX_Port. They are used in Fibre Channel Routing (FCR) topologies to provide a dedicated path for inter-fabric traffic between a standard fabric and a meta-fabric router.

IFL (Inter-Fabric Link): IFLs are the foundational links used to connect disparate fabrics across geographic locations. They utilize either Fibre Channel Routing (FCR) or FCIP tunneling to enable communication between devices in different fabrics without merging them into a single logical entity. This is a key component for large-scale disaster recovery and data distribution architectures where fabric stability and distance are primary concerns.

HPE Cloud Bank Storage is an extension of the StoreOnce Catalyst protocol that allows for the movement of deduplicated data to object storage in the cloud. When retrofitting this technology onto older HPE StoreOnce Gen3 hardware, there are specific hardware prerequisites that must be satisfied for the feature to be supported and performant.

The primary technical constraint on Gen3 systems (such as the StoreOnce 3100, 3500, 5100, and 5500) is the overhead required to manage the massive metadata associated with cloud-tiering. For the StoreOnce system to effectively index, deduplicate, and track data chunks residing in a remote AWS S3 bucket, it requires additional system memory. According to the HPE StoreOnce QuickSpecs and Configuration Guides, a RAM Upgrade Kit (Memory Upgrade) is a mandatory BOM component for Gen3 systems if the combined local and Cloud Bank Storage capacity will exceed the original system limits or if the Cloud Bank feature is being enabled for the first time on specific entry-to-midrange models.

Without the additional RAM, the Gen3 appliance may lack the necessary resources to run the Catalyst Cloud Bank services alongside local backup operations, leading to severe performance degradation or the inability to create a Cloud Bank store. While a Catalyst license (Option C) is technically required for Cloud Bank to function, most Gen3 customers seeking Cloud Bank already utilize Catalyst; however, the RAM upgrade is the physical hardware prerequisite that is often overlooked in "license-only" upgrades. Options A and B are incorrect as the VSA is a separate virtual product and the "Object store" is a destination, not a StoreOnce hardware component.

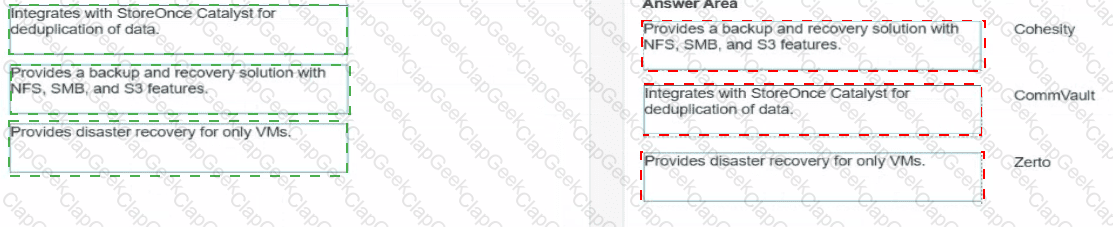

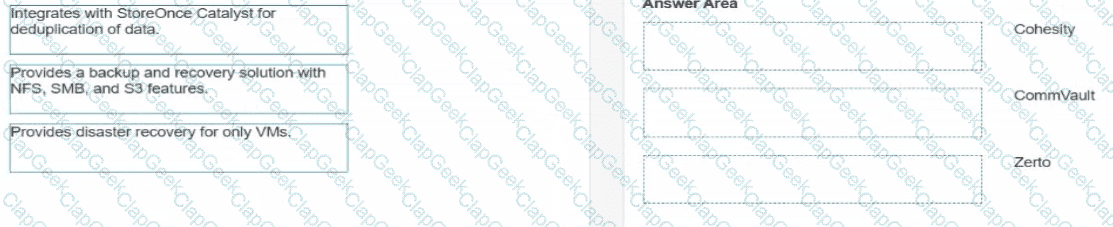

Cohesity: Provides a backup and recovery solution with NFS, SMB, and S3 features.

Commvault: Integrates with StoreOnce Catalyst for deduplication of data.

Zerto: Provides disaster recovery for only VMs.

Enterprise data protection requires selecting the right software partner to align with specific infrastructure needs, whether protecting bare-metal servers, virtualized workloads, or modern unstructured data.

Cohesity: This solution is defined by its "multicloud data platform" approach. It is often used to consolidate secondary storage silos by providing a single platform that handles not only backup and recovery but also serves as a scale-out NAS. It natively provides NFS, SMB, and S3 features, allowing it to act as a target for unstructured data while simultaneously protecting applications and VMs.

Commvault: As a long-standing leader in enterprise backup, Commvault features deep, verified integration with HPE hardware. A key differentiator for HPE customers is how Commvault integrates with StoreOnce Catalyst. This integration allows Commvault to manage the movement of deduplicated data directly to StoreOnce appliances without needing to rehydrate the data, significantly reducing network traffic and storage costs across the enterprise.

Zerto: Unlike traditional backup products that rely on snapshots, Zerto utilizes continuous data protection (CDP) through the hypervisor layer. While it is a powerhouse for replication and orchestration, it is architecturally focused on virtualized environments. Within the context of this comparison, it is the solution that provides disaster recovery for only VMs, as its Virtual Replication Appliances (VRAs) are purpose-built to intercept I/O within VMware or Hyper-V environments.

The Zerto architecture for disaster recovery is designed as a scale-out solution that integrates directly into the hypervisor layer. The primary management component is the Zerto Virtual Manager (ZVM), which must be installed at each site (production and recovery) to manage the local resources and coordinate with its peer across the network. Data movement is handled by the Virtual Replication Appliance (VRA), a lightweight virtual machine installed on every hypervisor host where protected VMs reside.

When implementing Extended Journal Copy (formerly known as Long-Term Retention), Zerto leverages its unique Continuous Data Protection (CDP) stream. In a typical disaster recovery scenario, writes are captured at the production site and replicated asynchronously to the DR site. These writes are stored in the DR site journal, which provides a rolling history for short-term recovery. The Extended Journal Copy feature builds upon this by taking data directly from the DR site storage and moving it into a long-term repository. Because the "copies" are derived from the data already present at the recovery location, there is no impact on the production site performance and no requirement for additional storage space at the primary site for backup retention. This "off-host" backup approach eliminates the traditional backup window and ensures that the production environment remains lean while the DR site handles both short-term recovery (seconds to days) and long-term compliance (months to years).

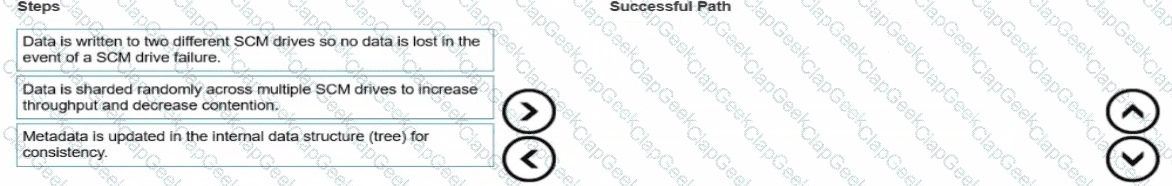

Data is sharded randomly across multiple SCM drives to increase throughput and decrease contention.

Data is written to two different SCM drives so no data is lost in the event of a SCM drive failure.

Metadata is updated in the internal data structure (tree) for consistency.

Comprehensive and Detailed 250 to 300 words of Explanation From Advanced Storage Solutions Architect documents and knowledge guide:

The write data path in HPE GreenLake for File Storage (powered by Alletra MP X10000 hardware and VAST Data software) follows a unique Disaggregated Shared-Everything (DASE) architecture. Unlike legacy NAS systems that use front-end caching or complex controller-to-controller talk, this solution leverages Storage Class Memory (SCM) as a persistent write buffer to provide high-sustained performance without the need for traditional data movement between tiers.

The process begins with sharding. When a NAS write request arrives, the system immediately shards the data randomly across multiple SCM drives in the cluster. This sharding is critical because it eliminates hot spots and contention by ensuring that no single drive or node becomes a bottleneck, effectively parallelizing the IO load across the entire storage fabric.

Once the sharding logic is determined, the data is physically written to the SCM tier. To ensure mission-critical resilience, every write is mirrored (written to two different SCM drives). Because SCM is non-volatile random-access memory (NVRAM), the write is persistent the moment it hits the media. This allows the system to send an immediate acknowledgement back to the client while protecting against a drive or node failure.

Finally, the metadata is updated in the internal data structure (the V-Tree). This step ensures the "View" of the file system remains consistent and that the global namespace reflects the newly written data. After this point, the data is asynchronously moved from SCM to high-capacity NVMe SSDs using wide-stripe erasure coding for long-term, efficient storage. This disaggregated flow allows the Alletra MP X10000 to scale performance and capacity independently while maintaining strict data integrity and consistency at AI-scale.
