HPE7-A08 HPE Aruba Networking Certified Professional - Switching Questions and Answers

For an interface connected to an untrusted device regarding DSCP markings, the recommended configurations are:

Apply a classifier-based policy to assign a Local Priority value (Option B). This overrides or marks traffic based on predefined criteria.

Configure qos trust none (Option E) to disable trusting DSCP or CoS markings from the device, preventing manipulation of QoS.

Trusting CoS (Option A) is incorrect because the device is untrusted.

DSCP maps and Weighted Fair Queuing (Options C and D) are additional QoS features but do not specifically address untrusted markings.

The Aruba CX switches REST API supports the JSON (JavaScript Object Notation) data format for both requests and responses. JSON is widely adopted for REST APIs due to its lightweight and readable format.

XML and YAML are not supported for REST API on CX switches.

SOAP is a different protocol not used by Aruba CX REST API.

Therefore, JSON is the correct and supported data format.

The troubleshooting methodology exemplified by comparing outputs or configurations to find discrepancies is called Spot the difference. It involves checking variations between working and non-working states or devices.

Follow the path: tracing packet flow step-by-step.

Top-down/Bottom-up: analyzing layers systematically.

Replace configuration: swapping configurations to isolate issues.

Here, comparing command outputs aligns with spot-the-difference.

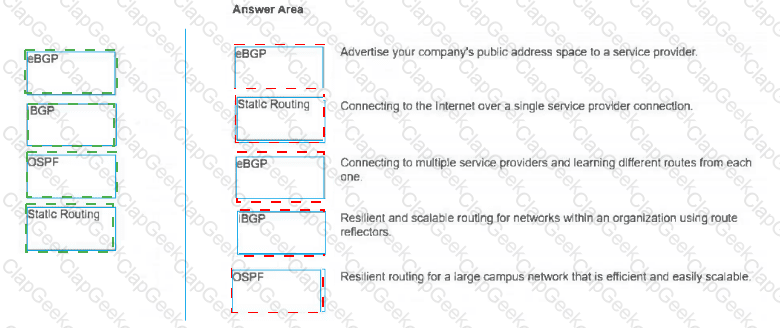

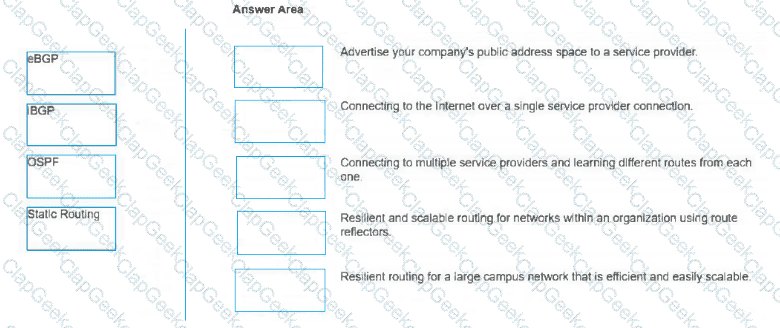

Answer Area:

Advertise your company ' s public address space to a service provider: eBGP

Connecting to the Internet over a single service provider connection: Static Routing

Connecting to multiple service providers and learning different routes from each one: eBGP

Resilient and scalable routing for networks within an organization using route reflectors: iBGP

Resilient routing for a large campus network that is efficient and easily scalable: OSPF

In AOS-CX design, selecting the right routing protocol is based on the boundary of the administrative control and the required scale.

Advertise public address space to a service provider (eBGP): External BGP (eBGP) is the industry-standard protocol used to exchange routing information between different Autonomous Systems (AS). To let the world know how to reach your public IP block, you must " speak " eBGP with your ISP.

Single service provider connection (Static Routing): When a network has only one exit point (a " stub " connection) to the Internet, dynamic protocols are unnecessary. A simple default static route (0.0.0.0/0) pointing to the ISP gateway is the most efficient and least resource-intensive method.

Multiple service providers / Multi-homing (eBGP): When you have two or more ISPs, your switch needs to make a decision on which path is better based on attributes like AS-Path length or MED. eBGP is required here to receive and process these external path attributes.

Internal organization routing with route reflectors (iBGP): Internal BGP (iBGP) is used to carry BGP prefixes within an AS. Because iBGP requires a " Full Mesh " by default (every router connected to every other router), it does not scale well. Route Reflectors are the architectural solution used to allow a central switch to reflect routes to others, ensuring scalability within the organization.

Large campus network (OSPF): Open Shortest Path First (OSPF) is a Link-State Interior Gateway Protocol (IGP). It is the preferred choice for Aruba campus environments because of its fast convergence, hierarchical design (Areas), and ability to handle large numbers of internal subnets efficiently.

When establishing eBGP peering between devices that are not directly connected, the TTL (Time To Live) value of the BGP packets must be increased to allow them to traverse multiple hops. This is achieved by configuring ebgp-multihop, which increases the TTL beyond the default value of 1.

next-hop-self changes the BGP next-hop attribute but is not required for multihop eBGP.

route-reflector is a BGP design feature unrelated to multihop.

address-family ipv4 external is not a standard command on Aruba CX switches.

Therefore, to successfully peer eBGP sessions across multiple hops, ebgp-multihop must be configured.

In the context of the HPE Aruba Networking troubleshooting framework, selecting a methodology depends heavily on the trigger event.

The Trigger: A physical change occurred (relocating an AP). In networking, physical changes are synonymous with Layer 1 (Physical Layer) of the OSI model.

Bottom-Up Approach: The " Bottom-up " methodology starts at the Physical Layer and works upward through the Data Link, Network, and Transport layers. Since a technician recently touched the cabling and moved the hardware, starting with the physical layer is the most efficient path. You would first verify the cable integrity, PoE power delivery from the switch, and the physical environment (RF interference in the new location).

Top-Down Approach: Alternatively, starting at the application layer (the video call software) is also a valid " starting point " when the user reports an application-specific failure. Together, the Top-down/Bottom-up model provides a structured way to isolate whether the issue is the physical move or a software configuration that coincided with it.

Why others are less suitable here:

Option B (Divide and conquer): This usually starts at Layer 3 (IP connectivity) to see if you can ping. While useful, it might skip the most likely culprit in a physical relocation: a bad cable or poor signal.

Option C: This is a remediation step, not a diagnostic methodology.

Option D (Follow the path): This is better for complex routing issues where packets are getting lost across multiple hops; it is overkill for a local boardroom connectivity issue.

AOS-CX switches include a robust Configuration Checkpoint system that allows administrators to save snapshots of the configuration state. These checkpoints are stored in the switch ' s internal flash memory.

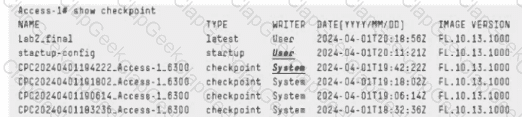

Understanding the Exhibit: The output shows several checkpoints.

Lab2_final: A user-created checkpoint.

startup-config: The current configuration that will be loaded on reboot.

CPC2024...: Automatic " System " checkpoints created by the switch during various configuration events or at scheduled intervals.

The " Diff " Operation: To investigate a missing configuration (like the missing device profile) without impacting the operational state of the switch, you use the checkpoint diff command. This command compares two configuration files and displays the specific lines that are present in one but missing in the other (marked with + and -).

Analyzing the Requirement: The user wants to validate the removal without changing the current config.

Option B (Correct): Executing checkpoint diff startup-config CPC20240401183236_Access-1_6300 (or another older checkpoint) will show exactly what was removed. This is a read-only comparison.

Why other options are incorrect:

Option A: show checkpoint only lists the metadata (name, date, version); it does not provide a content comparison.

Option C: This command would overwrite an existing checkpoint or create a new one, but it does not provide an analytical comparison of the differences.

Option D: checkpoint rollback is a destructive operation; it immediately applies the older configuration to the running state, which violates the requirement to not change the current configuration.

In the study of BGP (Border Gateway Protocol) for AOS-CX, understanding the differences between Internal BGP (iBGP) and External BGP (eBGP) is fundamental to the ACP-S certification.

eBGP Peering Definition: eBGP occurs when two BGP neighbors reside in different Autonomous Systems. In this scenario, the local switch is in AS 65010 and the neighbor is in AS 65100 .

The " Directly Connected " Requirement: By default, BGP assumes that eBGP neighbors are directly connected (physically connected or on the same subnet). This is because eBGP packets are sent with a Time-to-Live (TTL) of 1 . If the neighbor is more than one hop away (for example, peering via loopback interfaces without additional configuration), the packet will expire before reaching the neighbor, and the session will not establish.

Terminology Note: The term " directory connected " in the question is a common typographical error in exam materials for " directly connected. " In the context of eBGP peering, being directly connected is the default requirement to ensure the TTL 1 packet reaches the peer. If you were peering with a non-directly connected device, you would need to manually configure ebgp-multihop.

Analysis of Other Options:

Option A: This is incorrect as it uses a random AS number (65001) that does not match the local or neighbor AS provided in the prompt.

Option B: Route Reflectors are a solution used exclusively in iBGP to solve the split-horizon rule (which dictates that a prefix learned from an iBGP peer cannot be advertised to another iBGP peer). Route reflectors are never used for standard eBGP sessions.

Option D: While AOS-CX requires you to enter the address-family ipv4 unicast context to activate a neighbor, the keyword " internal " is not a valid address-family type in the AOS-CX BGP syntax for this purpose.

Key Practice Tip: When configuring BGP on AOS-CX, always remember that after defining the neighbor x.x.x.x remote-as, you must enter the address-family context and use the neighbor x.x.x.x activate command for the session to transition to the " Established " state.

In a hotel environment where a single subnet is used for wired guests, but guest devices in a conference room need to communicate with each other (and with the default gateway), while remaining isolated from other guests elsewhere, Community VLANs are appropriate.

Community VLANs allow hosts within the same VLAN community to communicate with each other and the default gateway but are isolated from hosts in other communities.

Isolated VLANs block communication between ports and only allow communication to the gateway.

Therefore, assigning conference room guests to a community VLAN and the gateway to a primary VLAN allows the desired communication model.

To protect a network from Layer 2 man-in-the-middle attacks, AOS-CX switches utilize two closely related security features: DHCP Snooping and Dynamic ARP Protection .

DHCP Snooping: This feature acts as a firewall between untrusted hosts and trusted DHCP servers. When enabled, the switch categorizes ports as either trusted (connected to a legitimate DHCP server or another switch) or untrusted (connected to end-user devices). If a " malicious " DHCP server on an untrusted port attempts to send a DHCP OFFER or ACK message, the switch drops the packet.

The Snooping Binding Table: As a byproduct of monitoring legitimate DHCP exchanges, the switch builds a DHCP Snooping Binding Table . This table is a " source of truth " that maps a client ' s MAC address to its assigned IP address and the specific physical port it is connected to.

Dynamic ARP Protection: ARP poisoning (or spoofing) occurs when an attacker sends fake ARP messages to link their MAC address with the IP address of a legitimate server or gateway. When ARP protection is enabled, the switch intercepts all ARP packets on untrusted ports and validates them against the DHCP Snooping Binding Table . If the MAC-to-IP mapping in the ARP packet does not match the entry in the table, the packet is discarded.

Integration: These two features must work together. Without the binding table created by DHCP Snooping, ARP Protection has no data to validate against. This combination ensures that only the device that legitimately received an IP via DHCP can claim that IP in ARP responses.

The exhibit shows a configuration for a standard Stub Area (area 1 stub). To meet the customer requirement of having only a default route, we must understand how OSPF area types filter Link State Advertisements (LSAs).

Stub Area (Current Config): Blocks Type 5 (External) LSAs. The Area Border Router (ABR) injects a Type 3 LSA default route. However, Type 3 LSAs (Inter-Area routes from other parts of the OSPF network) are still allowed in. This explains why the user still sees other OSPF routes in the table.

Totally Stubby Area (The Solution): This area type is a Cisco/Aruba enhancement to the OSPF standard. It blocks both Type 5 (External) and Type 3 (Inter-Area) LSAs. The ABR replaces all of these with a single Type 3 default route . This is the most efficient configuration for a small branch switch with limited memory and a single exit point.

AOS-CX Configuration: To convert the current " Stub " to a " Totally Stubby " area, you would add the no-summary keyword on the ABR:

Bash

router ospf 1

area 1 stub no-summary

Why other options are incorrect:

Option A and D: NSSA (Not-So-Stubby Areas) are used when you need to redistribute external routes from the branch into the rest of the OSPF network. The prompt doesn ' t mention a local external source.

Option B: This is what is currently configured and is explicitly described as not meeting the requirement.

HPE Aruba Networking AOS-CX is a cloud-native, database-driven operating system designed to move away from traditional, " brittle " management methods toward Network Automation and AIOps .

REST API (Option A): In AOS-CX, the entire system state is stored in a database ( ASDB ). The switch provides a 100% " REST-ful " API, meaning every single feature, configuration, and statistical counter that can be accessed via the CLI can also be accessed programmatically via REST. This allows for modern automation, integration with custom dashboards, and DevOps workflows.

NAE (Network Analytics Engine) (Option D): This is a hallmark " modern " feature of AOS-CX. NAE provides a built-in framework for monitoring and troubleshooting. It uses Python-based agents to monitor the local database for specific events (like a spike in CPU or an OSPF state change) and can take automated actions (like capturing a packet trace or generating a log). It provides a graphical representation of network health directly in the Web UI.

Why other options are incorrect:

Option C (SNMP): While supported, SNMP is considered a legacy protocol. It is relatively slow, lacks security (in v1/v2c), and is typically used for monitoring only, rather than the " modern management " and automation logic found in REST or NAE.

Options B and E: YAML and XML are data serialization formats . While they are used by modern management tools (like Ansible using YAML or NETCONF using XML), they are not management " approaches " or native switch features in the same way that a REST API or an Analytics Engine is.

To prevent rogue DHCP servers in a VLAN, DHCP snooping authorized-server commands are used to specify trusted DHCP servers allowed to respond.

Option A (dhcpv4-snooping trust 10.100.100.10) configures a trusted port, but it is not VLAN specific and not precise enough for this purpose.

Enabling DHCP snooping globally and on VLAN or interface (Options C and D) are prerequisites but do not prevent rogue servers unless authorized servers are defined.

Option B correctly enables an authorized DHCP server IP on VLAN 30, blocking unauthorized DHCP responses.

To avoid split-brain scenarios in VSF stacks, the VSL split-detect mgrep command is used to enable multicast group detection over the Virtual Switching Link (VSL). This helps detect when the stack links are down or partitioned, triggering appropriate failover or shutdown mechanisms.

Options like vsf start-auto-stacking, vsf secondary-member 2, or vsf conductor-member 2 are related to stack initialization and member roles but do not address split-brain detection directly.

Hence, enabling split-detect with mgrep is the best practice for VSF stack stability.

To receive a monthly report tracking available licenses and their expiration dates in Aruba Central, the Infra Inventory report should be scheduled. It provides detailed information about device inventories, including licenses and expiration.

Switch Capacity Planning focuses on resource utilization.

Resource Utilization monitors system performance.

Network report focuses on topology and health.

When deploying a new Aruba CX 8325 switch to provide gateway and routing services, the L3-apg profile (Layer 3 Aggregation Profile) should be selected instead of the factory default. This profile is designed for switches acting as aggregation or core routers, enabling Layer 3 routing capabilities and optimized configurations for such roles.

The Spine profile (factory default) is optimized for leaf/spine architectures, but may not be ideal for aggregation gateways.

Leaf and L3-core profiles are targeted for different roles.

Using the L3-apg profile helps to ensure the switch is correctly optimized for Layer 3 gateway functions.

In the Aruba troubleshooting framework, there are several structured approaches to resolving network issues.

Replace Configuration (Option A): This methodology involves reverting the system to a known good state. In AOS-CX, Checkpoints are snapshots of the switch configuration. By running copy checkpoint [name] running-config, the administrator is essentially performing a " rollback. " This is often used when a recent change (like the routing change mentioned) caused a failure, and the fastest way to restore service is to " replace " the current faulty configuration with a verified historical one.

Evaluating Other Methodologies:

Top-down/Bottom-up: These involve working through the OSI layers (either from physical to application or vice-versa).

Spot the difference: This involves comparing a working device/configuration with a non-working one. While you might use checkpoint diff to find the error, the act of copying the checkpoint itself is the " Replace " method.

Divide and conquer: This involves starting in the middle of a stack (e.g., Layer 3) and testing in both directions.

This scenario highlights a common conflict between Port Access Control and WLAN architectures in AOS10.

Tunnel Mode vs. Bridge Mode: * In Tunnel Mode , client traffic is encapsulated (GRE/IPsec) from the AP to the Gateway. The switch port only sees the MAC address of the AP itself. Once the AP authenticates via 802.1X, all tunneled client traffic passes through the authenticated " tunnel " unnoticed by the switch ' s port security.

In Bridge Mode , the AP bridges wireless client traffic directly onto the local VLAN. The switch port now sees the MAC addresses of the wireless clients.

The Conflict: By default, an 802.1X port expects only one authenticated device. When the AP authenticates, the port is " open " for the AP ' s MAC. However, when a wireless client’s bridged MAC appears on the same port, the switch treats it as an unauthenticated intruder and drops its DHCP requests.

The Solution (Device Mode): You must configure the User Role assigned to the AP (after it authenticates) with device-mode (often referred to as dev-conf-mode or device auth-mode in exam contexts). This tells the switch: " The device that just authenticated is a trusted infrastructure device (an AP). Please allow all subsequent MAC addresses seen on this port to pass without requiring individual authentication. "

The Network Analytics Engine (NAE) is a powerful built-in framework in AOS-CX for monitoring and troubleshooting. It uses Python-based agents to track system health and network events.

Direct UI Integration: The AOS-CX Web Interface (Web UI) includes a dedicated Analytics dashboard. Within this dashboard, there is a functional integration designed to simplify the acquisition of new monitoring scripts.

Aruba Solutions Exchange (ASE): The ASE is the official repository for Aruba-validated scripts, configuration templates, and NAE agents. When an administrator clicks the " Download " or " Discover " button within the NAE section of the switch ' s Web UI, the switch attempts to connect directly to the Aruba Solutions Exchange API . This allows the user to browse, select, and install verified NAE scripts without manually downloading files from a PC and then uploading them to the switch.

Evaluating Other Options:

Option A: The Support Portal is used for firmware and documentation, but it is not a script repository integrated into the switch UI.

Option C: Airheads is a community forum where scripts are discussed and shared manually, but it lacks the API integration for direct UI downloads.

Option D: While there is an official Aruba GitHub for NAE scripts, the built-in discovery mechanism specifically points to the ASE portal for a seamless, authenticated experience.

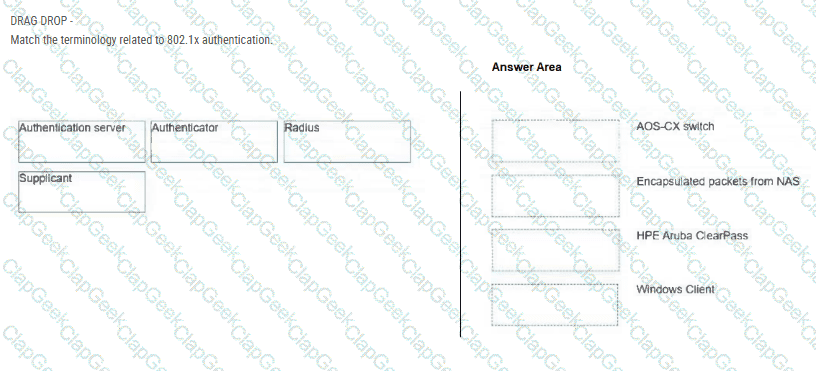

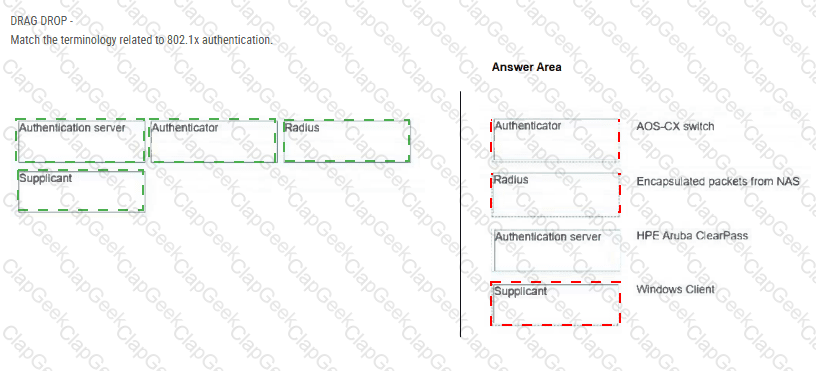

Authenticator: AOS-CX switch

Radius: Encapsulated packets from NAS

Authentication server: HPE Aruba ClearPass

Supplicant: Windows Clien

To master the HPE Aruba Networking Certified Professional - Switching exam, you must clearly distinguish between the roles defined in the IEEE 802.1X standard. These roles dictate how identity-based security is enforced at the edge of the network.

Supplicant (Windows Client): The supplicant is the client device (laptop, phone, or IoT device) that is requesting access to the network. It runs software (a " supplicant " ) that can respond to EAPOL (EAP over LAN) requests from the switch. In a typical office environment, the Windows 10/11 native 802.1X client acts as this role.

Authenticator (AOS-CX switch): The authenticator is the intermediary device, typically an access layer switch. Its job is to control the physical or logical port. It remains in an " Unauthorized " state (blocking all traffic except EAPOL) until it receives a success message from the authentication server. It translates EAPOL packets from the client into RADIUS packets for the server.

Authentication Server (HPE Aruba ClearPass): This is the " brain " of the operation. The server validates the credentials (certificates, usernames/passwords) provided by the supplicant. In the Aruba ecosystem, ClearPass Policy Manager (CPPM) is the primary authentication server. It checks its internal database or an external one (like Active Directory) and sends an " Access-Accept " or " Access-Reject " back to the switch.

Radius (Encapsulated packets from NAS): RADIUS (Remote Authentication Dial-In User Service) is the networking protocol that provides the transport for these exchanges. The switch, acting as a NAS (Network Access Server) , takes the EAP payload from the client and encapsulates it into RADIUS packets to send them across the IP network to ClearPass.

Valid Network Analytics Engine (NAE) agent actions include:

Running CLI commands (Option A), allowing automated command execution for remediation or data collection.

Generating local system logs (Option C) for event tracking and audit purposes.

Other options:

Generating SNMP traps (B) and starting/stopping packet captures (D) are not typical NAE actions.

Creating a new TAC case (E) is an external process, not an automated NAE action.

Backing up the switch configuration to a remote Linux SFTP server requires using the copy command with the correct protocol (SFTP in this case), username, server IP, filename, and optionally the VRF to route management traffic.

Option A uses SCP and vrf default but the question mentions SFTP server, so SFTP protocol should be used.

Option B is a server-side command (not the switch).

Option C correctly uses copy startup-config sftp://user@192.168.1.100/switch_config.cfg vrf mgmt which backs up the startup-config via SFTP using the management VRF.

Option D is also a server-side command.

Using vrf mgmt is required because the management IP is in a separate VRF on CX switches.

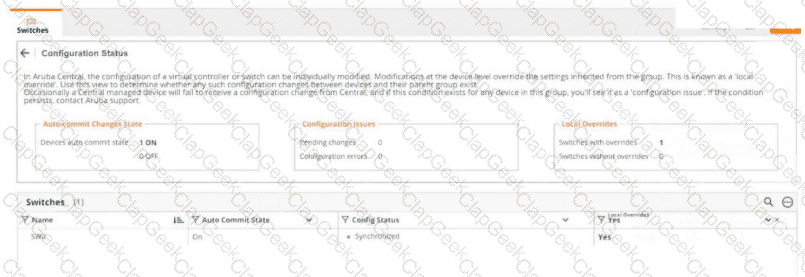

This exhibit displays the Configuration Status dashboard within HPE Aruba Networking Central for a specific switch (SW0).

Interpreting " Local Overrides " : In the Central management model, switches are typically assigned to a Group , and they inherit the configuration of that group (the " inherited settings " ). A Local Override (as explicitly defined in the exhibit ' s header text) occurs when an administrator makes a configuration change at the individual device level within Central. This device-specific configuration takes precedence over the group-level settings.

Analysis of SW0:

The table shows Local Overrides: Yes . This confirms that SW0 has unique configuration parameters applied to it that differ from the baseline configuration of its assigned group.

The Config Status is Synchronized , meaning these device-level changes have already been successfully pushed to the switch.

Evaluating the Options:

Option B (Correct): Having a " Local Override " means that a configuration has been pushed to the switch which deviates from the " default " (inherited group) settings.

Option A: " Local Overrides " in Central refers to the Central UI device-level settings , not changes made directly on the local physical CLI of the switch.

Option C: While Central does track configuration health, this specific screen is showing override and commit status, not the detailed logic for auto-checkpoints.

Option D: The exhibit shows Auto-commit Changes State: ON . This means any change made in Central is automatically committed and pushed to the device; no manual commit action is required by the administrator.

To resolve this QoS mapping issue on AOS-CX , you must understand the hierarchy of Trust Levels and how they interact with Link Aggregation Groups (LAGs) .

Trust Hierarchy: AOS-CX switches use a " top-down " approach for QoS.

Global Trust: Setting qos trust dscp globally means that, by default, every port on the switch will look at the Layer 3 DSCP markings to determine queue priority.

Interface Override: You can override the global setting on a per-interface basis. If a specific device or service (like the video streaming service in this prompt) relies solely on Layer 2 CoS (802.1p) markings rather than DSCP, the switch will ignore those CoS markings under the global DSCP policy and place the traffic in a default (best-effort) queue.

LAG Configuration Logic: In the AOS-CX architecture, a LAG is a logical interface (interface lag 20).

Configuration parameters for the bundle (such as VLANs, ACLs, and QoS trust) should be applied to the logical LAG interface , not the individual physical member ports (1/1/20 and 2/1/20).

Once applied to the LAG, the settings are automatically inherited by all physical members.

Analyzing the Options:

Option D (Correct): By entering the interface lag 20 context and applying qos trust cos, you are instructing the switch to ignore the global DSCP setting for this specific bundle and instead trust the Layer 2 priority bits. This allows the video service to once again map correctly to the intended priority queues.

Option A: This is unnecessarily complex. Setting the physical member ports to qos trust none and then the LAG to cos is redundant because the LAG configuration overrides the physical port settings in this context.

Option B: qos trust dscp, cos is not a valid AOS-CX command. Unlike the older AOS-S (ProCurve) software which allowed a combined dscp-cos trust, AOS-CX requires you to choose a single trust type (DSCP, CoS, or None) per interface.

Option C: This applies the configuration to the physical ports only. In an AOS-CX VSF/LAG environment, this is considered a configuration error or " best practice " violation, as the logical LAG interface should hold the configuration.

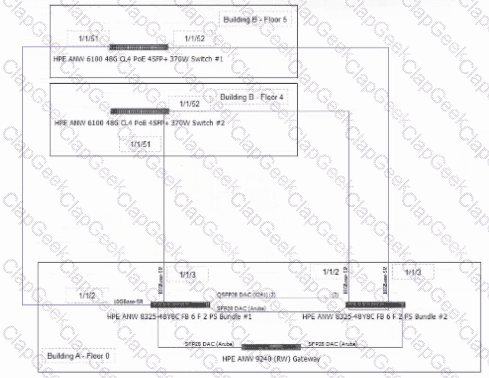

Dynamic Segmentation (DS) requires certain capabilities on the switches to support user role assignment and traffic segmentation based on identity. The CX 6100 series switches do not support Dynamic Segmentation due to hardware and feature limitations. Therefore, they must be replaced with CX 6300 models, which support DS features natively.

Options involving GRE tunnels or VXLAN tunnels relate to traffic forwarding but do not enable DS on unsupported hardware.

Applying licenses does not upgrade hardware capabilities for DS.

When configuring OSPF on a point-to-point network type (typically a direct link between two routers), OSPF treats the link as a broadcast-less point-to-point segment.

This reduces unnecessary OSPF overhead by eliminating the need for:

DR/BDR elections (which generate LSA Type 2 advertisements for broadcast multi-access networks).

Thus, changing network type to point-to-point reduces the number of LSA Type-2 advertisements, which are used to describe the network segment in multi-access environments.

No impact on number of routes (LSA Type-3 is about inter-area routes).

The default is usually broadcast or point-to-multipoint depending on interface.

When a recent routing change causes an outage affecting all users, the recommended immediate action is to restore the last-known working configuration to quickly return the network to a stable state. This is critical to minimize downtime and impact.

Asking customers to send logs or explaining the issue takes time and delays remediation.

Collecting show tech and opening TAC cases can be done after restoring service.

Hence, the quickest way to mitigate the impact is to restore the last known good configuration.

The Audit Trail in HPE Aruba Networking Central serves as the primary ledger for compliance and accountability across the entire managed estate.

Accountability (The " Who " ): The fundamental purpose of an audit trail is to provide a record of " who, what, and when. " When a configuration is modified—whether it’s a VLAN change, a port shutdown, or a global routing update—the Audit Trail logs the Username of the administrator or the API key identity that initiated the task.

Validating Changes: In the Global view, the Audit Trail allows a Lead Engineer to verify that changes were authorized. If a network outage occurs, the trail is used to correlate the timing of the outage with the specific user who pushed the last set of changes.

Evaluating Other Options:

Option A: Central typically retains Audit Trail data for up to 90 days (standard) or longer with specific data retention subscriptions, but 7 years is not the standard architectural default for these logs.

Option B: While you can see that a " Config Push " occurred, the detailed Configuration Difference (the " Diff " ) is usually viewed in the Configuration Status or Audit Event Details page, rather than being the primary defining attribute of the basic Audit Trail list.

Option C: The Audit Trail identifies the action (e.g., " Update Switch Configuration " ), but it doesn ' t always distinguish the specific UI workflow (like Multi-edit vs. Standard GUI) used within the Central platform.

Key Exam Tip: Whenever you see " Audit Trail " in an Aruba exam, think Accountability . It is the tool used to track administrator actions.

The concept of Colorless Ports is central to Aruba ' s Dynamic Segmentation strategy. A colorless port is one where the configuration is not static but is instead determined dynamically based on the identity of the device that connects to it.

The Role of Authentication: To achieve a colorless port, the switch must first identify the connecting device. This is done through Port Access Control mechanisms.

MAC Authentication (MAC Auth): While 802.1X is the preferred method for devices with a supplicant (like laptops), MAC Authentication is used for " headless " devices (like printers, cameras, or IoT sensors) that cannot perform 802.1X. By configuring MAC Auth, the switch sends the device ' s MAC address to a RADIUS server (like ClearPass), which then instructs the switch on which User Role to apply to that port.

Why other options are incorrect:

Option A and C: Port-security and Sticky MAC are static security features. They lock a port to a specific MAC address but do not dynamically assign VLANs, ACLs, or QoS based on identity, which is the definition of a colorless port.

Option D: Virtual MAC is a component of Active Gateway or VRRP, used for default gateway redundancy in a VSX or high-availability environment. It has no role in edge port " colorless " provisioning.

The customer wants to tunnel traffic from APs through CX switches, similar to what they currently do with a gateway cluster. Aruba’s User-Based Tunneling (UBT) is designed specifically for this use case. UBT allows traffic from wireless and wired clients to be tunneled to a centralized gateway or controller for policy enforcement and traffic inspection.

IPSec and GRE are general tunneling protocols but not Aruba’s recommended solution for AP traffic.

VNBT relates to colorless ports and dynamic segmentation, not tunneling client traffic.

Thus, UBT is the correct tunneling solution for AP traffic through CX switches.

To find which changes were made on an HPE Aruba CX switch from the GUI, the correct command is:

show checkpoint diff — this compares the running configuration with stored saved-config revisions.

Using " saved-config revisions " as the comparison base allows the GUI to show what has changed since the last saved configuration.

Other options mix checkpoint and saved-config terminology incorrectly.

https://arubanetworking.hpe.com/techdocs/AOS-CX/10.16/HTML/high_availability/Content/Chp_BFD/cnf-bfd-bgp-10.htm

In an AOS-CX VSX environment, LACP is the standard for forming Multi-Chassis Link Aggregation Groups (MC-LAGs). However, LACP has a " chicken and egg " problem during certain boot processes.

The LACP Dilemma: LACP requires a software driver or " actor " on the client device to exchange BPDUs with the switch. During a Preboot Execution Environment (PXE) Boot , a server or workstation does not yet have its OS or LACP drivers loaded. Consequently, the switch receives no LACP packets, and by default, it keeps the LAG ports in a " blocked " or " waiting " state to prevent loops.

LACP Fallback Function: The lacp fallback command allows the VSX members to temporarily treat the LAG ports as non-bonded individual interfaces if no LACP partner is detected. This allows the device to communicate over a single physical link during the PXE process to download its OS image.

The Transition: Once the OS is loaded and the LACP driver starts sending BPDUs, the switch automatically transitions the ports back into a fully functional, bonded LAG.

Why other options are incorrect:

Option A: LACP mode (Active vs. Passive) is handled by the lacp mode command, not fallback.

Option D: While fallback results in a single interface operating, the intent and design requirement is to facilitate the pre-OS boot process, not simply to limit the partner to one interface.

This is a classic troubleshooting scenario in AOS-CX multicast environments. IGMP Snooping is designed to be " quiet " and efficient, but it has a specific dependency.

The Need for a Querier: IGMP Snooping works by listening for IGMP Join messages. However, for hosts to keep sending Join messages, there must be an IGMP Querier on the network that periodically asks, " Is anyone still listening to this multicast group? "

The Problem: If you enable IGMP Snooping on a VLAN but there is no L3 device acting as a Querier, the initial Join messages will eventually time out. The switch will then stop forwarding the multicast traffic to those ports because it assumes no one is listening anymore.

The Solution: By enabling IGMP on the Layer 3 interface (SVI) for that VLAN, the switch becomes the IGMP Querier for that subnet. It will send out periodic queries, the hosts will respond with " Reports, " and the IGMP Snooping table will remain populated, allowing the multicast application to continue functioning.

Why other options are incorrect:

Option A: IGMP Snooping is a Layer 2 function and is not configured " on " the L3 interface (SVI).

Options C and D: While PIM (Protocol Independent Multicast) is used for routing multicast between subnets, the immediate failure described (local applications not working on a VLAN after snooping is turned on) is almost always a lack of an IGMP Querier on that local segment.

In the Aruba/HPE troubleshooting framework, the methodology is selected based on the information provided at the start of the engagement.

Follow the Path: Since you have the Source IP and Destination IP , you have a clear starting and ending point. This methodology involves identifying every hop (switches, routers, firewalls) between the client and the SQL server.

Execution: You would typically use tools like traceroute, check interface statistics for errors/drops on each switch in the path, and look for specific buffer or congestion issues that could cause " intermittent " loss.

Why others are less ideal: * Divide and Conquer: Better for situations where you don ' t know the full path but know the issue is likely at a specific layer (e.g., Layer 3).

Spot the Difference: Used when one server works and another doesn ' t; here, we are troubleshooting a single, specific intermittent path.

Top-down/Bottom-up: These are systematic but time-consuming. When you have the IPs, " Follow the path " is the most direct and efficient diagnostic choice.

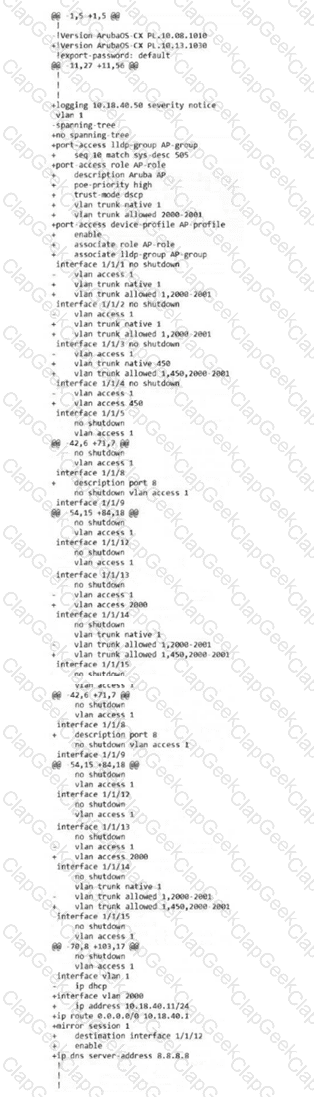

The output shown in the exhibit is a unified diff (indicated by the + and - signs and the @@ headers), which is the standard format AOS-CX uses to display differences between two configuration states.

AOS-CX Checkpoints: ArubaOS-CX switches use " checkpoints " to save snapshots of the configuration. These can be created manually by a user or automatically by the system (e.g., when a configuration change is pushed from Central or NetEdit).

The checkpoint diff Command: The command checkpoint diff < NAME1 > < NAME2 > is used to perform a line-by-line comparison. One of these names can be the running-config .

Lines with a -: These are present in the first configuration (the older checkpoint) but missing in the second (the newer config).

Lines with a +: These are present in the second configuration but were not in the first.

Analyzing the Exhibit: The output shows a comparison between a switch running version 10.08.1010 (the - line) and version 10.13.1030 (the + line), along with several configuration changes like adding an lldp-group, a port-access role, and IP addressing on vlan 2000.

Differentiating Command Syntax: * In the AOS-CX CLI, checkpoint diff is an " action " command used specifically for this analytical comparison.

While many diagnostic commands start with show, the diff utility is executed directly as checkpoint diff.

Terms like " saved-config revisions " are not standard AOS-CX terminology; the system uses " checkpoints " exclusively for this purpose.
