HPE0-S59 HPE Compute Solutions Questions and Answers

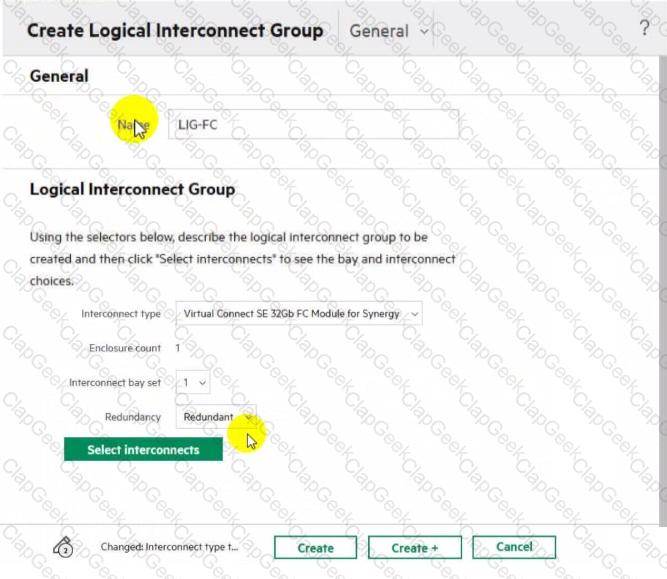

In the HPE Synergy setup shown in the exhibit, the interconnect type is Virtual Connect SE 32Gb FC Module for Synergy with an enclosure count of 1 and interconnect bay set 1. Typically, in such configurations, the interconnect modules are installed in bays 1 and 4 for redundancy. This placement ensures high availability and failover capabilities.

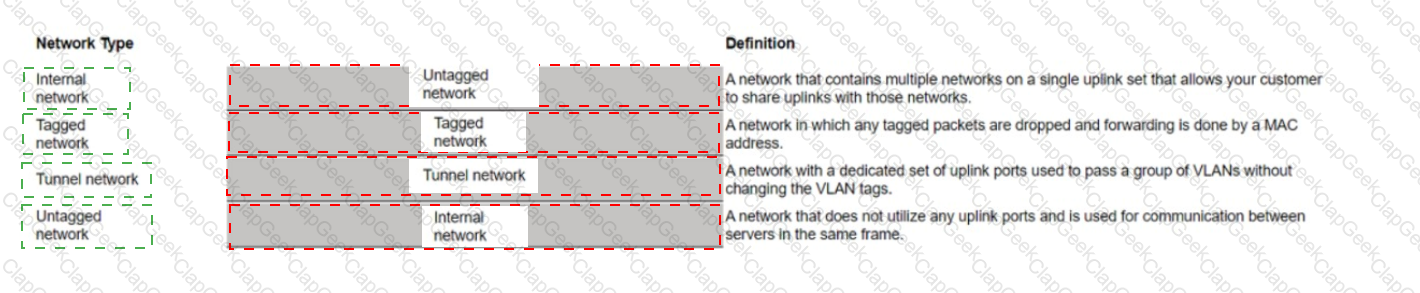

Here are the correct matches for each HPE OneView network type with their respective definitions:

Internal network Definition: A network that does not utilize any uplink ports and is used for communication between servers in the same frame.

Tagged network Definition: A network in which any tagged packets are dropped and forwarding is done by a MAC address.

Tunnel network Definition: A network with a dedicated set of uplink ports used to pass a group of VLANs without changing the VLAN tags.

Untagged network Definition: A network that contains multiple networks on a single uplink set that allows your customer to share uplinks with those networks.

Internal network: This network type facilitates communication between servers within the same frame without utilizing uplink ports, providing internal data exchange.

Tagged network: This network type drops any packets that are tagged and forwards packets based on their MAC address, ensuring only untagged traffic is processed.

Tunnel network: This type of network uses a specific set of uplink ports to pass VLAN groups while preserving the VLAN tags, useful for maintaining VLAN configurations across different network segments.

Untagged network: This network type enables the sharing of uplinks among multiple networks by placing them on a single uplink set, useful for optimizing network resource usage.

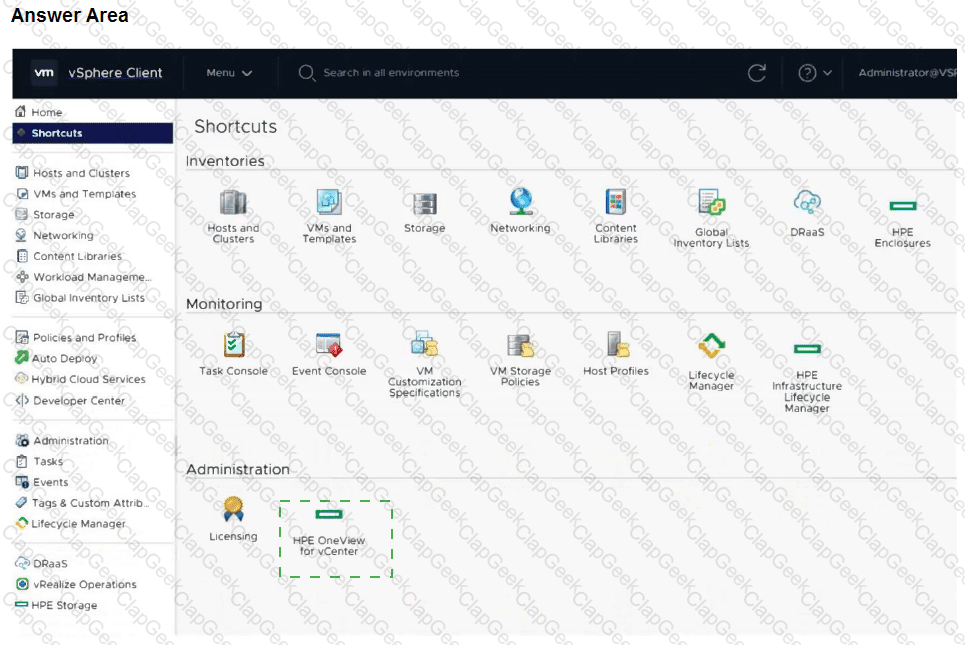

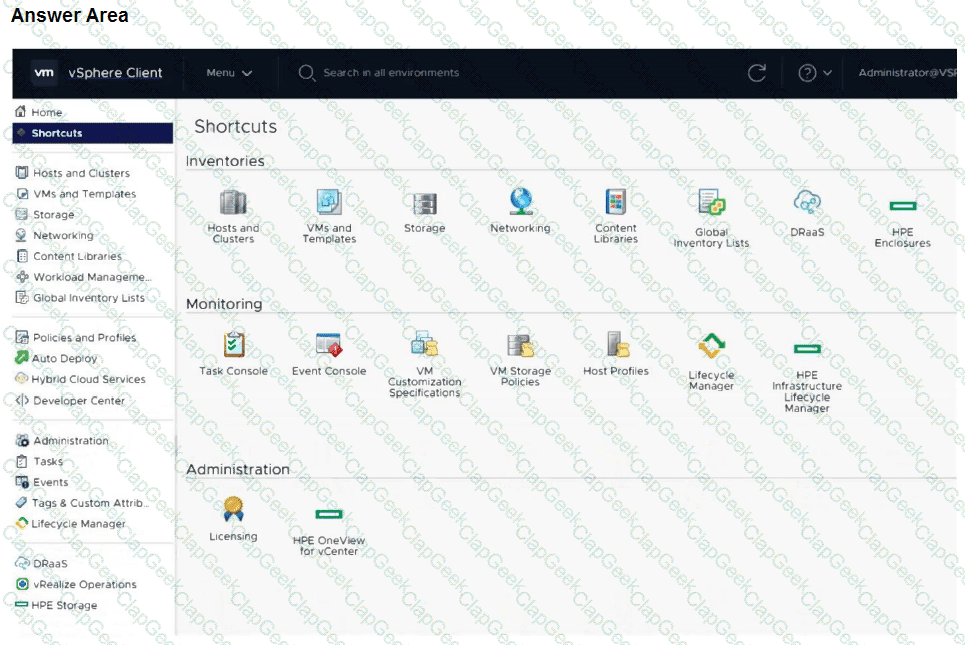

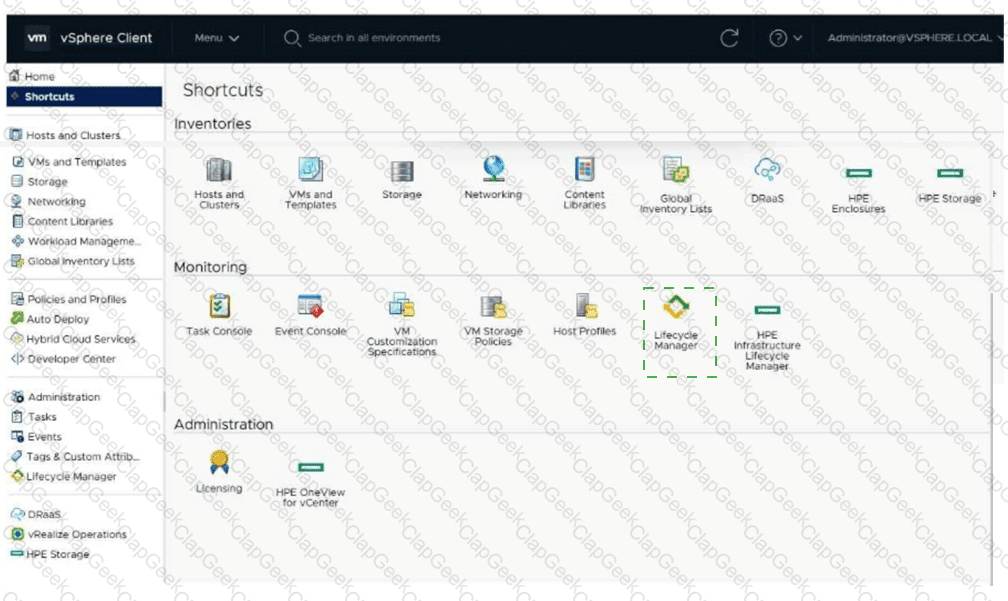

When encountering an error while growing a VMware cluster using HPE OneView for VMware vCenter Server, it is crucial to verify that the server profile template is properly imported and registered in HPE OneView. This ensures that the necessary configurations and settings are correctly applied to the new compute nodes being added to the cluster.

HPE GreenLake for File Storage is a key component of the HPE Private Cloud AI architecture, designed to provide the high-throughput, low-latency performance required for AI workloads.

Hardware Foundation: The infrastructure underlying this service is based on the HPE Alletra Storage MP platform. These modular " MP " (Multi-Protocol) nodes are built using standard HPE ProLiant Gen11 hardware components. By leveraging the proven ProLiant ecosystem, HPE ensures the solution is both cost-effective (due to global supply chain efficiencies) and highly resilient (utilizing enterprise-grade power supplies, fans, and management via iLO).

NVMe Performance: To handle the massive data requirements of AI model training and inference, the infrastructure utilizes all-NVMe drives. This provides the parallelism and speed necessary to feed hungry GPUs without the bottlenecks associated with traditional SAS or SATA storage.

Disaggregated Architecture: Unlike legacy systems, this infrastructure separates performance (compute nodes) from capacity (JBOFs/Storage shelves), allowing the environment to scale efficiently as data grows.

Why other options are incorrect:

Option B: While Alletra MP Block storage offers a 100% availability guarantee, the File persona is designed for extreme durability and high availability but is typically marketed with 99.9999% (six nines) availability rather than the absolute 100% block storage claim.

Option C: HPE Private Cloud AI uses shared storage (Alletra MP) rather than local drives on the worker nodes. This ensures data persistence and allows multiple GPU nodes to access the same datasets simultaneously.

Option D: HPE GreenLake for File Storage is powered by the VAST Data software stack, not Lustre. While Lustre is common in classic HPC, the VAST-based HPE solution is preferred for modern enterprise AI due to its ease of management and superior data reduction capabilities.

HPE MSA 2062 Storage Array is not supported in HPE OneView: HPE OneView does not provide management capabilities for the HPE MSA series, which includes the MSA 2062. These arrays must be managed using their dedicated management tools.

HPE Primera 650 can be managed using HPE OneView: HPE OneView supports the management of HPE Primera storage arrays, including the Primera 650, allowing for integrated management and monitoring within the OneView environment.

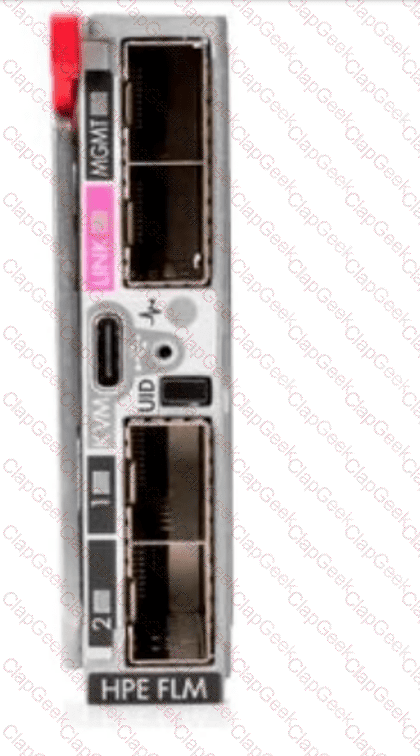

The port labeled " MGMT " (Management) in the upper right section of the HPE Frame Link Module (FLM) is the correct port used to include an HPE Synergy frame in the management ring. This port is crucial for linking the frame into the management network of the Synergy infrastructure.

One of the key benefits of using HPE Composer 2 is its enhanced scalability. A pair of HPE Composer 2 modules can manage up to 42 frames, which is double the capacity managed by the previous generation HPE Composer (which manages up to 21 frames). This increased capacity allows for more efficient and large-scale management of HPE Synergy environments.

A milestone release in HPE OneView refers to a version that includes significant architectural enhancements and updates. It serves as a prerequisite for subsequent updates, ensuring that the system is prepared for the next set of features and improvements. This type of release is essential for maintaining compatibility and stability as new hardware components and features are introduced.

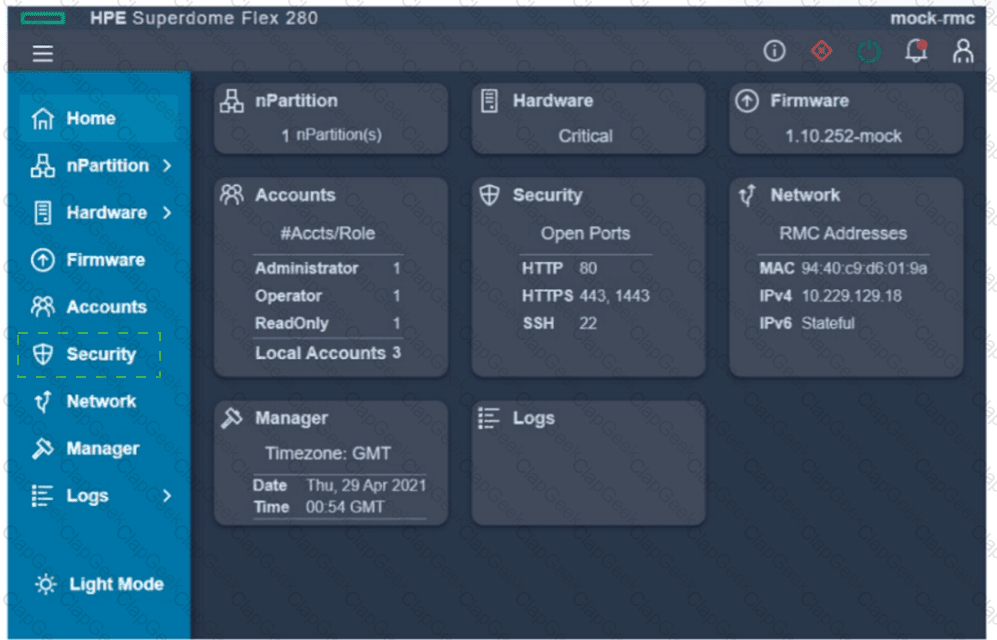

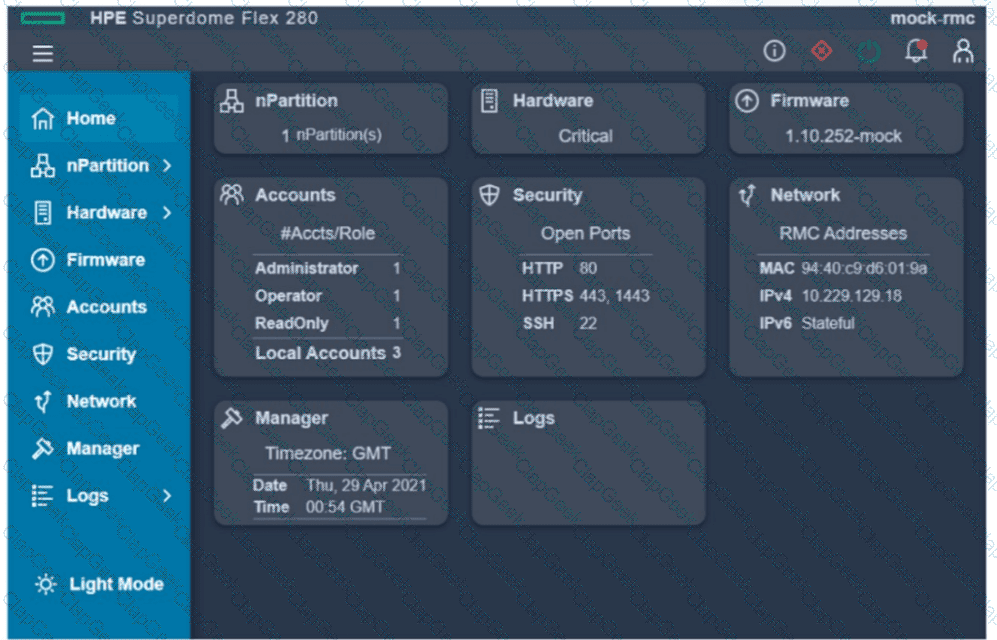

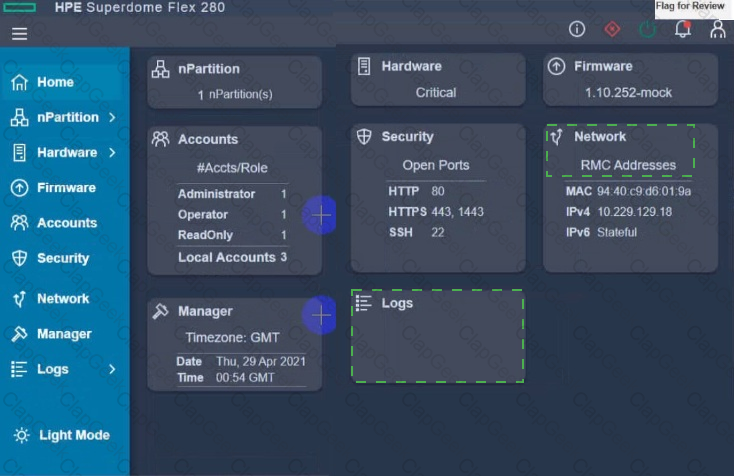

To check the Core Analysis Engine (CAE) Log on the HPE Superdome Flex 280, navigate to the Logs section in the management interface. This section provides access to various logs, including system, security, and diagnostic logs, which encompass the CAE logs necessary for detailed analysis and troubleshooting.

Storm control is a feature in HPE Virtual Connect that allows administrators to suppress excessive inbound multicast, broadcast, and destination lookup failure (DLF) packets. This feature helps to mitigate the negative impact of network storms, which can degrade network performance and availability. By configuring storm control, administrators can set thresholds to limit the rate of such packets entering the network, ensuring a stable and reliable network environment.

The HPE Superdome Flex system is the only HPE compute system that supports up to 16 CPU sockets, making it suitable for customers who require a hardware platform with such high scalability. The Superdome Flex is designed for mission-critical workloads and provides exceptional scalability and performance.

For HPE Virtual Connect Fibre Channel (VC FC) modules, utilization sampling is always enabled by default and cannot be disabled. This feature ensures continuous monitoring of the module ' s performance and utilization, providing valuable insights for managing the Fibre Channel network.

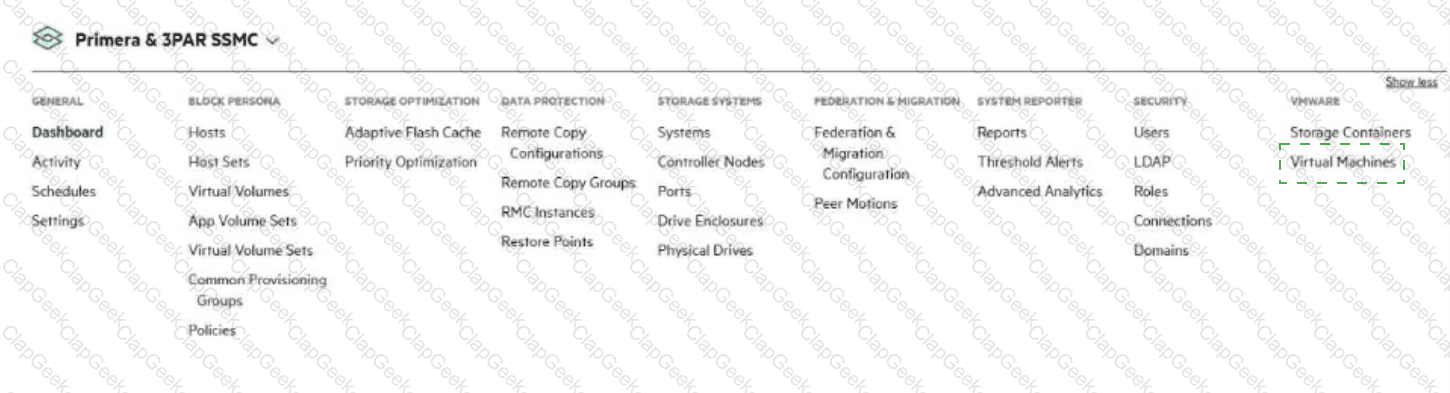

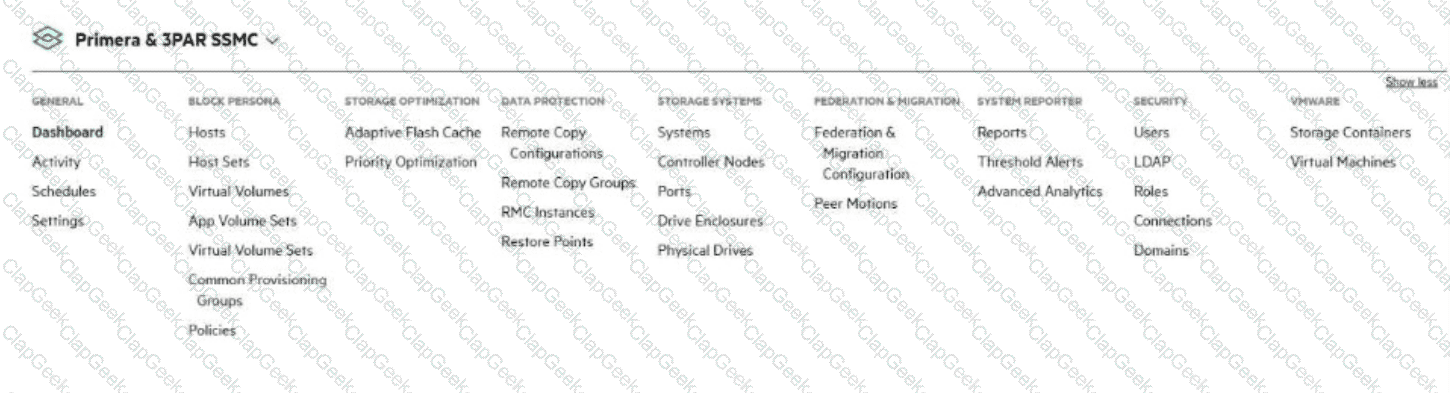

To verify whether a virtual storage operation is properly created on HPE Primera or 3PAR using the HPE Storage Integration Pack for VMware vCenter, you would click on the " Virtualization " option in the SSMC (StoreServ Management Console) main menu. This option allows you to manage and monitor storage operations related to virtual environments, including VMware integration.

The HPE Superdome Flex architecture is built on a modular " building block " design where multiple chassis are interconnected to form a single, massive " complex. " The firmware management for this system is centralized through the Rack Management Controller (RMC) .

Complex Firmware Model: Unlike standard rack servers where BIOS and BMC firmware are updated independently, Superdome Flex utilizes a complex firmware bundle . This bundle contains synchronized versions of the BIOS, BMC, and RMC firmware to ensure all parts of the scale-up system work in harmony.

Simultaneous Updates: When an administrator initiates a firmware update via the RMC CLI (using the update firmware command), the RMC orchestrates the deployment of the firmware to all chassis and components within the complex simultaneously . This ensures that the entire system remains on a consistent version, which is critical for the stability and cache coherency of mission-critical workloads.

Terminology Note: In HPE training and documentation context, " multiple HPE Superdome systems " in this question refers to the individual chassis/modular units that comprise a larger Superdome Flex complex.

Why other options are incorrect:

Options B & D: HPE Persistent Memory (Intel Optane) firmware can be updated via the RMC CLI as part of the complex update, but it can also be updated using HPE Smart Update Manager (SUM) through specific components. Therefore, neither is the " only " tool.

Option C: While HPE OneView is a powerful management tool, it is not the only way to perform I/O updates. In fact, HPE SUM is the primary tool for performing both online and offline I/O firmware and driver updates for Superdome Flex.

The phenomenon where a physical network port (uplink, downlink, or stacking port) transitions between " up " and " down " states repeatedly in a short period is known as port flapping . This behavior can cause significant instability in a network fabric, as it forces the switch to constantly update its MAC address tables and can trigger spanning tree recomputations.

Port Flap Protection: HPE OneView (managing the HPE Virtual Connect SE 100 Gb F32 and 40 Gb F8 modules) includes a feature specifically called Port flap protection (sometimes referred to as link fault monitoring).

Configurable Thresholds: Administrators can configure this feature within the Logical Interconnect Group (LIG) or Logical Interconnect (LI) settings. You can define a threshold (e.g., a certain number of flaps within a specific interval).

Action on Detection: When the threshold is exceeded, the feature can be set to " Detect and disable ports. " Once a port is disabled by this protection mechanism, it remains in a disabled state until an administrator manually resets it, preventing the " flapping " port from further disrupting the network.

Comparison to other options:

sFlow (B): A monitoring protocol used to sample network traffic for analysis; it does not take corrective action like disabling ports.

Pause flood protection (C): This feature protects against a " storm " of Ethernet PAUSE frames (flow control), which can exhaust switch buffers. While it can also disable ports, the trigger is traffic-based (PAUSE frames), not the physical link-state toggling described in the prompt.

Storm control (D): This limits the amount of broadcast, multicast, or unknown unicast traffic allowed on a port to prevent a broadcast storm; it does not monitor link-up/link-down transitions.

The HPE Synergy 480 Gen10 Plus Compute Module supports 8 memory channels and can accommodate memory DIMMs of up to 256GB. This capability ensures high memory bandwidth and large memory capacity, which are essential for demanding workloads and applications.

HPE Synergy management rings have a maximum capacity for the number of frames they can manage. With 18 frames already managed in 6 logical enclosures, adding 5 more frames would exceed this capacity. Therefore, the customer needs to create a new management ring for the new logical enclosure to ensure proper management and operation.

The HPE Superdome Flex (the 4-socket to 32-socket scale-up system) has specific architectural requirements that distinguish it from the smaller Superdome Flex 280:

Memory Configuration (Option A): The HPE Superdome Flex is designed for massive in-memory workloads. Each 4-socket chassis contains 48 DIMM slots (12 per processor). To maintain the required performance and RAS (Reliability, Availability, and Serviceability) features, the platform has a minimum memory requirement. According to the HPE QuickSpecs, the shared memory capacity starts at 768GB , which is achieved by populating all 48 slots with the minimum supported 16GB DIMMs ($48 \times 16\text{GB} = 768\text{GB}$).

Scalability (Option B): This statement is incorrect for the standard Superdome Flex. The Superdome Flex 280 scales in 2-socket increments from 2 to 8 sockets. The original Superdome Flex scales in 4-socket increments (one full chassis at a time) up to a maximum of 32 sockets (8 chassis).

Hard Partitioning (Option C): Using an external Rack Management Controller (RMC) , the Superdome Flex can support significantly more than two partitions. It can support up to 16 nPars (hard partitions), allowing for massive workload consolidation with electrical isolation between partitions.

Management (Option D): This is incorrect. While the Superdome Flex initially focused on CLI management via the RMC, HPE OneView (versions 5.0 and later) fully supports the Superdome Flex for monitoring, inventory, and health management. More recent updates have introduced " Manage Mode " for template-based BIOS and firmware orchestration.

The issue of seeing multiple instances of an FC boot volume in Disk Management, with one online and three offline, is typically caused by the lack of Multi-Path I/O (MPIO) configuration. Installing and configuring MPIO on the Windows system will enable the operating system to recognize multiple paths to the same storage volume and manage them correctly, presenting only one online instance of the volume.

The HPE Superdome Flex 280 is the appropriate hardware platform for a customer requiring up to 24 TB of physical memory. This system is designed for high scalability and performance, supporting large memory configurations suitable for demanding applications and workloads.

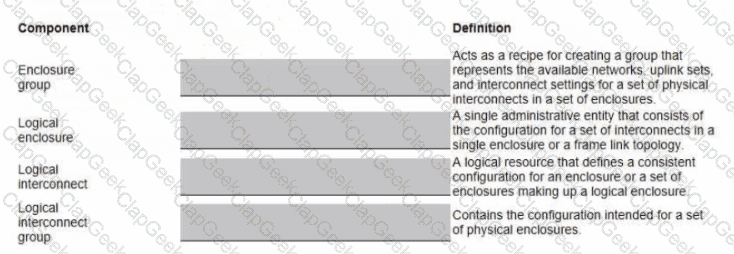

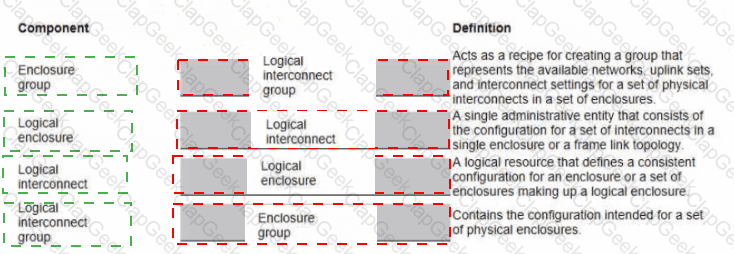

In an HPE Synergy environment, a logical enclosure represents a management domain that groups multiple Synergy frames and their associated compute, storage, and fabric resources. Given the setup with 3 HPE Synergy 12000 Frames and the specified components, the customer must create at least two logical enclosures to effectively manage all compute nodes and resources across multiple frames. This ensures proper resource allocation, management, and redundancy.

The HPE OneView Update Readiness Checker is a tool specifically designed to evaluate the health and readiness of an HPE OneView appliance before proceeding with an update. It checks for any potential issues that could affect the update process and provides recommendations for resolution.

To expand an existing logical enclosure based on a single HPE Synergy frame to include a second frame and ensure a highly available master setup, the following steps should be performed:

Modify an existing logical interconnect to include the second HPE Synergy frame: This step involves updating the logical interconnect configuration to encompass the new frame, ensuring network connectivity and consistency across both frames.

Move one of the master modules to the appropriate interconnect bay in the second frame: To achieve a highly available master setup, one of the master modules should be relocated to the second frame, providing redundancy and high availability for the management components.

The Rack Management Controller (RMC) is a critical component for configuring nPartitions (nPars) in HPE Superdome systems. The RMC provides the necessary control and management interfaces to define and manage nPars, ensuring proper allocation of resources and isolation of workloads.

To deploy HPE Superdome Flex and configure two nPars, each based on two chassis, you must include the HPE Superdome Flex Grid licenses. These licenses enable connectivity between the chassis, allowing the creation of nPars (nPartitions) that span multiple chassis. This is essential for the system ' s proper configuration and operation in a multi-chassis nPar setup.

HPE Compute Ops Management (COM) , part of the HPE GreenLake cloud platform, allows for centralized management of BIOS settings and Workload Profiles across a fleet of servers. When implementing custom profiles, the interaction between the hardware (BIOS) and the Operating System (OS) is a critical architectural consideration.

OS vs. BIOS Conflict: Modern operating systems (such as Windows Server, VMware ESXi, and various Linux distributions) have built-in power management and performance scaling features. If the OS is configured to manage " P-States " or " C-States " (standard processor power/performance states), it will override the settings defined in the BIOS Workload Profile.

The " Required Setup " (Option D): For a BIOS/Workload profile to be effective, the administrator must ensure that the OS Power Management is set to a mode that defers to the BIOS (often called " BIOS Match " or " Static High Performance " within the OS settings). If the OS attempts to control these settings, the benefits of the custom profile applied via COM may be negated, or the server may exhibit inconsistent performance.

HPE Workload Profiles: These are pre-defined sets of BIOS settings optimized for specific tasks (e.g., Virtualization - Max Performance, Low Latency, etc.). When applying a Custom profile through COM, you are essentially fine-tuning these variables. Ensuring the OS is not " fighting " the BIOS for control is a prerequisite for a stable, optimized deployment.

Why other options are incorrect:

Option A: While starting from factory defaults can provide a clean baseline, it is not a technical requirement. The profile applied via COM will overwrite existing settings regardless of their current state.

Option B: Custom profiles can be easily created using the HPE GreenLake/COM GUI . While the API is available for automation, it is not a " required part of the setup. "

Option C: While most modern features require UEFI, specifically configuring " Optimized UEFI mode " via the local iLO interface is not the primary requirement for applying a COM profile; COM itself is designed to handle these configurations remotely once the server is onboarded.

HPE OneView allows for several storage management tasks when managing HPE Primera, including volume provisioning. This task involves creating and managing storage volumes that can be allocated to compute nodes and applications within the environment. HPE OneView streamlines this process, providing a centralized management interface.
