H31-341_V2.5 HCIP-Transmission V2.5 Questions and Answers

Alarm handling differs between OTN and SDH encapsulation processes, so they are not processed in the same way when GE services are mapped into OTN versus SDH signals.

In coherent transmission systems, the non-standard incident optical power is measured at the output port of the transmit-end OA board, making that board output the reference point.

Lower ground resistance indicates better grounding performance because it allows current to be conducted to the ground more quickly and efficiently. Good grounding is essential for equipment protection, system stability, and safety in transmission networks. A low resistance path reduces the risk of electrical shock, equipment damage, and signal interference. HCIP-Transmission underscores the importance of grounding quality as part of overall network infrastructure integrity and reliability, making low ground resistance a key objective in grounding design.

The TMK1UNS5 is a universal OTN line board that operates in 100 G and 200 G line modes and supports hybrid OTN/SDH/packet mapping (including ODU0, ODU1, ODU2/2e, ODU3, ODU4, and ODUflex) as well as FEC, OSC, and 1+1 protection. Its published “Functions and Features” do not include an electrical 3R regeneration mode, so it cannot be used as a regenerator.

In an outloop (external loopback), the transmitted signal is sent out of the NE and then looped back into its receive port, so signals flow into the local WDM NE.

Hardware loopback on optical ports uses pigtail jumpers, and on electrical ports uses self-loop cables, both performed manually.

When performing optical hardware loopback, adding an optical attenuator is necessary to prevent excessive return power from damaging the transmitter.

When light passes through a passive optical component, the decrease in optical power is termed insertion loss. This is a fundamental concept in optical transmission where every component like connectors, splices, splitters, or filters adds some level of power attenuation. Managing insertion loss is crucial to maintain overall system performance, especially in long-haul or dense WDM systems where accumulated loss can degrade the signal. HCIP-Transmission emphasizes the importance of measuring and minimizing insertion loss to ensure system stability and reach requirements are met.

A break in the shared fiber link causes loss of optical power in both transmit and receive directions, triggering optical loss alarms on OA and OSC boards at both ends.

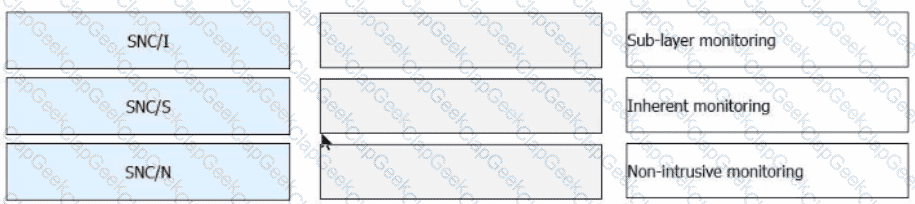

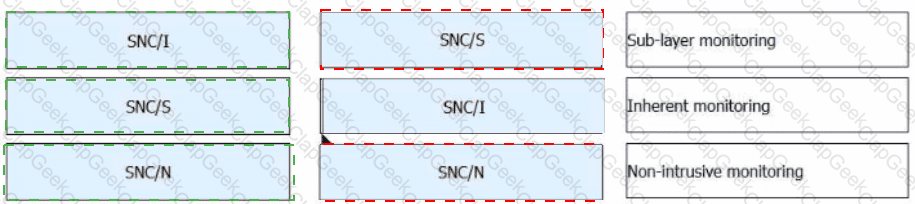

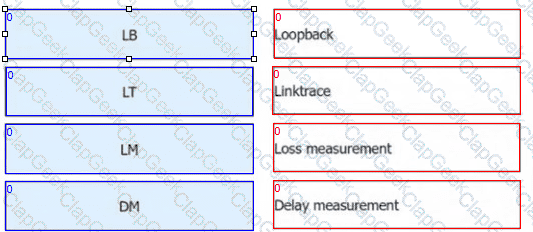

The Delay Measurement (DM) function in MPLS-TP OAM can be used to measure the delay and jitter of service packets accurately. This function is essential for maintaining quality of service (QoS) in transport networks by monitoring timing and synchronization characteristics. Accurate delay and jitter measurement helps in diagnosing performance issues and ensuring service-level agreements are met. HCIP-Transmission emphasizes the use of DM in OAM for real-time monitoring and fault localization in MPLS-TP environments.

The OptiXtrans E6600 and OptiX OSN 1800 series use a hierarchical system architecture divided into three layers: L0 (optical layer), L1 (multiplexing layer), and L2 (service layer). According to HCIP-Transmission documentation, the E6608T/E6616 and OptiX OSN 1800 II TP/OSN 1800 V Pro models implement the L0+L1+L2 architecture, providing comprehensive functionality across optical signal management, multiplexing, and client service handling. This architecture enables scalable, flexible, and efficient transmission systems supporting various services and network demands. Other options mention partial model sets or incorrect combinations, making option B the accurate statement reflecting the system architecture.

R_LOS, R_LOF, R_OOF, and MUT_LOS all indicate loss of signal or framing, which directly interrupts service delivery.

The fixed attenuator is usually configured at the receive end, not the transmit end, to prevent the optical power at the receive end of an OTU (Optical Transport Unit) board from being excessively high. High optical power at the receiver can cause signal distortion or damage the receiver module. Configuring the attenuator at the receive end ensures that the incoming signal power is within the optimal sensitivity range of the receiver. Configuring attenuators at the transmit end is generally ineffective because it reduces power output before transmission, potentially reducing reach. This approach aligns with HCIP-Transmission best practices for optical power management and receiver protection.

QPSK uses four phase states, not two. Statement B incorrectly says it assigns two possible phase values, which describes BPSK, not QPSK. QPSK effectively doubles the bits per symbol compared to BPSK, reducing baud rate while maintaining data rate, but with four distinct phases.

Standard mode reduces the number of visible mapping layers by hiding internal ODU-layer paths compared to compatibility mode.

By collapsing internal mappings, standard mode simplifies configuration and lowers maintenance effort.

In standard mode the NMS displays only channel- or physical-port level mappings, with all ODU-layer mappings aggregated at the port view.

FDI (Forward Defect Indication) and BDI (Backward Defect Indication) are specifically defined to suppress alarms at the far end when a defect is detected, preventing redundant alarm cascades. CC and AIS do not perform alarm suppression.

External faults (e.g., fiber cuts, connector issues) should be ruled out before investigating internal equipment faults.

Broader network-level checks (e.g., path continuity, OLP status) come before per-device NE diagnostics.

Isolate faults on individual wavelengths before examining the aggregated multi-wavelength transport.

The electrical-layer structure of OTN frames follows the path: OTUk → ODUk → OPUk → Client. OTUk is the outer frame layer that carries ODUk (Optical Data Unit), which in turn contains OPUk (Optical Payload Unit). The OPUk holds the client signal payload. This hierarchical encapsulation supports transparent transport of client signals over optical networks. Understanding this sequence is essential for managing signal mapping and monitoring in OTN networks as outlined in HCIP-Transmission documentation.

OTUk_LOM (Loss of Multiframe) alarm is generated when frame alignment is lost; however, the statement that it occurs when the Frame Alignment Signal (FAS) is Out of Frame (OOF) for three consecutive milliseconds is false. The actual time threshold differs slightly according to standards and vendor implementations. HCIP-Transmission clarifies these alarm thresholds and conditions to ensure precise timing in fault detection, avoiding false alarms while providing timely notifications for network maintenance.

In tributary SNCP (Subnetwork Connection Protection), the cross-connect granularity is not “GFor Any.” Instead, it is more granular, typically at the service or board level. (D) is false because SNCP protection requires specific configurations to selectively protect client services, using dual-fed and selective receiving functions in electrical cross-connections. Trigger conditions include board detection failures, SF (Signal Fail), and SD (Signal Degrade) occurrences. HCIP-Transmission details these conditions and protection mechanisms, emphasizing the precise granularity and protection scope of tributary SNCP.

RFC 4553 mandates the inclusion of the SAToP control word on every packet, so it is not optional.

dBm = 10·log10(500 mW) = 10·(log105 + 2) = 10·(0.7 + 2) = 27 dBm.

Insertion loss refers to the decrease of optical power that occurs when light passes through a passive optical component such as connectors, splitters, filters, or splices. This loss results from absorption, scattering, or imperfect coupling within the component. In optical transmission systems, insertion loss is a critical parameter affecting link budget and overall signal quality. HCIP-Transmission materials stress managing insertion loss to ensure sufficient power reaches the receiver and to maintain the integrity of transmitted signals over long distances. Proper component selection and maintenance help minimize insertion loss in WDM systems.

An advantage that is not true about OTN (Optical Transport Network) is that it provides a maximum of five levels of nested or overlapped TCM (Trail Connection Monitoring) connection monitoring (C). In reality, OTN provides powerful out-of-band FEC (Forward Error Correction), wide service interface support (from 2 Mbit/s to 400 Gbit/s), and meets the Tbit/s bandwidth requirements using WDM, but TCM monitoring is more limited. HCIP-Transmission clarifies that OTN’s strengths lie in scalability, error correction, and flexible service mapping, rather than extensive nested TCM levels.

PWE3 specifies two CES emulation modes: Structure-Agnostic TDM over Packet (SAToP) and Structure-aware TDM Circuit Emulation Service over PSN (CESoPSN). Circuit Emulation over Packet (CEP) is not defined within PWE3.

A parallel FOADM site typically uses an EX40+EMR8 networking mode, where EX40 handles add/drop functions and EMR8 manages multiplexing and amplification.

The fiber type described, having zero dispersion at 1310 nm and a typical dispersion coefficient of about 17 ps/(nm·km) at 1550 nm, corresponds to ITU-T G.652 standard fiber, commonly called standard single-mode fiber (SSMF). G.652 fibers are widely used in optical networks due to their low attenuation and favorable dispersion characteristics around 1310 nm, where chromatic dispersion is minimal (essentially zero). This makes them suitable for legacy systems and many current applications. In contrast, G.654 is optimized for low loss and dispersion in the 1550 nm window; G.655 fibers have non-zero dispersion-shifted characteristics; G.653 fibers have zero dispersion around 1550 nm, which differs from the question’s description. HCIP-Transmission standards specify G.652 as the standard fiber matching these parameters.

The egress node checks received CV or FFD packets over any 3-second window when the ingress interval is 1 s (i.e., at three times the transmission interval).

An IP subnet mask of 27 bits means 32 - 27 = 5 bits are left for host addresses. The number of hosts per subnet is 2^5 - 2 = 30. The subtraction of 2 accounts for the network address and broadcast address, which cannot be assigned to hosts. This calculation is fundamental in IP subnetting and is widely used in network design to allocate IP address ranges efficiently. HCIP-Transmission materials include these principles as part of the networking fundamentals necessary for transmission network engineers.

For an OA system, the lower threshold of receive optical power of a line board with an APD receiver or the WDM side of an OTU board is the optical module’s receiver sensitivity plus 3 dB, not 5 dB. The 5 dB margin applies mainly to PIN receivers. This distinction is critical because APDs have higher sensitivity and thus require a smaller margin to avoid false alarms or unnecessary protection switching. HCIP-Transmission clearly differentiates these thresholds to ensure proper optical power management and alarm settings in the network.

ESC (Enhanced Supervision Channel) uses Fixed frame structure DCC and Embedded DCC types to transmit supervisory and management information within the optical channel.

In the described scenario, when the R_LOS alarm is detected on the client side at site A, after alarm processing on the WDM side, a REM_5F alarm is reported downstream at site B. Subsequently, site B reports an R_LOS alarm to its downstream client device, confirming alarm propagation and fault transparency in multi-site transmission. This behavior ensures that faults detected at one point are properly signaled through the network, allowing for coordinated protection and troubleshooting. HCIP-Transmission documents this alarm flow process in WDM site fault management and alarm handling procedures.
