H13-629_V3.0 HCIE-Storage V3.0 Questions and Answers

The correct default chunk size for the stated 3.84 TB SSD configuration is 8 KB.

The Training Materials describe RAID 2.0+ global pooling as follows: “The system uses RAID 2.0+ to create a global storage pool… All SSDs evenly contribute LUN spaces for back-end SSD sharing.” This explains why storage space is divided into fine-grained units rather than assigning an entire LUN to a fixed RAID group or individual SSD.

Huawei ' s ROW architecture then organizes these units into chunk groups (CKGs). Instead of traditional overwrite behavior, new data and parity are written into a new chunk group and the LBA mapping is redirected to it.

For 3.84 TB SSDs in the configuration tested here, the corresponding default fine-grained chunk size is 8 KB. Options measured in megabytes represent a much coarser allocation unit and do not match this RAID 2.0+ chunk configuration.

Study Guide Topics: Data Storage Technology Presentation → OceanStor Dorado → RAID 2.0+ → Global Storage Pool → Chunk/CKG → ROW Architecture.

Huawei describes source deduplication as occurring before backup data is transferred to storage media. Data or files are segmented, fingerprints are calculated, and those fingerprints are sent to the DPA fingerprint repository for duplicate checking.

If an identical fingerprint already exists, Huawei states that the duplicate data block is not saved; instead, the existing block is referenced. Only when no duplicate fingerprint exists is the actual new data block transmitted.

This mechanism supports C: when the data content is already present in the backup system, the backup workflow needs only the metadata/reference information required to point to the existing block rather than retransmitting the duplicate payload.

The principal benefits are reduced network traffic, reduced backup-storage consumption, and a shorter backup window. The feature is not described as a mechanism whose purpose is to improve application-server performance; deduplication processing itself consumes some processing resources. Nor does the course define general source deduplication as being independently enabled or disabled according to application type or backup type in the way described by A and D.

Study Guide Topics: Data Protection Solution → DPA → Source Deduplication → Fingerprints → Duplicate Block Detection → Transmission Reduction.

Huawei ' s troubleshooting procedure states: “Cause 2: The link is abnormal.” It then instructs the engineer to check DeviceManager and determine whether the Fibre Channel or iSCSI port connected to the application server has a running status of “Link down.” If it does, the engineer must troubleshoot the corresponding FC or iSCSI link failure. This distinction is important. A Link down status represents a lower-layer connectivity condition involving the physical/interface link, switch path, cabling, peer port, or interface state. IP addressing belongs to the Layer-3 service configuration. An incorrect logical-port IP address or host service IP can prevent IP communication, iSCSI login, or service connectivity, but it does not by itself force an Ethernet physical interface into the Link-down state.

The training material separately treats IP address information as networking configuration information for iSCSI environments, rather than as the definition of a Link-down condition. Therefore, the statement incorrectly attributes the observed physical/link-layer status to IP configuration.

Study Guide Topics: Data Storage Management and O & M → Fault Analysis → Basic Storage Service Troubleshooting → Failure to Discover LUNs → Link Abnormality.

The required feature is SmartMobility.

The function implements policy-driven movement of file data according to its value or activity level. Frequently accessed, performance-sensitive data remains on the local primary storage, while colder data can be relocated to remote storage resources. The objective is to preserve high performance for active data while reducing the cost of retaining less frequently accessed information.

Huawei characterizes next-generation hybrid flash storage as supporting “Free warm and hot data flow” and states that “Warm and hot data can be migrated in a gateway-free, software-free, and cross-device manner.”

The broader tiering architecture similarly describes policy-based classification of hot, warm, and cold data and automated migration according to storage policies. This enables the physical location of cold data to change without requiring the application to manage the movement manually.

SmartMobility extends that lifecycle principle to file-service scenarios in which cold file data is migrated away from the primary system to suitable remote devices while the frequently accessed portion remains local.

Study Guide Topics: Data Storage Technology Presentation → Hybrid Flash Storage → File Services → Data Lifecycle Management → Hot/Cold Data Migration → SmartMobility.

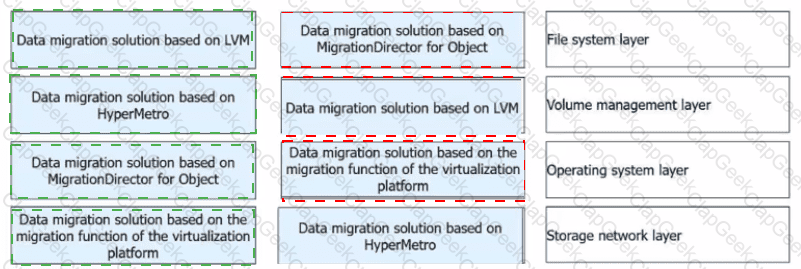

Data migration solution based on MigrationDirector for Object → File system layer; Data migration solution based on LVM → Volume management layer; Data migration solution based on the migration function of the virtualization platform → Operating system layer; Data migration solution based on HyperMetro → Storage network layer

The supplied practice-set answer maps the four migration approaches as shown above. Huawei’s migration architecture organizes migration technologies according to where the migration function is implemented in the host/storage stack. LVM-based migration operates through host volume management, while virtualization-platform migration uses capabilities supplied by platforms such as VMware or FusionCompute. HyperMetro/HyperReplication-based migration operates at the storage-network/storage-system level and moves or mirrors storage data independently of application logic.

There is one important source inconsistency in this item: the official Training Materials’ “Technical Structure of Huawei Storage Migration Solutions” explicitly places Migration Director for Object under the Object layer, while it separately associates the file-system layer with NAS migration. Therefore, the first match in the supplied question key does not align with the official training diagram.

For this practice set, the answer above reproduces the supplied key; for study purposes, remember that Huawei’s official architecture classifies object migration at the Object layer.

Study Guide Topics: Data Migration Solution → Huawei Migration Architecture → LVM → Virtualization Platform → MigrationDirector → HyperMetro.

The mandatory network planes are the backup network and the management network.

Huawei defines the management network plane as the network used for web-console login, service configuration, and alarm reporting. Without it, administrators cannot perform the fundamental control and administration functions required by the appliance. Huawei defines the backup network plane as the network used for backup data and in-band signaling transmission, making it essential for the appliance ' s core data-protection function.

The replication network, by contrast, is needed when backup copies must be replicated to another data-protection appliance. If remote replication is not part of the deployment, this plane is not mandatory. Similarly, an archive network is optional because the backup network can be reused for archiving under supported configurations.

An internal communication network becomes relevant to multi-node architectures where separate nodes must communicate internally. The question explicitly specifies a single-node system, so this separate internal plane is not mandatory.

Therefore, the baseline single-node OceanProtect networking requirement is C and D.

Study Guide Topics: Data Protection Solution → OceanProtect Appliance → Network Planning → Management Network → Backup Network → Replication Network.

Huawei ' s storage architecture emphasizes distributed active-active processing, in which requests are distributed across controllers for parallel processing. The course states that adding controllers results in automatic balancing of existing LUN or file-system services and that global cache and pool resources are shared among controllers. The architecture also specifically describes “load balancing among all controllers and auto-rebalancing upon scale-out, failover, and failback.” These principles support A, C, and D. Increasing CPU processing capability addresses compute saturation directly. Adding processing modules or parallel service resources increases the number of resources available to execute service workloads concurrently. Where multiple CPUs or processing resources exist, workload distribution is essential to prevent one processor from becoming saturated while another remains underused.

Reducing the data-block buffer size is not a CPU optimization mechanism. It can instead reduce buffering efficiency and potentially increase I/O-processing overhead.

Study Guide Topics: Flash Storage Technology Presentation → SmartMatrix Distributed Active-Active Architecture → Parallel Processing → Global Resource Sharing → Load Balancing → Scale-Out.

The correct selections are IPMI, RESTful, and Redfish.

Huawei describes DME as “the unified management software integrating software and hardware for data centers” and states that it controls, manages, and analyzes VMs, datastores, databases, servers, switches, and storage devices.

For API-oriented integration, RESTful is explicitly part of Huawei ' s DME architecture. The storage-management course states that the open southbound system manages storage, switch, and host resources through management protocols including RESTful.

IPMI and Redfish provide the hardware-management interfaces required when the management platform interacts with server/BMC infrastructure. Redfish supplies a modern REST-oriented hardware-management model, while IPMI provides established out-of-band platform-management functions.

Telnet is not selected. It is a legacy plaintext terminal protocol and is not an appropriate protocol for the hardware/API interconnection functions being tested in this DME management architecture.

Study Guide Topics: Data Storage Management and O & M → DME/eDME → Unified Data Center Management → Southbound Interconnection → Server Hardware Management.

All four listed capabilities are included in the DME data-management/O & M framework.

Huawei describes DME Storage as an intelligent storage management platform covering the complete storage lifecycle, including planning, deployment, O & M, and optimization. Its architecture includes intelligent diagnosis, intelligent optimization, resource optimization, planning simulation, operation visibility, insight analysis, and multidimensional analysis.

Planning enables administrators to model and organize resources before deployment. Analysis provides performance, capacity, topology, alarm, and workload insight. Optimization uses those analytics to recommend or execute improvements such as capacity balancing, migration, SLA adjustment, and QoS changes. Search is important for unstructured-data environments because files, objects, and other unstructured content must be located and analyzed according to metadata.

Huawei OceanStor Pacific also provides SmartIndexing for unstructured file, object, and HDFS storage. It can return search results from extremely large metadata sets within seconds and provides unified multi-protocol metadata indexing.

Consequently, DME ' s unstructured-data management workflow spans the complete chain of search, analysis, planning, and optimization.

Study Guide Topics: Data Storage Management and O & M → DME → Unstructured Data Management → Search → Analysis → Planning → Optimization.

The SmartQoS section explicitly states that upper-limit control can “limit the IOPS, bandwidth, and latency.” Therefore, A, C, and D are correct.

IOPS controls the number of I/O operations that a workload can issue within a given period. Bandwidth controls the quantity of data transferred per unit of time. Latency control provides an I/O response-time objective so that resource contention can be managed while protecting service quality.

For OceanStor Pacific block services, Huawei implements distributed SmartQoS with volume I/O queues and token buckets. The course explains that when IOPS is restricted, one I/O consumes one token; when bandwidth is restricted, one byte consumes one token. The token rate is coordinated among VBS nodes to enforce the overall performance objective of a volume.

Option B, OPS, is not identified as one of the SmartQoS performance-control indicators in this section. The defined indicators are IOPS, bandwidth, and latency.

Study Guide Topics: Data Storage Technology Presentation → OceanStor Pacific → SmartQoS → Block Service → Distributed Traffic Control → IOPS/Bandwidth/Latency.

The OceanStor Pacific logical software architecture states that the index layer provides fine-grained space-layout management capabilities and that the index module “maps the data objects in the DROS or block module to the lower-layer Plog space.” The training materials separately define the surrounding block-service components. VBS provides standard iSCSI/SCSI access. EDS provides structured services and value-added features, while OSD provides data-persistence capabilities. OceanStor Pacific block storage also uses a multi-MDC design to enhance reliability. The MDC is therefore the metadata-control component associated with maintaining the logical metadata relationship between block data and its allocated storage space. VBS is the access layer and does not own the metadata mapping function; OSD persists the actual data; EDS provides the broader structured-data service. Maintaining space metadata and the data-to-space index relationship belongs to the Metadata Controller function.

Study Guide Topics: Scale-Out Storage Technology Presentation → OceanStor Pacific → Logical Software Architecture → Block Service → Index Layer → MDC/VBS/EDS/OSD.

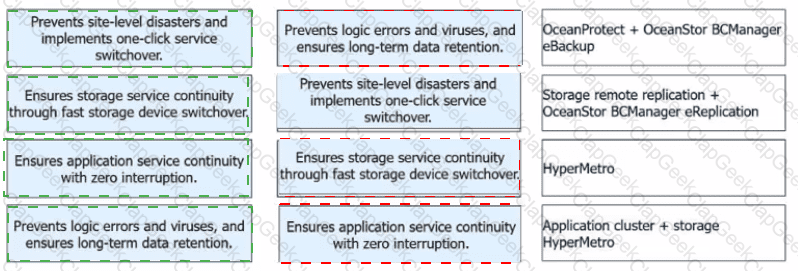

1 → Storage remote replication + OceanStor BCManager eReplication; 2 → HyperMetro; 3 → Application cluster + storage HyperMetro; 4 → OceanProtect + OceanStor BCManager eBackup

The mapping follows Huawei ' s separation of business continuity, data recoverability, and long-term retention.

The course states: “DR ensures business continuity. Backup focuses on data recoverability. Archiving is for long-term storage of cold data and regulatory compliance.”

Remote replication combined with BCManager eReplication addresses site-level disaster recovery, and Huawei states that BCManager provides one-click DR drill and switchover capabilities.

HyperMetro is the appropriate solution for storage-level continuity because Huawei defines it as an active-active storage solution using dual-write technology to provide service continuity and zero data loss.

When continuous availability must extend to the application layer, storage HyperMetro must be combined with an application cluster so that application processing itself can fail over seamlessly.

Finally, backup protects against logical corruption, accidental deletion, and malware-related damage because historical copies remain available independently of production data.

Study Guide Topics: Data Protection Basics → DR vs Backup → HyperMetro → Remote Replication → BCManager eReplication → Application-Level HA.

Huawei defines the DR-drill procedure as: stop the production application and unmap hosts/LUNs → synchronize incremental data → switch the replication relationship → map a LUN → start DR applications → test whether applications start successfully.

Therefore, A, B, and D are the required operations.

Incremental synchronization ensures that the DR copy has the latest protected changes before the service transition. The replication relationship is then switched so the DR-side storage resources can assume the required service role. After the target LUNs are mapped, DR applications are started and tested to confirm that the recovery environment can actually carry the business workload.

Option C is different. A recovery plan must already be defined as part of BCManager DR configuration and orchestration; formulating the recovery plan is not an execution step performed every time a DR drill runs. The course separately describes eReplication configuration as creating protection groups and recovery plans before recovery operations are executed.

A DR drill therefore validates an existing DR design and recovery plan rather than redesigning that plan during each test.

Study Guide Topics: Data Protection Solution → OceanStor BCManager eReplication → DR Management → Recovery Plan → DR Drill → Planned Service Migration.

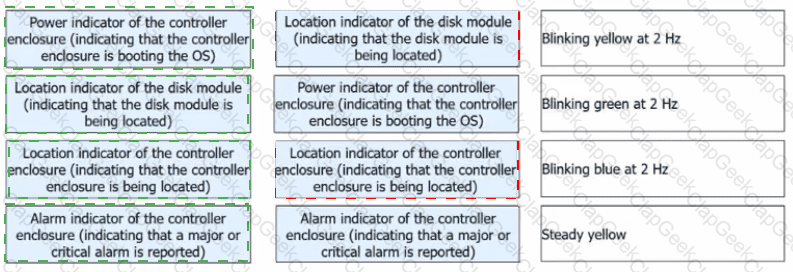

Controller enclosure power indicator during OS boot → Blinking green at 2 Hz; Disk module location indicator → Blinking yellow at 2 Hz; Controller enclosure location indicator → Blinking blue at 2 Hz; Controller enclosure major/critical alarm indicator → Steady yellow

Hardware indicators provide a direct physical diagnostic mechanism during OceanProtect maintenance. The four states represent different operational meanings rather than interchangeable fault conditions.

A blinking green power indicator at 2 Hz represents the controller enclosure progressing through its boot process. A blinking yellow disk-location indicator at 2 Hz identifies the specific disk selected for physical location. A blinking blue enclosure-location indicator at 2 Hz similarly helps maintenance personnel identify the correct controller enclosure in a rack. A steady yellow alarm indicator identifies a major or critical alarm condition requiring investigation.

Huawei emphasizes that abnormal hardware indicators are a primary method for locating failing FRUs and CRUs and should be correlated with DeviceManager alarm information. The OceanProtect X6000/X8000 architecture also uses redundant, serviceable hardware components, including controllers, BBUs, power supplies, and interface modules, making correct physical fault identification essential during maintenance.

Study Guide Topics: Data Storage Management and O & M → OceanProtect Hardware Maintenance → Hardware Indicators → FRU/CRU Fault Identification.

OceanProtect ' s architecture explicitly includes a “Ransomware protection solution (encryption/decryption, WORM, ransomware detection, and secure transmission).” The course also states that ransomware protection protects copies and provides anti-tampering through the read-only attribute of WORM.

Therefore, all four mechanisms contribute to the required defense.

WORM provides the immutable-copy foundation. Huawei explains that protected WORM files cannot be rewritten, modified, deleted, or renamed during their protection period. Abnormal behavior monitoring corresponds to ransomware-detection capabilities used to identify suspicious activity against protected copies. Multi-layer antivirus association provides an additional malware-detection barrier around file-oriented protection workflows.

Finally, access control limits who can administer, modify, or operate protection resources. OceanProtect implements role-based access control with predefined and customizable roles, reducing the attack surface for compromised or unauthorized accounts.

Together these controls provide detection, prevention, privilege restriction, and immutable recovery copies.

Study Guide Topics: Data Protection Solution → OceanProtect Backup Storage → High Security Design → Ransomware Protection → WORM → Role-Based Access Control.
