H12-821_V1.0 HCIP-Datacom-Core Technology V1.0 Questions and Answers

Comprehensive and Detailed in-depth Step-by-Step Explanation:

An Area Border Router (ABR) is an OSPF router that connects multiple areas, including the backbone area (Area 0). It plays a critical role in summarizing and propagating routing information between areas. The types of LSAs that an ABR can generate include:

Network Summary LSA (Type 3):

ABRs generate Type 3 LSAs to summarize and propagate routes from one area into another.

For example, an ABR generates a Type 3 LSA to inform other areas about the networks in the area it is connected to.

ASBR Summary LSA (Type 4):

If an ASBR exists in one of the OSPF areas connected to the ABR, the ABR generates Type 4 LSAs.

These LSAs provide information about how to reach the ASBR.

NSSA LSA (Type 7):

If the ABR is connected to a Not-So-Stubby Area (NSSA), it can generate Type 7 LSAs.

These LSAs are used to describe external routes imported into the NSSA.

AS External LSA (Type 5):

These LSAs are not typically generated by an ABR unless the ABR is also functioning as an ASBR. Type 5 LSAs are used to describe external routes imported into OSPF from other autonomous systems.

Therefore, NSSA LSA (A) , Network Summary LSA (C) , and ASBR Summary LSA (D) are valid answers. AS External LSA (B) would only be correct if the ABR were also functioning as an ASBR, but that is not explicitly stated in the question.

 OSPF Authentication Overview

OSPF supports three authentication modes:

Null Authentication : No authentication (default).

Plaintext Authentication : Uses clear-text passwords.

MD5 Authentication : Secure cryptographic authentication.

 Interface-Level Priority

When both interface-level and area-level authentication are configured, OSPF prioritizes interface-level authentication . This ensures that interface-specific security overrides area-wide configurations for greater granularity and security.

 HCIP-Datacom-Core Reference

OSPF authentication hierarchy and configurations are detailed in the OSPF security configuration chapter​.

ICMPv6 messages are classified into two types: error messages (e.g., Destination Unreachable, Time Exceeded) and informational messages (e.g., Echo Request, Echo Reply). This classification is fundamental to ICMPv6 ' s operation ​.

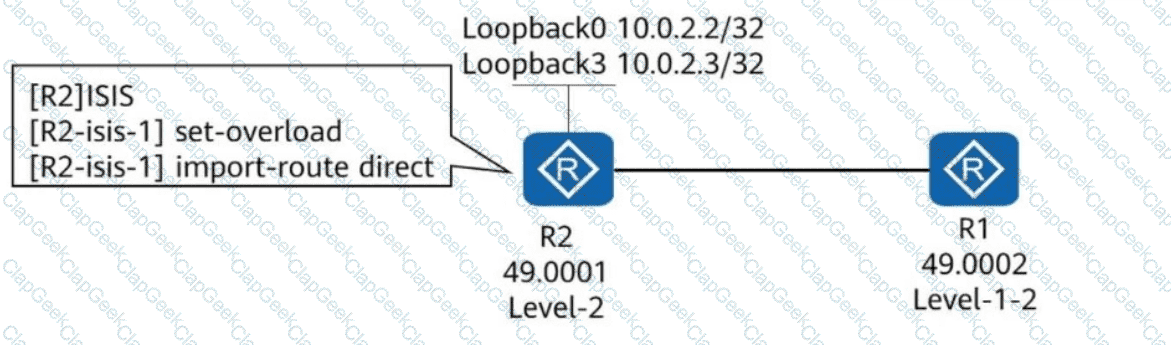

In the given topology, the route from R4 to 10.0.2.2/32 traverses R3, which performs route leaking from Level-2 to Level-1. The cost is calculated as follows: R4 to R3 (40) + R3 to R2 (10) + R2 to the destination (30), resulting in a total cost of 80 ​.

 ACL Matching in Huawei Routers:

Access Control Lists (ACLs) are used to filter packets based on specific criteria, such as source/destination IP, ports, or protocols.

When a packet arrives, the Huawei router processes it against the configured ACL rules to decide whether to permit or deny the packet.

 Edge Port Behavior

An edge port transitions directly to the Forwarding state but reverts to participating in RSTP calculations if it receives a valid configuration BPDU. Thus, statement C is false.

 HCIP-Datacom-Core Reference

The behavior of edge ports and their transitions are discussed in the RSTP enhancement sections​​.

 IPv6 Address Behavior

Manually configured link-local addresses do not have a higher priority than automatically generated ones; they coexist and are equally preferred for local communication.

The other statements are true:

A. Link-local addresses can use the EUI-64 method for quick generation.

B. Anycast addresses are only used as destination addresses.

C. An interface can have multiple global unicast addresses with different prefixes.

 HCIP-Datacom-Core Reference

IPv6 address types and priority behaviors are detailed in the IPv6 addressing sections​​.

Option A is false . When advertising a route to an IBGP peer, the BGP speaker does not modify the AS_Path. It simply advertises the route as-is , preserving the AS_Path learned from EBGP.

Clarification of the options:

B is correct: When a route is sent to an EBGP peer, the local AS is prepended to the AS_Path.

C is correct: The AS_Path begins with the local AS when a new route is advertised to an EBGP neighbor.

D is correct: IBGP does not modify AS_Path when passing routes within the same AS.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“BGP speakers prepend their AS number to the AS_Path only when advertising to EBGP peers. IBGP peers do not alter the AS_Path.”

(Chapter: BGP Path Attributes – Section: AS_Path)

 Permanent Group Addresses for Routing Protocols

The range 224.0.0.0 to 224.0.0.255 is reserved for local network protocols, including routing protocols. Examples include OSPF (224.0.0.5/6) and RIP (224.0.0.9).

 HCIP-Datacom-Core Reference

Reserved multicast address ranges are detailed in the multicast configuration sections​​.

 BGP Next_Hop Attribute

Unlike IGP, the Next_Hop attribute in BGP does not necessarily have to be the IP address of a peer interface. For example, in multi-hop BGP configurations, the Next_Hop can point to a different router or interface within the network.

 HCIP-Datacom-Core Reference

Details of the Next_Hop attribute and its behavior are outlined in BGP path selection principles​​.

Routing Entries in PIM

(S, G) entries : Represent the shortest path tree (SPT) from a specific source ( S ) to a specific multicast group ( G ). These entries are created after data packets are transmitted directly from the source to the receivers.

(S, G) entries are used in both PIM-DM and PIM-SM modes.

PIM-DM and PIM-SM Modes

In PIM-DM , multicast traffic is initially flooded throughout the network and pruned where no receivers exist. (S, G) entries represent source-specific paths created after the flooding stage.

In PIM-SM , multicast traffic initially flows through a shared tree, but (S, G) entries are created when the network switches to the SPT for more efficient forwarding.

HCIP-Datacom-Core Reference

The functionality and application of (S, G) routing entries are detailed in multicast and PIM configuration chapters​​.

Access Control Lists (ACLs) can be classified into several types, including Basic ACL (filters based on source IP), Advanced ACL (filters based on multiple parameters like source and destination IP, protocol, and ports), and Layer 2 ACL (filters based on MAC addresses). User-defined ACLs are not a standard classification ​.

Comprehensive and Detailed In-Depth Explanation:

Stub areas do not allow external routes (Type 5 LSAs).

Since ASBRs are responsible for redistributing external routes into OSPF, they cannot exist in a stub area .

If an ASBR were placed in a stub area, it would attempt to inject external routes into the OSPF domain, which contradicts the stub area rules.

To allow external routes, Not-So-Stubby Areas (NSSAs) are used instead, which allow ASBRs and use Type 7 LSAs to carry external routes.

???? Reference: Huawei HCIA-Datacom Study Guide, OSPF Area Types and ASBR Restrictions.

Comprehensive and Detailed Step-by-Step Explanation:

BGP Route Filtering:

BGP provides flexible policies for route filtering to optimize routing table size and reduce network resource usage.

By configuring route filters , a device can advertise only required routes to peers, thereby improving efficiency.

Purpose of Filtering:

Reduces the routing table size.

Decreases CPU and memory usage on routers.

Limits unnecessary route propagation.

A screenshot of a computer Description automatically generated

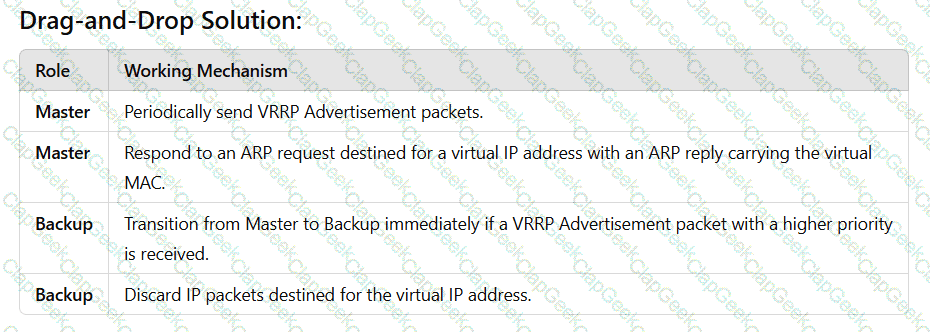

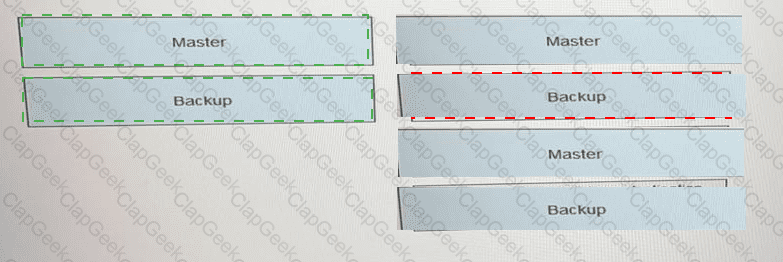

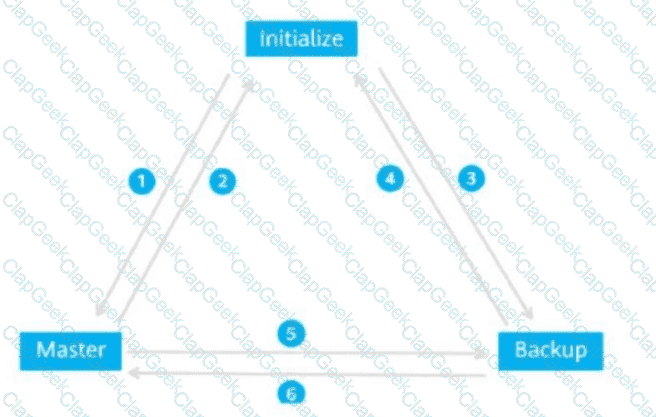

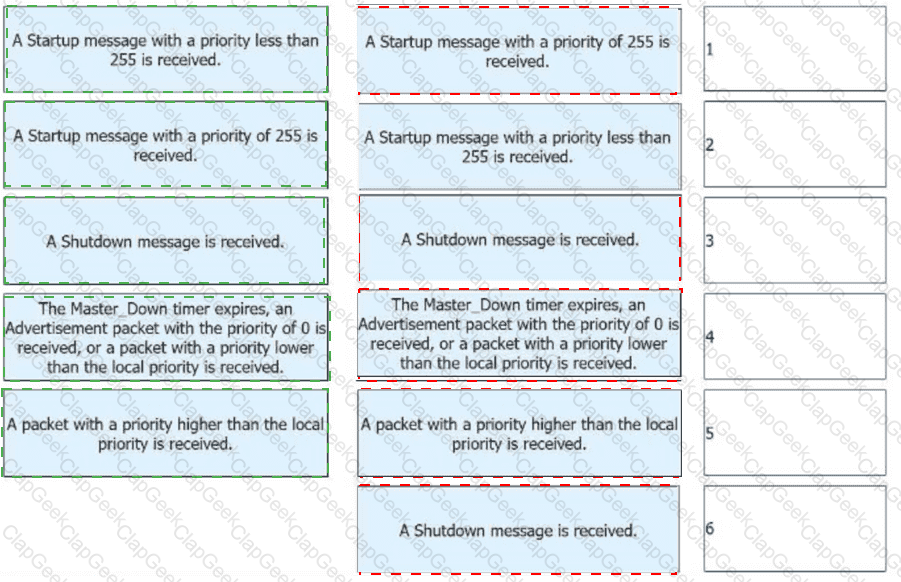

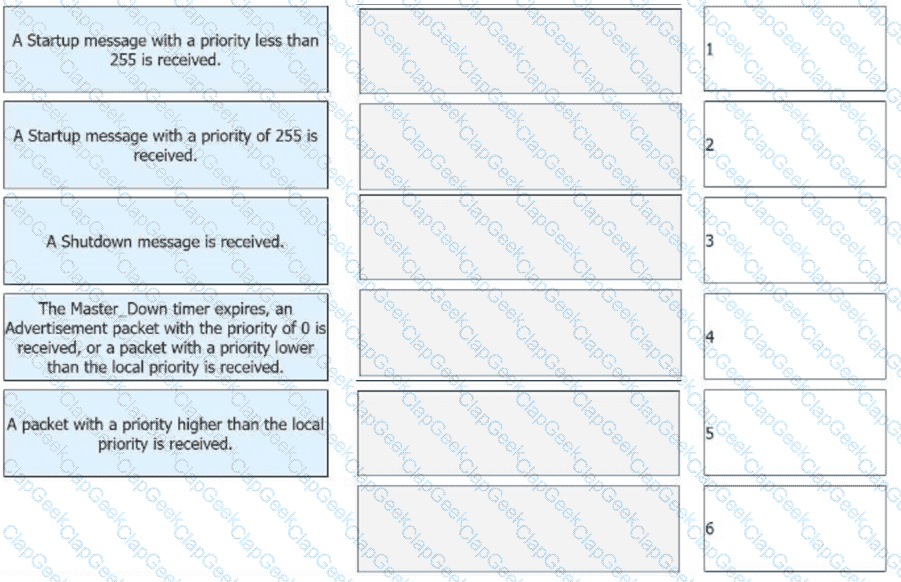

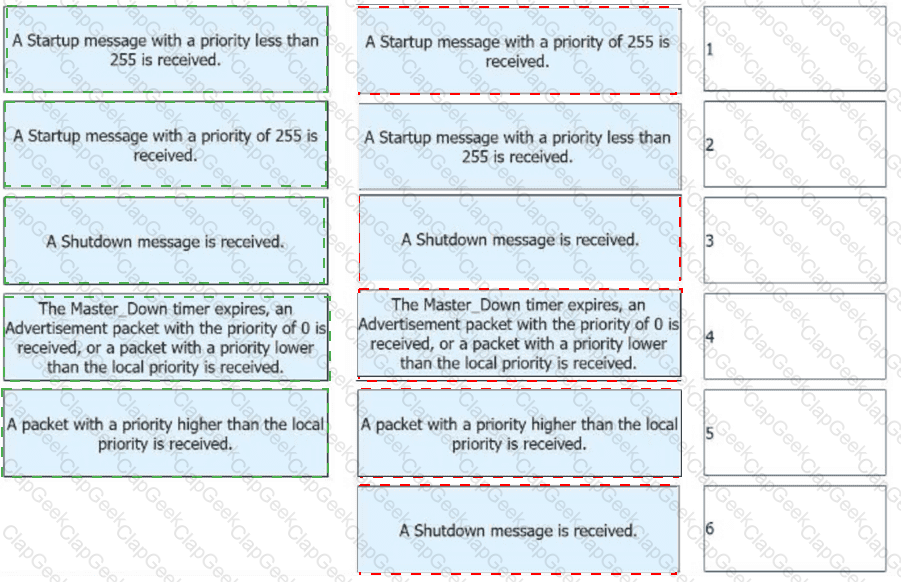

Explanation of VRRP Roles and Their Functions:

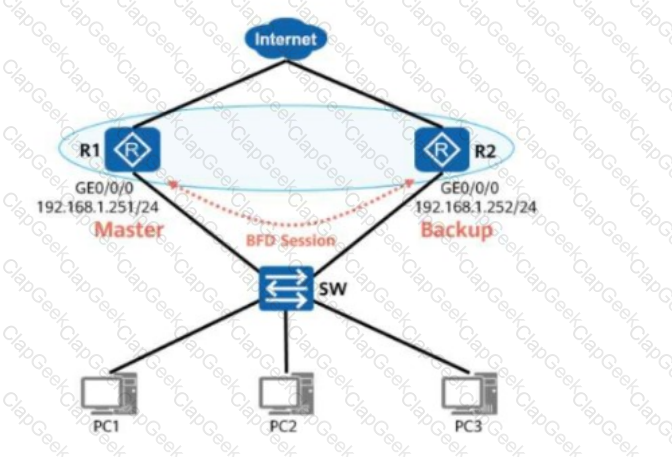

In VRRP (Virtual Router Redundancy Protocol) , devices are assigned roles as either Master or Backup after an election process. Each role has specific responsibilities to ensure the availability of the virtual IP address.

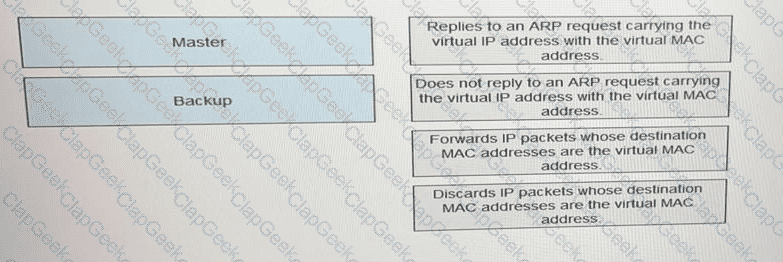

Matching Roles and Mechanisms:

Master:

Periodically send VRRP Advertisement packets.

The Master device sends advertisement packets to inform Backup devices that it is active.

Respond to an ARP request destined for a virtual IP address with an ARP reply carrying the virtual MAC address.

The Master device is responsible for responding to ARP requests for the virtual IP and forwarding traffic for it.

Backup:

Transition from Master to Backup immediately if a VRRP Advertisement packet with a higher priority is received.

A Backup device becomes Master only if the current Master stops sending advertisement packets or has a lower priority.

Discard IP packets destined for the virtual IP address.

Backup devices do not process traffic for the virtual IP address unless they become the Master.

The Link State ID in a Type 3 LSA (Summary LSA) indicates the network or subnet being summarized, not the router ID of an ABR. All other statements accurately describe OSPF functionality, making D the false statement ​.

The error indicates " Incorrect remote AS, " which refers to a mismatch in the autonomous system (AS) numbers during BGP peer configuration. This issue is unrelated to the neighbor address. The neighbor address ( 10.1.1.5 ) and timestamp ( 2010-03-22 12:40:39 ) provided in the output are correct, and the error type confirms a neighbor relationship issue ​.

Comprehensive and Detailed In-Depth Explanation:

NET (Network Entity Title) is a special form of NSAP (Network Service Access Point) used in IS-IS routing .

NET consists of three fields :

AFI (Authority and Format Identifier) + IDI (Initial Domain Identifier) + Area Address → Identifies the area .

System ID → Uniquely identifies a router within an area (similar to an OSPF Router ID).

SEL (NSEL - N-selector) → Always 0 in a NET, as IS-IS operates at Layer 3.

Since System ID uniquely identifies a host/router within an area , the correct answer is A .

???? Reference: Huawei HCIA-Datacom Study Guide, IS-IS Addressing and NET Structure.

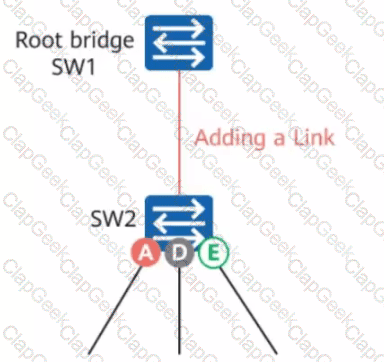

 RST BPDU Handling

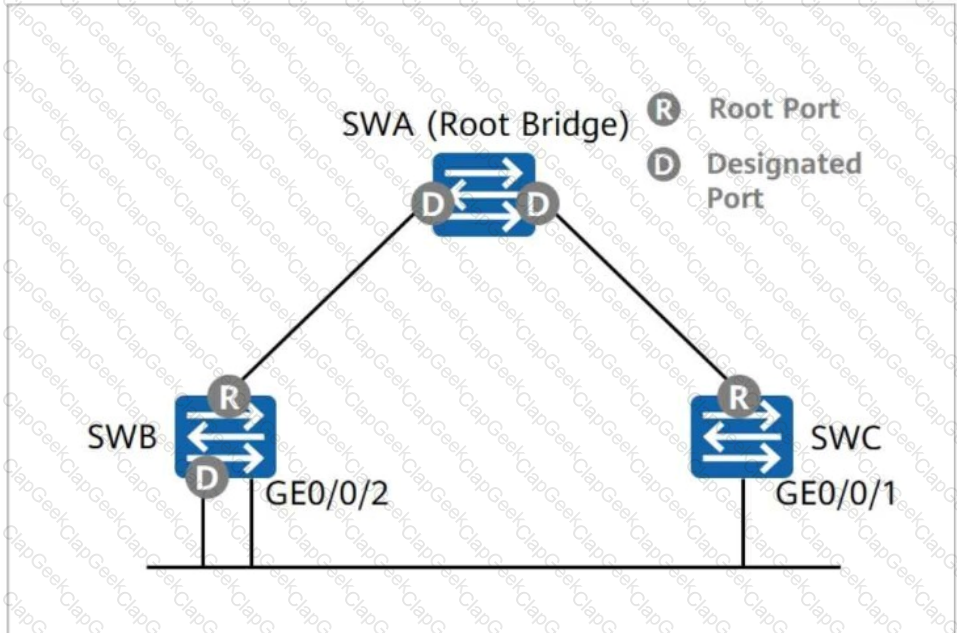

On an RSTP network, if a port receives an RST BPDU and determines its own buffered BPDU is superior, it discards the received BPDU without responding. This ensures stability and proper convergence in the network.

 HCIP-Datacom-Core Reference

BPDU handling is described in the RSTP operation chapters​​.

A stateful inspection firewall tracks the state of active connections. If a packet matches an existing session in the firewall ' s state table, it is allowed to pass. The diagram indicates that the TCP packet matches the session state, so the firewall forwards it ​.

Comprehensive and Detailed In-Depth Explanation:

Router LSAs (Type 1 LSAs) are generated by every OSPF router to describe its directly connected links and their states.

The E (External) bit in the Options field of a Type 1 LSA indicates whether the router is acting as an Autonomous System Boundary Router (ASBR) .

If E = 1 , it means that the router is an ASBR , which means it is redistributing external routes (e.g., BGP, static routes) into OSPF.

IR (Internal Router) , ABR (Area Border Router) , and DR (Designated Router) do not set the E-bit in their Router LSA unless they are also ASBRs.

???? Reference: Huawei HCIA-Datacom Study Guide, OSPF Router Types and LSA Options.

Comprehensive and Detailed in-depth Step-by-Step Explanation:

In an Intermediate System to Intermediate System (IS-IS) network, a Designated Intermediate System (DIS) is elected on broadcast networks to perform the following functions:

Represent the broadcast network as a pseudonode.

Generate and update the Link State Protocol Data Units (LSPs) for the pseudonode.

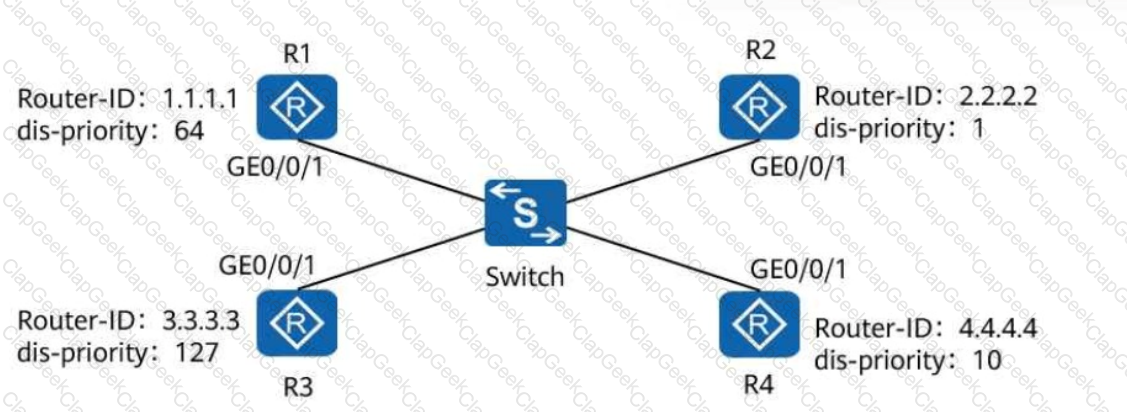

The DIS is elected based on the DIS priority value, which is configured on IS-IS interfaces. If two routers have the same priority, the router with the higher MAC address becomes the DIS.

The default DIS priority for IS-IS interfaces is 64 , which can be modified depending on the network requirements.

Option A (200): Incorrect. This is not the default value.

Option B (64): Correct. This is the default DIS priority value.

Option C (1): Incorrect. This is not the default value.

Option D (100): Incorrect. This is not the default value.

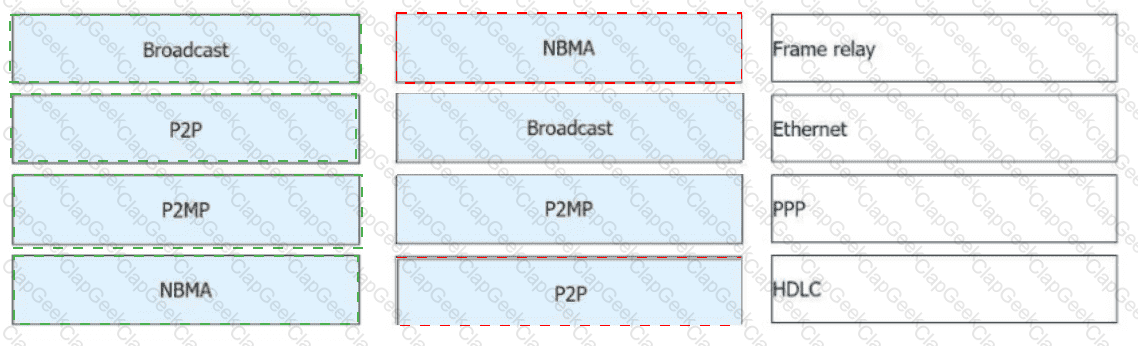

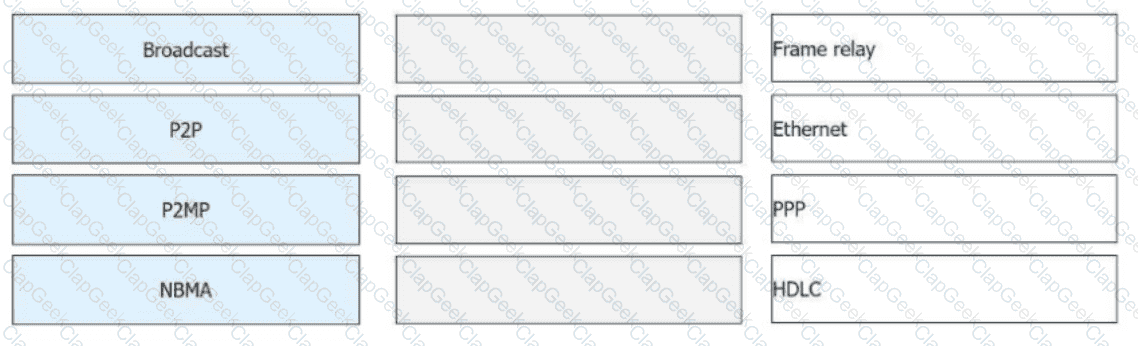

Network Types and Corresponding Link Layer Protocols

Broadcast : Ethernet

Point-to-Point (P2P) : PPP, HDLC

Point-to-Multipoint (P2MP) : PPP

Non-Broadcast Multi-Access (NBMA) : Frame Relay

 OSPF Network Types:

OSPF classifies networks based on link layer protocols into the following types:

Broadcast: This type assumes that all routers on the network can communicate directly with one another using multicast or broadcast frames. Ethernet networks are typical examples.

Point-to-Point (P2P): This type is used for links that connect two routers directly. Common protocols include PPP (Point-to-Point Protocol) and HDLC.

Point-to-Multipoint (P2MP): This type simulates multiple point-to-point connections over a single physical network, often used in WAN scenarios where PPP is employed.

Non-Broadcast Multi-Access (NBMA): These networks connect multiple devices but lack native broadcast capability, such as Frame Relay.

Comprehensive and Detailed In-Depth Explanation:

SNMP (Simple Network Management Protocol) v3 is a more secure version of SNMP, supporting authentication and encryption .

If the NMS is not receiving SNMPv3 traps , possible causes include:

A. FALSE → The SNMP version mismatch does not affect traps ; devices can send SNMPv2 traps even when using SNMPv3.

B. TRUE → If the SNMPv3 password is incorrect , authentication will fail, and traps will not be processed by the NMS.

C. FALSE → The size of packets sent by the NMS does not affect incoming SNMP traps from the router.

D. TRUE → The community name must match on both the NMS and the router , or traps will be ignored.

???? Reference: Huawei HCIA-Datacom Study Guide, SNMPv3 Configuration and Authentication.

In IS-IS:

Level-1 routers can only form neighbor relationships with other Level-1 routers in the same area .

Level-2 routers can form neighbor relationships with other Level-2 routers regardless of area ID .

Level-1-2 routers can form relationships at both levels depending on the peer ' s configuration.

So, if two Level-1 routers have different area addresses , they cannot establish a neighbor relationship.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“Level-1 routers must have the same area address to establish neighbor relationships. Level-2 routers can peer across different areas.”

(Chapter: IS-IS Protocol Principles – Section: Neighbor Establishment)

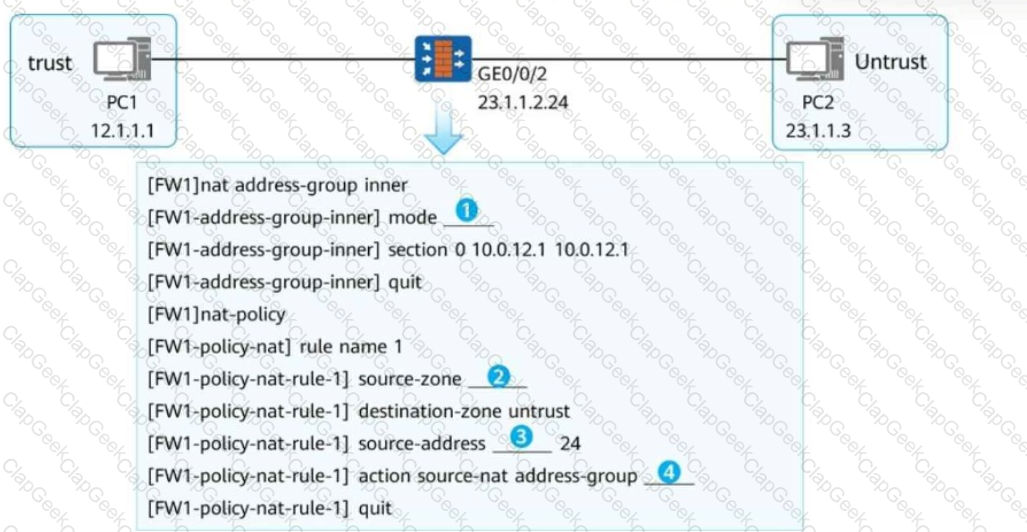

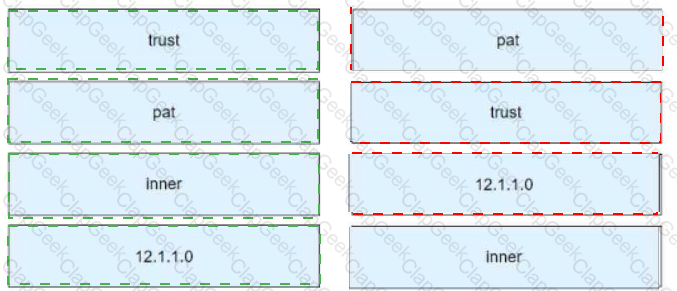

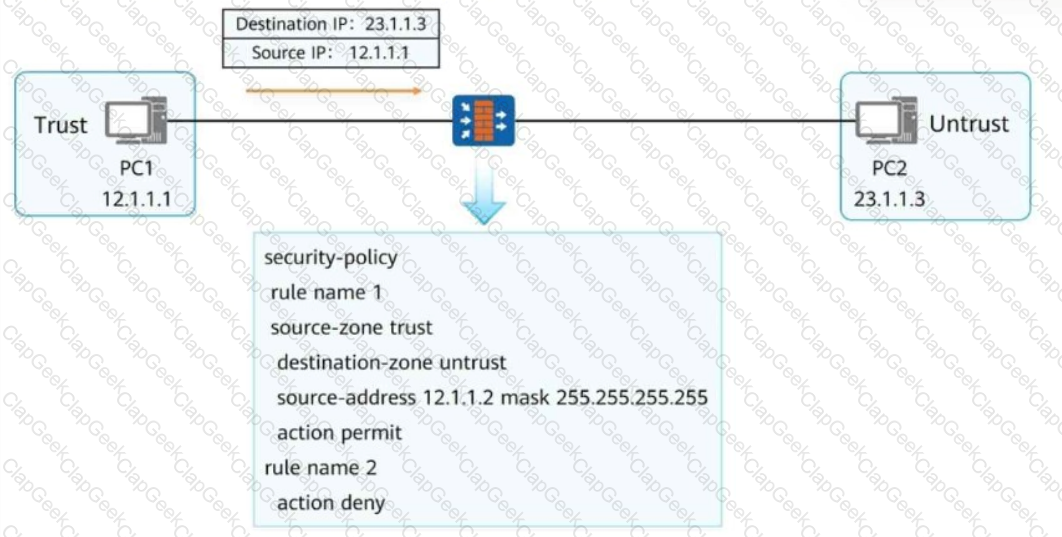

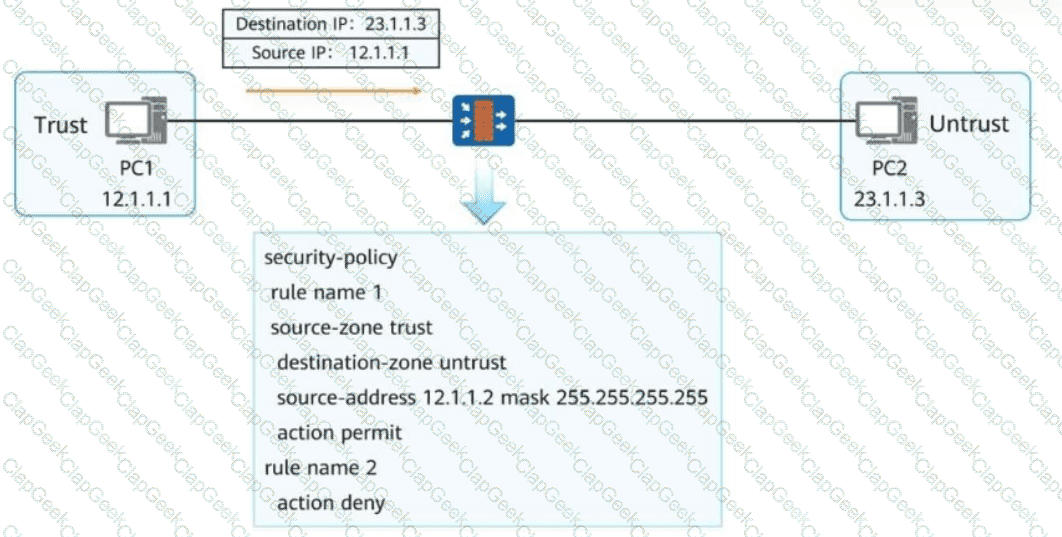

The security policy specifies that traffic originating from 12.1.1.2 and destined for the untrust zone is permitted. Since the source address of the packet ( 12.1.1.1 ) does not match this rule, the packet matches the default implicit deny rule. However, rule 1 does not deny all other traffic explicitly, so the packet is forwarded based on further configurations ​.

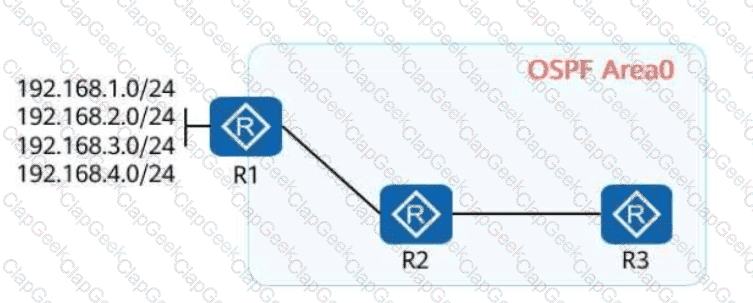

Route summarization in OSPF is restricted to specific routers: Area Border Routers (ABRs) and Autonomous System Boundary Routers (ASBRs). These devices perform summarization to reduce routing table size and minimize advertised routing information between areas or across AS boundaries. Regular routers cannot perform route summarization, making this statement false ​.

Comprehensive and Detailed In-Depth Explanation:

A. TRUE → Firewalls maintain session tables with a default session timeout ; adjusting it depends on network conditions .

B. FALSE → Fast session aging does not affect persistent connection sessions . Persistent connections (e.g., TCP keepalives) maintain sessions even if aging settings change.

C. TRUE → Sessions must be constantly matched with ongoing traffic to remain active .

D. TRUE → Even without stateful inspection , the firewall creates session entries for non-first packets to maintain continuity of services .

???? Reference: Huawei HCIA-Datacom Study Guide, Firewall Session Table Mechanism.

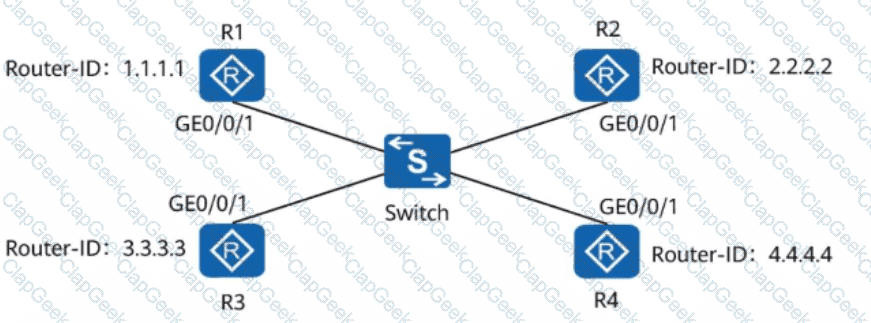

 DIS and DR Election

The IS-IS Designated Intermediate System (DIS) is responsible for generating and updating pseudonode LSPs on a broadcast network.

Unlike OSPF DR, the IS-IS DIS does not preempt by default. This behavior avoids unnecessary flapping in the network due to frequent DIS re-elections.

 HCIP-Datacom-Core Reference

The characteristics of DIS and DR behavior are explained in IS-IS network operation chapters​​.

LS Ack (Link State Acknowledgment) packets are used to acknowledge received LSAs and do not contain complete LSA information. Instead, they contain only the headers of LSAs being acknowledged. This contrasts with LS Update packets, which carry full LSA details. The misunderstanding of LS Ack functionality makes this statement false ​.

When two BGP peers negotiate the Hold Time, the shorter value between the two configured Hold Time values is selected. This ensures compatibility and maintains the stability of the BGP session ​.

The scenario describes a mismatch in OSPF network types between two connected routers: one set to Point-to-Point (P2P) and the other set to Point-to-Multipoint (P2MP). While aligning Hello intervals may seem sufficient for establishing an OSPF neighbor relationship, the fundamental mismatch in network types introduces issues.

OSPF Network Types

P2P : Assumes a direct connection with a single neighbor, uses faster convergence and simpler LSDB synchronization.

P2MP : Supports multiple neighbors on a single interface, requiring different handling for DR/BDR roles and LSDB updates.

Impact of Network Type Mismatch

If Hello intervals are aligned, adjacency establishment might occur. However, mismatched network types affect neighbor role assignment and LSDB synchronization.

P2P expects a direct link and would handle updates differently than P2MP, which assumes multiple neighbors. This leads to inconsistencies in route calculation and forwarding.

HCIP-Datacom-Core Reference

OSPF Basics and Configuration ​clearly outlines the criticality of consistent network type configuration for stable OSPF operation.

Lab examples in the HCIP Datacom Lab Guide​further demonstrate the consequences of such mismatches, including unstable neighbor states and incomplete LSDB synchronization.

Hence, the statement that neighbor relationships and LSDB synchronization remain unaffected is incorrect. Proper OSPF operation requires matching network types in addition to aligned Hello intervals.

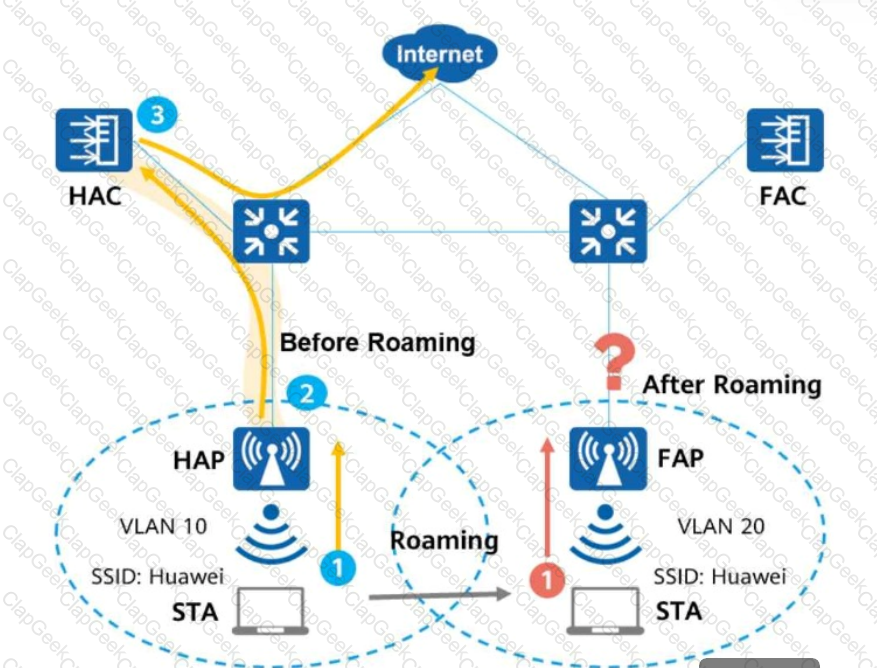

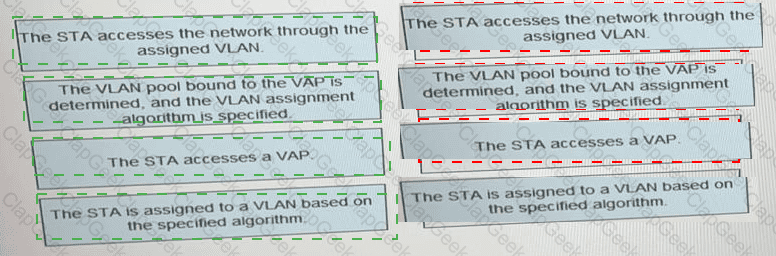

 During WLAN roaming, the STA sends a Reassociation Request frame to the foreign AP to maintain connectivity. Association frames are used during initial connections, not roaming.

 APs with which a STA is associated before and after roaming can work on different channels, as roaming often occurs across channels in environments like multi-SSID or multi-channel setups.

Options C and D are false, as they contradict standard WLAN roaming procedures ​.

 GRE Characteristics

GRE does not inherently support encryption or authentication. It is a tunneling protocol for encapsulating packets, and data security features must be implemented using other protocols such as IPsec.

Other correct attributes of GRE include:

B. Supports multicast transmission.

C. Acts as a Layer 3 VPN encapsulation technology.

D. Can work with VPN protocols like IPsec for better security.

 HCIP-Datacom-Core Reference

GRE features and limitations are discussed in VPN encapsulation technology chapters​​.

When STP and RSTP coexist in a network, RSTP switches will downgrade their operation to STP to ensure compatibility. However, this disables RSTP ' s rapid convergence features, as the protocol behaves like STP to maintain interoperability ​.

Comprehensive and Detailed In-Depth Explanation:

A NET (Network Entity Title) consists of three parts:

Area Address → Identifies the IS-IS area.

System ID → Uniquely identifies the router.

SEL (NSEL - N-selector) → Always 0 in IS-IS.

The Area Address part contains:

AFI (Authority and Format Identifier) → Identifies the address type.

IDI (Initial Domain Identifier) → Identifies the routing domain.

System ID is NOT part of the Area Address , so the correct answers are B (AFI) and C (IDI) .

???? Reference: Huawei HCIA-Datacom Study Guide, IS-IS Addressing and NET Structure.

Internet – This community attribute allows a route to be advertised to any BGP peer , including EBGP and IBGP. This is the default behavior if no other restrictive community is attached.

No_Advertise – Prevents the route from being advertised to any peer.

No_Export – Prevents the route from being advertised to EBGP peers .

No_Export_Subconfed – Restricts the route from being advertised outside the sub-AS in a confederation.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“The Internet community attribute allows unrestricted advertisement of a route. Other community attributes like No_Advertise and No_Export limit route propagation.”

(Chapter: BGP Community Attributes – Section: Well-known Communities)

Root protection ensures that a designated port does not become a root port by discarding superior BPDUs. However, if superior BPDUs are no longer received, the port can return to its original forwarding state, meaning its role can change. This makes option B incorrect, while the other options correctly describe RSTP behavior ​.

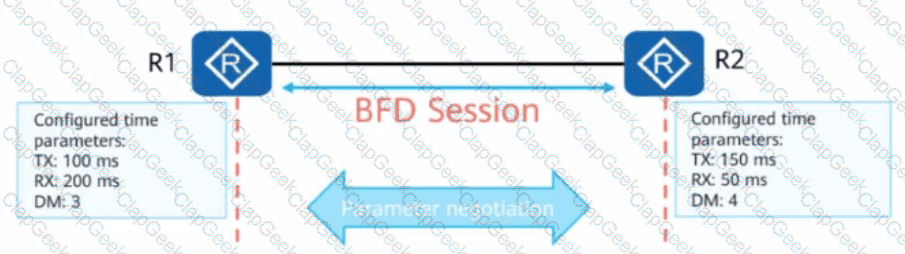

In asynchronous mode, the local device sends BFD control packets at predefined intervals, and the remote device monitors the receipt of these packets to detect connectivity issues. This is one of the two operating modes in BFD, the other being demand mode ​.

Comprehensive and Detailed In-Depth Explanation:

OSPF network types affect how protocol packets (Hello, LSA updates) are transmitted:

NBMA (Non-Broadcast Multi-Access) networks (e.g., Frame Relay) do not support multicast , so routers must unicast OSPF packets to neighbors.

Broadcast networks (e.g., Ethernet) support multicast and use 224.0.0.5 for Hello packets and 224.0.0.6 for DR/BDR communication .

The statement is false because:

NBMA does not unicast all packets —only Hello packets must be manually configured to be unicast.

LSAs and routing updates can still be multicast if an NBMA network is configured as point-to-multipoint .

???? Reference: Huawei HCIA-Datacom Study Guide, OSPF Network Types and Packet Transmission.

A is correct – Confederations are specifically designed for large-scale BGP deployments where a full IBGP mesh is impractical.

B is correct – Sub-ASs within a confederation establish EBGP-like connections between each other but behave like IBGP within the overall AS. These sub-ASs do not require full-mesh inside the confederation , but EBGP rules are followed between sub-ASs.

C is false – Not all devices need to be reconfigured . Devices within the same sub-AS retain normal IBGP behavior and minimal changes.

D is correct – Confederation is transparent to external peers , so the logical topology remains the same from outside the AS.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“BGP confederation divides an AS into multiple sub-ASs. EBGP-like sessions are established between sub-ASs, while reducing IBGP mesh complexity. The external AS still sees the AS as one unit.”

(Chapter: BGP Scalability Enhancements – Section: Confederation)

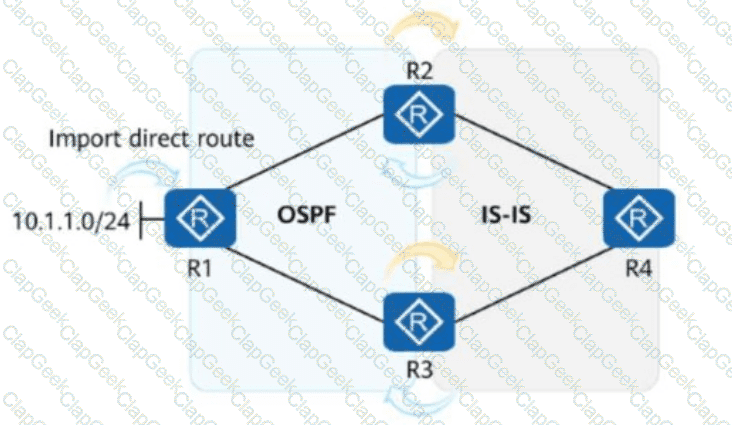

Configuration Analysis:

On R2 , the following configuration has been applied:

acl 200

rule deny source 10.1.0.0 0.0.3.0

rule permit

#

ospf 1

filter-policy 2000 import

This configuration uses ACL 200 to filter routes during import into the OSPF routing table on R2.

Rule deny source 10.1.0.0 0.0.3.0: Blocks routes in the range 10.1.0.0/24 to 10.1.3.0/24 (inclusive).

Rule permit: Allows all other routes to be imported.

Impact of ACL 200 on Route Import:

10.1.0.0/24 to 10.1.3.0/24: These subnets are explicitly denied by ACL 200 and will not appear in R2 ' s routing table.

10.1.4.0/24 and beyond: These subnets are permitted by the rule permit statement and will be imported into R2 ' s routing table.

Routing Table Entries on R2:

Option A (10.1.4.0/24): Exists in R2 ' s routing table because it is permitted.

Option B (10.1.3.0/24): Does not exist because it is denied by ACL 200.

Option C (10.1.2.0/24): Does not exist because it is denied by ACL 200.

Option D (10.1.1.0/24): Does not exist because it is denied by ACL 200.

A (10.1.4.0/24)

Comprehensive and Detailed Step-by-Step Explanation:

1. Understanding the AS-Path Filter:

The as-path-filter command is used in BGP to filter routes based on the AS_PATH attribute.

In this configuration:

The filter si is defined with the regular expression _65500$.

The _65500$ expression specifies that the AS_PATH must end with 65500, meaning that the route ' s last hop must have passed through AS 65500.

2. Option Analysis:

Option A: It accepts only the routes whose AS_Path contains AS 65500.

Incorrect .

The _65500$ filter specifically matches routes where AS 65500 is the last AS in the AS_PATH. A route may contain AS 65500 somewhere in the middle of the AS_PATH but will not match this filter unless it is the last AS.

Option B: It accepts only the routes originated from AS 65500.

Incorrect .

Routes that originate from AS 65500 have an AS_PATH that starts with 65500. However, the filter _65500$ only matches routes where AS 65500 is the last AS, not the first AS.

Option C: It accepts only the routes that last pass through AS 65500.

Correct .

The _65500$ filter ensures that the AS_PATH ends with 65500. This means that the route must have last passed through AS 65500 before being received by the local BGP router.

Option D: It accepts only the routes forwarded by AS 65500.

Incorrect .

While AS 65500 may forward the route, this is not what the filter _65500$ specifically checks for. It only ensures that AS 65500 is the last AS in the AS_PATH.

3. Summary:

The as-path-filter with _65500$ accepts only the routes where AS 65500 is the last AS in the AS_PATH.

Comprehensive and Detailed Step-by-Step Explanation:

Bidirectional Forwarding Detection (BFD):

BFD is a lightweight protocol that provides rapid fault detection on links independent of the underlying routing protocol or media.

Requirements for BFD:

Both devices at the endpoints of the link must support and configure BFD for it to operate.

If one device does not support BFD, the feature cannot be used for link detection.

Comprehensive and Detailed Step-by-Step Explanation:

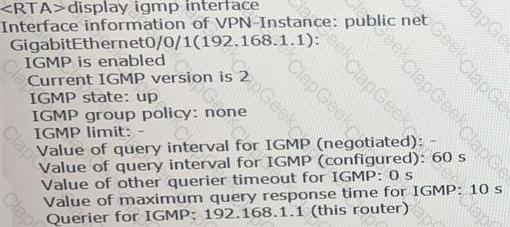

1. Understanding IGMP (Internet Group Management Protocol):

IGMP is used in multicast networking to manage membership of devices in multicast groups.

Key parameters in the configuration provided:

Interface IP Address: 192.168.1.1

IGMP Version: 2

Query Interval (Configured): 60 seconds

Maximum Query Response Time: 10 seconds

Querier Address: 192.168.1.1

2. Analysis of Each Statement:

Option A: The IP address of the interface is 192.168.1.1.

Correct (True Statement).

The configuration clearly shows that the IP address of the interface is 192.168.1.1.

Option B: The maximum response time to Query messages is 10s.

Correct (True Statement).

The configuration explicitly mentions: Value of maximum query response time for IGMP: 10 s.

Option C: The interval for sending Group-Specific Query messages is 60s.

Incorrect (False Statement).

The 60-second value refers to the query interval , which is the time interval between general queries sent by the querier.

The interval for group-specific queries is not specified in this configuration. It is determined dynamically based on the multicast environment and is usually shorter than the general query interval.

Option D: The IGMP version is IGMPv2.

Correct (True Statement).

The configuration specifies: Current IGMP version is 2.

3. Why Option C is False:

The 60-second value is for general query interval , not group-specific query interval.

The statement misinterprets the configuration, making it false .

4. Summary:

Correct Answer: C (The interval for sending Group-Specific Query messages is 60s).

An OSPF AS-external LSA is used to describe routes to networks that are external to the OSPF Autonomous System (AS). This external route information is typically imported into OSPF by an Autonomous System Boundary Router (ASBR) .

If the Forwarding Address field in the AS-external LSA is set to 0.0.0.0, this indicates that traffic destined for the external network should be forwarded directly to the ASBR that advertised the external route.

The specific context mentioned here relates to the Not-So-Stubby Area (NSSA) , a type of OSPF area designed to handle AS-external routes in a more controlled way. In NSSAs:

Type 7 LSAs are used to describe AS-external routes.

The ASBR within the NSSA converts the Type 7 LSA to a Type 5 LSA before advertising it to the backbone area.

Hence, the correct acronym for the described functionality is NSSA .

Comprehensive and Detailed In-Depth Explanation:

AS_Path is a well-known mandatory attribute (not discretionary).

AS_Path characteristics :

A. TRUE → When advertising to IBGP peers, AS_Path remains unchanged to prevent routing loops.

B. TRUE → BGP uses AS_Path to detect loops (if a router sees its own AS in the path, it rejects the route).

C. FALSE → AS_Path is well-known mandatory, not discretionary .

D. TRUE → BGP ignores AS_Confed_Sequence and AS_Confed_Set when calculating the AS_Path length.

???? Reference: Huawei HCIA-Datacom Study Guide, BGP Path Attributes and Loop Prevention.

 GMP Snooping Proxy

IGMP snooping proxy allows the switch to substitute for upstream Layer 3 devices and downstream hosts, reducing unnecessary bandwidth consumption by consolidating IGMP messages.

 HCIP-Datacom-Core Reference

The IGMP snooping proxy functionality is described in multicast optimization and IGMP configuration chapters​​

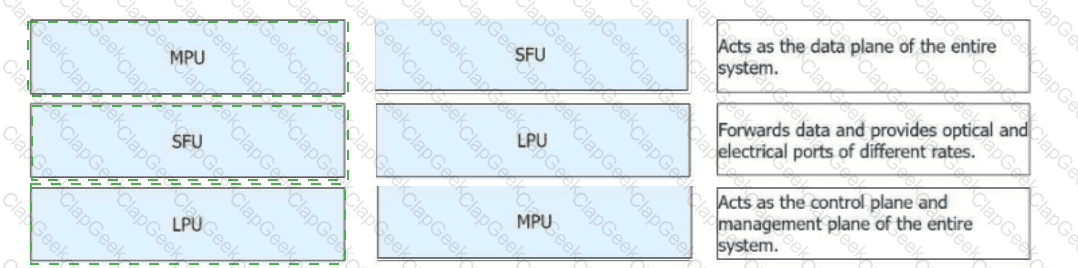

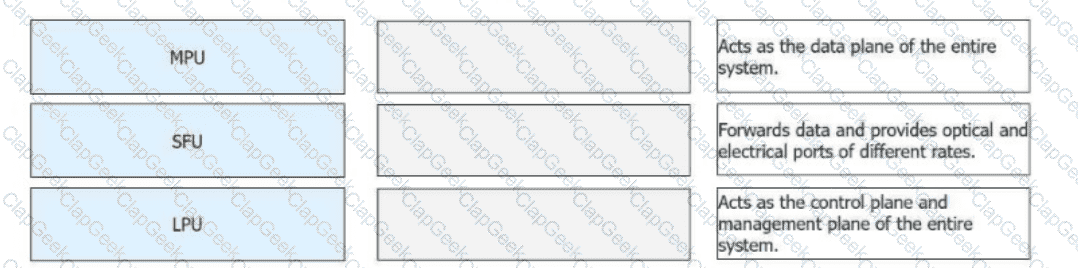

The hardware modules of Huawei modular devices and their functions are:

Main Processing Unit (MPU): Provides control and management planes for the entire system, responsible for protocol processing, system security, and software upgrades.

Switch Fabric Unit (SFU): Provides the data plane, enabling high-speed data switching between service modules.

Line Processing Unit (LPU): Manages data forwarding, offering various interfaces (optical and electrical) for data access​​.

Comprehensive and Detailed Step-by-Step Explanation:

STP and RSTP Behavior:

STP: Only the designated port processes inferior BPDUs. Inferior BPDUs are received from downstream switches and typically indicate topology changes.

RSTP: All ports, regardless of role (root, designated, or alternate), process inferior BPDUs to ensure faster convergence.

Behavior Difference:

RSTP improves convergence by allowing any port to process inferior BPDUs, unlike STP, which restricts this function to designated ports.

In a stateful inspection firewall, if the status detection mechanism is enabled, it tracks and validates the state of connections using the session table. If there is no session table and a SYN+ACK packet reaches the firewall, it checks the security policy. If the policy explicitly permits the packet, it will pass through the firewall, but no session table will be created without the initial SYN packet. The other options are either incorrect or misrepresent the behavior of stateful inspection ​.

BGP routes have a variety of path attributes that describe their characteristics and influence route selection. These attributes include well-known mandatory attributes like AS-PATH and NEXT-HOP, as well as optional attributes like MED and LOCAL_PREF.

In Huawei devices, there is a Huawei-specific attribute called " preference " , which is a local parameter used to influence BGP route selection on the device.

Key Characteristics of " preference " :

It is valid only locally on the router.

It is not shared with BGP peers.

It helps the router determine the best route when multiple routes exist for the same prefix.

It appears in the BGP routing table output in lowercase as preference.

Thus, the correct answer is preference (entered in lowercase as required).

 OSPF Authentication Overview

The Auth Type field in the OSPF packet header determines the authentication mode. If the Auth Type is 1, plaintext authentication is used.

Plaintext authentication involves transmitting the password in an easily readable format, which is less secure compared to MD5.

 HCIP-Datacom-Core Reference

Authentication mechanisms, including plaintext authentication, are detailed in the OSPF security configuration chapter, confirming that Auth Type = 1 corresponds to plaintext​​.

Comprehensive and Detailed Step-by-Step Explanation:

Packet Filtering Firewall:

A packet filtering firewall inspects packets at the network and transport layers based on predefined rules (e.g., ACLs).

Correct Statements:

Option B: Packet filtering is performed on a per-packet basis.

Option D: ACLs define the filtering rules for traffic.

Incorrect Statements:

Option A: Packet filtering firewalls do not analyze associated packets. For this, a stateful firewall is required.

Option C: Application-layer inspection is not supported. This functionality is provided by application-layer firewalls.

The CAPWAP heartbeat detection interval is typically multiplied by a predefined factor to determine the switchover time. For instance, in Huawei devices, a common default is three missed heartbeats before a switchover is triggered. With a detection interval of 20 seconds, the switchover occurs after 60 seconds (20 x 3). This ensures that transient network issues do not cause unnecessary switchovers ​.

BFD control packets are encapsulated in UDP packets, and the destination port number for multi-hop BFD control packets is 4784. This is a standardized port for multi-hop BFD operation ​.

Comprehensive and Detailed Step-by-Step Explanation:

Definition of Link Aggregation:

Link aggregation combines multiple physical links into a single logical link to improve bandwidth and reliability.

Advantages of Link Aggregation:

Load Balancing (A): Traffic is distributed across all aggregated links to improve performance.

Improved Reliability (B): If one link fails, traffic is rerouted through other links.

Increased Link Bandwidth (C): Bandwidth is effectively the sum of all aggregated links.

Incorrect Option:

Route Backup (D): Route backup is a feature of routing protocols, not link aggregation.

 LSP Generation in IS-IS

IS-IS routers generate new Link State Packets (LSPs) under the following conditions:

Interface Status Changes : When IS-IS interfaces go up or down, the link state changes, triggering LSP updates.

Periodic Updates : IS-IS periodically regenerates LSPs to ensure link-state information remains synchronized across the network.

Interface Metric Changes : Any modification to interface costs results in a new LSP to reflect the updated cost in the network.

 Incorrect Option

C. Inter-area IP routes change is incorrect because IS-IS does not inherently differentiate between areas for LSP generation.

 HCIP-Datacom-Core Reference

IS-IS LSP generation rules are detailed in the IS-IS configuration and implementation chapters​​.

In STP (Spanning Tree Protocol), Bridge Protocol Data Units (BPDUs) contain critical information used in the election and role assignment process, including:

Root Bridge ID – Identifies the current root bridge.

Root Path Cost – Total path cost to reach the root.

Bridge ID – Unique identifier for each switch. These fields are used to determine port roles (root, designated, etc.) and to elect the root bridge.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“BPDUs carry the root bridge ID, root path cost, sender’s bridge ID, and port ID. These are used in root bridge election and port role determination.”

(Chapter: Layer 2 Technologies – Section: STP Operation)

Comprehensive and Detailed in-depth Step-by-Step Explanation:

OSPF routers establish neighbor relationships and progress through various states during the adjacency formation process. The ExStart state is where routers negotiate the master and slave roles. This negotiation is critical because the master initiates the Data Description (DD) packet exchange process.

Here’s a breakdown of the relevant OSPF states:

ExStart State :

This is the phase where the routers determine which one will act as the master and which will be the slave.

The decision is based on the Router IDs of the two routers. The router with the higher Router ID becomes the master.

Exchange State :

After the master-slave roles are established, the routers exchange DD packets. These packets contain summaries of the LSAs in their respective LSDBs.

2-way State :

This state indicates that bidirectional communication has been established between the two routers, but it occurs before master-slave negotiation.

Init State :

This is an early state where a router has sent a Hello packet to its neighbor but has not yet received a Hello packet in response.

Key Point:

The negotiation of master and slave roles happens exclusively in the ExStart state , making D. ExStart the correct answer.

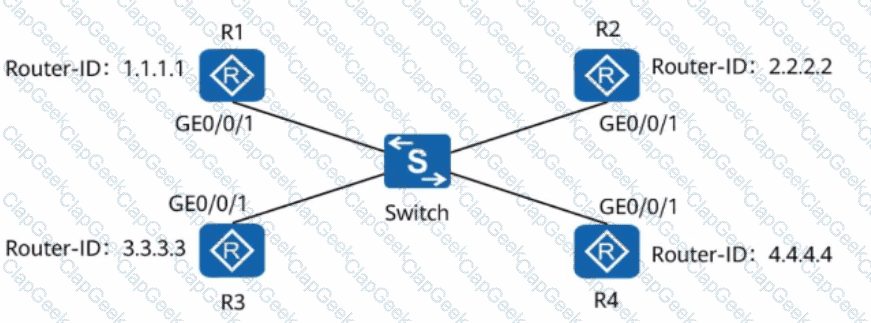

The output shows that the router with the IP 10.0.12.2 is the Backup Designated Router (BDR), as indicated in the State: BDR field. The router ID is 10.0.2.2 , the interface cost is 1, and the IP address of the interface is 10.0.12.2 . Hence, C is the correct answer ​.

A is true – MAC authentication often uses PAP or CHAP for basic password exchange.

B is false – By default , both the username and password are set to the full MAC address of the terminal, not just the last 6 digits.

C is true – MAC authentication is transparent to the user and requires no client software on the terminal.

D is true – The authentication system includes:

Terminal (user device),

Access device (AP or switch), and

Authentication server (e.g., RADIUS).

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“MAC authentication does not require client-side software. By default, both the user name and password are the complete MAC address in lowercase without delimiters.”

(Chapter: WLAN Security – Section: MAC Authentication Mechanism)

The Local-Preference attribute is used within an AS to influence outbound traffic paths. The default value is 100, and it is a well-known discretionary attribute, meaning it is not mandatory and does not travel across AS boundaries ​.

Comprehensive and Detailed In-Depth Explanation:

BGP uses TCP (not UDP) on port 179 to establish peer relationships.

Peer IP must be routable in both IBGP and EBGP , but BGP does not use UDP connections .

The statement is false because of the incorrect mention of UDP .

???? Reference: Huawei HCIA-Datacom Study Guide, BGP Session Establishment and TCP Usage.

In Huawei firewalls, the security level of a zone can be reconfigured by an administrator, making the statement that it cannot be changed false. Other statements accurately describe security level restrictions or defaults ​.

When configuring VRRP, the virtual router priority and virtual IP address are mandatory because they define the VRRP instance and its role within the group. Preemption mode and preemption delay are optional configurations that influence how routers take over the master role when priorities change. These are not mandatory for the VRRP protocol to function ​.

The information provided indicates that the configured query interval is 60 seconds, which applies to general queries. Group-specific queries are sent at a shorter interval, usually derived from the maximum response time. Therefore, the statement about a 60-second interval for group-specific queries is false. Other statements regarding maximum response time (10s), IP address, and IGMP version (V2) are correct ​.

Comprehensive and Detailed In-Depth Explanation:

Source-Specific Multicast (SSM) uses (S, G) addressing instead of the traditional (*, G) used in Any-Source Multicast (ASM) .

IGMP SSM Mapping is used to enable IGMPv1 and IGMPv2 hosts (which do not support explicit source selection) to work in an SSM environment by mapping (*, G) to (S, G) .

A. TRUE → The mapping allows IGMPv1/v2 to function in an SSM network .

B. TRUE → IGMPv3 natively supports SSM , so SSM mapping is not needed for IGMPv3 .

C. FALSE → The SSM address range is 232.0.0.0/8 in IPv4 , but this is not the only range used for SSM globally .

D. TRUE → If IGMP SSM mapping is disabled, IGMPv1/v2 cannot work in an SSM network because they do not support explicit source selection .

???? Reference: Huawei HCIA-Datacom Study Guide, IGMP Versions and SSM Mapping.

SSL VPN and Its Functionality :

SSL VPN (Secure Sockets Layer Virtual Private Network) provides secure remote access to a network using SSL/TLS protocols.

SSL VPN operates at the Application Layer of the OSI model. It enables secure communication for applications like web browsers, email clients, and file sharing.

Unlike IPsec VPN, which operates at the Network Layer, SSL VPN focuses on application-specific encryption and authentication.

Option A correctly configures the DHCP relay agent (AC) to forward requests to the DHCP server using VLAN 10.

Option B correctly configures the DHCP server (AR) with the correct IP pool ( 10.1.1.0/24 ), gateway, and excluded IP addresses. The static route to 10.1.1.0 through 172.21.1.1 ensures proper routing ​.

=========

Comprehensive and Detailed Step-by-Step Explanation:

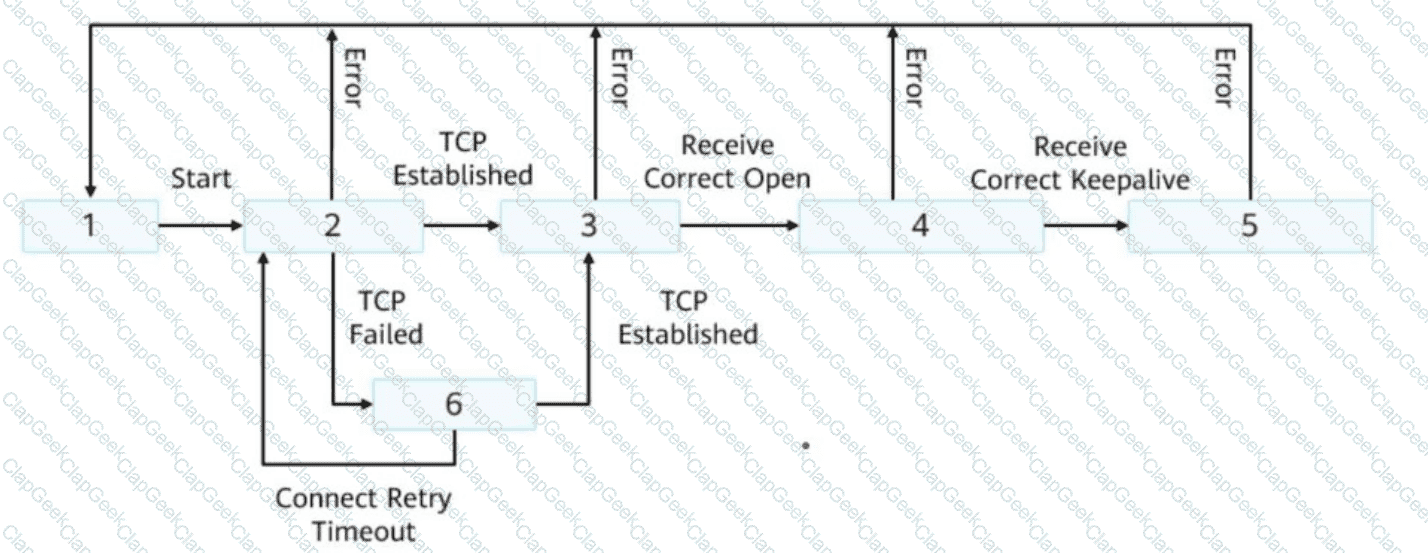

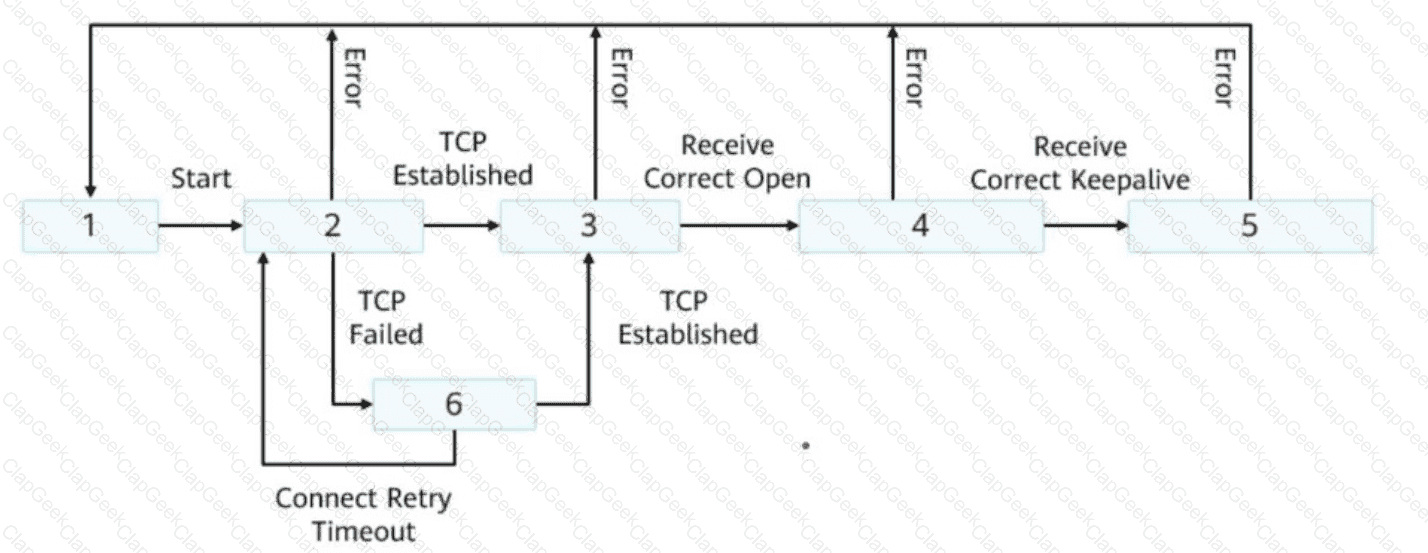

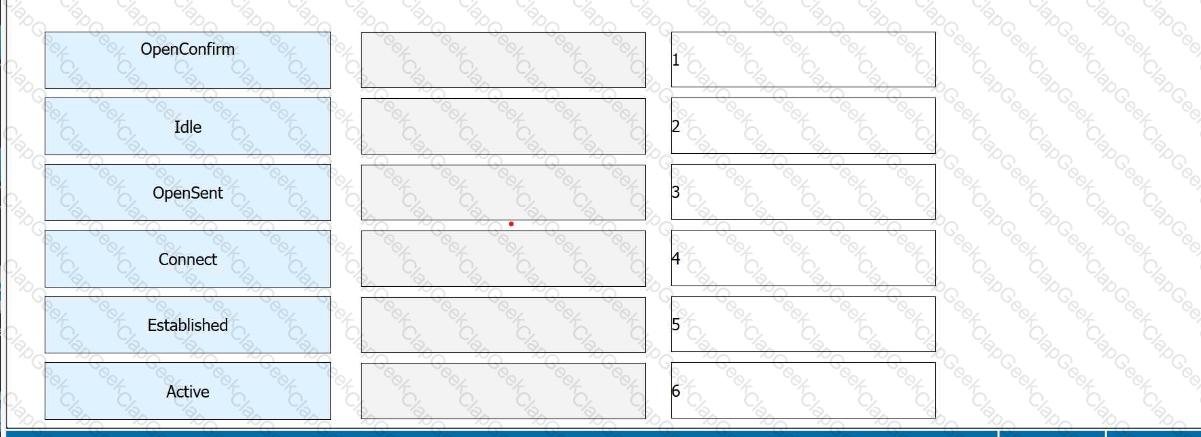

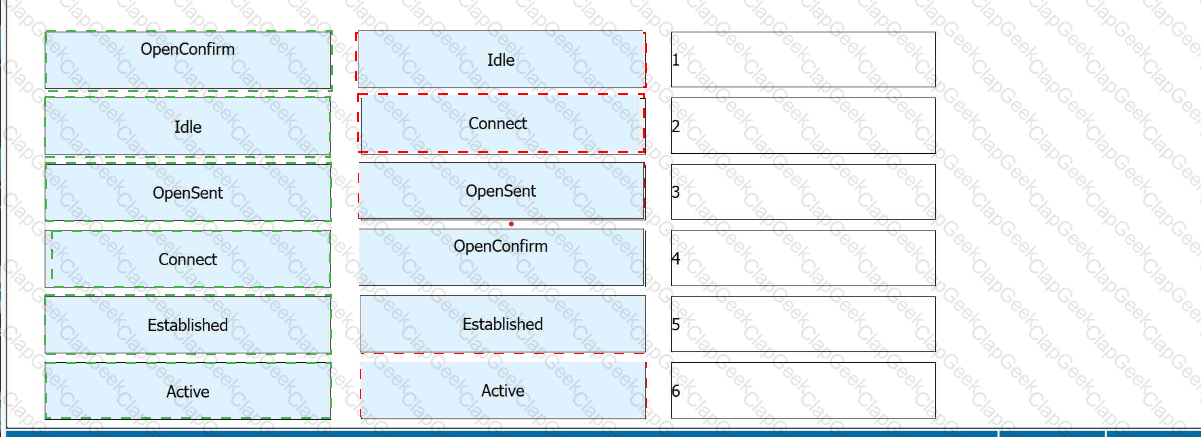

BGP ConnectRetry Timer:

The ConnectRetry timer is used when establishing a TCP connection between BGP peers.

If the connection is successful, the timer is disabled.

If the connection fails, the timer restarts, and the router attempts to reconnect after the timer expires.

Behavior:

This timer prevents excessive connection attempts and ensures efficient resource utilization.

Comprehensive and Detailed In-Depth Explanation:

Neighbor Discovery Protocol (NDP) replaces ARP in IPv6 and uses ICMPv6 messages for:

Router Solicitation (RS) → Sent by hosts to request Router Advertisement (RA) messages .

Router Advertisement (RA) → Sent by routers to announce prefixes and network parameters.

Neighbor Solicitation (NS) → Used for address resolution and Duplicate Address Detection (DAD) .

Neighbor Advertisement (NA) → Sent in response to NS messages .

Redirect → Used by routers to redirect hosts to better gateways .

RS is not directly used for address resolution ; Neighbor Solicitation (NS) does this , so the answer should be D .

???? Reference: Huawei HCIA-Datacom Study Guide, NDP and ICMPv6 Packet Types.

Comprehensive and Detailed In-Depth Explanation:

Internal Router (IR) : A router that exists entirely within a single OSPF area (e.g., Area 0). It does not have to be a Border Router (BR) .

Area Border Router (ABR) : A router that connects two or more OSPF areas . It maintains separate LSDBs for each area and forwards summary LSAs between them.

Autonomous System Boundary Router (ASBR) : A router that connects the OSPF domain to an external network (e.g., BGP, another OSPF AS).

The statement is false because:

An IR in Area 0 does not have to be a BR (Border Router). It can just be a normal internal router.

An ASBR does not have to be an ABR . An ASBR can exist inside any OSPF area , even a single area, without needing to connect multiple areas.

???? Reference: Huawei HCIA-Datacom Study Guide, OSPF Router Types and Area Concepts.

The preference of routing protocols determines the selection order of routes when a router receives multiple routes to the same destination from different routing protocols. For instance, OSPF has a higher preference over RIP, so OSPF routes will be selected first. Huawei routing preferences confirm this behavior ​.

Router LSAs (Type 1) and Network LSAs (Type 2) are advertised only within a single OSPF area, as they describe the topology within the area. In contrast, Summary LSAs (Type 3) and AS External LSAs (Type 5) are used for inter-area and external routing, respectively ​.

When the router ID is configured in both the system view and the BGP view, the router ID in the BGP view takes precedence because BGP-specific configurations override global settings. This ensures that BGP operates with the most relevant configurations ​.

Application Specific Packet Filtering (ASPF) is a feature that allows the firewall to understand and handle multi-channel protocols such as FTP, H.323, and SIP. ASPF inspects the control channel to dynamically create temporary rules for the data channels, enabling the firewall to secure and manage complex application protocols. This feature ensures that appropriate security policies are applied to these multi-channel applications ​.

Comprehensive and Detailed Step-by-Step Explanation:

Multi-Channel Protocols:

Multi-channel protocols use separate channels for control and data communication, requiring application-specific packet filtering (ASPF) to track sessions.

Examples:

FTP (A): Uses separate control and data channels.

SIP (B): Uses multiple ports for signaling and media.

H.323 (D): A VoIP protocol using multiple channels.

Single-Channel Protocol:

SMTP (C): A single-channel protocol for email communication, which does not require ASPF.

By default, Huawei firewalls create security zones named untrust , dmz , trust , and local . These zones facilitate security policies for inbound, outbound, and inter-zone traffic control ​.

Policy-Based Routing (PBR) on interfaces is used to forward traffic based on specific policies rather than the routing table. However, PBR is not suitable for modifying the next-hop of locally originated traffic. Other scenarios listed are typical use cases for interface PBR ​.

Comprehensive and Detailed In-Depth Explanation:

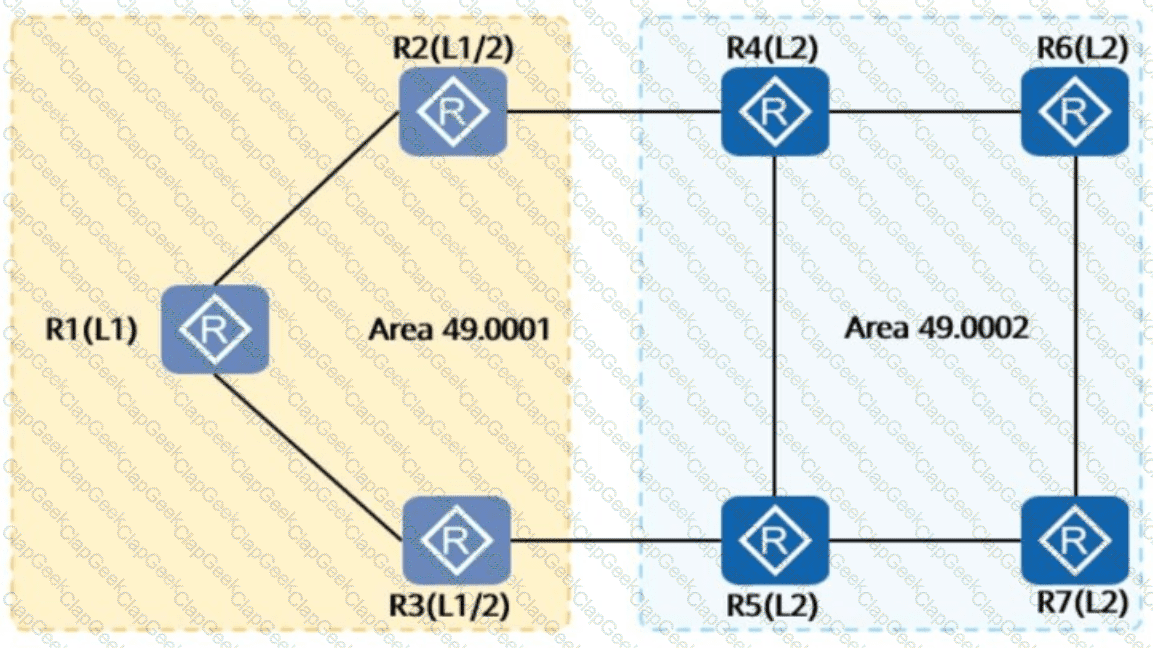

In IS-IS , routes are distributed differently based on router levels :

Level-1 (L1) routers → Maintain specific routes only within their own area .

Level-2 (L2) routers → Maintain specific routes for the entire network (inter-area routing).

Level-1-2 (L1/L2) routers → Store both L1 and L2 routes and act as area border routers .

In the diagram, R2 and R3 are L1/L2 routers , meaning they store specific routes for both their area and other areas .

R1 is only an L1 router , meaning it only has intra-area routes , and R7 is an L2-only router , meaning it does not store all specific routes.

Therefore, R2 and R3 have specific routes for the entire network.

???? Reference: Huawei HCIA-Datacom Study Guide, IS-IS Routing Levels and Route Distribution.

Comprehensive and Detailed In-Depth Explanation:

IP Multicast vs. Broadcast:

A. TRUE → Unlike broadcast , which sends data to all hosts in a subnet, multicast only sends data to interested receivers , preventing flooding .

B. TRUE → Multicast optimizes bandwidth usage by sending a single copy of data , which is then replicated at network routers only when necessary .

IP Multicast vs. Unicast:

C. FALSE → Multicast does not improve security ; it may expose data to unintended receivers if not properly controlled .

D. FALSE → Multicast reduces the load on the source because a single data stream serves multiple receivers instead of sending individual unicast streams .

???? Reference: Huawei HCIA-Datacom Study Guide, IP Multicast Principles and Benefits.

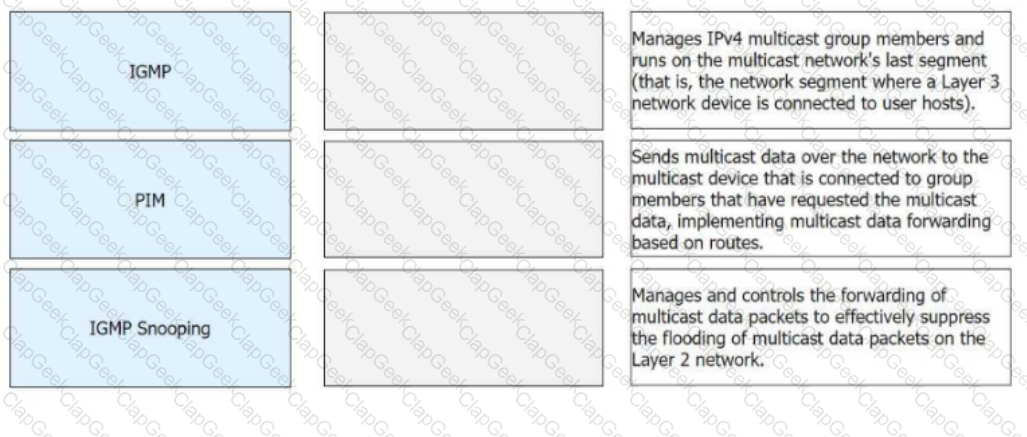

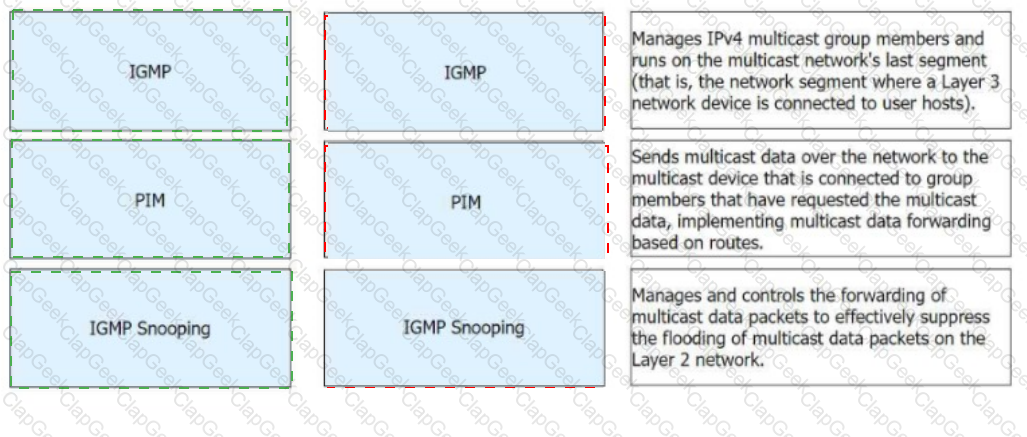

IPv4 supports three main transmission modes:

Unicast : One-to-one communication.

Broadcast : One-to-all communication within a network.

Multicast : One-to-many communication to a group of interested receivers. Anycast is not a native IPv4 mode but is introduced in IPv6 ​.

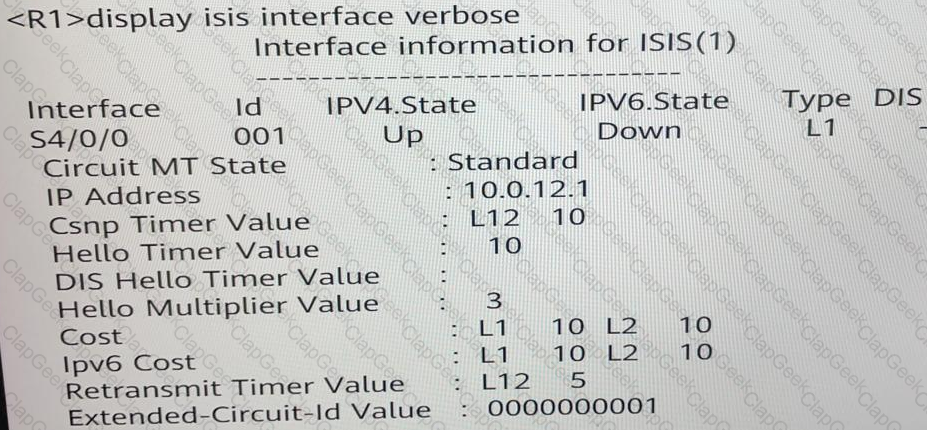

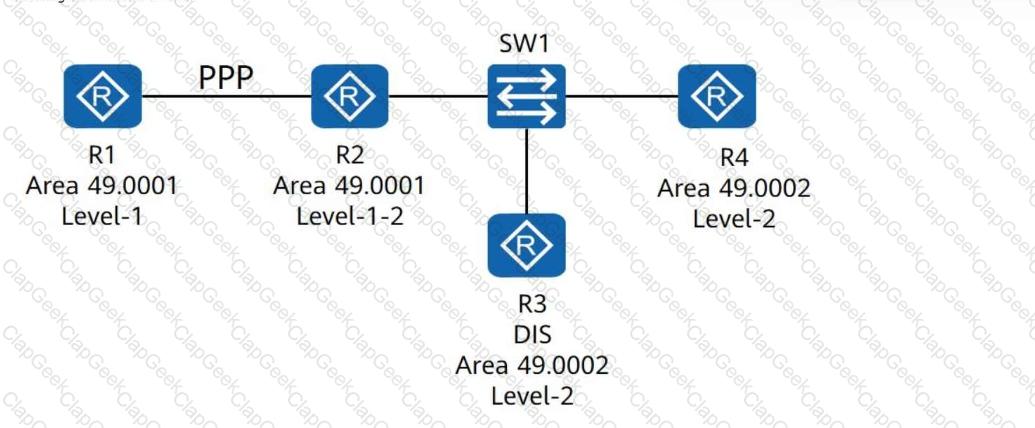

Understanding the LSDB and Level-2 DIS Election in IS-IS :

In IS-IS, the Designated Intermediate System (DIS) is elected for both Level-1 and Level-2 on broadcast networks to manage the link-state database (LSDB) and reduce the number of LSAs exchanged.

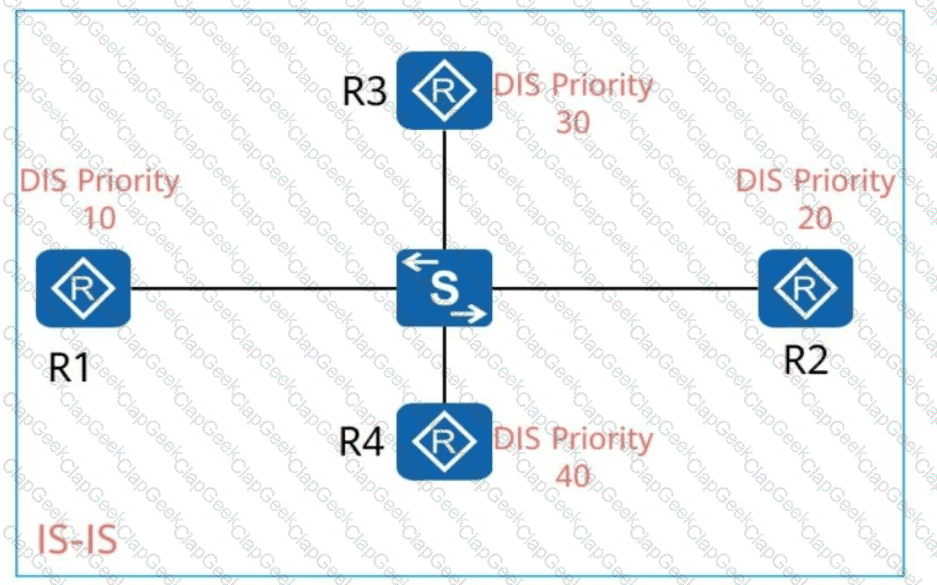

The election of the DIS is based on the highest priority . If the priority is the same, the router with the highest System ID becomes the DIS.

RSTP improves convergence by introducing changes to the BPDU handling mechanism and port roles. However, RSTP does not rely on a fixed timeout of four Hello intervals for negotiation failure. Instead, RSTP uses a more dynamic mechanism to detect topology changes. The other options describe valid RSTP improvements ​.

Inter-area route calculation in OSPF involves Summary LSAs (Type 3) for summarizing routes across areas and ASBR Summary LSAs (Type 4) for locating ASBRs. While Router LSAs and Network LSAs describe the internal structure of an area, they do not directly participate in inter-area route calculation. Thus, the statement that only Router, Network, and Summary LSAs are involved is false ​.

 Non-Client Definition in IBGP

In an IBGP setup with a Route Reflector (RR), a non-client is an IBGP peer that is neither the RR itself nor its client.

Non-clients must establish fully meshed IBGP connections with all other non-clients and the RR because IBGP rules prohibit route propagation between non-clients without a direct connection.

 HCIP-Datacom-Core Reference

The behavior of non-clients in an RR topology is clearly outlined in the BGP implementation chapters​​.

The summary automatic command in BGP is used to enable automatic summarization of routes, particularly for classful networks. However, manual summarization takes precedence over automatic summarization when both are configured. This makes the statement claiming automatic summarization takes precedence false ​.

In RSTP, a port in the discarding state neither forwards data frames nor learns MAC addresses. A port in the learning state does not forward data frames but starts learning MAC addresses. Therefore, options A and B are correct, while C and D are incorrect due to misunderstandings of these states ​.

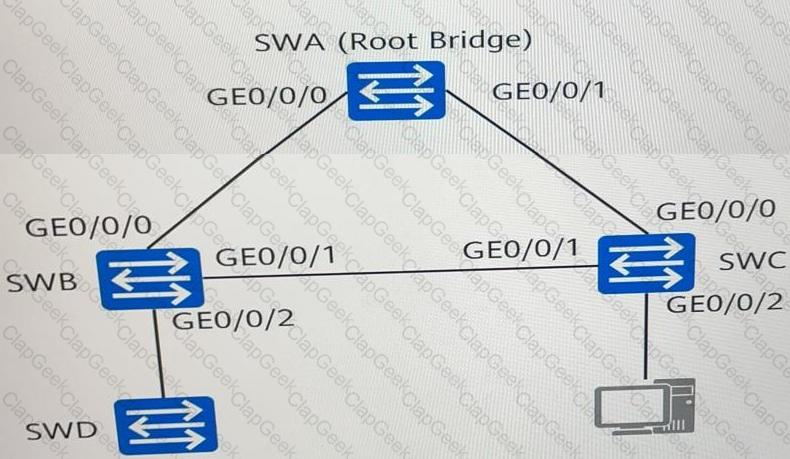

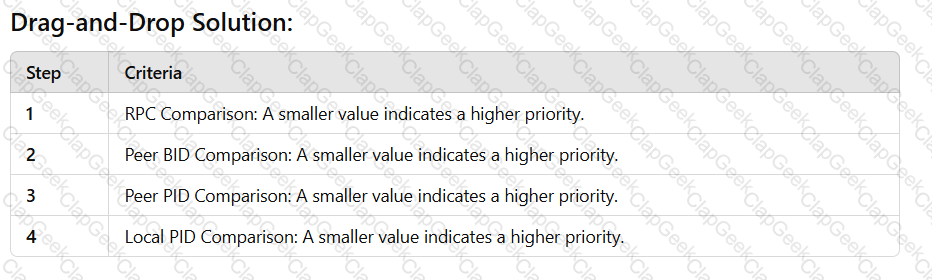

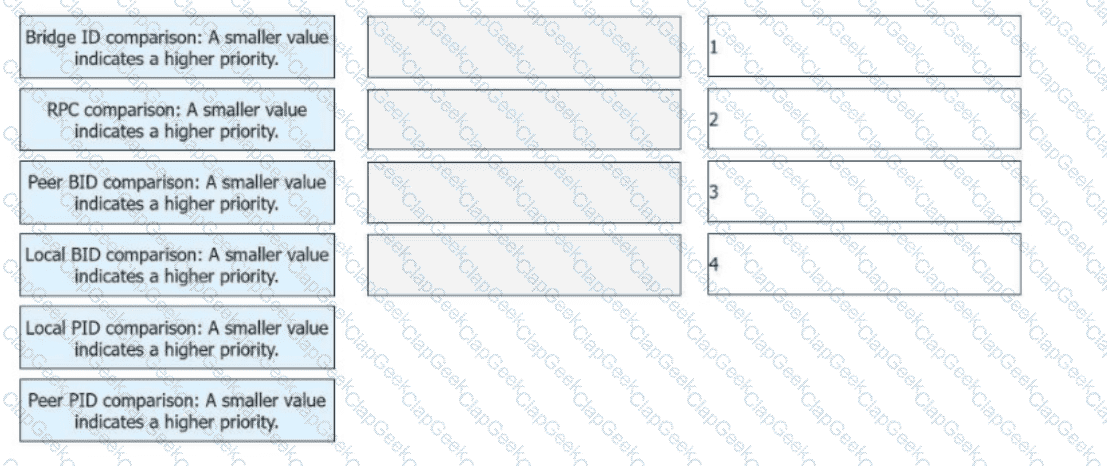

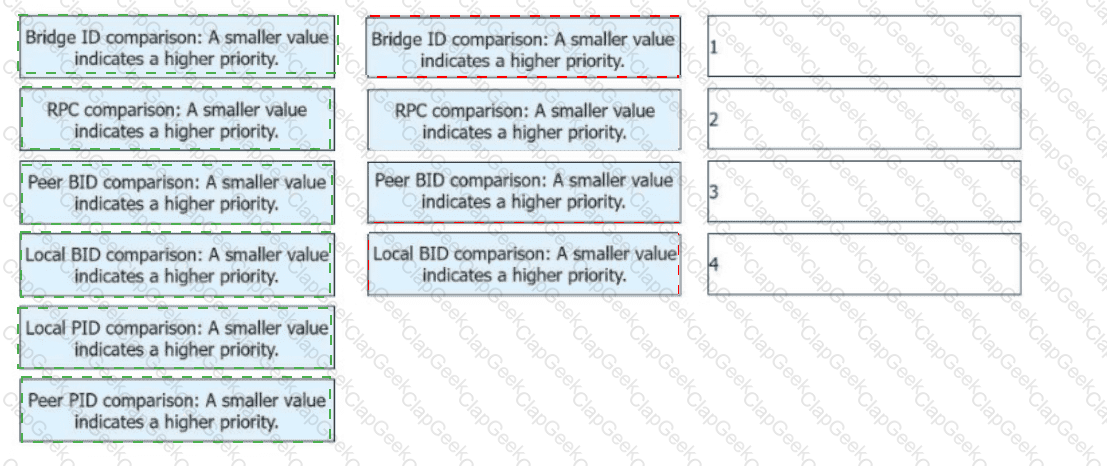

The sequence of steps for electing the root port in an STP (Spanning Tree Protocol) network is as follows:

Bridge ID Comparison : The Bridge ID (BID) is compared between the bridges in the network. A smaller value indicates a higher priority, meaning the bridge with the lowest Bridge ID is elected as the root bridge.

RPC (Root Path Cost) Comparison : The path cost to reach the root bridge is calculated. The router with the lowest Root Path Cost (RPC) to the root bridge will have a higher priority for the election of the root port.

Peer BID Comparison : If there is a tie in the Root Path Cost, the Peer BID is compared. A smaller Peer BID indicates a higher priority. This step ensures that if two routers have the same RPC, the one with the lower Peer Bridge ID wins.

Local BID Comparison : If there is still a tie, the Local BID is compared. A smaller Local BID indicates a higher priority. This final step ensures that the router with the lowest local identifier is selected.

Bridge ID Comparison : The first step in electing the root port is comparing the Bridge IDs. The bridge with the lowest Bridge ID becomes the root bridge . The Bridge ID is made up of the bridge priority and MAC address . The root bridge is the center of the network for STP, and all other ports will calculate their paths based on this root.

Comprehensive and Detailed In-Depth Explanation:

A. TRUE → If preemption is enabled , a higher-priority router can take over as the Master .

B. TRUE → If preemption is disabled , the current Master remains active even if a higher-priority router joins.

C. TRUE → The Master router sends VRRP Advertisement packets to maintain its role.

D. FALSE → If a VRRP router is the IP address owner , it automatically becomes the Master without needing to participate in an election .

???? Reference: Huawei HCIA-Datacom Study Guide, VRRP Priority and Preemption Mechanisms.

OSPF process IDs are locally significant and do not need to match between routers to form neighbor relationships. The other statements correctly describe the behavior of OSPF multi-instances, making Option C false ​.
