FCSS_EFW_AD-7.6 Fortinet NSE 7 - Enterprise Firewall 7.6 Administrator Questions and Answers

In an IBGP (Internal BGP) network, all routers must be fully meshed, meaning every router must establish a BGP session with every other router in the same autonomous system (AS). This does not scale well in large networks due to the exponential increase in BGP sessions.

To optimize and scale IBGP, Route Reflectors (RRs) are used. A Route Reflector (RR) reduces the number of IBGP peer connections by allowing a centralized router (RR) to redistribute IBGP routes to other IBGP peers (called clients). This eliminates the need for a full mesh, significantly reducing BGP session overhead.

By configuring the route-reflector-client setting on IBGP peers, an administrator can:

● Scale IBGP sessions by reducing the number of direct BGP peer connections.

● Optimize the routing table by ensuring routes are efficiently propagated within the IBGP network.

● Eliminate the need for full mesh topology, making IBGP more manageable.

In an ADVPN deployment using iBGP, the Hub uses dynamic BGP peering to manage a large number of spokes. The neighbor-range configuration is used to define the range of IP addresses from which the Hub will accept dynamic BGP connections.

neighbor-group: Within the neighbor-range, you must specify a neighbor-group. This group acts as a template that defines the shared settings for all spokes in that range.

remote-as: The remote-as is a mandatory parameter defined within the associated neighbor-group to identify the autonomous system of the spokes (which, in iBGP, matches the Hub ' s AS). While route-reflector-client is also a required setting for the Hub in this topology, it is a property configured under the neighbor-group, whereas neighbor-group and the group ' s remote-as are the foundational requirements for the range to function.

==============

VXLAN (Virtual Extensible LAN) is an overlay network technology that extends Layer 2 networks over Layer 3 infrastructure. When VXLAN is used extensively on FortiGate, hardware acceleration is crucial for maintaining performance.

● NP7 (Network Processor 7) is Fortinet’s latest network processor designed to accelerate high-performance networking features, including:

● VXLAN encapsulation/decapsulation

● IPsec VPN offloading

● Firewall policy enforcement

● Advanced threat protection at wire speed

NP7 significantly reduces latency and improves throughput when handling VXLAN traffic, making it the best choice for large-scale VXLAN deployments.

Comprehensive and Detailed Explanation From Exact Extract of Enterprise Firewall 7.6 Administrator documents:

Based on the FortiOS 7.6 Administration Guide and the HA Virtual Clustering documentation, the exhibit demonstrates a Virtual Clustering environment where multiple VDOMs are distributed across an HA cluster.

In a virtual cluster setup, VDOMs are assigned to either virtual cluster 1 (vcluster 1) or virtual cluster 2 (vcluster 2). Each virtual cluster has its own independent primary unit selection process. The primary unit for a virtual cluster is determined based on the standard HA selection criteria: Monitored Interfaces > HA Uptime > Priority > Serial Number.

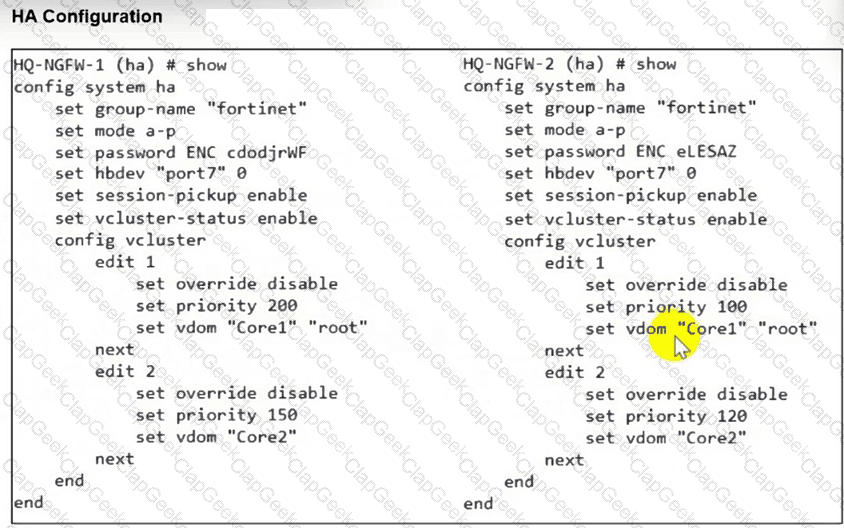

According to the exhibit:

Virtual Cluster 1 (edit 1) contains VDOMs " Core1 " and " root " .

Virtual Cluster 2 (edit 2) contains VDOM " Core2 " .

The HA uptime is stated to be the same for both devices.

For edit 2 (Core2), HQ-NGFW-1 has a priority of 150, while HQ-NGFW-2 has a priority of 120.

In both units, override is disabled (default).

Since the uptime is equal and no monitored interfaces are down, the cluster uses the Priority value to select the primary unit for each vcluster. Currently, HQ-NGFW-1 is the primary for Core2 because its priority (150) is higher than HQ-NGFW-2 ' s (120). To ensure HQ-NGFW-2 handles the Core2 traffic, its priority for virtual cluster 2 must be increased to a value higher than 150. Option C (changing the priority from 120 to 200) achieves this.

Comprehensive and Detailed 150 to 200 words of Explanation From Exact Extract of Enterprise Firewall 7.6 Administrator documents:

According to the FortiOS 7.6 Infrastructure study guide and Hardware Acceleration documentation, the Network Processor 7 (NP7) is the flagship hardware component designed to offload high-performance network traffic from the system CPU. A critical advancement of the NP7 over previous generations (such as the NP6) is its native support for Virtual eXtensible LAN (VXLAN) hardware acceleration.

In enterprise environments where VXLAN is used to extend Layer 2 segments over a Layer 3 network, the encapsulation and decapsulation of VXLAN headers can be computationally expensive. The NP7 provides specialized circuitry to perform these operations at line rate, significantly reducing latency and preventing CPU saturation. This allows the FortiGate to maintain high throughput even when handling complex overlay tunnels.

While the CP9 (Content Processor) (Option C) provides acceleration for SSL/TLS inspection and IPsec encryption, it does not handle network layer encapsulation like VXLAN. NTurbo (Option D) is a software feature that offloads firewall sessions to the network processors but is not a hardware chip itself. The SP5 (Option B) also supports VXLAN offloading in newer mid-range models, but the NP7 is the primary " specialized acceleration hardware " referenced for high-end enterprise performance in the 7.6 curriculum.

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

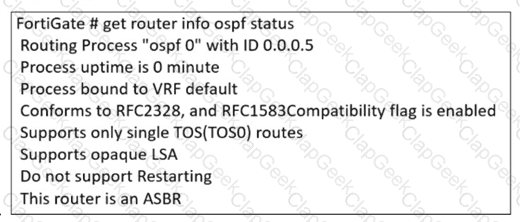

In an OSPF status output (typically retrieved via get router info ospf status), the unit identifies its role within the OSPF autonomous system. If the output indicates that the device is an ASBR (Autonomous System Boundary Router) , it means the FortiGate is redistributing routes from another protocol (like BGP, RIP, or static routes) into OSPF. The status will explicitly state " This router is an ASBR " if redistribution is active. This role is critical for providing connectivity between OSPF and external networks.

==============

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

In an enterprise architecture, LAN interface connections on a FortiGate (particularly for Internal Segmentation Firewalls or Data Center Firewalls) typically utilize two key technologies for connectivity and management:

802.3ad (Aggregate Interfaces): To provide redundancy and high-speed data transfer, firewalls connect to multiple physical switches using 802.3ad link aggregation, combining multiple physical interfaces into a single logical interface.

FortiLink: This is the proprietary protocol used for the management of FortiSwitch units by the FortiGate unit. When the LAN connection is to a FortiSwitch, FortiLink is used to extend the FortiGate ' s control over the switch ports as if they were local ports on the firewall itself.

==============

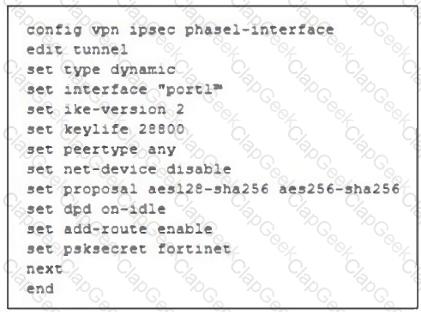

This IPsec Phase 1 configuration defines a dynamic VPN tunnel that can accept connections from multiple peers. The settings chosen here suggest a configuration optimized for networks with intermittent traffic patterns while ensuring resources are used efficiently.

Key configurations and their impact:

● set type dynamic → This allows multiple peers to establish connections dynamically without needing predefined IP addresses.

● set ike-version 2 → Uses IKEv2, which is more efficient and supports features like EAP authentication and reduced rekeying overhead.

● set dpd on-idle → Dead Peer Detection (DPD) is triggered only when the tunnel is idle, reducing unnecessary keep-alive packets and improving resource utilization.

● set add-route enable → FortiGate automatically adds the route to the routing table when the tunnel is established, ensuring connectivity when needed.

● set proposal aes128-sha256 aes256-sha256 → Uses strong encryption and hashing algorithms, ensuring a secure connection.

● set keylife 28800 → Sets a longer key lifetime (8 hours), reducing the frequency of rekeying, which is beneficial for stable connections.

Because DPD is set to on-idle, the tunnel will not constantly send keep-alive messages but will still ensure connectivity when traffic is detected. This makes the configuration ideal for networks with regular but non-continuous traffic, balancing security and resource efficiency.

Zero phase selectors in IPsec Phase 2 mean that no specific traffic selectors (subnets) are defined, allowing any traffic to be encrypted through the VPN tunnel. This can cause unintended traffic forwarding issues and disrupt network operations.

To prevent this from happening during future migrations:

● Using routing protocols ensures that only specific subnets are advertised over the tunnel. Dynamic routing (such as OSPF or BGP) helps define which networks should use the tunnel, preventing unintended traffic from being encrypted.

● Clearly defining phase 2 selectors avoids the problem of encrypting all traffic by explicitly stating the allowed source and destination subnets. This prevents the tunnel from affecting unrelated network traffic.

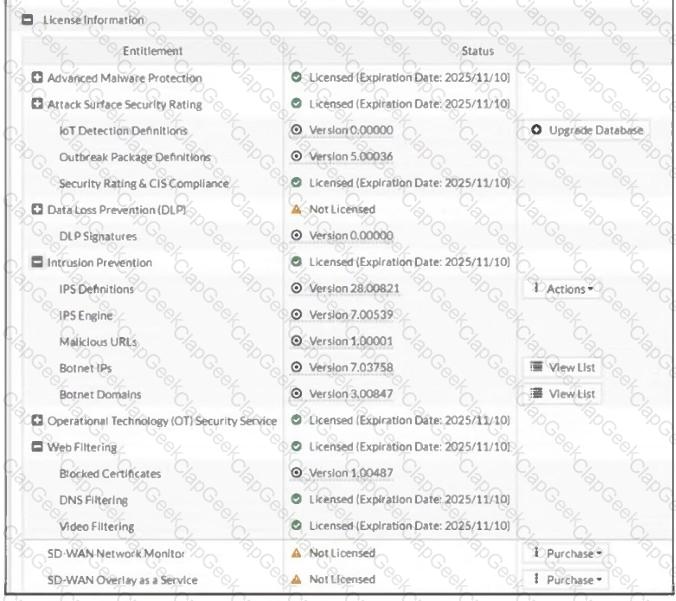

Unlike IPS or antivirus databases, FortiGate does not store a full web filter database locally. Instead, FortiGate queries FortiGuard (or FortiManager, if configured) dynamically to classify and filter web content in real time.

Key points:

● Web filtering works on a cloud-based model:

● When a user requests a website, FortiGate queries FortiGuard servers to check its category and reputation.

● The response is then cached locally for faster lookups on repeated requests.

● No local web filter database version:

● Unlike IPS and antivirus, which download and store signature updates locally, web filtering relies on cloud-based queries.

● This is why no database version appears in the GUI.

● Flow mode vs Proxy mode:

● In proxy mode, FortiGate can cache some web filter data, improving performance.

● In flow mode, all queries happen dynamically, with no locally stored database.

In enterprise hub-and-spoke environments, the most scalable and efficient way to ensure the corporate Hub learns the internal networks of remote branches (such as 192.168.1.0/24) is through the use of dynamic routing protocols. Implementing OSPF over IPsec allows the Hub and Spoke units to exchange routing information automatically through the VPN tunnel. Once the OSPF adjacency is established over the IPsec interface, the spoke will advertise its local 192.168.1.0/24 network to the Hub, which then installs the route into its routing table. This avoids the administrative burden and potential errors associated with manually adding static routes for every remote site.

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

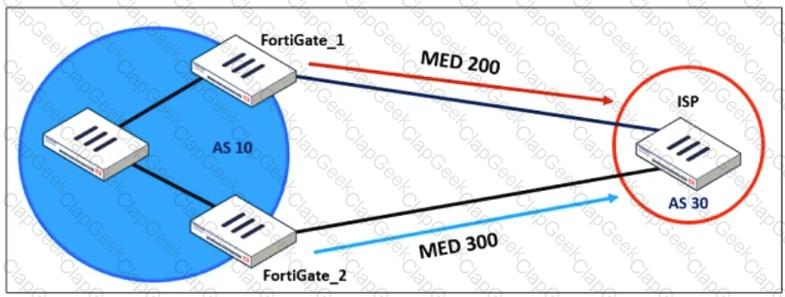

The MED (Multi-Exit Discriminator) is a BGP attribute used to suggest to external neighbors the preferred path into your AS when multiple entry points exist. To modify BGP attributes such as MED, Local Preference, or Weight, you must use a route-map .

In the route-map configuration, you use the set metric command to define the MED value.

This route-map must then be applied to a specific BGP neighbor using the route-map-out parameter. This ensures that as the FortiGate advertises routes to its neighbor, the MED value is modified according to the rules defined in the map.

==============

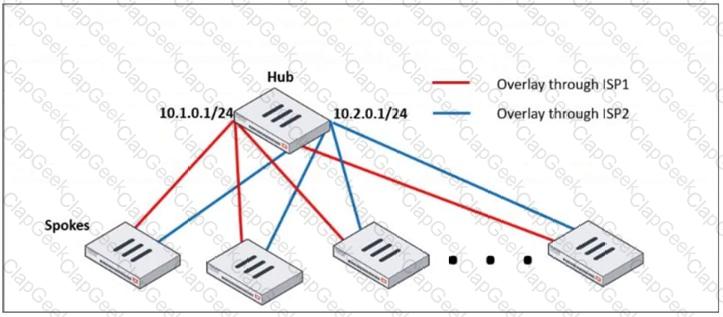

When designing an ADVPN (Auto-Discovery VPN) network for a large enterprise with spokes that have varying numbers of internet links, the main challenge is to minimize the number of peer connections and routes at the hub while maintaining scalability and efficiency.

Using a dynamic routing protocol (such as BGP or OSPF) with loopback interfaces helps in several ways:

● Reduces the number of peer connections at the hub by using a single loopback address per spoke instead of individual physical interfaces.

● Enables simplified route advertisement by dynamically learning and propagating routes instead of manually configuring static routes.

● Supports multiple internet links per spoke efficiently, as dynamic routing can automatically adjust to the best available path.

● Allows seamless failover if a spoke’s internet link fails, ensuring continuous connectivity.

In FortiManager, per-device mapping (also known as dynamic mapping ) is a fundamental feature used to manage objects that must have different values or names on different FortiGate units within the same ADOM.

According to the Fortinet Enterprise Firewall 7.6 Administrator Study Guide:

Policy Package View: When an administrator views a policy package in the FortiManager GUI, they see the ADOM-level object . In this case, the object is named or contains the value " 10.0.5 " .

Reinstall Preview/Installation: When FortiManager prepares the configuration for a specific device (like HQ-DCFW ), it checks for any per-device mappings defined for the objects used in the policy.

The Result: If a mapping exists, FortiManager replaces the ADOM-level object with the device-specific object or value. The reinstall preview shows the actual CLI commands that will be pushed to the device. In the exhibit, it is clear that the ADOM object " 10.0.5 " has been mapped to the device-specific address object " SSLVPN_tunnel_addr1 " for the HQ-DCFW unit.

This mechanism allows an administrator to maintain a single " Golden Policy " package for the entire enterprise while ensuring that device-specific details (like local subnet names or unique tunnel addresses) are correctly applied to each physical or virtual firewall.

Based on the FortiGate Infrastructure 7.6 study guide and the Hardware Acceleration technical documentation, the diagnose vpn tunnel list command provides the status of IPsec tunnel offloading to the Network Processor (NPU).

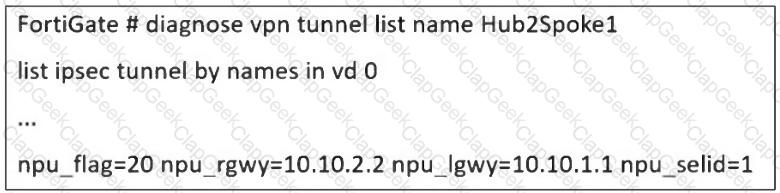

In the provided exhibit, the specific value npu_flag=20 (which corresponds to 0x20 in hexadecimal) indicates that the IPsec Security Association (SA) cannot be offloaded to the NPU. While the NPU may have visibility of the gateway IPs (npu_rgwy and npu_lgwy), the flag itself serves as a diagnostic indicator that the traffic must be processed by the system CPU rather than the hardware accelerator.

This lack of offloading typically occurs when the tunnel configuration uses a cipher (encryption algorithm) or an HMAC (authentication algorithm) that is not supported by the specific NPU model installed in the FortiGate. For example, if a tunnel is configured with a legacy or highly complex algorithm that the NP6 or NP7 chip is not designed to process in hardware, the FortiOS kernel handles the encryption and decryption, resulting in the npu_flag=20 status. Therefore, despite the presence of NPU-related fields, the specific flag value confirms that hardware acceleration is not active for these SAs.

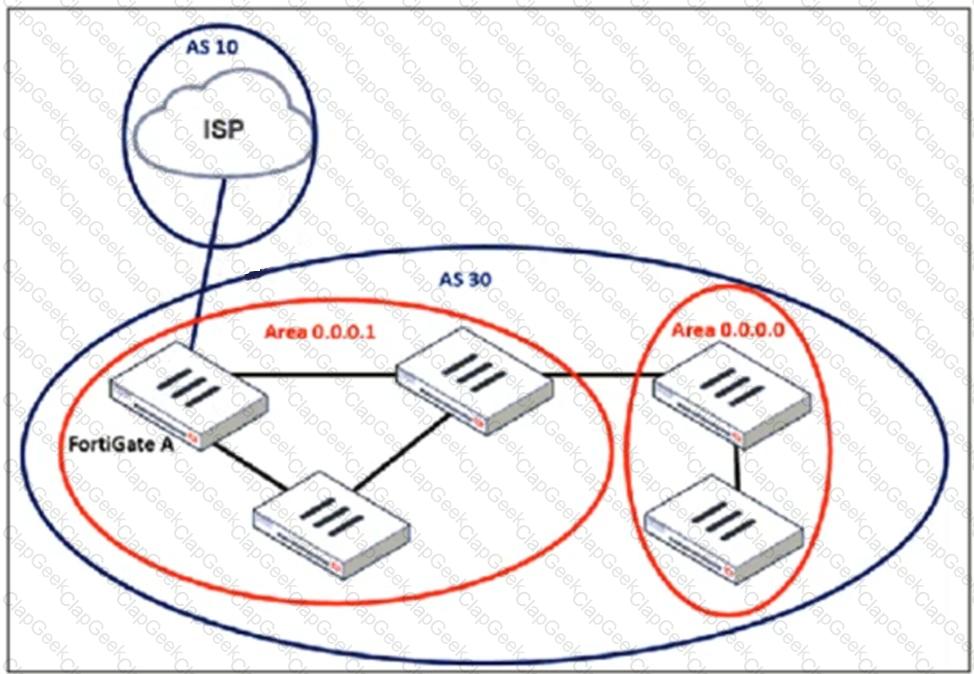

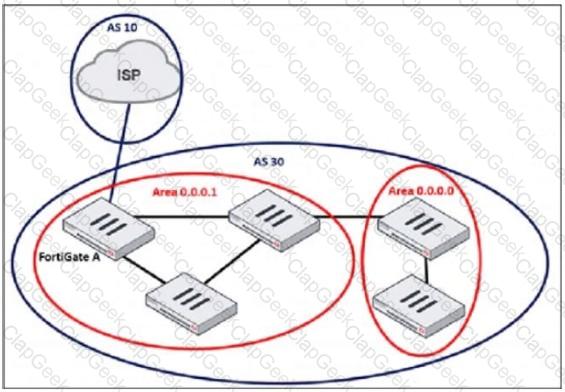

The OSPF database optimization is necessary to reduce unnecessary routing information and improve network performance. In the given topology, Area 0.0.0.1 is a non-backbone area connected to Area 0.0.0.0 (the backbone area) through an Area Border Router (ABR).

To optimize OSPF in this scenario, configuring Area 0.0.0.1 as a Stub Area will:

● Reduce the size of the OSPF database by preventing external routes (from outside OSPF) from being injected into Area 0.0.0.1.

● Allow only intra-area and inter-area routes, meaning routers in Area 0.0.0.1 will rely on a default route for external destinations.

● Improve convergence time and reduce router processing load since fewer LSAs (Link-State Advertisements) are exchanged.

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

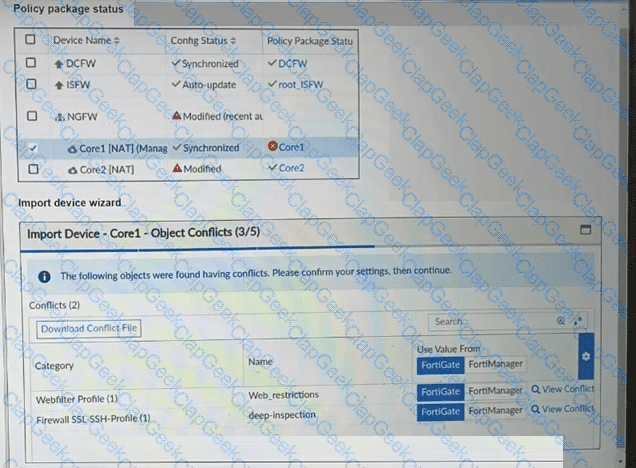

When importing a policy package from a FortiGate into a FortiManager ADOM, the Import Wizard compares the objects on the FortiGate with the objects already existing in the FortiManager ADOM database. If an object (e.g., an Address Object) has the same name but different values, a conflict occurs.

To resolve this, the administrator must choose which version to keep. Choosing FortiManager accept (or " Use FortiManager value " ) resolves the conflict by keeping the existing object in the FortiManager database and applying its settings to the imported policy. This maintains global consistency across the ADOM.

==============

In modern TLS handshakes (starting with TLS 1.3), the Client Hello packet includes a specific extension called supported_versions. This extension lists all the TLS versions the client is capable of using. Typically, a client supporting TLS 1.3 will also list TLS 1.2 for backward compatibility to ensure it can successfully negotiate a secure connection with servers that have not yet upgraded. When both versions are present in the supported_versions field, it signifies that the client is capable of both TLS 1.2 and TLS 1.3 . This is a critical component for FortiGate when performing deep SSL/TLS inspection, as the firewall must understand the negotiated version to decrypt the traffic for security analysis.

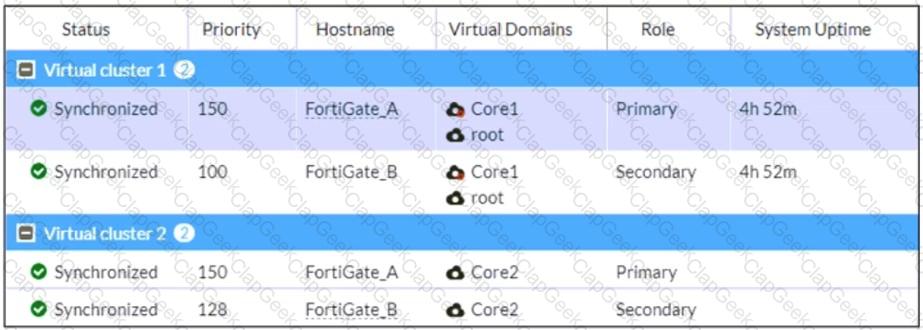

The exhibit shows an active-passive HA (high availability) cluster with two virtual clusters, where FortiGate_A is the primary device for both Core1 and Core2. If the goal is to have FortiGate_B take over Core2 traffic, its priority must be higher than FortiGate_A for Virtual Cluster 2.

Currently, FortiGate_A has a priority of 150 for Core2, while FortiGate_B has 128. Increasing FortiGate_B’s priority to 200 ensures it becomes the primary for Virtual Cluster 2, taking over the Core2 VDOM traffic while keeping Core1 traffic on FortiGate_A.

Disabling override would prevent forced failovers but wouldn’t change the role distribution. Adjusting the load-balancing method is irrelevant in an active-passive setup, as it only applies to active-active configurations.

Comprehensive and Detailed 150 to 200 words of Explanation From Exact Extract of Enterprise Firewall 7.6 Administrator documents:

Based on the FortiOS 7.6 Infrastructure study guide and official documentation regarding OSPF monitoring, the command output get router info ospf status provides critical details about the OSPF process.

Injecting External Information (Option D): The last line of the exhibit explicitly states, " This router is an ASBR " (Autonomous System Boundary Router). By definition in the OSPF protocol, an ASBR is a router that connects the OSPF network to another routing domain (such as BGP, Static, or Connected routes) and is responsible for injecting external routing information into the OSPF domain.

OSPF ECMP Support (Option B): The output indicates that the OSPF process " Conforms to RFC2328 " . RFC 2328 is the standard for OSPFv2, which includes the capability for Equal-Cost Multi-Path (ECMP). In FortiOS, the OSPF engine supports multi-path routing by default, allowing the device to utilize multiple paths to the same destination if they share the same cost.

Option A is incorrect because the output does not indicate the router ' s DR/BDR election status on a specific segment. Option C is incorrect because " ID 0.0.0.5 " refers to the Router ID, not the OSPF Area ID.

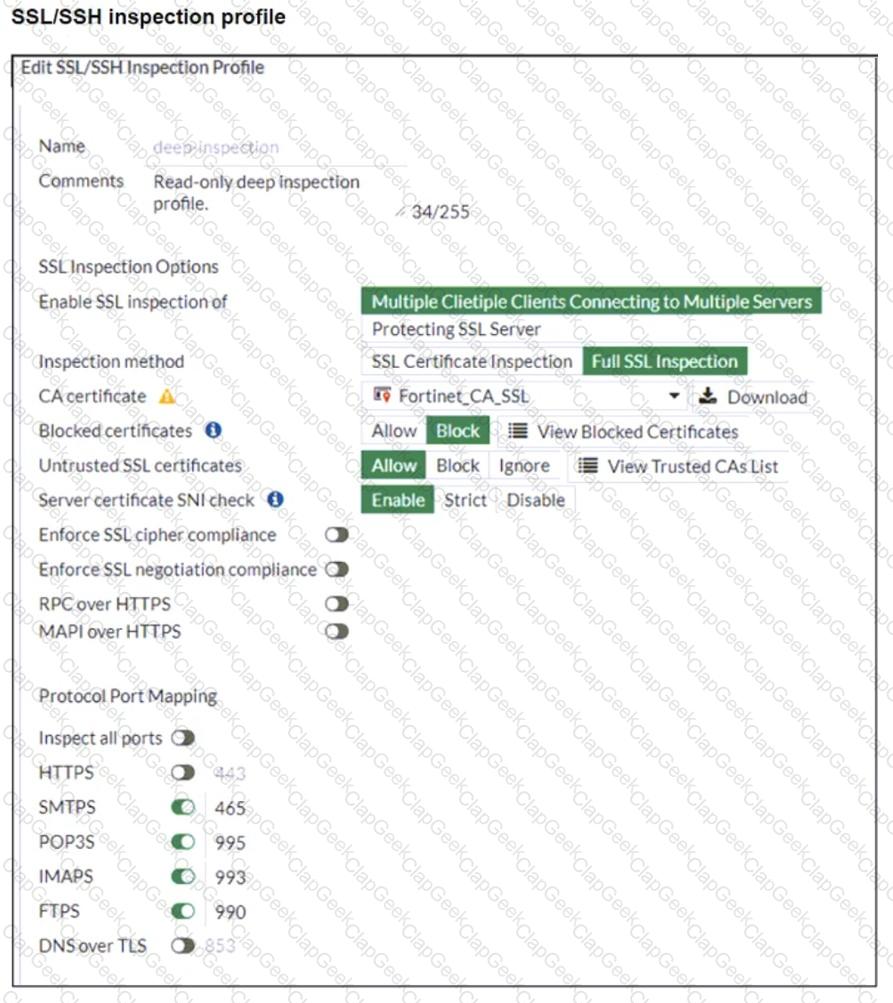

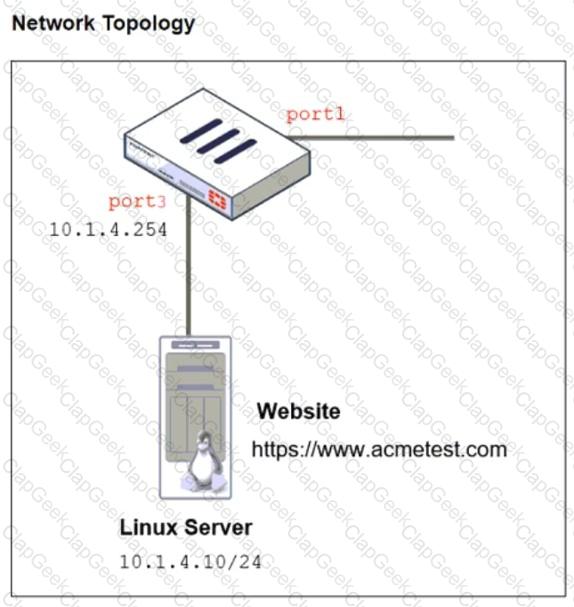

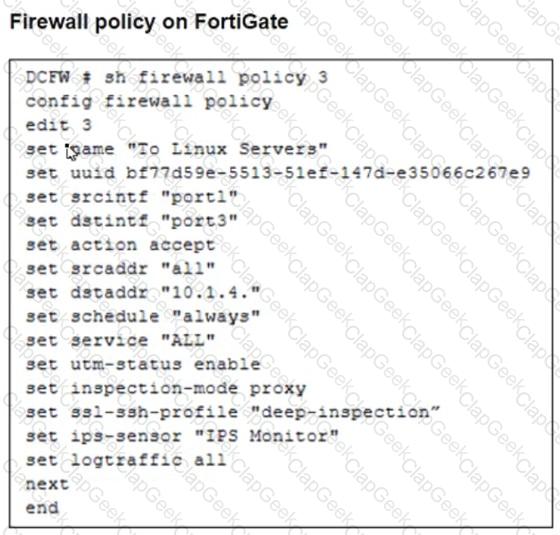

According to the FortiGate security profile documentation, standard certificate inspection (which uses SNI) only examines the certificate header and does not allow the firewall to see the actual payload of an encrypted session. To identify attacks such as PHP code injection or malware hidden within HTTPS traffic, the FortiGate must be configured with full SSL inspection (also known as deep SSL inspection). This process requires the FortiGate to act as a man-in-the-middle, decrypting the traffic using a trusted CA certificate, inspecting the cleartext content for threats, and then re-encrypting it before sending it to the destination.

==============

When configuring a loopback interface as the BGP source for connecting to an ISP, two important settings must be applied:

1. Enable EBGP Multihop (ebgp-enforce-multihop)

BGP normally expects directly connected neighbors, but since the ISP and FortiGate A are using loopback interfaces, packets will not be sent directly between their physical interfaces.

The ebgp-enforce-multihop command allows BGP to form an eBGP peering over multiple hops.

2. Set the Update Source (update-source)

Since FortiGate is using a loopback interface as the source, the update-source command ensures that BGP updates originate from the loopback interface rather than a physical interface.

This is essential because BGP peers must match the source IP with the configured neighbor address.

When FortiGate processes the first packets of a session, it follows a sequence of steps to determine how the traffic should be handled before establishing a session. The initial step involves:

● Access Control List (ACL) checks: Determines if the traffic should be allowed or blocked based on predefined security rules.

● Hardware Packet Engine (HPE) inspections: Ensures that packet headers are valid and comply with protocol standards.

● IP Integrity Header Checking: Verifies if the IP headers are intact and not malformed or spoofed.

Once these security inspections are completed and the session is validated, FortiGate then installs the session in hardware (if offloading is enabled) or processes it in software.

The TCP Maximum Segment Size (MSS) defines the largest payload (the data part of a TCP segment) that a device can receive in a single segment. Configuring tcp-mss-sender and tcp-mss-receiver on a FortiGate interface or within an IPsec tunnel configuration allows the firewall to intercept and modify the MSS value in the TCP SYN and SYN-ACK packets. This is primarily used to prevent packet fragmentation over links with lower MTUs (like IPsec or VXLAN) by ensuring the sender produces segments that fit within the tunnel ' s available payload space once encapsulation headers are added.

==============

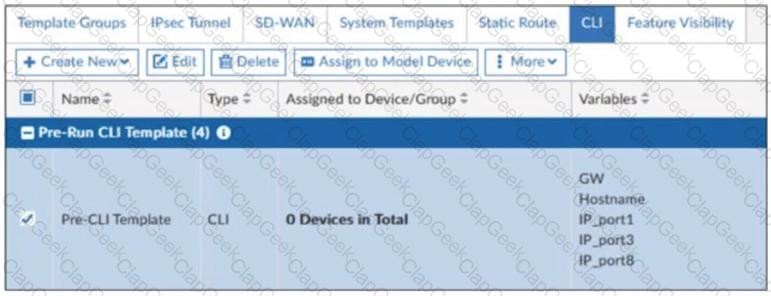

In FortiManager, pre-run CLI templates are used in Zero-Touch Provisioning (ZTP) and Low-Touch Provisioning (LTP) to configure a FortiGate device before it is fully managed by FortiManager.

These templates apply configurations when a device is initially provisioned. Once the pre-run CLI template is executed, FortiManager automatically unassigns it from the device because it is not meant to persist like other policy configurations. This prevents conflicts and ensures that the FortiGate configuration is not repeatedly applied after the initial setup.

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

To scale performance beyond a single unit, Fortinet provides two primary clustering and synchronization methods:

FGCP Active-Active: This mode distributes network traffic among all members of the cluster, allowing the combined processing power of multiple units to handle higher throughput and security inspection loads.

FGSP (FortiGate Session Life Support Protocol): This protocol is used to synchronize session information between independent FortiGate units or clusters. It is commonly used in large-scale environments where external load balancers distribute traffic across multiple FortiGates, ensuring that if traffic for a session is asymmetric (sent to one unit but returned to another), the return unit has the necessary session state to allow the traffic. In contrast, FGCP Active-Passive provides redundancy but does not scale performance as the secondary unit remains idle.

==============

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

VXLAN (Virtual Extensible LAN) is a Layer 2 overlay scheme on a Layer 3 network. It uses MAC-in-UDP encapsulation, which adds 50 bytes of overhead to each packet. Processing this encapsulation and decapsulation in software (CPU) is resource-intensive and can lead to performance bottlenecks.

The NPU7 (Network Processor 7) is specifically designed to provide hardware acceleration for various tunnel protocols, including VXLAN. It allows the FortiGate to offload the encapsulation/decapsulation process to the hardware, enabling wire-speed performance and reducing the load on the main CPU. While older NPUs had limited support, the NPU7 architecture includes dedicated engines for VXLAN offloading, making it the required hardware for high-performance VXLAN environments.

==============

In high-security enterprise environments, deploying a " block-all " or highly restrictive IPS profile without testing often leads to false positives , where legitimate network traffic is incorrectly identified as a threat and blocked. This results in application downtime, as described in the scenario.

The recommended best practice for deploying IPS in a production environment without causing disruption is as follows:

Monitor Mode Initial Deployment: Administrators should initially configure an IPS profile with signatures set to Monitor mode. In this mode, the FortiGate unit allows all traffic to pass but generates logs for any traffic that matches an IPS signature.

Verification of Patterns: By analyzing the resulting logs in FortiAnalyzer or the FortiGate dashboard, the security team can distinguish between genuine attacks and legitimate application traffic that was mistakenly flagged.

Tuning and Optimization: Once legitimate traffic patterns are identified, the administrator can create exemptions or overrides for those specific signatures. After the profile is tuned and the risk of disrupting business applications is mitigated, the signatures can then be safely moved to a Block action.

This " Monitor-First " approach is a fundamental concept in the Enterprise Firewall curriculum, explicitly demonstrated in Lab 6 (Security Profiles), where setting an action to " Monitor " is used to solve IPS false positives and prevent application disruption.

==============

Applying an aggressive IPS profile without prior testing can disrupt legitimate applications by incorrectly identifying normal traffic as malicious. To prevent disruptions while still monitoring for threats:

● Enable IPS in " Monitor Mode " first:

● This allows FortiGate to log and analyze potential threats without actively blocking traffic.

● Administrators can review logs and fine-tune IPS signatures to minimize false positives before switching to blocking mode.

● Verify and adjust signature patterns:

● Some signatures might trigger unnecessary blocks for legitimate application traffic.

● By analyzing logs, administrators can disable or modify specific rules causing false positives.

Comprehensive and Detailed Explanation From Exact Extract documents and Knowledge:

In large-scale enterprise deployments like ADVPN (Auto-Discovery VPN), managing a huge number of individual BGP neighbor statements is not scalable. To scale the establishment and management of iBGP sessions , FortiGate utilizes the neighbor-range parameter.

According to the ADVPN configuration guide, the neighbor-range command allows a Hub to listen for and automatically accept dynamic BGP peering requests from any Spoke within a specified IP prefix range. This eliminates the need for the administrator to manually define each Spoke ' s IP address on the Hub, which is essential for scaling to hundreds or thousands of branches. While route-reflector-client (Option C) is a parameter used within the neighbor-group (Option A) to allow the Hub to reflect routes, it is the neighbor-range that technically scales the Hub ' s ability to handle the large volume of incoming sessions.

==============
