F5CAB2 BIG-IP Administration Data Plane Concepts (F5CAB2) exam Questions and Answers

In BIG-IP terminology, a Trunk is the object used to implement Link Aggregation (IEEE 802.3ad/802.1AX). When a network engineer refers to " interface binding " or " EtherChannel " with LACP, the BIG-IP equivalent is a Trunk.

LACP (Link Aggregation Control Protocol): This is a protocol that allows the BIG-IP system to communicate with the upstream switches to negotiate the bundling of multiple physical links into a single logical link.

Resilience and Redundancy: By creating a trunk that includes interfaces connected to two different switches (typically configured as a VPC, VSS, or MLAG cluster on the switch side), the administrator ensures that the BIG-IP remains reachable even if one physical interface or one switch fails.

Data Plane Logic: The BIG-IP treats the trunk as a single Layer 2 interface. VLANs are then associated with the trunk rather than individual physical ports.

Why the other options are incorrect:

Option B: Trunks aggregate physical interfaces. While VLANs are associated with trunks, the trunk configuration itself does not " list " MAC addresses of the switches; it uses LACP to negotiate the connection.

Options C & D: Virtual Servers are Layer 4-7 objects used for traffic processing and load balancing. They do not possess " LACP profiles, " nor are physical interfaces or management IPs treated as pool members for the purpose of link aggregation.

In BIG-IP, a trunk is a Layer 2 network object used to aggregate multiple physical interfaces into a single logical link. This aggregation provides increased bandwidth and link resiliency , commonly in conjunction with LACP.

Key concepts that apply here:

Trunks are managed under the /net trunk tmsh hierarchy

Physical interfaces are added or removed using the modify command

The create command is used only when defining a brand-new trunk, not when updating an existing one

Because the trunk already exists and the goal is to add interfaces , the correct operation is:

tmsh modify /net trunk trunk_A interfaces add {1.3 1.4}

This command:

Modifies the existing trunk named trunk_A

Adds interfaces 1.3 and 1.4 to the trunk

Immediately increases available bandwidth and redundancy

Why the Other Options Are Incorrect

B uses the /sys hierarchy, which is not used for trunks

C attempts to create a trunk that already exists

D uses an incorrect hierarchy and an incorrect operation

According to F5 BIG-IP documentation regarding High Availability and MAC Masquerade behavior, the system allows for more granular control over Layer 2 addresses during failover events.

Standard MAC Masquerade: By default, when a traffic group is assigned a MAC masquerade address (like 02:12:34:56:00:00), the BIG-IP system uses that exact MAC address for all traffic associated with that traffic group across all VLANs. This ensures that upstream switches do not need to relearn ARP entries for the Virtual IP, but it can cause issues in environments where multiple VLANs share the same physical infrastructure or monitoring tools that flag identical MACs across segments.

Per-VLAN MAC Masquerade: When the system database variable tm.macmasqaddr_per_vlan is set to true, the BIG-IP system calculates a unique MAC address for each VLAN. It does this by taking the base MAC masquerade address configured in the traffic group and adding the VLAN ID (tag) to it.

Calculation Logic:

Base MAC: 02:12:34:56:00:00

VLAN ID: 1501

To find the suffix, the VLAN ID is converted from decimal to hexadecimal:

$1501$ in decimal = 05DD in hex.

The system then applies this offset to the last two octets of the base MAC address.

00:00 + 05:DD = 05:DD.

Result: The final MAC address for VLAN 1501 becomes 02:12:34:56:05:dd.

This ensures that every VLAN has a unique Layer 2 identity while still reaping the benefits of " gratuitous ARP-less " failover provided by MAC masquerading.

MAC Masquerade allows a traffic group to use a shared MAC address to speed up failover. When the system DB variable tm.macmasqaddr_per_vlan is enabled, the BIG-IP generates a unique MAC address for each VLAN by algorithmically modifying the base MAC address using the VLAN ID .

The calculation for VLAN 1501 works as follows:

Base MAC: The administrator set the base to 02:12:34:56:00:00.

VLAN ID Conversion: The decimal VLAN ID (1501) must be converted into hexadecimal.

$1501 \div 16 = 93$ remainder 13 ( D in hex)

$93 \div 16 = 5$ remainder 13 ( D in hex)

$5 \div 16 = 0$ remainder 5

Result: $1501$ (Decimal) = 05DD (Hex).

Substitution: The BIG-IP replaces the last two octets of the base MAC address with the hexadecimal representation of the VLAN ID.

Final Result: 02:12:34:56:05:dd.

In a BIG-IP high availability (HA) configuration, Auto-Sync is a device trust feature that automatically synchronizes configuration changes from the Active device to the Standby device within a Sync-Failover device group.

Key principles from BIG-IP Administration Data Plane Concepts:

The Active device is always the authoritative source of configuration

Configuration changes are intended to be made only on the Active device

With Auto-Sync enabled , any time the Active device configuration changes, the system automatically pushes the configuration to all Standby members of the device group

Configuration changes made directly on a Standby device are not preserved

In this scenario:

The administrator modifies a Virtual Server on the Standby device

That change is local only and does not alter the device group’s synchronized configuration

When Auto-Sync next runs (triggered by a change on the Active device or an internal sync event), the Active device configuration overwrites the Standby configuration

As a result, the configuration change made on the Standby device is undone .

Why the Other Options Are Incorrect:

A – The change is not undone only when another change is made; it is undone during the next Auto-Sync operation

B – Changes made on the Standby device are never propagated to the Active device

D – Auto-Sync does not merge or promote Standby changes into the HA pair configuration

Best Practice Reinforced:

Always perform configuration changes on the Active BIG-IP device when Auto-Sync is enabled to ensure consistent and predictable HA behavior.

===========

In the BIG-IP system, VLANs are the logical entities that group physical interfaces or trunks together. To modify how a VLAN interacts with an interface, the administrator must navigate to the specific VLAN configuration object.

VLAN List: This section displays all existing VLANs configured on the system.

Interface Association: Within the properties of a specific VLAN (in this case, " external " ), there is an Interfaces section. This is where physical ports or trunks are assigned to the VLAN.

Tagging Status: For each associated interface, the administrator can choose between Tagged (802.1Q) or Untagged .

Untagged: The interface will treat incoming traffic without a VLAN header as part of this VLAN, and outgoing traffic will not have a VLAN tag added. An interface can only be " Untagged " for one VLAN.

Tagged: Allows an interface to carry traffic for multiple VLANs simultaneously by using 802.1Q headers.

6

The End 7 User Diagnostics (EUD) utility is a software tool designed to test the hardware components of a BIG-IP system. Because the EUD must run when the standard Traffic Management Microkernel (TMM) and Operating System (TMOS) are not fully loaded (especially in " fail to boot " scenarios), it is accessed at the boot level.

Access Requirements: To run the EUD, the administrator must reboot the BIG-IP system and select the EUD option from the GRUB boot menu . Because the network interfaces (Internal, External, and Management) require a running operating system and drivers to function, they are unavailable during this pre-boot phase.

The Console Port: The Console Port provides a direct out-of-band serial connection to the hardware ' s BIOS and bootloader. This is the only interface that allows an administrator to interact with the system during the early stages of the power-on self-test (POST) and boot sequence to initiate diagnostic tests.

Purpose: The EUD performs a series of tests on the CPU, memory, hard drives, and physical interfaces to identify hardware-level failures before the data plane is even initialized.

By default, when a pool member is marked " down " by a monitor, the BIG-IP system stops sending new connections to that member, but it typically allows existing connections to time out naturally (or resets them depending on profile settings).

Action on Service Down: This setting is configured at the Pool level.

Reselect: When set to Reselect , if a pool member is marked down, the BIG-IP system will immediately attempt to pick a different available pool member for any existing, active connections associated with the failed member.

Client Experience: This is used to maintain the user session by transparently moving the traffic to a healthy server without the client needing to re-establish the connection to the Virtual Server.

Comprehensive and Detailed Explanation From BIG-IP Administration Data Plane Concepts/Course Guide/topics:

BIG-IP evaluates a new connection against eligible virtual servers using increasingly specific traffic-matching criteria. F5 ' s certification material states that, for BIG-IP 11.3 and later, virtual-server precedence considers destination address first, source address second, and service port third , with the most specific applicable listener taking precedence. F5, Inc.

Option B initially appears attractive because it specifies the exact destination 10.16.2.100:445. However, its source 192.168.5.1/32 restricts that virtual server to traffic originating from that single source. The actual packet originates from 10.10.1.1 , so B is not an eligible match. F5 explicitly documents that the source address setting can restrict a virtual server to packets originating from a defined address or range.

Option C is eliminated because its destination is 10.120.6.10, not 10.16.2.100. Option D is the broad catch-all forwarding virtual (0.0.0.0:any, protocol any). Option A , however, is an applicable TCP forwarding virtual for the requested traffic and is preferred over the generic catch-all forwarding listener.

Study Guide References/Topics: Virtual Server Order of Precedence; Source Address Matching; Forwarding (IP) Virtual Servers; FastL4 Processing; Virtual Server Traffic Matching.

In the F5 BIG-IP system, virtual servers are categorized based on their destination address and mask. The system distinguishes between three primary destination scopes:

Host Virtual Server: A virtual server that has a specific IP address (e.g., 10.10.10.50) and a /32 mask.

Network Virtual Server: A virtual server that has a destination address representing a subnet (e.g., 192.168.10.0) and a specific mask (e.g., /24).

Wildcard Virtual Server: A virtual server that has a destination address of 0.0.0.0 (or :: for IPv6) and a mask of 0.0.0.0 (or /0).

While a " Forwarding (IP) " virtual server (Option D) is the Type (behavioral configuration) often used to route traffic without load balancing, the term Wildcard (Option C) is the specific administrative term used to define the " type " of virtual server based on the 0.0.0.0 destination address .

A common architectural use case is to create a Wildcard Virtual Server that listens only on an internal VLAN to act as a default gateway for outbound traffic (Internet access) for back-end servers. This ensures the BIG-IP system can process and forward traffic that does not match any other specific virtual server configuration.

BIG-IP uses a virtual server matching and precedence algorithm to determine which virtual server processes an incoming connection. This decision is made entirely in the data plane and is based on how specifically a virtual server matches the destination IP address and port.

BIG-IP Virtual Server Selection Rules (Simplified):

When multiple virtual servers could match a packet, BIG-IP selects the most specific match , using the following precedence:

Exact IP address and exact port

Exact IP address with wildcard port (port 0 / any)

Wildcard IP address with exact port

Wildcard IP address and wildcard port

Applying the Rules to This Scenario:

Incoming traffic destination: 1.0.0.10:8080

Option C: 1.0.0.10:8080

Exact IP match

Exact port match

Highest possible specificity

If the virtual server is available (green), it wins the match

Option B: 1.0.0.10:any

Exact IP match, but wildcard port

Lower priority than an exact IP + exact port match

Option D: 0.0.0.0:8080

Wildcard IP, exact port

Lower priority than an exact IP match

Option A: 0.0.0.0:any

Wildcard IP and wildcard port

Lowest priority, used only if no more specific virtual server exists

Final Determination:

Because a virtual server configured with destination 1.0.0.10:8080 exactly matches both the IP address and port of the incoming connection—and is available—it will always be selected to process the traffic.

Key Data Plane Concept Reinforced:

BIG-IP always processes traffic using the most specific matching virtual server . Exact destination IP and port matches take precedence over any wildcard or forwarding virtual server definitions.

===========

When troubleshooting performance and latency issues on BIG-IP, especially under peak load conditions, it is critical to identify which Virtual Servers are consuming the most resources . This is a core data plane analysis task .

BIG-IP provides multiple views of configuration and status, but only certain areas expose real-time and historical traffic statistics that correlate directly with CPU usage and throughput.

Why Option C Is Correct:

Statistics > Module Statistics > Local Traffic > Virtual Servers provides:

Real-time and cumulative statistics per Virtual Server

Metrics such as:

Bits in / Bits out

Packets in / Packets out

Current connections

Connection rate

Total requests

The ability to identify high-traffic or high-connection Virtual Servers , which are the most likely contributors to elevated CPU utilization

These statistics allow the administrator to objectively determine which Virtual Servers are the top consumers of system resources and therefore good candidates for migration to a dedicated BIG-IP device.

Why the Other Options Are Incorrect:

A. Local Traffic > Virtual Servers > Virtual Server List

Primarily a configuration view

Does not provide sufficient performance or utilization statistics to identify CPU-heavy Virtual Servers

B. System > Platform

Displays hardware-level information such as CPU cores, memory, disk, and platform type

Does not break down utilization by Virtual Server

D. Local Traffic > Network Map

Provides a logical topology view of Virtual Servers, pools, and pool members

Useful for understanding relationships, but not for identifying high-utilization Virtual Servers

Key Data Plane Concept Reinforced:

To diagnose performance problems and plan traffic redistribution, BIG-IP administrators must rely on Module and object-level statistics , not configuration screens. The Virtual Server statistics view is the authoritative location for identifying traffic hotspots that directly impact CPU and latency during peak events such as Black Friday.

===========

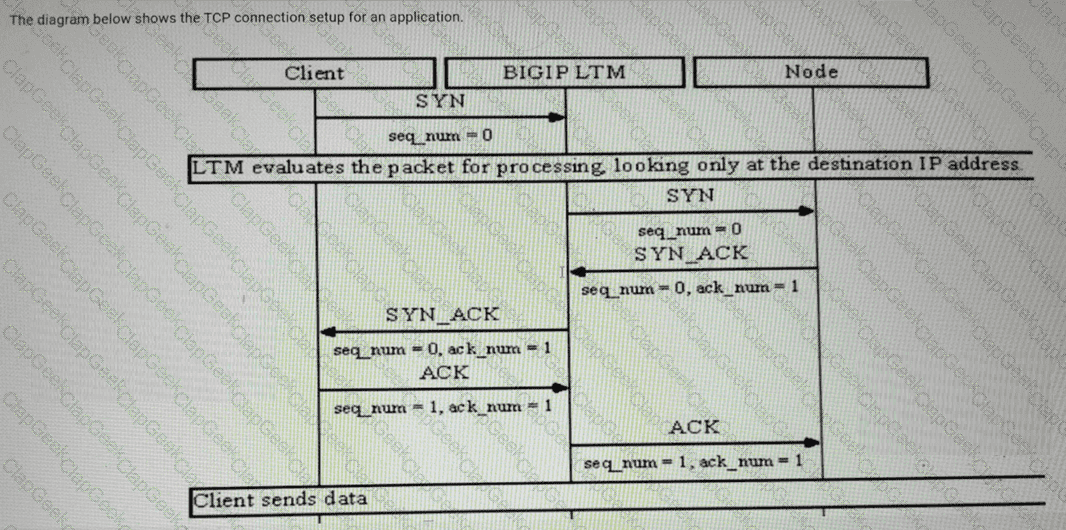

The diagram illustrates a specific TCP handshake sequence where the BIG-IP system acts as a transparent forwarder rather than a full proxy. The key indicators that identify this as a Forwarding (IP) virtual server are as follows:

Initial Packet Processing : The diagram explicitly states that the LTM evaluates the packet looking only at the destination IP address . This is the fundamental characteristic of a Forwarding IP virtual server, which uses the system ' s routing table to make forwarding decisions instead of load balancing to a pool of members.

Handshake Sequence : Unlike a Standard virtual server, which completes the three-way handshake with the client (SYN, SYN-ACK, ACK) before initiating a separate connection to the server, the Forwarding IP virtual server passes the client ' s original SYN packet directly to the destination node.

Response Timing : The BIG-IP system waits for the SYN-ACK from the destination node before it sends a SYN-ACK back to the client. It essentially " passes through " the handshake signals while still maintaining a state entry in the connection table to track the flow.

Packet-by-Packet Logic : While it tracks the state, it does not perform address translation (unless SNAT is specifically configured) or deep packet inspection like a full proxy would.

Why other options are incorrect:

Standard virtual server : A Standard virtual server is a " full proxy. " It would finish the handshake with the client first and only then open a second, independent TCP connection to the backend server.

Stateless virtual server : A stateless virtual server does not track connections in the connection table. The diagram shows the system meticulously passing sequence numbers ($seq\_num$) and acknowledgment numbers ($ack\_num$) between the two sides, which requires stateful tracking of the TCP flow.

In BIG-IP LTM, health monitors are used to determine the availability of pool members and directly influence traffic flow decisions in the data plane.

Key characteristics of the default HTTP monitor according to BIG-IP Administration Data Plane Concepts:

Sends an HTTP request (typically GET /)

Expects an HTTP response code of 200 OK

Any response other than 200 is treated as a monitor failure

A failed monitor causes the pool member to be marked offline (down)

In this scenario:

Two pool members return 404 Not Found

A 404 response indicates that the requested object was not found

This does not meet the success criteria of the default HTTP monitor

These two members are therefore marked offline

One pool member returns 200 OK

This matches the expected response

The member is marked online

Resulting Pool Member Availability:

2 members: Offline

1 member: Online

Why the Other Options Are Incorrect:

B – 404 responses are not considered healthy by the default HTTP monitor

C – At least one member responds with the expected 200 OK

D – Members returning 404 responses fail the monitor and cannot be marked online

Key Data Plane Concept Reinforced:

BIG-IP health monitors make binary availability decisions based strictly on configured success criteria. For HTTP monitors, response codes matter— 404 is a failure , even if the service is technically reachable.

===========

To meet the requirement of fault tolerance when one interface goes down , BIG-IP must use link aggregation so that loss of a single physical link does not isolate the VLAN(s).

How the objects relate (data plane view)

Interfaces = physical links.

Trunk (LACP) = bundles multiple interfaces into one logical link that provides redundancy (and possibly bandwidth aggregation).

VLANs are assigned to interfaces or trunks. If you need multiple VLANs on the same trunk , they must use 802.1Q tagging (because you can only have one untagged VLAN per interface/trunk).

Self IPs are then placed on the VLANs to provide BIG-IP presence and routing/ARP functions, but self IPs are not what provides link resiliency— the trunk does .

Why Option D is correct

You have two physical interfaces and you want resiliency if one fails → put both interfaces into one trunk with LACP enabled .

You need both external and internal VLANs on those same two links → both VLANs should be configured as tagged on that trunk, so they can coexist on the same aggregated link.

If either physical interface fails, the trunk remains up via the remaining interface, keeping both VLANs operational .

Why the other options are incorrect

A : Two VLANs cannot both be untagged on the same trunk/interface. Only one untagged VLAN is possible; additional VLANs must be tagged.

B : Two trunks “each with one VLAN” would typically mean splitting VLANs across separate trunks. With only two interfaces total, that becomes one interface per trunk—if one interface goes down, the VLAN on that interface is down (no redundancy for that VLAN).

C : Same redundancy problem as B, and disabling LACP removes the negotiated aggregation behavior expected when the switch engineer specifically requested LACP.

===========

In a BIG-IP device service cluster , configuration objects such as virtual servers, pools, profiles, and iRules are maintained through configuration synchronization (config-sync) .

Key BIG-IP concepts involved:

Device Service Cluster (DSC) A cluster is a group of BIG-IP devices that share configuration data. One device is typically used to make changes, which are then synchronized to the rest of the group.

Config-Sync Direction Matters

Changes are made on a local device

Those changes must be pushed to the group

The correct operation is “Sync Device to Group”

Why C is correct:

The virtual server was created only on device 1

Other devices in the cluster do not yet have this object

To propagate the new virtual server to all cluster members, the administrator must synchronize device 1 to the group

Why the other options are incorrect:

A. Synchronize the settings of the group to device 1 This would overwrite device 1’s configuration with the group’s existing configuration and may remove the newly created virtual server .

B. Create a new cluster on device 1 The cluster already exists. Creating a new cluster is unnecessary and disruptive.

D. Create a new virtual server on device 2 This defeats the purpose of centralized configuration management and risks configuration drift.

Conclusion:

After creating a new virtual server on a BIG-IP device that is part of a cluster, the administrator must synchronize the configuration from that device to the group so all devices share the same ADC application objects.

In the BIG-IP system object hierarchy, health monitors can be applied at three levels: Node , Pool , and Pool Member .

Pool Level (Properties): Applying a monitor at the Pool > Properties level is the most common and efficient administrative practice. When applied here, the monitor is inherited by all members of that pool. If the monitor fails for a specific member, that member is marked " down " specifically for that pool.

Node Level: If a monitor is applied at the Node level ( Local Traffic > Nodes ), it checks the health of the physical IP address itself. If it fails, that node (and all pool members associated with it) is marked down globally across the entire system.

Member Level: Applying a monitor at the Pool > Members level allows for specific " per-member " monitoring, which is usually only done if different members in the same pool require different health checks.

The Specific Case: For a standard database pool like DB_Pool, the administrator should navigate to Local Traffic > Pools > DB_Pool > Properties and select the appropriate monitor (e.g., a custom TCP or Oracle monitor) from the " Health Monitors " configuration section.
