D-PE-OE-23 Dell PowerEdge Operate 2023 Questions and Answers

To generate and save a SupportAssist collection with system information and debug logs only in the iDRAC UI, follow these steps:

Step-by-Step Guide:

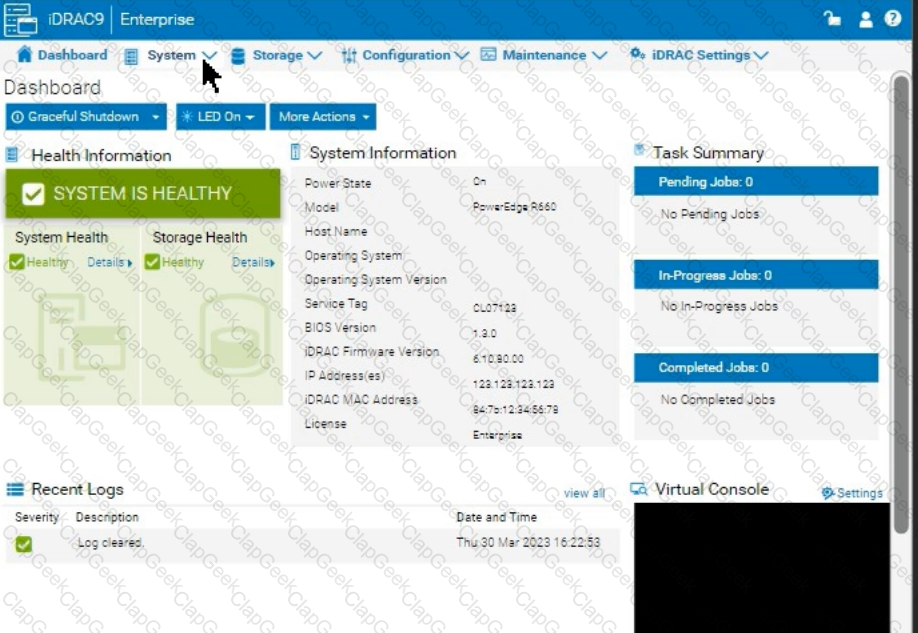

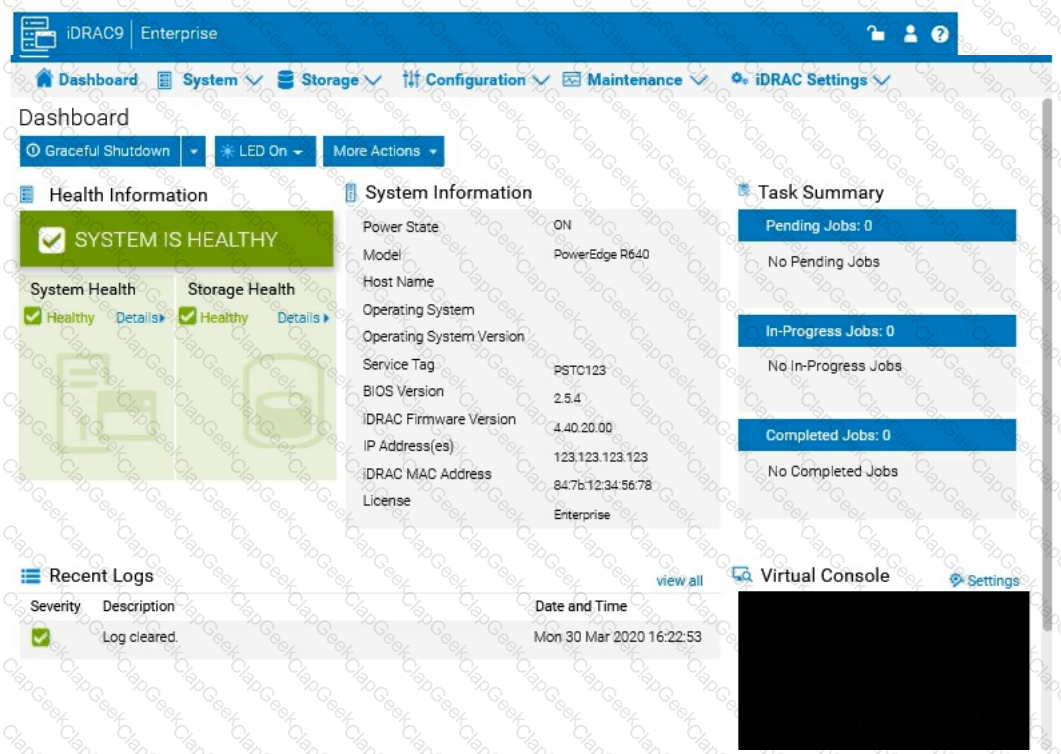

Access SupportAssist in iDRAC:

In the iDRAC interface, navigate to the Maintenance tab in the top menu.

From the dropdown, select SupportAssist. This will bring up the SupportAssist options.

Initiate a Collection:

In the SupportAssist section, look for the option to Create a New Collection or Start a Collection.

Choose Collect System Data or Generate a Collection, depending on the version of iDRAC.

Select Collection Components:

When prompted to select components for the collection, check the boxes for System Information and Debug Logs only.

Ensure no other components are selected to limit the collection to just the required data.

Start the Collection:

Confirm your selection, then click Start or Generate. This will initiate the process to gather the specified data from the system.

Save the Collection Locally:

Once the collection is complete, you should see an option to Download or Save the file.

Click the download link and save the collection file locally on your computer.

Verify the Collection File:

Check the downloaded file to ensure it contains only the system information and debug logs. It should be in a format such as ZIP or TAR, depending on the system configuration.

By following these steps, you can successfully generate a SupportAssist collection with just the system information and debug logs and save it to your local system for further review or support purposes.

To enable capturing the full POST (Power-On Self-Test) sequence using the iDRAC interface, follow these steps:

Step-by-Step Guide:

Log into the iDRAC Interface:

Access the iDRAC UI using the server’s IP address from a web browser.

Enter your credentials to log in.

Navigate to System BIOS Settings:

Go to the Configuration tab on the top menu.

Select BIOS Settings from the dropdown menu. This will take you to the settings where you can manage BIOS-related configurations.

Enable POST Sequence Logging:

In the BIOS Settings, look for an option related to POST Behavior or Boot Sequence Capture.

Enable Verbose Mode or Capture Full POST Sequence. This setting ensures that the entire POST process is logged in detail during the next boot attempt.

Alternatively, if there is a specific setting for Capture System Boot Logs, enable it to ensure detailed logging during POST.

Apply the Changes:

After enabling the POST capture option, click Apply or Save.

iDRAC may prompt for confirmation or inform you that changes will take effect upon the next reboot. Confirm any prompts as required.

Restart the Server (if necessary):

If the server is currently off, attempt to power it on. If it’s on, you may need to perform a Graceful Shutdown followed by a restart to initiate the POST sequence.

Review POST Logs After Reboot:

Once the server attempts to boot, return to the iDRAC Logs section to review the captured POST logs.

Go to Maintenance > System Event Log or Lifecycle Log to view the detailed logs from the POST sequence. This can help diagnose why the server is failing to boot.

By enabling this setting, you will capture detailed information during the POST process, which can then be reviewed to identify any hardware or configuration issues preventing the server from booting successfully.

Optimizing Memory Settings for VMware ESXi on a Dell PowerEdge 16G Server

Server Components (26%)

Define the different processor, memory options, and memory configurations

Understanding Memory Configuration Options

When configuring a Dell PowerEdge 16th Generation (16G) server to support VMware ESXi, it's crucial to optimize memory settings for performance and reliability. The two memory settings that best optimize the server for VMware ESXi are:

Balanced Memory Configuration

Optimizer Mode

1. Balanced Memory Configuration

Explanation: A balanced memory configuration ensures that memory modules (DIMMs) are evenly distributed across all memory channels and CPUs. This maximizes memory bandwidth and performance by enabling the server to utilize all available memory channels effectively.

Benefits for VMware ESXi:

Improved Performance: Balanced configurations reduce memory latency and increase throughput, which is essential for virtualization workloads.

Enhanced Stability: Ensures consistent performance across virtual machines (VMs) by preventing memory bottlenecks.

Dell Operate Reference:

Server Components (26%): Emphasizes the importance of memory configurations and their impact on server performance.

2. Optimizer Mode

Explanation: Optimizer Mode is a BIOS setting that configures the memory for optimal performance. It arranges the memory in a way that prioritizes speed and efficiency, typically by disabling features like memory mirroring or sparing that can reduce performance.

Benefits for VMware ESXi:

Maximum Memory Performance: Optimizer Mode allows the server to achieve the highest possible memory speeds.

Ideal for Virtualization: VMware ESXi benefits from fast memory access, which improves VM performance and responsiveness.

Dell Operate Reference:

System Administration (18%): Configuring BIOS settings is critical for optimizing server operations, particularly for specific workloads like virtualization.

Why the Other Options Are Less Optimal

Near Balanced Configuration:

Explanation: This configuration is close to balanced but may have slight imbalances due to uneven DIMM distribution.

Impact: Can lead to suboptimal performance compared to a fully balanced configuration.

Dell Fault Resilient Mode:

Explanation: A memory mode that reserves a portion of memory for critical applications to protect against memory errors.

Impact: Reduces available memory for VMs and can decrease overall performance, which is not ideal for VMware ESXi environments that require maximum memory resources.

Conclusion

For optimizing a Dell PowerEdge 16G server to support VMware ESXi, selecting Balanced Memory Configuration and Optimizer Mode ensures the best performance and resource utilization. These settings maximize memory bandwidth and speed, which are critical for virtualization workloads.

Dell PowerEdge servers are equipped with various LED indicators on the left control panel to provide immediate visual feedback about the server's status and component health. These indicators help in quickly identifying and troubleshooting issues without needing to access the system logs immediately.

Analyzing the Visual Indicators (Server Troubleshooting - 32%)

As per the "Server Troubleshooting" section, one of the key skills is to "Analyze the visual indicators on server components - system ID, PSU, and BLINK."

Color Codes and Their Meanings

Solid Green Light: Indicates normal operation.

Blinking Green Light: Indicates activity (such as data transfer).

Solid Amber Light: Indicates a fault or error condition.

Blinking Amber Light: Indicates a critical error or failure.

Application to the PCIe Card Indicator

In this scenario, the customer notices that an indicator on the left control panel has turned solid amber. Specifically, this indicator is associated with the PCIe card.

Option A: "PCIe card is present."

Presence is usually indicated by a solid green light, not amber.

Option B: "PCIe card performing a firmware update."

Firmware updates are often indicated by blinking lights but typically not solid amber.

Option C: "PCIe card temperature is normal."

Normal temperature conditions would not trigger an amber light; instead, they would maintain a solid green light.

Option D: "PCIe card experiences an error."

A solid amber light directly correlates with an error condition in the component.

Conclusion

Given the meaning of the solid amber indicator and its association with error conditions in Dell PowerEdge servers, the correct interpretation is that the PCIe card is experiencing an error.

Dell Operate References

Server Components (26%): Understanding server components like PCIe cards is crucial.

Server Troubleshooting (32%): Analyzing visual indicators is a key troubleshooting step.

Analyze the visual indicators on server components: Knowing the significance of LED colors aids in swift problem identification.

Understanding Easy Restore Functionality

Server Troubleshooting (32%)

Explain Easy Restore, diagnostic utilities, and hardware diagnostic options

What is Easy Restore?

Easy Restore is a feature in Dell PowerEdge servers that automatically restores system-specific information after a system board replacement.

Purpose: Minimizes downtime and simplifies recovery by retaining critical system identity information.

Data Restored by Easy Restore

Service Tag: The unique identifier (serial number) of the server.

System Configuration Settings: Includes BIOS settings and other non-volatile configurations.

Data NOT Restored by Easy Restore

Option B: HBA Configuration

Host Bus Adapter settings are not restored automatically.

Option C: PERC Configuration

RAID configurations need to be backed up and restored separately.

Option D: Lifecycle Controller Log

Logs are stored on the system board and do not transfer after replacement.

Evaluation of Options

Option A: Service Tag

Correct Answer: Easy Restore recovers the Service Tag, preserving the server's identity.

Option B: HBA Configuration

Analysis: Requires manual configuration or restoration from a backup.

Option C: PERC Configuration

Analysis: RAID settings are critical but need separate backup and restoration procedures.

Option D: Lifecycle Controller Log

Analysis: Logs are not preserved after system board replacement.

Dell Operate References

Server Troubleshooting (32%)

Highlights the importance of understanding what Easy Restore can and cannot recover.

Conclusion

After replacing the system board on a Dell PowerEdge 16G server, Easy Restore will recover the Service Tag, ensuring the server maintains its unique identity within the network and management systems.

Understanding iDRAC Direct and At-the-Box Management Tools

Server Management and Configuration Tools (14%)

Define the function of the iDRAC, login procedures, licensing, and connection methods

Explain the management interface options - LCC, racadm, OMSA, iSM, OME

What is iDRAC Direct?

iDRAC Direct is a feature that allows administrators to connect directly to the iDRAC interface using a USB connection.

Purpose: Provides at-the-box management capabilities without the need for network access.

Connection: Utilizes a Micro USB port on the server connected to a management station (laptop/PC).

Advanced Server Management Tools Provided with iDRAC Direct

Web Services Management (WSMAN)

Explanation: WSMAN is a standardized protocol that allows for remote management of systems using web services.

Usage with iDRAC Direct: Administrators can execute management tasks via WSMAN over the USB connection provided by iDRAC Direct.

Benefits:

Platform-independent management.

Allows for scripting and automation.

Remote Access Controller Admin (RACADM)

Explanation: RACADM is a command-line utility used to manage the iDRAC and perform various administrative tasks.

Usage with iDRAC Direct: RACADM commands can be executed directly through the USB connection, enabling configuration and monitoring of the server.

Benefits:

Efficient management in environments with limited bandwidth.

Supports scripting for automation.

iDRAC RESTful API

Explanation: The iDRAC RESTful API is a programmatic interface that allows for the management of server hardware using RESTful web services.

Usage with iDRAC Direct: Provides a secure and efficient way to perform management tasks over the USB connection.

Benefits:

Modern API interface compatible with a wide range of programming languages.

Enables integration with automation tools and scripts.

Explanation of Options

Option A: Web Services Management (WSMAN)

Correct Answer: WSMAN is supported over iDRAC Direct for at-the-box management.

Option B: Remote Access Controller Admin (RACADM)

Correct Answer: RACADM commands can be executed via iDRAC Direct.

Option C: Intelligent Platform Management Interface Tool (IPMITool)

Incorrect: While IPMI is a management interface, the IPMITool is not provided specifically with iDRAC Direct for at-the-box management.

Option D: iDRAC Web Interface

Incorrect: The iDRAC Web Interface typically requires network access and is not directly provided over the iDRAC Direct USB connection for at-the-box management.

Option E: iDRAC RESTful API

Correct Answer: The RESTful API is accessible via iDRAC Direct for advanced management.

Dell Operate References

Server Management and Configuration Tools (14%)

Emphasizes understanding various management tools available with iDRAC Direct.

Define the function of the iDRAC, login procedures, licensing, and connection methods

Highlights the use of different interfaces and protocols for server management.

Explain the management interface options - LCC, racadm, OMSA, iSM, OME

Focuses on different tools and their applications in server management.

Conclusion

The three tools provided with iDRAC Direct for advanced server management and at-the-box servicing are:

Web Services Management (WSMAN)

Remote Access Controller Admin (RACADM)

iDRAC RESTful API

These tools enable administrators to perform comprehensive management tasks directly at the server without the need for network connectivity.

Identifying 16th Generation PowerEdge Rack Servers

Server Portfolio and Features (10%)

Define chassis form factors and numbering nomenclature

Identify server features and specifications

Position the server in the market landscape

Understanding Dell PowerEdge Server Generations and Models

Dell PowerEdge servers are categorized by generation (denoted as "G") and model numbers. The 16th Generation (16G) represents the latest series of Dell servers as of 2023, featuring the newest technologies and enhancements.

Evaluation of Options:

Option A: R650

Explanation: The PowerEdge R650 is a 15th Generation (15G) server.

Conclusion: Not a 16G server.

Option B: MX760C

Explanation: The PowerEdge MX760c is a compute sled for the Dell PowerEdge MX7000 modular chassis.

Generation: It is part of the 16th Generation, but it is a modular blade server, not a rack server.

Conclusion: Since the question asks for rack servers, this may not be the best fit.

Option C: R760

Explanation: The PowerEdge R760 is a 16th Generation rack server.

Features:

2U rack form factor

Supports latest Intel Xeon Scalable processors

Enhanced performance and scalability

Conclusion: Correct Answer.

Option D: C6620

Explanation: The PowerEdge C6620 is a 15th Generation server designed for high-density compute environments.

Conclusion: Not a 16G server.

Option E: XE9680

Explanation: The PowerEdge XE9680 is a 16th Generation rack server designed for extreme performance, particularly for AI and HPC workloads.

Features:

Supports up to eight GPUs

High-performance computing capabilities

Conclusion: Correct Answer.

Additional Notes:

Rack Servers vs. Modular Servers:

Rack Servers: Standalone servers that mount directly into standard server racks (e.g., R-series, XE-series).

Modular Servers: Compute modules that fit into a shared chassis (e.g., MX-series). While they can be mounted in racks, they are not considered standalone rack servers.

Dell Operate References:

Server Portfolio and Features (10%)

Define chassis form factors and numbering nomenclature: Understanding model numbers helps identify the server generation.

Identify server features and specifications: Recognizing the characteristics of 16G servers.

Position the server in the market landscape: Knowing which servers are current and their intended workloads.

Conclusion:

The PowerEdge R760 and XE9680 are both 16th Generation rack servers. They represent the latest in Dell's server technology and are designed to meet modern data center needs.

Understanding Software RAID

Server Components (26%)

Define storage options, Drives, PERC, IDSDM, and BOSS

What is Software RAID?

Software RAID utilizes the system's main CPU and memory to manage RAID operations, without the need for dedicated hardware RAID controllers.

Functionality:

RAID levels (such as RAID 0, 1, 5) are implemented via software drivers.

Offers flexibility and cost savings by eliminating additional hardware.

Dependent on the operating system and system resources.

Explanation of Options

Option A: Runs only in write-through mode.

Explanation: Software RAID can support both write-through and write-back modes, depending on the configuration and operating system capabilities.

Conclusion: Incorrect.

Option B: Runs on embedded CPU and memory.

Explanation: Software RAID relies on the server's main CPU and system memory to perform RAID calculations and manage data redundancy.

Conclusion: Correct Answer.

Option C: Runs on the NVRAM.

Explanation: NVRAM (Non-Volatile RAM) is used in hardware RAID controllers to store RAID configuration and cache data. Software RAID does not utilize NVRAM.

Conclusion: Incorrect.

Option D: Runs on a PERC H965.

Explanation: The PERC H965 is a Dell hardware RAID controller. Software RAID, by definition, does not run on hardware RAID controllers.

Conclusion: Incorrect.

Dell Operate References

Server Components (26%):

Define storage options, Drives, PERC, IDSDM, and BOSS: Understanding the differences between software RAID and hardware RAID solutions like PERC controllers.

Storage Options: Knowledge of how storage configurations are managed within servers.

Conclusion

Software RAID runs on the server's embedded CPU and memory, utilizing system resources to manage RAID functions without additional hardware.

Identifying the AMD-Powered Server that Supports Dual CPU, 16G, and iDRAC Express

Server Portfolio and Features (10%)

Define chassis form factors and numbering nomenclature

Identify server features and specifications

Server Components (26%)

Define the different processor, memory options, and memory configurations

Understanding the Server Models

Option A: R7625

Features:

Processor: AMD EPYC processors

CPU Support: Dual-socket (supports two CPUs)

Generation: 16th Generation (16G)

Management: Comes with iDRAC9, supporting iDRAC Express

Analysis:

Meets all the specified criteria:

AMD-powered

Supports dual CPUs

Is a 16G server

Supports iDRAC Express

Conclusion: Correct Answer

Explanation of Other Options

Option B: R7525

Features:

Processor: AMD EPYC processors

CPU Support: Dual-socket

Generation: 15th Generation (15G)

Management: Supports iDRAC9

Analysis:

Does not meet the 16G requirement (it's a 15G server)

Option C: R960

Features:

Processor: Typically Intel Xeon processors

CPU Support: Quad-socket (supports up to four CPUs)

Generation: 14th or 15th Generation

Analysis:

Not AMD-powered

Does not meet the dual CPU and 16G requirements

Option D: R6615

Features:

Processor: AMD EPYC processors

CPU Support: Single-socket (supports one CPU)

Generation: 16th Generation (16G)

Analysis:

Does not support dual CPUs (only supports a single CPU)

Dell Operate References

Server Portfolio and Features (10%)

Identify server features and specifications: Knowing the specifications of each server model is crucial for matching customer requirements.

Server Components (26%)

Define the different processor, memory options, and memory configurations: Understanding CPU support and generation compatibility.

Conclusion

The Dell PowerEdge R7625 is the AMD-powered server that supports dual CPUs, is part of the 16th Generation, and comes with iDRAC Express. It aligns perfectly with the specified requirements.

Understanding GPU Features

Server Components (26%)

Explain how expansion cards are connected and the features of the GPU, NDC, LOM, and OCP options

Explanation of Options

Option A: GPUs can be dynamically reprogrammed with a data path.

Explanation: This statement describes the functionality of Field-Programmable Gate Arrays (FPGAs), not GPUs. FPGAs can be reprogrammed to alter the data path for specific applications.

Conclusion: Incorrect.

Option B: CPUs and GPUs perform the same types of tasks.

Explanation: CPUs and GPUs are designed for different types of tasks. CPUs handle a wide range of general-purpose computing tasks with a few powerful cores optimized for sequential processing. GPUs have many smaller cores designed for parallel processing of similar tasks.

Conclusion: Incorrect.

Option C: A GPU has thousands of cores for efficient execution of parallel functions.

Explanation: GPUs are equipped with thousands of smaller cores that can handle multiple operations simultaneously, making them ideal for parallel processing tasks such as graphics rendering, scientific computations, and machine learning.

Conclusion: Correct Answer.

Option D: GPUs handle compute-intensive parts of applications to assist CPUs.

Explanation: GPUs are often used to offload compute-intensive tasks from the CPU, accelerating applications by handling parallelizable workloads. This collaboration enhances overall system performance.

Dell Operate References

Server Components (26%)

Explain how expansion cards are connected and the features of the GPU: Understanding the role of GPUs in server performance and their ability to handle parallel processing tasks.

Use Cases for GPUs

Accelerating High-Performance Computing (HPC) and AI workloads: GPUs significantly enhance computational capabilities for complex calculations.

Parallel Processing: GPUs' thousands of cores allow for efficient execution of tasks that can be performed simultaneously.

Conclusion

Option C and Option D accurately describe features of GPUs:

C: GPUs have thousands of cores for efficient execution of parallel functions.

D: GPUs handle compute-intensive parts of applications to assist CPUs.

 Launch the Simulator:

Open the PowerEdge iDRAC simulator to access the user interface and perform the required task.

 Navigate to System Information:

In the top menu bar, select the "Configuration" tab.

From the options that appear, choose "Storage". This section will display details and configurations for the storage controllers installed on the server.

 Check the H965i Storage Controller:

Locate the H965i storage controller in the list. Selecting it should bring up a summary page with various specifications for the controller.

Look for the field labeled "Cache Memory Size". This will provide the cache memory size value for the controller.

To configure an iDRAC shared management port with LOM2 and set up a failover network using LOM3 in the iDRAC interface, follow these steps:

Step-by-Step Guide:

Access iDRAC Network Settings:

In the iDRAC interface, navigate to the iDRAC Settings tab in the top menu bar.

Select Network from the dropdown options to access network configuration settings.

Configure the Shared Management Port:

In the Network settings, locate the section for Network Interface or LAN Interface Configuration.

Change the NIC Selection to Shared. This will enable the use of a LAN on Motherboard (LOM) port for iDRAC management.

Select LOM2 for the Shared Management Port:

Once you’ve selected Shared, additional options should appear for selecting the specific port.

Choose LOM2 as the Shared Management Port. This configures iDRAC to use LOM2 for its primary network connection.

Enable Failover and Select LOM3:

Look for the Failover settings within the same Network Interface configuration.

Enable Failover and select LOM3 as the failover network port. This configuration allows iDRAC to switch to LOM3 automatically if there is an issue with the connection on LOM2.

Save and Apply Settings:

Once you have configured the shared management port and failover settings, click Apply or Save to confirm the configuration.

The iDRAC interface may briefly refresh, and you should receive a confirmation that the settings have been applied successfully.

Verify Configuration:

After the settings are saved, you can verify that LOM2 is listed as the shared management port and that LOM3 is set as the failover port under Network settings.

By following these steps in the simulator, you should be able to configure iDRAC to use LOM2 for the shared management port and set up a failover network with LOM3. Make sure to save your changes to apply the configuration.
