Cilium-Associate Cilium Certified AssociateCCA Questions and Answers

Technical explanation

cilium config view is the Cilium CLI command intended to display the current configuration. It reads the configuration associated with the selected Kubernetes context, Cilium namespace, and Helm release and presents the relevant settings for inspection. This makes D the direct answer.

cilium status performs a different function. It reports the health and readiness of Cilium components such as the agent DaemonSet, operator, Envoy, Hubble Relay, and Cluster Mesh. Although status output may reveal a small amount of deployment information, it is not a complete configuration-viewing command.

cilium sysdump collects a comprehensive troubleshooting archive containing Kubernetes resources, component logs, command output, configuration data, and other diagnostic evidence. It is appropriate when preparing a support bundle, but it is unnecessarily broad for simply consulting the current configuration. cilium context deals with Kubernetes context selection or inspection rather than displaying Cilium’s configured values.

The Cilium CLI organizes configuration operations under the cilium config command group. Related subcommands include set , delete , and view . Because the requested action is read-only inspection of the existing settings, view is the appropriate subcommand.

Official references

Cilium CLI `config view` .

Study Guide topic: Installation and Configuration.

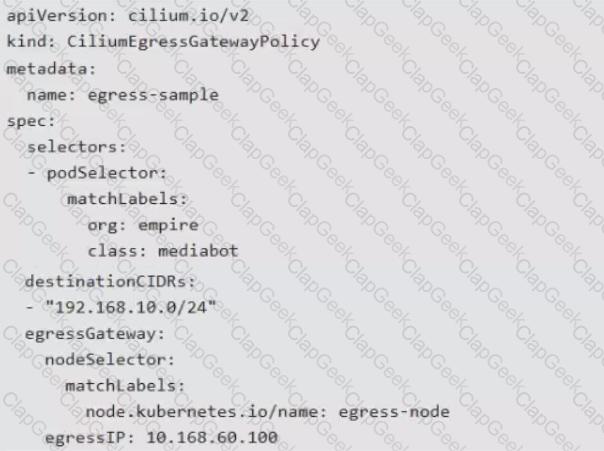

Cilium's official documentation confirms that a CiliumEgressGatewayPolicy selects traffic originating from matching pods , routes traffic destined for the configured destinationCIDRs through the selected egress gateway node, and SNATs that traffic using the configured egressIP.

Technical explanation

B expresses the principal scalability distinction intended by the question. In kube-proxy’s iptables mode, Kubernetes Services and endpoints are represented by chains of netfilter rules. As the number of Services and backends grows, rule creation, synchronization, and packet traversal can involve increasingly large rule sets. Matching through those chains is generally described as having linear scaling characteristics.

Cilium’s kube-proxy replacement stores service and backend state in eBPF maps. Hash-map lookups allow the datapath to locate service entries without sequentially scanning a rule for every Service, providing effectively constant-time lookup behavior for the relevant map operations. This makes the approach better suited to large and frequently changing Kubernetes environments.

Option A is false because iptables and netfilter also operate within the Linux kernel. Option C is false because kube-proxy’s iptables implementation supports IPv6 when the surrounding Kubernetes and host configuration supports it. Option D does not explain kube-proxy’s primary scaling limitation and introduces an unrelated SmartNIC/XDP claim.

The constant-time description is a useful architectural simplification; total performance still depends on map sizing, backend selection, connection tracking, and kernel behavior.

Official references

Cilium eBPF Datapath , Cilium Tuning Guide

Study Guide topic: kube-proxy replacement, eBPF maps, and datapath scalability.

Technical explanation

BIG TCP permits the Linux networking stack to process packets larger than the traditional approximately 64-KiB limit represented by the IP length field while the packets remain inside the host. IPv6 BIG TCP uses a temporary Hop-by-Hop header carrying the larger internal length, while IPv4 BIG TCP sets tot_len to zero and uses the socket buffer length internally. Before transmission, packets are segmented into sizes suitable for the physical network. C therefore identifies the problem BIG TCP addresses.

Option A is false because Cilium’s documentation explicitly states that BIG TCP does not require network-interface MTU changes. The larger objects exist inside the software networking stack and are segmented before appearing on the wire.

Option B reverses the intended performance effect. Larger internal GSO and GRO packets reduce repeated stack traversal, lowering CPU utilization and generally improving throughput and latency. Option D is also false: Generic Segmentation Offload and Generic Receive Offload are fundamental to BIG TCP’s operation. Cilium increases their maximum sizes when BIG TCP is enabled. The source mentions TSO, but the documented mechanism is principally described through GSO and GRO.

Official references

Cilium Performance Tuning and BIG TCP

Study Guide topic: BIG TCP, GSO/GRO, packet-length limits, and performance.

Technical explanation

cilium config set debug true follows the supported Cilium CLI configuration syntax and sets the debug configuration key to true . The cilium config set command accepts a key/value pair and, by default, restarts the Cilium pods so that the changed configuration is applied. The Cilium configuration documentation defines debug as the setting that enables full debug mode. This increases agent logging verbosity and causes eBPF programs to emit additional visibility events for diagnostic use.

Options A, B, and D do not match documented Cilium CLI command structures. There is no cilium log level --set=debug command in the Cilium CLI hierarchy, and neither cilium logging.level=debug nor cilium logging debug is valid configuration syntax. A Helm-managed installation may also enable debugging through the chart value debug.enabled=true , but that does not make any of the alternative commands correct.

Debug mode should be enabled deliberately because it increases log volume and may generate additional datapath visibility information. After troubleshooting, operators should normally restore the previous setting to avoid unnecessary operational overhead.

The supplied answer key incorrectly identifies B. The verified answer is C.

Official references

Cilium configuration ; Cilium CLI `config set` ; Helm values .

Study Guide topic: Installation and Configuration.

Technical explanation

cilium config view is the Cilium CLI command used to display the current Cilium configuration. It reads the configuration associated with the selected Kubernetes context, Cilium namespace, and Helm release. The command belongs to the cilium config command group, which manages installation configuration.

Option B reverses the expected command structure and does not correspond to a documented Cilium CLI operation. Option D resembles command syntax used on traditional network appliances but is not part of the Cilium CLI. Option C is both textually corrupted and conceptually inaccurate: Cilium configuration is not generally exposed through a cluster-wide resource named ciliumconfig.cilium.io . Runtime settings are commonly represented through the Cilium ConfigMap and Helm release values, while specialized resources such as CiliumNodeConfig apply targeted per-node configuration.

The wording “display show” is a source-bank editing defect but does not affect the answer. Administrators should also distinguish the external cilium management CLI from cilium-dbg , which runs with or communicates with the node-local Cilium agent and provides detailed datapath and agent diagnostics.

Official references

cilium config view , Cilium Component Overview

Study Guide topic: Cilium CLI configuration inspection and command structure.

Technical explanation

Hubble obtains its visibility from Cilium’s eBPF datapath, and the Hubble Server is embedded in the Cilium agent. Hubble therefore cannot provide its normal flow-observability capabilities as a standalone installation without Cilium, eliminating B.

CNI chaining allows Cilium to coexist with a supported existing CNI. The original plugin continues to supply base connectivity and IP address management, while Cilium attaches eBPF programs to the created network devices. Those programs provide visibility, policy enforcement, and other Cilium functionality. Hubble can then be enabled on top of the chained Cilium deployment. This approach avoids an immediate, disruptive replacement of the production cluster’s networking layer and is consequently the best answer.

Options C and D could be appropriate in broader migration projects, particularly when a current CNI is incompatible with chaining or when full native-Cilium functionality is required. However, both imply substantially more workload movement or cutover activity than the stated objective of minimizing downtime.

Compatibility, chaining mode, current CNI behavior, kernel requirements, and feature limitations must still be validated before production rollout.

Official references

Cilium CNI Chaining , Hubble Internals , Troubleshooting Hubble

Study Guide topic: Hubble prerequisites, CNI chaining, and production adoption.

Technical explanation

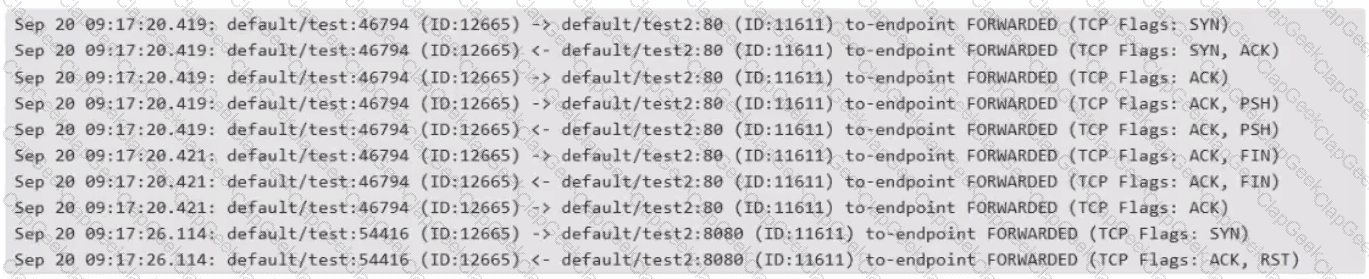

The exhibit records connections originating from default/test and directed to default/test2 , eliminating B and C because those choices reverse the initiating workload. For destination port 80, the flow shows the TCP three-way handshake—SYN, SYN-ACK, and ACK—followed by bidirectional packets with ACK/PSH flags and an orderly FIN exchange. This is the pattern of a successfully established request and response, so the first curl operation succeeded.

The later connection targets port 8080. Hubble records a SYN from test followed by an ACK, RST response from test2 . A reset returned immediately after the connection attempt indicates that the destination rejected or could not accept the connection, commonly because no process was listening on that port. It is not shown as a policy drop; both entries carry the FORWARDED verdict. Thus the network delivered the packets, but the TCP connection itself failed.

Option D is the only choice matching a successful request from test to port 80 and a failed request from test to port 8080. Its displayed IP strings contain source-document transcription defects, but its workload direction, ports, and outcomes match the exhibit.

Official references

Inspecting Network Flows with the CLI ; Troubleshooting with Hubble .

Study Guide topic: Network Observability.

Technical explanation

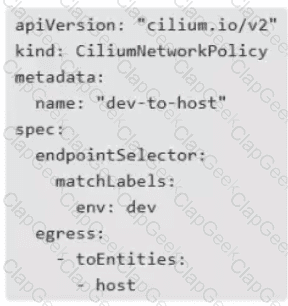

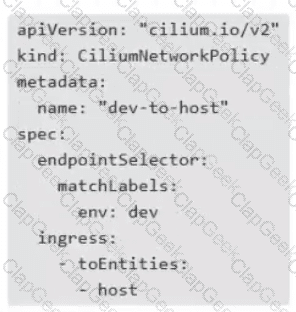

Option D uses the correct structure for permitting egress from selected endpoints to the local host entity. The endpointSelector selects endpoints whose label env equals dev . Because the intended traffic travels from those endpoints toward the host, the policy must contain an egress rule. An egress peer is expressed through toEntities , and host is the reserved entity representing the local host, including host-networked containers on that node.

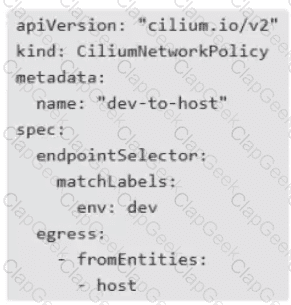

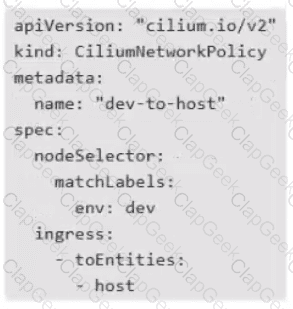

Option A is invalid because fromEntities is an ingress-oriented field and cannot express an egress destination. Option B uses nodeSelector , which selects nodes rather than workload endpoints and is only valid for node-level rules in a CiliumClusterwideNetworkPolicy ; it is not valid in the displayed namespaced CiliumNetworkPolicy . It also combines ingress with toEntities , reversing the rule direction. Option C has a valid workload selector but again uses toEntities under ingress ; ingress rules describe sources through constructs such as fromEntities .

Applying option D places the selected endpoints into egress default-deny mode and then expressly permits traffic whose destination is the host entity. Other egress traffic must be allowed separately.

Official references

Policy Enforcement and Rule Basics ; Endpoint Lifecycle policy examples .

Study Guide topic: Network Policy.

Technical explanation

For every pod managed by Cilium, the responsible node-local Cilium agent creates a CiliumEndpoint object with the same name and namespace. The object exposes endpoint state such as labels, the allocated security identity, addressing information, and effective policy. The agents also create endpoint objects for their inter-agent health endpoints. B is therefore correct.

The other responsibilities belong primarily to the Cilium Operator. The operator normally registers Cilium’s CustomResourceDefinitions, manages addresses for LoadBalancer Services when LB IPAM is active, and performs configured cluster-wide synchronization or shared-state operations. It also garbage-collects orphaned CiliumEndpoint resources when their associated pods no longer exist or have permanently completed.

The Cilium agent itself runs on each node. It responds to workload lifecycle events, creates and manages local endpoints, loads eBPF programs, applies policies, and maintains the node’s datapath. This division ensures that latency-sensitive forwarding and endpoint operations remain node-local while logically cluster-wide activities are consolidated in the operator.

Official references

CiliumEndpoint CRD , Cilium Operator Responsibilities

Study Guide topic: Cilium agent, Cilium Operator, and CiliumEndpoint lifecycle.

Technical explanation

The intended answer is A because API request limiting corresponds to rate limiting, which Cilium identifies as a core Layer 7 traffic-management capability. Cilium combines its eBPF datapath with Envoy for application-layer processing. The official Service Mesh documentation expressly includes rate limiting among the functions that must understand protocols such as HTTP, REST, gRPC, and WebSocket. It is therefore not merely packet-rate policing at Layer 3 or Layer 4; it can be applied with application-protocol context.

However, this question is no longer valid as a strict single-answer item. Current Cilium documentation also describes proxy-based Layer 7 load balancing as useful for gRPC and provides an Envoy-backed implementation for Kubernetes Services. Consequently, option C is also supportable under the current product documentation, although the feature is identified as beta. API authorization and fault-delay injection are not presented as equivalent first-class Cilium Service Mesh use cases in the cited feature overview.

For certification-bank purposes, retain A as the intended answer, but revise option C or qualify it to restore a unique correct choice.

Official references

Service Mesh ; Proxy Load Balancing for Kubernetes Services .

Study Guide topic: Service Mesh.

Technical explanation

If a global Service has no healthy local endpoints matching its selector, every available backend can be remote. Cluster Mesh synchronizes remote service and endpoint information, allowing the local Cilium datapath to load-balance requests to backend pods in connected clusters. The absence of local endpoints therefore provides a direct explanation for the observed behavior.

If the local cluster were not part of the Cluster Mesh, its Cilium agents would not normally receive the remote endpoint state needed to route traffic through the global Service, so B does not explain successful remote-only selection. An affinity value of none is the default behavior and expresses no preference between local and remote endpoints. When both categories exist and are healthy, this permits load balancing across both; it does not require every connection to use remote backends.

Setting service.cilium.io/shared: "false" prevents the local Service’s backends from being shared with remote clusters. It does not instruct the local cluster to direct all requests toward remote endpoints.

A separate possible cause, not presented among the choices, would be service.cilium.io/affinity: "remote" . Among the supplied answers, however, A is the valid explanation.

Official references

Service Affinity ; Cluster Mesh .

Study Guide topic: Cluster Mesh.

Technical explanation

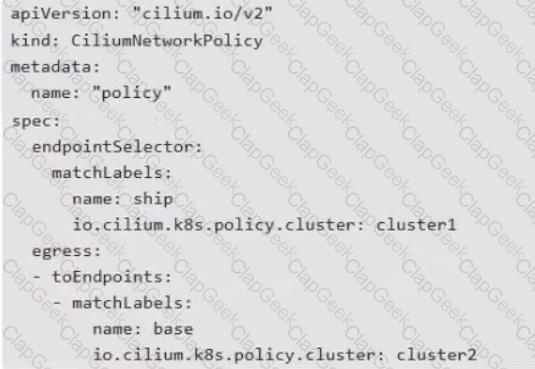

The policy’s endpointSelector selects the ship workload in the namespace containing the CiliumNetworkPolicy , which is ns-cca . It also explicitly includes io.cilium.k8s.policy.cluster: cluster1 , confirming that the selected source endpoint belongs to cluster1.

The egress rule authorizes communication to an endpoint carrying name: base and the cluster label io.cilium.k8s.policy.cluster: cluster2 . Because the namespaced policy does not specify a different destination namespace through k8s:io.kubernetes.pod.namespace , the intended destination is the corresponding base workload in ns-cca on cluster2. Therefore, A matches the policy.

Options C and D incorrectly describe the rule as a deny rule. Cilium policy rules use an allow-list model unless an explicit egressDeny or ingressDeny section is present. The exhibit contains an ordinary egress rule, so matching traffic is authorized. Option B incorrectly places the destination in default .

Current Cilium versions require explicit cluster targeting for remote endpoints, which this policy provides through the cluster label.

Official references

Cluster Mesh Network Policy , Namespaces in Cilium Policy

Study Guide topic: Cluster Mesh labels, namespaced policies, and cross-cluster endpoint selection.

Technical explanation

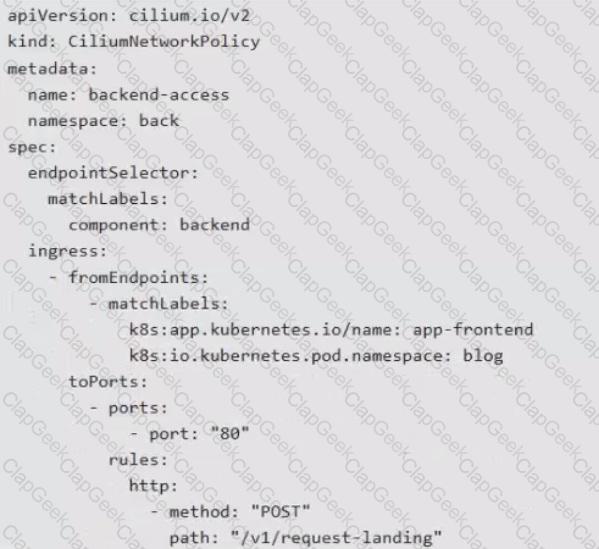

The policy attaches an HTTP Layer 7 rule to port 80 but omits protocol: TCP from the associated ports entry. HTTP policy is layered on a Layer 4 TCP rule, and the documented Cilium form explicitly identifies TCP before specifying the HTTP method and path. D therefore identifies the configuration defect intended by the question.

The cross-namespace source selection is valid. The policy resides in namespace back and selects backend pods there. Its fromEndpoints selector explicitly includes k8s:io.kubernetes.pod.namespace: blog , allowing it to select matching app-frontend endpoints in that other namespace. Option A is consequently not an error.

The k8s: source prefix in k8s:app.kubernetes.io/name is also valid Cilium label syntax and identifies the Kubernetes label source, making B false. Port 80 may be used in a Cilium policy; the privileged-port restriction concerns which processes may bind low-numbered ports under operating-system permissions, not whether a network policy can reference them.

The corrected port entry should contain port: "80" together with protocol: TCP .

Official references

Cilium Layer 7 Policies , Kubernetes Constructs in Cilium Policy

Study Guide topic: Combining Layer 4 port rules with Layer 7 HTTP policies.

Technical explanation

Cilium derives an endpoint’s security identity from its security-relevant labels rather than from its current IP address. When multiple endpoints possess the same relevant label set, they receive and share the same numeric security identity. This enables policies to follow an application as pods are recreated, rescheduled, or scaled across nodes.

In Kubernetes, the Cilium agent obtains workload metadata through the Kubernetes API and associates the pod’s labels with the corresponding Cilium endpoint. Identity allocation converts the relevant label set into a cluster-wide identity. Policy enforcement then matches that identity in the eBPF datapath instead of depending exclusively on short-lived pod addresses.

Option A incorrectly makes the IP address the source of identity and says that identities cannot be shared. Option B incorrectly identifies annotations as the identity foundation. Annotations may configure behavior, but Cilium’s security model is label-based. Option D is also incorrect because operators do not ordinarily assign each pod’s numeric security identity manually. Identity allocation and lifecycle management are automatic.

Official references

Cilium Terminology and Identities , Limiting Identity-Relevant Labels

Study Guide topic: Label-derived identities and identity-based policy enforcement.
