CCST-Networking Cisco Certified Support Technician (CCST) Networking Exam Questions and Answers

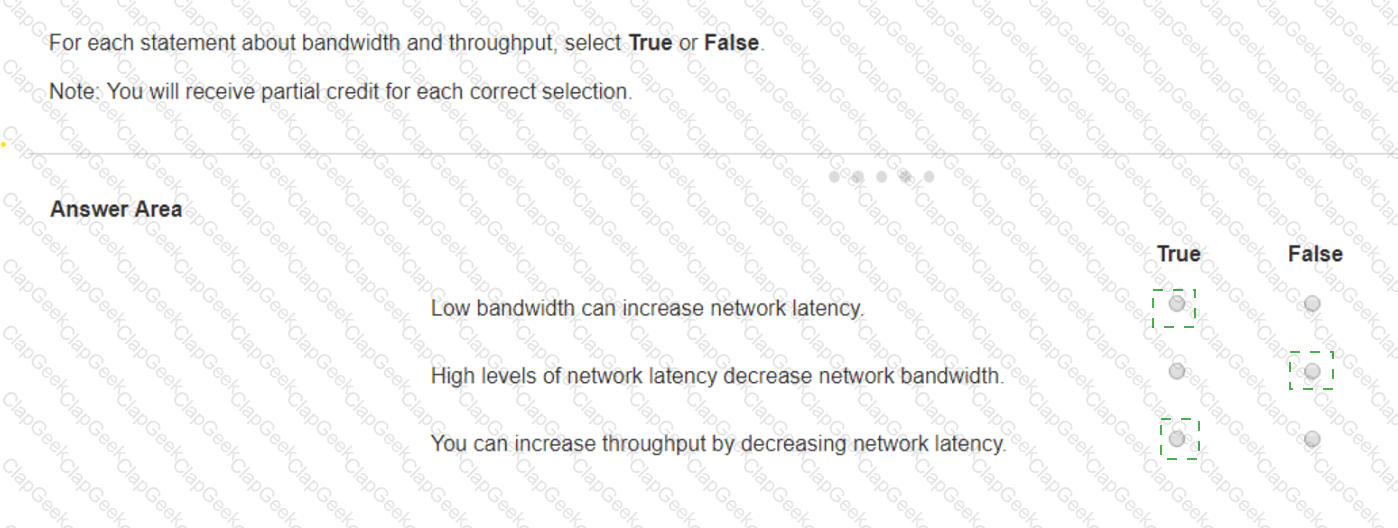

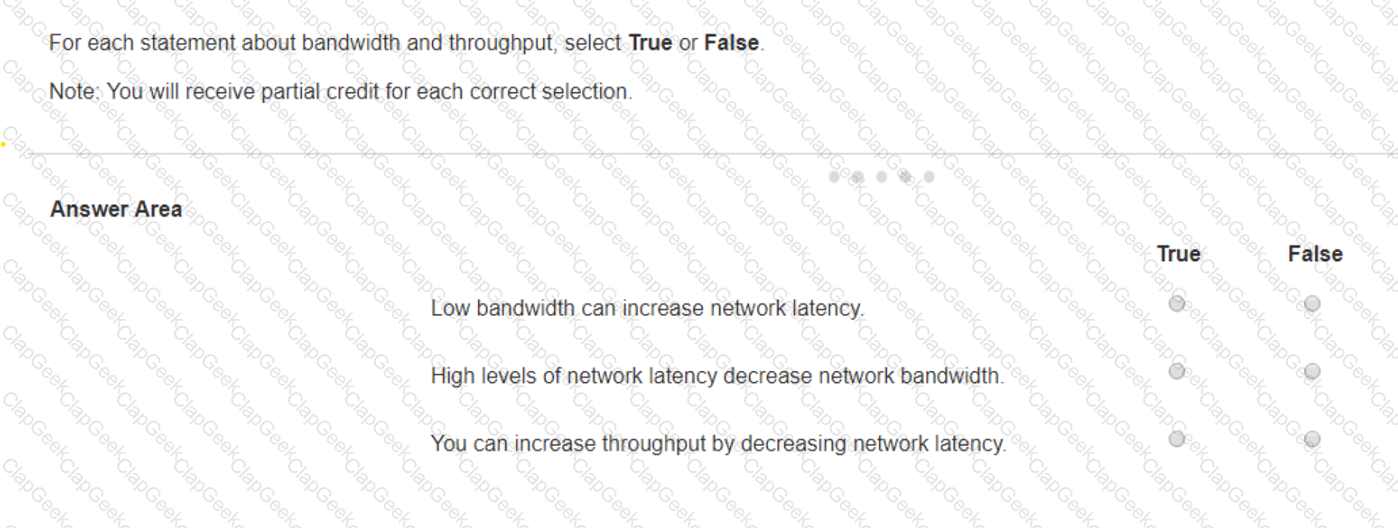

Statement 1: Low bandwidth can increase network latency.

True: Low bandwidth can result in increased network latency because the network may become congested, leading to delays in data transmission.

Statement 2: High levels of network latency decrease network bandwidth.

False: High levels of network latency do not decrease the available network bandwidth, but they do affect the perceived performance and throughput of the network.

Statement 3: You can increase throughput by decreasing network latency.

True: Decreasing network latency can increase throughput because data can be transmitted more quickly and efficiently without delays.

Bandwidth vs. Latency: Bandwidth refers to the maximum rate at which data can be transferred over a network path. Latency is the time it takes for a data packet to travel from the source to the destination.

Low bandwidth can cause network congestion, which can increase latency as packets wait to be transmitted.

High latency does not reduce the actual bandwidth but can affect the overall performance and efficiency of data transmission.

Reducing latency can lead to higher throughput because the network can handle more data in a given period without delays.

References:

Network Performance Metrics: Cisco Network Performance

Understanding Bandwidth and Latency: Bandwidth vs. Latency

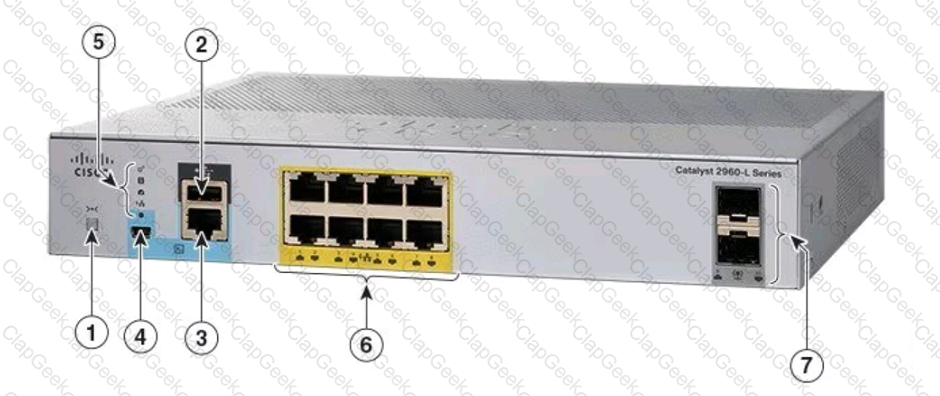

In the provided image of the Cisco PoE switch, the ports identified with number 6 are the standard RJ-45 Ethernet ports typically found on switches that provide both data connectivity and Power over Ethernet (PoE). PoE ports are designed to supply power to devices such as IP phones, wireless access points, and other PoE-enabled devices directly through the Ethernet cable.

Ports:

•2: Console port (for management and configuration)

•3 and 4: Specific function ports (often for management)

•6: RJ-45 Ethernet ports (capable of providing PoE)

•7: SFP ports (for fiber connections, typically do not provide PoE)

Thus, the correct answer is C. Ports identified with number 6.

References :=

•Cisco Catalyst 2960-L Series Switches Data Sheet

•Cisco PoE Overview

Firewall: A firewall is a network security device that monitors and controls incoming and outgoing network traffic based on predetermined security rules. It permits or denies traffic based on IP addresses, port numbers, or applications.

Access Point: This is a device that allows wireless devices to connect to a wired network using Wi-Fi. It does not perform traffic filtering based on IP, port, or application.

VPN Gateway: This device allows for secure connections between networks over the internet, but it is not primarily used for traffic filtering based on IP, port, or application.

Intrusion Detection System (IDS): This device monitors network traffic for suspicious activity and policy violations, but it does not actively permit or deny traffic.

References:

Understanding Firewalls: Firewall Basics

A firewall can direct all web traffic to a specific IP address.

True: Firewalls can be configured to perform Network Address Translation (NAT) and port forwarding, which can direct all web traffic (typically on port 80 and 443) to a specific internal IP address.

A firewall can block traffic to specific ports on internal computers.

True: Firewalls can be configured with access control lists (ACLs) or rules to block traffic to specific ports on internal computers, enhancing security by restricting unwanted or harmful traffic.

A firewall can prevent specific apps from running on a computer.

False: Firewalls typically control traffic flow and do not prevent specific applications from running on a computer. Application control is usually managed by endpoint security software or application control systems.

Directing Web Traffic: Firewalls can manage traffic redirection using NAT and port forwarding rules to route web traffic to designated servers or devices within the network.

Blocking Specific Ports: Firewalls can enforce security policies by blocking or allowing traffic based on port numbers, ensuring that only permitted traffic reaches internal systems.

Application Control: While firewalls manage network traffic, preventing applications from running typically requires software specifically designed for endpoint protection and application management.

References:

Understanding Firewalls: Firewall Capabilities

Network Security Best Practices: Network Security Guide

The private IP address ranges that are set aside specifically for use within private networks and not routable on the internet are as follows:

Class A: 10.0.0.0 to 10.255.255.255

Class B: 172.16.0.0 to 172.31.255.255

Class C: 192.168.0.0 to 192.168.255.255

These ranges are defined by the Internet Assigned Numbers Authority (IANA) and are used for local communications within a private network123.

Given the options: A.172.16.0.0 to 172.31.255.255falls within the Class B private range. B.192.16.0.0 to 192.16.255.255is not a recognized private IP range. C.11.0.0.0 to 11.255.255.255is not a recognized private IP range. D.192.168.0.0 to 192.168.255.255falls within the Class C private range.

Therefore, the correct selections that the company should use for their private networks areAandD.

References:=

Reserved IP addresses on Wikipedia

Private IP Addresses in Networking - GeeksforGeeks

Understanding Private IP Ranges, Uses, Benefits, and Warnings

•1000BASE-T Cable: This refers to Gigabit Ethernet over twisted-pair cables (Cat 5e or higher).

•Connector: RJ-45 connectors are used for Ethernet cables, including those used for 1000BASE-T.

•Coax: Used for cable TV and older Ethernet standards like 10BASE2.

•RJ-11: Used for telephone connections.

•OS2 LC: Used for fiber optic connections.

References:

•Ethernet Standards and Cables: Ethernet Cable Guide

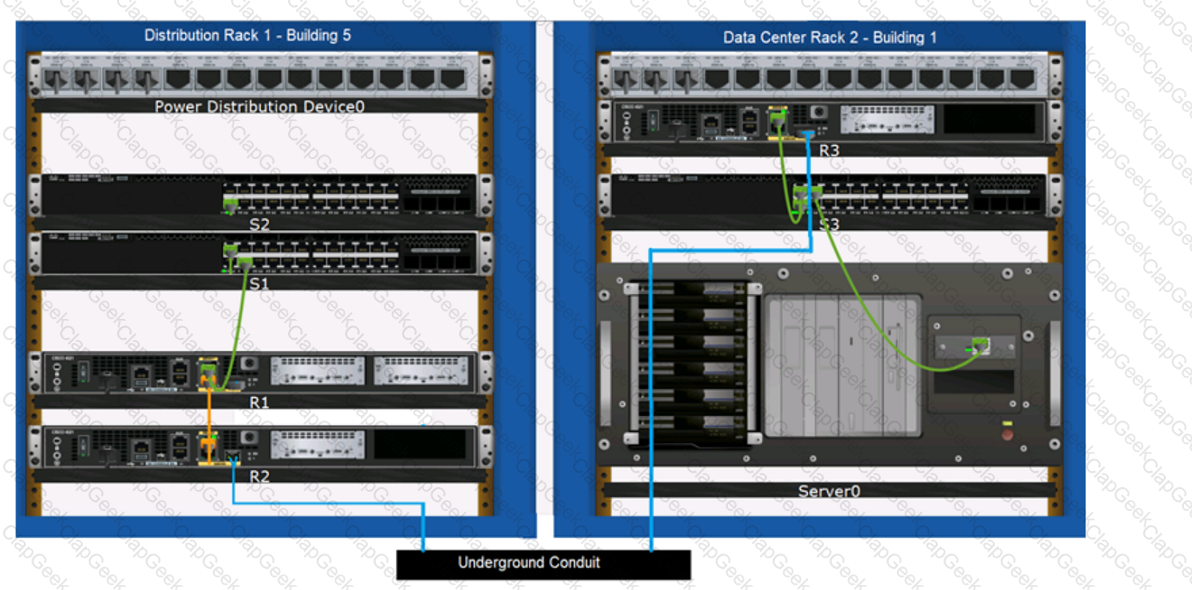

Based on the image description provided, here are the cable types matched with the appropriate connection descriptions:

Connects Switch S1 to Router R1 Gi0/0/1 interfaceCable Type: = Straight-through UTP Cable

Connects Router R2 Gi0/0/0 to Router R3 Gi0/0/0 via underground conduitCable Type: = Fiber Optic Cable

Connects Router R1 Gi0/0/0 to Router R2 Gi0/0/1Cable Type: = Crossover UTP Cable

Connects Switch S3 to Server0 network interface cardCable Type: = Straight-through UTP Cable

The choices are based on standard networking practices where:

Straight-through UTP cablesare typically used to connect a switch to a router or a network interface card.

Fiber optic cablesare ideal for long-distance, high-speed data transmission, such as connections through an underground conduit.

Crossover UTP cablesare used to connect similar devices, such as router-to-router connections.

These matches are consistent with the color-coded cables in the image: green for switch connections, yellow for router-to-router connections within the same rack, and blue for inter-rack connections. The use of these cables follows the Ethernet cabling standards.

Connects Switch S1 to Router R1 Gi0/0/1 interface:

Cable Type: Straight-through UTP Cable

Explanation: A straight-through UTP cable is typically used to connect different types of devices, such as a switch to a router.

Connects Router R2 Gi0/0/0 to Router R3 Gi0/0/0 via underground conduit:

Cable Type: Fiber Optic Cable

Explanation: Fiber optic cables are used for long-distance connections, such as those through an underground conduit between buildings.

Connects Router R1 Gi0/0/0 to Router R2 Gi0/0/1:

Cable Type: Crossover UTP Cable

Explanation: A crossover UTP cable is typically used to connect similar devices directly, such as router to router connections.

Connects Switch S3 to Server0 network interface card:

Cable Type: Straight-through UTP Cable

Explanation: A straight-through UTP cable is typically used to connect a switch to an end device, such as a server.

Straight-through UTP Cable: Used to connect different devices (e.g., switch to router, switch to server).

Crossover UTP Cable: Used to connect similar devices directly (e.g., router to router, switch to switch).

Fiber Optic Cable: Used for long-distance and high-speed connections, often between buildings or data centers.

References:

Network Cable Types and Uses: Cisco Network Cables

Understanding Ethernet Cabling: Ethernet Cable Guide

The CIDR (Classless Inter-Domain Routing) notation for the subnet mask 255.255.252.0 is /22. This notation indicates that the first 22 bits of the IP address are used for network identification, and the remaining bits are used for host addresses within the network1.

References :=

•Subnet Cheat Sheet – 24 Subnet Mask, 30, 26, 27, 29, and other IP Address CIDR Network References

=========================

•Subnet Mask to CIDR Notation: The given subnet mask is 255.255.252.0. To convert this to CIDR notation:

•Convert the subnet mask to binary: 11111111.11111111.11111100.00000000

•Count the number of consecutive 1s in the binary form: There are 22 ones.

•Therefore, the CIDR notation is /22.

References:

•Understanding Subnetting and CIDR: Cisco CIDR Guide

•Statement A: "The trace successfully reached the www.cisco.com server." This is true as indicated by the "Trace complete" message at the end, showing that the trace has reached its destination.

•Statement C: "The IPv6 address associated with the www.cisco.com server is 2600:1408:c400:38d::b33." This is true because the final hop in the trace, which is the destination, has this IPv6 address.

•Statement B: "The trace failed after the fourth hop." This is incorrect as the trace continues beyond the fourth hop, despite some intermediate timeouts.

•Statement D: "The routers at hops 5 and 6 are offline." This is not necessarily true. The routers might be configured to not respond to traceroute requests.

•Statement E: "The device sending the trace has IPv6 address 2600:1408:c400:38d::b33." This is incorrect; this address belongs to the destination server, not the sender.

References:

•Understanding Traceroute: Traceroute Guide
