AZ-800 Administering Windows Server Hybrid Core Infrastructure Questions and Answers

Create a domain controller named dc3.corp.fabrikam.com in Vnet1.

In a hybrid network, you can configure Azure virtual machines as domain controllers. The domain controllers in Azure communicate with the on-premises domain controllers in the same way that on-premises domain controllers communicate with each other.

Objective:

Create a read-only copy of the DNS zone contoso.com on SRV2.

Step-by-Step Guide: Using a Secondary Zone

✅ Step 1: Log in to SRV2

Log in to SRV2 (where you want to host the secondary zone) using an account with local administrative privileges.

✅ Step 2: Open DNS Manager

Press Windows + R, type dnsmgmt.msc, and press Enter.

✅ Step 3: Create a Secondary Zone

In the DNS Manager, expand the server node for SRV2.

Right-click Forward Lookup Zones and select New Zone.

The New Zone Wizard opens.

✅ Step 4: Configure the Secondary Zone

Zone Type:

Select Secondary zone and click Next.

Zone Name:

Type contoso.com and click Next.

Master DNS Servers:

Enter the IP address of the master DNS server that hosts the primary zone (e.g., SRV1’s IP).

Click Next.

Finish:

Review the settings and click Finish.

✅ Step 5: Allow Zone Transfers on the Primary Server

On SRV1 (or the DNS server hosting the primary zone):

Open DNS Manager.

Right-click the contoso.com zone and select Properties.

Go to the Zone Transfers tab.

Check Allow zone transfers.

Specify SRV2’s IP address (or allow to any server if needed).

✅ Step 6: Verify Zone Replication

On SRV2, refresh the Forward Lookup Zones in DNS Manager.

The contoso.com zone should now appear as a Secondary zone.

Check the Zone Transfer status to ensure it successfully replicated.

One possible solution to register SRV1 to sync Azure file shares using the 34646045 Storage Sync Service is to use the Register-AzStorageSyncServer cmdlet from the Az.StorageSync module. This cmdlet establishes a trust relationship between the server and the Storage Sync Service, which is required for creating server endpoints and syncing files. Here are the steps to register SRV1 using the cmdlet:

On SRV1, open PowerShell as an administrator and run the following command to install the Az.StorageSync module if it is not already installed:

Install-Module -Name Az.StorageSync

Run the following command to import the Az.StorageSync module:

Import-Module -Name Az.StorageSync

Run the following command to sign in to your Azure account and select the subscription that contains the 34646045 Storage Sync Service:

Connect-AzAccount

Select-AzSubscription -SubscriptionId

Run the following command to register SRV1 with the 34646045 Storage Sync Service. You need to specify the resource group name and the Storage Sync Service name as parameters:

Register-AzStorageSyncServer -ResourceGroupName -StorageSyncServiceName 34646045

Wait for the registration to complete. You can verify the registration status by checking the Registered servers tab on the Azure portal or by running the following command:

Get-AzStorageSyncServer -ResourceGroupName -StorageSyncServiceName 34646045

Now, SRV1 is registered with the 34646045 Storage Sync Service and ready to sync Azure file shares. You can create server endpoints on SRV1 and cloud endpoints on the Azure file shares to define the sync topology.

One possible solution to monitor the security configuration of DC1 by using Microsoft Defender for Cloud is to use the Guest Configuration feature. Guest Configuration is a service that audits settings inside Linux and Windows virtual machines (VMs) to assess their compliance with your organization’s security policies. You can use Guest Configuration to monitor the security baseline settings for Windows Server in the Microsoft Defender for Cloud portal by following these steps:

On DC1, open a web browser and go to the folder named \dc1.contoso.com\install. Download the Guest Configuration extension file (GuestConfiguration.msi) and save it to a local folder, such as C:\Temp.

Run the Guest Configuration extension file and follow the installation wizard. You can choose to install the extension for all users or only for the current user. For more information on how to install the Guest Configuration extension, see Install the Guest Configuration extension.

After the installation is complete, sign in to the Microsoft Defender for Cloud portal (2).

In the left pane, select Security Center and then Recommendations.

In the recommendations list, find and select Vulnerabilities in security configuration on your Windows machines should be remediated (powered by Guest Configuration).

In the Remediate Security Configurations page, you can see the compliance status of your Windows VMs, including DC1, based on the Azure Compute Benchmark. The Azure Compute Benchmark is a set of rules that define the desired configuration state of your VMs. You can also see the number of failed, passed, and skipped rules for each VM. For more information on the Azure Compute Benchmark, see Microsoft cloud security benchmark: Azure compute benchmark is now available.

To view the details of the security configuration of DC1, click on the VM name and then select View details. You can see the list of rules that apply to DC1 and their compliance status. You can also see the severity, description, and remediation steps for each rule. For example, you can see if DC1 has the latest security updates installed, if the firewall is enabled, if the password policy is enforced, and so on.

To monitor the security configuration of DC1 over time, you can use the Compliance over time chart, which shows the trend of compliance status for DC1 in the past 30 days. You can also use the Compliance breakdown chart, which shows the distribution of compliance status for DC1 by rule severity.

By using Guest Configuration, you can monitor the security configuration of DC1 by using Microsoft Defender for Cloud and ensure that it meets your organization’s security standards. You can also use Guest Configuration to monitor the security configuration of other Windows and Linux VMs in your Azure environment.

To deploy a new primary DNS zone named fabrikam.com to DC1 and sign the zone, you can follow these steps:

Step 1: Create the Primary DNS Zone Use the Add-DnsServerPrimaryZone PowerShell command to create the primary zone:

Add-DnsServerPrimaryZone -Name "fabrikam.com" -ZoneFile "fabrikam.com.dns" -DynamicUpdate Secure

This command creates a primary zone for fabrikam.com with a DNS file named fabrikam.com.dns and allows secure dynamic updates.

Step 2: Sign the Zone To sign the zone, you can use the DNS Manager or Windows PowerShell. Here’s how to sign the zone using PowerShell:

Add-DnsServerSigningKey -ZoneName "fabrikam.com" -Type KeySigningKey -CryptoAlgorithm RsaSha256

Set-DnsServerDnsSecZoneSetting -ZoneName "fabrikam.com" -DenialOfExistence NSEC3 -NSEC3Parameters 1,0,10,""

These commands add a signing key to the zone and set DNSSEC settings with NSEC3 parameters.

Step 3: Publish the Signed Zone After signing the zone, ensure that it is published and available for DNS queries. You can verify the zone signing status using the following command:

Get-DnsServerZone -Name "fabrikam.com"

Note: Ensure that you have the appropriate permissions to perform these actions on DC1 and that the DNS Server role is installed and properly configured. Also, replace "fabrikam.com.dns" with the actual path to your DNS file if it’s different12.

By following these steps, you should be able to deploy and sign the new primary DNS zone fabrikam.com on DC1.

TASK 2

???? Objective: Configure DC3 to replicate with DC1 and DC2 only between 8:00 PM and 6:00 AM.

Step-by-Step Guide: Replication Scheduling for DC3

✅ Step 1: Promote DC3 to a Domain Controller (if not already done)

Use Server Manager or PowerShell to install the Active Directory Domain Services role and promote the server as a domain controller.

Example PowerShell command to install the AD DS role:

powershell

Copy

Install-WindowsFeature AD-Domain-Services

To promote:

powershell

Copy

Install-ADDSDomainController -DomainName "contoso.com"

✅ Step 2: Open Active Directory Sites and Services

Log in to DC3 or another DC with administrative tools.

Open Active Directory Sites and Services (dssite.msc).

✅ Step 3: Locate the Site

In the left pane, expand the Sites container and find the site that contains DC3.

Expand the site to find Servers.

Under Servers, select DC3.

✅ Step 4: Configure Replication Connection Objects

Expand DC3 and click on NTDS Settings.

In the right pane, you’ll see connection objects to other domain controllers (these represent replication partners).

✅ Step 5: Adjust the Replication Schedule for Each Connection

For each connection object to DC1 and DC2:

Right-click the connection object and select Properties.

Click the Change Schedule button.

✅ Step 6: Set the Replication Schedule

In the schedule window, you’ll see a grid of hours.

Clear all hours except the time window of 8 PM to 6 AM (in 1-hour blocks).

Select 8 PM to 6 AM (10 hours total) for all days.

Click OK to save.

✅ Step 7: Verify and Document

Ensure that both connection objects (to DC1 and DC2) have the updated schedule.

Document your configuration as part of your environment’s change control.

One possible solution to ensure that a DHCP scope named scope1 on SRV1 can service client requests is to activate the scope on the DHCP server. A scope must be activated before it can assign IP addresses to DHCP clients. To activate a DHCP scope on SRV1, perform the following steps:

On SRV1, open DNS Manager from the Administrative Tools menu or by typing dnsmgmt.msc in the Run box.

In the left pane, expand your DHCP server and click on IPv4.

In the right pane, right-click on the scope that you want to activate, such as scope1, and select Activate.

Wait for the scope to be activated. You can verify the activation status by checking the icon next to the scope name. A green arrow indicates that the scope is active, while a red arrow indicates that the scope is inactive.

Now, the DHCP scope named scope1 on SRV1 can service client requests and lease IP addresses to DHCP clients. You can test the DHCP service by using the ipconfig /renew command on a DHCP client computer that is connected to the same subnet as the scope.

One possible solution to ensure that all DHCP clients that get an IP address from SRV1 will be configured to use DC1 as a DNS server is to use the DHCP scope options. DHCP scope options are settings that apply to all DHCP clients that obtain an IP address from a specific scope. You can use the DHCP scope options to specify the DNS server IP address, as well as other parameters such as the default gateway, the domain name, and the DNS suffix. Here are the steps to configure the DHCP scope options on SRV1:

On SRV1, open DNS Manager from the Administrative Tools menu or by typing dnsmgmt.msc in the Run box.

In the left pane, expand your DHCP server and click on IPv4.

In the right pane, right-click on the scope that you want to configure and select Properties.

In the Scope Properties dialog box, click on the DNS tab.

Check the box Enable DNS dynamic updates according to the settings below. This option allows the DHCP server to register and update the DNS records for the DHCP clients.

Select the option Always dynamically update DNS records. This option ensures that the DHCP server updates both the A and PTR records for the DHCP clients, regardless of whether they request or support dynamic updates.

Check the box Discard A and PTR records when lease is deleted. This option allows the DHCP server to delete the DNS records for the DHCP clients when their leases expire or are released.

Check the box Dynamically update DNS records for DHCP clients that do not request updates. This option allows the DHCP server to update the DNS records for the DHCP clients that do not support dynamic updates, such as legacy or non-Windows clients.

In the DNS servers section, click on the Add button to add a new DNS server IP address.

In the Add Server dialog box, enter the IP address of DC1, which is the DNS server that you want to use for the DHCP clients, and click Add.

Click OK to close the Add Server dialog box and return to the Scope Properties dialog box.

Click OK to apply the changes and close the Scope Properties dialog box.

Now, all DHCP clients that get an IP address from SRV1 will be configured to use DC1 as a DNS server. You can verify the DNS configuration by using the ipconfig /all command on a DHCP client computer and checking the DNS Servers entry. You can also check the DNS records for the DHCP clients by using the DNS Manager console on DC1.

To map \\dd.contoso.com\instal1 as drive H for all users using Group Policy Preferences and ensure that the new drive mapping takes precedence over any existing mappings, follow these steps:

Step 1: Open Group Policy Management Console Open the Group Policy Management Console (GPMC) on a machine that has administrative privileges over the domain.

Step 2: Create or Edit a GPO Create a new Group Policy Object (GPO) or edit an existing one that applies to the users who need the drive mapping.

Step 3: Navigate to Drive Mappings In the GPO Editor, navigate to:

User Configuration -> Preferences -> Windows Settings -> Drive Maps

Step 4: New Drive Mapping Right-click on Drive Maps and select New -> Mapped Drive.

Step 5: Configure Drive Mapping In the New Drive Properties window, configure the following settings:

Action: Select Replace. This action will overwrite any existing mappings with the same drive letter.

Location: Enter the UNC path \\dd.contoso.com\instal1.

Drive Letter: Choose H: from the drop-down menu.

Reconnect: Check this option if you want the drive mapping to persist across logon sessions.

Label As: Optionally, provide a label for the drive mapping.

Hide/Show this drive: Set according to your preference.

Hide/Show all drives: Set according to your preference.

Step 6: Common Tab Go to the Common tab and configure the following:

Run in logged-on user’s security context (user policy option): Check this option.

Item-level targeting: Click on Targeting and set up any specific criteria if needed.

Step 7: Apply the GPO Click Apply and then OK to save the drive mapping configuration.

Step 8: Link the GPO Link the GPO to an Organizational Unit (OU) or domain that contains the users who should receive the drive mapping.

Step 9: Update Group Policy Instruct users to log off and log back on, or use the gpupdate /force command to refresh Group Policy on their computers.

To manage SRV1 remotely using PowerShell, you’ll need to set up PowerShell Remoting. Here’s a step-by-step guide:

Step 1: Enable PowerShell Remoting on SRV1 On SRV1, run the following command to enable PowerShell Remoting:

Enable-PSRemoting -Force

This command configures the computer to receive PowerShell remote commands that are sent by using the WS-Management technology.

Step 2: Configure the TrustedHosts List (If Needed) If you’re managing SRV1 from a computer that is not part of the same domain, you’ll need to add the managing computer’s name to the TrustedHosts list on SRV1:

Set-Item wsman:\localhost\Client\TrustedHosts -Value "ManagingComputerName" -Concatenate -Force

Replace “ManagingComputerName” with the name of your managing computer.

Step 3: Start a Remote Session From your managing computer, start a remote session with SRV1 using the Enter-PSSession cmdlet:

Enter-PSSession -ComputerName SRV1 -Credential (Get-Credential)

This command prompts you for credentials and then starts a remote session with SRV1.

Step 4: Run Remote Commands Once the remote session is established, you can run any PowerShell command as if you were directly on SRV1. For example:

Get-Service

This command gets the status of services on SRV1.

Step 5: Exit the Remote Session When you’re finished, exit the remote session:

Exit-PSSession

Note: Ensure that both the managing computer and SRV1 are properly configured to communicate over the network, and that any firewalls allow for the necessary ports (default is 5985 for HTTP and 5986 for HTTPS) to be open for WS-Management traffic12.

By following these steps, you should be able to manage SRV1 remotely using PowerShell. Make sure you have the appropriate administrative privileges to perform these actions.

To create a GPO named GPO1 that only applies to a group named MemberServers, you can follow these steps:

On a domain controller or a computer that has the Remote Server Administration Tools (RSAT) installed, open Group Policy Management from the Administrative Tools menu or by typing gpmc.msc in the Run box.

In the left pane, expand your domain and right-click on Group Policy Objects. Select New to create a new GPO.

In the New GPO dialog box, enter GPO1 as the Name of the new GPO and click OK. You can also optionally select a source GPO to copy the settings from.

Right-click on the new GPO and select Edit to open the Group Policy Management Editor. Here, you can configure the settings that you want to apply to the group under the Computer Configuration and User Configuration nodes. For more information on how to edit a GPO, see Edit a Group Policy Object.

Close the Group Policy Management Editor and return to the Group Policy Management console. Right-click on the new GPO and select Scope. Here, you can specify the scope of management for the GPO, such as the links, security filtering, and WMI filtering.

Under the Security Filtering section, click on Authenticated Users and then click on Remove. This will remove the default permission granted to all authenticated users and computers to apply the GPO.

Click on Add and then type the name of the group that you want to apply the GPO to, such as MemberServers. Click OK to add the group to the security filter. You can also click on Advanced to browse the list of groups available in the domain.

Optionally, you can also configure the WMI Filtering section to further filter the GPO based on the Windows Management Instrumentation (WMI) queries. For more information on how to use WMI filtering, see Filter the scope of a GPO by using WMI filters.

To link the GPO to an organizational unit (OU) or a domain, right-click on the OU or the domain in the left pane and select Link an Existing GPO. Select the GPO that you created, such as GPO1, and click OK. You can also change the order of preference by using the Move Up and Move Down buttons.

Wait for the changes to replicate to other domain controllers. You can also force the update of the GPO by using the gpupdate /force command on the domain controller or the client computers. For more information on how to update a GPO, see Update a Group Policy Object.

Now, you have created a GPO named GPO1 that only applies to a group named MemberServers. You can verify the GPO application by using the gpresult /r command on a member server and checking the Applied Group Policy Objects entry. You can also use the Group Policy Results wizard in the Group Policy Management console to generate a report of the GPO application for a specific computer or user. For more information on how to use the Group Policy Results wizard, see Use the Group Policy Results Wizard.

To configure the domain to support the creation of gMSAs, you need to perform the following steps:

On a domain controller or a computer that has the Remote Server Administration Tools (RSAT) installed, open PowerShell as an administrator and run the following command to install the Active Directory module:

Install-WindowsFeature -Name RSAT-AD-PowerShell

Run the following command to create a Key Distribution Service (KDS) root key, which is required for generating passwords for gMSAs. You only need to do this once per domain:

Add-KdsRootKey -EffectiveImmediately

Wait for at least 10 hours for the KDS root key to replicate to all domain controllers in the domain. Alternatively, you can use the -EffectiveTime parameter to specify a past date and time for the KDS root key, but this is not recommended for security reasons. For more information, see Add-KdsRootKey.

After the KDS root key is replicated, you can create and configure gMSAs using the New-ADServiceAccount and Set-ADServiceAccount cmdlets. For more information, see Create a gMSA and Configure a gMSA.

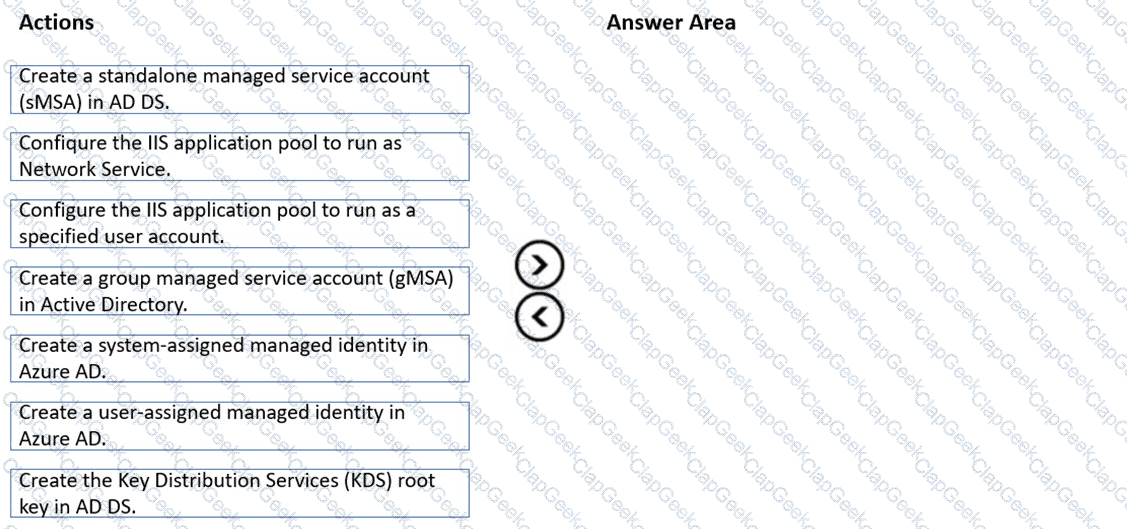

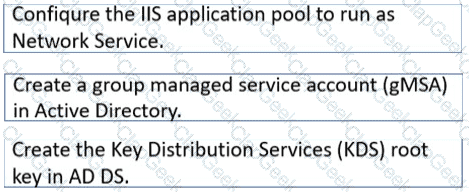

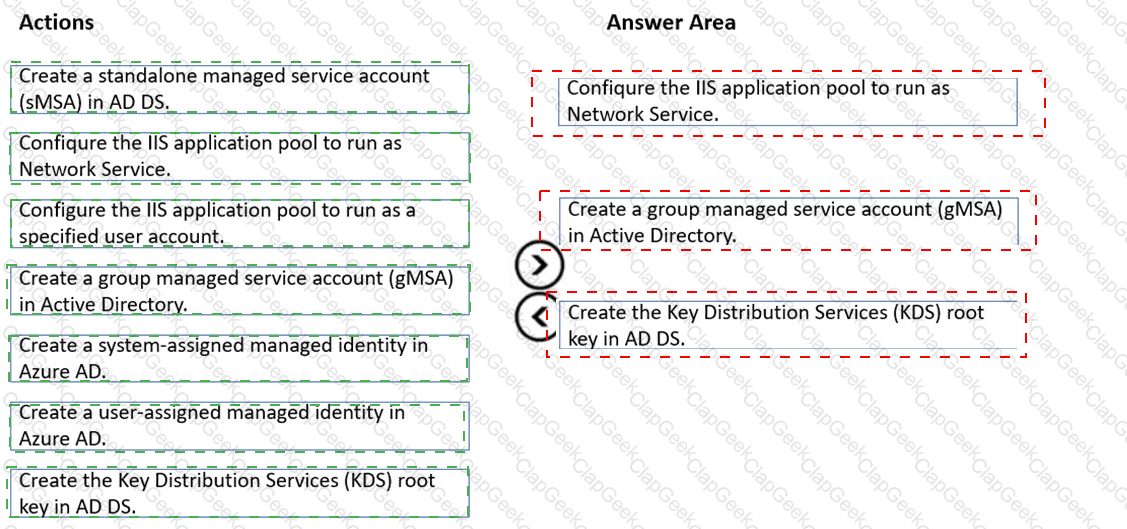

To create a group-managed service account (gMSA) named gMSA1 and make it available on SRV1, you can follow these steps:

Step 1: Create the Key Distribution Services Root Key First, you need to create the KDS Root Key, which is required for the gMSA to function. You can do this with the following PowerShell command:

Add-KdsRootKey –EffectiveTime ((get-date).addhours(-10))

Note: The -EffectiveTime parameter is set to 10 hours in the past to ensure immediate effect.

Step 2: Create the gMSA Next, use the New-ADServiceAccount cmdlet to create the gMSA:

New-ADServiceAccount -Name gMSA1 -DNSHostName gmsa1.domain.com -PrincipalsAllowedToRetrieveManagedPassword SRV1$

Replace domain.com with your actual domain name.

Step 3: Install the gMSA on SRV1 Now, you need to install the gMSA on the server SRV1. Run the following command on SRV1:

Install-ADServiceAccount -Identity gMSA1

Step 4: Test the gMSA To ensure that the gMSA is installed correctly and ready for use, perform a test using:

Test-ADServiceAccount -Identity gMSA1

If the test returns True, the gMSA is correctly installed and ready for use on SRV1.

Step 5: Configure the Service to Use the gMSA Finally, configure the service that requires the gMSA to use gMSA1 by setting the service’s logon account to domain\gMSA1$ and leave the password field blank.

This will create and make the gMSA gMSA1 available on SRV1. Ensure that you have the necessary permissions and that SRV1 is properly joined to the domain before proceeding with these steps123.

Objective:

Configure the DHCP server SRV1 to lease IP addresses only to computers with MAC addresses starting with AABB in a specific range.

Step-by-Step Guide

✅ Step 1: Open DHCP Management Console

Log in to SRV1 with Domain Admin or DHCP Admin privileges.

Open DHCP Manager:

Press Windows + R, type dhcpmgmt.msc, and press Enter.

✅ Step 2: Create a New DHCP Scope

In the DHCP console, expand SRV1.

Right-click IPv4 and select New Scope.

The New Scope Wizard opens.

✅ Step 3: Configure the Scope

Name:

Enter a name (e.g., MAC-Filtered Scope).

Click Next.

IP Address Range:

Start IP: 192.168.1.190

End IP: 192.168.1.200

Subnet mask: as appropriate (e.g., 255.255.255.0).

Click Next.

Add Exclusions:

None needed unless you want to reserve certain addresses.

Click Next.

Lease Duration:

Set as needed, default is usually fine.

Click Next.

Configure DHCP Options:

You can skip or configure as needed (gateway, DNS, etc.).

Click Next.

Activate Scope:

Click Yes to activate it.

✅ Step 4: Configure MAC Address Filtering (Allow List)

In the DHCP console, expand the scope you created.

Right-click Filters under the scope and choose New Filter.

Enter the MAC address pattern to match devices with MAC addresses starting with AABB:

MAC Address: AABB*

Description: e.g., Allow devices starting with AABB.

Click Add.

✅ Step 5: Enable Allow Filters

Right-click Filters under the scope and select Enable.

Ensure that only devices matching the AABB pattern will receive leases.

✅ Step 6: Test and Verify

Use a test client with a MAC address starting with AABB to ensure it receives an IP address in the 192.168.1.190–192.168.1.200 range.

Use ipconfig /renew on the client, or check the DHCP leases in the Address Leases section.

One possible solution to prevent domain users from saving executable files in a share named \SRVl\Data is to use file screening on the file server. File screening allows you to block certain files from being saved based on their file name extension. Here are the steps to configure file screening:

On the file server, open File Server Resource Manager from the Administrative Tools menu.

In the left pane, expand File Screening Management and click on File Groups.

Right-click on File Groups and select Create File Group.

In the File Group Properties dialog box, enter a name for the file group, such as Executable Files.

In the Files to include box, enter the file name extensions that you want to block, such as .exe, .bat, .cmd, .com, .msi, .scr. You can use wildcards to specify multiple extensions, such as *.exe.

Click OK to create the file group.

In the left pane, click on File Screen Templates.

Right-click on File Screen Templates and select Create File Screen Template.

In the File Screen Template Properties dialog box, enter a name for the template, such as Block Executable Files.

On the Settings tab, select the option Active screening: Do not allow users to save unauthorized files.

On the File Groups tab, check the box next to the file group that you created, such as Executable Files.

On the Notification tab, you can configure how to notify users and administrators when a file screening event occurs, such as sending an email, logging an event, or running a command or script. You can also customize the message that users see when they try to save a blocked file.

Click OK to create the file screen template.

In the left pane, click on File Screens.

Right-click on File Screens and select Create File Screen.

In the Create File Screen dialog box, enter the path of the folder that you want to apply the file screening to, such as \SRVl\Data.

Select the option Derive properties from this file screen template (recommended) and choose the template that you created, such as Block Executable Files.

Click Create to create the file screen.

Now, domain users will not be able to save executable files in the share named \SRVl\Data. They will be able to save other files to the share.

To create an AD DS site named Site2 that is associated to an IP address range of 192.168.2.0 to 192.168.2.255, you can follow these steps:

On a domain controller or a computer that has the Remote Server Administration Tools (RSAT) installed, open Active Directory Sites and Services from the Administrative Tools menu or by typing dssite.msc in the Run box.

In the left pane, right-click on Sites and select New Site.

In the New Object - Site dialog box, enter Site2 as the Name of the new site. Select a site link to associate the new site with, such as DEFAULTIPSITELINK, and click OK. You can also create a new site link if you want to customize the replication frequency and schedule between the sites. For more information on how to create a site link, see Create a Site Link.

In the left pane, right-click on Subnets and select New Subnet.

In the New Object - Subnet dialog box, enter 192.168.2.0/24 as the Prefix of the subnet. This notation represents the IP address range of 192.168.2.0 to 192.168.2.255 with a subnet mask of 255.255.255.0. Select Site2 as the Site object to associate the subnet with, and click OK.

Wait for the changes to replicate to other domain controllers. You can verify the site and subnet creation by checking the Sites and Subnets containers in Active Directory Sites and Services.

Now, you have created an AD DS site named Site2 that is associated to an IP address range of 192.168.2.0 to 192.168.2.255. You can add domain controllers to the new site and configure the site links and site link bridges to optimize the replication topology.

Membership in the Enterprise Admins group or the Domain Admins group in the forest root domain is required.
