API-SIEE Source Inspector Electrical Equipment Questions and Answers

The correct answer isB. In source inspection practice, aninspection waiveris the formal permission to proceed past an identifiedhold pointwithout thesource inspector being present. A hold point is a stage in manufacturing, fabrication, testing, or final inspection where work is not supposed to proceed until the required witnessing or verification has been completed. If the inspector cannot attend, the purchaser or authorized party may issue a waiver so the manufacturer can continue without delaying production.

This is different from the other options. OptionAis too broad because an inspection waiver is not a blanket permission to proceed without any purchaser representative at any stage; it is usually tied to aspecific inspection point. OptionsCandDdescribe situations involvingnonconformance disposition or concession, not a waiver of inspection attendance. Those matters require technical review and authorization through the nonconformance process.

Within API-aligned source inspection, control ofhold points, witness points, documentation, and release authorityis a key part of the inspection process. Therefore, an inspection waiver is best defined aspermission to proceed without the source inspector present at a hold point, makingoption Bthe verified answer.

The correct answer isD. In API 541, when a motor shaft is monitored usingradial vibration probes, the probe-observed shaft surface must meet a strictcombined runoutlimit so that the vibration reading reflects actual machine vibration rather than shaft surface irregularity, eccentricity, or electrical and mechanical runout effects. API 541 sets this limit at25% of the allowed unfiltered peak-to-peak vibration amplitude or 6.4 µm 0.25 mils, whichever is greater. This requirement is important because excessive runout can distort probe signals and produce misleading vibration data during shop testing and acceptance.

From a source inspection standpoint, this is a critical verification item during motor testing for large rotating equipment. If the shaft finish and probe track are not within the required runout limit, the vibration measurements cannot be relied on for acceptance decisions. The API guide includeselectric motors over 500 HPas a covered equipment category and emphasizes inspection and surveillance activities tied to applicable standards, testing, and verification of compliance during manufacture. Therefore,option Dis the correct API 541 requirement.

The correct answer isDbecause the API source inspection approach makes a clear distinction between the responsibilities of thesupplier, thesource inspector, and thepurchaser. The source inspector is not the design authority and does not have the authority to approve engineering changes that may affect cost, delivery, performance, code compliance, or quality. When a vendor proposes a change during manufacturing, the proper action is to ensure that the proposed deviation or revision isformally documented in writingand submitted to thepurchaser for review and disposition.

This preserves document control, traceability, and contractual accountability. It also ensures that any effect on drawings, datasheets, inspection plans, certifications, testing requirements, and final acceptance is evaluated by the party with approval authority. Option A is incomplete because it implies the change may already have been made. Options B and C are incorrect because the inspector does not perform or approve cost-benefit justification for design changes. The inspector’s role is to identify, document, report, and verify compliance with approved requirements, not to authorize modifications independently.

The correct answer isC. In API 541, during thebearing temperature rise test, a motor bearing is considered to have reachedstable temperaturewhen thetemperature rise does not increase by more than 1°C over a period of one hour. This definition is important because the acceptance of the test depends on showing that the bearing temperature has effectively leveled off under the test conditions rather than still trending upward. If temperature continues to rise beyond that limit, the test has not yet reached thermal stability and the result cannot be treated as final.

This criterion is used in factory testing of large motors to confirm acceptable bearing thermal performance, lubrication condition, mechanical fit, and overall operating behavior at the test load and speed. In source inspection, the inspector verifies not only the final measured bearing temperatures, but also that thetest duration, stabilization criterion, instrumentation, and recorded resultscomply with the governing standard and approved procedures. A 30-minute interval is not the API 541 stability definition, and a 2°C rise in one hour is too permissive. Therefore, the correct API 541 requirement isa rise of not more than 1°C in one hour, which makesoption Cthe verified answer.

The correct answer isB. The inspection coordinator. In the API source inspection framework, the inspector’s role is to independently observe, verify, document, and communicate quality-related concerns through the established inspection reporting chain. When schedule pressure appears likely to compromise product quality, the issue must be escalated to theinspection coordinator, because that person manages inspection execution, communication flow, and coordination between the purchaser, supplier, and inspection function. This keeps the inspector independent and ensures the concern is addressed formally rather than informally.

The other options are less appropriate. TheMaster Scheduleris responsible for planning and timing, not for controlling inspection escalation. Theshop QA Managerbelongs to the supplier’s organization, so reporting directly there could weaken the inspector’s independent reporting path. TheProject Managermay ultimately need awareness, but the normal and correct first notification route in source inspection administration is through the inspection coordinator. This approach aligns with API source inspection practice, where quality threats, deviations, and risks are communicated through designated inspection channels so that corrective action, hold points, and surveillance priorities can be managed properly.

The correct answer isA. According toNFPA 70, when aconductorpasses throughmetal, protection must be provided so that theconductor insulationis not damaged by sharp edges, burrs, or vibration at the metal opening. The concern is not the conduit itself, but theinsulated conductor surface, because abrasion at the point of entry can wear through the insulation and create a risk of short circuit, ground fault, arcing, or shock hazard. This is why bushings, grommets, insulated fittings, or other approved protective means are commonly required wherever insulated conductors pass through sheet metal, boxes, cabinets, gutters, or similar metallic openings.

The other options are incorrect becauserigid conduitandsemi-rigid conduitare wiring methods, not the protected element identified in this rule.Secondary circuitsare a circuit classification, not the physical component being protected from abrasion. In API-aligned source inspection and quality surveillance, this requirement is important when verifying panel wiring, junction boxes, control panels, and other electrical assemblies to ensure conductor routing and entry points comply with code and do not damage the insulation during service. Therefore, the correct answer isconductor insulation.

The correct answer isAbecause theinsulation resistance testis fundamentally anon-destructivediagnostic test when performed at the proper test voltage and in accordance with accepted procedures. It is used to evaluate the condition of insulation by applying a DC test voltage that iswell below the insulation breakdown leveland measuring the resistance to leakage current. This allows the inspector or tester to assess insulation health without intentionally damaging the equipment. That is why it is commonly used during factory testing, pre-commissioning checks, maintenance evaluations, and source inspection verification activities.

The other options are incorrect.Moisturesignificantly affects insulation resistance and usually lowers the measured value.Temperaturealso affects readings, which is why test results are often corrected or interpreted with temperature in mind. The test isnotintended to be conducted above the breakdown voltage of the insulation; doing so would be destructive and would belong to a different category of high-potential testing. The API Guide for Source Inspection and Quality Surveillance of Electrical Equipment includeselectrical systemsamong the covered equipment categories and focuses onsource inspection and quality surveillance activitiesused to verify conformance and test readiness.

The correct answer isAbecause, in source inspection practice, a corrected or revised report isnot automatically invalidif the change is properly explained, traceable, and supported by the manufacturer’s quality system. The source inspector’s role is to review documentation for accuracy, traceability, consistency with specifications, and objective evidence of compliance. If a Material Test Report or similar record has been modified, the proper action is to obtainclarification, verify the reason for the correction, and confirm that the revised record remains authentic and controlled. Immediate rejection is too extreme unless there is evidence of falsification, loss of traceability, or unauthorized alteration.

This aligns with the API guide’s emphasis onsource inspection and quality surveillance activitiesrather than arbitrary dispositioning, and on verifying compliance through documented evidence and surveillance of the manufacturer’s process. The guide is intended as a resource for the API Source Inspector Electrical Equipment body of knowledge, which includes document review, inspection planning, surveillance, and record verification as part of the overall source inspection process. Therefore, corrected reports should beaccepted after clarification and verification, not rejected solely because they were revised.

The correct answer isC, NFPA 70. NFPA 70 is theNational Electrical Codeand it is the primary installation standard used for electrical wiring systems, includingsignaling and communications conductors, associated equipment, and raceways. In source inspection and quality surveillance, the inspector must verify that electrical equipment and its installation-related features are consistent with the applicable code requirements identified in the purchase documents and project specifications. For signaling and communications circuits, NFPA 70 provides the governing installation rules for conductor methods, separation, protection, routing, and raceway usage.

The other options do not fit this question.NEMA 250covers enclosure types and environmental protection ratings for electrical equipment enclosures, not installation rules for communications and signaling systems.IEEE C37.20.2applies to metal-clad switchgear, so it is equipment-specific and not the general installation code for communications conductors.IEC 20047is not the recognized answer in this context.

From an API source inspection perspective, this distinction matters because inspectors must know whether they are checkingequipment construction standardsorfield installation code requirements. For signaling and communications installations, the correct governing standard isNFPA 70.

The correct answer isB. UnderANSI/NETA/ATSpractices, adielectric withstand teston eachbus sectionis typically performed by applying the specified test voltage forone minute. This one-minute duration is the standard acceptance interval used to demonstrate that the bus insulation system can safely withstand the prescribed overvoltage without breakdown, flashover, or unacceptable leakage. It provides enough time to reveal insulation weakness while remaining within the intended non-routine high-potential test method for acceptance testing.

From a source inspection perspective, this matters because switchgear bus insulation integrity is a critical verification point during factory testing and final quality surveillance. The inspector is expected to confirm that the correct test method, voltage level, duration, and acceptance criteria are used and properly recorded in the manufacturer’s test documentation. The API Guide for Source Inspection and Quality Surveillance of Electrical Equipment includesswitchgearsamong the major covered equipment categories and emphasizes verification of tests, records, and compliance with applicable standards during source inspection and surveillance. Therefore, for a dielectric withstand test on each bus section, the specified voltage is applied forone minute, makingoption Bthe verified answer.

The correct answer isCbecause the API guide repeatedly emphasizes that source inspection and surveillance of electrical equipment must verify installed wiring and connections against the governing project drawings. In the guide’s inspection activities, items such as“One-line Wiring Diagram Review”and confirmation that components conform to drawings and specifications are specifically identified as part of the inspection checklist. For electrical equipment inspections more broadly, the guide also requires inspectors to compare equipment and circuitry with drawings and verify that electrical details conform to those drawings.

The other options are weaker. The guide discusses low-voltage cable identification and notes that NEC mandates only certain conductor colors for neutral and protective grounding, not a blanket requirement that color codes must comply with IEEE. Also, cable shields are discussed in the context ofMV/HV cable constructionthrough conductor screens and shielding-related design features, not as a universal low-voltage visual inspection criterion. Finally, the guide does not require all terminations to use ring tongue lugs. Therefore, verifying that cableconnections match the single-line diagramis the best verified answer.

The correct answer isD. Forexplosionproof threaded conduit joints,API RP 540requires a minimum offive fully engaged threads. This requirement is critical because explosionproof joints are intended tocontain an internal explosionand prevent flame propagation into the surrounding hazardous atmosphere. The threaded path acts as a controlled flame path, cooling and quenching hot gases before they can exit the enclosure or conduit system at an ignition-capable temperature.

If too few threads are engaged, the flame path may be inadequate, reducing the joint’s mechanical strength and compromising its ability to contain pressure and hot gases generated by an internal fault or ignition event. In hazardous locations, this becomes a major safety issue, especially for conduit-connected equipment such asjunction boxes, motors, control panels, and other Class I installations. During source inspection and quality surveillance, the inspector should verify not only that the correct explosionproof fittings are used, but also that the conduit joints are properly assembled with the required thread engagement and in accordance with the governing hazardous-area standard and approved drawings. Therefore, the minimum required number of fully engaged threads isfive, makingoption Dthe verified answer.

The correct answer isBbecauseinspectionis the activity used to evaluate whether a component, assembly, or finished item complies with the applicableproduct specification, approved drawings, purchase requirements, and data sheet. In API source inspection practice, the inspector compares the actual item against the defined technical requirements and verifies whether the equipment conforms before release, shipment, or acceptance. This includes nameplate checks, dimensional checks, material or component verification, review of fabrication records, and witnessing of required tests.

Standardizationrefers to establishing uniform requirements or common practices, not checking a specific component against its purchase requirements.Validationis used more for confirming that a product or system fulfills its intended use under actual or simulated operating conditions, which is broader than routine source inspection.Documentationis only the recording of information and evidence; it does not itself perform the evaluation.

In source inspection and quality surveillance, the inspector’s practical role is to determine compliance by direct observation, review, measurement, and witnessing. That activity is properly calledinspection, makingBthe verified best answer.

The correct answer isBbecause ANSI and IEEE requirements for control wiring that passes across hinged doors or panels in metal-enclosed switchgear emphasizemechanical flexibility, proper looping, securement, and suitable conductor stranding, not installation in a flexible non-metallic conduit with a separate grounding conductor as described in option B. The standard intent is to ensure that repeated opening and closing of doors does not damage the conductor strands or insulation, and that stress is not transmitted beyond the supported points. That is why optionsAandCreflect accepted requirements: the wiring must be flexible enough for repeated motion and arranged in a formed loop with proper securement. OptionDis also consistent with switchgear wiring practice, where conductor size and stranding class are specified to provide durability under mechanical movement.

OptionBadds conditions that are not the stated requirement for wiring across a hinge in ANSI/IEEE C37.20.2. In source inspection, this distinction matters because inspectors must verify wiring methods against the actual standard requirement rather than accept added but non-required installation details.

The correct answer isC. In hazardous or classified locations, positive pressurization and purging protect electrical equipment by preventing the surrounding flammable atmosphere from entering the enclosure. The operating principle is that the enclosure, cabinet, or room is supplied withclean air or an inert gasat a pressure and flow rate high enough to keep hazardous gas or vapor out before and during equipment operation. This allows equipment that might otherwise not be suitable for direct exposure to a classified atmosphere to operate safely when the purge and pressure conditions are maintained.

From an API source-inspection perspective, this aligns with the guide’s emphasis on verifying compliance with thespecified protection method, nameplate data, project drawings, and applicable hazardous-area requirements during inspection and surveillance. The inspector’s concern is not simply whether the enclosure exists, but whether the correct protective concept has been applied and supported by proper fabrication, testing, and documentation. Options A and B describe the hazardous atmosphere itself, not the protection principle. Option D is incorrect because normal arcing devices still require a suitable protection method; pressurization does not rely on relays arcing normally.

The correct answer isA. UnderAPI 541, after manufacture and testing are complete, the vendor is required torevise and resubmit previously supplied purchase datato reflect the final delivered motor configuration and verified test results. This normally includes items such as theoperating manual, theas-built data sheet, and theshop test data, because these documents are part of the final turnover package needed by the purchaser for installation, operation, maintenance, and records of compliance.

Arotor-balance reportmay certainly exist as part of manufacturing quality records or internal test documentation, and it can be important for vibration and mechanical integrity. However, it isnot typically identified as part of the revised and resubmitted purchase data setin the same way as the operating manual, as-built data sheet, and shop test data. In source inspection practice, this distinction matters because not every internal manufacturing record becomes part of the formal purchaser data resubmittal package. Therefore, among the listed options, the item that is the exception is therotor-balance report, makingoption Athe verified answer.

The correct answer isC.IEEE 841is the recognized standard forpremium-efficiency, severe-duty, totally enclosed fan-cooled TEFC squirrel cage induction motorsintended for thepetroleum and chemical industry, specifically for motorsup to and including 370 kW 500 hp. This standard is widely used for horizontal and vertical low-voltage severe-duty motors where high reliability, corrosion resistance, vibration control, and robust construction are required for demanding industrial service.

The other options do not fit this scope.API 546applies to brushless synchronous machines, not TEFC squirrel cage induction motors in this size range.IEEE 141is the Red Book related to electrical power distribution system design, not a motor construction standard.NFPA 70is the National Electrical Code, which governs installation requirements rather than the detailed design and construction standard for this specific motor type.

In API-aligned source inspection practice, identifying the correct governing standard is essential when reviewing nameplates, data sheets, test procedures, inspection points, and compliance documentation. For TEFC severe-duty squirrel cage induction motors up to500 hp, the applicable document isIEEE 841, makingoption Cthe verified answer.

The correct answer isAbecauseinspectionis the activity specifically directed at identifying defects, nonconformities, damage, incomplete work, or deviations from specified requirements before the product is accepted and released for shipment or delivery. In the API source inspection context, inspection is a focused verification activity carried out during manufacturing and at final stages to confirm that the equipment conforms to approved drawings, purchase specifications, code requirements, and inspection and test plans. It is therefore the most direct process for finding product defects before handover.

Quality controlis broader than inspection. It includes inspection, testing, review of records, and other operational techniques used to verify product quality.Quality assuranceis even broader and more preventive; it focuses on the quality system, procedures, planning, and confidence that quality requirements will be met.Examinationis too general and is not the best formal answer in source inspection terminology.

From an API perspective, the source inspector’s practical role is to witness, verify, document, and report conformance and nonconformance. That makes inspection the primary defect-finding activity before delivery.

The correct answer isD. In the insulation coordination context used byNEMA ICS 1,PD 3refers to apollution degreewhere conductive contamination or contamination that becomes conductive due to condensation is expected often enough to materially affect insulation performance. This meansmoisture occurs frequently, dust or other deposits canbecome conductive when moist, and the level of pollution is enough to producetracking or erosion at a moderate rate. This classification is more severe than cleaner indoor environments, but not as extreme as the harshest pollution conditions.

From a source inspection standpoint, understanding the pollution degree is important when evaluatingcontrol panels, spacing, creepage requirements, insulating materials, and overall suitability of the equipment for the intended service environment. If the wrong pollution degree is assumed, the panel may have inadequate insulation distances and may be more vulnerable to flashover, tracking, surface deterioration, or premature failure in service.

OptionCbetter reflects a very clean environment. OptionBis more consistent with a less severe contamination condition. OptionAdescribes a harsher situation than PD 3, with continuous moisture and more aggressive deterioration. Therefore,PD 3is best described byD.

The correct answer isB. UnderAPI 541, when outdoor storage protection is specified by the purchaser, the vendor’s shipping preparation and preservation measures are intended to keep the motor and its accessories suitable foroutdoor storage for at least six months from the time of shipment. This requirement is important because large motors are often delivered to project sites well before installation and may remain exposed to ambient weather conditions, humidity changes, dust, and condensation risks during storage.

In practical source inspection terms, this means the inspector should verify preservation measures such as protective covers, sealed openings, corrosion protection on exposed machined parts, moisture-control provisions, proper drain and breather arrangements where applicable, blocked or secured rotating elements if required, and adequate packing and marking for storage and transport. The goal is not only safe shipment, but also preservation of the motor’s condition until installation and commissioning. Three months is generally too short for major project logistics, while nine and twelve months exceed the minimum duration stated in this requirement. Therefore, the API 541 minimum specified period for outdoor storage suitability after shipment issix months, makingoption Bthe verified answer.

The correct answer isD. Formedium-voltage circuit breakers over 1000 Vthat use astored-energy operating mechanism, a key safety and functional requirement is that the mechanism mustnot release the stored energy until it has been fully charged. This prevents incomplete closing or tripping operations, avoids unreliable breaker performance, and reduces the risk of mechanical damage or unsafe operating conditions. In other words, the breaker mechanism must include an interlock or control feature that blocks release of the spring or stored-energy system unless the charging cycle has been properly completed.

The other options do not express the required stored-energy mechanism function. Indicating control power availability may be useful, but it is not the defining requirement of the stored-energy mechanism itself. Detecting fault current is the job of protective relays and sensing devices, not the charging mechanism. Locating the position of the charging mechanism is not a required protective function. In API-aligned source inspection ofswitchgear, the inspector verifies mechanism operation, interlocks, test records, and compliance with the applicable standards and project specifications. Therefore, the required function is toprevent release of stored energy unless the mechanism is fully charged, makingoption Dthe verified answer.

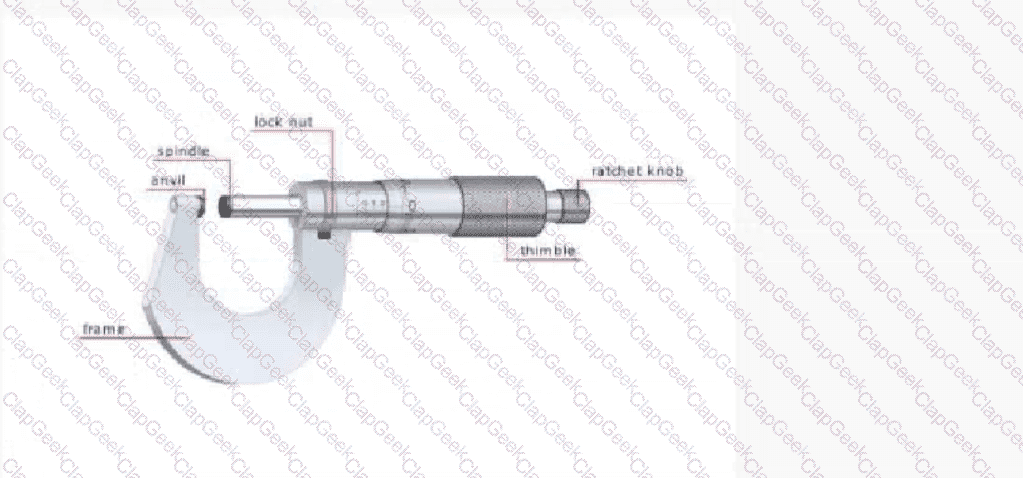

The correct answer isAbecause the illustrated device is anoutside micrometer. Its labeled parts clearly identify it:frame, anvil, spindle, lock nut, thimble, and ratchet knob. These are the standard components of a micrometer used for highly accurate dimensional measurement of outside diameters, thicknesses, and small gaps. In source inspection and quality surveillance, this type of instrument is commonly used when verifying critical dimensions of machined parts, shaft diameters, plate thicknesses, and other precision features that must comply with drawings and manufacturing tolerances.

The other options do not match the image. Adigital caliperhas sliding jaws and an electronic display. Avernier caliperalso uses sliding jaws with a vernier scale, not a rotating thimble and spindle arrangement. Anengineer’s scaleis a straight rule used for scaled drawing measurements, not for precision mechanical inspection. In API-aligned source inspection practice, understanding inspection tools is essential because inspectors must use the correct measuring instrument for the required tolerance and ensure that the device is properly controlled and calibrated. Therefore, the pictured instrument is correctly identified as amicrometer, makingoption Athe verified answer.

The correct answer isD. For aNEMA Size 2 motor controller, the appropriate conductor range is10 AWG to 4 AWG for 60°C rated cableand10 AWG to 6 AWG for 75°C rated cable. This matches the common NEMA controller terminal wire range used for Size 2 starters and controllers in industrial motor control applications. In practical source inspection and shop verification, this matters because the inspector must confirm that the controller terminals are suitable for the intended field wiring and that the manufacturer’s assembly, labels, and terminal data are consistent with the governing standard and purchase specification.

The API Guide for Source Inspection and Quality Surveillance of Electrical Equipment includesMotor Control Centersamong the major covered equipment categories for source inspection. The guide also makes clear that its focus is onsource inspection and quality surveillance activities, meaning verification of compliance with drawings, specifications, nameplates, and applicable referenced standards during manufacture and inspection. Since MCC buckets and NEMA motor controllers rely on proper terminal and conductor compatibility,option Dis the correct NEMA-aligned answer.

The correct answer isA. Under API 541,totally enclosed machinessuch asTEFC, TEPV, TEWAC, and TEAACare required to have alow-point drain. This requirement exists because enclosed motors can accumulatecondensation or moistureinside the housing due to temperature changes, shutdown periods, ambient humidity, or cooling system operation. If that moisture is not removed, it can degrade insulation, promote corrosion, contaminate internal parts, and shorten motor life. The low-point drain provides a controlled path for accumulated liquid to escape from the lowest part of the enclosure.

The other options are not universally required for all these enclosure types. Aheat exchanger cooling fanmay apply only to certain cooling arrangements, not to every totally enclosed machine listed.Bearing RTDsmay be specified for monitoring on many large motors, but they are not the defining common feature identified by this question.Surge protectorsare auxiliary protective devices and are not the standard enclosure-related requirement here. In source inspection practice, the inspector should verify that the motor enclosure includes the requireddrain provisions, that they are properly located, and that they conform to the approved design and specification.

The correct answer isC. Aninsulation resistance testis performed by applying aDC test voltageto the insulation system and then measuring the resulting resistance value, typically inohms or megohms. In practical terms, it is often described as aspot testbecause the instrument, usually amegohmmeter, applies a selected DC voltage and checks the insulation’s resistance to leakage current at that point in time. This makes it a widely used diagnostic test for cables, motors, switchgear, control panels, and other electrical equipment.

OptionAis more closely related to insulation adequacy against transient overvoltage conditions, which is not the main definition of an insulation resistance test. OptionBdescribes issues that may influence insulation condition, but not the definition of the test itself. OptionDis closer to adielectric withstand or hi-pot concept, where the concern is the voltage insulation can tolerate, not the resistance value measured during the test. Therefore, the best and correct definition isa spot overvoltage test using applied DC voltage to measure insulation resistance, which makesoption Ccorrect.

The correct answer isC. Aninsulation resistance readingis performed to assess the integrity and condition of the electrical insulation system by measuring the resistance to current leakage between energized conductors and ground, and in many cases between conductors themselves. In practical source inspection and surveillance of electrical equipment, this test helps identify moisture contamination, deteriorated insulation, damage during manufacturing or handling, and possible weaknesses that could lead to tracking, leakage current, or premature failure when the equipment is energized.

From the API source inspection perspective, electrical testing is intended to verify that the equipment has been manufactured, assembled, and prepared in accordance with specifications and that the insulation system is sound prior to shipment or service. The test doesnotmeasure the normal DC resistance of the conductor itself, so option B is incorrect. It also doesnotprimarily verify termination tightness, so option D is incorrect. Option A is inaccurate because grounding condition is not the main purpose of an insulation resistance test. The main purpose is to evaluate theinsulation condition between conductors and ground, which makesCthe best answer.
