ACP-01101 Autodesk Certified Professional in AutoCAD for Design and Drafting Questions and Answers

According to the AutoCAD for Design and Drafting documents1, the EXTEND command allows you to extend objects to meet the edges of other objects. To trim objects instead of extending them, you can hold down the Shift key while selecting the objects1. This will invoke the TRIM command within the EXTEND command.

https://autocadprojects.com/trim-and-extend-command/

Access the Add Scale Dialog:

Open the 'Edit Drawing Scales' dialog by clicking on the scale list in the status bar or through the SCALELISTEDIT command.

Add a New Scale:

Click on the Add button to open the 'Add Scale' dialog.

In the 'Add Scale' dialog, you will need to specify the drawing units and paper units for the new scale.

Enter the Required Scale Values:

For a scale of 1" = 120', set the Drawing Units to 1 and the Paper Units to 120.

This configuration means that 1 unit in the drawing will represent 120 units on paper, matching the desired scale.

Save the New Scale:

Click OK to save the new scale to the scale list.

The new scale of 1" = 120' will now be available for use in the drawing.

References:

AutoCAD Documentation on adding scales: Adding Scales

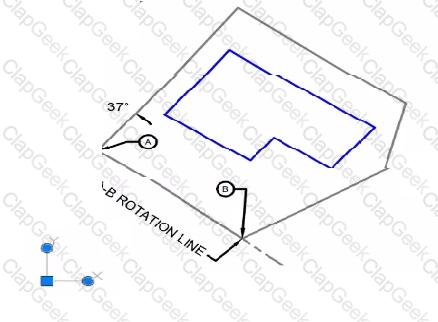

Set DVIEW Twist Angle:

Type DVIEW in the command line and press Enter.

Select the object (or type TW for Twist).

Enter 37 for the twist angle.

Set SNAPANG Value:

Type SNAPANG in the command line and press Enter.

Enter 37 for the snap angle.

Verify UCS Alignment:

Ensure the UCS icon is aligned parallel to the A-B rotation line.

Draw the building relative to the aligned UCS.

References:

AutoCAD Documentation on DVIEW and SNAPANG

Autodesk Knowledge Network: Setting Up the UCS in AutoCAD

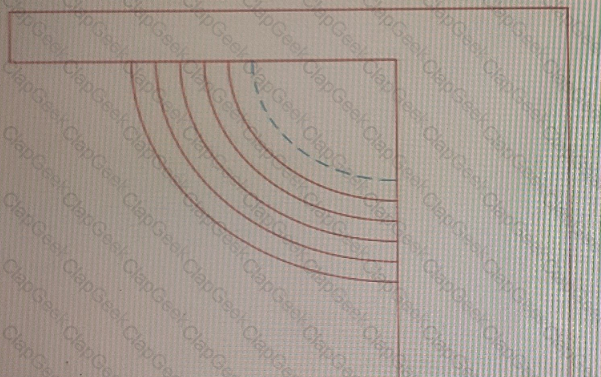

From the Delta option of the Lengthen command, enter 50 units and then select the right end of the line. This way, you can increase the length of the line by 50 units from its current endpoint without changing its direction or position2

https://www.learnvern.com/autocad-tutorial-in-hindi/how-to-use-lengthen-command

Understanding Polar Tracking:

Polar Tracking in AutoCAD helps users draw lines at specific angles by snapping to predefined increments.

This feature is useful for creating lines at consistent angles without manually entering angle values each time.

Steps to Set Increment Angle:

Go to the Drafting Settings dialog box.

Select the Polar Tracking tab.

Check the box to enable Polar Tracking.

In the Increment Angle dropdown, set the desired increment angle (in this case, 17 degrees).

Enabling and Using Polar Tracking:

Once enabled, you can draw lines that snap to the set angle increments, simplifying the process of creating precise angled lines.

Conclusion:

To create lines at consistent 17-degree increments, the Polar Tracking setting should be edited.

References:

AutoCAD User Guide on Polar Tracking.

AutoCAD Help Documentation on Drafting Settings.

Understanding Online Collaboration:

AutoCAD offers several tools for online collaboration, allowing users to share drawings with others who may not have AutoCAD.

SHARE Command:

The SHARE command in AutoCAD generates a link to the drawing file that can be shared via email or other means.

Recipients can view the drawing in a web browser, and those with permissions can edit and save a copy.

Steps to Share Drawing:

Save the drawing.

Use the SHARE command.

Configure sharing settings, including permissions for viewing or editing.

Generate and share the link with recipients.

Conclusion:

For online collaboration, use the SHARE command to generate a shareable link for viewing and editing the drawing file.

References:

AutoCAD User Guide on Sharing Drawings Online.

AutoCAD Help Documentation on SHARE Command.

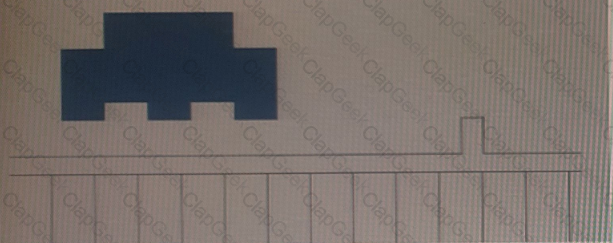

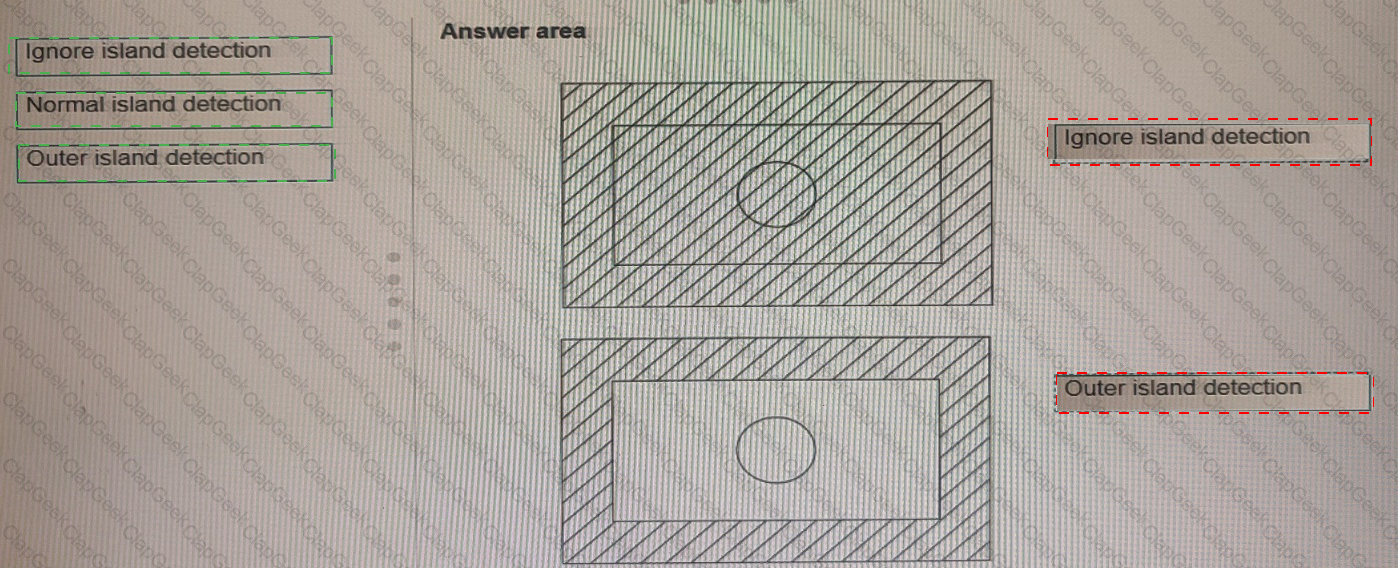

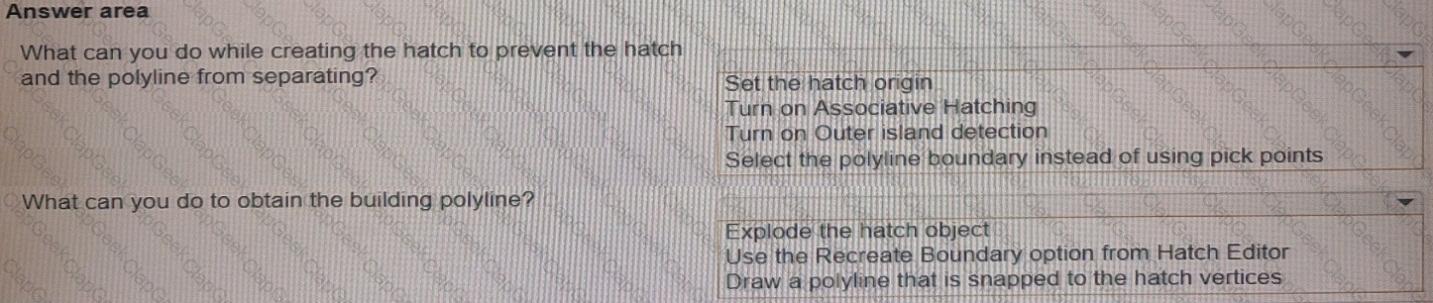

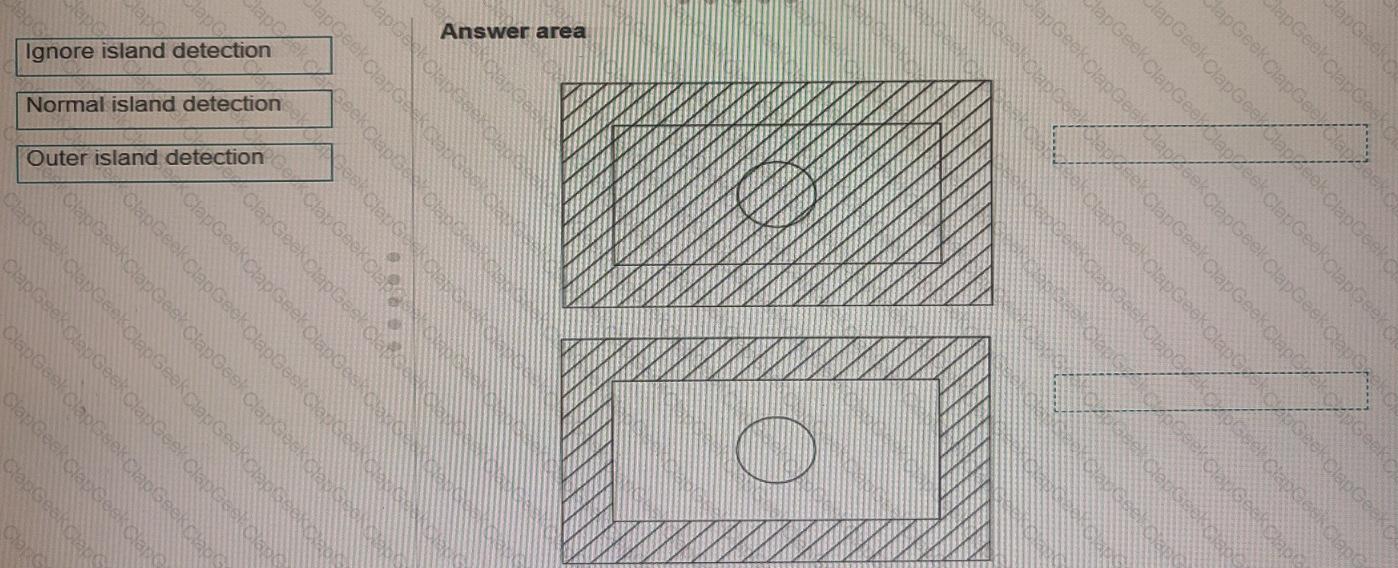

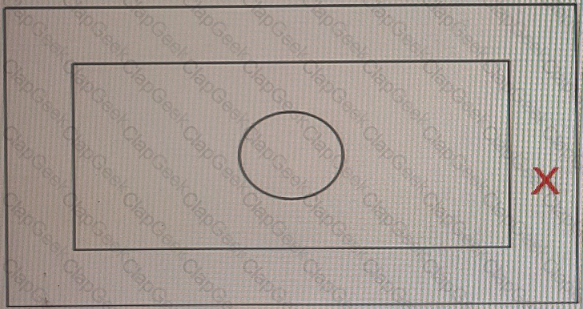

Box 1 = ignore island detection

Box 2 = Outer island detection

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2021/ENU/AutoCAD-Core/files/GUID-981679AC-7097-4724-A30D-33F1CAFDD81D-htm.html

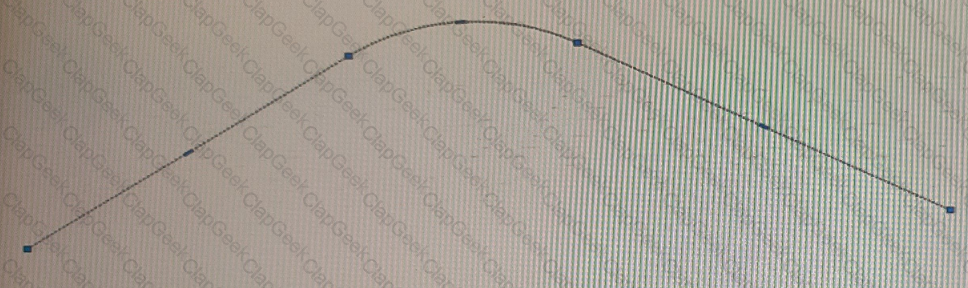

polyline is a connected sequence of line segments created as a single object that can contain a width. You can change the width of a polyline by using the PEDIT command.

Based on 3 and 4, LWEIGHT is a command that sets the current lineweight, which is used for new objects and affects objects in the current space only. PLINEWID is a system variable that sets a default polyline width for new polylines. PLINEGEN is a system variable that controls how linetype patterns are generated around vertices.

https://www.roadlesstraveledstore.com/how-do-i-change-the-width-of-a-polyline-in-autocad/

https://knowledgeburrow.com/how-do-i-change-the-width-of-a-polyline-in-autocad/

by Step Comprehensive Detailed Explanation with References

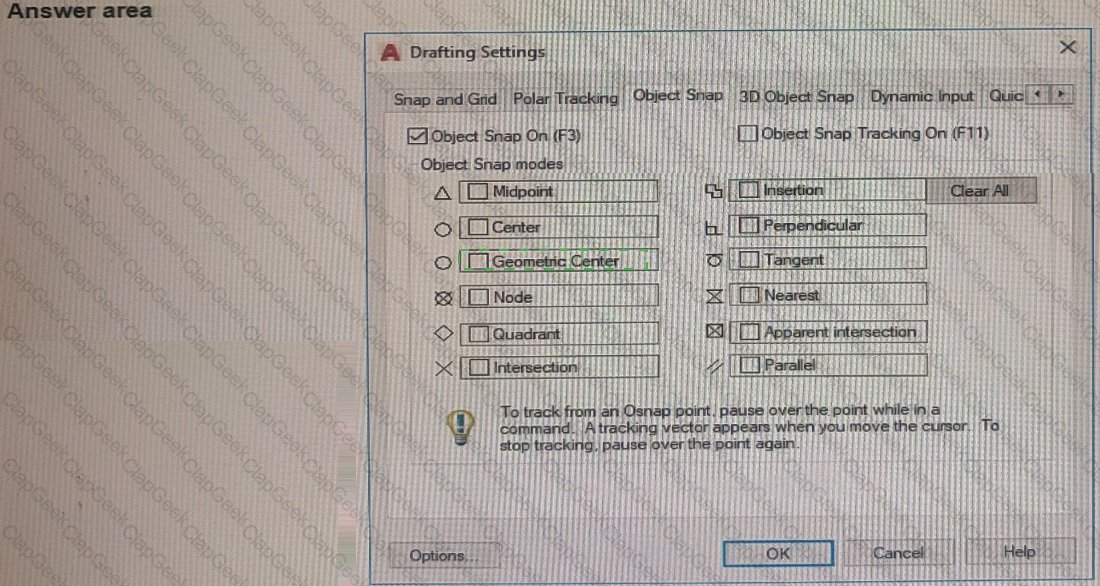

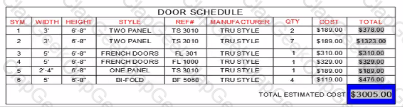

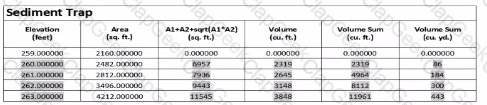

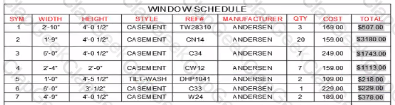

Open Table Style Manager: Type TABLESTYLE in the command line and press Enter to open the Table Style Manager.

Create New Table Style: Click on New to create a new table style, or modify an existing one if preferred.

Define Cell Style: In the Table Style dialog box, go to the Cell Styles tab and create a new cell style for the total cells.

Format Cell Style: Set the desired formatting for the cell style, such as background color (blue), text formatting, etc.

Apply Cell Style to Tables: Apply this custom cell style to the total cells in both the existing and any new schedules created in the project.

References:

AutoCAD Help Documentation on Using and Creating Table Styles

According to the AutoCAD for Design and Drafting documents1, the command that should be typed at the command line in order to start creating a line for drawing reference that starts at a defined point and extends to infinity in the designated direction is XLINE2. This command creates a construction line, which is a type of reference line that can help you manage accurate parameters of your drawing2. You can also use point objects as nodes or reference geometry for object snaps and relative offsets3.

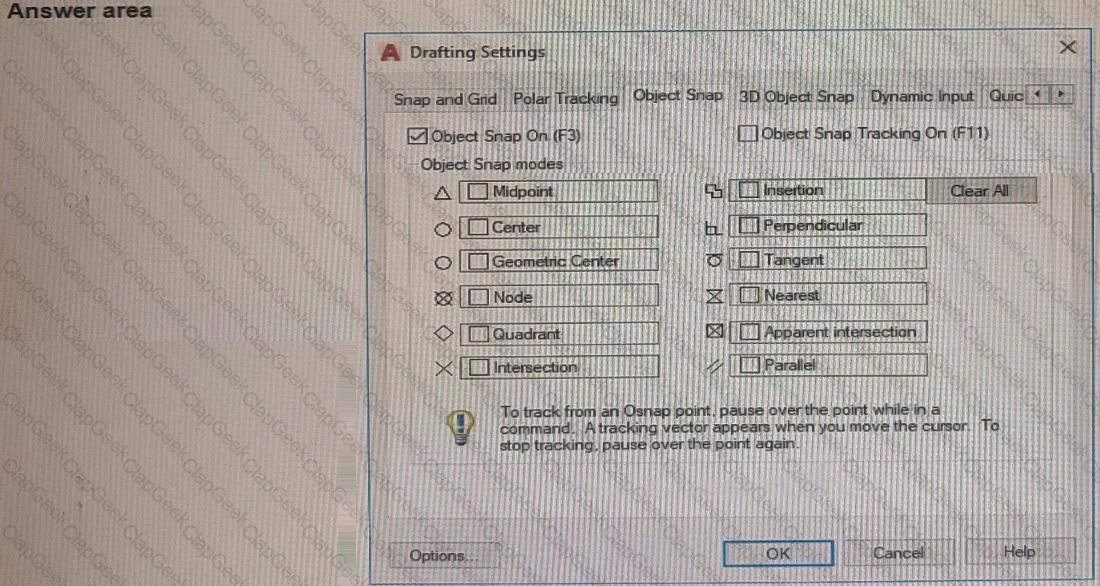

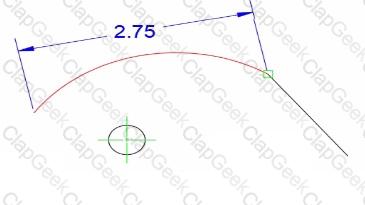

When working with arcs in AutoCAD, you can use different methods to draw them. The given exhibit shows a dimensioned arc which looks to be defined by three points: the starting point, the center point, and the ending point. This is typically how the "Start, Center, End" method works.

Start Point: The initial point where the arc begins.

Center Point: The center of the circle from which the arc is a segment.

End Point: The final point where the arc ends.

This method is useful for accurately defining the curve and ensuring it passes through the desired points.

When you encounter the error "Possible circular reference to current drawing" in AutoCAD while attaching an external reference (xref), it means that the drawing you are trying to reference has the same name as the current drawing. This creates a circular dependency which AutoCAD cannot resolve.

Check File Names: Verify that the file name of the drawing you are trying to reference does not match the name of the current drawing.

Rename if Necessary: If the names match, rename either the current drawing or the external reference file.

Steps to resolve:

Save the current drawing with a different name if necessary.

Ensure the external reference file has a unique name before attaching it.

This prevents the circular reference error and allows the xref to be attached properly.

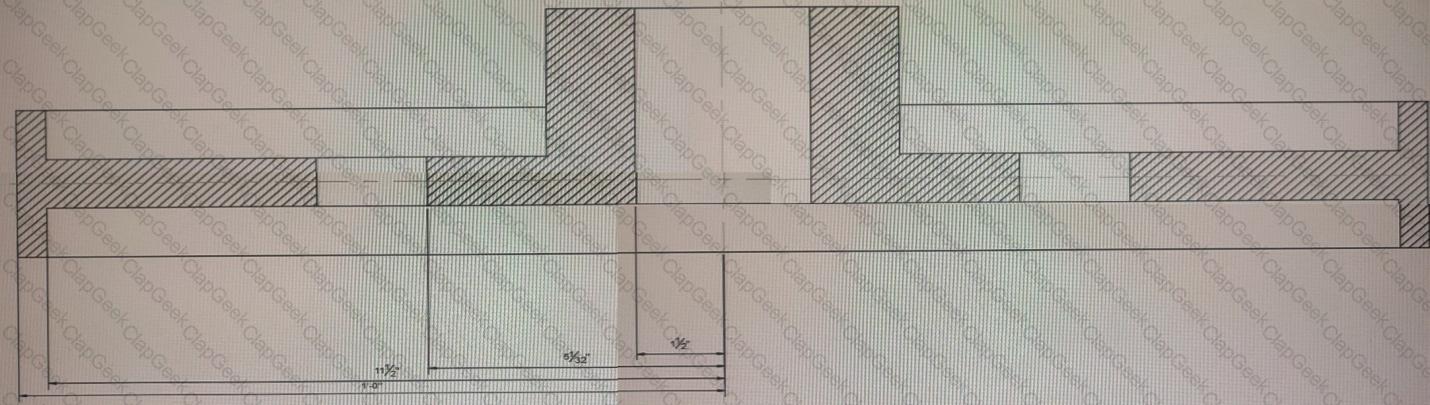

a baseline dimension is a linear, angular, or ordinate dimension that is measured from the baseline of a previous or selected dimension. The spacing between baseline dimensions can be set from the Dimension Style Manager, Lines tab, Baseline Spacing (DIMDLI system variable).

The most efficient method to avoid the problem of dimensions being too close together in the future is to use Dimension Style Manager. This will allow you to change the default spacing for all baseline dimensions in your drawing.

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2015/ENU/AutoCAD-Core/files/GUID-D8849F82-C542-45A1-A81C-EE848A0A30D3-htm.html

UCS is a command that sets a new user coordinate system (UCS) by specifying points or by selecting an object. You can use the Object option to align the UCS with a selected object such as a line.

Based on 3 and 4, UCSBASE is a system variable that sets the name of the current UCS base. PLINEGEN is a system variable that controls how linetype patterns are generated around vertices. LWEIGHT is a command that sets the current lineweight, which is used for new objects and affects objects in the current space only.

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2016/ENU/AutoCAD-Core/files/GUID-0BE49DA1-B323-4758-B49B-4C497D194C7A-htm.html

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2020/ENU/AutoCAD-Core/files/GUID-E658D5E7-EE5C-4A06-BF34-F71CDB363A71-htm.html

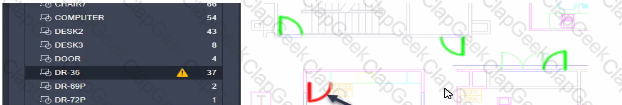

Understanding the Count Tool Alert:

In AutoCAD, the Count tool is used to quantify the number of block instances within a drawing.

A yellow error alert triangle next to the block count indicates an inconsistency or issue with the blocks in the drawing.

Common Reasons for Alert:

The block is on the wrong layer.

The block is exploded.

The block does not have its color assigned to BYLAYER.

The block has a different scale factor.

Identifying the Issue:

Option A: The block being on the wrong layer does not typically trigger a count alert.

Option C: The color assignment to BYLAYER does not affect the block count.

Option D: Different scale factors usually do not trigger a count alert unless the block definition is altered.

Option B: Exploded blocks result in losing the block definition, causing AutoCAD to alert the user of incomplete blocks, which matches the scenario depicted in the exhibit.

Conclusion:

The alert is due to the block being exploded, resulting in a mismatch between the expected block count and the actual block instances recognized by AutoCAD.

References:

AutoCAD Help Documentation on Block Counting and Alerts.

User manuals and community forums discussing common issues with block counts.

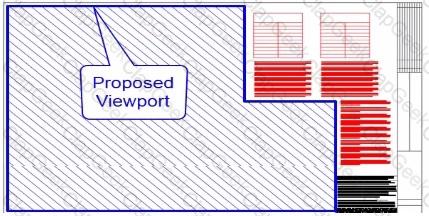

To create a viewport in AutoCAD that matches the blue-hatched area shown in the exhibit, you need to use the "Polygonal" option in the MVIEW command. The "Polygonal" option allows you to create viewports with non-rectangular shapes, which can be customized to fit any area, such as the irregular shape indicated.

Initiate the MVIEW command:

Type MVIEW or MV in the command line and press Enter.

Select the Polygonal option:

When prompted to specify the option, type P for Polygonal and press Enter.

Define the viewport shape:

Click to specify each vertex of the polygonal shape that matches the blue-hatched area in the exhibit. Continue clicking at each corner or bend in the shape until it is fully outlined.

Complete the viewport:

After specifying all vertices, press Enter to close the shape and complete the viewport creation.

This method ensures that your viewport matches the exact shape of the desired area, providing a tailored view of the drawing within that boundary.

According to the AutoCAD for Design and Drafting documents1, the command that should be used to ensure that the dimension objects are placed accurately is Reassociate (DIMREASSOCIATE)2. This command associates or reassociates selected dimensions to objects or points on objects3. You can also control whether new dimensions are associative by checking the option Make New Dimensions Associative in the User Preferences tab4.

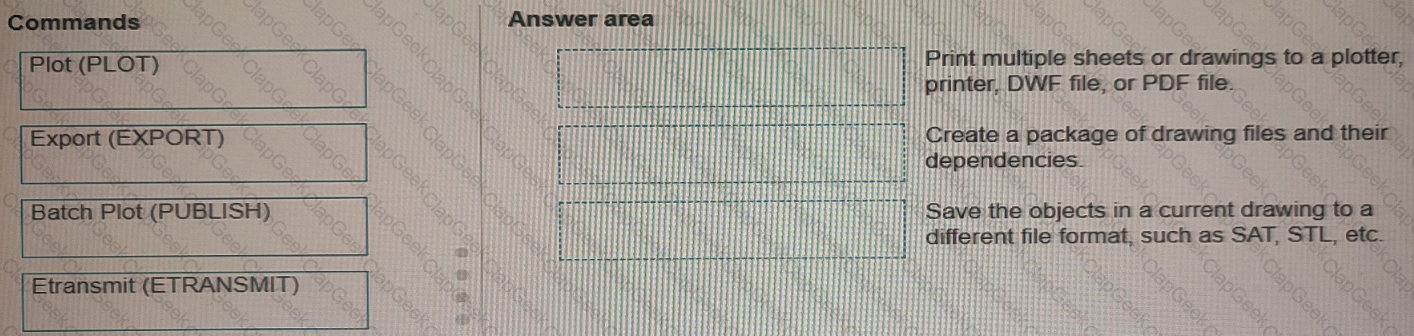

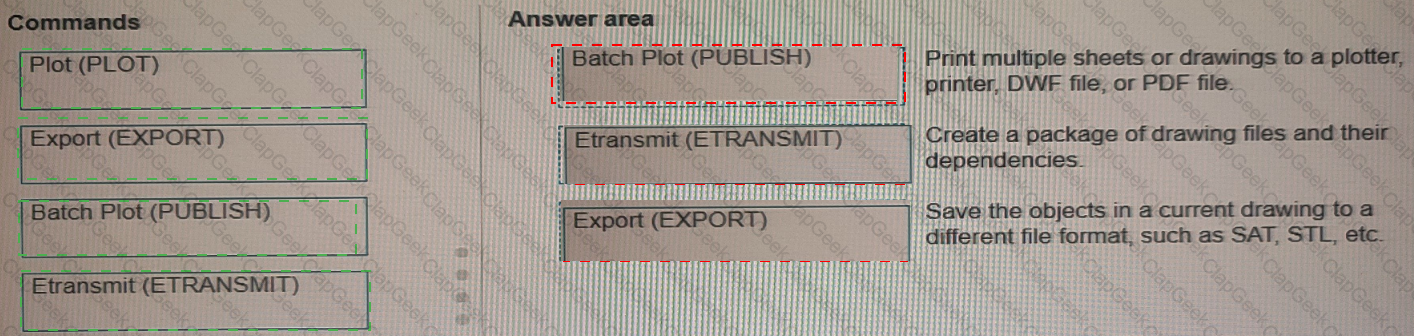

Box 1 : Batch plot

One of the topics covered in this course is Plotting Drawings2. In this topic, you can learn how to print multiple sheets or drawings to a plotter, printer, DWF file, or PDF file. The applicable command for this function is Batch plot (PUBLISH)2.

https://www.autodesk.com/certification/learn/course/autocad-drawing-design-drafting-professional

Box 2: EtransmitOne of the topics covered in this course is Sharing Drawings2. In this topic, you can learn how to create a package of drawing files and their dependencies. The applicable command for this function is Etransmit (ETRANSMIT)2. https://www.autodesk.com/certification/learn/course/autocad-drawing-design-drafting-professional

Box3: ExportOne of the topics covered in this course is Exporting Drawings2. In this topic, you can learn how to save the objects in a current drawing to a different file format, such as SAT, STL, etc. The applicable command for this function is Export (EXPORT)2. https://www-int.autodesk.com/certification/learning-pathways/autocad-design-drafting

The Current prompt should be used to make sure that the edge of the top step is shown in a different linetype, as shown by the dashed line in the exhibit. This way, you can set a different linetype for your current layer before using the OFFSET command4.

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2021/ENU/AutoCAD-Core/files/GUID-C0E4246D-C420-42BD-A6FC-8B1852EFD005-htm.html

Open your drawing in AutoCAD that includes the data links to the Excel files.

Access ETRANSMIT:

Type ETRANSMIT in the command line and press Enter.

Set Up the ETRANSMIT Package:

In the Create Transmittal dialog box, click the "Transmittal Setups" button to create or modify a setup.

Ensure that "Include all files associated with the drawing" is checked. This includes all external references, images, and data links.

Choose the desired file format for the transmittal (e.g., ZIP file).

Include Data Link Files:

Make sure that the "Bind" option for external references is set to the required type (e.g., "Bind" or "Insert").

Click "OK" to close the Transmittal Setups dialog box.

Create Transmittal:

In the Create Transmittal dialog box, review the list of files to be included in the transmittal package.

Click "OK" to create the package.

Save the Transmittal:

Choose a location to save the transmittal package and provide a file name.

Click "Save".

References:

AutoCAD Documentation on ETRANSMIT

Autodesk Knowledge Network: Using ETRANSMIT in AutoCAD

The function that needs to be enabled to display the dimension input box while drawing a line is "Dynamic Input." This feature provides a command interface near the cursor, allowing you to input dimensions and commands directly where you are drawing.

Dynamic Input:

Effect: Displays input boxes for dimensions and commands near the cursor.

Usage: Facilitates real-time input of lengths, angles, and other parameters directly while drawing.

How to Enable:

Command: DYNMODE

Toggle: You can toggle Dynamic Input on or off using the F12 key or by typing DYNMODE and setting it to 1.

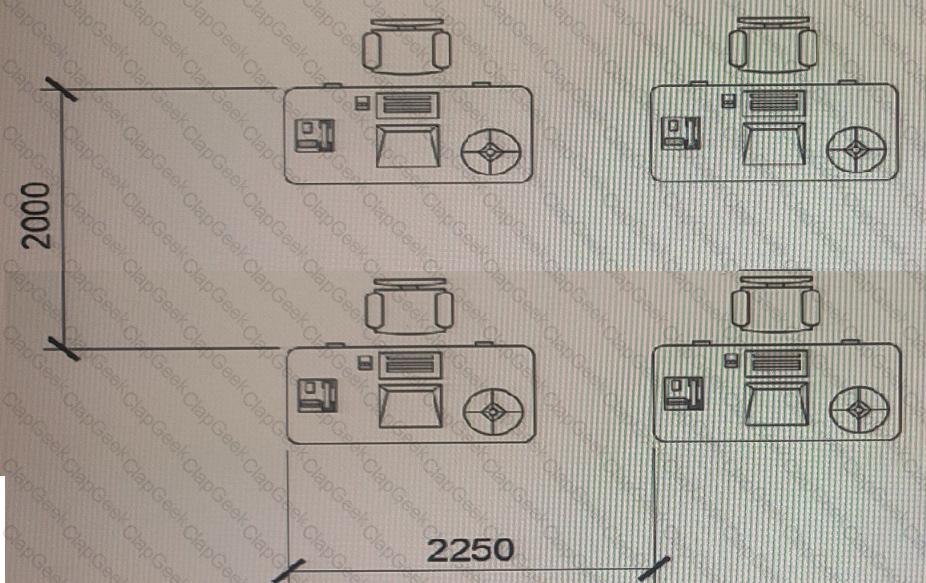

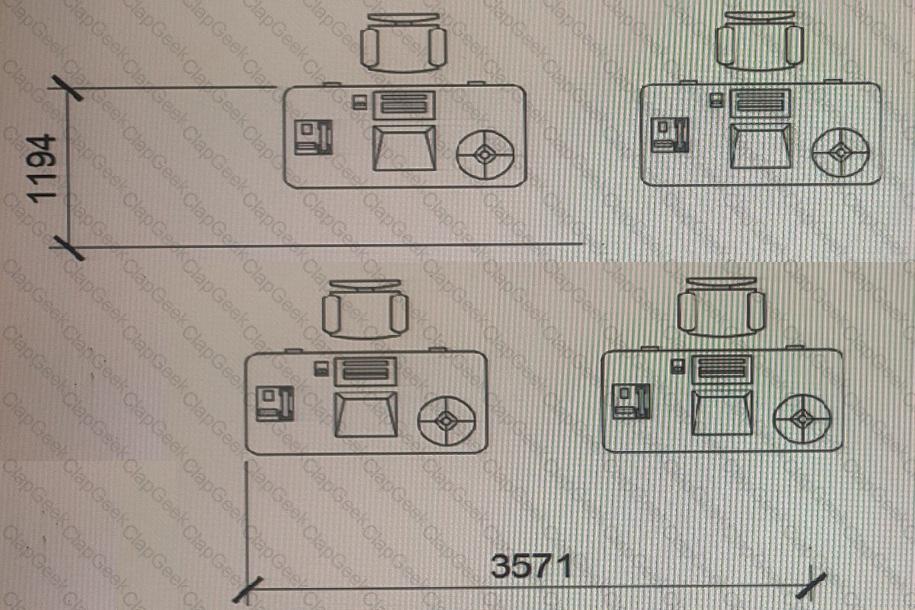

According to the search results123, a rectangular array command creates copies of objects in a regularly spaced rectangular pattern. You can adjust the spacing and number of rows and columns by dragging the grips on the array preview or modifying values on the Array context ribbon.

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2020/ENU/AutoCAD-Core/files/GUID-181BF535-D6F4-4B90-B04D-EB99C5488DAB-htm.html

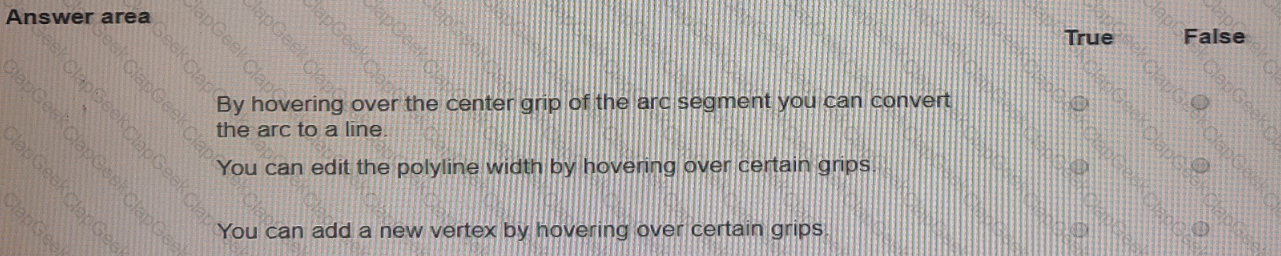

FalseYou cannot convert an arc to a line by hovering over the center grip of the arc segment. You need to convert the arc to a polyline first, then use the FLATTEN command, and answer YES to remove hidden lines. Then you can explode the polyline to get line segments. https://forums.autodesk.com/t5/autocad-forum/autocad-is-it-possible-to-convert-an-arc-to-a-segemented-line/td-p/2933624

Falseyou can edit the polyline width by hovering over certain grips if they are vertex grips or midpoint grips. However, if they are arc segment grips, you cannot edit the width by hovering over them1. Therefore, the statement is false. https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2015/ENU/AutoCAD-Core/files/GUID-2070C02C-E18A-4333-BDC4-240F49F1C102-htm.html

Falseyou can add a new vertex by hovering over certain grips if they are edge grips or midpoint grips. However, if they are vertex grips or arc segment grips, you cannot add a new vertex by hovering over them2. Therefore, the statement is false.

 Access the Xref Manager: Type XREF in the command line and press Enter.

 Select the Xref: Choose the Xref you want to modify from the list.

 Modify the Path: Click on the Path Type and select Make Relative. This ensures that the references will correctly point to the ALT-1_Xrefs folder relative to the current drawing location.

References:

AutoCAD Help Documentation on Attach and Overlay External References

FalseYou cannot convert an arc to a line by hovering over the center grip of the arc segment. You need to convert the arc to a polyline first, then use the FLATTEN command, and answer YES to remove hidden lines. Then you can explode the polyline to get line segments. https://forums.autodesk.com/t5/autocad-forum/autocad-is-it-possible-to-convert-an-arc-to-a-segemented-line/td-p/2933624

Falseyou can edit the polyline width by hovering over certain grips if they are vertex grips or midpoint grips. However, if they are arc segment grips, you cannot edit the width by hovering over them1. Therefore, the statement is false. https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2015/ENU/AutoCAD-Core/files/GUID-2070C02C-E18A-4333-BDC4-240F49F1C102-htm.html

Falseyou can add a new vertex by hovering over certain grips if they are edge grips or midpoint grips. However, if they are vertex grips or arc segment grips, you cannot add a new vertex by hovering over them2. Therefore, the statement is false.
