300-445 Designing and Implementing Enterprise Network Assurance (300-445 ENNA) Questions and Answers

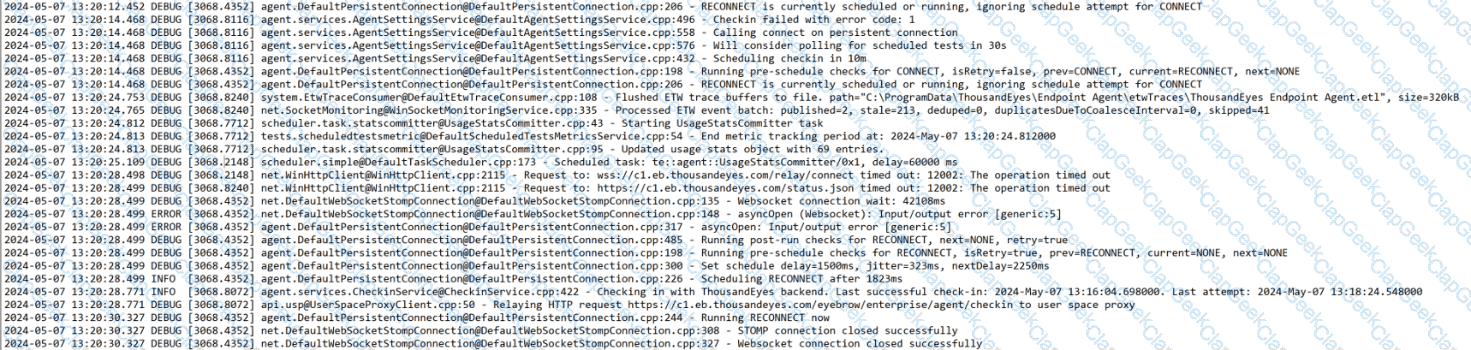

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, troubleshooting endpoint connectivity requires a systematic analysis of local device logs and network environment changes. According to the log message provided in Exhibit there was a specific timeout error when the agent attempted to reach the ThousandEyes backend. The logs explicitly state: Request to: wss://c1.eb.thousandeyes.com/relay/connect timed out: 12002: The operation timed out.

Since the endpoint was relocated to a new network utilizing static IP assignment , and other endpoints on the same network are functioning correctly, the issue is highly localized to this specific device ' s configuration. In a static IP environment, human error during the manual entry of the IP address, subnet mask, default gateway, or DNS server is a common root cause of connectivity failure. If the gateway is incorrect, the agent cannot reach the internet; if the DNS is incorrect, it cannot resolve c1.eb.thousandeyes.com. Therefore, the best way to bring the endpoint online is to verify the accuracy of the IP settings and test direct connectivity to the ThousandEyes relay URL.

The alternative options do not address the technical evidence found in the logs:

Option A: Moving the device back is a regressive step that does not resolve the need for the device to function in its new location.

Option B: Reinstalling software is a " brute force " method that rarely fixes underlying network-layer misconfigurations like an incorrect static IP.

Option C: A timeout error (12002) indicates a persistent connectivity blockage that will not resolve itself without administrative intervention.

Checking the static IP credentials ensures the device has a valid path to the internet to establish its secure websocket (WSS) connection to the ThousandEyes platform.

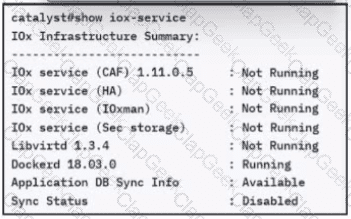

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) implementation guide, the Cisco IOS XE Application Hosting lifecycle is a critical concept for troubleshooting and configuration management. When an application environment variable—such as proxy settings or account tokens—is modified in the app-hosting configuration, a simple restart of the container is insufficient to apply those changes.

The correct procedure involves moving the application back through its lifecycle states to ensure the new environment variables are injected. This requires executing the full agent lifecycle (Option C): Stop, Deactivate, Activate, and Start .

Stop: Terminates the current running process of the container.

Deactivate: Releases the allocated hardware resources (CPU, Memory) and, most importantly, clears the runtime environment.

Activate: Re-allocates the resources and injects the updated configuration parameters into the container ' s environment variables.

Start: Initiates the container with the newly applied configuration settings.

After the application is up and running, the ThousandEyes-agent process attempts to connect to the controller in the cloud environment. Without the deactivate/activate sequence, the container continues to use the environment variables present at the time of its initial activation, causing the agent to remain offline as it fails to reach the ThousandEyes portal without the proxy. Reinstalling (Option B) would work but is an unnecessarily lengthy process, while No action (Option D) will result in no change to the agent ' s connectivity status.

Within the framework of Designing and Implementing Enterprise Network Assurance (300-445 ENNA) , network monitoring is categorized into two primary methodologies: active and passive monitoring. 1 Active monitoring (Option C) is characterized by the generation of synthetic or " probes " traffic specifically designed to measure network performance. 2 These probes simulate real-world user activity, such as HTTP requests, DNS queries, or ICMP pings, to baseline performance metrics like latency, jitter, and packet loss.

The core benefit of the active approach is its independence from actual user traffic. By sending a continuous ping or synthetic HTTP probe, an engineer can verify path availability and performance even during off-peak hours when no real users are on the network. In the context of Cisco ThousandEyes—a central platform in the ENNA certification—this is the primary mode of operation for Cloud, Enterprise, and Endpoint agents. For instance, a ThousandEyes network test proactively sends packets to a target IP or URL to visualize the hop-by-hop underlay and overlay paths.

Conversely, options A, B, and D represent passive monitoring techniques. Passive monitoring involves observing and analyzing traffic that is already traversing the network. 3 Methods such as SNMP (Option A) provide device-level health data like CPU load and interface utilization, while packet captures (Option B) and NetFlow (Option D) analyze the characteristics of existing user flows to determine top talkers or traffic patterns. While passive monitoring is excellent for volume and utilization analysis, it lacks the proactive capability to test a path ' s performance before a user encounters a failure. Therefore, sending a synthetic probe like a continuous ping is the definitive example of active monitoring.

In the context of Designing and Implementing Enterprise Network Assurance (300-445 ENNA) , understanding the visibility gap in SD-WAN environments is essential. While SD-WAN controllers provide native visibility into the overlay network (the logical IPsec tunnels and fabric health), they often lack granular insight into the physical transport or underlay network provided by ISPs or MPLS circuits.

According to the ENNA architecture guidelines, the most suitable method for measuring true SD-WAN performance is to install an agent on the underlay network (Option D). By deploying ThousandEyes Enterprise Agents directly on the transport-facing interfaces (Transport VPN0 in Cisco SD-WAN terminology), engineers can perform hop-by-hop path visualization and measure metrics like packet loss, latency, and jitter across the actual provider path. This is critical because performance degradation in the overlay is almost always a symptom of an issue in the underlay, such as BGP routing instabilities or physical link congestion at an ISP peering point.

Deploying agents on the overlay (Option A) only measures the performance of the tunnel itself, which may hide specific hop-level failures occurring in the public internet. Installing an agent on the LAN (Option C) or DMZ (Option B) adds local network noise to the metrics, making it harder to isolate if a problem exists within the corporate office or the service provider network. By focusing on the underlay , the engineer ensures they have the " internet intelligence " required to hold service providers accountable to SLAs and quickly resolve connectivity issues that impact the SD-WAN fabric.

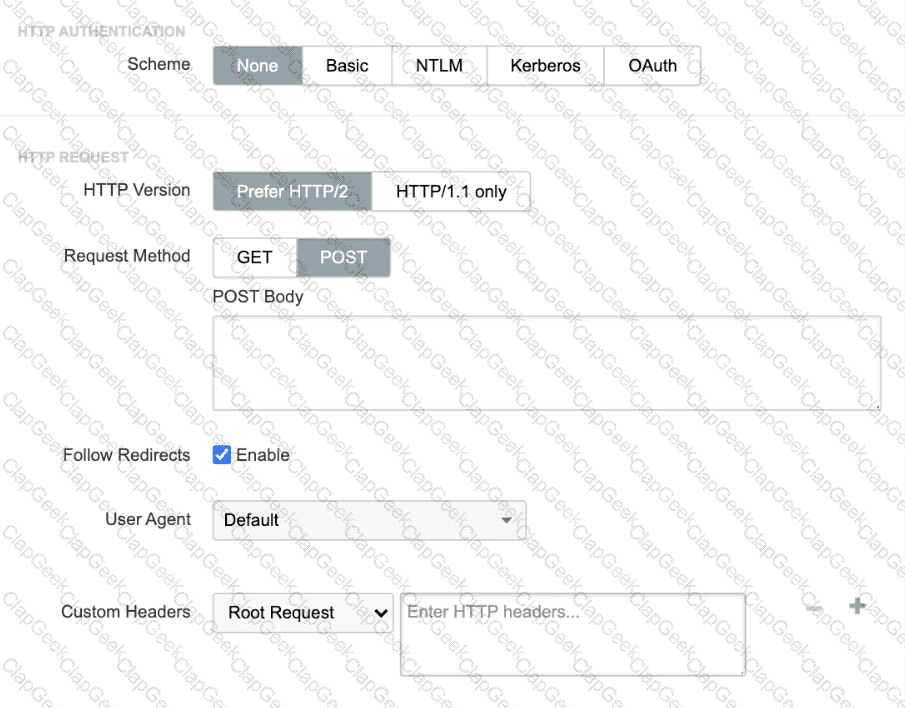

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, monitoring modern APIs often requires handling complex authentication flows, such as OAuth 2.0 with specific client credential parameters. The provided exhibit illustrates the HTTP Authentication options available within a standard HTTP Server test: None, Basic, NTLM, Kerberos, and OAuth.

According to the ENNA implementation standards, while the HTTP Server test type supports OAuth (Option C), its native implementation is limited. Specifically, it is designed to use a pre-existing token or a simple token refresh flow; it does not support the injection of custom parameters in the initial POST request required to obtain a token in many enterprise client-credential scenarios. Basic and NTLM (Options A and B) are legacy protocols that rely on simple username/password headers and cannot facilitate the multi-step token exchange process described.

To fulfill the requirement of a two-step flow (POST for token, followed by GET for resource), engineers must use more flexible test types:

Transaction scripts (Option D): These allow the engineer to write custom JavaScript using the ThousandEyes transaction library to programmatically handle the POST request, parse the resulting JSON token, and then pass that token into the subsequent GET request ' s header.

API tests (Option E): These are purpose-built for API monitoring and natively support the definition of variables and multi-step requests where the output of one call (the token) serves as the input for the next.

By utilizing these advanced test types, the engineer can successfully navigate complex authentication requirements that the standard HTTP Server test cannot accommodate.

In the context of Designing and Implementing Enterprise Network Assurance (300-445 ENNA) , capacity planning requires accurate baselining of interface bandwidth against its theoretical and provisioned limits. Analyzing Exhibit 4.5 Question 4 (image_79d4fc.jpg) reveals a significant discrepancy between the physical reality of the link and its configuration within the monitoring tool.

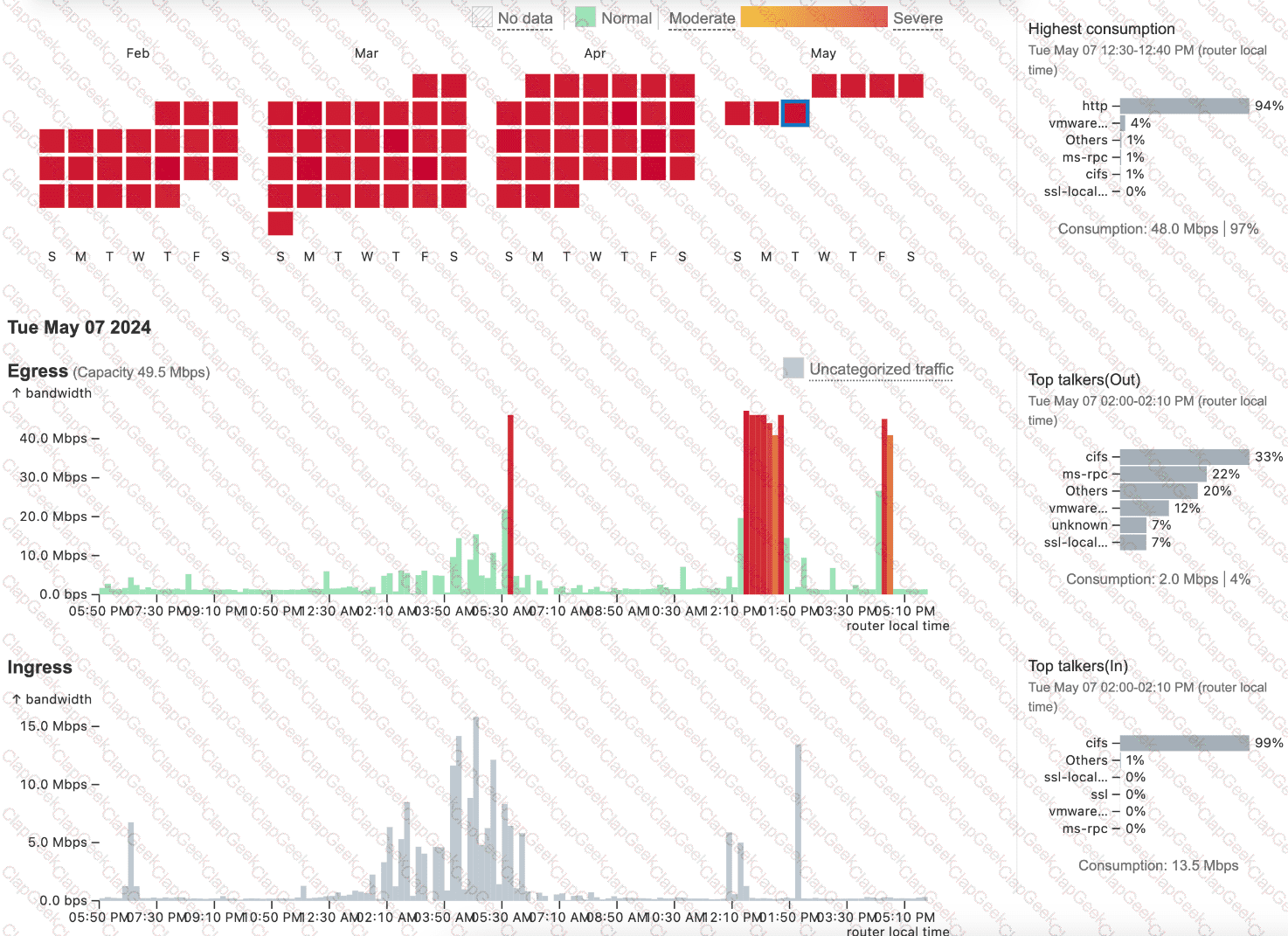

The exhibit displays a capacity planning dashboard with a calendar heatmap and traffic graphs. The heatmap for February through May shows a high frequency of " Severe " (red) utilization blocks. Looking at the Egress graph for Tue May 07 2024 , the traffic spikes clearly exceed 40.0 Mbps. Crucially, the dashboard indicates an " Egress Capacity " of 49.5 Mbps and reports that the " Highest consumption " was 48.0 Mbps, representing 97% of the available bandwidth.

However, the question states that the ISP provides a 1 Gbps (1000 Mbps) connection . Since the actual traffic being sent is less than 50 Mbps, the link is nowhere near physical saturation. The " Severe " alerts and high utilization percentages are occurring only because the monitoring software (likely ThousandEyes or a similar NMS) is configured with a Maximum Capacity of only 49.5 Mbps for this interface. This misconfiguration causes the tool to calculate utilization based on a much smaller " pipe " than what actually exists, leading to false-positive alerts.

Therefore, the most likely action to fix this observed behavior is to reconfigure maximum capacity for the interface (Option B) to match the 1 Gbps specification.

Option A is unnecessary because the current link is only being utilized at ~5% of its 1 Gbps potential.

Option C is a restrictive policy change that is not justified given the actual available headroom.

Option D might shift how data is displayed but will not fix the underlying mathematical error in utilization calculations.

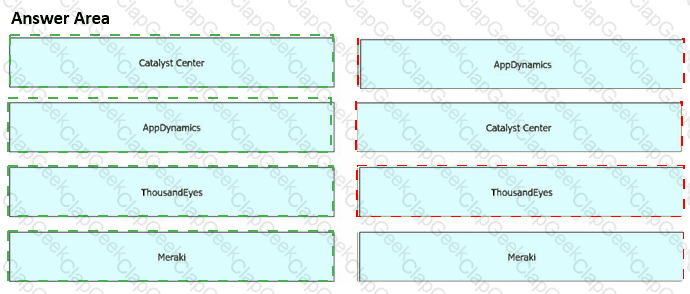

AppDynamics

Catalyst Center

ThousandEyes

Meraki

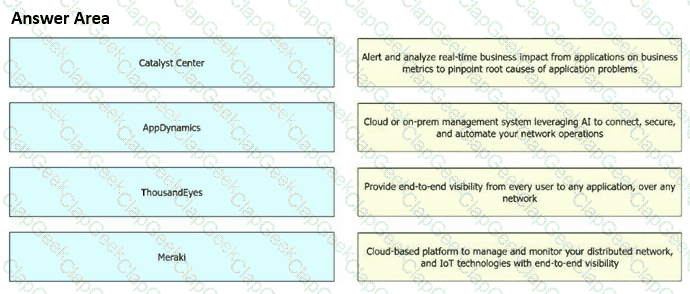

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) architecture, each platform is positioned to address a distinct domain of visibility and management within the modern IT visibility framework.

AppDynamics (matched to Case 1) is specifically engineered for Full-Stack Observability and Application Performance Monitoring (APM). Its unique focus is linking technical application performance—such as code-level execution and database queries—directly to business outcomes and real-time business metrics. By doing so, it allows organizations to pinpoint how application latency impacts revenue or user satisfaction, making it the primary choice for business impact analysis.

Catalyst Center , formerly DNA Center (matched to Case 2), serves as the foundational controller for campus and enterprise network infrastructure. It leverages AI-driven insights to automate network operations, enforce security policies, and provide at-a-glance health monitoring for local devices and clients. It is the definitive management system for connecting and securing " inside " the corporate network perimeter.

ThousandEyes (matched to Case 3) provides " Internet Intelligence " and is the key solution for monitoring the service delivery chain across environments the enterprise does not own. By utilizing a global network of Cloud, Enterprise, and Endpoint agents, it provides end-to-end visibility from any user location to any application (SaaS or Cloud) over any network (Internet, ISP, or WAN).

Meraki (matched to Case 4) is a cloud-first platform designed for managing highly distributed network environments and IoT deployments. It provides end-to-end visibility through a simplified dashboard that integrates wireless health, switching, and security across thousands of sites, making it ideal for lean IT teams managing distributed retail or branch locations.

Each platform utilizes different data collection methods—active synthetic testing for ThousandEyes and passive monitoring/AI telemetry for Catalyst Center—to ensure comprehensive network assurance across the entire enterprise ecosystem.

For the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) exam, understanding enterprise-scale deployment of the Endpoint Agent (EPA) is vital for ensuring comprehensive user-centric visibility. When an organization utilizes a Microsoft Domain Controller to manage its internal domain, the standard mechanism for automated software distribution is Group Policy Objects (GPOs) (Option B).

Deploying the ThousandEyes Endpoint Agent via GPO allows a network administrator to push the .msi installer package to all Windows-based workstations joined to the domain. This method is highly effective for large-scale environments because it ensures that the agent is installed automatically upon machine startup or user login, without requiring manual intervention from the end-user or the IT staff at each individual machine. The GPO can be configured to perform a " silent installation, " which runs in the background, ensuring a seamless experience for the employees while providing the IT team with the necessary performance metrics.

While Microsoft Intune (Option A) is a modern cloud-based endpoint management solution, the question specifically references a Microsoft Domain Controller , making GPO the most direct and traditional choice for that specific infrastructure. JAMF (Option C) is specifically for Apple (macOS/iOS) device management and would not be used for a Windows domain deployment. 8 PowerShell (Option D) can be used for scripting, but it lacks the centralized policy enforcement and automatic compliance checking provided by GPOs in an Active Directory environment. Therefore, Group Policy Objects is the verified deployment method for this scenario.

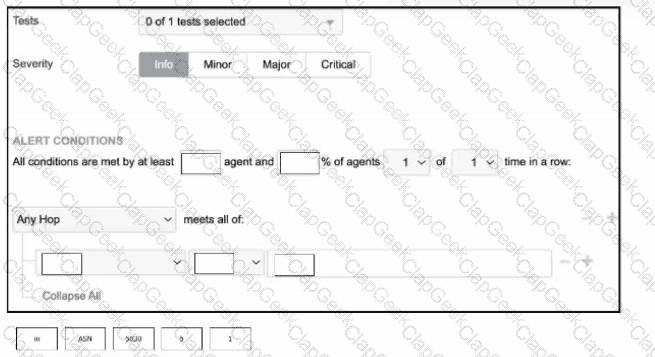

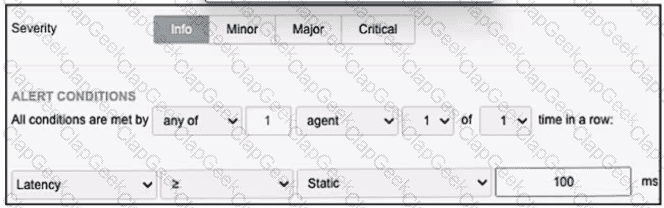

Alert fatigue is a major operational challenge in network assurance. To make a CPU utilization alert for Endpoint Agents less sensitive and reduce " noise, " an engineer must implement statistical filters that ignore transient spikes or isolated events.

The two most effective methods are:

Increase the agent count (Option A): By requiring a higher number or percentage of agents to simultaneously exceed the threshold, the system ensures the alert represents a widespread environmental issue rather than a single user running a CPU-intensive background process.

Require more rounds of data (Option C): Instead of alerting on a single measurement (1 of 1 round), the engineer can configure the rule to require the threshold to be breached for multiple consecutive checks (e.g., 2 of 3 rounds). This filters out brief, non-impactful CPU spikes that occur naturally during OS updates or browser startups.

Other options would have the opposite effect:

Option B: Lowering the percentage threshold (e.g., from 90% to 50%) would cause the alert to trigger much more frequently, increasing noise.

Option D: Enabling the alert on more agents increases the pool of potential triggers, which typically leads to more notifications unless the logic in Option A is also applied.

Detailed Explanation:

The IT Operations Dashboard includes a section at the beginning that explicitly displays active alert rules and their status. According to the dashboard configuration, the reason for the current alert trigger is Network packet loss. This indicates that the underlying network path for the application is experiencing packet drops exceeding the defined threshold, even if the application layer remains partially functional.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, selecting the appropriate test type is essential for isolating performance bottlenecks in complex web applications. When users report issues with specific multi-step workflows—such as logging into a portal or interacting with a shopping cart—the Transaction test type (Option C) is the most effective tool.

A Transaction test is a specialized Web-layer test that utilizes a script (typically written in JavaScript/TypeScript) to mimic real user interactions with a website. Unlike a simple HTTP Server test (Option A) that only checks for a 200 OK response from a single URL, or a Page Load test (Option B) that measures the rendering of a single page, a Transaction test follows a predefined user journey. For this retail scenario, the test can be configured to navigate to the homepage, enter credentials, click the login button, search for a product, and add it to the cart.

The primary advantage of this approach is that it provides granular, step-specific timing. It allows the engineer to identify precisely where the latency or failure occurs—for example, if the backend database takes too long to process the login or if an API call fails during the " add to cart " action. While Agent-to-server (Option D) and DNS Server (Option E) tests provide valuable network and infrastructure data, they cannot validate the functional logic of a web application. Agent-to-agent (Option F) is used for measuring throughput between two managed points and is irrelevant for public-facing website testing. Therefore, for troubleshooting interactive web processes, the Transaction test type is the definitive choice for pinpointing the source of the issue.

According to the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) framework, application health is not just about reachability, but about the functionality of business-critical paths. For an e-commerce checkout process, which involves multiple interactive steps such as " Add to Cart, " " Enter Shipping Info, " and " Finalize Payment, " Transaction monitoring (Option B) is the most beneficial functionality.

Transaction tests provide a high-level view of application performance by executing a script that simulates a real user ' s interaction with the site ' s various components. Unlike HTTP server monitoring (Option A), which merely verifies that a single URL returns a specific status code (like 200 OK), Transaction monitoring validates that the underlying application logic and database transactions are working as expected across the entire session. If a user can reach the homepage but the " Checkout " button fails due to a slow backend API call or a JavaScript error, only a Transaction test will identify the failure and provide a granular waterfall chart to show exactly where the process broke down.

While DNS monitoring (Option C) and Routing visibility (Option D) are crucial for identifying foundational connectivity issues, they are insufficient for monitoring complex transactional workflows. A DNS failure would prevent access to the site entirely, but a " broken " checkout process often occurs while the network and DNS appear perfectly healthy. Transaction monitoring bridges this gap by providing " layer 7 " visibility into the end-to-end user experience, making it the definitive choice for e-commerce performance assurance.

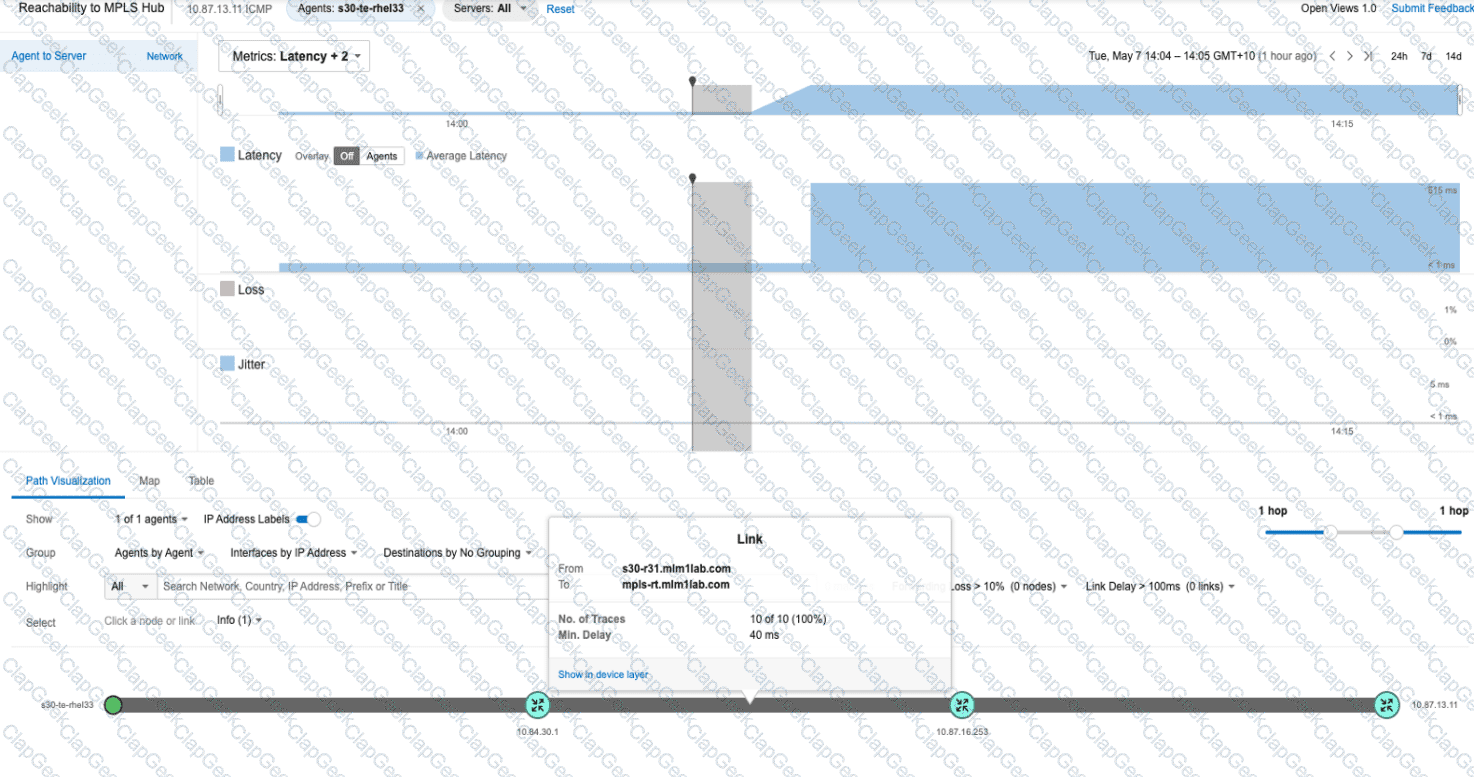

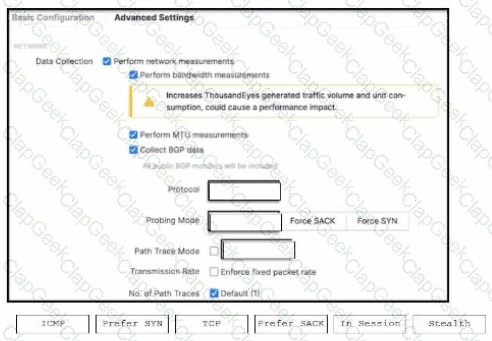

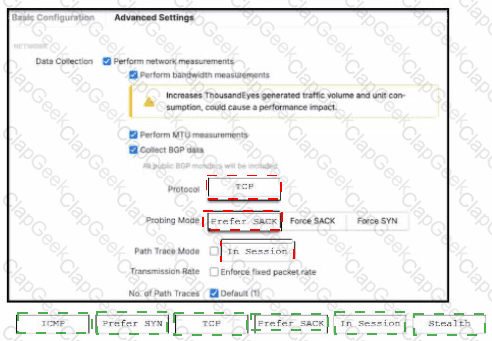

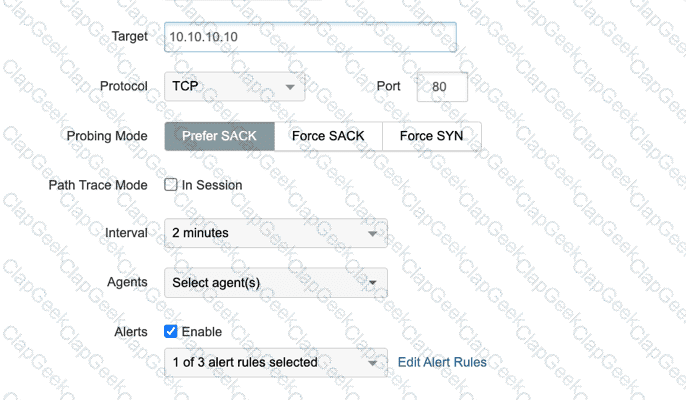

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) architecture, a critical challenge in active synthetic monitoring is ensuring that test probes accurately reflect user traffic without being dropped by intermediate security appliances. Standard network tests often utilize separate connections for measuring performance metrics (latency/loss) and for path discovery (hop-by-hop visualization). This behavior can be flagged by stateful firewalls or Intrusion Prevention Systems (IPS) as suspicious or malicious scanning activity.

To mitigate this, the engineer should enable Path Trace Mode: In Session (Option A). When this mode is active, ThousandEyes performs path discovery using the exact same TCP session established for the performance measurement. By embedding path discovery probes within an active, established session, the traffic appears to firewalls as part of a legitimate, ongoing communication stream rather than an independent series of probes with varying TTL values that might trigger " anti-spoofing " or " scanning " alerts.

Reviewing the alternative options:

Protocol: TCP (Option B): While using TCP is generally more firewall-friendly than ICMP, the exhibit shows TCP is already selected. The issue is not the protocol itself, but how the path discovery probes are handled relative to the session.

Port: 5000 (Option C): Changing the port to a non-standard value like 5000 often makes traffic more likely to be scrutinized or blocked by default firewall policies compared to standard web ports like 80.

Probing Mode: Force SYN (Option D): Forcing SYN packets is a technique used to bypass certain types of load balancers but does not address the fundamental issue of path discovery probes being seen as a separate, malicious scan by stateful inspection engines.

Therefore, enabling In Session path trace mode is the most effective way to ensure consistent visibility through security-hardened environments.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) architecture, a critical design consideration is the impact of the monitoring solution on the production environment. The primary advantage of passive monitoring (Option B) is its non-intrusive nature; it provides insights into network performance and traffic composition without injecting additional " synthetic " overhead into the data plane.

Passive techniques—such as Cisco Meraki Insight (MI) , NetFlow, and SNMP—rely on the telemetry generated by existing user traffic or the device ' s own control plane. For example, Meraki Insight analyzes HTTP/S flows as they naturally pass through a Meraki MX appliance to derive application performance scores, rather than sending separate probes. 5 This ensures that the monitoring tool itself does not consume bandwidth or contribute to network congestion, which is particularly vital in bandwidth-constrained branch environments or on high-utilization links.

In contrast, active monitoring (Options A and C) requires the deliberate generation of synthetic traffic, which can potentially skew results if the volume is too high or if the network is already at capacity. While active monitoring is essential for proactive troubleshooting (measuring performance before users complain), passive monitoring is the preferred method for long-term historical analysis of real user experience and infrastructure utilization because it captures what is actually happening on the wire. Option D is a shared capability; both types can measure specific services, but only passive monitoring does so while remaining transparent to the network load. Therefore, the lack of added traffic is the definitive advantage of the passive approach.

In the Designing and Implementing Enterprise Network Assurance (300-445 ENNA) curriculum, isolating performance issues on end-user machines requires a combination of application-layer experience data and local system telemetry. When an architect suspects that local hardware constraints, such as high CPU usage, are degrading the digital experience, the Endpoint Agent is the required vantage point.

The correct combination is Real User Tests > Endpoint, CPU utilization ≥ % (Option C). This alert configuration is effective for several reasons:

Targeted Visibility: It directly monitors the user ' s device (Endpoint) where the hardware bottleneck is suspected to reside.

Real-Time Context: By utilizing Real User Tests (RUM) , the agent gathers performance data during actual user activity (e.g., browsing the web application). This ensures that the CPU spikes are correlated with active application usage, providing a representative view of the impact on experience.

Threshold Alerting: The condition monitors for CPU utilization exceeding a defined percentage threshold (≥ %). This allows IT teams to be notified only when the CPU load reaches problematic levels that are known to cause application sluggishness or browser " freezing " .

Alternative options are less effective for this specific troubleshooting goal:

Option A: Monitors network loss, which would not identify a local CPU bottleneck.

Option B: Monitors path length (hops), which is a routing metric irrelevant to local hardware performance.

Option D: Monitors memory load during scheduled tests. While memory is a factor, the specific suspicion in this scenario is CPU utilization, and scheduled tests do not always capture the same load impact as a real user interacting with the browser.
