RCWA RUCKUS Certified Wi-Fi Associate Exam Questions and Answers

OFDMA (Orthogonal Frequency Division Multiple Access)is one of the core features introduced inIEEE 802.11ax (Wi-Fi 6). It divides a channel into smaller subcarriers calledResource Units (RUs), allowing an AP to communicate with multiple clients simultaneously, both on uplink and downlink.

According to theRUCKUS One Online Help – Wi-Fi 6 Features Overview, OFDMA improves spectrum efficiency, reduces latency, and increases throughput in high-density environments. RUCKUS APs such as theR750andR850use OFDMA in coordination withRUCKUS AI’s client traffic analysisto allocate resources dynamically.

In contrast,MU-MIMOalso supports multi-user communication but only in one direction (downlink for 802.11ac Wave 2, both for 11ax).QAM256enhances modulation efficiency but doesn’t enable concurrent multi-client service.

TheWireless Intrusion Prevention System (WIPS)in SmartZone continuously monitors the RF environment to detect and mitigate rogue or malicious behavior.

According toRUCKUS One Online Help – WIPS Policy Configuration, availablerule typesinclude:

(B) High RSSI:Detects potentialrogue APs or clientsbroadcasting at unusually strong signal levels that suggest proximity or spoofing attempts.

(C) NAV Abuse:Identifies devices misusing theNetwork Allocation Vectorfield to monopolize airtime, degrading performance for other users.

(E) SSID Spoofing:Detects devices broadcasting identical SSIDs to legitimate WLANs, often used in man-in-the-middle or phishing attacks.

Other listed options, such asShort GI (Guard Interval)andSame Network, are PHY or configuration settings, not WIPS rules.Excessive Powerdetection is handled indirectly viaHigh RSSIthresholds.

InSmartZone High-Scale (vSZ-H)environments, theDomain Hierarchydefines the organizational and administrative structure for managing distributed networks and multi-tenant operations.

According toRUCKUS One Online Help – SmartZone Domain and Role ManagementandSmartZone High-Scale Administration Guide, the following apply:

(A)EachDomain defines an administrative boundarythat determines which network components (zones, WLANs, APs) specific administrators can access or modify.

(D)ADomain can contain sub-domains and AP Zones, allowing hierarchical management layers for large service provider or enterprise environments.

(F)Partner Domains(exclusive to vSZ-H) allow configuration inheritance from theSystem Domain, while providing the flexibility to customize local settings and policies for tenants or customers.

OptionsB,C, andEare incorrect because all domain types (not only Partner Domains) can contain AP Zones, and SmartZone supports multi-level hierarchies beyond just System and Zone levels.

TheClient Isolationfeature on RUCKUS access points and controllers prevents wireless clients connected to the same SSID from communicating directly with each other within the same subnet. This is particularly important for guest or public networks to enhance security and privacy. However, administrators may sometimes need to allow access to specific network services or devices—such as printers, gateways, or media servers—within that same subnet.

RUCKUS systems address this need through theIsolation Whitelistcapability. As described in theRUCKUS One Online HelpandRUCKUS Cloud documentation, theIsolation Whitelistallows administrators to specify destination IP or MAC addresses that are exempt from client isolation rules. This enables controlled access without fully disabling client isolation across the network.

Other options likedirected multicastoraccess control list (ACL)manage traffic types or filtering policies but are not specific to client-to-client communication exceptions. Therefore, theIsolation Whitelistis the correct answer.

Ahidden node problemoccurs when two or more client devices are within range of the AP butcannot hear each other, causing frame collisions that lead to degraded performance.

According toRUCKUS One Online Help – RF Interference and Hidden Node DetectionandRUCKUS AI Documentation – Airtime Efficiency Analysis, the symptoms include:

(A) Retransmissions:Frequent retries due to undetected collisions.

(D) Reduced throughput:Effective throughput decreases as airtime is wasted on retransmissions and ACK delays.

The issue is common in high-density or obstructed environments. EnablingRTS/CTSorBeamFlex+can mitigate it by improving communication coordination.

“Channel changes” occur in interference mitigation, not hidden-node detection; “Excessive roaming” and “Increased Tx power” are unrelated effects.

To maintainseamless client roamingin enterprise-grade Wi-Fi environments,RUCKUS recommends 20–25% signal overlapbetween adjacent AP coverage cells.

According toRUCKUS One Online Help – Roaming and Coverage Design Guidelines, this overlap ensures clients maintain an adequate RSSI and SNR threshold during roaming events without coverage gaps.

RUCKUS Analytics 3.5 User Guide – Client Mobility Analysisconfirms that insufficient overlap often leads to disconnects or sticky-client behavior, while excessive overlap increases co-channel interference.

This guideline applies across 2.4 GHz and 5 GHz deployments, ensuring smooth transitions for 802.11r/k/v-enabled clients.

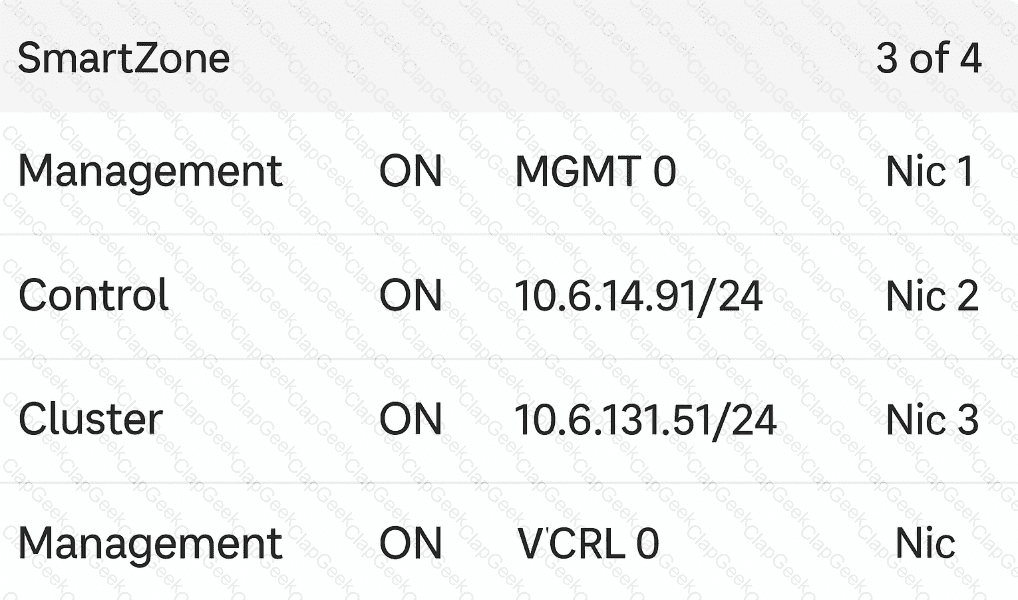

The exhibit shows avirtual SmartZone (vSZ)configuration running in a VMware environment withthree separate virtual NICs (vNICs), each mapped to a different port group:Management,Control, andCluster.

According toRUCKUS One Online Help – SmartZone Interface ConfigurationandRUCKUS AI Documentation – SmartZone High-Scale Architecture, this design is specific tovSZ-H (High-Scale)deployments, which requirethree distinct network interfacesfor distributed control, management, and cluster synchronization.

Thethree NIC mappingsconfirm physical or virtual separation of traffic for scalability and redundancy (AandE).vSZ-E(Essentials) requires onlytwo interfaces(Management and Control) and does not use a dedicated cluster interface, distinguishing it from vSZ-H (D).

There is no indication of a four-node cluster in the exhibit, and SmartZone appliances typically show node counts under the Cluster Dashboard, not at the NIC configuration stage.

Thus, based on the configuration, this is avSZ-Hsystem withthree NICs and three port groups, each serving a dedicated function.

Admin DomainsinSmartZoneproviderole-based access control (RBAC)by dividing system management into separate administrative scopes. Each Admin Domain can contain specific zones, WLANs, and devices, with access limited to assigned administrators.

As outlined inRUCKUS One Online Help – Administrative Domains and Roles, this feature enables organizations or MSPs to securely delegate management tasks to different teams or customers while maintaining full isolation between configurations.

Partner Domainsexist only in vSZ-H (multi-tenant environments), whileCluster Rolesmanage global system functions.AP Groupsare configuration containers but not access control boundaries.

TheNoise Floor Levelrepresents the background RF interference in dBm, which directly affects theSignal-to-Noise Ratio (SNR)and overall connection stability.

As stated inRUCKUS One Online Help – RF Diagnostics, an elevated noise floor (e.g., higher than -85 dBm) can indicate interference from devices such as wireless cameras or radar systems.

RUCKUS Analytics 3.5 User Guide – RF Metrics Dashboardhighlights that tracking the noise floor is essential for differentiating between weak coverage and interference-based issues.

Retransmissions and retries are symptoms, while thenoise flooridentifies the root cause.

TheAP Manager Logwithin SmartZone is dedicated to monitoring access point registration, join processes, firmware version checks, and heartbeat communication with the controller.

As stated in theRUCKUS One Online Help – Log Categories and Troubleshootingand theRUCKUS Analytics 3.5 User Guide – Device Connectivity Diagnostics, the AP Manager Log records messages about:

AP registration attempts

Join authorization success/failure

Firmware mismatch detection and upgrade triggers

TheSystem Logcovers controller-level events, theEvents Logrecords systemwide notifications, and theControl Plane Logcaptures traffic flow analytics.

Expanding aVLAN Poolbeyond 32 VLANs in SmartZone requires access points that support the802.11ac Wave 2 standard or higher.

According toRUCKUS One Online Help – VLAN Pooling and Dynamic VLAN Assignment, older AP platforms (prior to 802.11ac Wave 2) are limited to 32 VLANs due to hardware constraints in VLAN ID indexing and memory allocation. Wave 2 and newer models (including Wi-Fi 6 and 6E APs) supportexpanded VLAN pools up to 64 or more entries.

This capability enables more granular segmentation of large user groups, especially in high-density enterprise or education environments where dynamic VLAN assignment distributes clients evenly across multiple subnets.

User roleandtraffic profileshandle authentication and QoS mapping, not VLAN scalability. 802.11k and 802.11r improve roaming, not VLAN allocation.

Therefore,802.11ac Wave 2 and abovehardware is required to support VLAN pools beyond 32 entries.

SmartZone controllerssupport a range ofexternal authentication servicesfor bothproxy (via controller)andnon-proxy (direct-to-AAA)authentication mechanisms. According to theRUCKUS One Online Help – Authentication Services Configuration, the supported external services include:

Active Directory (AD) (A):Used for domain-based user authentication and group policy enforcement.

Lightweight Directory Access Protocol (LDAP) (B):Provides user authentication through directory lookup, commonly used for enterprise identity systems.

RADIUS (E):A widely used AAA protocol that integrates with external servers such as FreeRADIUS, Cisco ISE, or Microsoft NPS for centralized authentication and accounting.

WhileSAMLandOAuthare used inRUCKUS Cloud and RUCKUS Onefor SSO (Single Sign-On) and API authentication, they arenot used for WLAN or AAA authenticationwithin SmartZone.TACACS+is not supported as an external client authentication method in SmartZone (it is only used for admin login on some platforms).

Therefore, the correct authentication services areA (AD),B (LDAP), andE (RADIUS).

DPSK (Dynamic Pre-Shared Key)technology in RUCKUS SmartZone provides individual or group-based pre-shared keys to enhance WLAN security while maintaining user simplicity.

According to theRUCKUS One Online Help – DPSK ConfigurationandSmartZone WLAN Authentication Guide, aGroup DPSKallows multiple devices to authenticate using a single passphrase while still maintaining encryption isolation per device. This feature is typically used in shared-device environments such as classrooms, labs, or conference rooms.

TheBound DPSKtype is assigned to specific devices or user accounts, ensuring individual control, whileUnboundDPSKs are not tied to any particular user or MAC address.

Group DPSKs balance security and convenience by permitting shared access under one key but with independent encryption sessions, which prevents data leakage among group members.

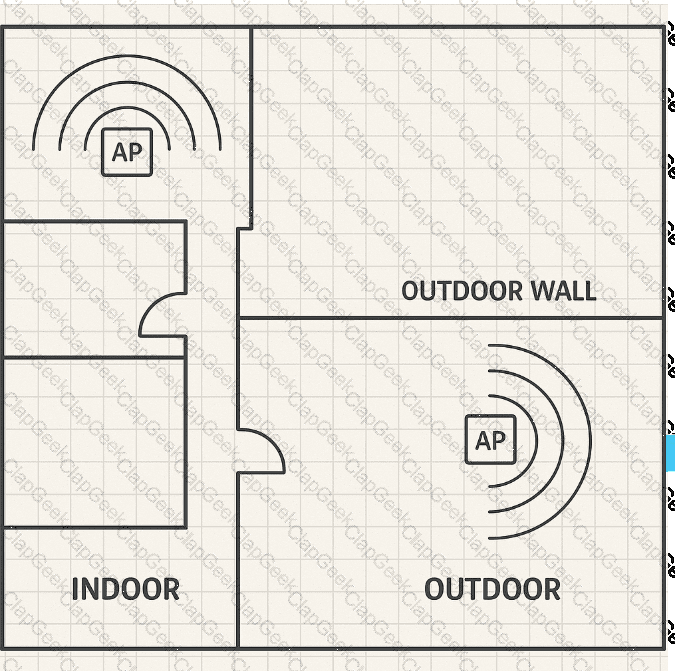

In this layout, the indoor APs are centrally mounted to provide even signal distribution in all directions, while outdoor APs are wall-mounted facing the exterior coverage zone.

According toRUCKUS One Online Help – Antenna Selection and DeploymentandRUCKUS AI Documentation – RF Design Guidelines, the best configuration for complete coverage is:

Indoor space:UseOmni-Directional antennas, which radiate uniformly in 360° for even indoor coverage and minimal dead zones.

Outdoor space:UsePatch antennas, which aresemi-directionalwith a 60°–90° beamwidth ideal for covering patios, courtyards, or building perimeters without wasting signal behind the AP.

Yagi antennasare highly directional and suited for long-distance point-to-point links, not area coverage.Semi-directional indoor antennasare unnecessary unless indoor partitioning or wall density requires focused energy.

This combination—Omni indoorsandPatch outdoors—provides optimal performance for mixed indoor-outdoor designs and aligns withRUCKUS high-density deployment best practices.

Thevirtual SmartZone Essentials (vSZ-E)controller provides centralized management for up to10,000 APs and 1,000 switches, making it ideal for large distributed enterprises that prefer self-hosted or cloud-based control.

According toRUCKUS One Online Help – SmartZone Essentials Overview, vSZ-E offers:

(B)Scalability to meet medium-to-large enterprise requirements (well above 3,000 employees).

(C)Centralized management for Wi-Fi and wired networks, including policy enforcement and firmware control.

(D)Cloud-hosted deployment capability, including operation in environments such asAWS,Azure, orVMware.

UnlikevSZ-H, vSZ-E does not supportmulti-tenancyorPartner/Administrative Domains, and it does not natively tunnel user data back to the cloud; data is locally bridged unless configured via GRE or VPN.

TheRule of 10s and 3sis a quick mental calculation used to convert betweendBm (decibel-milliwatts)andmilliwatts (mW), which represent power levels. The rule states that:

Every10 dB increasecorresponds to a10× increase in power.

Every3 dB increasecorresponds to approximately a2× increase in power.

Starting from0 dBm = 1 mW:

+10 dBm = 10 mW

+20 dBm = 100 mW

Add 3 dB → 23 dBm = 100 mW × 2 ≈200 mW

Thus,23 dBm converts to approximately 200 mW. This principle is used throughout RUCKUS documentation for understandingEIRP (Effective Isotropic Radiated Power)and ensuring compliance withregulatory transmit power limits.

According toRUCKUS One Online HelpandRUCKUS AI user documentation, administrators often use this conversion when optimizing transmit power settings to balance coverage and interference. The rule helps design engineers translate dB settings into physical power outputs during Wi-Fi tuning and planning.

Partner Domainsare specific to theVirtual SmartZone – High Scale (vSZ-H)management platform. This feature is designed to providemulti-tenancysupport for managed service providers (MSPs) and large enterprises managing multiple organizations under a single SmartZone instance.

As defined in theRUCKUS One Online Help – SmartZone Multi-Tenant Management, Partner Domains allow administrators to create separate logical domains, each with its own system administrators, policies, and reporting. This enables service providers to host multiple customers securely on the same vSZ-H infrastructure without sharing configuration or visibility across domains.

ThevSZ-E (Essentials)version does not support Partner Domains because it is intended for single-tenant environments.UnleashedandRUCKUS Cloudprovide simpler management for smaller deployments and inherently separate tenants by account, not by Partner Domain.

Therefore,B (vSZ-H)is the correct answer.

When enabling802.1X authenticationon a RUCKUSAccess Portvia anEthernet Port Profile(used for ICX switches or AP wired interfaces), the available roles are:

(A) Supplicant:The device (AP or switch port) acts as the client that must authenticate to the upstream authenticator (e.g., a switch or NAC system).

(C) Port-based Authenticator:The device enforces 802.1X authentication for devices connected to it (e.g., a switch controlling a connected host).

According toRUCKUS One Online Help – 802.1X and Wired Authentication ConfigurationandRUCKUS Analytics 3.5 User Guide – Wired Client Authentication Monitoring, these two roles define whether the port initiates or enforces authentication.

“Host-based” and “MAC-based” refer to specific authenticationmethods, notroles, and “Authentication Server” (e.g., RADIUS) is an external entity, not a port role.

InSmartZone, WLAN Groups define which SSIDs (WLANs) are broadcast by specific APs or AP Groups. However, for an AP Group to actually broadcast the WLANs from a WLAN Group, that WLAN Group must be explicitlyassigned to the AP Group’s radio interfaces(2.4 GHz, 5 GHz, or 6 GHz).

According toRUCKUS One Online Help – WLAN Group ConfigurationandSmartZone Administrator Guide, when an AP Group does not have a WLAN Group bound to its radios, the SSIDs in that group will not be broadcast—even if both exist within the same Zone.

Creating the WLAN Group at the Domain level or Zone level is valid, but broadcasting depends on association at the AP Group radio level.

Indoor WLAN coverageis influenced by multiple RF and physical parameters that determine how effectively a signal propagates and maintains connectivity quality.

According toRUCKUS One Online Help – RF Design FundamentalsandRUCKUS AI Documentation – Coverage Optimization, the three most impactful factors are:

AP Transmit Power (A):Directly affects signal reach; excessive power can cause co-channel interference, while low power results in coverage holes.

AP Orientation (C):Affects signal radiation direction—wall-mounted, ceiling-mounted, or tilted deployments impact pattern uniformity and coverage overlap.

Antenna Pattern (D):Defines gain and directional behavior; omnidirectional antennas provide uniform coverage, while directional models concentrate energy for targeted areas.

Antenna diversityandspatial multiplexingimprove throughput and reliability, but do not primarily determine raw coverage boundaries. “Earth bulge” is irrelevant for indoor deployments.
