NS0-522 NetApp Implementation Engineer - SAN ONTAP Exam Questions and Answers

DH-HMAC-CHAP is the ONTAP mechanism for secure in-band NVMe authentication. NetApp documents that ONTAP supports both unidirectional and bidirectional authentication for NVMe/TCP and NVMe/FC by using DH-HMAC-CHAP. For bidirectional mode, a host secret and a controller secret are configured so that the controller authenticates the NVMe host and the host also authenticates the controller. The authentication configuration is associated with the NVMe subsystem host by its NQN. SAML, Kerberos, and an Active Directory domain tunnel are not NVMe transport authentication mechanisms and therefore do not satisfy this requirement. In current ONTAP releases, DH-HMAC-CHAP can be configured through System Manager or the CLI, depending on release. Relevant SAN ONTAP topics are NVMe subsystem host configuration, secure in-band authentication, host/controller secrets, and NVMe/TCP security.

To increase security and optimize performance in a SAN deployment, configuring an access list is essential. Access lists restrict initiator access to specific LIFs, ensuring that only authorized hosts can connect to the storage system. This helps in enhancing security by preventing unauthorized access and optimizes performance by controlling and managing the paths used for storage access.

For additional details, you can refer to:

NetApp SAN Administration Guide

Selective LUN Mapping (SLM) is the feature that presents LUNs only within the HA pair. SLM allows administrators to control which LUNs are visible to which hosts, ensuring that LUNs are only accessible through the designated HA pair, thus improving security and manageability.

For more information, see:

NetApp Documentation on Selective LUN Mapping

NetApp Community on LUN Mapping

When using Fibre Channel Protocol (FCP), the minimum number of FC switches needed to redundantly attach three ESXi hosts is 2. This setup ensures that each host has multiple paths to the storage, providing high availability and fault tolerance. Each ESXi host should be connected to both switches, allowing for continuous operation even if one switch fails.

For more information, refer to:

NetApp Documentation on FC Switch Configurations

NetApp Community Discussion on Redundant FC Setup

Selective LUN Mapping (SLM) and portsets are ONTAP mechanisms specifically used to control the number of paths visible between hosts and mapped LUNs. SLM automatically limits LUN access to paths through the node that owns the LUN and its HA partner, reducing unnecessary paths in larger clusters. A portset provides additional restriction by defining exactly which FCP or iSCSI LIFs an igroup can use to reach its mapped LUNs. NetApp notes that portsets can be combined with SLM when further path restriction is required. ALUA identifies optimized and non-optimized paths but does not itself reduce the number of visible paths. An igroup controls which initiators can access a LUN but does not independently restrict target LIF visibility. Relevant topics include SLM, portsets, igroups, SAN multipathing, and path-count optimization.

To configure SnapMirror active sync across two data centers using FC (Fibre Channel), the required connectivity between NetApp ONTAP clusters is cluster peering. Cluster peering involves establishing a trust relationship between the clusters, allowing them to replicate data seamlessly. This setup ensures that data synchronization and disaster recovery processes are effective and reliable.

For more detailed information, you can check:

NetApp Documentation on SnapMirror and Cluster Peering

When adding 40 more hosts to a two-node NetApp ONTAP cluster that is already hosting 64 SAN hosts, the following actions are necessary to avoid potential performance problems:

Configure additional FC target ports: Increasing the number of Fibre Channel (FC) target ports on the storage nodes will help distribute the I/O load more evenly, reducing the risk of bottlenecks.

Configure additional SAN LIFs: Adding more SAN Logical Interfaces (LIFs) will ensure that the increased number of hosts can connect efficiently, improving load balancing and path management.

These actions help maintain optimal performance and prevent congestion in the SAN environment.

For more detailed guidance, refer to:

NetApp SAN Host Configuration Overview

NetApp Best Practices for SAN​ ( NetApp )​​ ( NetApp )

When setting up a NetApp ONTAP AFF system for both NVMe/TCP and iSCSI, a critical task required for SAN configuration is to configure Logical Interfaces (LIFs). LIFs are necessary for network connectivity and are used by both NVMe/TCP and iSCSI protocols to communicate between the storage system and the host.

The configuration of LIFs involves creating and managing these interfaces to ensure they are correctly mapped and available for use by the respective protocols. This step is essential for the SAN setup to function properly.

For more detailed steps on configuring LIFs, you can refer to NetApp ' s documentation:

How to Configure NVMe/TCP with ONTAP​ ( NetApp Community )​.

SAN Configuration with ONTAP ​ ( NetApp )​.

SCSI UNMAP is the mechanism used by a supported SAN host to inform ONTAP that logical blocks within a thin-provisioned LUN are no longer required. Deleting files within Windows normally changes the filesystem ' s allocation information; without storage reclamation, ONTAP may still regard the associated LUN blocks as allocated. When LUN space allocation is enabled and the host supports logical block provisioning, Windows can issue SCSI UNMAP commands identifying unused blocks so ONTAP can return that physical capacity to the available storage pool. A SCSI reservation controls device-access coordination and does not reclaim capacity. Snapshot Autodelete manages Snapshot copies, while SnapCenter provides application-consistent data protection and management. Therefore, SCSI UNMAP is the SAN protocol operation responsible for reclaiming blocks released by the Windows filesystem.

The required controller-side FC adapter capability for the NVMe/FC configuration represented by this question is 32 Gbps. NetApp’s NVMe/FC implementation for the relevant ONTAP platforms uses supported 32 Gb FC target adapters, and NetApp platform specifications identify NVMe/FC connectivity through 32 Gbps FC ports. NetApp’s NVMe/FC documentation also identifies supported Linux host configurations using 32 Gb Fibre Channel adapters, with exact host adapter, firmware, driver, switch, and ONTAP combinations validated through the Interoperability Matrix Tool. Traditional 4, 8, or 16 Gbps FC adapters may support conventional FCP on applicable platforms, but they do not meet the NVMe/FC controller-adapter requirement tested here. Relevant SAN ONTAP topics include NVMe/FC, 32 Gb FC target adapters, HBAs, Fibre Channel fabrics, and IMT validation.

To check the status of a SnapMirror active sync disaster recovery test on a NetApp ONTAP cluster, you would use the command snapmirror failover show. This command provides the necessary details about the failover status, helping administrators verify if the disaster recovery test is proceeding as expected. It displays the status of the failover groups and their readiness, which is essential for confirming the effectiveness of the disaster recovery setup.

For more detailed information on SnapMirror commands and their usage, refer to:

NetApp Documentation - SnapMirror Commands ​ ( NetApp Community )​​ ( NetApp Community )​.

To concurrently serve a namespace over NVMe/FC, a LUN over FCP, a LUN over iSCSI, and an NFS export, only one data SVM (Storage Virtual Machine) is required. NetApp ONTAP allows a single SVM to support multiple SAN and NAS protocols simultaneously, enabling efficient and consolidated management of storage resources.

For more information, refer to:

NetApp Documentation on SVM Configuration

NetApp SVM Best Practices

Fibre Channel zoning is configured and maintained within the FC switching fabric. ONTAP hosts and storage LIFs provide WWPN identities, but the switch configuration determines which initiator and target ports are permitted to communicate. NetApp’s FC zoning guidance instructs administrators to log in to the FC switch administration interface, create zones containing host initiator WWPNs and ONTAP FC LIF WWPNs, save the zones, and activate the resulting zone configuration. Cisco environments use zones and zonesets, while comparable constructs exist on Broadcom/Brocade fabrics. Neither the host HBA nor the ONTAP storage system stores the authoritative fabric zoning configuration. Therefore, the FC switches are the correct location. Relevant SAN ONTAP topics include FC fabric design, WWPN zoning, zonesets, dual-fabric configurations, and SAN connectivity.

To migrate data from a LUN on an existing third-party SAN storage system to a new NetApp AFF A400 all-flash MetroCluster system, the supported methods include:

Foreign LUN Import in online mode: This method allows for data migration without significant downtime, enabling the system to continue serving data while the migration process is ongoing.

Foreign LUN Import in offline mode: This method involves taking the LUN offline during the migration process, which may be necessary in certain scenarios to ensure data integrity.

For more details, refer to:

NetApp Documentation on Foreign LUN Import

NetApp Community on LUN Import Methods

ALUA (Asymmetric Logical Unit Access) is a protocol used in SAN environments to manage paths between a host and its storage. It enables the host to recognize and manage paths to the LUNs more efficiently by designating paths as either " Active/Optimized " or " Active/Nonoptimized " . A significant event, such as shutting down all FC LIFs on the HA partner node, will trigger ALUA to change the path states. This action effectively causes the storage paths to transition from the HA partner node to the local node, switching the path states from Active/Nonoptimized to Active/Optimized on the paths that remain active.

For more information, you can refer to:

NetApp Community Discussion on ALUA

NetApp Documentation on ALUA

ONTAP igroups can be created with an fcp, iscsi, or mixed protocol type. An iSCSI igroup is therefore valid for presenting the existing LUN specifically to the new iSCSI host. A mixed igroup is also valid because it permits both Fibre Channel and iSCSI initiators and can be used when access to a LUN involves both protocol types. ONTAP permits an igroup to be mapped to multiple LUNs and a LUN to be presented through appropriate SAN igroup mappings. Creating another FC-only igroup would not accommodate the new iSCSI initiator. A subsystem belongs to the NVMe architecture and is used to map NVMe namespaces to NVMe hosts; it is not used for FCP or iSCSI LUN presentation. Thus, both iSCSI and mixed igroups are valid configurations for the requirement.

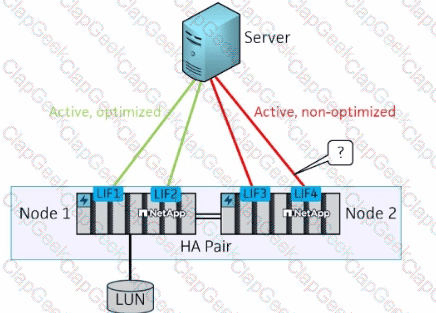

In the scenario where a storage failover is performed on Node 1 in an HA pair, the path marked in the exhibit would become Active/Nonoptimized. After the failover, the LIFs from Node 1 that were active and optimized will switch to Node 2. Paths that were previously optimized will become nonoptimized because they are now served through the partner node.

For more details, see:

NetApp Documentation on ALUA

To move a WWPN from node1 to node2 in a NetApp ONTAP SAN environment where ALUA is used, you must take the Logical Interface (LIF) offline. Modifying LIFs involves changing their assignment between nodes, which requires them to be temporarily offline. This ensures that the path states are correctly updated without causing disruption to the SAN hosts.

For more details, see:

NetApp Community on Moving LIFs

NetApp Documentation on SAN LIFs

To ensure that all network traffic is encrypted for iSCSI on an SVM, configuring IPsec is required. IPsec (Internet Protocol Security) provides end-to-end encryption for IP traffic, ensuring that data transmitted over the network is secure.

For more details, refer to:

NetApp Documentation on Configuring IPsec

ONTAP Mediator provides the quorum and health information required for automated failover in a SnapMirror active sync configuration. It operates as an independent third party that monitors communication with both participating ONTAP clusters and provides information that enables ONTAP to determine whether the primary system is unavailable. During an automatic unplanned failover, ONTAP uses Mediator-assisted quorum information before allowing the surviving cluster to serve the protected workload. The Mediator does not carry application data and is not equivalent to MetroCluster Tiebreaker. Active IQ provides monitoring and analytics, while SANtricity manages E-Series storage. NetApp requires a properly configured Mediator for automated failover functionality in applicable SnapMirror active sync configurations. Relevant SAN ONTAP topics include SnapMirror active sync, ONTAP Mediator, quorum, automated unplanned failover, and synchronous replication.

For automatic host discovery in a four-node NetApp AFF cluster using NVMe/TCP, the protocol used is mDNS (Multicast DNS). mDNS allows for the discovery of controllers and other networked devices without the need for a centralized DNS server, simplifying the setup process in environments that support NVMe over TCP.

For further information, refer to:

NetApp Documentation on NVMe/TCP

NetApp Community on Host Discovery

To manage space automatically for a volume containing a LUN with fast-growing data, enabling automatic resizing on the volume is recommended. This feature allows the volume to grow dynamically as needed, accommodating the fluctuating data size without manual intervention. This helps in managing storage efficiently and ensures that the application has the required space.

For further details, refer to:

NetApp Documentation on Volume Management

NetApp Community Discussion on Automatic Resizing

ONTAP defines the supported iSCSI authentication types as CHAP, deny, and none. Therefore, among the options provided, CHAP and deny are the two valid choices. CHAP authenticates an initiator by using a username and password. ONTAP supports inbound CHAP, where the storage system authenticates the initiator, and optional outbound CHAP for mutual authentication. The deny authentication type explicitly prevents the specified initiator from accessing the SVM. Certificates and SAML are not available values for ONTAP iSCSI initiator authentication. The vserver iscsi security create command exposes the authentication type as {CHAP|deny|none}. Consequently, the V9.02 supplied answer A, B is incorrect and has been corrected to A, C. Relevant topics include iSCSI security, CHAP, mutual CHAP, initiator credentials, and authentication policies.

To restore a LUN from a SnapMirror Synchronous destination, the following steps must be taken:

Release the relationship: This step is necessary to break the SnapMirror relationship, allowing the LUN to be restored independently.

Delete the relationship: After releasing the relationship, deleting it ensures that there are no residual dependencies or configurations that might interfere with the restore process.

For more information, refer to:

NetApp Documentation on SnapMirror Synchronous​ ( NetApp )​​ ( NetApp )​.

In NetApp ONTAP 9.14.1 software, the maximum size for a LUN is 128TiB. This limit ensures that large datasets can be stored and managed efficiently within a single LUN, catering to the needs of high-capacity SAN environments

NetApp Windows Host Utilities are used to configure Windows hosts correctly for ONTAP SAN storage and include support for Microsoft Multipath I/O configuration. During Host Utilities installation, multipathing support can be selected when multiple paths exist between the Windows server and the storage system. The package also configures required Windows registry and storage parameters so the host correctly handles ONTAP pathing behavior. Device Mapper Multipathing is primarily associated with Linux and is therefore inappropriate for Windows Server. An iSCSI target represents the storage endpoint and does not itself configure host multipathing. ANA is the NVMe multipathing mechanism and does not apply to an iSCSI LUN. Relevant SAN ONTAP topics include Windows Host Utilities, Microsoft MPIO, iSCSI host configuration, ALUA, redundant SAN paths, and Windows Server interoperability.

MetroCluster IP uses an IP-based backend infrastructure and supported Ethernet switches rather than the FC switching and FibreBridge architecture associated with MetroCluster FC configurations. The ASA A800 is supported in MetroCluster IP configurations, including deployments using supported Cisco IP switches. For automated unplanned switchover, ONTAP Mediator provides the independent quorum/state mechanism used by MetroCluster IP nodes to determine whether an automatic switchover should occur. NetApp describes Mediator-assisted automatic unplanned switchover (MAUSO) as the MetroCluster IP capability that can initiate switchover following qualifying failures, including complete site failure. ATTO FibreBridge devices and FC switches belong to FC-based MetroCluster topologies and are not the required IP components in this scenario. Consequently, the required choices are Ethernet switches and ONTAP Mediator.

When using Foreign LUN Import (FLI) for migrating LUNs from third-party SAN arrays to a NetApp ONTAP system, one of the requirements is to have at least one Fibre Channel (FC) port configured in target mode on the destination NetApp ONTAP cluster. This configuration is necessary to facilitate the migration process as the target mode port will accept and manage incoming data from the source SAN arrays.

For additional details, refer to:

NetApp Documentation on FLI

When planning to upgrade the UCS Server BIOS and Cisco NX-OS system running on the switches in a NetApp AFF ASA cluster environment, the Interoperability Matrix Tool (IMT) is the recommended resource to check compatibility with the new versions. The IMT provides detailed compatibility information for various hardware and software components, ensuring that the planned upgrades will not cause any interoperability issues.

For further details, refer to:

NetApp Interoperability Matrix Tool
