NS0-194 NetApp Certified Support Engineer (NCSE) Questions and Answers

A DS4246 shelf has 24 drive bays. The model naming can be misleading if interpreted literally, but in NetApp shelf terminology DS4246 identifies a 4U disk shelf that supports twenty-four 3.5-inch drives and uses 6 Gb SAS connectivity. Twelve bays would describe smaller shelf families, and forty-two or forty-six bays do not match the DS4246 platform. This is a hardware-identification question, so the support engineer should rely on shelf model characteristics rather than infer the capacity from a partial number in the model name. The DS4246 is commonly found in FAS environments that use external SAS shelves for high-capacity HDD deployments. Knowing bay count is important for capacity planning, shelf cabling validation, disk replacement planning, and interpreting AutoSupport shelf/disk inventories. The shelf model also affects IOM selection, stack planning, slot numbering, and replacement logistics during field service. References/topics: NetApp DS4246 disk shelf specifications, SAS shelf hardware, 4U 24-bay shelf design, and drive-shelf identification.

Aggregate relocation enables nondisruptive hardware maintenance during an ONTAP upgrade or controller maintenance activity. ARL moves aggregate ownership between HA partners so that storage resources remain available while a node is serviced or upgraded. FlexVol and FlexGroup are volume types and do not provide the controller-level maintenance mechanism required in the scenario. RAID-TEC protects against multiple disk failures, but it does not move aggregates away from a controller for nondisruptive maintenance. The key support concept is that ONTAP nondisruptive operations rely on HA takeover/giveback and aggregate relocation to keep data online while hardware or software work occurs. For an upgrade from an older release to a later release, ARL is central when the process requires controller reboot or hardware service without forcing client downtime. This is why ARL is repeatedly tested in support exams: it is the operational bridge between hardware service and continuous data availability. References/topics: ONTAP nondisruptive upgrade, aggregate relocation, HA pair maintenance, controller availability, and upgrade readiness.

ONTAP writes data from memory to disk during consistency point processing, and two triggers in this answer set are NVLog pressure and Snapshot creation. When client writes arrive, ONTAP acknowledges them after they are safely logged in NVRAM/NVLog and mirrored as needed, while data is later written efficiently to disk during a consistency point. If the NVRAM/NVLog fills, ONTAP must force data to disk to free protected log space. Snapshot creation also requires a consistent on-disk image, so pending writes are flushed to establish a stable point-in-time view. A user pressing Save on an application does not directly force ONTAP to write memory contents to disk; it produces client I/O that ONTAP processes according to WAFL behavior. Drive capacity becoming available is unrelated to the consistency point trigger mechanism. References/topics: WAFL consistency points, NVRAM/NVLog protection, Snapshot copy creation, write acknowledgement, and ONTAP write-path behavior.

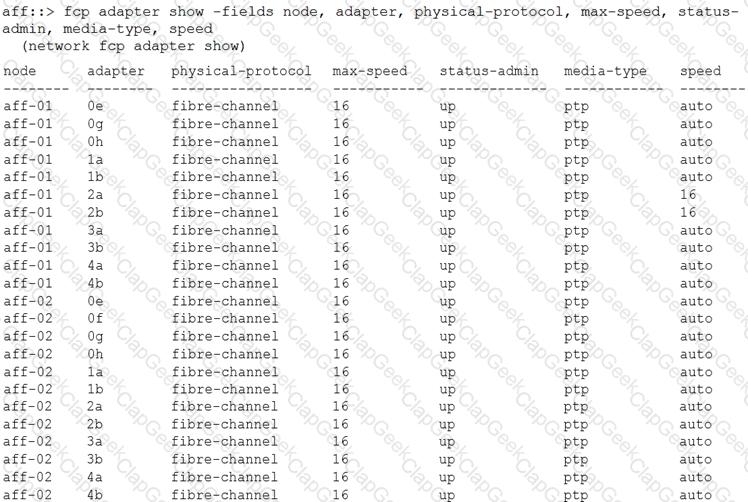

The problem is that there are no FC adapters with a max-speed of 32 Gbps. NVMe/FC support depends on platform, adapter, and speed capability. The exhibit shows FC adapters, but their max-speed is 16 Gbps, which does not satisfy the requirement being tested. The issue is not that the physical protocol is already set to NVMe; FC adapters are configured and then used for FC or FC-NVMe services according to supported capabilities. Media type is not NVMe, because NVMe is a storage protocol, not an optical media type. The wording 'cannot enable the protocol' requires checking whether installed adapters meet the hardware support requirements. A support engineer should verify adapter model, max speed, port mode, firmware, and ONTAP support matrix before attempting to configure NVMe. In this exhibit, the absence of 32 Gb-capable FC adapters is the blocking condition. References/topics: ONTAP NVMe/FC adapter requirements, FC adapter max-speed, protocol enablement, SAN hardware support, and port capability validation.

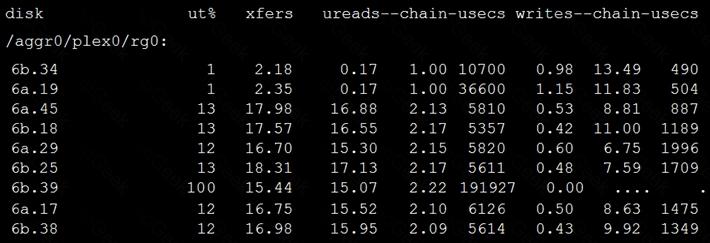

Disk 6b.39 should be replaced because the exhibit indicates one disk is the abnormal contributor to disk utilization rather than a balanced aggregate-wide load problem. When Active IQ reports 100 percent disk utilization despite low protocol operations, the support engineer must determine whether the metric reflects true client workload, background operations, or a single device causing path or service time issues. Replacing multiple disks without evidence would be excessive, and adding disks to the aggregate would not correct a failing or pathological disk that is already producing abnormal utilization. Reseating shelf module B would be appropriate if the pattern showed a path, shelf, or module-wide issue, but the scenario points to a specific disk. In disk-level troubleshooting, the correct response is to isolate the outlier device, confirm the disk ID, and replace the failing component through standard NetApp support procedures. References/topics: Active IQ disk utilization analysis, disk outlier diagnosis, ONTAP storage performance triage, drive replacement workflow, and hardware fault isolation.

If a Cloud Volumes ONTAP instance loses connectivity to Cloud Manager for four or more days, the instance is stopped. Cloud Volumes ONTAP depends on the management plane for licensing, control, and operational management. Temporary communication interruptions do not immediately remove the working environment from inventory or require manual re-adding, but extended loss of connectivity has enforcement consequences. Sending an AutoSupport message alone would not be the consequence described by the scenario. Removing the instance from Cloud Manager inventory would be a management-plane display action, not the operational enforcement behavior of the instance. For support engineers, this is a cloud-control dependency question: Cloud Volumes ONTAP is ONTAP software running in cloud infrastructure, but it is managed and licensed through NetApp cloud services. When connectivity is lost beyond the permitted window, the instance is stopped to prevent unsupported operation. References/topics: Cloud Volumes ONTAP management, Cloud Manager/BlueXP connectivity, licensing enforcement, and cloud data services operational requirements.

The supported NetApp HCI compute-node cabling methods are the 2-cable and 6-cable configurations. The 2-cable design is a simplified topology that reduces cabling while still supporting required network connectivity. The 6-cable configuration provides greater physical separation and bandwidth for management, storage, vMotion, and VM traffic depending on the validated design. A 1-cable configuration does not provide the required redundancy and traffic separation for supported HCI compute-node deployment. A 4-cable configuration is not one of the supported compute-node cabling methods in this exam context. NetApp HCI cabling must follow validated architecture because incorrect port use or switch design can prevent the NetApp Deployment Engine from validating the environment and can create performance or availability issues. The engineer should always compare the physical cabling with the deployment guide before running or rerunning the NetApp Deployment Engine. References/topics: NetApp HCI compute-node cabling, deployment prerequisites, 2-cable topology, 6-cable topology, and validated HCI network design.

The correct conclusion is that the CIFS SVM is not using DNS. A hardened Windows group policy commonly reduces insecure name resolution and authentication fallback behavior. SMB access to a CIFS server should use proper DNS name resolution so that clients can locate the server, validate identity, and use Kerberos or the intended domain authentication path. If users previously connected through weak or non-DNS mechanisms, a new security policy can break access even though the SVM itself is still online. SMBv1/SMBv2 configuration is not the best answer because the scenario points to a domain security policy change rather than protocol version negotiation alone. NFSv3 is irrelevant to Windows CIFS access, and a wrong domain would not normally appear suddenly after a group policy push if access worked the day before. References/topics: ONTAP SMB access, DNS dependency, Kerberos authentication, Windows security policy effects, and CIFS client troubleshooting.

Cloud Manager is the supported tool for upgrading the ONTAP version of a Cloud Volumes ONTAP instance. Cloud Volumes ONTAP is managed through the NetApp cloud management plane, so lifecycle operations such as software upgrades are performed from Cloud Manager/BlueXP rather than directly through traditional on-premises tools. Cloud Insights is an observability and monitoring service, not the upgrade mechanism. Active IQ Unified Manager manages and monitors ONTAP environments but is not the supported CVO upgrade tool in this scenario. ONTAP System Manager is used for ONTAP cluster administration, but Cloud Volumes ONTAP version upgrades are controlled through the cloud working environment in Cloud Manager. The support engineer must distinguish on-premises ONTAP administration from CVO lifecycle management. When the question says supported method for upgrading a CVO instance, the answer is Cloud Manager. References/topics: Cloud Volumes ONTAP lifecycle management, Cloud Manager/BlueXP, CVO software upgrade workflow, and NetApp cloud data services.

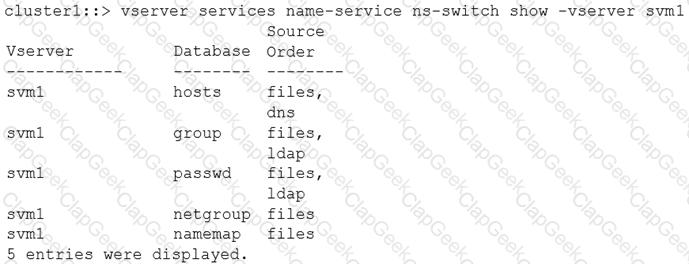

The UNIX user prof1 is looked up in files first because the name-service switch output shows the passwd database source order as files, then ldap. ONTAP follows the configured source order for the relevant database. Since a UNIX user lookup uses the passwd database, ONTAP checks the local files source before contacting LDAP. DNS is associated with host name resolution, not UNIX user identity lookup. NIS is not listed in the passwd source order shown in the exhibit, so it cannot be the first lookup source. LDAP is listed, but it is second after files. This question tests the engineer's ability to read ns-switch output and apply it to the correct identity database. For NAS access issues, source order directly affects user mapping, UID/GID resolution, group membership, and permission decisions. References/topics: ONTAP name service switch, passwd database lookup, UNIX identity resolution, files versus LDAP source order, and NAS authentication troubleshooting.

For an unexplained ONTAP node reboot without a panic string or core file, the useful log sets are SP status and events all. If there is no panic and no core, the event may have originated below the ONTAP panic path, such as power, service processor, environmental, watchdog, or platform-level behavior. SP status information can reveal service processor state, power events, reset reason indicators, and platform management context. The events all output provides ONTAP EMS context before and after the reboot, allowing correlation with hardware, HA, environmental, or software messages. system core is not useful when no core file was generated. sp status -d is a detailed command variant, but the standard collected set in this answer context is SP status along with the complete event log. A support engineer should collect platform and EMS evidence before assuming a software panic. References/topics: ONTAP unexpected reboot triage, service processor status, EMS event collection, no-panic reboot investigation, and hardware/software diagnosis workflow.

Asymmetric Namespace Access is the NVMe equivalent concept required for clients to handle storage failover correctly in an ONTAP NVMe environment. ANA allows an NVMe host to understand optimized and non-optimized paths to namespaces so that it can continue I/O when a controller, path, or owning node changes. MPIO is the broader multipathing framework used in many SAN environments, but the NVMe-specific path state mechanism in this question is ANA. ALUA applies to SCSI protocols such as FCP and iSCSI, not NVMe namespaces. NQN identifies NVMe hosts, subsystems, or ports; it does not provide path state awareness during failover. For an AFF system serving NVMe to Linux clients, failover visibility depends on the host recognizing ANA path states and using an NVMe multipath stack that can act on them. References/topics: ONTAP NVMe/FC or NVMe/TCP host access, ANA, namespace path states, Linux NVMe multipathing, and storage failover behavior.

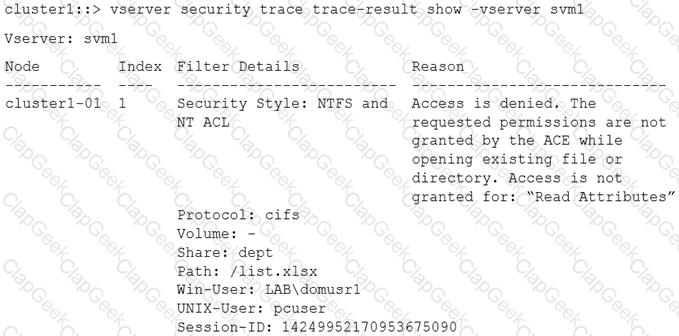

The user must be granted Read Attributes access to the path. The security trace result states that access is denied because the requested permissions are not granted by the ACE while opening the existing file or directory, and it specifically identifies Read Attributes as the missing permission. Adding the user to BUILTIN groups would be a broad and imprecise change that may not match the file's intended NTFS ACL model. Granting Execute access does not solve the reported missing permission unless the access mask also includes the required attribute-read right, and the trace does not identify Execute as the failed permission. ONTAP security trace is designed to point directly to the permission, user mapping, security style, and access decision involved in a failed NAS request. The support engineer should remediate the exact ACL deficiency shown by the trace rather than guess at group membership. References/topics: ONTAP security trace results, NTFS ACE evaluation, Read Attributes permission, CIFS access denial troubleshooting, and NAS ACL remediation.

Volume deswizzling is the symptom associated with slow access to newly replicated data on a SnapMirror DP destination. SnapMirror destination volumes can contain indirect block references that are efficient for replication but may require background optimization before random client access performs like the source. Deswizzling converts or optimizes those references so the destination can serve data more efficiently. A blocks-used summary update is a space accounting operation, not the characteristic symptom of slow newest-data access. Active bitmap rearrangement and container block reclamation are WAFL background activities but do not match the SnapMirror destination access pattern in this scenario. The key clue is that clients accessing the newest data on the DP destination are slower than clients accessing the source, and the engineer checks wafl scan status. That points to an active volume deswizzling scanner. References/topics: SnapMirror DP destination behavior, WAFL scan status, volume deswizzling, indirect block optimization, and destination-volume performance troubleshooting.

An FC switch must be used with ONTAP in this tested configuration. Traditional ONTAP FC SAN connectivity relies on a switched fabric because ONTAP uses NPIV to present FC targets into the fabric. A direct cable from a host to an ONTAP FC target port will not provide the expected target presentation in this scenario, so the host cannot see the LUN even though the LUN and igroup exist. Multipathing to another FC path would improve redundancy but would not correct an unsupported direct-attach topology. NPV is a switch technology, not something enabled on the host to solve direct connection to ONTAP. NPIV must be supported and enabled on FC switches, not used as a host-only fix in this question. The support engineer should validate fabric login, zoning, target ports, initiator WWPNs, igroup mapping, and supported topology. References/topics: ONTAP FC SAN topology, NPIV requirement, switched fabric design, LUN visibility troubleshooting, and SAN host connectivity.
