NS0-185 NetApp Storage Installation Engineer - ONTAP Professional Exam Questions and Answers

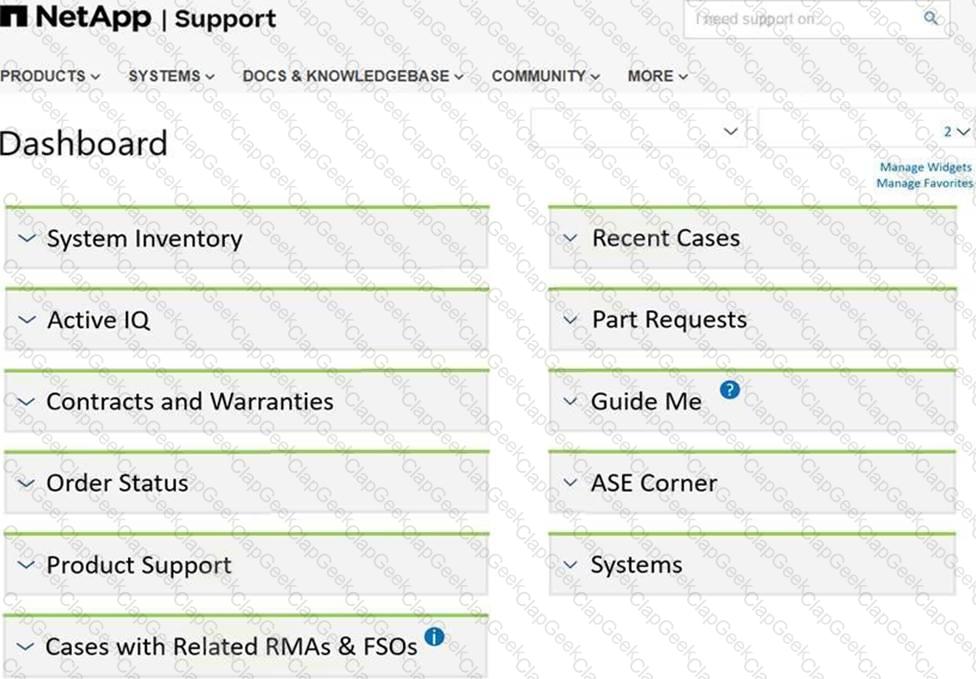

During post-installation and handover, NetApp provides diagnostic and guidance tools through the support dashboard. Two critical widgets used to identify and resolve issues areGuide MeandActive IQ.

Guide Meprovides step-by-step workflows, recommended actions, and guided troubleshooting based on system state. It helps administrators follow NetApp best practices during deployment, validation, and issue resolution.

Active IQdelivers proactive analytics, risk detection, configuration validation, and health insights. It identifies potential issues before they impact operations and provides corrective recommendations.

Contracts and Warranties is administrative, and ASE Corner is informational, not operational.

Thus, the correct answers areA and B.

Alternate Control Path (ACP) provides anout-of-band management pathto disk shelves, allowing ONTAP to monitor and reset SAS expanders nondisruptively. It does not carry data traffic and does not assign shelf IDs.

The AFF A250 provideseight Ethernet portsthat can be used for Ethernet-based host connectivity, depending on adapter configuration. FC ports are separate and do not count toward Ethernet host connections.

Cluster peering enables data replication and disaster recovery features such as SnapMirror and SnapVault. LIF configuration for cluster peering follows specific ONTAP SAN concepts.

Each cluster participating in a peer relationship must haveat least one intercluster LIF per node. This ensures redundancy and allows ONTAP to balance replication traffic across nodes.

Additionally,intercluster LIFs must use the default intercluster service policy, which defines the permitted traffic types and security rules required for peering operations.

An MTU of 9000 is recommended but not mandatory. Dedicated broadcast domains or IPspaces are optional and depend on network design.

Therefore, the correct answers areB and D.

Flow control configuration is an important validation step in ONTAP SAN and NAS environments, especially in switchless cluster designs. NetApp documentation clearly differentiates flow control requirements between data networks and cluster networks.

For data network ports, full flow control must be enabled when hosts are configured with full flow control. This ensures proper congestion management and prevents packet loss during high-throughput NAS operations such as NFSv4.1 and SMB traffic. Matching flow control settings between hosts and storage data ports is a best practice explicitly stated in NetApp installation guidance.

In contrast, cluster network ports must have flow control disabled. The cluster network is highly sensitive to latency and congestion, and enabling flow control on cluster interconnect ports can introduce delays that negatively affect cluster quorum, node communication, and overall stability. NetApp explicitly requires flow control to be disabled on cluster network interfaces.

Enabling flow control on cluster ports or disabling it on data ports would violate NetApp-supported configurations and can lead to performance degradation or cluster communication issues.

Therefore, the two correct settings to verify are:

Data network ports have full flow control enabled

Cluster network ports have full flow control disabled

This makes C and D the correct answers.

In ONTAP, LIF failover target selection is controlled byfailover groupsandfailover policies. A key installation and validation concept is that ONTAP uses broadcast domains to simplify and automate failover-group membership. Specifically, ONTAP documents that when you create a broadcast domain, ONTAP automatically creates a failover group with the same name and manages it so that as ports are added or removed from the broadcast domain, they are also added or removed from the associated failover group.

Because of this coupling, if a LIF “moves to a port that is not expected,” the most direct and common cause is that thebroadcast domain contains ports that do not belong there(or ports that should be in a different broadcast domain/IPspace). When the original port goes down (for example, because you disabled the connected switch), ONTAP looks for eligible failover targets in the LIF’s assigned failover group. If the broadcast domain was defined too broadly or incorrectly, the failover group will also be too broad, and ONTAP may pick a port that appears valid per configuration but is “unexpected” from the design intent.

Option C (“There are no online ports within the same failover group”) would more commonly result inno valid failover target(and therefore an outage) rather than a clean migration to an unexpected port; ONTAP even warns that without a valid target, an outage occurs during failover verification. Option A is too generic and does not specifically explain why adifferentport becomes a valid target. Option D is not a typical ONTAP networking root cause for LIF migration behavior.

Therefore, the behavior is best explained by an incorrectly configured broadcast domain.

To observe a node’s boot process during takeover testing, you need access to aconsole-capable, out-of-band management interfacethat remains reachable even when the node is not fully up at the ONTAP management layer. NetApp platforms provide theService Processor (SP)(or BMC on some models) as the remote management device used for out-of-band monitoring, console redirection, and power control/diagnostics.

ONTAP documentation describes that the remote management device (Service Processor) can detect certain failure conditions and is involved in hardware-assisted takeover behavior, which reinforces its role as the out-of-band management plane. Additionally, ONTAP provides explicit commands to manage the Service Processor (for example, rebooting the SP), which further confirms that SP is a distinct management interface independent of in-band ONTAP LIFs.

Options B (SVM management), C (cluster management), and D (node management) are allin-band ONTAP LIF-based management interfaces. These LIFs depend on ONTAP network services being operational and do not provide the low-level boot console view needed to watch BIOS/loader/kernel initialization. During takeover testing, the node being taken over may be halted, rebooting, or otherwise not servicing its management LIF in a reliable way. In contrast, SP access is intended specifically for situations where the OS is not fully running or where you need visibility into the boot process and hardware health.

From an installation testing and troubleshooting standpoint, connecting to the SP is the correct method to watch the node boot while its partner is in takeover, because the SP provides persistent, independent access to the node console regardless of ONTAP LIF availability.

Therefore, the correct interface isA. Service Processor.

Explanation (250–350 words):

ONTAP clusters support amaximum of 24 nodesper cluster. In this scenario, the cluster already hassix nodesrunning mixed NAS (NFS) and SAN (FCP) workloads. When expanding an ONTAP cluster, NetApp best practices and installation rules strongly recommend adding nodesin HA pairsto maintain balanced high availability, performance symmetry, and consistent failover behavior.

Because nodes must be added in pairs, the cluster can scale from six nodes to eight, ten, twelve, and so on, up to the 24-node limit. However, the question is asking how many nodeswould be added, not the maximum supported. The standard NetApp expansion model for a six-node cluster is to addanother three HA pairs, which equalssix additional nodes, bringing the cluster to twelve nodes.

Adding only two or four nodes would result in uneven scaling and is not the standard recommended growth pattern for clusters of this size. Adding eighteen nodes would exceed practical expansion planning for a six-node system and approach the cluster maximum without justification.

Therefore, the correct answer is6.

Graphical management of clustered Data ONTAP systems is performed usingOnCommand System Manager, which provides a web-based interface for configuration, monitoring, and administration.

System Setup is used only for initial node setup, HostAgent is host-side software, and StorageGRID is an object storage platform unrelated to ONTAP cluster management.

OnCommand System Manager allows administrators to manage aggregates, volumes, LIFs, SAN objects, and system health through an intuitive GUI, making it the correct choice.

Therefore, the correct answer isB, as defined byNetApp.

Cluster interconnect switches must be connected to each other with Inter-Switch Links (ISLs) to maintain resilient cluster networking and to ensure that cluster LIFs on different switches can communicate properly. In the Broadcom BES-53248 cluster switch documentation, the base configuration explicitly reserves switch ports55–56as “100GbE cluster Inter-Switch Link (ISL) ports, base configuration.”

The fact thattwo specific portsare designated as ISL ports in the base configuration strongly indicates that the expected minimum ISL design istwo ISLs—one per port—between the switch pair. This matches standard NetApp validated cluster switch designs, where redundant ISLs provide resilience against a single ISL failure and help maintain cluster connectivity under maintenance or partial link faults. In installation practice, this is part of “robust and operational” cluster design: redundant paths are preferred/required to avoid single points of failure in the cluster network fabric.

Option A (1 ISL) would create a single point of failure: if that ISL fails, inter-switch cluster connectivity can be compromised. Options C and D are not the “minimum” in the base configuration context; while some architectures may support multiple ISLs for additional bandwidth, the base configuration callout clearly highlights two dedicated ISL ports.

Therefore, in a base configuration for BES-53248 cluster interconnect switches, the minimum number of supported ISLs between the two switches is2.

Service Event Reports require standardized installation and configuration data.NetAppDocsgenerates structured output reports specifically designed for SER creation, including hardware, cabling, and configuration details. Other tools do not produce SER-formatted documentation.

Mailbox disks store HA metadata and partner state information required for takeover and giveback operations.

AutoSupport verification requires checking history and generating a test message. The history command confirms delivery, and invoke sends a test AutoSupport. Therefore,A and Dare correct.

Installing and assigning new disk shelves in a production ONTAP cluster requires careful planning and validation. Three NetApp tools directly support this task.

TheHardware Universeprovides authoritative hardware compatibility and cabling guidance. It confirms which shelves, disk types, and cabling methods are supported for the specific controller platform and HA configuration.

TheSynergy applicationis used during installation to generate structured workflows, configuration guidance, and documentation that assist with shelf installation and disk assignment planning.

Config Advisoris essential after installation to validate shelf cabling, disk visibility, ownership, and HA pathing. It detects misconfigurations that could prevent proper disk assignment or create unsupported states.

My AutoSupport is used for telemetry and case management, not installation tasks. System Setup is used for initial cluster creation, not advanced shelf assignment planning.

Thus, the correct tools areA, B, and C.

AutoSupport can be manually triggered using the ONTAP CLI command or via System Manager. Ping tests and Unified Manager do not trigger AutoSupport generation.

NetAppDocsprovides official installation documentation, posters, and step-by-step guidelines. It is the correct resource for resolving disk ownership and installation workflow issues.

Within ONTAP SAN concepts, logical interfaces (LIFs) are assigned specific roles, and each role has predefined networking and security behaviors. Among all LIF types, thecluster LIFis unique because it has afixed firewall policythat cannot be modified by administrators.

Cluster LIFs are used exclusively forinternal cluster communication, including replication of configuration databases, cluster heartbeat traffic, and distributed data access coordination. Because of their critical role, NetApp enforces a fixed firewall policy to protect cluster integrity and prevent accidental or malicious changes that could disrupt cluster operations.

Data LIFs, cluster management LIFs, and intercluster LIFs all allow configurable firewall policies. Administrators can adjust these policies to permit or restrict protocols such as NFS, SMB, iSCSI, HTTPS, SSH, or SnapMirror traffic depending on deployment requirements.

By contrast, cluster LIF firewall settings are locked to ensure that only cluster-related traffic is permitted. This design ensures predictable behavior and prevents misconfiguration during installation or troubleshooting.

Therefore, the only LIF with a fixed firewall policy is thecluster LIF, makingCthe correct answer.

This scenario is about iSCSI SAN path visibility after cluster expansion. ONTAP usesSelective LUN Map (SLM)concepts so that hosts do not automatically see every LUN through every node, which would create unnecessary paths. ONTAP documentation explains that with SLM, when a LUN map is created, the LUN is accessible through paths on the node that owns the LUN and its HA partner, and this behavior is controlled through thereporting-nodeslist.

If you wantadditional paths(including non-optimized paths) from newly added nodes, you must ensure the new nodes can be included in the reporting scope for those LUN mappings. ONTAP provides an explicit mechanism for this: the lun mapping add-reporting-nodes command is used before or after data mobility events to add nodes to the reporting-nodes list for a LUN mapping. This directly matches optionC (reporting nodes).

However, even if reporting-nodes is expanded, hosts only gain usable iSCSI access if the target LIFs are reachable/allowed. ONTAP documentation describes thatportsetscan be used with SLM to further restrict access, and when using SLM with portsets, LUNs are accessible on the set of LIFs included in the portset (on the owning node and its HA partner). Therefore, to “allow non-optimized paths from the AFF A250 nodes,” you must verify whether portsets are being used and that the appropriate new iSCSI LIFs are included (or that no restrictive portset blocks them). That makes optionA (port sets)the second correct configuration item.

Option B (switch zoning) applies to FC fabrics, not iSCSI. Option D (failover groups) affects NAS/management LIF failover behavior and does not control SAN LUN reporting visibility in the way SLM/reporting-nodes and portsets do.

Mixing DS4243 and DS4246 shelves in the same stack is unsupported. New shelves must be added as a separate stack.

AFF A250 systems use25GbE ports with breakout cablingfor cluster and HA traffic. When adding these nodes to switches running a standard Cluster-HA RCF, the switches must be updated to aCluster-HA-Breakout RCFto support breakout ports. The nodes must then be cabled to the breakout ports. Therefore,B and Dare correct.

ONTAP clusters require that all nodes run the same ONTAP version before a node can join the cluster under normal conditions. The exhibit clearly indicates that the join operation failed because the cluster is running ONTAP 9.8 while the new node is running ONTAP 9.7, resulting in a mixed-version cluster restriction.

One nondisruptive solution is toupgrade the new node to ONTAP 9.8before attempting to join it to the cluster. This approach aligns the software version of the new node with the existing cluster and fully complies with NetApp-supported installation procedures. It does not impact cluster availability and is the preferred long-term solution.

The second nondisruptive option is to use the-allow-mixed-version-joinparameter. ONTAP explicitly allows this method to temporarily permit a mixed-version cluster for the purpose of expansion or upgrade workflows. This option is designed for controlled scenarios and allows the node to join without disrupting existing cluster operations. However, the mixed-version state is intended to be temporary and must be resolved by upgrading the remaining nodes.

Reverting the cluster or reinitializing all nodes would be disruptive and violate nondisruptive installation principles. Therefore, the correct answers areC and D.

In environments without outbound internet access, cloud-based monitoring and analytics tools cannot be used. The customer requires alocally deployed solutionthat can perform health monitoring, troubleshooting, and capacity reporting, including the ability to generatecustom Excel reports.

Active IQ Unified Manager (AIQUM)is designed specifically for this use case. It is installed on a local server within the customer’s environment and connects directly to ONTAP clusters. AIQUM provides performance monitoring, capacity analysis, event management, and historical reporting without requiring external connectivity. It also supports exporting reports in formats suitable for Excel-based analysis.

Active IQ Digital Advisor and Cloud Insights both rely on outbound connectivity to NetApp cloud services, which is not available in this isolated data center. ONTAP System Manager provides real-time management and basic monitoring but lacks the advanced reporting, historical trending, and Excel export capabilities required by the customer.

Therefore,Active IQ Unified Manageris the only tool that satisfies all stated requirements.

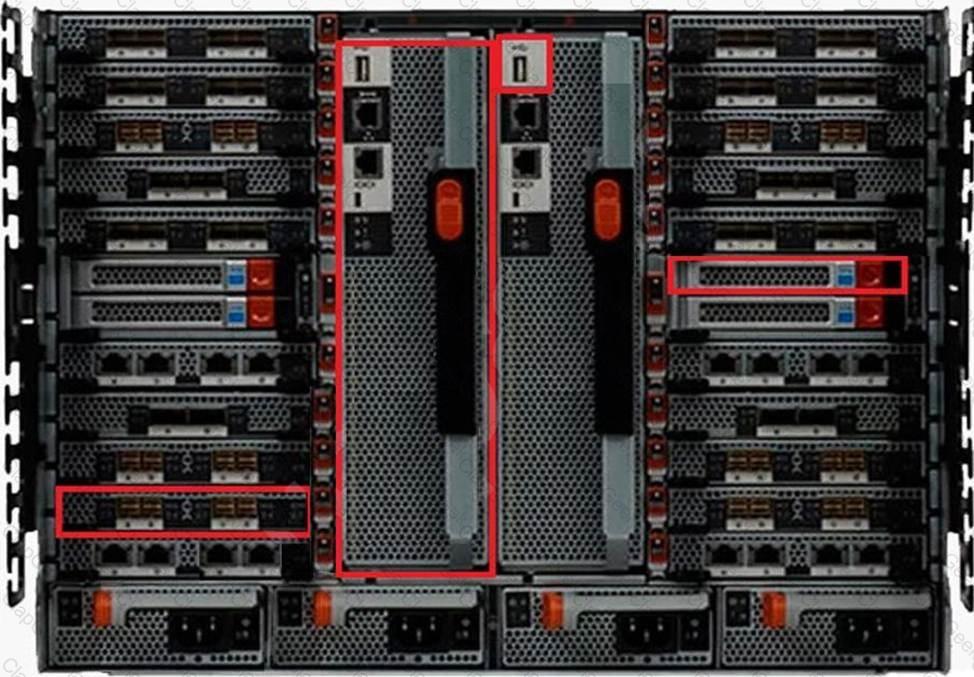

Understanding hardware components is a core requirement within ONTAP SAN concepts. The exhibit highlights several key components on a FAS9000 system that are essential to system operation and high availability.

The large central components shown are the controllers, which house the CPUs, memory, and network interfaces responsible for data processing and cluster operations. Adjacent to the controllers are the NVRAM modules, which are critical for write caching and data integrity. NVRAM ensures that incoming write operations are safely logged and protected in the event of power loss or controller failover.

The exhibit also highlights the serial ports, which are used for low-level system access during installation, troubleshooting, or recovery scenarios. Serial ports are especially important during initial setup or when network access is unavailable.

Finally, the highlighted FlashCache modules provide read caching functionality. FlashCache accelerates read-intensive workloads by caching frequently accessed data on flash memory, improving overall system performance.

Other options are incorrect because they either include components not highlighted in the exhibit (such as power supplies or USB ports) or misidentify the flash modules. Therefore, the correct set of components shown in the exhibit is NVRAM-Module, Controller, Serial-Port, FlashCache-Module.

After completing the initial configuration of a multi-node ONTAP cluster and its cluster interconnect switches, NetApp installation best practices require enabling proactive monitoring of the cluster network. TheCluster Switch Health Monitor (CSHM)is the ONTAP feature designed specifically for this purpose.

CSHM continuously monitors the health of supported cluster switches by collecting information such as switch configuration, port status, firmware versions, cabling, and error conditions. It validates this information against NetApp-supported configurations and best practices. When deviations or risks are detected, CSHM generates alerts and EMS messages that allow administrators to take corrective action before cluster communication is affected.

Cluster switch logging alone does not provide health analysis or proactive validation; it only records switch events. IPv6 is not required or recommended for cluster interconnect networks in standard ONTAP installations. Data Center Bridging (DCB) is used for specific Ethernet storage protocols and is not applicable to ONTAP cluster interconnect networks.

Therefore, enabling thecluster switch health monitoris the correct and required post-installation step.

Within the ONTAP SAN solution assessment domain, NetApp emphasizes the creation of accurate and reusable documentation immediately after system installation. One of the supported tools for this purpose is NetAppDocs, which is designed to collect system configuration data and generate standardized inventory and design documentation. According to NetApp Storage Installation concepts and objectives, inventory reports must be produced in formats that support both technical review and customer handoff, while remaining editable and auditable.

NetAppDocs is explicitly described in NetApp documentation as supporting Microsoft Word, Microsoft Excel, and PDF outputs for inventory-style reports. These formats align with operational best practices defined in installation and assessment workflows. Word (.docx) files are used to present structured design narratives and annotated configuration details. Excel (.xlsx) files are used to present tabular inventory data such as controllers, disk shelves, ports, adapters, WWPNs, and LIF assignments, which are critical for SAN assessment and future expansion planning. PDF (.pdf) files are used as finalized, non-editable deliverables suitable for compliance records, customer signoff, and archival purposes.

Formats such as HTML and PostScript (.ps) are not identified in NetApp Storage Installation objectives as supported NetAppDocs inventory outputs. These formats do not align with NetApp’s standardized documentation deliverables and are not referenced in official installation or assessment documentation. As a result, they are excluded.

From a SAN-focused assessment perspective, the ability to generate Word, Excel, and PDF reports ensures consistency across deployment teams, simplifies validation of ONTAP SAN configurations, and supports accurate lifecycle documentation. These formats are repeatedly reinforced in NetApp installation guidance as the approved and supported inventory report outputs.

Therefore, the correct answers are A (.docx), C (.pdf), and E (.xlsx), as they are the only formats verified and supported for NetAppDocs inventory reporting within NetApp Storage Installation concepts and domains provided by NetApp.
