Mule-Dev-301 Salesforce Certified MuleSoft Developer II Questions and Answers

VM Connector supports both transient and persistent asynchronous queues, and their recovery behavior differs fundamentally. MuleSoft specifies that transient queues provide better performance but are not reliable when the runtime or host fails. Persistent queues are slower because their content must be persisted, but they provide recovery across failures.

For a standalone Mule runtime, persistent VM queues serialize and store queued message data on disk. Consequently, if the Mule runtime or underlying system stops before an in-flight queued message is consumed, the message can remain available and processing can resume after the runtime becomes operational again.

A transient queue stores its queued state in volatile runtime memory. A system failure destroys that state, so an unconsumed transient message cannot be assumed to survive restart.

Therefore, neither "all messages are lost" nor "all messages are recovered" accurately describes VM behavior; durability depends specifically on the queue type.

For workloads where asynchronous events must survive process or host failure in a supported standalone runtime architecture, a persistent VM queue is therefore the appropriate choice.

Reference topics: VM Connector; persistent queues; transient queues; asynchronous messaging; durability and recovery.

Official documentation: https://docs.mulesoft.com/vm-connector/latest/vm-reference

===============================================================

The requirement combines two architectural concerns: the downstream HTTP calls must execute concurrently, and completed remote operations must be reversible when another operation fails. Scatter-Gather is the appropriate Mule router for the concurrency requirement because it dispatches the event to multiple routes and executes those routes in parallel.

However, independent HTTP APIs cannot generally participate in a single ACID/XA transaction with Mule. Once a remote API successfully commits an operation, Mule cannot simply perform a conventional transaction rollback across that service boundary. The appropriate distributed-transaction pattern is therefore a Saga, where successful steps have defined compensating operations that semantically undo their effects when a subsequent step fails.

Scatter-Gather also provides a composite error model. If one or more routes fail, Mule collects successful route results and route failures into a MULE:COMPOSITE_ROUTING error. A centralized orchestration/error-handling flow can inspect those results and execute compensation logic in the required sequence.

Parallel For Each is designed for elements of a collection, not orchestration of several distinct API operations. VM queues and transactional-outbox patterns address different reliability concerns and do not directly implement distributed compensation.

Reference topics: Scatter-Gather Router; Composite Routing Errors; Distributed Transactions; Compensating/Saga Pattern.

Official documentation: https://docs.mulesoft.com/mule-runtime/4.3/scatter-gather-concept

===============================================================

The HTTP Request connector is operating as a TLS client when it connects to the target HTTPS API. During the TLS handshake, the server presents its certificate chain. The client must be able to establish a chain of trust from that certificate to a trusted certificate authority.

When no custom Mule truststore is configured, Mule relies on the default Java/JRE truststore. MuleSoft explicitly states that if a tls:trust-store is not specified, Mule uses Java's default truststore, which normally contains certificates for major public certificate authorities.

Therefore, the target API connection succeeds when the issuing CA can be validated through that JRE truststore, assuming the remainder of the TLS negotiation is valid. A keystore serves a different purpose: it normally contains a private key and certificate used to establish the local party's own identity. It is not the default repository used to establish trust in remote HTTPS servers.

The connection also does not automatically trust every CA. Certificate validation still occurs unless validation is explicitly disabled.

Therefore, B correctly describes Mule's behavior when the HTTP Request configuration has no custom TLS truststore configured.

Reference topics: HTTP Request Connector; TLS client validation; Java default truststore; CA certificate chains; keystore versus truststore.

Official documentation: https://docs.mulesoft.com/mule-runtime/4.4/tls-configuration

===============================================================

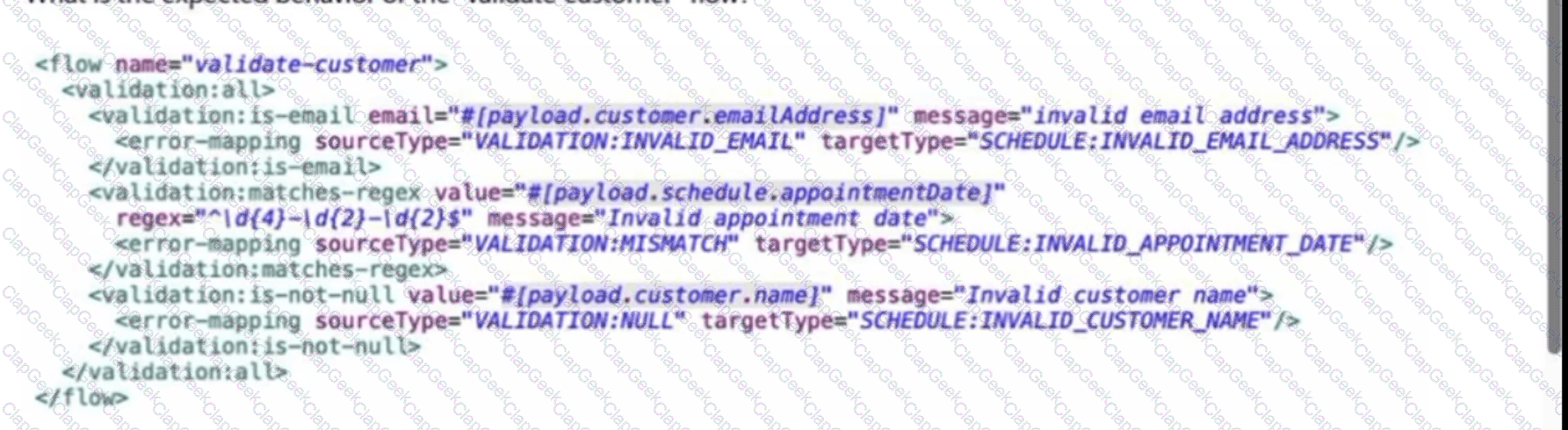

The three validation operations are nested inside a validation:all scope. The defining behavior of this scope is that it executes every nested validation even if one or more earlier validations fail. Consequently, an invalid email does not immediately terminate validation processing. Mule continues to evaluate the appointment-date regular expression and the customer-name null check.

MuleSoft explicitly documents that all validations inside the All scope are executed even if all of them fail. If one or more nested validations fail, the All validator produces a consolidated VALIDATION:MULTIPLE error describing the failures rather than simply throwing the first or final validation error.

The flow does contain error mappings for individual validators—for example mapping VALIDATION:INVALID_EMAIL to SCHEDULE:INVALID_EMAIL_ADDRESS. However, those mappings do not change the central behavioral point being tested: the All scope evaluates the entire set rather than short-circuiting after the first failed validator.

Thus, if the email address is invalid, the remaining appointment-date and customer-name validations are still evaluated. This makes C the only option accurately describing the scope's execution behavior.

Reference topics: Validation Module; validation:all; validation aggregation; VALIDATION:MULTIPLE; error mappings.

Official documentation: https://docs.mulesoft.com/validation-connector/latest/validation-examples

===============================================================

Object Store Connector provides Mule operations for interacting with object stores associated with the application in which the connector executes. It is not the mechanism for one independently deployed CloudHub application to directly operate on another application's Object Store v2 data.

For cross-application administration and access, MuleSoft provides the Object Store v2 REST APIs. These APIs support listing object stores and keys, storing and retrieving key-value pairs, and explicitly deleting keys and their values. Calls are authenticated with an Anypoint Platform bearer token and address the required organization, environment, store, partition, and key. MuleSoft's documented DELETE operation removes a specified key-value pair from the targeted Object Store v2 partition.

The CloudHub REST API manages CloudHub resources and deployments rather than application Object Store entries. The CloudHub Connector likewise does not provide the direct cross-application Object Store v2 deletion capability described here.

Therefore, application B can invoke the Object Store v2 REST API, subject to appropriate authorization and identification of application A's relevant Object Store resources, to remove values from that store.

Reference topics: Object Store v2; Object Store v2 REST APIs; partitions and keys; DELETE operations; CloudHub persistence.

Official documentation: https://docs.mulesoft.com/object-store/osv2-apis

===============================================================

Mule's Cache scope is backed by a caching strategy, commonly using an Object Store. The caching strategy can directly configure expiration characteristics, including entry time to live (TTL). Once the TTL expires and the corresponding expiration processing occurs, cached entries are removed according to the configured Object Store policy without requiring application-specific invalidation logic.

MuleSoft's cache strategy documentation shows that the Object Store used by a caching strategy can define values such as entryTtl, expirationInterval, and maximum entries. A Cache component can then reference that strategy and automatically use those expiration settings.

Write-through and write-behind describe cache/database synchronization strategies in which cache updates are coordinated with writes to an underlying persistent data source. Mule's standard Cache scope does not automatically implement those patterns as an invalidation mode. Notification-based invalidation would similarly require external notification logic or explicit Mule processing to identify and invalidate affected keys.

TTL requires no such custom invalidation workflow. The developer establishes the lifetime when configuring the caching Object Store, after which Mule manages expiration automatically.

Therefore, Time to live is the cache invalidation mechanism directly available through standard Cache scope configuration.

Reference topics: Cache Scope; Object Store Caching Strategy; entryTtl; expirationInterval; automatic cache expiration.

Official documentation: https://docs.mulesoft.com/mule-runtime/latest/cache-scope-strategy

===============================================================

Anypoint MQ implements publish/subscribe fan-out by publishing a message to a message exchange and binding multiple queues to that exchange. Each subscribing application consumes from its own queue. As a result, a single gate-change event published by the Flight Management System can be copied to the Baggage Handler, Inflight Catering, and Passenger Notification queues independently.

MuleSoft documents that messages sent to an exchange are delivered to its bound queues and specifically describes exchanges as the mechanism for distributing one published message to multiple applications. A consumer does not directly consume from the exchange; consumption occurs from a queue. In fact, MuleSoft states that attempts to consume from a message exchange are rejected because the destination for consumption must be a queue.

Having all systems consume from one queue would instead create competing consumers: individual messages would normally be processed by one consumer rather than independently delivered to every subscribing system.

The required architecture is therefore: publisher → exchange → multiple bound queues → independent subscribers. This supplies asynchronous fan-out while preserving subscriber isolation and independent consumption.

Reference topics: Anypoint MQ exchanges; queue bindings; publish/subscribe; asynchronous event distribution.

Official documentation: https://docs.mulesoft.com/mq/

Official documentation: https://docs.mulesoft.com/mq/mq-exchanges

===============================================================

API Autodiscovery is what pairs a Mule application with a particular API Manager instance. The apiId in the Autodiscovery configuration identifies the managed API from which the runtime obtains API configuration and policies. Therefore, using an environment-specific configuration for local development prevents the locally running application from binding to the production API instance and consequently prevents those production policies from governing local test traffic.

This is different from setting anypoint.platform.gatekeeper=disabled. Gatekeeper controls whether a managed API is blocked while policy information is unavailable or being synchronized; disabling Gatekeeper is not equivalent to disabling API Manager policies. Policies can still be downloaded and applied when the application remains paired through Autodiscovery.

Running the application unchanged is also incorrect because a locally executed Mule runtime can connect to API Manager when Autodiscovery and platform credentials are configured. MuleSoft explicitly documents local Autodiscovery for policy testing. Deactivating the shared API is likewise inappropriate because it modifies centrally managed configuration rather than isolating the developer's local environment.

Reference topics: API Autodiscovery; API Instance ID; Environment-specific Configuration; Mule Gateway Gatekeeper.

Official documentation: https://docs.mulesoft.com/mule-gateway/mule-gateway-autodiscovery-overview

===============================================================

Correlation IDs are part of Mule event processing and provide the primary mechanism for tracing an execution across application components. Mule first examines the source message for a correlation identifier. For an HTTP Listener request, an incoming X-CORRELATION-ID or MULE_CORRELATION_ID header can establish the Mule event's correlation ID. If the source does not provide one, Mule generates a unique correlation ID for the event.

For the synchronous HTTP Listener scenario tested by the MuleSoft Developer II curriculum, the same correlation context is associated with the request-response execution, so no special API policy, scaffolding option, or Listener "CorrelationID" checkbox is required to satisfy the stated requirement.

Options B and C describe configuration controls that are not part of the normal HTTP Listener/APIkit scaffolding model. A custom correlation policy would only introduce unnecessary complexity where Mule's runtime correlation mechanism already handles the event correlation lifecycle.

The broader operational principle is important: correlation IDs should remain stable for the execution being traced so that request handling, logs, downstream processing, and the associated synchronous interaction can be related during production diagnostics.

Reference topics: Mule Event; Correlation ID; HTTP Listener; X-CORRELATION-ID; distributed tracing and observability.

Official documentation: https://docs.mulesoft.com/mule-runtime/latest/correlation-id

===============================================================

Reusable Java libraries should be managed as Maven dependencies, not manually embedded or referenced through arbitrary filesystem locations. Installing the legacy library artifacts into an accessible Maven repository and declaring their Maven coordinates in the application's pom.xml gives the Mule project a deterministic and maintainable dependency model.

Mule applications use Maven as their build/dependency-management mechanism. MuleSoft's external-library guidance supports adding dependencies through Maven coordinates or local library artifacts, with those dependencies represented in the project's POM. This enables consistent resolution during development and CI/CD builds and avoids environment-specific hard-coded JAR paths.

Directly referring to JAR files from application code creates brittle coupling to local filesystem structure. Supplying libraries manually only at deployment time also weakens reproducibility because the application build no longer fully declares its dependencies. Re-creating existing Java integration logic within every Mule application defeats reuse and adds unnecessary maintenance.

Once the Java library is available as a Maven dependency, the Mule Java Module or an appropriate custom module can invoke its functionality while Maven manages versioning and packaging.

Reference topics: Maven dependency management; reusable Java libraries; external libraries; pom.xml; Java Module integration.

Official documentation: https://docs.mulesoft.com/anypoint-code-builder/acb-external-libraries

===============================================================

API Autodiscovery pairs a Mule API implementation with an API instance managed in API Manager. The global autodiscovery element requires the API instance identifier and a flowRef that identifies the flow where API Gateway policy enforcement begins.

MuleSoft explicitly states that flowRef must reference a flow containing an HTTP Listener. The referenced flow represents the inbound API entry point receiving the requests against which API Manager policies are enforced. Connectors that merely use HTTP internally are not sufficient for this requirement.

In an APIkit-generated application, the appropriate flow is typically the main API flow that contains the HTTP Listener and APIkit Router. Individual generated resource/operation flows execute later after routing; they are not the primary inbound policy-enforcement point. Similarly, the APIkit Console flow is intended for interactive API documentation/testing and should not be used as the flowRef for production policy enforcement.

The attribute is not simply supplied dynamically at runtime. It is part of the Mule application's Autodiscovery configuration and identifies the exact listener-based flow paired to API Manager.

Therefore, flowRef must identify the flow containing the HTTP Listener that receives the REST API's incoming requests.

Reference topics: API Autodiscovery; api-gateway:autodiscovery; flowRef; HTTP Listener; API Manager policy enforcement.

Official documentation: https://docs.mulesoft.com/mule-gateway/mule-gateway-config-autodiscovery-mule4

===============================================================

In Mule Gateway custom policies, inbound and outbound interception are represented by different policy blocks. The http-policy:source block surrounds processing that begins at an HTTP Listener and is therefore associated with incoming requests. To intercept HTTP requests generated by an application through an HTTP Request connector, the policy must instead define an http-policy:operation block.

MuleSoft explicitly documents outbound policies as policies that operate on outgoing HTTP requests. Within a custom policy, http-policy:operation allows policy logic to execute immediately before Mule reaches an HTTP Requester and again after that requester returns. An http-policy:execute-next element can be placed within the operation block to delimit pre-request and post-response processing.

This mechanism is appropriate for functionality such as adding outbound headers, enforcing outbound security rules, modifying requests, collecting telemetry, or inspecting downstream responses. http-policy:source cannot provide equivalent outbound interception because it applies around the inbound source and application flow. http-policy:processor is not the Mule Gateway construct used for this purpose.

Therefore, the required element is http-policy:operation.

Reference topics: Mule Gateway Custom Policies; Outbound Policies; http-policy:operation; http-policy:execute-next; HTTP Request interception.

Official documentation: https://docs.mulesoft.com/mule-gateway/policies-custom-mule-4-reference

===============================================================

A TLS cipher suite defines the cryptographic algorithms that the communicating parties use to protect the connection. During TLS negotiation, the client advertises cipher suites that it supports and the server selects a mutually supported suite according to the protocol version and its security configuration.

In TLS 1.2 and earlier, a cipher-suite name can identify several cryptographic components, including key-exchange/authentication mechanisms, the symmetric encryption algorithm, and integrity protection. TLS 1.3 expresses cipher suites differently, but the negotiated suite still determines the authenticated-encryption algorithm used to protect application traffic. MuleSoft's TLS documentation exposes cipher-suite configuration directly, including suites based on AES-GCM and ChaCha20-Poly1305.

The TLS protocol version is negotiated as part of the broader handshake but is conceptually distinct from choosing a cipher suite. Likewise, a public-key format is not what the cipher-suite exchange fundamentally selects, and "a protocol" is too general.

Among the provided choices, an encryption algorithm is therefore the technically correct description of what the cipher-suite negotiation establishes for protecting the session.

Reference topics: TLS handshake; cipher suites; symmetric encryption; AES-GCM; mTLS cryptographic negotiation.

Official documentation: https://docs.mulesoft.com/anypoint-security/cipher-suites

===============================================================

API Functional Monitoring permits a monitor to contain tests against one or more endpoints, including endpoints belonging to multiple public APIs. A schedule determines where and how frequently the monitor executes. Consequently, there is no technical requirement to create ten independent schedules simply because ten APIs have individual health endpoints.

Because all ten APIs are public and accessible from the internet, a public location is sufficient. A private location is primarily useful when the monitored endpoints are accessible only through a private network or when specific private-network connectivity requirements exist. Creating a private location would introduce unnecessary deployment and operational overhead in this scenario.

The most efficient design is therefore to place the ten health checks in a single monitor/test suite and associate that monitor with one schedule running from one public location. MuleSoft documentation explicitly shows that a single monitor can test endpoints belonging to multiple public APIs, while a single schedule is associated with a location and execution interval. This reduces schedule consumption and management complexity.

Reference topics: API Functional Monitoring; Public Locations; Monitor Tests and Schedules; Monitoring Public APIs.

Official documentation: https://docs.mulesoft.com/api-functional-monitoring/afm-monitoring-public-apis

===============================================================

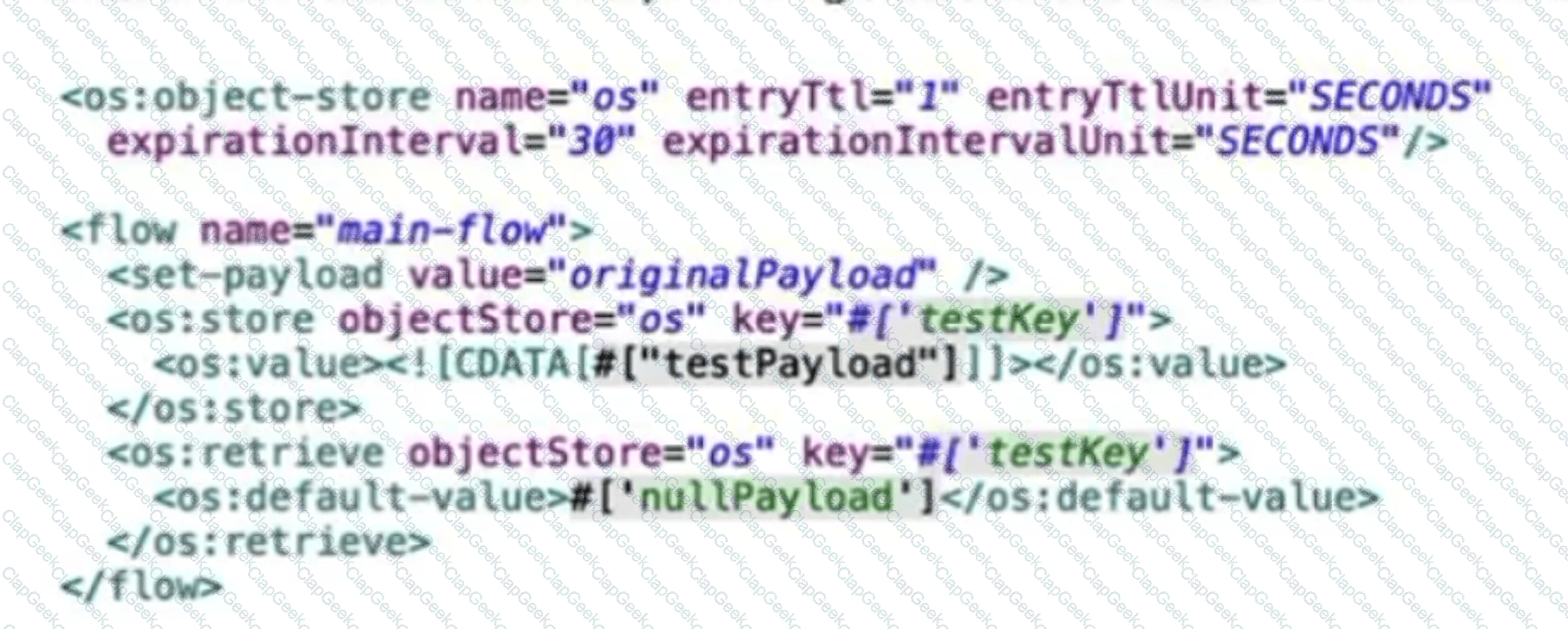

The distinction between entry TTL and expiration interval is the key to this question. entryTtl="1" specifies that an Object Store entry becomes eligible for expiration after one second. However, expirationInterval="30" determines how frequently Mule's expiration process checks the Object Store and removes expired entries.

MuleSoft describes the expiration interval as the frequency at which the expiration thread runs. Therefore, expiration is not equivalent to immediate physical removal at precisely the TTL boundary.

The flow first sets the payload to originalPayload, then stores "testPayload" under the key testKey. Ten seconds subsequently elapse before the Retrieve operation executes. Although this exceeds the configured one-second TTL, only 10 seconds have elapsed since storage, while the expiration process is configured to run at 30-second intervals. The entry has therefore not yet been evicted when retrieval occurs.

Because testKey remains available, os:retrieve returns the stored value, testPayload. The configured default value nullPayload would be used only if the key were unavailable according to the Retrieve operation's behavior.

Reference topics: Object Store Connector; entry TTL; expiration interval; expiration thread; Store and Retrieve operations.

Official documentation: https://docs.mulesoft.com/object-store-connector/latest/object-store-connector-reference

===============================================================
