JN0-481 Data Center - Specialist (JNCIS-DC) Questions and Answers

In Apstra deployments that use on-box device agents, the agent package installs multiple processes inside the switch’s NOS namespace to provide an isolated runtime environment for Apstra control and telemetry collection. Two of those processes are the Telemetry Agent and the Deployment Agent. The Telemetry Agent is responsible for collecting operational information from the device—such as LLDP neighbor details, routing-related state, and interface information—and sending that telemetry upstream to Apstra. This telemetry is a key input for closed-loop assurance in EVPN-VXLAN fabrics, where Apstra correlates underlay health (interfaces, neighbors, sessions) with overlay services.

The Deployment Agent is responsible for receiving configuration content pushed from Apstra and applying it on the device. In a Junos v24.4 fabric, this is the component that enables Apstra to converge device configuration to the blueprint’s intent (for example, BGP underlay, EVPN signaling, and VXLAN constructs) without requiring manual CLI workflows. Both agents are typically idle most of the time, becoming active when Apstra needs to apply configuration changes or when significant state changes trigger telemetry updates.

Other listed options—“routing agent” and “authentication agent”—are not the named Apstra device-agent processes described for the on-box agent package in Juniper documentation.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra4.2/apstra-server-and-security-guide/topics/concept/apstra-device-agents.html

Juniper Apstra describes data center fabric management as a full lifecycle that spans three core phases: Design (Day 0), Deployment (Day 1), and Operations (Day 2). These phases map directly to how Apstra applies intent-based networking to a data center fabric.

In the Design phase, you model the intended architecture—templates (3-stage or 5-stage), rack types, logical devices, interface maps, resource pools, and high-level constructs such as routing zones and virtual networks. The objective is to capture intent in a vendor-agnostic way while ensuring consistency and validation before anything is pushed.

In the Deployment phase, Apstra turns the modeled intent into device-level implementation. This includes onboarding systems, assigning device profiles, allocating resources, rendering configurations, and pushing the resulting configuration to switches so the IP fabric becomes operational. This is where Junos v24.4 leaf/spine nodes receive underlay and overlay configuration generated from the blueprint.

In the Operational phase, Apstra continuously validates the running network against intent using telemetry and analytics (IBA), detects deviations and anomalies, supports maintenance workflows (such as drain), and provides troubleshooting tools (queries, time-series utilization, and configuration compliance).

“Configuration” and “installation” are activities that occur within the lifecycle, but the lifecycle phases themselves are Design, Deployment, and Operations.

According to the Juniper documentation1, a template is a configuration template that defines a network’s policy intent and structure. A template can be either rack-based or pod-based, depending on the type and number of racks and pods in the network design. A template includes the following details:

Policies: These are the parameters that apply to the entire network, such as the overlay control protocol, the ASN allocation scheme, and the underlay type.

Structure: This is the physical layout of the network, such as the type and number of racks, pods, spines, and leaves. The structure also defines the leaf-to-spine interconnection, which is the number and type of links between the leaf and spine devices. The leaf-to-spine interconnection can be either single or dual, depending on the redundancy and bandwidth requirements.

Therefore, the correct answer is A. the leaf-to-spine interconnection. This is a component that is defined in a template, as it determines the physical connectivity of the network. The speed of the links, the number of spine devices, and the definition of IP pools are not components that are defined in a template, as they are either derived from the device profiles, the resource pools, or the blueprint settings. References: Templates Introduction | Apstra 4.2 | Juniper Networks

 In Juniper Apstra, a widget is a graphical element that displays data from an intent-based analytics (IBA) probe. A widget can be used to monitor different aspects of the network and raise alerts to any anomalies. A widget can be viewed by itself or added to an analytics dashboard. A dashboard is a collection of widgets that can be customized and organized according to the user’s preference1.

The main dashboard in Juniper Apstra is the blueprint dashboard, which is the default view that shows the network information and configuration for the active blueprint. A blueprint is a logical representation of the network design and intent. The blueprint dashboard can display the system-generated dashboards, the user-generated dashboards, and the individual widgets that are relevant to the network2.

To make a widget appear on the main dashboard in Juniper Apstra, the user needs to set the Default toggle switch to On for the desired widget. This will add the widget to the blueprint dashboard, where it can be viewed along with other network information. The user can also remove the widget from the blueprint dashboard by setting the Default toggle switch to Off for the widget3. Therefore, the statement D is correct in this scenario.

The following three statements are incorrect in this scenario:

When creating the widget, select the Add to Blueprint Dashboard option. This is not true, because there is no such option when creating a widget in Juniper Apstra. The user can only select the widget type, the probe, and the display mode when creating a widget4. To add the widget to the blueprint dashboard, the user needs to set the Default toggle switch to On for the widget after creating it3.

On the blueprint dashboard, click on the Add Widget option. This is not true, because there is no such option on the blueprint dashboard in Juniper Apstra. The user can only view, edit, or delete the existing widgets and dashboards on the blueprint dashboard2. To add a widget to the blueprint dashboard, the user needs to set the Default toggle switch to On for the widget from the widgets table view3.

Widgets automatically appear on the blueprint dashboard. This is not true, because widgets do not automatically appear on the blueprint dashboard in Juniper Apstra. The user needs to manually add the widgets to the blueprint dashboard by setting the Default toggle switch to On for the widgets that they want to see on the blueprint dashboard3. The only exception is the widgets that are part of the system-generated dashboards, which are automatically created and added to the blueprint dashboard based on the state of the active blueprint2.

In Apstra 5.1, servers that connect to leaf switches are represented as generic systems so Apstra can model links, apply connectivity templates, attach virtual networks, and validate intent. The selection of generic system type depends on whether the endpoint is considered part of the rack’s internal topology or an external attachment. When you add a new server inside an existing rack type, that server is treated as a component of the rack topology (that is, it lives “within” the rack alongside leaf switches and any other rack-internal endpoints). Apstra documentation refers to such systems as internal generic systems.

Internal generic systems are not managed like switches (no full device management), but they are first-class topology objects: they occupy ports on leaf switches, can be tagged with roles, and can be associated with link definitions that drive correct interface intent (LAG vs single link, VLAN tagging, and virtual network association). This modeling is essential in EVPN-VXLAN fabrics because correct endpoint attachment on leaf ports determines VLAN/VNI mapping and the resulting Junos v24.4 configuration rendered by Apstra.

External generic systems, by contrast, represent devices outside the rack topology (often used for external routers, firewalls, or other non-rack-contained endpoints). Because the question explicitly places the server inside an existing rack type, the correct choice is Internal generic.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/topic-map/internal-generic-system-create.html

A security policy is the feature that would be used to accomplish the task of controlling access to other virtual networks in the same routing zone using the Juniper Apstra UI. A security policy allows you to define rules that specify which traffic is allowed or denied between different virtual networks, IP endpoints, or routing zones. A security policy can be applied to one or more virtual networks in the same routing zone, and it can use various criteria to match the traffic, such as source and destination IP addresses, protocols, ports, or tags. A security policy can also support DHCP relay, which enables the forwarding of DHCP requests from one virtual network to another. The other options are incorrect because:

A. interface policy is wrong because an interface policy is a feature that allows you to configure the interface parameters for the devices in a blueprint, such as interface names, speeds, types, or descriptions. An interface policy does not affect the access control between different virtual networks in the same routing zone.

B. anti-affinity policy is wrong because an anti-affinity policy is a feature that allows you to prevent certain devices or logical devices from being placed in the same rack or leaf pair in a blueprint. An anti-affinity policy is used to enhance the availability and redundancy of the network, not to control the access between different virtual networks in the same routing zone.

C. routing policy is wrong because a routing policy is a feature that allows you to configure the routing parameters for the devices in a blueprint, such as routing protocols, autonomous system numbers, route filters, or route maps. A routing policy does not affect the access control between different virtual networks in the same routing zone, unless the routing policy is used to filter or modify the routes exchanged between different routing zones. References:

Security Policy

Interface Policy

Anti-Affinity Policy

Routing Policy

According to the Juniper documentation1, an interface map is a configuration template that maps interfaces between logical devices and physical hardware devices (represented with device profiles) while adhering to vendor specifications. An interface map can be either predefined or custom. A predefined interface map is one that ships with Apstra software and supports most qualified Juniper devices. A custom interface map is one that is created by the user to meet specific requirements. An interface map can be stored in either the global catalog or the blueprint catalog. The global catalog contains all the interface maps that are available for use in any blueprint. The blueprint catalog contains the interface maps that are imported from the global catalog and used in a specific blueprint.

When a member of your organization makes changes to a predefined interface map, the following statements are correct:

Changes to interface maps in the global catalog do not affect interface maps that have already been imported into blueprint catalogs. This means that the existing blueprints that use the original version of the interface map will not be impacted by the changes. However, if you want to use the updated version of the interface map in a new or existing blueprint, you need to import it again from the global catalog.

Any changes made to predefined interface maps are discarded when Apstra is upgraded. This means that the changes will not be preserved across different versions of Apstra software. If you want to retain a customized interface map through Apstra upgrades, you need to clone the predefined interface map, give it a unique name, and customize it instead of changing the predefined one directly.

Therefore, the correct answer is A and B. Changes to interface maps in the global catalog do not affect interface maps that have already been imported into blueprint catalogs and any changes made to predefined interface maps are discarded when Apstra is upgraded. References: Edit Interface Map | Apstra 4.2 | Juniper Networks

In Apstra 5.1, the worker node’s primary purpose is to add scalable runtime capacity to an Apstra cluster by hosting off-box services that would otherwise consume resources on the controller. Specifically, worker nodes run containerized services such as off-box device agents (used to communicate with and manage devices) and Intent-Based Analytics (IBA) components (such as probes and analytics-related services). This design keeps the controller node focused on cluster management and control-plane functions (API handling, cluster-wide state, blueprint control workflows), while shifting resource-intensive operational services to worker nodes.

As your fabric grows—more switches, more telemetry, more devices requiring agent connectivity—CPU and memory demand increases notably, especially when IBA is enabled. Adding worker nodes allows you to scale those container workloads horizontally without redesigning the fabric or reducing analytics coverage. In a Juniper data center built on EVPN-VXLAN with Junos v24.4 leaf-spine roles, this separation helps ensure that Apstra can continuously validate intent, process streaming telemetry, and maintain device communications reliably at scale. Worker nodes therefore exist primarily to offload and scale operational agents and IBA services, improving performance and resilience for larger deployments.

The attribute that enables Juniper Apstra to scale and manage thousands of devices with a single server instance is that Apstra is a distributed state system. This means that Apstra uses a graph database to store the network topology and configuration data in a distributed and replicated manner across multiple server nodes. This allows Apstra to handle large-scale networks with high performance, reliability, and availability. Apstra also uses a stateful orchestration engine that ensures the network state is always consistent with the intent of the blueprint, which is the logical representation of the network design and behavior. Apstra can automatically detect and resolve any discrepancies between the desired and actual network state, as well as handle any changes or failures in the network. The other options are incorrect because:

A. Apstra is installed as a cloud resource is wrong because Apstra can be installed either as a cloud resource or as an on-premises resource. Apstra is available as a virtual machine image that can be deployed on various hypervisors, such as VMware ESXi, QEMU/KVM, Microsoft Hyper-V, or Oracle VirtualBox. Apstra can also be deployed on public cloud platforms, such as Amazon Web Services (AWS) or Microsoft Azure. However, the installation method does not affect the scalability of Apstra, which is determined by the distributed state system architecture.

B. Apstra is based on NGINX is wrong because Apstra is not based on NGINX, but on Python and Django. NGINX is a web server and reverse proxy that Apstra uses to serve the web user interface and the REST API. However, NGINX is not the core component of Apstra, and it does not affect the scalability of Apstra, which is determined by the distributed state system architecture.

C. Apstra is available as an OVA is wrong because Apstra is available as an OVF, not an OVA. An OVF (Open Virtualization Format) is a standard format for packaging and distributing virtual machine images. An OVA (Open Virtual Appliance) is a single file that contains the OVF and the virtual disk images. Apstra provides an OVF file that can be imported into various hypervisors, such as VMware ESXi, QEMU/KVM, Microsoft Hyper-V, or Oracle VirtualBox. However, the availability of Apstra as an OVF does not affect the scalability of Apstra, which is determined by the distributed state system architecture. References:

JUNIPER APSTRA ARCHITECTURE

Apstra Server Requirements/References

Juniper Networks Apstra 4.0 enhances the experience of users and operators

In Apstra 5.1, a routing zone is the primary construct used to represent an L3 domain for multitenant isolation. In traditional network operating system terms, that maps to a VRF (Virtual Routing and Forwarding instance). Each routing zone is placed “in its own VRF,” which provides independent routing tables and isolates IP traffic so that different tenants can reuse overlapping IP subnets without conflict. This is central to modern EVPN-VXLAN data center design, where tenants typically require clean separation of routing and policy boundaries.

Within a routing zone, you can create one or more virtual networks (often mapped to VXLAN segments) that provide L2 extension across racks while still being contained by the tenant’s VRF. If L3 gateway services are enabled for those virtual networks, their gateway interfaces (for example, IRB interfaces on Junos v24.4 leaf switches) are associated with the routing zone’s VRF so that inter-subnet routing occurs within the tenant boundary.

This terminology distinction is important: an IRB is an interface construct used to provide L3 gateway functionality for a VLAN/VXLAN segment; a VLAN is a Layer 2 segmentation mechanism; and an access list is a policy enforcement tool. A routing zone, however, defines the tenant’s L3 routing context, which is precisely what a VRF provides on Junos.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra5.0/apstra-user-guide/topics/concept/routing-zones.html

https://www.juniper.net/documentation/us/en/software/apstra4.2/apstra-user-guide/topics/concept/routing-zones.html

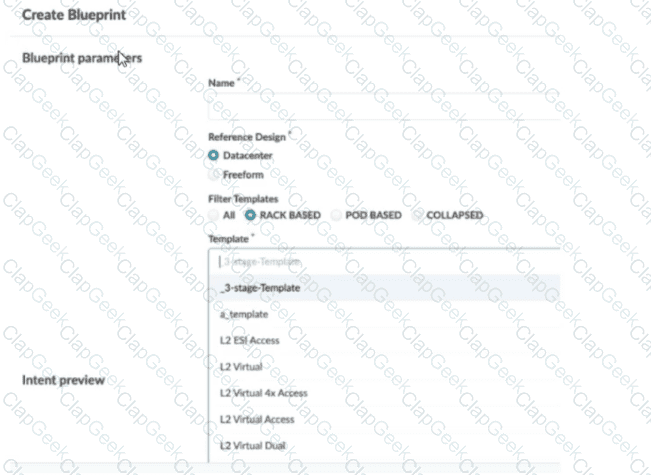

In Apstra 5.1, templates are organized by template type, and the Create Blueprint screen can filter the template list by those types. A five-stage Clos design in Apstra is represented as a pod-based template (multi-pod fabric with an additional tier such as super-spines to interconnect pods). Because of that, a five-stage template will only appear in the template selector when the Pod Based filter is chosen. If the filter is set to Rack Based or Collapsed, Apstra hides pod-based templates because those types correspond to different topology classes: rack-based aligns with a three-stage leaf–spine pod, while collapsed aligns with a spine-less topology pattern.

This behavior is by design to prevent selecting an incompatible template for the intended topology. The template name itself does not need to contain “five-stage”; Apstra determines its type from how the template was created and stored in the catalog. Also, five-stage templates are not limited to Freeform blueprints—five-stage is a data center fabric topology choice, and it is supported within the data center reference design workflows when the appropriate template type is selected.

So, to make the five-stage template visible and selectable, choose Pod Based in the template filter.

In Apstra 5.1, a logical device defines the abstract port layout and capabilities (including supported speeds), while an interface map binds that abstract port layout to the real, vendor-specific front-panel ports. Rack types then consume logical devices and interface maps to model the rack’s leaf/superspine roles. Once a logical device is referenced by interface maps and used inside rack types (and potentially templates that instantiate those rack types), Apstra treats the combination as a consistent contract: port counts, roles, and speeds must remain semantically valid for every object that depends on it.

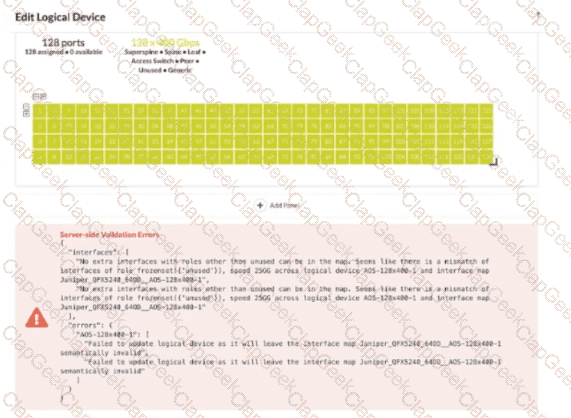

The exhibit’s validation error indicates that after changing interface speeds on the logical device, the existing interface map(s) and their usage in rack types no longer match the logical device definition (for example, the map expects certain ports/speeds/roles, but the updated logical device would leave the map invalid). Because the logical device is being consumed in multiple places, the safest and required way to remove the error is to remove all dependencies—templates (if they reference the rack types), rack types, and interface maps—so Apstra can accept the new logical device definition without violating existing mappings. After updating the logical device, you then recreate or update the interface maps and re-associate them with the rack types/templates so the entire chain remains consistent under the new speed requirements.

In Apstra 5.1, a Virtual Network (VN) is Apstra’s abstraction for a Layer 2 forwarding domain that groups endpoints into a logical segment across the fabric. Apstra defines virtual networks as being constructed using either VLANs or VXLANs. A VLAN-based VN represents a Layer 2 domain identified by a VLAN ID and is typically used where you want traditional VLAN semantics (often in smaller environments, migration scenarios, or designs where an overlay is not required). A VXLAN-based VN represents the same Layer 2 intent but uses a VXLAN VNI for scalable overlay segmentation, which is the common approach in EVPN-VXLAN data center fabrics.

In an IP fabric architecture, VXLAN provides encapsulation to carry tenant segments over the routed underlay, while EVPN provides the control-plane signaling for MAC/IP reachability. Junos v24.4 leaf devices act as VTEPs, mapping local VLANs/bridge-domains to VNIs and participating in EVPN for advertisement and convergence. Apstra’s VN construct allows you to create the segment once (as VLAN or VXLAN type), then consistently attach it to racks, ports, and endpoints through intent-driven workflows (such as connectivity templates and virtual network assignments).

“L2 VPN” and “L3 VPN” are service provider terms and are not the VN “types” in Apstra’s data center reference design. In Apstra, tenant L3 separation is modeled by routing zones (VRFs), while the VN itself is specifically either VLAN-based or VXLAN-based.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/concept/virtual-networks.html

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/topic-map/virtual-network-create.html

In Apstra 5.1, Intent-Based Analytics (IBA) is built on Apstra’s graph-based source of truth, where devices, interfaces, links, routing constructs, and services are represented as nodes with relationships. An IBA probe is effectively a processing pipeline (a directed acyclic graph of stages and processors) that ingests telemetry and then performs calculations, aggregations, and anomaly detection. To make any of that work, the probe must first determine which specific objects in the graph—for example, which leaf switches, which uplinks, which BGP sessions, or which interface counters—should be included in the analysis.

The probe element that selects those objects is the graph query. A graph query is evaluated against Apstra’s graph database to return a set of matching nodes/relationships; those query results then become the scope for ingestion and subsequent processing. In other words, the graph query defines “apply this probe to these devices/interfaces/sessions,” and it also provides the context used to bind telemetry identities (key-value pairs describing the metric source) to the correct logical objects in the blueprint. This is why Apstra documentation describes early probe processors producing outputs whose cardinality aligns with the number of results returned by the specified graph query(s). Without a graph query, the probe would not have a deterministic, intent-aligned target set for analytics, and the same probe definition could not be reliably reused across fabrics or blueprints.

In Juniper Apstra 5.1, tags are a lightweight metadata mechanism used to classify objects and enable conditional automation (for example, driving dynamic configlets or simplifying filtering/searching in the UI). Apstra supports tagging several blueprint-operational objects that commonly participate in day-1/day-2 workflows.

Virtual networks can be tagged so operators can group, search, and apply automation consistently across sets of segments. This is useful in EVPN-VXLAN fabrics where virtual networks represent VLAN- or VXLAN-backed broadcast domains and you may want policies or configlet logic to apply to all “finance” or “pci” segments as a group.

Interfaces can be tagged directly within a blueprint (for example, leaf access ports, uplinks, or specific border-facing ports). Interface tags are often used to drive template-based configuration behavior and to simplify operational actions across many ports without relying on fragile naming conventions.

Generic systems (internal or external) can also be tagged. Apstra documentation explicitly describes using tags to specify roles for internal generic systems, enabling you to differentiate server types or attachment roles and then apply the correct intent (connectivity templates, VN attachments, or policies) in a repeatable way.

By contrast, property sets are structured data objects used for parameterization (YAML/JSON values for templates/probes), and device profiles describe hardware/NOS capabilities; they are not the standard blueprint objects for tag assignment in this scenario.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/task/tag-virtual-network-update.html

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/topic-map/tag-interface-add-remove-datacenter.html

https://www.juniper.net/documentation/us/en/software/apstra5.1/apstra-user-guide/topics/topic-map/internal-generic-system-create.html

Apstra role-based access control separates fabric operations from identity and authorization administration. The administrator role includes full permissions, including the ability to manage users and roles (for example, creating users, assigning permissions, and creating/cloning/editing custom roles where allowed). This enables administrators to govern who can access the system and what they are permitted to change across all blueprints and system settings.

The user role, in contrast, is designed for day-to-day fabric work: viewing and editing supported blueprint elements and operational objects within the scope permitted by the role, but not administering other users’ access or modifying the role structure itself. In other words, a user can work on the network intent and operations, but cannot elevate privileges, change other users’ roles, or otherwise manage user/role administration unless explicitly granted additional permissions through custom roles.

That makes option C the correct statement: the user role cannot make changes to other user types (that is, it lacks the permissions needed to administer identities/roles). Options A, B, and D do not reflect Apstra’s RBAC model: roles are not primarily constrained “per blueprint” in that way, and users are not intended to modify other roles—those are administrator-level capabilities.

Verified Juniper sources (URLs):

https://www.juniper.net/documentation/us/en/software/apstra6.0/apstra-user-guide/topics/concept/user-role-management.html

https://www.juniper.net/documentation/us/en/software/apstra4.2/apstra-user-guide/topics/concept/user-role-management.html

https://www.juniper.net/documentation/us/en/software/apstra5.0/apstra-user-guide/topics/concept/user-role-management.html
