JN0-232 Security, Associate (JNCIA-SEC) Questions and Answers

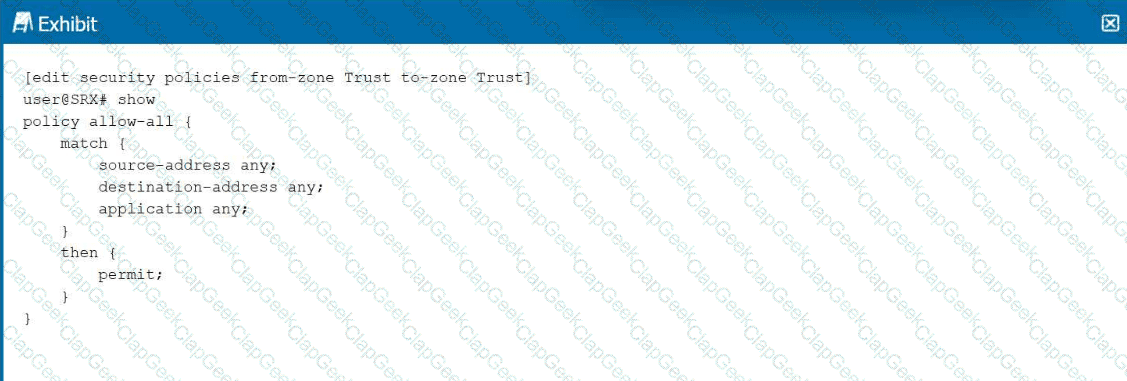

In the JNCIA-SEC SRX security policy context, standard security policies control transit traffic passing through the firewall. They are not the normal mechanism for permitting management or protocol traffic destined to the SRX itself; that type of self or exception traffic is controlled with host-inbound-traffic settings. Security policies can be configured between different zones, which is inter-zone policy, or within the same zone, which is intra-zone policy. Therefore, option C is correct because policies can apply to both intra-zone and inter-zone flows. Option D is correct in the standard SRX policy model because security policies are used to control traffic transiting the firewall. Options A and B are not correct for this topic scope.

Content Security is the Juniper solution that adds antivirus capabilities to SRX Series Firewalls. Juniper Content Security includes several UTM-style services, such as antivirus, antispam, content filtering, and web filtering. The antivirus feature scans supported traffic to detect and block malicious files or virus-related content according to configured profiles and policies. IDP provides intrusion detection and prevention signatures, but it is not the specific solution that adds antivirus scanning. NAT translates IP addresses and ports and has no antivirus function. Firewall filters provide stateless packet filtering and traffic classification, not file-based malware inspection. Therefore, Content Security is the correct answer for adding antivirus features to an SRX Series device.

The management functional zone on SRX devices is a special predefined zone with unique characteristics:

It is automatically created (Option C) and cannot be deleted.

It is used specifically for management-related traffic (Option A), such as SSH, Telnet, web management (J-Web), SNMP, and other control-plane services.

It does not contain revenue (data) interfaces (Option B is incorrect). Interfaces must be explicitly configured into user-defined zones.

The management zone can be referenced in policies if inter-zone communication involving management traffic is needed (Option D is incorrect).

Correct Statements: A and C

Screens are attack detection and prevention mechanisms applied to SRX security zones. Juniper documentation explains that predefined screen options can be enabled for each security zone to detect and block traffic considered harmful. Because a screen profile is a reusable configuration object, the same screen can be referenced by more than one security zone, making option A correct. Screens are evaluated on traffic entering the firewall through an interface bound to a zone, so the screen is applied based on the ingress security zone, making option D correct. Option B is incorrect because screens are not described simply as “first path only”; they are zone-based protection mechanisms applied to incoming traffic. Option C is also incorrect because screen options include IP, ICMP, TCP, UDP, flood, and reconnaissance protections.

Source NAT (Network Address Translation) is used on SRX devices to allow hosts with private IP addresses to access external networks, such as the Internet. The SRX translates the private IP address of the source host into a public IP address before forwarding traffic toward the destination.

It does not translate MAC addresses (Option A).

NAT is unidirectional in this case: it specifically translates private-to-public in the outbound direction, while the reverse (return traffic) is handled automatically through the session table. It is not a bidirectional translation (Option C).

NAT processing occurs as part of the flow module, not limited only to ingress traffic (Option D).

Therefore, the correct statement is that source NAT translates private IP addresses to public IP addresses .

NAT processing in Junos OS follows a strict sequence to ensure correct packet handling:

Static NAT – applied first because it provides a permanent one-to-one bidirectional mapping.

Destination NAT – applied second to translate inbound destination addresses, often used for servers in private networks.

Source NAT – applied last to translate outbound private source addresses to public ones.

This ensures deterministic behavior and avoids conflicts between translation types.

Options B, C, and D list incorrect sequences.

Correct Order: static NAT → destination NAT → source NAT

The simplest and most direct method of verifying Web filtering effectiveness is to attempt to access permitted and blocked URLs .

Option A: Installing a local NGWF server is not required; NGWF queries Juniper’s cloud.

Option B: File extension checking applies to content filtering, not web filtering.

Option C: Examining policies shows configuration but does not verify enforcement.

Option D: Correct. Attempting to browse URLs that should be blocked or allowed confirms the Web filtering policy is effective.

Correct Method: Attempt to access permitted or blocked URLs

Intra-zone traffic: On SRX devices, traffic between interfaces in the same security zone is allowed without requiring a security policy (Option C is correct). Policies are only evaluated for inter-zone traffic.

Junos-host functional zone: This zone is a predefined functional zone that allows administrators to apply policies controlling access to the SRX firewall itself, such as SSH, HTTP, or SNMP traffic (Option D is correct).

Null zone: This zone is a predefined discard zone. Interfaces placed in the null zone drop all traffic. It does not allow policy logging of dropped control plane traffic (Option A is incorrect).

Management functional zone: This is used to define management interfaces, not the “functional zone” as stated in Option B (incorrect wording).

Correct Statements: C and D

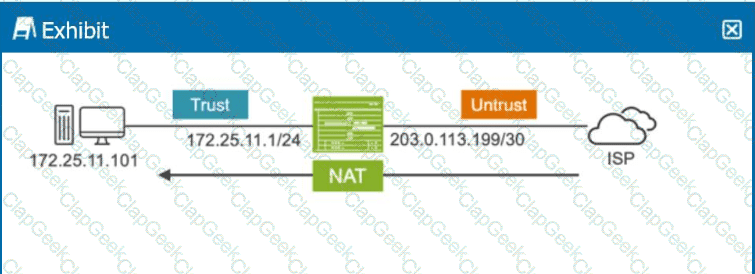

From the exhibit:

The internal host (172.25.11.101) is located in the Trust zone .

The external address (203.0.113.199/30) is used for communication with the ISP.

The requirement is that sessions can only be initiated from the external device (the ISP or untrust side) toward the internal host.

This requirement matches the behavior of Destination NAT :

Destination NAT only (Option A): Maps the external/public IP (203.0.113.199) to the internal/private IP (172.25.11.101). This allows inbound connections to be translated and sent to the internal host. The internal host cannot initiate outbound sessions, since the translation only applies to inbound traffic.

Source NAT only (Option B): Used for outbound sessions from internal private IPs to the Internet. This does not meet the requirement.

Static PAT (Option C): Maps a single port of a public IP to a private IP/port. The exhibit does not indicate a port-based translation.

Static NAT and source NAT (Option D): Would provide bidirectional communication, allowing sessions to be initiated in both directions. This contradicts the requirement.

Correct NAT Type: Destination NAT only

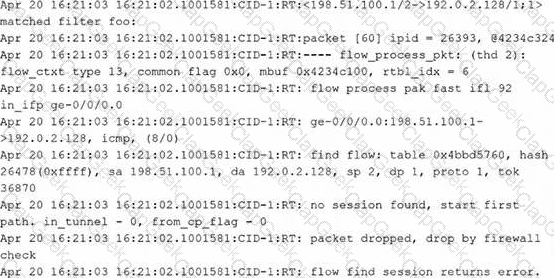

The trace output shows that the SRX receives the ICMP packet, does not find an existing session, starts first path processing, and then drops the packet with a firewall check failure before a session is successfully created. In SRX troubleshooting, first path processing includes route lookup, policy evaluation, and session creation. If the device cannot determine a valid forwarding path for the destination, the session cannot be established and the packet is dropped. The exhibit does not show evidence of a web filtering decision, ALG processing, or a screen counter match. Therefore, the best answer is that there is no known route to the destination 192.0.2.128. The appropriate operational verification would be to check the routing table using a command such as show route 192.0.2.128.

Transit traffic is defined as traffic passing through the SRX firewall (from one interface/zone to another). To allow transit traffic:

Interfaces must be placed into a user-defined security zone (Option C).

Policies between zones are then applied to control traffic.

The null zone (Option A) discards all traffic.

The Junos-host zone (Option B) is used for traffic destined to the SRX itself, not transit.

Functional zones (Option D) are predefined and used for special purposes (like management), not for transit traffic.

Correct Configuration: User-defined security zone

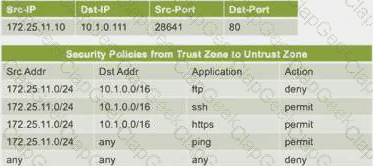

The incoming packet shown in the exhibit uses destination port 80, which represents HTTP traffic. The policy table contains entries for FTP, SSH, HTTPS, and ping before the final policy. Because the packet does not match FTP, SSH, HTTPS, or ping, it continues down the ordered policy list until it reaches the final any-any-any deny rule. Junos security policies are evaluated in order, and the first matching policy determines the action for the traffic. This makes option D correct. Since the final matching rule denies the packet, option C is also correct. The packet is not permitted by HTTPS because HTTPS uses TCP destination port 443, not port 80.

The SRX Series devices support third-party antivirus scanning engines such as Avira . To use the Avira antivirus engine, administrators must explicitly enable the engine and ensure that the required components are properly loaded.

Enable in configuration mode:

The Avira antivirus engine must be enabled under UTM configuration mode. This step ensures the SRX device uses the Avira scanning engine for antivirus inspection.

Example:

set security utm feature-profile anti-virus avira-engine enable

Reboot the SRX device:

A system reboot is required after enabling the Avira engine to load the Avira antivirus components into memory.

Without a reboot, the Avira engine will not become active.

Why not the others?

Restarting the mgd process (Option A) only reloads the management daemon and does not load antivirus engines.

Enabling in operational mode (Option B) is not supported; the configuration must be applied in configuration mode.

Therefore, the correct actions to use Avira Antivirus are: Enable the Avira engine in configuration mode (Option D) and reboot the SRX device (Option C).

Traceoptions in the security flow hierarchy provide debugging for how packets are processed in the flow module.

The correct flag to capture detailed packet-level debugging is packet-dump (Option A) . This outputs packet-level trace messages showing flow decisions, NAT processing, and policy matches.

general (Option B): Provides basic flow trace information but not full packet inspection.

state (Option C): Tracks flow state transitions, less detailed than packet-dump.

basic-datapath (Option D): Provides high-level datapath debugging, not detailed flow troubleshooting.

Correct Flag: packet-dump

Routing instances: Security zones are local to their routing instance. They cannot be shared between routing instances (Option B is correct). Each routing instance must define its own zones.

Intrazone and interzone traffic: Both types of traffic require policies in Junos OS. Intrazone traffic must have an explicit intra-zone policy to be controlled (Option C is correct).

Sharing zones: Option A is incorrect, as zones cannot span routing instances.

Multiple zones: SRX devices fully support multiple security zones (trust, untrust, DMZ, etc.). Option D is incorrect.

Correct Statements: B and C

In Junos OS, traffic is classified into three main categories:

Transit traffic:

Defined as traffic that enters one interface and exits another interface .

It is handled entirely in the forwarding plane (Packet Forwarding Engine) .

Example: User data packets moving between trust and untrust zones.

Correct → Option A .

Exception traffic:

Traffic requiring processing by the Routing Engine (control plane) , such as routing updates or management traffic.

Matches Option C/D , but that is not transit traffic.

Control traffic:

Management or routing-related, handled by the control plane.

Rate-limiting (Option B):

This applies specifically to exception traffic to protect the Routing Engine, not to transit traffic.

Correct Statement: Transit traffic is traffic that is processed solely through the forwarding plane.

When source NAT uses a pool of addresses from the same subnet as the egress interface , the firewall must respond to ARP requests for those NAT pool IPs. Without this, upstream devices would not know how to forward traffic destined for those IPs.

Proxy ARP is required (Option D). It enables the SRX to answer ARP requests on behalf of the NAT pool addresses.

Static NAT (Option A) is unrelated and maps one-to-one, not required here.

Dynamic DNS (Option B) has no relation to NAT pools.

Destination NAT (Option C) applies to inbound translations, not outbound source NAT pools.

Correct Feature: Proxy ARP

On SRX Series Firewalls, Junos OS automatically creates system-defined zones that have special functions:

Null zone (Option A): A predefined discard zone. By default, all interfaces belong to the null zone until assigned to a user-defined zone. Traffic destined to the null zone is dropped.

Junos-host zone (Option B): A predefined functional zone that allows security policies to control traffic directed to the SRX device itself (management traffic, such as SSH, HTTP, SNMP).

Management zone (Option C): There is a predefined management functional zone , but it is not called " management " as a system-defined security zone.

DMZ (Option D): A DMZ zone must be explicitly created by the administrator, it is not system-defined.

Correct Zones: null, junos-host

NAT rule processing on SRX devices follows a deterministic order:

Top-to-bottom order (Option C): NAT rules are always evaluated in the order they appear in the configuration, starting at the top.

First-match wins (Option B): Once a packet matches a NAT rule, processing stops.

Option A: Incorrect. Not all rules are processed; evaluation stops at the first match.

Option D: Incorrect. NAT rules are never processed bottom-to-top.

Correct Statements: NAT rule processing stops at the first match, and NAT rules are processed top-to-bottom.

When troubleshooting packet handling on an SRX Series device, administrators need to understand exactly how the flow module is processing traffic. The most effective tool for this is the flow traceoptions feature .

Flow traceoptions: Provides detailed per-packet trace information showing each processing step within the flow module. It reveals how traffic is evaluated against session tables, NAT rules, and security policies. This is the recommended method for in-depth troubleshooting.

Why not the others?

The flow session table (Option A) shows only active sessions and counters, not detailed step-by-step handling.

The forwarding table (Option B) relates to routing and forwarding decisions, not flow security processing.

Firewall filters (Option D) can match and log traffic but do not display detailed flow processing steps.

Therefore, the correct method to get detailed information about flow handling is to enable flow traceoptions .

Exception traffic refers to traffic that must be sent from the Packet Forwarding Engine (PFE) to the Routing Engine (RE) for processing, such as routing protocol updates, management traffic, and control-plane destined packets.

Option B: Correct. Exception traffic is rate-limited on the internal connection between the PFE and RE to protect the Routing Engine from denial-of-service attacks.

Option A: Incorrect. Exception traffic is not handled only on the PFE; it requires RE involvement.

Option C: Incorrect. Rejected traffic by security policies is simply dropped, not classified as exception traffic.

Option D: Incorrect. Malformed packets are dropped, not considered exception traffic.

Correct Statement: Exception traffic is rate-limited between the PFE and RE.

A Junos custom application is a security policy object used when a predefined Junos application does not match the traffic requirement. To create one, you must define an application name, the transport protocol, and port information such as the destination port. Juniper documentation describes custom application attributes as including the name, transport protocol, and source or destination port numbers for TCP or UDP applications. The security policy itself is not a required attribute of the custom application object; it is where the object is later referenced. The source address is also not part of defining the application object. Therefore, the valid requirements are the port number, application name, and protocol.

Security policies in Junos OS match traffic based on specific criteria:

Source and destination addresses (Option B).

Application (Option D), which may be defined as services (e.g., tcp/80) or recognized through AppID.

Other options:

MAC addresses (Option A) are not used in policy matching; policies operate at Layer 3/4.

Interface name (Option C) is used in firewall filters, not in security policy definitions.

Correct Criteria: Source address and Applications

When traffic enters an SRX Series Firewall, the ingress interface determines the source security zone because that interface is already bound to a zone. The route lookup is then used to determine where the packet should leave the device. Juniper documentation explains that the packet’s outgoing zone is determined by the forwarding lookup, and together the incoming zone and outgoing zone determine which security policy context is used. Therefore, the route lookup determines the egress interface and, indirectly through the egress interface’s zone membership, the egress security zone. It does not determine the ingress interface because the packet has already arrived on that interface. It also does not determine a DNS name; DNS resolution is unrelated to SRX route lookup and security zone selection.

Content filtering on SRX devices inspects and controls specific file types transferred across certain application protocols:

SMTP (Option A): Supported. Content filtering can block specific file attachments in emails.

HTTP (Option D): Supported. Content filtering can block downloads of specific file types over web traffic.

SNMP (Option B): Not supported; SNMP is a management protocol, not a content delivery protocol.

TFTP (Option C): Not supported by content filtering.

Correct Protocols: SMTP and HTTP

Multiple routing instances (such as virtual routers or VRFs) can be configured on an SRX to provide separation of routing tables. This enables:

Maintaining separation of routing information (Option B): Different departments, tenants, or customers can have their own independent routing domains for security and isolation.

SNMP monitoring (Option A) is unrelated to routing instances.

Routing protocols (Option C) can be run inside each instance, but the purpose of multiple instances is separation, not general routing protocol management.

Simplifying interface configuration (Option D) is not a function of routing instances.

Correct Purpose: To maintain separation of routing information for security purposes.

Default assignment: All logical interfaces are placed in the null zone by default until explicitly assigned to a user-defined security zone (Option A is correct).

Removal from null zone: Once an interface is assigned to a security zone, it is removed from the null zone (Option D is correct).

No traffic acceptance: The null zone is a discard zone; it cannot be configured to accept any traffic (Option C is incorrect).

Policy behavior: Traffic rejected by a security policy is dropped according to the policy action. It is not forwarded to the null zone for logging (Option B is incorrect).

Correct Statements: A and D

Interface-based source NAT uses the outgoing interface address as the translated source address and commonly relies on Port Address Translation to allow many internal hosts to share that single interface IP address. Juniper describes source NAT as translating private addresses to public routable addresses and specifically supports translating many addresses to a single address or smaller address block using port translation. Static NAT is a fixed one-to-one mapping and does not normally perform PAT. Source NAT with address shifting maps one address block to another and is not the interface overload method. Destination NAT without port forwarding changes the destination address, not the source address and port for outbound sharing.

An SRX Series Firewall can operate in flow mode or packet mode. Flow mode is the normal security firewall mode, where the SRX analyzes traffic statefully, creates sessions, and applies services such as security policies, NAT, screens, and application security. Packet mode processes traffic on a per-packet basis and is stateless, making the SRX behave more like a router for selected forwarding functions. Juniper documentation specifically identifies these two operating modes for SRX Series Firewalls. Route mode is not an SRX firewall operating mode; routing is a forwarding function within Junos OS. Wireless mode is also not a firewall processing mode. Therefore, the correct answers are flow mode and packet mode.

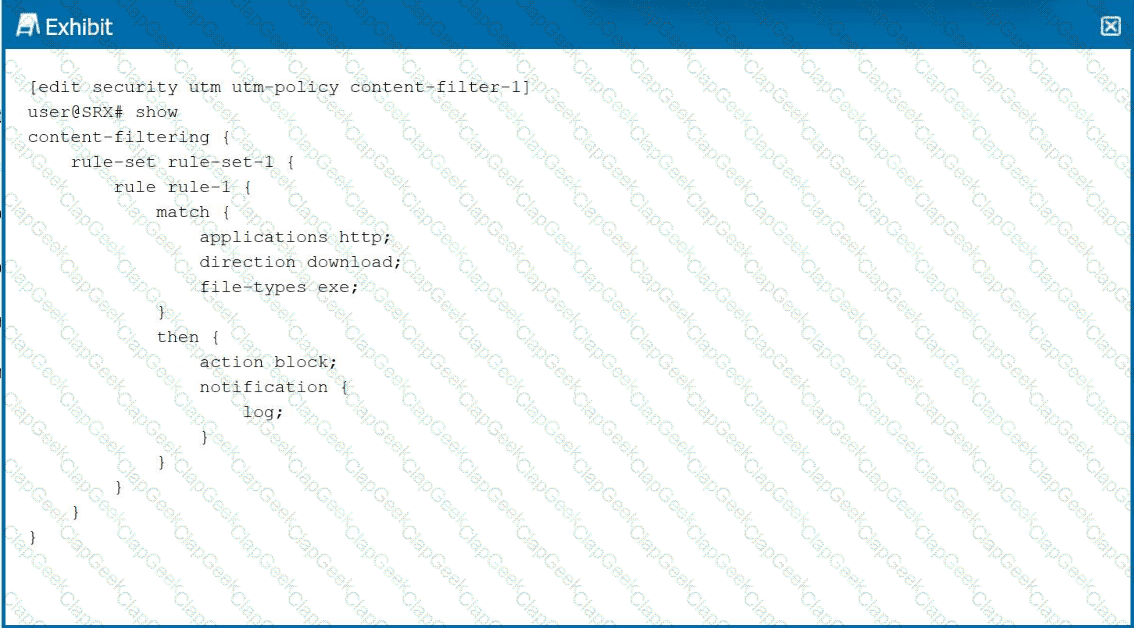

From the exhibit, the content filter configuration is as follows:

Match Conditions:

Application: HTTP

Direction: download

File-types: exe

Action:

block

notification log

Analysis of Options:

Option A: Incorrect. The configuration specifies the download direction , not upload. Uploads of .exe files are unaffected.

Option B: Correct. Because the rule applies to downloads , .exe files will be blocked when users attempt to download them over HTTP.

Option C: Correct. The notification { log; } statement ensures that an entry will be added to the SRX device’s log when the action is triggered.

Option D: Incorrect. No configuration for sending e-mail notifications is shown in the rule. Only logging is specified.

Correct Statements: B and C
