HPE7-A02 Aruba Certified Network Security Professional Exam Questions and Answers

When using OpenSSL to obtain a certificate signed by a Certification Authority (CA), you should submit the Certificate Signing Request (CSR) file, which is file1.pem, to the CA. The CSR contains the information about the entity requesting the certificate and the public key, but not the private key, which is in file2.pem. The CA uses the information in the CSR to create and sign the certificate.

1.CSR Submission: The CSR (file1.pem) includes the public key and the entity information required by the CA to issue a certificate.

2.Private Key Security: The private key (file2.pem) should never be sent to the CA or shared; it remains securely stored on the requestor’s server.

3.Certificate Issuance: After the CA signs the CSR, the resulting certificate can be used with the private key to establish secure communications.

1. The Need for Faster Threat Notifications

Admins need immediate alerts when threats are detected by the gateway's IDS/IPS functionality. Regularly checking the Security Dashboard is inefficient, so an automated notification system is essential for faster response times.

2. Explanation of Each Option

A. Set up Webhooks that are attached to the HPE Aruba Networking Central Threat Dashboard:

Incorrect:

Webhooks are useful for integrating alerts with third-party tools or custom workflows. However, setting up email notifications through global alert settings is faster and simpler for this purpose.

B. Use Syslog to integrate the gateways with HPE Aruba Networking ClearPass Policy Manager (CPPM) event processing:

Incorrect:

Syslog integration with CPPM is typically used for logging and correlating events, not for real-time notifications about threats.

CPPM is better suited for policy enforcement, not instant threat alerts.

C. Set up email notifications using HPE Aruba Networking Central's global alert settings:

Correct:

HPE Aruba Networking Central has global alert settings that allow admins to configure email notifications for specific events, such as threat detection.

This is the simplest and most effective way to ensure admins receive immediate notifications when threats are detected by the gateways.

D. Integrate HPE Aruba Networking ClearPass Device Insight (CPDI) with Central and schedule hourly reports:

Incorrect:

While CPDI integration provides enhanced device profiling, it is not directly tied to gateway IDS/IPS threat detection.

Hourly reports are not real-time notifications and would not meet the requirement for faster threat alerts.

Final Recommendation

Setting up email notifications through HPE Aruba Networking Central's global alert settings provides the most direct and efficient solution for immediate threat detection alerts.

References

HPE Aruba Networking Central Alert Management Documentation.

Aruba IDS/IPS and Security Dashboard Configuration Guide.

Email Notification Setup for Aruba Central Threat Alerts.

To ensure that the correct profiles apply after client attributes are updated based on Syslog messages, you should tune the Change of Authorization (CoA) delay on the ClearPass servers to a value of 5 seconds or greater. This delay allows sufficient time for the attribute updates to be processed and for the reauthentication to occur correctly, ensuring that the updated profiles are accurately applied to the clients.

1.CoA Delay: Adjusting the CoA delay ensures that the system has enough time to update client attributes and reauthenticate them properly before applying new profiles.

2.Profile Accuracy: This delay helps in preventing premature reauthentication and ensures that the most recent attribute updates are considered when applying profiles.

3.System Synchronization: Ensures synchronization between the attribute update and the reauthentication process.

Policy Analysis:

Rule Evaluation Order: Rules are applied in sequential order until a match is found.

Key Points:

DHCP traffic (UDP 67) is permitted.

DNS traffic (UDP 53) is permitted.

Traffic to 10.5.5.0/24 is explicitly denied.

HTTP traffic (TCP 80) is allowed only to 10.5.0.0/16.

HTTPS traffic (TCP 443) is allowed only to 10.5.0.0/16.

All other traffic to 10.5.0.0/16 is denied.

Any other traffic not matching the above rules is permitted.

Scenario Analysis:

The client IP 10.2.2.2 does not fall within the 10.5.0.0/16 subnet.

Rule 3 denies traffic to 10.5.5.5, regardless of the source IP.

Option A: Correct. HTTPS traffic to 10.5.5.5 is explicitly denied by Rule 3.

Option B: Incorrect. Traffic to 203.0.113.12 is permitted due to the final "permit any" rule.

Option C: Incorrect. The client (10.2.2.2) does not belong to the subnet 10.5.0.0/16, so traffic to 10.5.3.3 is not permitted by Rule 5.

Option D: Incorrect. HTTP traffic to 198.51.100.12 is allowed by the last "permit any" rule.

To enable the detection of rogue APs with HPE Aruba Networking Wireless IDS/IPS (WIDS/WIPS) on AOS-10 APs managed in HPE Aruba Networking Central, each AP must have a Foundation with Security license. This license enables advanced security features, including rogue AP detection, which is crucial for maintaining a secure wireless environment and protecting against unauthorized access points.

802.1X and User Role Download:

AOS-CX switches use RADIUS attributes to dynamically download user roles from CPPM.

The HPE-User-Role VSA (Vendor-Specific Attribute) must be configured in the RADIUS enforcement profiles to specify which role the switch should apply.

Option Analysis:

Option A: Incorrect. Exporting roles in XML is not needed for dynamic role download.

Option B: Incorrect. Switches authenticate via RADIUS, not admin accounts with specific privileges.

Option C: Correct. RADIUS enforcement profiles must include the HPE-User-Role VSA to implement user role download.

Option D: Incorrect. TPM certificates are unrelated to RADIUS-based user role downloads.

When creating a rule in an HPE Aruba Networking ClearPass Policy Manager (CPPM) role mapping policy that references a ClearPass Device Insight Tag, you should specify the "Endpoint" Type (namespace) for the rule. This ensures that the policy can properly reference and utilize the tags assigned to endpoints by ClearPass Device Insight for making role mapping decisions.

1.Endpoint Tags: ClearPass Device Insight assigns tags to endpoints based on their characteristics and behaviors. These tags are stored in the "Endpoint" namespace.

2.Role Mapping: By referencing the "Endpoint" type, the rule can accurately match endpoints with the specified tags and apply the appropriate role mappings based on the device's profile.

3.Policy Consistency: Ensuring that the correct namespace is used maintains consistency and accuracy in role assignment policies.

A typical use case for using HPE Aruba Networking ClearPass Onboard is to provision unmanaged devices to succeed at certificate-based 802.1X authentication. ClearPass Onboard allows users to securely configure their personal devices with the necessary certificates and network settings to authenticate on the network using 802.1X, which enhances security and simplifies the onboarding process for unmanaged devices.

1.Certificate-Based Authentication: ClearPass Onboard simplifies the process of issuing and installing certificates on unmanaged devices, ensuring they can authenticate securely using 802.1X.

2.User-Friendly Onboarding: The Onboard process is user-friendly, guiding users through the steps needed to configure their devices for network access.

3.Enhanced Security: By using certificates for authentication, the solution provides a higher level of security compared to traditional username/password methods.

Syslog Integration with CPPM:

ClearPass Policy Manager (CPPM) can integrate with third-party firewalls via Syslog messages to detect and respond to internal threats.

The Syslog integration enables CPPM to gather context on suspicious activity and enforce appropriate policies such as isolating attackers by working with network devices like Aruba switches and APs.

Option A: Correct. This method allows for dynamic response to threats and leverages existing infrastructure without requiring major reconfiguration.

Option B: Incorrect. CPDI is primarily used for profiling devices, not directly for threat response based on Syslog information.

Option C: Incorrect. While it is possible for CPPM to poll information, this approach is less dynamic and not focused on immediate threat response.

Option D: Incorrect. Tunnel mode SSIDs and UBT are designed for forwarding user traffic securely but do not directly enhance threat detection or mitigation.

When the Active Endpoint Security Report on HPE Aruba Networking ClearPass indicates that endpoints have MAC addresses but no known IP addresses, one effective step to address this issue is to add CPPM's (ClearPass Policy Manager) IP address to the IP helper list on routing switches. This configuration ensures that DHCP requests are forwarded to the ClearPass server, allowing it to track and report the IP addresses assigned to the endpoints. This helps ClearPass maintain an accurate mapping of MAC addresses to IP addresses, improving endpoint visibility and security management.

To set up HPE Aruba Networking ClearPass Policy Manager (CPPM) for certificate-based authentication of 802.1X supplicants, you need to upload the root CA certificate as a Trusted CA with the EAP usage. This configuration allows the ClearPass server to validate the certificates presented by the supplicants during the 802.1X authentication process. By marking the certificate for EAP usage, ClearPass can properly authenticate the supplicant devices using the trusted certificate authority (CA) that issued their certificates.

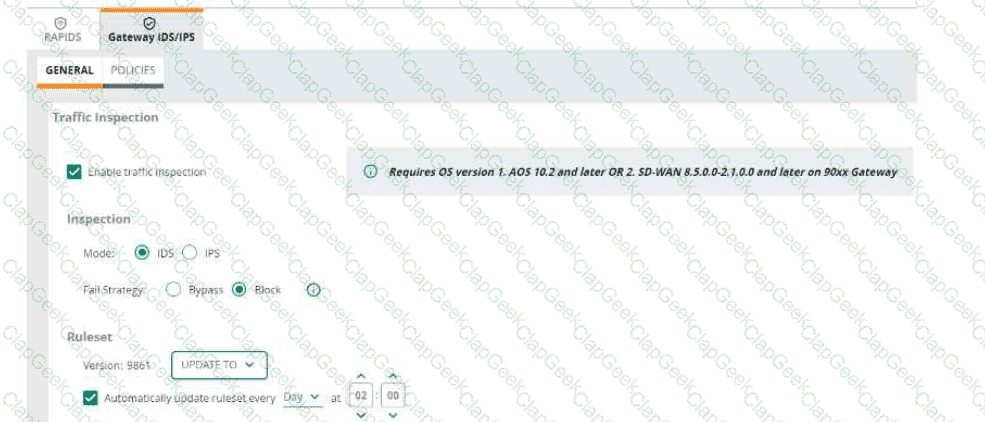

In the exhibit, the HPE Aruba Networking Central settings for the 9x00 gateway show that traffic inspection is enabled, and the gateway is set to operate in IDS (Intrusion Detection System) mode with the fail strategy set to "Block". This configuration means that the gateway will drop traffic if it matches a rule in the active ruleset.

1.Active Ruleset: The ruleset version 9861 is active, and the gateway is configured to automatically update the ruleset daily.

2.Traffic Matching Rules: When traffic matches a rule in the active ruleset, it is flagged as suspicious or malicious.

3.Block Mode: Since the fail strategy is set to "Block", any traffic that matches a rule in the active ruleset will be dropped to prevent potential threats.

Rogue AP Containment Methods:

HPE Aruba Networking recommends using wireless deauthentication as the preferred method for rogue AP containment.

Deauthentication sends deauth frames to clients connected to rogue APs, causing them to disconnect. This method is effective without introducing unnecessary disruptions to the wired infrastructure.

Key Points:

Wireless Deauthentication is simple, efficient, and widely supported across client devices.

Tarpit Containment is more aggressive and may cause unintentional disruptions to legitimate clients.

Wired Containment involves blocking traffic at the switch level but is complex and may impact legitimate infrastructure traffic.

Option Analysis:

Option A: Correct. Wireless deauthentication is the recommended method as it targets rogue AP clients without excessive network impact.

Option B: Incorrect. Combining wireless tarpit and wired containment is overkill and not typically recommended.

Option C: Incorrect. Wireless tarpit can be effective but is generally not the first choice due to its aggressive nature.

Option D: Incorrect. Wired containment is more complex and reserved for specific use cases, not general recommendations.

To show the security team information about MAC spoofing attempts detected by HPE Aruba Networking ClearPass Policy Manager (CPPM), you should use ClearPass Insight to run an Active Endpoint Security report. ClearPass Insight provides comprehensive reporting capabilities that include detailed information on security incidents, such as MAC spoofing attempts. By generating this report, you can provide the security team with a clear overview of the detected spoofing activities, including the endpoints involved and the context of the events.

1. IDPS Mode Configuration Overview

The exhibit shows the HPE Aruba Networking Central settings for the Gateway IDS/IPS configuration:

Mode: Configured for Intrusion Prevention System (IPS), meaning that the gateway actively blocks traffic identified as threats.

Fail Strategy: Configured to Block, meaning that if the gateway cannot determine the traffic's nature due to a system issue, it will block the traffic.

Ruleset: The gateway uses a predefined set of intrusion detection/prevention rules (ruleset version 9861), which is updated automatically every day.

2. Traffic Evaluation in IPS Mode

In IPS mode, the gateway analyzes traffic against the active ruleset:

If traffic matches a rule in the ruleset and is deemed malicious, the gateway will drop the traffic as part of its prevention mechanism.

The ruleset defines specific conditions (e.g., signatures of known attacks, protocol anomalies) under which traffic should be blocked.

3. Explanation of Each Option

A. Its site-to-site VPN connections failing:

Incorrect:

Site-to-site VPN connection issues do not directly trigger traffic drops under IDPS settings.

IDPS is focused on detecting and preventing malicious activity, not general connectivity issues.

B. Traffic matching a rule in the active ruleset:

Correct:

In IPS mode, the gateway drops traffic that matches any predefined rules in the active ruleset.

For example, if traffic matches the signature of a known exploit or attack, it is immediately blocked.

C. Its IDPS engine failing:

Incorrect:

The fail strategy determines how the gateway behaves in the event of an IDPS engine failure.

In this case, the fail strategy is set to Block, but this applies only if the engine itself fails, not as a proactive traffic drop mechanism.

D. Traffic showing anomalous behavior:

Incorrect:

While anomalous behavior may be logged or flagged, it does not necessarily lead to traffic drops unless it matches a specific rule in the active ruleset.

Anomaly detection alone is not sufficient for IPS action without explicit rule matches.

Final Outcome:

Traffic is dropped only when it matches a rule in the active ruleset, ensuring targeted prevention of malicious activity.

References

Aruba Gateway IDS/IPS Configuration Guide.

Aruba Central Ruleset Management Documentation.

Best Practices for Configuring Fail Strategies in IPS Mode.

Integration of CPDI and CPPM for Zero Trust:

CPDI (ClearPass Device Insight) identifies and profiles devices and applications on the network.

CPDI can tag devices based on their behavior or detected applications.

CPPM uses these tags to enforce policies, such as quarantining clients that violate security rules (e.g., using prohibited applications).

Option Analysis:

Option A: Incorrect. CPPM does not inform CPDI about role assignments; CPDI provides device context to CPPM.

Option B: Correct. CPDI tags clients, and CPPM uses those tags to enforce quarantine or other Zero Trust actions.

Option C: Incorrect. Custom fingerprint definitions are not part of this integration.

Option D: Incorrect. CPDI provides information about devices, not user identities.

HPE Aruba Networking ClearPass Device Insight (CPDI) can show detailed information about a device's communication patterns, including how many destinations the device is accessing. CPDI provides comprehensive visibility into the behavior and activity of devices on the network, allowing the security team to track and analyze communication patterns at a glance. This information is critical for identifying anomalies and potential security threats.

Centralized Role Configuration on CPPM:

CPPM can assign roles to clients dynamically during authentication.

However, the actual ACL policies (e.g., firewall policies) must already exist and be referenced locally on the switch.

CPPM cannot directly configure ACL details on AOS-CX switches.

Option Analysis:

Option A: Correct. The role is defined on CPPM, but it references a policy pre-configured on the switch.

Option B: Incorrect. This does not align with Aruba's centralized role-based access control design.

Option C: Incorrect. CPPM cannot configure the ACL policies and classes directly; they must exist locally.

Option D: Incorrect. Policies can be referenced centrally but not fully configured on CPPM.

Tag Updates Action - "Apply for All Tag Updates":

This setting ensures that all updated tags from Device Insight (CPDI) are applied dynamically.

It is particularly useful when you want to trigger Change of Authorization (CoA) without explicitly predefining the tag values.

Option D: Correct. This setting allows CPPM to issue CoAs automatically for updated tags without requiring prior configuration of specific tags.

Option A: Incorrect. The setting is not directly related to reducing the poll interval latency.

Option B: Incorrect. Disconnecting devices based on dangerous tags would require predefined enforcement rules.

Option C: Incorrect. Posture information updates do not directly rely on this setting.

802.1X Service Rules:

Service rules define the criteria for when a specific service applies (e.g., wireless vs. wired authentication).

For wired 802.1X authentication to work properly, the service rules need to differentiate between wireless and wired connections.

If you copy the wireless service, the rules likely still match wireless-specific criteria. These must be updated to include wired-specific conditions (e.g., NAS IP or port types).

Option Analysis:

Option A (Role mapping policy): Role mapping policies determine user roles based on attributes but are not critical for differentiating wired vs. wireless.

Option B (Authentication methods): Authentication methods (e.g., EAP) remain the same for both wireless and wired 802.1X.

Option C (Authentication source): Authentication sources (like AD or internal database) do not need to change.

Option D (Service rules): Correct. Updating the service rules ensures the new 802.1X service applies specifically to wired connections.

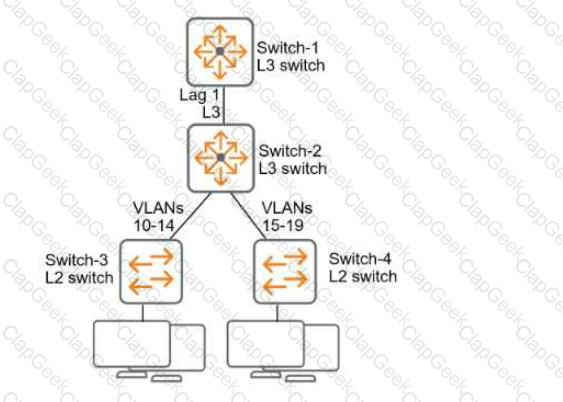

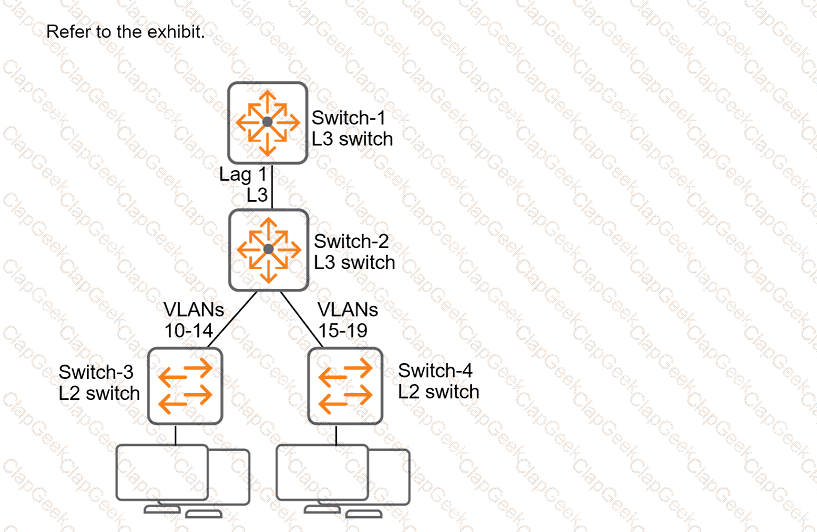

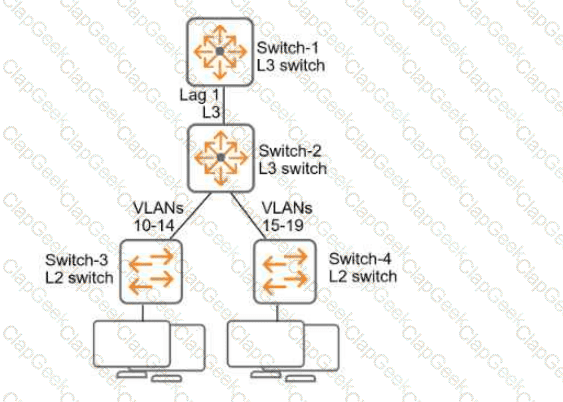

To prevent rogue OSPF routers in the network shown in the exhibit, the preferred configuration on Switch-2 is to configure OSPF authentication on Lag 1 in MD5 mode. This setup enhances security by ensuring that only routers with the correct MD5 authentication credentials can participate in the OSPF routing process. This method protects the OSPF sessions against unauthorized devices that might attempt to introduce rogue routing information into the network.

1.OSPF Authentication: Implementing MD5 authentication on Lag 1 ensures that OSPF updates are secured with a cryptographic hash. This prevents unauthorized OSPF routers from establishing peering sessions and injecting potentially malicious routing information.

2.Secure Communication: MD5 authentication provides a higher level of security compared to simple password authentication, as it uses a more robust hashing algorithm.

3.Applicability: Lag 1 is the primary link between Switch-1 and Switch-2, and securing this link helps protect the integrity of the OSPF routing domain.

When WPA3 with 802.1X authentication is enforced on an HPE Aruba Networking WLAN, the authentication process strictly adheres to security standards. Here’s how the process works:

1. 802.1X Authentication Workflow in WPA3

The client must provide valid credentials (such as certificates or username/password) to authenticate with the RADIUS server via 802.1X.

If the client fails authentication (e.g., due to invalid credentials or lack of proper configuration), the 802.1X handshake fails, and the AP terminates the connection.

2. Role Assignment in WLANs

Default Role: The role assigned to authenticated clients after a successful 802.1X authentication. It is not applied to unauthenticated clients.

Critical Role: This is a fallback role applied when there are issues communicating with the RADIUS server, not when authentication fails.

Initial Role: A temporary role assigned to clients before authentication completes. However, this role is removed once the authentication process determines failure.

3. Behavior Upon Authentication Failure

In the case of an authentication failure, the client does not get assigned to any role (default, critical, or initial) because it does not meet the conditions for network access.

The client is dropped immediately, and no further communication is allowed until reauthentication is attempted.

Explanation of Each Option

A. The AP assigns the client to the WLAN's default role:

Incorrect: The default role applies only after successful authentication, not in case of authentication failure.

B. The AP drops the client because authentication aborts:

Correct: If the client fails authentication, the AP terminates the connection without assigning any roles.

C. The AP assigns the client to the WLAN's critical role:

Incorrect: The critical role is used when the AP cannot reach the RADIUS server, not when authentication fails.

D. The AP assigns the client to the WLAN's initial role:

Incorrect: The initial role is applied during the authentication process, but it is not retained after a failed authentication.

References

Aruba Central WLAN Configuration Guide.

WPA3 and 802.1X Authentication Best Practices in Aruba Networks.

Aruba AP Role Assignment Workflow Documentation.

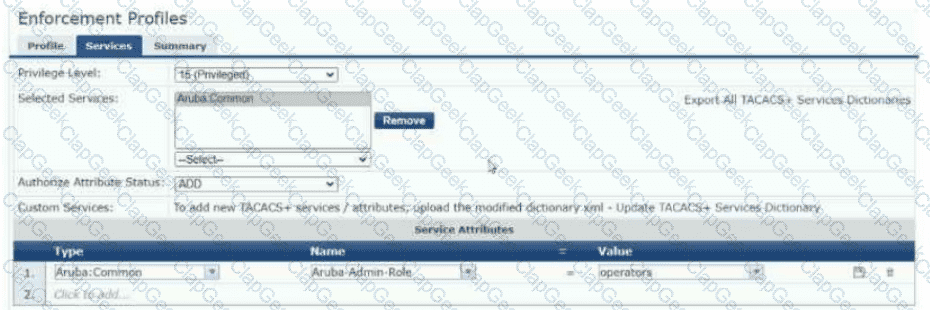

TACACS+ Enforcement Profile:

The profile specifies a Service Attribute under Aruba:Common with:

Name: Aruba-Admin-Role

Value: operators

AOS-CX Role Mapping:

On Aruba AOS-CX switches, the Aruba-Admin-Role attribute maps the authenticated user to predefined roles:

operators: Operator-level privileges (read-only access, limited commands).

administrators: Full administrator privileges.

Other roles like auditors may exist based on configuration.

Analysis:

The value operators explicitly maps the user to operator-level privileges, granting read-only access to the AOS-CX switch.

Since the Aruba-Admin-Role is correctly set and recognized, the switch assigns the appropriate role without errors.

Option Breakdown:

Option A: Correct. The switch assigns operator-level privileges based on the Aruba-Admin-Role value.

Option B: Incorrect. Administrator-level privileges require the role value to be administrators.

Option C: Incorrect. The manager is successfully authenticated and authorized; there is no error.

Option D: Incorrect. There is no reference to an auditor role in the configuration shown.

Conclusion:

The operators value in the TACACS+ enforcement profile ensures that the manager is assigned operator-level privileges on the AOS-CX switch.

To capture only the traffic sent in the mirroring session between an AOS-CX switch and a management station running Wireshark, you should apply a capture filter that isolates the specific traffic of interest. In this case, using the filter udp port 5555 will capture the traffic associated with the mirroring session. This is because AOS-CX switches typically use UDP port 5555 for mirrored traffic, ensuring that only the relevant mirrored packets are captured and excluding other traffic generated by the management station.

To determine the VLAN settings for the "APs" role on AOS-CX switches, it is crucial to know whether the APs bridge or tunnel traffic on their SSIDs. If the APs are bridging traffic, the VLAN settings on the switch need to align with the VLANs used by the SSIDs. If the APs are tunneling traffic to a controller or gateway, the VLAN settings might differ as the traffic is encapsulated and forwarded through the tunnel. Understanding this aspect ensures that the VLAN configuration on the switches correctly supports the traffic forwarding method employed by the APs.

To block all clients connected through HPE Aruba Networking Central-managed APs from accessing YouTube, you should enable DPI (Deep Packet Inspection) and then create application rules to deny YouTube on the firewall roles. DPI allows the network to inspect and classify traffic based on application signatures, making it possible to enforce application-specific policies. By creating rules that specifically block YouTube traffic, you can effectively prevent clients from accessing the service.

The preferred method for assigning clients to a role on the AOS firewall is to configure HPE Aruba Networking ClearPass Policy Manager (CPPM) to assign the role using a RADIUS enforcement profile with an Aruba-User-Role VSA (Vendor-Specific Attribute). This method allows ClearPass to dynamically assign the appropriate user roles to clients during the authentication process, ensuring that role-based access policies are consistently enforced across the network.

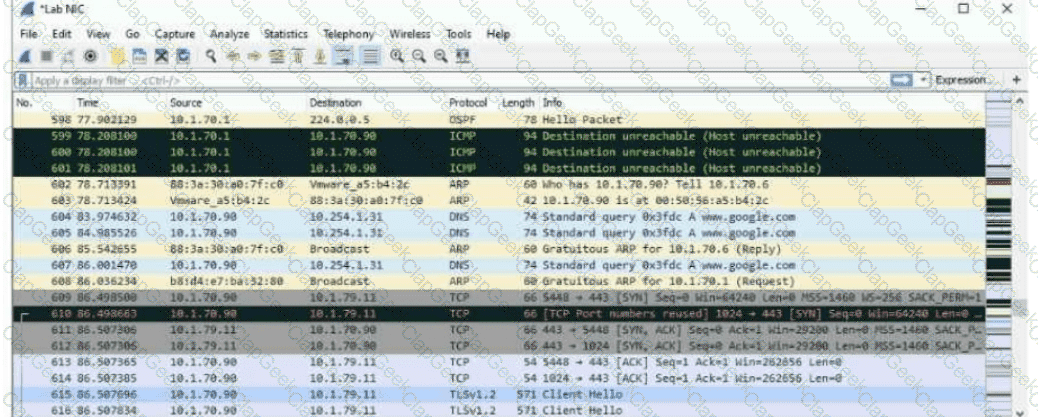

Wireshark: Follow TCP Stream:

Wireshark provides an intuitive feature to filter and display a complete TCP conversation.

By right-clicking any packet within the conversation and selecting "Follow → TCP Stream", Wireshark isolates and displays the entire conversation.

This feature allows you to view the communication in a simplified, sequential manner, including requests and responses.

Option Analysis:

Option A: Incorrect. Capture filters only apply during packet capturing, not for analyzing already saved packet captures.

Option B: Incorrect. Sorting packets helps with organizing data but does not isolate a complete conversation.

Option C: Incorrect. A capture filter for TCP port 5448 would have to be applied before capturing; it does not work for saved data.

Option D: Correct. Right-clicking a packet and choosing "Follow TCP Stream" is the simplest way to display the full conversation between 10.1.70.90 and 10.1.79.11 on port 5448.

Steps in Wireshark to Follow a TCP Stream:

Locate any packet within the desired conversation (e.g., between 10.1.70.90 and 10.1.79.11 on TCP port 5448).

Right-click on the packet.

Choose "Follow" → "TCP Stream".

Wireshark will display the entire TCP conversation, including both directions of communication.

This feature is especially useful when troubleshooting or analyzing detailed interactions between hosts.

HPE Aruba Networking SSE is a cloud-delivered Security Service Edge platform that provides secure web gateway, ZTNA, CASB/DLP, and cloud firewall functions. Threat detection for remote web browsing relies heavily on full traffic inspection, including SSL inspection, URL filtering, and malware scanning.

In Aruba SSE deployments that protect web access from campus/branch or remote users, you:

Integrate the on-prem gateway or AOS-10 environment with SSE using an external web profile, which defines how traffic is sent to SSE.

Within that profile, you enable SSL inspection so that SSE can decrypt and inspect HTTPS traffic, allowing advanced threat detection, DLP, and malware scanning.

Option A: Custom file security profiles can tune malware scanning, but using a non-default profile is not mandatory for basic threat detection.

Option B: SSE already includes built-in anti-malware and sandboxing; it doesn’t require a separate third-party antivirus integration for core features.

Option C: Connectors in SSE are used mainly to reach private applications (ZTNA), not to “reach remote users” for general web browsing.

Therefore, an essential part of enabling threat detection for web browsing is creating an external web profile that enables SSL inspection → Option D.

802.11 Traffic and Protection Bits:

In the 802.11 protocol, protection bits and the Initialization Vector (IV) are used in encrypted wireless traffic.

If the traffic is captured directly from an AP, the frames may include encrypted content.

Wireshark may misinterpret these protection bits or fail to display the frames correctly unless it is configured to ignore protection bits and correctly parse the IV.

Key Scenario:

When traffic is captured directly from an AP managed by HPE Aruba Networking Central, the frames are often captured before decryption occurs.

In such cases, you must configure Wireshark to ignore the protection bits and handle the IV properly for correct frame interpretation.

Option Analysis:

Option A: Incorrect. Data plane traffic sent to a remote IP is usually decrypted, so Wireshark does not require this adjustment.

Option B: Incorrect. Switch port mirroring captures traffic at Layer 2/3, not raw 802.11 frames.

Option C: Correct. Traffic captured directly from an AP via HPE Aruba Networking Central often includes encrypted wireless frames, requiring Wireshark adjustments.

Option D: Incorrect. Control plane traffic is typically management data and not raw wireless frames needing IV interpretation.

Why MD5 Authentication on Lag 1 is Preferred:

Lag 1 is the primary link between Switch-2 and Switch-1, both of which are Layer 3 switches running OSPF.

By enabling MD5 authentication, OSPF routers exchange authenticated packets, preventing unauthorized or rogue OSPF routers from forming adjacencies or injecting routes.

MD5 is a secure authentication method and ensures the integrity and authenticity of OSPF communications.

Other Options Analysis:

A. Configure OSPF authentication on VLANs 10-19 in password mode: While configuring authentication on VLAN interfaces could secure VLAN-specific OSPF traffic, it is less effective because the main threat of rogue OSPF comes from unauthorized L3 devices connected via the backbone (Lag 1).

C. Disable OSPF entirely on VLANs 10-19: Disabling OSPF on these VLANs is not a preferred solution because OSPF is needed to route traffic in this design.

D. Configure passive-interface as the OSPF default and disable OSPF passive on Lag 1: While passive interfaces prevent OSPF from forming adjacencies, it does not directly prevent rogue routers. Passive mode only limits OSPF advertisements on specific interfaces.

To ensure that the AOS-CX switch properly assigns the "employees" role when using CPPM (ClearPass Policy Manager) as the RADIUS server, you should configure a RADIUS Enforcement profile on CPPM with the Aruba-User-Role VSA (Vendor-Specific Attribute) set to "employees". This configuration ensures that when an endpoint authenticates, CPPM sends the appropriate role assignment to the AOS-CX switch, which then applies the corresponding policies and VLAN settings defined for the "employees" role.

Traffic Forwarding for APs:

In AOS-10, AP traffic forwarding can happen locally (bridged) or through tunnels to a gateway.

The VLAN settings on the "APs" role depend on whether the APs bridge the SSID traffic locally or forward it through a tunnel.

Option B: Correct. You need to know whether the traffic is bridged or tunneled to determine the VLAN assignments.

Option A: Incorrect. LURs/DURs affect role assignment but not VLAN settings for traffic forwarding.

Option C: Incorrect. Establishing tunnels with gateways is relevant to centralized traffic forwarding, not VLANs for bridged traffic.

Option D: Incorrect. AP IP addressing (static or DHCP) does not impact the VLAN for forwarded SSID traffic.

ClearPass Device Insight Integration:

To integrate ClearPass Device Insight (CPDI) with ClearPass Policy Manager (CPPM), you must enable the Insight feature in the CPPM server configuration settings.

This ensures CPPM can share and receive profiling data with CPDI for device identification.

Option Analysis:

Option A: Incorrect. Root CA certificates are not required for this integration.

Option B: Correct. Enabling Insight on CPPM is essential for the integration to function.

Option C: Incorrect. WMI, SSH, and SNMP are not part of the CPDI integration prerequisites.

Option D: Incorrect. The Data Collector token is relevant to Aruba Central, not CPDI integration.

To capture traffic from a particular wireless client for a 15-minute period and then send the traffic in a PCAP file, you should go to the client's AP in HPE Aruba Networking Central and use the "Security" page to run a packet capture. This method allows you to directly capture the client's traffic from the AP managing the wireless connection, ensuring that you gather the relevant traffic data for analysis.

1.Centralized Management: HPE Aruba Networking Central provides a centralized interface for managing and monitoring APs, making it easy to initiate packet captures.

2.Security Page: The "Security" page in Aruba Central includes tools for running packet captures, allowing you to specify the duration and other parameters.

3.Ease of Use: This approach simplifies the process by using the built-in features of Aruba Central, avoiding the need for complex CLI commands or additional hardware.

On Aruba Mobility Controllers, dataplane captures can include wireless frames encapsulated inside GRE (for example, ERM / remote mirroring or tunneled 802.11 data). If Wireshark does not have GRE dissection enabled, these packets may appear as generic IP/UDP payloads, and the inner traffic (client frames) will not decode correctly.

MC dataplane is exactly where GRE-encapsulated user traffic is likely to appear. Enabling GRE in Wireshark allows you to see and decode the inner payload (802.11/Ethernet/IP).

MC control plane traffic is generally not GRE encapsulated data traffic.

For gateways, captures exported as ERM over UDP often require different decoding (e.g., ARUBA_ERM, not generic GRE).

Thus, the most appropriate case to ensure GRE is enabled is when the capture came from the MC dataplane → Option D.

1. Understanding CPDI Risk Score and Posture Analysis

The Risk Score in ClearPass Device Insight (CPDI) is a numerical value representing the overall risk level associated with a device. It considers factors such as:

Posture Assessment: The device's compliance with health policies (e.g., OS updates, antivirus status).

Security Analysis: Vulnerabilities detected on the device, such as known exploits or weak configurations.

A Risk Score of 90 indicates a high-risk device, suggesting that the posture is unhealthy and vulnerabilities have been detected.

2. Analysis of Each Option

A. The posture is unknown, and CPDI has detected exactly four vulnerabilities on the device:

Incorrect:

The posture cannot be "unknown" because posture assessment is enabled in the settings.

CPDI does not explicitly indicate the exact number of vulnerabilities directly through the Risk Score.

B. The posture is healthy, but CPDI has detected multiple vulnerabilities on the device:

Incorrect:

A Risk Score of 90 is too high for a "healthy" posture. A healthy posture would typically result in a lower Risk Score.

C. The posture is unhealthy, and CPDI has also detected at least one vulnerability on the device:

Correct:

A high Risk Score of 90 indicates an unhealthy posture.

The presence of vulnerabilities (based on Security Analysis being enabled) further justifies the high Risk Score.

This combination of unhealthy posture and detected vulnerabilities aligns with the Risk Score and configuration provided.

D. The posture is unhealthy, but CPDI has not detected any vulnerabilities on the device:

Incorrect:

If no vulnerabilities were detected, the Risk Score would not be as high as 90, even if the posture were unhealthy.

Final Interpretation

From the configuration and Risk Score provided, the device's posture is unhealthy, and at least one vulnerability has been detected by CPDI.

References

HPE Aruba ClearPass Device Insight Deployment Guide.

CPDI Risk Score Analysis and Security Settings Documentation.

Best Practices for Posture Assessment in Aruba Networks.
