E20-526 XtremIO Solutions and Design Specialist Exam for Technology Architects Questions and Answers

Second write workload IOPS = 2 GB/s divided by 128 kB = 2 x1,073,741,824 / (128 x 1,024) = 16384 IOPs.

Total IOPS required would be 150,000, from the first workload, plus 16384, totaling 166384.

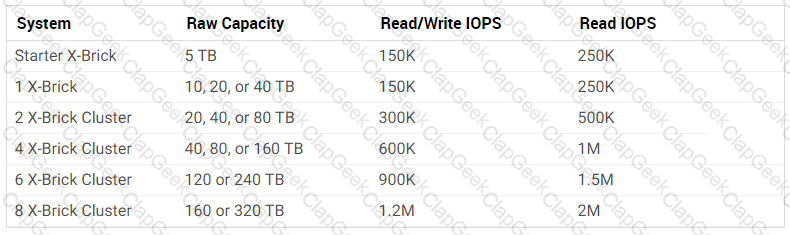

A 2 X-Brick cluster provides 300K Read/write IOPS so it would be adequate.

Storage capacity and performance scale linearly, such that two X-Bricks supply twice the IOPS, four X-Bricks supply four times the IOPS, six X-Bricks supply six times the IOPS and eight X-Bricks supply eight times the IOPS of the single X-Brick configuration.

Note: Choose an EMC XtremIO system and scale out linearly by adding more XtremIO X-Bricks.

References: https://store.emc.com/en-us/Product-Family/EMC-XtremIO-Products/EM C-XtremIO-All-Flash-Scale-Out-Array/p/EMC-XtremIO-Flash-Scale-Out

XtremIO's snapshot technology is implemented by leveraging the content-aware capabilities of the system (Inline Data Reduction), optimized for SSD media, with a unique metadata tree structure.

XtremIO leverages a proprietary flash-optimized data protection algorithm (XtremIO Data Protection or XDP), which provides performance that is superior to any existing RAID algorithm.

References: Introduction to the EMC XtremIO STORAGE ARRAY (April 2015), page 33

Per IDC’s best practices the toolkit fills the array 2x.

References:https://community.emc.com/docs/DOC-35014

When a snap is created, the following steps occur:

1) Two empty containers are created in-memory

2) Snapshot SCSI personality is pointing to the new snapshot sub-node

3) The SCSI personality which the host is using, is linked to the second node in the internal data tree

References: EMC RECOVERPOINT REPLICATION OF XTREMIO, Understanding the essentials of RecoverPoint Snap-based replication for XtremIO, page 8

https://www.emc.com/collateral/white-papers/h14296-wp-recoverpoint-replication-of-xtremio.pdf

The system's Command Line Interface (CLI) allows administrators and other system users to perform supported management operations. It is preinstalled on the XMS and can be accessed using the standard SSH protocol.

PuTTY is an SSH and telnet client.

The standard TCP port 22 has been assigned for contacting SSH servers.

You can login using the builtin xmsadmin account.

References: Introduction to the EMC XtremIO STORAGE ARRAY (April 2015), page 50

With VMware ESX 5.5, the VMware hypervisor cannot work with LUNs that use a logical block size of 4K. When using VMware, be sure to specify Normal (512 LBs) from your XtremIO array.

References:https://gruffdba.wordpress.com/2015/08/02/4k-logical-block-size-size-fails-on-vmware/

XtremIO storage is natively thin provisioned, using a small internal block size. This provides fine-grained resolution for the thin provisioned space.

All volumes in the system are thin provisioned, meaning that the system consumes capacity only when it is actually needed. XtremIO determines where to place the unique data blocks physically inside the cluster after it calculates their fingerprint IDs. Therefore, it never pre-allocates or thick-provisions storage space before writing.

References: Introduction to the EMC XtremIO STORAGE ARRAY (April 2015), page 22
