CCPSC CCPS Process Safety Professional Certification Questions and Answers

The correct answers are B, C, D, and E because these align directly with CCPS expectations for a robust Management of Change (MOC) system under Risk-Based Process Safety.

C (adequate safety and health evaluations) is fundamental to MOC. CCPS requires that all changes—whether in equipment, procedures, chemicals, or organization—be reviewed for potential process safety impacts before implementation.

D (updates to preventive maintenance requirements) is also essential. Changes can affect equipment reliability and degradation mechanisms, so inspection, testing, and maintenance programs must be updated accordingly to maintain asset integrity.

E (management of temporary changes) is a key CCPS requirement. Temporary changes must be tracked, reviewed, and either made permanent through full MOC or reverted by a defined expiration date to prevent them from becoming uncontrolled permanent conditions.

B (root causes identified) is indirectly relevant, as changes often arise from incident learnings, and MOC should incorporate lessons learned to prevent recurrence.

Option A is incorrect because emergency changes still require MOC controls , though they may follow an expedited process. CCPS clearly states that all changes must be managed to ensure risks are properly evaluated and controlled.

The correct answers are B, C, and D because CCPS emphasizes that Workforce Involvement includes engaging operators in activities where their practical knowledge and experience improve process safety systems .

Option B is correct because operators can contribute to the design and improvement of refresher training programs . Their real-world experience helps ensure that training is relevant, practical, and focused on actual operating challenges.

Option C is also correct because operators are often best positioned to review operating procedures for accuracy and usability . They can identify unclear instructions, missing steps, or impractical guidance, improving procedural quality and reducing human error.

Option D is correct because operators may participate in audits , providing insights into how procedures and systems are implemented in practice. Their involvement enhances audit effectiveness by incorporating frontline perspectives.

Option A is incorrect because sizing pressure relief devices is a specialized engineering task requiring technical design expertise beyond typical operator responsibilities.

CCPS highlights that workforce involvement should leverage frontline knowledge , improve system design, and foster ownership of process safety, while ensuring that technical tasks remain with appropriately qualified personnel.

The correct answers are B, C, and E because the diagram shows an ERPG-3 toxic release plume extending offsite , impacting public receptors such as a local community, college, and hospital . This scenario directly relates to hazard analysis, emergency planning, and external communication.

Option B (Hazard Identification and Risk Analysis) is critical because determining the extent and severity of the toxic plume (e.g., ERPG levels) is a key outcome of consequence modeling and risk analysis. This element identifies potential offsite impacts and supports decision-making for safeguards.

Option C (Emergency Management) is essential because such a release requires prepared emergency response plans , including evacuation, shelter-in-place strategies, and coordination with local responders.

Option E (Stakeholder Outreach) is also highly relevant because offsite consequences require communication and coordination with external stakeholders , including the public, hospitals, and emergency services. This ensures awareness and preparedness beyond the facility boundary.

Options A, D, and F are less directly relevant to the scenario presented, as they focus on internal systems rather than offsite consequence management and response .

CCPS emphasizes that when hazards extend beyond the facility, organizations must integrate risk analysis, emergency planning, and community engagement to effectively manage potential impacts.

The correct answer is C because the scenario strongly indicates a human factors issue related to comprehension of written information , rather than motivation or discipline.

The key observation is that the worker performs well after verbal explanation but struggles when relying solely on written procedures. This pattern repeats with new procedures, suggesting a consistent difficulty in understanding written content. CCPS highlights that human performance can be affected by factors such as literacy, language barriers, cognitive limitations, or learning styles , all of which must be considered in process safety systems.

Option A is unlikely because the worker improves immediately after explanation, indicating willingness to follow procedures once understood. Option B is also less likely because the repeated pattern suggests a systemic issue , not a one-time lack of effort.

CCPS emphasizes that procedures must be clear, accessible, and usable by the intended workforce , and organizations should account for human variability. This may include using visual aids, simplified language, hands-on training, or verbal reinforcement .

This scenario demonstrates the importance of integrating human factors engineering into process safety to ensure procedures are truly effective for all users.

The correct answers are A (Borescope) and C (Hydrostatic test) because these are commonly accepted and practical methods for inspecting the condition and integrity of heat exchanger tubes under the Mechanical Integrity element of RBPS.

Borescope inspection (A) allows direct visual examination of the internal surfaces of tubes. It is particularly useful for identifying corrosion, fouling, pitting, cracking, and blockages . CCPS recognizes visual inspection tools as important non-destructive examination (NDE) techniques for assessing internal equipment condition.

Hydrostatic testing (C) is used to verify the pressure integrity and leak tightness of the exchanger tubes. By pressurizing the system with a liquid, operators can detect leaks or weaknesses that could lead to failure during operation.

Option B (Dye injection) is not a standard or recognized method for internal tube inspection in heat exchangers. While dye penetrant testing exists, it is typically used on surfaces—not for internal tube integrity in this context.

Option D (Radiography) is generally impractical for inspecting individual tubes in shell-and-tube exchangers due to geometry, access limitations, and effectiveness concerns.

CCPS emphasizes selecting appropriate, proven inspection techniques that effectively assess degradation mechanisms and ensure continued safe operation of critical equipment.

The correct answer is B because a pressure reading between the rupture disc and relief valve—where it should normally be zero—indicates that the rupture disc has likely failed or is leaking . This creates a serious hazard because the pressure relief valve (PRV) may no longer function as intended , especially if backpressure builds up or if the system configuration compromises its ability to relieve safely. This condition can lead to loss of overpressure protection , increasing the risk of vessel rupture or explosion.

From a CCPS RBPS perspective, several elements are implicated. Mechanical Integrity is central, as the rupture disc may not have been properly inspected, maintained, or replaced. Operating Procedures and Training and Performance Assurance are also relevant, as operators must recognize abnormal readings and respond appropriately. Hazard Identification and Risk Analysis (HIRA) should have considered failure modes such as rupture disc leakage and its impact on relief system performance. Additionally, Management of Change (MOC) could be involved if modifications or replacements were made without proper review.

This scenario highlights how degradation or failure of protective devices, combined with gaps in multiple RBPS elements, can undermine critical safety layers and lead to potentially catastrophic consequences.

The correct answers are B and D because CCPS emphasizes that effective audits require open communication and engagement with operating personnel , who play a key role in implementing process safety systems.

Option B is correct because operating personnel have first-hand knowledge of how procedures, safeguards, and systems actually function in practice . They can reveal gaps between documented processes and real-world execution, making their input essential for identifying weaknesses and improvement opportunities.

Option D is also correct because allowing audit teams access to operating personnel reflects a strong process safety culture , characterized by transparency, openness, and willingness to learn. Organizations with mature safety cultures encourage interaction and do not restrict information flow.

Option A is incorrect because facilitating access does not inherently create conflict; rather, it promotes understanding. Option C is incorrect because operators often possess practical expertise that complements management knowledge. Option E is incorrect because while coordination is needed, broad access is generally beneficial, not detrimental.

CCPS highlights that audits should be collaborative and fact-based , and engaging operating personnel is critical to obtaining an accurate assessment of process safety performance.

The correct answer is B (False) because compliance with regulatory standards represents only a minimum baseline , not a guarantee of safe operation.

CCPS strongly emphasizes that regulatory compliance alone is insufficient to ensure process safety. Regulations are typically lagging, generalized, and not specific to every facility’s unique hazards and risks . They establish minimum requirements, but they do not account for all possible failure scenarios, human factors, or site-specific complexities.

True process safety excellence requires a risk-based approach , where organizations go beyond compliance to identify, assess, and manage hazards proactively. This includes implementing robust systems such as Hazard Identification and Risk Analysis (HIRA), Management of Change (MOC), Mechanical Integrity, and strong safety culture practices .

Many major industrial incidents have occurred at facilities that were technically in compliance with regulations, demonstrating that compliance does not eliminate risk. CCPS promotes the concept that organizations must strive for continuous improvement and operational discipline , rather than simply meeting regulatory requirements.

Therefore, while compliance is necessary, it is not sufficient , and relying solely on it can create a false sense of security.

The correct answers are A, C, and D because they reflect the fundamental objectives and requirements of the Management of Change (MOC) element in CCPS RBPS.

Option A is correct because MOC ensures that all changes are systematically reviewed, approved, and implemented , thereby maintaining safe process operations and preventing unintended consequences.

Option C is also correct because MOC requires updates to process safety information (PSI) whenever changes occur. This ensures that documentation remains accurate and consistent with actual plant conditions, which is critical for safe operation, training, and hazard analysis.

Option D is correct because MOC requires that all affected personnel, including contractors , are informed of changes. Effective communication ensures that everyone understands new hazards, procedures, or operating conditions introduced by the change.

Option B is incorrect because no change is exempt from safety evaluation , even small ones. CCPS emphasizes that many major incidents have resulted from seemingly minor changes that were not properly reviewed.

Overall, MOC is a critical safeguard to ensure that changes do not introduce unmanaged risk , supporting safe and reliable process operations.

The correct answer is C because accumulation is defined (per CCPS and industry standards such as ASME) as the pressure increase above the relief device set pressure, expressed as a percentage of the set pressure .

When a relief device (such as a safety valve or rupture disc) activates, the system pressure is allowed to rise above the set pressure during discharge. This temporary pressure increase is called accumulation . It reflects the system’s ability to safely handle overpressure while the relief device is relieving excess energy or material.

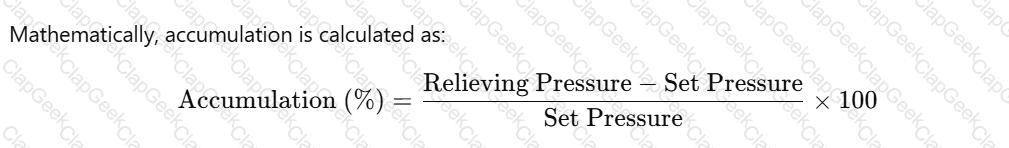

Mathematically, accumulation is calculated as:

Option A is incorrect because accumulation is not referenced to MAWP. Option B describes pressure relative to MAWP, which is not the definition of accumulation. Option D is also incorrect because it mixes MAWP and set pressure improperly.

CCPS emphasizes understanding accumulation as part of pressure relief system design , ensuring that vessels can tolerate the maximum allowable accumulation (often 10% for single relief devices under many codes) without exceeding safe limits.

The correct answers are A (Ultrasonic Thickness Measurements), C (Ultrasonic Leak Detection), and D (Positive Material Identification) because these are recognized inspection and testing techniques within CCPS’s Asset Integrity and Reliability element of RBPS. This element ensures that critical equipment is designed, fabricated, installed, and maintained to perform reliably throughout its lifecycle.

Ultrasonic Thickness Measurement (UT) is a widely used non-destructive examination (NDE) method to monitor wall loss due to corrosion or erosion. It provides quantitative data that supports fitness-for-service evaluations and remaining life assessments.

Ultrasonic Leak Detection is another diagnostic tool used to identify leaks in pressurized systems, valves, and fittings. It supports early detection of loss of containment, which is critical for preventing process safety incidents.

Positive Material Identification (PMI) verifies that the correct alloy materials are installed, helping prevent failures due to incorrect material selection—especially important in environments prone to corrosion, high temperature, or hydrogen damage.

Work Orders (B) , while essential for maintenance management, are administrative controls rather than inspection or testing methods. CCPS distinguishes between execution systems (like work orders) and actual inspection techniques used to assess equipment condition.

These inspection methods collectively support proactive identification of degradation mechanisms and ensure equipment integrity is maintained.

The correct answer is B (False) because, while CCPS strongly emphasizes the importance of periodic review of operating procedures , it does not require that the review be performed by the original author . In fact, CCPS Risk-Based Process Safety encourages independent, multidisciplinary review to improve effectiveness and identify gaps.

Operating procedures should be reviewed regularly to ensure they remain accurate, current, and aligned with actual plant conditions , especially after changes managed through MOC. However, limiting the review to the original author can introduce bias and reduce the likelihood of identifying errors or outdated information.

CCPS promotes involving operators, engineers, supervisors, and subject matter experts in the review process. Operators, in particular, provide valuable practical insights into how procedures are used in real operations. Independent reviewers are more likely to challenge assumptions and detect inconsistencies.

Additionally, procedure reviews should verify consistency with process safety information, training materials, and field practices . This supports safe and reliable operations and reduces the risk of human error.

Therefore, while periodic review is essential, requiring the original author to perform the review is not considered good RBPS practice , and broader participation is preferred.

The correct answer is A because the Accident Pyramid (also known as Heinrich’s Pyramid or the Safety Triangle) illustrates the relationship between near misses, minor incidents, and major accidents . According to CCPS and traditional safety theory, for every serious or fatal accident, there are many more low-consequence events and near misses that occur but do not result in harm.

This concept is fundamental to process safety metrics and learning systems , as it emphasizes that organizations should not only focus on major incidents but also actively track and investigate near misses and minor events . These lower-level events provide valuable insight into system weaknesses and potential failure pathways before a catastrophic incident occurs.

Option B is incorrect because Murphy’s law is unrelated to structured safety analysis. Option C reverses the logic of the pyramid—minor incidents are far more frequent than major ones, not the other way around. Option D is incorrect because the pyramid represents a range of incident severities , not just major incidents.

CCPS uses this concept to promote proactive safety management , encouraging organizations to learn from small failures and near misses to prevent escalation into severe process safety events.

The correct answers are B and D because they directly relate to process safety risks associated with mechanical integrity and loss of containment .

Option B is correct because stagnant liquid in a dead leg can freeze in cold temperatures , especially below 20°F. When water or process liquid freezes, it expands, which can lead to pipe rupture or cracking , creating a potential loss of containment scenario. This is a well-recognized hazard in cold climates and is specifically addressed in CCPS guidance on mechanical integrity and design for environmental conditions.

Option D is also correct because stagnant fluids promote localized corrosion mechanisms , such as pitting or microbiologically influenced corrosion (MIC). Dead legs are particularly vulnerable because there is little or no flow , allowing corrosive species to concentrate and degrade the pipe wall over time.

Option A is not a process safety reason—it is an economic consideration. Option C relates to occupational safety (trip hazard) , not process safety.

CCPS emphasizes eliminating dead legs where possible because they are common sources of corrosion, blockage, and integrity failure , all of which can lead to hazardous releases.

The correct answer is C because flashing of liquids is fundamentally an energy-driven thermodynamic process , as described in CCPS consequence analysis and dispersion modeling guidance. When a pressurized liquid is suddenly released to a lower pressure, a portion of the liquid rapidly vaporizes (flashes). The energy required for this phase change comes from the internal energy (enthalpy) of the liquid itself , not from an external heat source.

As the liquid flashes, it cools because energy is consumed in vaporization. The fraction that flashes depends on factors such as initial temperature, pressure, heat capacity, and latent heat of vaporization—not fixed percentages.

Option A and B are incorrect because the fraction flashed is not constant ; it can vary widely depending on thermodynamic conditions.

Option D is incorrect because flashing is actually more likely when a liquid is above its normal boiling point under pressure . When pressure is suddenly reduced, the liquid is in a superheated state and can rapidly flash.

CCPS emphasizes understanding flashing behavior in hazard analysis because it significantly affects release rates, vapor cloud formation, and potential consequences such as toxic exposure or vapor cloud explosions.

The correct answer is B because it directly reflects the quality and effectiveness of the Management of Change (MOC) process , making it a strong leading indicator per CCPS guidance.

A key risk in MOC systems is the misclassification of changes as “replacement-in-kind” (RIK) when they actually introduce new hazards or modify process conditions. If changes are incorrectly categorized, they may bypass the formal MOC review process, meaning hazards are not evaluated, procedures are not updated, and training is not conducted. Tracking the percentage of misclassified work provides insight into how well personnel understand and apply MOC requirements and highlights weaknesses in the system before incidents occur.

Option A relates to operating procedures management, not specifically MOC effectiveness. C is an asset integrity (mechanical integrity) metric and is more of a lagging or compliance indicator. D does not measure performance or effectiveness—it only reflects data collection activity.

CCPS emphasizes that leading metrics should monitor critical activities that prevent incidents , such as correct identification and processing of changes. By identifying misclassification trends early, organizations can improve training, clarify definitions, and strengthen compliance with MOC procedures, thereby reducing process safety risk.

The correct answer is A (1.5 m/s wind speed, Pasquill Class F stability) because this combination produces the least atmospheric dispersion , resulting in the highest downwind concentration of a toxic release.

CCPS explains that atmospheric dispersion depends heavily on wind speed and atmospheric stability class . Pasquill Class F represents very stable atmospheric conditions (typically nighttime with low wind), where vertical and lateral mixing is minimal. This causes released material to remain concentrated in a narrow plume rather than dispersing.

Low wind speed ( 1.5 m/s ) further reduces dilution because the plume moves slowly and experiences limited mixing with surrounding air. As a result, contaminants remain more concentrated over a longer distance .

In contrast, higher wind speeds ( 5 m/s ) and more neutral conditions ( Class D ) promote turbulence and mixing, which dilute the plume and reduce concentration. Even though option C also uses Class F stability, the slightly higher wind speed (3 m/s) results in more dispersion than in option A.

CCPS

emphasizes that worst-case toxic dispersion scenarios typically assume low wind speed and stable atmospheric conditions , as these produce the highest potential exposure levels and are critical for emergency planning and risk assessment.

The correct answers are B and D because a typical flow control loop (including flow meter, controller, control valve, and associated instrumentation) behaves as a series system from a reliability perspective, as described in CCPS risk analysis and Layer of Protection Analysis (LOPA) principles.

In a series system , the system fails if any single component fails , which supports answer D . For example, if the flow transmitter gives incorrect readings, or the control valve fails to actuate, the loop can no longer maintain proper control. This aligns with CCPS guidance that basic process control systems (BPCS) are generally not highly reliable independent protection layers due to multiple potential failure points.

For such systems, the overall reliability is calculated by multiplying the reliabilities of individual components , which supports answer B . Each component must function correctly for the system to succeed.

Option A is incorrect because failure probabilities are not simply multiplied in this context; instead, reliability (success probability) is multiplied, and failure probability is derived from the complement. Option C is incorrect because it describes a parallel system, where all components must fail for system failure—this is not applicable to a standard control loop.

This concept is critical in CCPS hazard analysis and LOPA when evaluating safeguard effectiveness and independence.

The correct answers are A, C, and D because these RBPS elements are closely integrated with Emergency Management activities and are frequently involved in planning, preparation, and response.

Option A (Stakeholder Outreach) is correct because emergency management requires coordination with external stakeholders , including local communities, emergency responders, and regulatory agencies. Effective communication ensures that all parties understand potential hazards and response expectations.

Option C (Training and Performance Assurance) is essential because personnel must be trained and competent in emergency response procedures . This includes drills, simulations, and ensuring that responders can perform effectively under emergency conditions.

Option D (Hazard Identification and Risk Analysis) is also critical because emergency planning is based on credible incident scenarios identified during hazard analyses (e.g., fires, explosions, toxic releases). These scenarios define response strategies and required resources.

Option B (Management of Change) is less directly and less frequently involved. While MOC ensures that changes are evaluated for impact on emergency plans, it is not a primary or frequent activity within emergency response itself.

CCPS emphasizes that effective emergency management depends on hazard awareness, trained personnel, and strong coordination with stakeholders .

The correct answers are B and D because CCPS emphasizes that training effectiveness must be verified through demonstrated understanding and competency , not simply attendance or acknowledgment.

Option B is correct because a written quiz or test is a structured method to assess whether the operator has understood key concepts, procedures, and safety requirements. Properly designed tests can validate knowledge retention and comprehension.

Option D is also correct because trainer verification of demonstrated understanding (such as practical demonstrations, simulations, or observed task performance) provides strong evidence that the operator can apply the training in real work situations. This aligns with CCPS expectations for performance-based competency assurance .

Option A is not sufficient because a signed form only confirms that training was completed, not that it was understood. Option C is also inadequate, as attendance does not demonstrate comprehension or ability to perform tasks safely.

CCPS stresses that organizations must ensure personnel are not just trained, but competent to perform safely , which requires verification through testing, observation, and demonstrated performance rather than passive confirmation methods.

The correct answers are B (Management of Change) and D (Process Knowledge Management) because this incident was caused by unrecognized hazards introduced during scale-up and process modification .

Option B (Management of Change - MOC) is critical because the engineers introduced a new feed dispersing system , which significantly altered the process by creating a combustible mist in the vapor space . According to CCPS, any change in equipment, process conditions, or technology must undergo a formal MOC review to identify new hazards, evaluate risks, and implement safeguards before startup. A proper MOC would likely have identified the explosion risk associated with mist formation in an oxygen-rich environment.

Option D (Process Knowledge Management - PKM) is also essential because the hazard resulted from insufficient understanding of the process chemistry and physical behavior , particularly mist explosibility and catalyst ignition potential. PKM ensures that organizations maintain accurate knowledge of chemical reactivity, flammability limits, and scale-up effects.

Options A , C , and E are not directly related to preventing this type of incident. Measurement and metrics track performance, contractor management is irrelevant here, and emergency management focuses on response rather than prevention.

This scenario highlights how scale-up changes can introduce new hazards , requiring both strong MOC and robust process knowledge.

The correct answer is C because rupture discs are generally more fragile and susceptible to damage during installation and handling compared to relief valves, which is a recognized disadvantage in CCPS guidance on pressure relief systems within Mechanical Integrity.

Rupture discs are thin membranes designed to burst at a specific pressure. Because of their delicate construction, improper installation (e.g., incorrect torque, misalignment, or physical handling damage) can alter their burst pressure or cause premature failure. This sensitivity requires strict installation procedures, trained personnel, and careful inspection practices.

Option A is actually an advantage of rupture discs. They provide tight sealing with zero leakage , preventing fugitive emissions and eliminating simmering that can occur in relief valves.

Option B is also an advantage. Rupture discs respond very rapidly to sudden pressure spikes , making them suitable for scenarios like deflagrations or tube ruptures.

Option D is generally considered an advantage as well, since rupture discs can be made from corrosion-resistant materials or coated, often at lower cost than equivalent corrosion-resistant relief valves.

CCPS emphasizes selecting pressure relief devices based on service conditions, reliability, response characteristics, and maintenance considerations, including installation sensitivity.

The correct answers are A, B, and C because the Workforce Involvement element in CCPS RBPS is focused on actively engaging employees in process safety activities and decision-making.

Option A is correct because workforce involvement plays a key role in reinforcing a strong process safety culture . When employees participate in hazard identification, incident investigations, and safety discussions, they develop ownership and commitment to safe operations.

Option B is also correct because effective workforce involvement requires clearly defined roles and responsibilities . Employees at all levels must understand their responsibilities in maintaining process safety, which improves accountability and consistency.

Option C is correct as CCPS emphasizes the need to establish formal mechanisms for participation , such as safety committees, feedback systems, and involvement in HAZOPs or risk assessments. These mechanisms ensure that workforce knowledge and experience are effectively utilized.

Option D is incorrect because CCPS does not require or define veto authority for employee representatives . While employee input is critical, decision-making authority remains structured within the organization’s management systems.

Overall, workforce involvement strengthens process safety by leveraging frontline knowledge, improving communication, and fostering shared responsibility .

The correct answer is C because CCPS emphasizes that personnel expected to respond to hazardous substance releases must receive comprehensive, competency-based training that integrates knowledge, skills, and practical application. Under the RBPS elements of Emergency Management and Training and Performance Assurance , responders must be prepared to act safely and effectively under high-stress conditions.

Training should include hazard recognition , such as understanding chemical toxicity, flammability, reactivity, and potential exposure routes. Personnel must be proficient in emergency procedures , including alarm response, evacuation, shelter-in-place, and escalation protocols. A critical component is hands-on training in the use of personal protective equipment (PPE) , including selection, inspection, proper donning/doffing, and limitations of equipment like respirators and chemical suits.

Additionally, CCPS highlights the importance of understanding the Incident Command System (ICS) to ensure coordinated response, clear roles, and effective communication. Responders should also be trained in spill control, isolation techniques, and monitoring equipment usage to assess conditions safely.

Regular drills and simulations are essential to reinforce learning and build confidence. Importantly, training must also stress personal safety, situational awareness, and decision-making , including recognizing when to withdraw and allow specialized teams to intervene.

The best answer is C because the scenario shows three clear failures that align directly with these RBPS elements. First, the new upstream piping was not recorded on the P & ID , which is a failure of Process Knowledge Management (PKM) . CCPS identifies PKM as the element for developing, documenting, and maintaining accurate process safety information such as drawings and system knowledge. Second, the piping had been recently installed , so the change should have been formally reviewed, approved, documented, and communicated through Management of Change (MOC) . CCPS describes MOC as the system for recognizing changes, evaluating their hazards, authorizing them, and ensuring follow-up actions are completed. Third, the field operator incorrectly opened a valve , which points to inadequate Training and Performance Assurance —operators must be trained and shown capable of performing tasks correctly, especially when systems have changed.

The other options are weaker because Emergency Management is mainly for response, not prevention; Asset Integrity concerns equipment fitness and reliability, not undocumented configuration changes; and Safe Work Practices , while important, do not address the central failure as directly as PKM, MOC, and Training.

The correct answers are A and D because they describe the fundamental operating principle of a pilot-operated relief valve (PORV) , as recognized in CCPS guidance on pressure relief systems within Mechanical Integrity.

A pilot-operated relief valve uses a pilot (small control valve or regulator) to control the pressure acting on the main valve. Under normal conditions, system pressure is applied to keep the main valve tightly closed. When the system pressure reaches the set pressure , the pilot valve opens, which vents or releases pressure from above (or behind) the main valve seat . This creates a pressure imbalance that allows the main valve to open rapidly—this corresponds directly to D .

Additionally, A is correct because pilot-operated valves are designed to maintain set pressure accuracy even in the presence of backpressure , unlike conventional spring-loaded relief valves, which can be significantly affected by backpressure. This makes PORVs advantageous in systems with variable or high backpressure.

Options B and C are incorrect. Diaphragm rupture is a failure mode, not a normal operating mechanism, and manual opening is not how pilot-operated relief valves function during automatic overpressure protection.

CCPS emphasizes understanding device operating principles to ensure correct application, reliability, and proper maintenance of pressure relief systems.

The correct answers are A, B, D, and E because they reflect safe and appropriate emergency response actions aligned with CCPS guidance for handling flammable vapor releases.

Option A is critical because personnel must be evacuated immediately from areas where flammable gas is detected to prevent injury or fatality in case of ignition.

Option B is correct because isolating the source of the release (if it can be done remotely) helps stop or reduce the leak without exposing personnel to danger.

Option D is also appropriate because activating a deluge system can help disperse vapors and reduce ignition risk by cooling and diluting the flammable cloud.

Option E is correct because communication and escalation are essential parts of emergency management, ensuring proper coordination and response.

Option C is incorrect because sending personnel into a potentially flammable atmosphere is dangerous. CCPS strongly discourages exposing workers to hazardous conditions during an active release , especially when safer remote methods are available.

Overall, CCPS emphasizes protecting personnel first, controlling the hazard remotely, and using engineered safeguards , while avoiding unnecessary exposure during emergencies.

The correct answers are A, D, and E because these conditions are associated with higher corrosion risk and degradation mechanisms , making wall thickness inspection necessary under the Mechanical Integrity element.

Option A is correct because piping under insulation is susceptible to corrosion under insulation (CUI) , a well-known and often hidden damage mechanism. Moisture trapped beneath insulation can lead to significant metal loss without visible external signs.

Option D is correct because buried piping at soil-to-air interfaces is particularly vulnerable to corrosion. This transition zone is prone to moisture accumulation, oxygen gradients, and coating breakdown , making it a critical inspection location.

Option E is also correct because stagnant liquids can promote internal corrosion, especially if they contain water, corrosive chemicals, or allow for sediment buildup. Lack of flow can accelerate localized corrosion such as pitting.

Option B (drinking water) and C (nitrogen) are generally less corrosive services and typically present lower risk , though inspections may still occur depending on conditions.

CCPS emphasizes that inspection programs should be risk-based , focusing on areas where degradation is most likely, ensuring early detection of wall thinning and prevention of loss of containment.

The correct answers are A (Asset Integrity and Reliability), B (Conduct of Operations), and D (Training and Performance Assurance) because each directly contributed to the failure scenario described.

A (Asset Integrity and Reliability) is implicated because the flow controller was out of calibration , indicating a failure in inspection, testing, or maintenance systems. CCPS emphasizes that instrumentation must be properly maintained and calibrated to ensure reliable process control.

B (Conduct of Operations) is also a key factor. The operator deviated from established procedures by opening a bypass valve. Conduct of Operations requires strict adherence to procedures, proper supervision, and disciplined operational practices to prevent unsafe actions.

D (Training and Performance Assurance) is relevant because the operator either did not understand the risk of bypassing the control system or was not adequately trained to respond appropriately to abnormal situations. CCPS stresses that personnel must be competent in both normal and upset conditions.

C (Workforce Involvement) is less directly related to the immediate cause, and E (Incident Investigation) applies after an event, not as a causal factor.

This scenario demonstrates how combined weaknesses in equipment reliability, procedural discipline, and operator competence can lead to a major process safety incident such as a runaway reaction.

The correct answers are A (Explosion), C (Toxic release), and E (Runaway reaction) because these events are directly related to loss of containment or loss of control of hazardous process materials or energy , which defines a process safety incident under CCPS guidance.

An explosion (A) is a major process safety event involving uncontrolled energy release. A toxic release (C) represents a loss of containment of hazardous chemicals, posing risks to personnel, the public, and the environment. A runaway reaction (E) is a classic process safety scenario involving loss of control of chemical reactions, often leading to overpressure, fire, or explosion.

Option B (fire in an office building) is not a process safety event because it does not involve process materials or systems. Option D (allergic response) and F (slip, trip, or fall injury) are occupational safety issues , not process safety incidents, as they do not involve failures of process systems or hazardous material containment.

CCPS distinguishes between process safety incidents (low-frequency, high-consequence) and occupational safety incidents (higher frequency, lower consequence) . Investigations in process safety focus on events involving chemical releases, fires, explosions, or loss of process control , making A, C, and E the correct selections.
