BIM_MGT_101 Autodesk Certified Professional in BIM Management for Building Design Questions and Answers

The BIM manager should perform a formal compliance review against the BIM Execution Plan, model-content standard, information requirements, and applicable element or classification matrix. Each nonconforming condition should be documented clearly, including incorrect category assignments, inconsistent object styles, excessive geometric detail, missing parameters, invalid naming, and unsuitable data structures.

The subcontractor should then receive a controlled revision request identifying the required corrections and resubmission criteria. Geometry should be simplified to the level needed for coordination and downstream use, but required metadata, classifications, connection points, clearances, and asset information must be retained. Optimization and information compliance are parallel requirements, not competing alternatives.

Approving the model unchanged would introduce performance and data-quality defects into the federation and could cause unreliable clash results, scheduling errors, or handover deficiencies. Hiding excessive detail with view filters changes only its visibility; the underlying geometry and data remain noncompliant and continue to affect model processing. Instructing the subcontractor to reduce file size regardless of information loss also fails the project’s deliverable requirements.

Acceptance should occur only after the revised model passes the defined quality-control checks.

Reference topics: Content standards; subcontractor deliverables; model acceptance criteria; geometry optimization; classification and metadata; BEP compliance; quality-control reporting.

The timing of the performance degradation strongly indicates that one or more recently distributed links, or their access paths, should be isolated before undertaking invasive model changes. Opening the project through Specify Worksets allows the BIM manager to control which worksets are loaded. Where Revit links are assigned to dedicated worksets, the manager can initially close those worksets, assess baseline performance, and then load them selectively. If the model performs normally with linked-model worksets closed, the investigation has established a defensible connection between the slowdown and the updated external references.

The Manage Links dialog should then be reviewed for link status, saved paths, path type, file availability, and unexpected network or cloud locations. A valid link may still degrade access when it resolves through an inaccessible, high-latency, or inconsistent location.

Flattening linked geometry is not a standard Revit troubleshooting operation. Removing and recreating every link is unnecessarily destructive and can compromise positioning, visibility overrides, and coordination settings. Consultant warnings may warrant separate health reviews, but indiscriminately fixing every warning is neither an efficient first diagnostic step nor normally within the host team’s model authority.

Reference topics: Linked-model troubleshooting; workset loading; Manage Links; model-performance isolation; distributed-file validation; Revit model health.

===============

The lighting team should correct the source CAD file so that it conforms to the project’s approved coordinate framework and then reissue it. External discipline files must be delivered with a predictable origin, orientation, and elevation that correspond to the architectural or designated site-control model. Correcting the source ensures that every recipient can link the file consistently and that subsequent updates retain the same placement.

Manually moving the linked CAD file in Revit creates an unmanaged instance offset. Although the file may appear aligned temporarily, reloading, replacing, or distributing it can reproduce the original problem or create inconsistent positioning among team members. Adding gridlines may help visually diagnose the offset but does not establish a reliable coordinate relationship.

Acquiring coordinates from the misaligned lighting file is particularly inappropriate because it would redefine the host model’s shared-coordinate relationship based on a non-authoritative and incorrectly positioned reference. The architectural or site model should remain the approved source of project positioning.

The BIM manager should provide the lighting team with the agreed coordinate protocol, reference model, control points, units, and required vertical datum, then validate the corrected file before accepting it for coordination.

Reference topics: Consultant file requirements; shared-coordinate governance; CAD-link positioning; authoritative coordinate sources; model exchange; coordination quality control.

===============

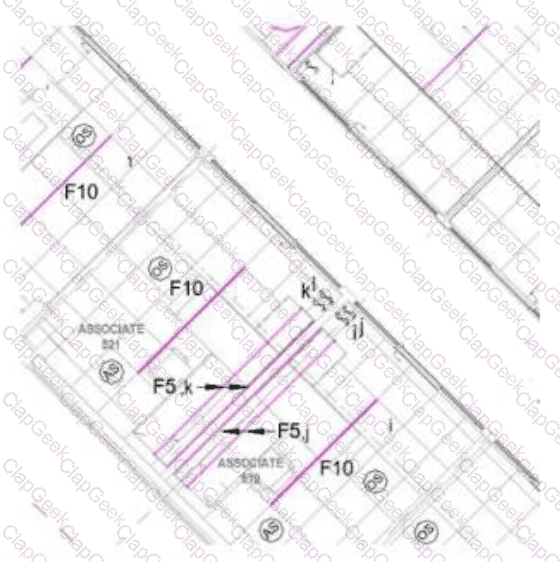

A view filter can be configured to act only on ceilings meeting specific criteria, such as family name, type name, material, height, or another parameter. Because the missing ceiling is a 2x4 type while the visible ceilings are 2x2 types, a filter targeting the 2x4 ceiling could hide it or override its graphics without affecting the other ceilings.

A Plan Region can also impose a localized View Range that differs from the parent Reflected Ceiling Plan. If the hallway contains a Plan Region with a higher cut plane or an otherwise incompatible view range, the ceiling can fall outside the region’s visible range even though it remains present and visible in a 3D view.

The ceiling was not deleted because it is still visible in 3D. Turning off the Ceilings category through a View Template would ordinarily hide all ceilings governed by that category in the view, contradicting the fact that the 2x2 ceilings remain visible. Similarly, Hide in View by Category affects the entire Ceilings category within that view rather than one ceiling type or a single hallway element.

Reference topics: Reflected Ceiling Plans; View Range; Plan Regions; view filters; category visibility; view-template troubleshooting.

===============

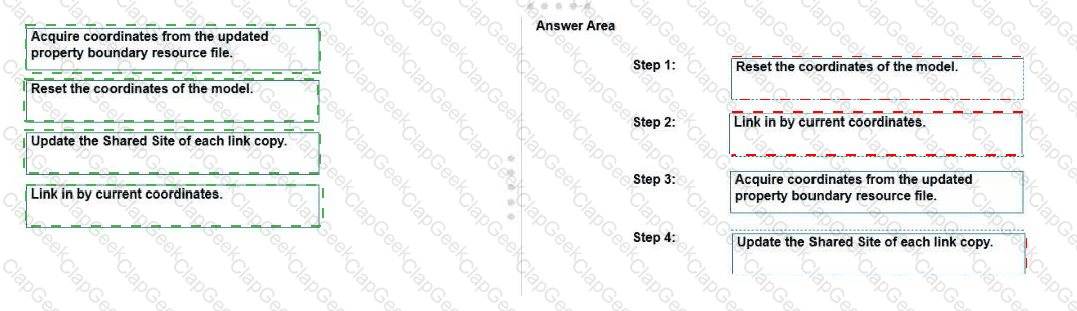

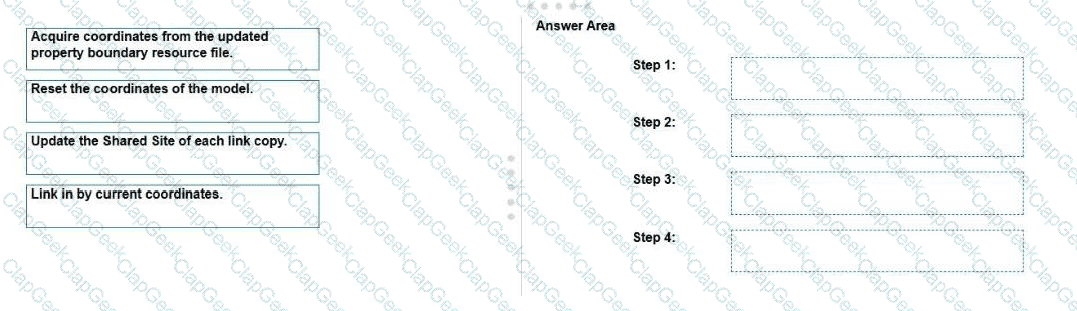

Step 1: Reset the coordinates of the model.

Step 2: Link in by current coordinates.

Step 3: Acquire coordinates from the updated property boundary resource file.

Step 4: Update the Shared Site of each link copy.

The existing shared-coordinate relationship must first be cleared because the authoritative civil background now contains revised GIS positioning. Resetting the model coordinates removes the obsolete relationship and prepares the architectural model to establish a new shared-coordinate system without physically moving its authored building geometry.

The updated property-boundary or civil resource is then linked using its current positioning so that it can serve as the authoritative coordinate source. Once the updated reference is correctly positioned, the architectural model acquires coordinates from that file. Acquiring coordinates transfers the civil model’s survey-coordinate definition into the host while preserving the architectural model’s internal origin and local modelling arrangement.

The final step is to update the Shared Site assigned to each duplicated building-link instance. This is necessary because multiple copies of the same building model may occupy different campus locations or orientations. Each link instance must reference the appropriate named site position so that the copies remain correctly placed after the revised GIS coordinate system is adopted.

Changing link sites before updating the host coordinate framework would apply positions against outdated coordinate data and could displace the campus federation.

Reference topics: Shared coordinates; Acquire Coordinates; named Shared Sites; campus model assembly; GIS and civil-reference updates; duplicated Revit links.

===============

A custom coordination view should be created using the applicable published mechanical and structural models and limited to the patient-room zones required by the approved clash matrix. The clash results can then be filtered by model pair, location, object category, and active status before the filtered list is exported. This produces a targeted report containing only the coordination conditions requested by the project leads.

The custom-view approach maintains the relationship between the clash records and the coordinated model geometry. It also makes the review repeatable: the BIM manager can return to the saved view during subsequent coordination cycles and evaluate whether the same discipline and location criteria have been resolved.

Asking individual disciplines to prepare independent reports creates inconsistent evaluation criteria and weakens the centralized coordination record. Exporting every clash and manually filtering the spreadsheet introduces unnecessary effort and increases the risk of omitting or misclassifying issues. Assigning clashes through the Issues tool is appropriate after clashes have been reviewed and determined to require action, but assignment does not itself generate the requested filtered clash report.

Reference topics: Autodesk Model Coordination; custom coordination views; clash filtering; clash matrices; published models; active-clash reporting; location-based coordination.

===============

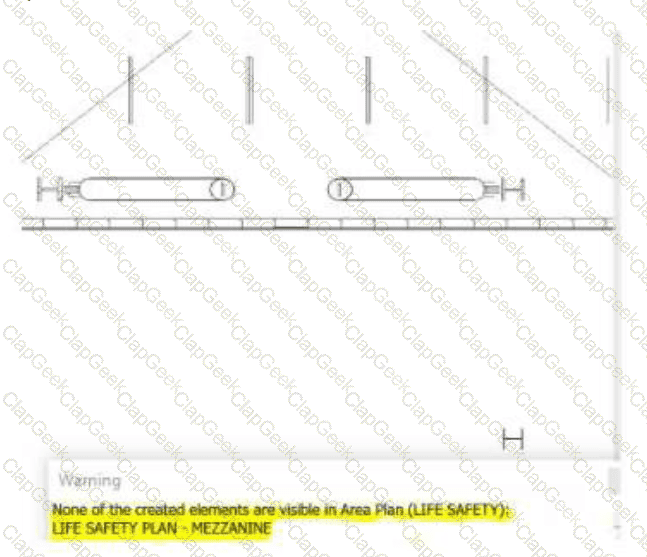

The designer should inspect the view’s Visibility/Graphics settings. Area Lines, also referred to as Area Boundary Lines, are view-specific elements whose visibility can be controlled by the active view, an applied view template, or category-level visibility settings. If the applicable line category is disabled, Revit can create the boundaries successfully while warning that the newly created elements are not visible in the current Area Plan.

The review should include the Model Categories and Annotation Categories tabs, any active view filters, temporary hide/isolate status, and the view template controlling the Area Plan. Where a template governs visibility, the correction should normally be made in the template rather than as an isolated view override, particularly when the same standard must apply to multiple Area Plans.

A Plan Region changes the local view range and does not govern Area Boundary Line visibility. Detail Level affects how certain model geometry is represented but does not normally suppress Area Lines. The Area Scheme determines the type and organizational purpose of an Area Plan, such as Gross Building or Rentable Area, but it is not the direct location for correcting hidden linework.

Reference topics: Area Plans; Area Boundary Lines; Visibility/Graphics; view templates; view-specific elements; graphical troubleshooting.

===============

Training should be targeted to the personnel responsible for executing, checking, or approving the specialized data-formatting and export workflow. The BIM manager should develop task-specific tutorials that cover tool installation, approved configuration, source-data prerequisites, export settings, file naming, validation procedures, exception handling, and the method for confirming compliance with the government and global data-management requirements.

Role-based assignment is more effective than training the entire project team. Only users who perform or supervise the workflow require operational proficiency, while other participants may need only general awareness of submission dependencies. This reduces training time, limits unnecessary software access, and creates clear accountability.

Waiting for software crashes or quality-control failures is reactive and exposes the project to preventable delivery risk. Revit Journal files may help diagnose technical failures, but they do not identify whether users understand the required data workflow. Similarly, milestone reviews occur too late to serve as the primary training trigger.

The BIM manager should also test the add-on in a controlled environment, document approved versions, provide sample datasets, and verify user competency before production exports begin.

Reference topics: Role-based training; project-specific technology deployment; add-on validation; data-export standards; competency assessment; quality assurance.

The BIM manager should perform a gap analysis between the client’s BEP-defined gateway requirements and the firm’s standard quality-control checklist. The internal checklist may address common model-health and documentation criteria, but it cannot be assumed to cover every project-specific submission, approval, information, or coordination requirement.

Any client requirement not represented in the standard checklist should be incorporated into the project review process. Creating trackable issues or review actions in the Common Data Environment provides assigned responsibility, due dates, supporting evidence, status visibility, and an auditable closure record before each gateway.

Granting the client model access does not demonstrate that the design team has completed the required review. Placing a PDF on the Revit opening view may improve awareness but does not establish compliance, accountability, or verification. Model phases also represent temporal construction conditions and should not be manipulated merely to correspond with project-management milestones such as Design Development.

The milestone process should culminate in documented evidence that each requirement was reviewed, passed, conditionally accepted, or formally resolved before the project advances to the next stage.

Reference topics: BEP compliance; milestone and gateway reviews; quality-control checklists; gap analysis; issue tracking; project-specific standards.

===============

The BIM manager must first establish the project’s actual information requirements before prescribing models, templates, LOD criteria, or delivery procedures. A structured stakeholder session should identify the owner’s sustainability objectives, operational data needs, required BIM uses, asset-management interfaces, exchange milestones, and responsibility boundaries. This provides the basis for determining what information must be authored, by whom, at what stage, and for which downstream purpose.

Consolidating standard BEPs from different firms would reproduce organization-specific practices rather than create a coherent project strategy. Similarly, adopting an LOD matrix from previous projects risks imposing assumptions that do not match the civic center’s lifecycle and sustainability requirements. Developing templates before requirements are confirmed can embed incorrect parameters, classifications, units, or workflows into the project environment.

The stakeholder session should result in documented BIM objectives, approved use cases, information requirements, mobilization actions, and preliminary modelling responsibilities. Those decisions can then inform the project BEP, Model Element Table, LOD or information-need matrix, delivery plans, training requirements, and Common Data Environment configuration.

Reference topics: Project needs assessment; stakeholder engagement; BIM-use definition; lifecycle information requirements; sustainability goals; BIM mobilization; level of information need.

===============

The BIM manager should generate an access or permissions report directly from the Autodesk cloud platform. The platform is the authoritative source for project members, folder access levels, assigned roles, and permission configurations. Exporting the report preserves the relationship between the reported information and the actual project configuration while providing the project manager with a format that can be reviewed without navigating the cloud administration interface.

A manually created Word document or spreadsheet would only be a secondary transcription of the permissions. Such records can become inaccurate when users are added, removed, or reassigned, and they provide weaker traceability than a system-generated report. A Revit Show History report records model synchronization activity and user interactions with a workshared model; it does not report cloud-folder permissions.

The exported report should be reviewed for unnecessary access, inconsistent folder inheritance, external-user permissions, and whether each team member has only the level of access required by their role. The BIM manager should also retain the report as part of the project’s information-governance and audit records.

Reference topics: Common Data Environment permissions; cloud-user administration; access reporting; information security; role-based access; project audits.

===============

The project requires a structured delivery plan that assigns responsibility and timing for each information exchange. The plan must define what information is required, which task team produces it, who verifies and authorizes it, the required format, the delivery milestone, and the receiving party. This is particularly important where design packages overlap and asset-data requirements must develop alongside spatial coordination rather than being added retrospectively.

A task information-delivery plan provides detailed commitments at the team level, while the consolidated information-delivery plan coordinates those commitments across the project. Together they align model production, structured data, coordination submissions, review periods, and final handover requirements.

Allowing each discipline to determine its own formats independently would produce inconsistent data structures and make late consolidation expensive and unreliable. Naming conventions are necessary but represent only one small component of information management. Postponing asset information until construction creates a high risk of missing parameters, unassigned responsibilities, incomplete records, and extensive rework.

The delivery strategy must therefore be established early and integrated with the design programme, BIM Execution Plan, client information requirements, and quality-assurance process.

Reference topics: Task Information Delivery Plans; Master Information Delivery Planning; information-exchange requirements; asset-data handover; structured data; responsibility matrices; delivery milestones.

A project-closeout handover package should contain verified record models populated with the asset information required by the owner’s operational and facilities-management processes. Depending on the defined information requirements, this may include asset identifiers, classification, manufacturer and model data, installation information, warranty details, maintainability fields, commissioning status, spatial relationships, and links to associated documentation.

The record model must represent the accepted project condition rather than an intermediate coordination state. It should undergo final validation for required parameters, naming, file format, model structure, and information completeness before delivery. Where COBie or another structured asset-data format is required, the embedded model information should correspond with the exported dataset.

Federated clash-detection models and temporary 3D coordination views are process artifacts. They may be archived where the contract or organizational retention policy requires them, but they are not normally the principal operational deliverable. Internal coordination notes likewise document project activity but do not provide the owner with a usable digital representation of the completed facility.

The defining characteristic of a BIM handover deliverable is verified, structured information that supports the owner’s specified post-project uses.

Reference topics: BIM closeout; record models; asset-information requirements; COBie; facilities-management handover; data validation; digital deliverables.

===============

A model checker or structured data-validation tool provides the repeatable, rules-based assessment required for this scenario. The BIM manager can configure checks against the project’s naming standard, required COBie fields, shared-parameter bindings, permissible values, and Model Element Table requirements. The resulting report identifies missing, invalid, or inconsistent information by category and element, creating an auditable basis for corrective action before coordination or information delivery.

Manual element-by-element inspection is slow, difficult to reproduce, and vulnerable to omissions, particularly in large models. It also provides weak evidence that the complete model was evaluated consistently. Verbal clarification is not an acceptable substitute for documented information requirements, and asking for another export without first identifying the specific failures is inefficient. Hiding incomplete elements does not correct their data and may conceal deficiencies from coordination participants.

Systematic validation also allows the BIM manager to compare successive submissions, monitor closure rates, and distinguish modelling defects from information-quality failures. This is especially important where downstream COBie or asset-data deliverables depend on consistent parameter structures rather than visual model appearance alone.

Reference topics: Automated model checking; COBie; Model Element Tables; shared-parameter validation; naming standards; quality assurance; information-completeness assessment.

===============
