Associate-Cloud-Engineer Google Cloud Certified - Associate Cloud Engineer Questions and Answers

Authorizing with a service account

gcloud auth activate-service-account authorizes access using a service account. As with gcloud init and gcloud auth login, this command saves the service account credentials to the local system on successful completion and sets the specified account as the active account in your Cloud SDK configuration.

https://cloud.google.com/sdk/docs/authorizing#authorizing_with_a_service_account

https://cloud.google.com/kubernetes-engine/docs/concepts/daemonset

https://cloud.google.com/kubernetes-engine/docs/concepts/daemonset#usage_patterns

DaemonSets attempt to adhere to a one-Pod-per-node model, either across the entire cluster or a subset of nodes. As you add nodes to a node pool, DaemonSets automatically add Pods to the new nodes as needed.

In GKE, DaemonSets manage groups of replicated Pods and adhere to a one-Pod-per-node model, either across the entire cluster or a subset of nodes. As you add nodes to a node pool, DaemonSets automatically add Pods to the new nodes as needed. So, this is a perfect fit for our monitoring pod.

Ref: https://cloud.google.com/kubernetes-engine/docs/concepts/daemonset

DaemonSets are useful for deploying ongoing background tasks that you need to run on all or certain nodes, and which do not require user intervention. Examples of such tasks include storage daemons like ceph, log collection daemons like fluentd, and node monitoring daemons like collectd. For example, you could have DaemonSets for each type of daemon run on all of your nodes. Alternatively, you could run multiple DaemonSets for a single type of daemon, but have them use different configurations for different hardware types and resource needs.

Granting more permissions than necessary violates the principle of least privilege, a fundamental security best practice. While option A grants the necessary permissions (as subsets exist in two predefined roles), it might also grant more permissions than the Operations team strictly requires for their tasks on GKE and Cloud SQL. Option D is too broad; 'Admin' roles grant extensive permissions that likely exceed the specific needs.

Google Cloud's best practices strongly recommend adhering to the principle of least privilege. Creating a custom role allows you to precisely define the set of permissions the Operations team needs for their specific tasks on the GKE cluster and the Cloud SQL instance, without granting any unnecessary permissions. This minimizes the potential blast radius in case of accidental or malicious actions.

Google Cloud Documentation References:

IAM best practices: https://cloud.google.com/iam/docs/best-practices - This document explicitly recommends granting the minimum necessary permissions.

Creating and managing custom roles: https://cloud.google.com/iam/docs/creating-managing-custom-roles - This explains how to create roles tailored to specific job functions.

Understanding roles: https://cloud.google.com/iam/docs/understanding-roles - This outlines the concepts of predefined and custom roles and their use cases.

===========

Text Description automatically generated with low confidence

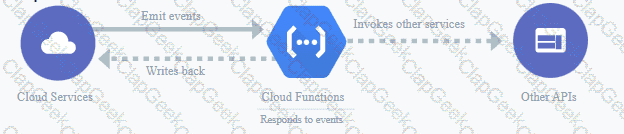

Cloud Functions is Google Cloud’s event-driven serverless compute platform. It automatically scales based on the load and requires no additional configuration. You pay only for the resources used.

Ref: https://cloud.google.com/functions

While all other options i.e. Google Compute Engine, Google Kubernetes Engine, Google App Engine support autoscaling, it needs to be configured explicitly based on the load and is not as trivial as the scale up or scale down offered by Google’s cloud functions.

App engine is a regional service, which means the infrastructure that runs your app(s) is located in a specific region and is managed by Google to be redundantly available across all the zones within that region. Once an app engine deployment is created in a region, it cant be changed. The only way is to create a new project and create an App Engine instance in europe-west3, send all user traffic to this instance and delete the app engine instance in us-central.

Ref: https://cloud.google.com/appengine/docs/locations

gcloud compute ssh ensures that the user’s public SSH key is present in the project’s metadata. If the user does not have a public SSH key, one is generated using ssh-keygen and added to the project’s metadata. This is similar to the other option where we copy the key explicitly to the project’s metadata but here it is done automatically for us. There are also security benefits with this approach. When we use gcloud compute ssh to connect to Linux instances, we are adding a layer of security by storing your host keys as guest attributes. Storing SSH host keys as guest attributes improve the security of your connections by helping to protect against vulnerabilities such as man-in-the-middle (MITM) attacks. On the initial boot of a VM instance, if guest attributes are enabled, Compute Engine stores your generated host keys as guest attributes.

Compute Engine then uses these host keys that were stored during the initial boot to verify all subsequent connections to the VM instance.

Ref: https://cloud.google.com/compute/docs/instances/connecting-to-instance

Ref: https://cloud.google.com/sdk/gcloud/reference/compute/ssh

Preventing Accidental VM Deletion This document describes how to protect specific VM instances from deletion by setting the deletionProtection property on an Instance resource. To learn more about VM instances, read the Instances documentation. As part of your workload, there might be certain VM instances that are critical to running your application or services, such as an instance running a SQL server, a server used as a license manager, and so on. These VM instances might need to stay running indefinitely so you need a way to protect these VMs from being deleted. By setting the deletionProtection flag, a VM instance can be protected from accidental deletion. If a user attempts to delete a VM instance for which you have set the deletionProtection flag, the request fails. Only a user that has been granted a role with compute.instances.create permission can reset the flag to allow the resource to be deleted.https://cloud.google.com/compute/docs/instances/preventing-accidental-vm-deletion

https://cloud.google.com/iam/docs/best-practices-for-using-and-managing-service-accounts

If an application uses third-party or custom identities and needs to access a resource, such as a BigQuery dataset or a Cloud Storage bucket, it must perform a transition between principals. Because Google Cloud APIs don't recognize third-party or custom identities, the application can't propagate the end-user's identity to BigQuery or Cloud Storage. Instead, the application has to perform the access by using a different Google identity.

Spot VMs (formerly known as preemptible VMs) are Compute Engine virtual machine instances that are available at a much lower price than standard Compute Engine instances. However, Compute Engine might preempt (stop) these instances if it needs to reclaim those resources for other tasks. This makes Spot VMs ideal for batch processing jobs that are fault-tolerant and can handle interruptions, as they can be restarted when resources become available again. This directly addresses the requirement for a cost-effective solution for interruptible workloads.

Option A: While containerization offers portability and consistency, it doesn't inherently provide cost savings for compute resources. You would still need to choose a cost-effective underlying compute option.

Option B: Custom machine types allow you to tailor the CPU and memory configuration of your VMs, which can optimize costs to some extent by avoiding over-provisioning. However, they don't offer the significant cost reduction that Spot VMs provide.

Option C: The M1 machine series is a specific family of Compute Engine instances optimized for memory-intensive workloads. While potentially suitable for the job's requirements, it doesn't inherently address the cost-effectiveness requirement as directly as Spot VMs, which are priced lower regardless of the machine series.

Reference to Google Cloud Certified - Associate Cloud Engineer Documents:

The concept and use cases for Spot VMs are explicitly covered in the Compute Engine section of the Google Cloud documentation, which is a key area for the Associate Cloud Engineer certification. The cost savings and suitability for fault-tolerant workloads are highlighted as primary benefits.

The requirement is for a stable set of egress IP addresses from a GKE cluster for allowlisting by a third party, following best practices.

Option A is not recommended: Using a single node lacks scalability and high availability. Relying on a single node's static IP creates a single point of failure and doesn't align with GKE's design principles. Disabling autoscaling hinders elasticity.

Option C is complex and unreliable: Public nodes typically have ephemeral external IPs (unless manually configured per node, which is difficult to manage with autoscaling). Dynamically tracking and emailing IPs daily is operationally burdensome and prone to race conditions where the allowlist might lag behind IP changes.

Option D uses Cloud NAT but with dynamic IPs. Dynamic IPs change over time, making them unsuitable for stable firewall allowlists.

Option B is the Google-recommended practice: Configuring the GKE cluster with private nodes enhances security as nodes don't have direct external IPs. Cloud NAT provides managed network address translation for these private nodes to access the internet. By configuring Cloud NAT with a static allocation of external IP addresses, all egress traffic from the private GKE nodes will appear to originate from this stable, predictable set of IPs. This set can be given to the vendor for allowlisting without worrying about node IP changes due to scaling or maintenance.

This approach decouples the application's egress IP from the individual nodes, providing stability and adhering to the principle of least privilege (private nodes).

Standard persistent disks are efficient and economical for handling sequential read/write operations, but they aren't optimized to handle high rates of random input/output operations per second (IOPS). If your apps require high rates of random IOPS, use SSD persistent disks. SSD persistent disks are designed for single-digit millisecond latencies. Observed latency is application specific.

Change your default zone and region in the metadata server Note: This only applies to the default configuration. You can change the default zone and region in your metadata server by making a request to the metadata server. For example: gcloud compute project-info add-metadata \ --metadata google-compute-default-region=europe-west1,google-compute-default-zone=europe-west1-b The gcloud command-line tool only picks up on new default zone and region changes after you rerun the gcloud init command. After updating your default metadata, run gcloud init to reinitialize your default configuration.https://cloud.google.com/compute/docs/gcloud-compute#change_your_default_zone_and_region_in_the_metadata_server

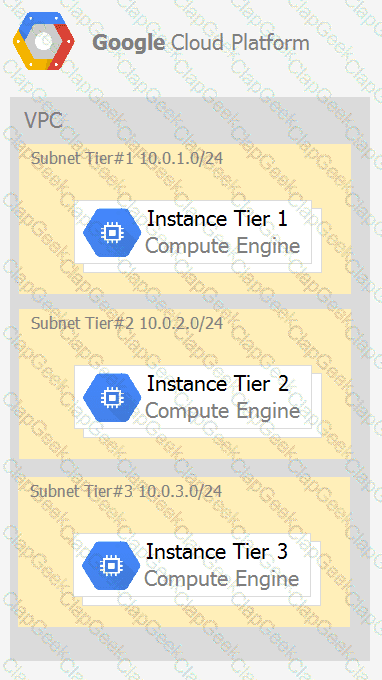

When we create subnets in the same VPC with different CIDR ranges, they can communicate automatically within VPC. Resources within a VPC network can communicatewith one another by using internal (private) IPv4 addresses, subject to applicable network firewall rules

Ref: https://cloud.google.com/vpc/docs/vpc

https://cloud.google.com/bigquery/docs/quickstarts/quickstart-web-ui?authuser=4

https://cloud.google.com/compute/docs/instances/connecting-to-windows#remote-desktop-connection-app

https://cloud.google.com/compute/docs/instances/windows/generating-credentials

https://cloud.google.com/compute/docs/instances/connecting-to-windows#before-you-begin

"Run gcloud configurations list to start the Compute Engine instances". How the heck are you expecting to "start" GCE instances doing "configuration list".

Each gcloud configuration has a 1 to 1 relationship with the region (if a region is defined). Since we have two different regions, we would need to create two separate configurations using gcloud config configurations create

Ref: https://cloud.google.com/sdk/gcloud/reference/config/configurations/create

Secondly, you can activate each configuration independently by running gcloud config configurations activate [NAME]

Ref: https://cloud.google.com/sdk/gcloud/reference/config/configurations/activate

Finally, while each configuration is active, you can run the gcloud compute instances start [NAME] command to start the instance in the configurations region.

https://cloud.google.com/sdk/gcloud/reference/compute/instances/start

When you intially click on Monitoring(Stackdriver Monitoring) it creates a workspac(a stackdriver account) linked to the ACTIVE(CURRENT) Project from which it was clicked.

Now if you change the project and again click onto Monitoring it would create an another workspace(a stackdriver account) linked to the changed ACTIVE(CURRENT) Project, we don't want this as this would not consolidate our result into a single dashboard(workspace/stackdriver account).

If you have accidently created two diff workspaces merge them under Monitoring > Settings > Merge Workspaces > MERGE.

If we have only one workspace and two projects we can simply add other GCP Project under

Monitoring > Settings > GCP Projects > Add GCP Projects.

https://cloud.google.com/monitoring/settings/multiple-projects

Nothing about groupshttps://cloud.google.com/monitoring/settings?hl=en

Creating and starting a preemptible VM instance This page explains how to create and use a preemptible virtual machine (VM) instance. A preemptible instance is an instance you can create and run at a much lower price than normal instances. However, Compute Engine might terminate (preempt) these instances if it requires access to those resources for other tasks. Preemptible instances will always terminate after 24 hours. To learn more about preemptible instances, read the preemptible instances documentation. Preemptible instances are recommended only for fault-tolerant applications that can withstand instance preemptions. Make sure your application can handle preemptions before you decide to create a preemptible instance. To understand the risks and value of preemptible instances, read the preemptible instances documentation.https://cloud.google.com/compute/docs/instances/create-start-preemptible-instance

1. Create an ingress firewall rule with the following settings: "¢ Targets: all instances with tier #2 service account "¢ Source filter: all instances with tier #1 service account "¢ Protocols: allow TCP:8080 2. Create an ingress firewall rule with the following settings: "¢ Targets: all instances with tier #3 service account "¢ Source filter: all instances with tier #2 service account "¢ Protocols: allow TCP: 8080

cell phones are sending UDP packets and the only that can receive that type of traffic is a External Network TCP/UDPhttps://cloud.google.com/load-balancing/docs/network

https://cloud.google.com/load-balancing/docs/choosing-load-balancer#lb-decision-tree

1. In Stackdriver Logging, create a filter to view only Compute Engine logs. 2. Click Create Export. 3. Choose BigQuery as Sink Service, and the platform-logs dataset as Sink Destination.

Using primitive roles The following table lists the primitive roles that you can grant to access a project, the description of what the role does, and the permissions bundled within that role. Avoid using primitive roles except when absolutely necessary. These roles are very powerful, and include a large number of permissions across all Google Cloud services. For more details on when you should use primitive roles, see the Identity and Access Management FAQ. IAM predefined roles are much more granular, and allow you to carefully manage the set of permissions that your users have access to. See Understanding Roles for a list of roles that can be granted at the project level. Creating custom roles can further increase the control you have over user permissions.https://cloud.google.com/resource-manager/docs/access-control-proj#using_primitive_roles

https://cloud.google.com/iam/docs/understanding-custom-roles

https://gtseres.medium.com/using-service-accounts-across-projects-in-gcp-cf9473fef8f0#:~:text=Go%20to%20the%20destination%20project,Voila!

An external passthrough Network Load Balancer operates at layer 4 (TCP/UDP) and preserves the original client IP address. This is a key requirement stated in the question. It's also designed for external-facing applications that need to handle TCP or UDP traffic directly without proxying at the application layer.

Option A: An internal passthrough Network Load Balancer is used for load balancing traffic within a Virtual Private Cloud (VPC) network, not for exposing applications to the public internet.

Option C & D: Global and regional external proxy Network Load Balancers operate at layer 7 (HTTP/HTTPS) or use a proxy for TCP/SSL, which means they terminate the client connection at the load balancer and establish a new connection to the backend instances. This does not preserve the original client IP address by default (though there are ways to retrieve it via headers, it's not a direct passthrough).

Reference to Google Cloud Certified - Associate Cloud Engineer Documents:

The different types of Google Cloud Load Balancers, their operating layers (L4 vs. L7), and their capabilities, including client IP preservation, are thoroughly documented in the Google Cloud Load Balancing documentation, a critical area for the Associate Cloud Engineer certification. The distinction between passthrough and proxy load balancers is essential.

We need to apply the GCP Best practices. roles/browser Browser Read access to browse the hierarchy for a project, including the folder, organization, and IAM policy. This role doesn't include permission to view resources in the project.https://cloud.google.com/iam/docs/understanding-roles

Cloud Functions is Google Cloud’s event-driven serverless compute platform that lets you run your code locally or in the cloud without having to provision servers. Cloud Functions scales up or down, so you pay only for compute resources you use. Cloud Functions have excellent integration with Cloud Pub/Sub, lets you scale down to zero and is recommended by Google as the ideal serverless platform to use when dependent on Cloud Pub/Sub.

"If you’re building a simple API (a small set of functions to be accessed via HTTP or Cloud Pub/Sub), we recommend using Cloud Functions."

Ref: https://cloud.google.com/serverless-options

https://support.google.com/cloudidentity/answer/6262987?hl=en &ref_topic=7558767

Types of audit logs Cloud Audit Logs provides the following audit logs for each Cloud project, folder, and organization: Admin Activity audit logs Data Access audit logs System Event audit logs Policy Denied audit logs *Data Access audit logs contain API calls that read the configuration or metadata of resources, as well as user-driven API calls that create, modify, or read user-provided resource data.https://cloud.google.com/logging/docs/audit#types

https://cloud.google.com/logging/docs/audit#data-access Cloud Storage: When Cloud Storage usage logs are enabled, Cloud Storage writes usage data to the Cloud Storagebucket, which generates Data Access audit logs for the bucket. The generated Data Access audit log has its caller identity redacted.

https://cloud.google.com/iam/docs/job-functions/auditing#scenario_external_auditors

Because if you directly add users to the IAM roles, then if any users left the organization then you have to remove the users from multiple places and need to revoke his/her access from multiple places. But, if you put a user into a group then its very easy to manage these type of situations. Now, if any user left then you just need to remove the user from the group and all the access got revoked

The organization creates a Google group for these external auditors and adds the current auditor to the group. This group is monitored and is typically granted access to the dashboard application. During normal access, the auditors' Google group is only granted access to view the historic logs stored in BigQuery. If any anomalies are discovered, the group is granted permission to view the actual Cloud Logging Admin Activity logs via the dashboard's elevated access mode. At the end of each audit period, the group's access is then revoked. Data is redacted using Cloud DLP before being made accessible for viewing via the dashboard application. The table below explains IAM logging roles that an Organization Administrator can grant to the service account used by the dashboard, as well as the resource level at which the role is granted.

M1 machine series Medium in-memory databases such as SAP HANA Tasks that require intensive use of memory with higher memory-to-vCPU ratios than the general-purpose high-memory machine types. In-memory databases and in-memory analytics, business warehousing (BW) workloads, genomics analysis, SQL analysis services. Microsoft SQL Server and similar databases.

https://cloud.google.com/compute/docs/machine-types

https://cloud.google.com/compute/docs/machine-types#:~:text=databases%20such%20as-,SAP%20HANA,-In%2Dmemory%20databases

https://www.sap.com/india/products/hana.html#:~:text=is%20SAP%20HANA-,in%2Dmemory,-database%3F

https://cloud.google.com/compute/docs/instance-groups/rolling-out-updates-to-managed-instance-groups#max_unavailable

https://cloud.google.com/sdk/gcloud/reference/projects/create

Quickstart: Creating a New Instance Using the Command Line

Before you begin

1. In the Cloud Console, on the project selector page, select or create a Cloud project.

2. Make sure that billing is enabled for your Google Cloud project. Learn how to confirm billing is enabled for your project.

To use the gcloud command-line tool for this quickstart, you must first install and initialize the Cloud SDK:

1. Download and install the Cloud SDK using the instructions given on Installing Google Cloud SDK.

2. Initialize the SDK using the instructions given on Initializing Cloud SDK.

To use gcloud in Cloud Shell for this quickstart, first activate Cloud Shell using the instructions given on Starting Cloud Shell.

https://cloud.google.com/ai-platform/deep-learning-vm/docs/quickstart-cli#before-you-begin

This answer is the most effective way to validate whether the service account used by the CI/CD server has the appropriate roles in the specific project. By checking the IAM roles assigned to the service account, you can see which permissions the service account has and which resources it can access. You can also check if the service account inherits any roles from the folder or organization levels, which may affect its access to the project. You can use the Google Cloud console, the gcloud command-line tool, or the IAM API to view the IAM roles of a service account.

As to mexblood1's point, CPU utilization is a recommended proxy for traffic when it comes to Cloud Spanner. See: Alerts for high CPU utilization The following table specifies our recommendations for maximum CPU usage for both single-region and multi-region instances. These numbers are to ensure that your instance has enough compute capacity to continue to serve your traffic in the event of the loss of an entire zone (for single-region instances) or an entire region (for multi-region instances). -https://cloud.google.com/spanner/docs/cpu-utilization

Comprehensive and Detailed In Depth Explanation:

The requirement is to export logs from Cloud Logging to a third-party SaaS tool with the least amount of delay possible. Let's analyze each option:

A. Cloud Scheduler, Cloud Function, and querying Cloud Logging: This approach introduces a delay based on the Cloud Scheduler's cron job frequency. The Cloud Function would periodically query Cloud Logging, which might not capture the logs in real-time. This does not meet the "least amount of delay possible" requirement.

B. Cloud Logging sink to Pub/Sub, SaaS tool subscribing to Pub/Sub: Cloud Logging sinks can be configured to export logs in near real-time as they are ingested into Cloud Logging. Pub/Sub is a messaging service designed for asynchronous and near real-time message delivery. By configuring the sink to send logs to a Pub/Sub topic, and having the SaaS tool subscribe to this topic, logs can be delivered to the SaaS tool with minimal delay. This aligns with the requirement for immediate export.

C. Cloud Logging sink to Cloud Storage, SaaS tool reading Cloud Storage: Exporting logs to Cloud Storage involves a batch-oriented approach. Logs are typically written to files periodically. The SaaS tool would then need to poll or be configured to read these files, introducing a significant delay compared to a streaming approach.

D. Cloud Logging sink to BigQuery, SaaS tool querying BigQuery: Similar to Cloud Storage, exporting to BigQuery is more suitable for analytical purposes. The SaaS tool would need to periodically queryBigQuery, which introduces latency and is not the most efficient way to achieve near real-time log delivery.

Therefore, configuring a Cloud Logging sink to Pub/Sub and having the SaaS tool subscribe to the Pub/Sub topic provides the lowest latency for exporting logs.

Google Cloud Documentation References:

Cloud Logging Sinks Overview: https://cloud.google.com/logging/docs/export/configure_export_v2 - This document explains how to create and manage Cloud Logging sinks, including the available destinations.

Pub/Sub Overview: https://cloud.google.com/pubsub/docs/overview - This highlights Pub/Sub 's capabilities for real-time message delivery and its use cases in streaming data.

Exporting Logs with Cloud Logging: https://cloud.google.com/logging/docs/export - This provides a comprehensive guide to exporting logs from Cloud Logging to various destinations, emphasizing Pub/Sub for streaming.

===========

To minimize latency for global users and support growth across multiple geographical regions, you must deploy your resources in those regions and use a global load balancing service.

Action B (Multi-Region Deployment): Deploying VMs in multiple regions closest to your users is necessary to reduce latency (by shortening the physical distance data must travel) and support regional growth.

Action C (Global External Application Load Balancer): The external Application Load Balancer (Global) is the Google-recommended Layer 7 solution for applications that require global reach. It provides a single anycast IP address and directs users to the nearest healthy backend, thus minimizing latency globally.

This is the most optimal solution. Rather than recreating all nodes, you create a new node pool with GPU enabled. You then modify the pod specification to target particular GPU types by adding node selector to your workloads Pod specification. YOu still have a single cluster so you pay Kubernetes cluster management fee for just one cluster thus minimizing the cost.

Ref: https://cloud.google.com/kubernetes-engine/docs/how-to/gpus

Ref: https://cloud.google.com/kubernetes-engine/pricing

Example:

apiVersion: v1

kind: Pod

metadata:

name:my-gpu-pod

spec:

containers:

name:my-gpu-container

image: nvidia/cuda:10.0-runtime-ubuntu18.04

command: [/bin/bash]

resources:

limits:

nvidia.com/gpu: 2

nodeSelector:

cloud.google.com/gke-accelerator: nvidia-tesla-k80# or nvidia-tesla-p100 or nvidia-tesla-p4 or nvidia-tesla-v100 or nvidia-tesla-t4

Comprehensive and Detailed In Depth Explanation:

The goal is to proactively identify stuck Dataflow jobs with minimal management effort. Let's analyze each option:

A. Error Reporting for slowdowns: Error Reporting primarily focuses on capturing and aggregating exceptions and errors (stack traces). While a stuck job might eventually throw an error, it might also just become unresponsive without generating explicit errors. Relying solely on Error Reporting might not provide timely detection of stuck jobs. Identifying stack traces that indicate slowdowns can also be complex and require significant manual configuration and analysis.

B. Personalized Service Health dashboard: The Personalized Service Health dashboard provides information about Google Cloud service incidents that might be affecting your resources. While it can alert you to broader Dataflow service outages, it won't specifically identify individual stuck jobs due to application-level errors or logic within your Dataflow pipeline.

C. Pub/Sub messages for delays, backup job, and Cloud Tasks alerts: This approach involves significant custom implementation and management. You would need to instrument your Dataflow jobs to detect delays, send messages to Pub/Sub, manage a backup job, and configure Cloud Tasks for alerting. This adds considerable operational overhead and complexity.

D. Cloud Monitoring alerts on data freshness metric: Dataflow provides built-in metrics, including "data freshness" (or similar metrics like "system lag" or "processing time"), which indicate how far behind the pipeline is in processing data. If a job gets stuck, the data freshness will deteriorate beyond an acceptable threshold. Cloud Monitoring allows you to easily set up alerts based on these built-in metrics. This requires minimal custom coding and leverages the platform's existing monitoring capabilities, aligning with the "minimal management effort" requirement.

Therefore, setting up Cloud Monitoring alerts on relevant Dataflow metrics like data freshness is the most efficient and recommended way to detect stuck Dataflow jobs with minimal management overhead.

Google Cloud Documentation References:

Monitoring Dataflow Pipelines: https://cloud.google.com/dataflow/docs/guides/monitoring-your-pipeline - This document details the various metrics available for monitoring Dataflow jobs in Cloud Monitoring, including metrics related to processing time, system lag, and data freshness.

Creating Alerts in Cloud Monitoring: https://cloud.google.com/monitoring/alerts/create - Explains how to set up alerts based on metrics collected by Cloud Monitoring.

Dataflow Metrics: https://cloud.google.com/dataflow/docs/reference/monitoring-metrics - Provides a comprehensive list of Dataflow metrics that can be used for monitoring and alerting.

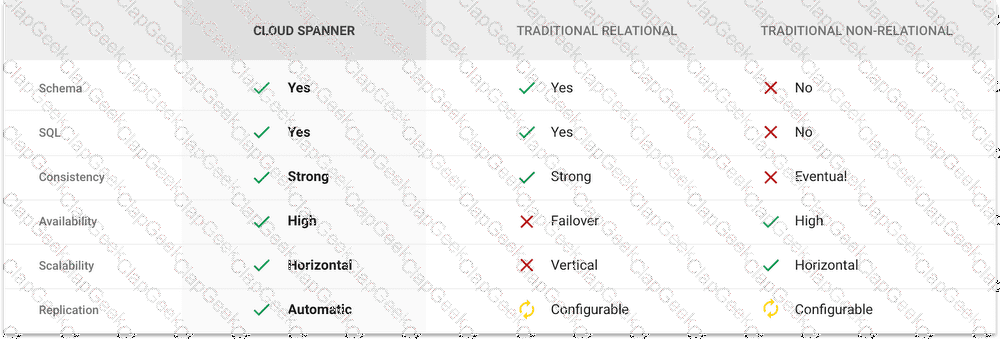

https://cloud.google.com/spanner/docs/cpu-utilization#recommended-max

https://cloud.google.com/spanner/docs/getting-started/set-up

Keywords: - continually -> Standard - mission-critical analytics -> dual-regional

The requirement is for private communication between a Cloud Run service and a GKE API, following best practices.

Option A exposes the GKE API to the public internet, which violates the "privately reach" requirement. Relying on dynamic IP allowlisting with Cloud Armor is complex and less secure than private networking.

Options B and C configure overly permissive firewall rules (allowing all egress or ingress) and do not establish the necessary private network path between Cloud Run (which normally runs outside your VPC) and the GKE cluster within your VPC.

Option D describes the standard Google-recommended pattern for this scenario:

Internal Application Load Balancer (ILB): Expose the GKE service (API) using an ILB. This gives the service a private IP address accessible only within the VPC network (or connected networks).

Cloud DNS: Create a private DNS zone and record pointing a fully qualified domain name (FQDN) to the ILB's private IP address. This allows services to reach the API via a stable name instead of an IP.

Serverless VPC Access Connector: This connector creates a bridge allowing serverless services like Cloud Run to send traffic into your VPC network.

Cloud Run Configuration: Configure the Cloud Run service to use the VPC Access connector. The application code can then call the GKE API using its private FQDN registered in Cloud DNS.

This setup ensures traffic flows entirely over private networks (within the VPC via the ILB and through the VPC Access connector), meeting the private communication requirement securely and reliably.

as the instances (normal or preemptible) would be terminated and relaunched if the health check fails either due to application not configured properly or the instances firewall do not allow health check to happen.

GCP provides health check systems that connect to virtual machine (VM) instances on a configurable, periodic basis. Each connection attempt is called a probe. GCP records the success or failure of each probe.

Health checks and load balancers work together. Based on a configurable number of sequential successful or failed probes, GCP computes an overall health state for each VM in the load balancer. VMs that respond successfully for the configured number of times are considered healthy. VMs that fail to respond successfully for a separate number of times are unhealthy.

GCP uses the overall health state of each VM to determine its eligibility for receiving new requests. In addition to being able to configure probe frequency and health state thresholds, you can configure the criteria that define a successful probe.

The best option is to instruct the external consultant to generate an SSH key pair, and request the public key from the consultant. Then, add the public key to the instance yourself, and have the consultant access the instance through SSH with their private key. This way, you can grant the consultant access to the instance without requiring a Google account or exposing the instance’s public IP address. This option also follows the best practice of using user-managed SSH keys instead of service account keys for SSH access1.

Option A is not feasible because the external consultant does not have a Google account, and therefore cannot use Identity-Aware Proxy (IAP) to access the instance. IAP requires the user to authenticate with a Google account and have the appropriate IAM permissions to access the instance2. Option B is not secure because it exposes the instance’s public IP address, which can increase the risk of unauthorized access or attacks. Option D is not correct because it reverses the roles of the public and private keys. The public key should be added to the instance, and the private key should be kept by the consultant. Sharing the private key with anyone else can compromise the security of the SSH connection3.

1: https://cloud.google.com/compute/docs/instances/adding-removing-ssh-keys

2: https://cloud.google.com/iap/docs/using-tcp-forwarding

3: https://cloud.google.com/compute/docs/instances/connecting-advanced#sshbetweeninstances

The best option is to attach a single service account to the compute instances and add minimal rights to the service account. Then, allow the service account to impersonate a Cloud Identity user with elevated permissions to create, update, or delete resources. This way, the service account can use short-lived access tokens to authenticate to Google Cloud APIs without needing to manage service account keys. This option follows the principle of least privilege and reduces the risk of credential leakage and misuse.

Option A is not recommended because it requires human intervention, which can slow down the CI/CD pipeline and introduce human errors. Option C is not secure because it grants all required IAM permissions to a single service account, which can increase the impact of a compromised key. Option D is not cost-effective because it requires creating and managing multiple service accounts and keys, as well as using a secret manager service.

1: https://cloud.google.com/iam/docs/impersonating-service-accounts

2: https://cloud.google.com/iam/docs/best-practices-for-managing-service-account-keys

3: https://cloud.google.com/iam/docs/understanding-service-accounts

Signed URLs are used to give time-limited resource access to anyone in possession of the URL, regardless of whether they have a Google account.https://cloud.google.com/storage/docs/access-control/signed-urls

https://cloud.google.com/sql/docs/mysql/backup-recovery/backups#can_i_export_a_backup

https://cloud.google.com/sql/docs/mysql/import-export#automating_export_operations

Cloud SQL Auth Proxy: This proxy ensures secure connections to your Cloud SQL database by automatically handling encryption (SSL/TLS) and IAM-based authentication. It simplifies the management of secure connections without needing to manage SSL/TLS certificates manually. IAM Database Authentication: This allows you to use IAM credentials to authenticate to the database, providing a unified and secure authentication mechanism that integrates seamlessly with Google Cloud IAM.

The goal is to create a serverless, scalable, and asynchronous transaction processing system with minimal management overhead.

Serverless Requirement:Options involving installing Kafka on VMs (A, B) or using VM instances for processing (B, C) introduce management overhead associated with VMs (patching, scaling configuration, OS management) and Kafka cluster management, violating the serverless and minimal management criteria.

Asynchronous Requirement:Both Kafka and Pub/Sub can handle asynchronous messaging. However, Pub/Sub is Google Cloud's fully managed, serverless messaging service, inherently minimizing management overhead compared to self-managed Kafka on VMs.

Scalability and Processing:Cloud Run is a fully managed, serverless platform that automatically scales based on traffic, suitable for processing transactions without managing underlying infrastructure. VM instances require manual scaling configuration or managed instance groups, adding overhead.

Combining Pub/Sub for asynchronous message ingestion (fully managed, serverless) and Cloud Run for processing (fully managed, serverless, scalable) directly meets all requirements: serverless, scalable, asynchronous, and minimal management overhead. Option D is the only one that uses fully serverless components for both ingestion and processing.

You can deploy to a different project by using –project flag.

By default, the service is deployed the current project configured via:

$ gcloud config set core/project PROJECT

To override this value for a single deployment, use the –project flag:

$ gcloud app deploy ~/my_app/app.yaml –project=PROJECT

Ref:https://cloud.google.com/sdk/gcloud/reference/app/deploy

https://cloud.google.com/compute/docs/autoscaler#specifications

Autoscaling works independently from autohealing. If you configure autohealing for your group and an instance fails the health check, the autohealer attempts to recreate the instance. Recreating an instance can cause the number of instances in the group to fall below the autoscaling threshold (minNumReplicas) that you specify.

Since we need the application running at all times, we need a minimum 1 instance.

Only a single instance of the VM should run, we need a maximum 1 instance.

We want the application running at all times. If the VM crashes due to any underlying hardware failure, we want another instance to be added to MIG so that application can continue to serve requests. We can achieve this by enabling autoscaling. The only option that satisfies these three is Set autoscaling to On, set the minimum number of instances to 1, and then set the maximum number of instances to 1.

Ref: https://cloud.google.com/compute/docs/autoscaler

Cloud Debugger helps inspect the state of an application, at any code location, without stopping or slowing down the running app //https://cloud.google.com/debugger/docs

Create an instance template for the instances so VMs have same specs. Set the "˜Automatic Restart' to on to VM automatically restarts upon crash. Set the "˜On-host maintenance' to Migrate VM instance. This will take care of VM during maintenance window. It will migrate VM instance making it highly available Add the instance template to an instance group so instances can be managed.

• onHostMaintenance: Determines the behavior when a maintenance event occurs that might cause your instance to reboot.

• [Default] MIGRATE, which causes Compute Engine to live migrate an instance when there is a maintenance event.

• TERMINATE, which stops an instance instead of migrating it.

• automaticRestart: Determines the behavior when an instance crashes or is stopped by the system.

• [Default] true, so Compute Engine restarts an instance if the instance crashes or is stopped.

• false, so Compute Engine does not restart an instance if the instance crashes or is stopped.

Enabling automatic restart ensures that compute engine instances are automatically restarted when they crash. And Enabling Migrate VM Instance enables live migrates i.e. compute instances are migrated during system maintenance and remain running during the migration.

Automatic Restart  If your instance is set to terminate when there is a maintenance event, or if your instance crashes because of an underlying hardware issue, you can set up Compute Engine to automatically restart the instance by setting the automaticRestart field to true. This setting does not apply if the instance is taken offline through a user action, such as calling sudo shutdown, or during a zone outage.

Ref: https://cloud.google.com/compute/docs/instances/setting-instance-scheduling-options#autorestart

Enabling the Migrate VM Instance option migrates your instance away from an infrastructure maintenance event, and your instance remains running during the migration.Your instance might experience a short period of decreased performance, although generally, most instances should not notice any difference. This is ideal for instances that require constant uptime and can tolerate a short period of decreased performance.

Ref: https://cloud.google.com/compute/docs/instances/setting-instance-scheduling-options#live_migrate

The requirements specify a relational database that provides global scale and is a managed service.

Cloud Spanner is Google Cloud's globally distributed, strong-consistency database service. It provides limitless horizontal scaling while maintaining the structure of a relational database, making it the best fit for an application with a rapidly growing, global user base. As a fully managed service, it inherently minimizes management and administration efforts.

Cloud SQL (Option A) is a regional managed relational database and does not offer the same unlimited, global horizontal scaling capability as Spanner.

https://cloud.google.com/appengine/docs/standard/python/splitting-traffic#gcloud

Our requirement is to follow Google recommended practices to achieve the end result. Configuring Private Google Access for On-Premises Hosts is best achieved by VPN/Interconnect + Advertise Routes + Use restricted Google IP Range.

Using Cloud VPN or Interconnect, create a tunnel to a VPC in GCP

Using Cloud Router to create a custom route advertisement for 199.36.153.4/30. Announce that network to your on-premises network through the VPN tunnel.

In your on-premises network, configure your DNS server to resolve *.googleapis.com as a CNAME to restricted.googleapis.com is the right answer right, and it is what Google recommends.

Ref: https://cloud.google.com/vpc/docs/configure-private-google-access-hybrid

You must configure routes so that Google API traffic is forwarded through your Cloud VPN or Cloud Interconnect connection, firewall rules on your on-premises firewall to allow the outgoing traffic, and DNS so that traffic to Google APIs resolves to the IP range youve added to your routes.

You can use Cloud Router Custom Route Advertisement to announce the Restricted Google APIs IP addresses through Cloud Router to your on-premises network. The Restricted Google APIs IP range is 199.36.153.4/30. While this is technically a public IP range, Google does not announce it publicly. This IP range is only accessible to hosts that can reach your Google Cloud projects through internal IP ranges, such as through a Cloud VPN or Cloud Interconnect connection. Without having a public IP address or access to the internet, the only way you could connect to cloud storage is if you have an internal route to it.

So Negotiate with the security team to be able to give public IP addresses to the servers is not right. Following Google recommended practices is synonymous with using Googles services (Not quite, but it is  at least for the exam !!).

So In this VPC, create a Compute Engine instance and install the Squid proxy server on this instance is not right.

Migrating the VM to Compute Engine is a bit drastic when Google says it is perfectly fine to have Hybrid Connectivity architectures https://cloud.google.com/hybrid-connectivity.

So,

Use Migrate for Compute Engine (formerly known as Velostrata) to migrate these servers to Compute Engine is not right.

Managed instance groups offer autoscaling capabilities that let you automatically add or delete instances from a managed instance group based on increases or decreases in load (CPU Utilization in this case). Autoscaling helps your apps gracefully handle increases intraffic and reduce costs when the need for resources is lower. You define the autoscaling policy and the autoscaler performs automatic scaling based on the measured load (CPU Utilization in this case). Autoscaling works by adding more instances to your instance group when there is more load (upscaling), and deleting instances when the need for instances is lowered (downscaling). Ref:https://cloud.google.com/compute/docs/autoscaler

Before you run the gcloud compute instances list command, you need to do two things: authenticate with your user account and set the default project for gcloud CLI.

To authenticate with your user account, you need to run gcloud auth login, enter your login credentials in the dialog window, and paste the received login token to gcloud CLI. This will authorize the gcloud CLI to access Google Cloud resources on your behalf1.

To set the default project for gcloud CLI, you need to run gcloud config set project $my_project, where $my_project is the ID of the project that contains the instances you want to list. This will saveyou from having to specify the project flag for every gcloud command2.

Option B is not recommended, because using a service account key increases the risk of credential leakage and misuse. It is also not necessary, because you can use your user account to authenticate to the gcloud CLI3. Option C is not correct, because there is no such thing as a Cloud Identity user account key. Cloud Identity is a service that provides identity and access management for Google Cloud users andgroups4. Option D is not required, because the gcloud compute instances list command does not depend on the default zone. You can list instances from all zones or filter by a specific zone using the --filter flag.

1: https://cloud.google.com/sdk/docs/authorizing

2: https://cloud.google.com/sdk/gcloud/reference/config/set

3: https://cloud.google.com/iam/docs/best-practices-for-managing-service-account-keys

4: https://cloud.google.com/identity/docs/overview

https://cloud.google.com/sdk/gcloud/reference/compute/instances/list

https://cloud.google.com/kuberun/docs/architecture-overview#components_in_the_default_installation

Let's analyze each option based on the requirements: PostgreSQL compatibility, significant performance improvement, minimal schema/code changes, handling large data volumes, Google-recommended practices, and cost minimization:

A. Migrate your data to AlloyDB: AlloyDB for PostgreSQL is a fully managed, PostgreSQL-compatible database service that offers significant performance improvements over standard PostgreSQL due to its architectural optimizations. It is designed to handle large data volumes and minimizes the need for schema and application code changes as it's wire-compatible with PostgreSQL. This aligns well with the requirements for performance improvement, minimal changes, large data, and being a Google-recommended option for PostgreSQL workloads.

B. Migrate your data to Spanner: Spanner is a globally distributed, horizontally scalable database with strong consistency. While it offers excellent scalability and performance, it's not directly PostgreSQL-compatible. Migrating to Spanner would likely require significant schema and application code changes due to differences in data modeling and SQL dialect.

C. Migrate your data to Firebase: Firebase is a suite of mobile and web development tools, with its primary database offering being Firestore (a NoSQL document database) and Realtime Database. These are not PostgreSQL-compatible and would require substantial changes to the data model and application code.

D. Migrate your data to Bigtable: Bigtable is a highly scalable NoSQL wide-column store. It's not compatible with PostgreSQL and requires a completely different data model and application logic.

Therefore, AlloyDB is the most suitable option as it provides PostgreSQL compatibility for minimal migration effort, significant performance improvements, scalability for large data volumes, and is a recommended Google Cloud database service for PostgreSQL workloads.

Google Cloud Documentation References:

AlloyDB for PostgreSQL Overview: https://cloud.google.com/alloydb/docs/overview - This document highlights AlloyDB 's PostgreSQL compatibility, performance benefits, scalability, and suitability for migrating existing PostgreSQL workloads.

Spanner Overview: https://cloud.google.com/spanner/docs/overview - This emphasizes Spanner 's unique features and differences from traditional relational databases like PostgreSQL.

Firebase Documentation: https://firebase.google.com/docs - This outlines the features of Firebase, including Firestore and Realtime Database, highlighting their NoSQL nature and incompatibility with PostgreSQL.

Cloud Bigtable Overview: https://cloud.google.com/bigtable/docs/overview - This describes Bigtable as a NoSQL database, emphasizing its differences from relational databases like PostgreSQL.

===========

"Google Cloud VPC Network Peering allows internal IP address connectivity across two Virtual Private Cloud (VPC) networks regardless of whether they belong to the same project or the same organization."

https://cloud.google.com/vpc/docs/vpc-peering

while

"Cloud Interconnect provides low latency, high availability connections that enable you to reliably transfer data between your on-premises and Google Cloud Virtual Private Cloud (VPC) networks."

https://cloud.google.com/network-connectivity/docs/interconnect/concepts/overview

and

"HA VPN is a high-availability (HA) Cloud VPN solution that lets you securely connect your on-premises network to your VPC network through an IPsec VPN connection in a single region."

https://cloud.google.com/network-connectivity/docs/vpn/concepts/overview

Navigate to Stackdriver Logging and select resource.labels.project_id=*. is not right.

Log entries are held in Stackdriver Logging for a limited time known as the retention period  which is 30 days (default configuration). After that, the entries are deleted. To keep log entries longer, you need to export them outside of Stackdriver Logging by configuring log sinks.

Ref: https://cloud.google.com/blog/products/gcp/best-practices-for-working-with-google-cloud-audit-logging

Configure a Cloud Scheduler job to read from Stackdriver and store the logs in BigQuery. Configure the table expiration to 60 days. is not right.

While this works, it makes no sense to use Cloud Scheduler job to read from Stackdriver and store the logs in BigQuery when Google provides a feature (export sinks) that does exactly the same thing and works out of the box.

Ref: https://cloud.google.com/logging/docs/export/configure_export_v2

Create a Stackdriver Logging Export with a Sink destination to Cloud Storage. Create a lifecycle rule to delete objects after 60 days. is not right.

You can export logs by creating one or more sinks that include a logs query and an export destination. Supported destinations for exported log entries are Cloud Storage, BigQuery, and Pub/Sub.

Ref: https://cloud.google.com/logging/docs/export/configure_export_v2

Sinks are limited to exporting log entries from the exact resource in which the sink was created: a Google Cloud project, organization, folder, or billing account. If it makes it easier to exporting from all projects of an organication, you can create an aggregated sink that can export log entries from all the projects, folders, and billing accounts of a Google Cloud organization.

Ref: https://cloud.google.com/logging/docs/export/aggregated_sinks

Either way, we now have the data in Cloud Storage, but querying logs information from Cloud Storage is harder than Querying information from BigQuery dataset. For this reason, we should prefer Big Query over Cloud Storage.

Create a Stackdriver Logging Export with a Sink destination to a BigQuery dataset. Configure the table expiration to 60 days. is the right answer.

You can export logs by creating one or more sinks that include a logs query and an export destination. Supported destinations for exported log entries are Cloud Storage, BigQuery, and Pub/Sub.

Ref: https://cloud.google.com/logging/docs/export/configure_export_v2

Sinks are limited to exporting log entries from the exact resource in which the sink was created: a Google Cloud project, organization, folder, or billing account. If it makes it easier to exporting from all projects of an organication, you can create an aggregated sink that can export log entries from all the projects, folders, and billing accounts of a Google Cloud organization.

Ref: https://cloud.google.com/logging/docs/export/aggregated_sinks

Either way, we now have the data in a BigQuery Dataset. Querying information from a Big Query dataset is easier and quicker than analyzing contents in Cloud Storage bucket. As our requirement is to Quickly analyze the log contents, we should prefer Big Query over Cloud Storage.

Also, You can control storage costs and optimize storage usage by setting the default table expiration for newly created tables in a dataset. If you set the property when the dataset is created, any table created in the dataset is deleted after the expiration period. If you set the property after the dataset is created, only new tables are deleted after the expiration period.

For example, if you set the default table expiration to 7 days, older data is automatically deleted after 1 week.

Ref: https://cloud.google.com/bigquery/docs/best-practices-storage

https://cloud.google.com/logging/docs/audit

Data Access audit logs Data Access audit logs contain API calls that read the configuration or metadata of resources, as well as user-driven API calls that create, modify, or read user-provided resource data.

https://cloud.google.com/logging/docs/audit#data-access

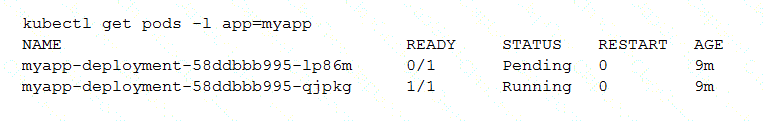

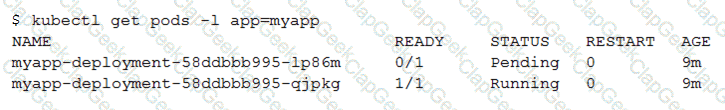

https://kubernetes.io/docs/tasks/debug-application-cluster/debug-application/#debugging-pods

https://cloud.google.com/appengine/docs/flexible/managing-projects-apps-billing#:~:text=Each%20Cloud%20project%20can%20contain%20only%20a%20single%20App%20Engine%20application%2C%20and%20once%20created%20you%20cannot%20change%20the%20location%20of%20your%20App%20Engine%20application.

Two App engine can't be running on the same project: you can check this easy diagram for more info:https://cloud.google.com/appengine/docs/standard/an-overview-of-app-engine#components_of_an_application

And you can't change location after setting it for your app Engine.https://cloud.google.com/appengine/docs/standard/locations

App Engine is regional and you cannot change an apps region after you set it. Therefore, the only way to have an app run in another region is by creating a new project and targeting the app engine to run in the required region (asia-northeast1 in our case).

Ref: https://cloud.google.com/appengine/docs/locations

https://cloud.google.com/compute/docs/instances/managing-instance-access

Comprehensive and Detailed In Depth Explanation:

Let's evaluate each database option against the requirements: automatic scaling, multi-region support, and low latency for a growing social media platform:

A. Bigtable: Bigtable is a highly scalable NoSQL database designed for large analytical and operational workloads with low latency. It offers excellent horizontal scalability and can be deployed across multiple regions for high availability and lower latency for a global user base. However, it's a NoSQL database and might require significant changes to your existing PostgreSQL data model and application code.

B. BigQuery: BigQuery is a fully managed, serverless data warehouse optimized for analytical queries on large datasets. It's not designed for low-latency transactional workloads that a social media platformwould require for real-time user interactions. While it's globally available, its primary use case is not operational database needs.

C. Spanner: Spanner is a globally distributed, horizontally scalable relational database service with strong consistency. It offers automatic scaling, built-in multi-region and multi-continental configurations for high availability and low latency across a global user base, and supports standard SQL (with some extensions). This makes it a strong candidate for a rapidly growing platform needing scalability, global presence, and low latency. While it's not directly PostgreSQL, it offers a relational model and tools to aid migration.

D. Cloud SQL for PostgreSQL: Cloud SQL offers managed PostgreSQL instances with automatic scaling capabilities. It supports high availability within a region and cross-region read replicas for disaster recovery and read scaling. However, its multi-region capabilities for write operations and automatic scaling across regions are more limited compared to Spanner. For a rapidly growing platform with a primarily North American user base but future global expansion in mind and a need for low latency, Spanner's architecture is better suited for true multi-region write capabilities and consistent low latency globally.

Considering the requirements for automatic scaling, multi-region support for both reads and writes with low latency for a growing user base, Spanner is the most appropriate choice.

Google Cloud Documentation References:

Cloud Spanner Overview: https://cloud.google.com/spanner/docs/overview - This document highlights Spanner 's global scalability, strong consistency, and multi-region capabilities.

Cloud Bigtable Overview: https://cloud.google.com/bigtable/docs/overview - While scalable and low-latency, it 's a NoSQL database, which might require significant application changes.

BigQuery Overview: https://cloud.google.com/bigquery/docs/introduction - Focuses on analytics, not low-latency transactional workloads.

Cloud SQL for PostgreSQL Overview: https://cloud.google.com/sql/docs/postgres/overview - While it offers scaling and regional HA, its multi-region write capabilities are not as robust as Spanner 's.

===========
